Introduction
Thank you for purchasing this quality product. o minimize the risk of injury we urge that our cli-
ents take some basic safety precautions when using this device. Please read the operation in-
structions carefully and make sure you have understood its content.
Keep these operation instructions safe.
About the product
The ash vacuum cleaner is used to clean fireplaces or barbecue trays with cold, dry ash. The large
container and flexible hose make it possible to reach hard-to-reach places and clean them thoroughly.
The hoover is equipped with a replaceable air filter. The product is not intended for commercial use.
The correct, reliable and safe operation of the appliance depends on its proper use.
Before working with the appliance, read the entire manual and follow all instructions and directions
contained therein.
No responsibility will be accepted for damage or injury caused by failure to observe the safety regula-
tions and instructions in this manual.
The unit is supplied in complete condition and requires no assembly. dditionally included in the deliv-
ery is an elastic hose as well as an aluminium suction nozzle.
Safety instructions
•This appliance is not intended for use by persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person familiar with it and responsible
for their safety.
•Children must not use the appliance and must be supervised around it to ensure that they
do not play with it. Cleaning and maintenance work by children should not be carried out
without supervision.
•The ash hoover is intended for dry operation. Sucking up water, wet ash or other wet waste
materials is prohibited. This creates a risk of electric shock, which may result in a health
hazard to the user or uninvolved persons.
•Never vacuum hot, glowing or burning objects. This may cause a fire or explosion and res-
ult in serious injury or death to the user. The maximum temperature of the impurities to be
vacuumed must not exceed 40°C.
•The appliance is intended for indoor use and must not be exposed to the effects of water,
including rain.
•Before connecting the power plug to the mains, make sure that the parameters of the power
supply match those on the appliance rating plate.
•Before each use, check the condition of the unit, as well as the condition of the power cable
and the power plug. If any defects are found, do not operate the unit. Have any defects rec-
tified by an appropriate specialist company.
•lways disconnect the unit from the mains before carrying out maintenance work.
•Store the unit in a place that is not accessible to uninvolved persons, especially children.
Even during functional operation, make sure that the unit is stored in a place inaccessible to
uninvolved persons, especially children.
•The unit must be carried by the handle. It must not be transported by pulling on the power
cable.
•When the appliance is used as a blower, do not point the outlet of the hose at people or an-
imals.
•Wear protective goggles and gloves during use.
•Check the condition of the hose regularly. Do not use the appliance with a damaged hose.
https://www.XPOtool.com rtikel 63122 Seite 3
The Tool Experts
04 2021-1

echnical data
Mains voltage 230 V
Mains frequency 50 Hz
Rated power 800 W
Hose length 100 cm
Length of suction nozzle 23 cm
Container volume 20 l
Insulation class II
Degree of protection IPX0
Assembly
https://www.XPOtool.com rtikel 63122 Seite 4
The Tool Experts
04 2021-1

https://www.XPOtool.com rtikel 63122 Seite 5
The Tool Experts
04 2021-1

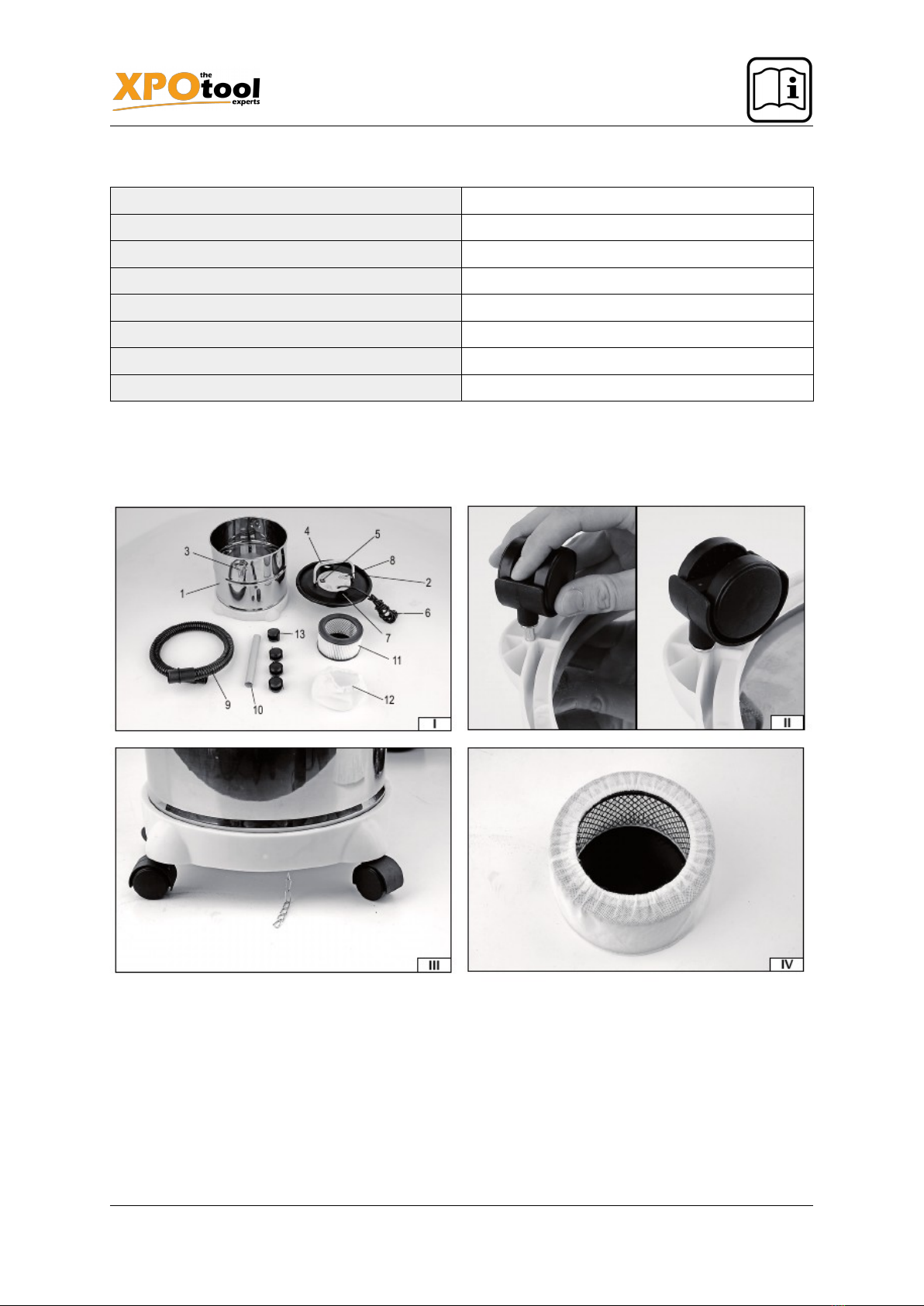

Parts List
Nr. Bezeichnung
1Tank
2Cover
3Cover Latch
4Holder
5Switch
6Power cord with plug
7Inlet
8Socket
9Flexible Hose
10 Suction Nozzle
11 ir Filter
12 Cloth it Filter
13 Wheel
Operating the unit
Preparing for operation
•First check the container of the hoover and clean it of waste material if necessary. Then check
the condition of the filters. The ash hoover has two types of filters: a rigid one equipped with a
rubber seal and a fabric filter. When dirty, the filters must be cleaned using compressed air at
no more than 3 bar pressure. If the contamination cannot be removed from the filters, the fil-
ters must be replaced with new ones. Check the condition of the seal integrated at the upper
edge of the rigid filter. If it is damaged, the filter must be replaced with a new one.
•Notice! It is forbidden to operate the hoover without a properly fitted air filter. This may dam-
age the hoover and also increases the risk of electric shock.
•Small wheels can be attached to the base plate of the hoover. For this purpose, the pin of the
wheels must be pressed into the opening of the base plate (II).
•There is a small metal chain on the bottom of the container (III). Check that it is in contact with
the base during operation, as this can dissipate electrical charge that has built up during oper-
ation.
•The fabric filter is pulled over the rigid filter so that the fabric filter surrounds the rigid filter at
the top (IV). The filters are to be attached to the lower side of the cover so that the seal of the
stiff filter fits evenly (V). The gasket integrated at the top of the filter has a flange that allows
the filter to be securely fastened.
•Mount the cover on the upper edge of the hoover tank so that it fits around the entire circum-
ference. Press the cover onto the tank using the snaps. There are two marked points on the
cover that help make this connection completely tight (VI).
•Connect the elastic hose to the inlet. The hose connector must be inserted into the hole so
that its notches align with the bulges of the inlet, and then turned in the direction of the arrow
marked "lock" (VII). Make sure that the hose does not slip out of the hole during operation.
Connect the suction nozzle to the loose end of the hose by inserting it into the hose connector
(VIII).
•Connect the suction nozzle to the free end of the hose by pushing it into the hose connector
(VIII).
https://www.XPOtool.com rtikel 63122 Seite 6
The Tool Experts
04 2021-1

•To remove the inner part, turn its connector in the direction of the arrow marked "LOOSE" and
then pull the connector out of the inlet.
•The hoover also offers the possibility to connect a hose to the outlet so that it can also be
used as a blower. The hose is connected to the connector by pressing the socket (IX).
Commissioning
Attention! Sucking up hot ash is prohibited. The temperature of the suction material must not exceed
40 .℃
•Make sure that all preparatory activities have been carried out.
•Likewise, make sure that the hoover switch is set to "O" (Off) (V).
•Now insert the plug of the power cord into the mains socket, then set the switch to "I" (On).
•fter finishing work and before maintenance work, switch the hoover off again at the switch
and pull out the plug.
Notice! When using the hoover as a blower, make sure that the container has been emptied and the
filter cleaned or replaced with a new one. There is a risk of debris still remaining in the container being
blown out through the outlet opening.
Maintenance
Note! Pull out the plug before maintenance work!
•fter each use of the hoover, the container, the lid seal and the air filter must be checked as
described in these instructions.
•The ash vacuum cleaner is cleaned from the outside with compressed air of no more than 3
bar pressure. Special attention should be paid to the permeability of the ventilation open-
ings of both the supply and exhaust air. If necessary, clean them with compressed air of no
more than 3 bar. Do not use sharp metal objects to clean the ventilation openings.
•Do not immerse the ash vacuum cleaner in water for cleaning.
•The hoover hose must be checked for damage before and after use. It is forbidden to use a
damaged hose. Major soiling of the housing should be removed with a soft cloth.
https://www.XPOtool.com rtikel 63122 Seite 7
The Tool Experts
04 2021-1

Disposal regulations
EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple-
mented in the law related to electrical and electronic equipment and appliances.
ll WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out
wheeled waste bin logo. This logo indicates that this electric equipment must not be disposed with the
domestic waste.
The company WilTec Technik GmbH has been registrated in the German registry E R under the
WEEE-registration number DE45283704.
Disposal of used electrical and electronic appliances
(intended for use in the countries of the European
Union and other European countries with a separate
collection system for these appliances).
The logo on the article or on its packaging points out
that this article must not be treated as normal house-
hold waste but must be disposed to a recycling collec-
tion point for electronic and electrical waste equip-
ment. By contributing to the correct disposal of this art-
icle you protect the environment and the health of your
fellow men. Environment and health are threatened by
inappropriate disposal.
Materials’ recycling helps reduce the consumption of raw materials.
dditional information on recycling this article can be provided by your local community, municipal
waste disposal facilities or the store where you purchased the article.
ddress:
WilTec Wildanger Technik GmbH
Königsbenden 12 / 28
D-52249 Eschweiler
Important notice:
The reprint or reproduction, even of excerpts, and any commercial use, even in part of this instructions
manual require the written permission of WilTec Wildanger Technik GmbH.
