Eisno EIS-B-RH-SS60-01 User manual

CH60A-N120 INOX
CH90A-N120 INOX
2012.07.25
于丽
Cod:0103077303
DD120723XXT01
通用说明书
౶ᢡҜEISNO
᝼ࢀᆉ
01
1.
2.
3.ℸࠋક䇈ᯢк᳔㒜៤ક໻ᇣЎ$㒌ⱘϔˈ㺙䅶៤ݠDŽ
4.ℸࠋક㽕∖ᄫ䗍⏙᱄ˈϡᕫ᳝ⓣˈ䫭ˈ῵㊞⦄䈵DŽ

Cooker Hood
Model EIS-B-RH-SS60-01
EIS-B-RH-SS90-01
Cod:0103077303

Informationandadvice
must
light a flame
Attention ! Observe the warning in the instruction sheet concerning the
operation of the appliance when air is discharged from the room
has been used.
oil splashing and
becoming a fire hazard.

Information
Knowyourcookerhood
Please read these instructions
Before using your cooker hood
1.Inner chimney 2.Outside chimney 
3.bellows 4.Main
body assembly 
5.Air duct assembly 6.Filter assembly 
Congratulations on the
purchase of our Cooker hood,
which is
designed to include
many superior features that
permit you the fullest
expression of your living.
Before installing and/or using
the cooker hood carefully read
all the instructions.

We recommend that after
installation the bottom of
the hood should be no less
than 650mm and no more
than 750mm above the
stove's heating elements
and burners.
Check voltage and
Frequency given on the
rating plate located on the
inside of the hood.
The air must
notbe discharged into
a f l
ue that is used for
exhausting fumes from
appliances burning gas or
other fuels (not applicable
to appliances that only
discharge the air back into
the room)
ı
Rating plate
Informationandadvice
Information
1
2

Connect
universal
hose, easy
selecting the
venting
direction
Installation
Ensure the power has been turned off before beginning this installation.
Before installing the cooker hood, please first fix the damper flap
on the air outlet of the hoods.
Information


According to
the Fig.4,
make sure the
position of the
hoods on the
wall. Then use
the stencil to
drill three Φ8
holes on the
wall. Fix three
sets expanding
plugs and
screws aimed
at the three
holes.
Φ8
4
5
When
cutting or
drilling
into wall
or ceiling,
do not
damage
electrical
wiring or
other
hidden
utilities.

Hang the
hood and
let it's 3
installation
holes aim
at 3 screws,
adjust it to
setting
position.
6
7
10mm
Please
make sure
the outside
dimension
of the
screws is
10mm.
Screw down the four first screw down the upper two screws, then
screw down the two screws.
screws.
other

Connect the
hose with the
air duct.
The cooker hood is fully convertible for different
Vertical is the
most common. If
your kitchen has
an attic space
above, the
ducting may be
run up through
the cupboard and
attic to a roof cap.
8910
The air must
not be
discharged
that is used
for
exhausting
fumes from
appliances
burning gas
or other
fuels.
Information
into a fuel
venting direction.
socket above the
the socket and then

Installation
work and
electrical
wiring must
be done by
qualified
person(s) in
accordance
with all
applicable
codes and
standards,
including
fire-rated
construction.


According to
the dimension
of the chimney
fixed bolster,
make sure the
position of the
two chimneys.
Put the outer
chimney on the
windshield.

Install the chimney fixed bolster on the corresponding position on
the wall.
Φ8
13
Information
To install
this hood
you will
require
two
assistants

Use the Screw
ST4*10 to connect
the chimney fixed
bolster and the
upper chimney.
Controls:
Do not
touch the
light bulb
within half
an hour
after
appliance
use.
The lamp
shall not be
covered
with thermal
insulation or
other
material.
15
14
Press the switch of light to be on,the left and right bulbs light on.
Otherwise the bulbs don't work.When pressing the push button
on,the motor runs at low speed.When pressing the push button
on,the motor runs at middle speed.When pressing the push button
on,the motor runs at high speed.When pressing the push button

Replacement and maintenance
Information
The
power of
bulb
must not
be more
than
40W.
18

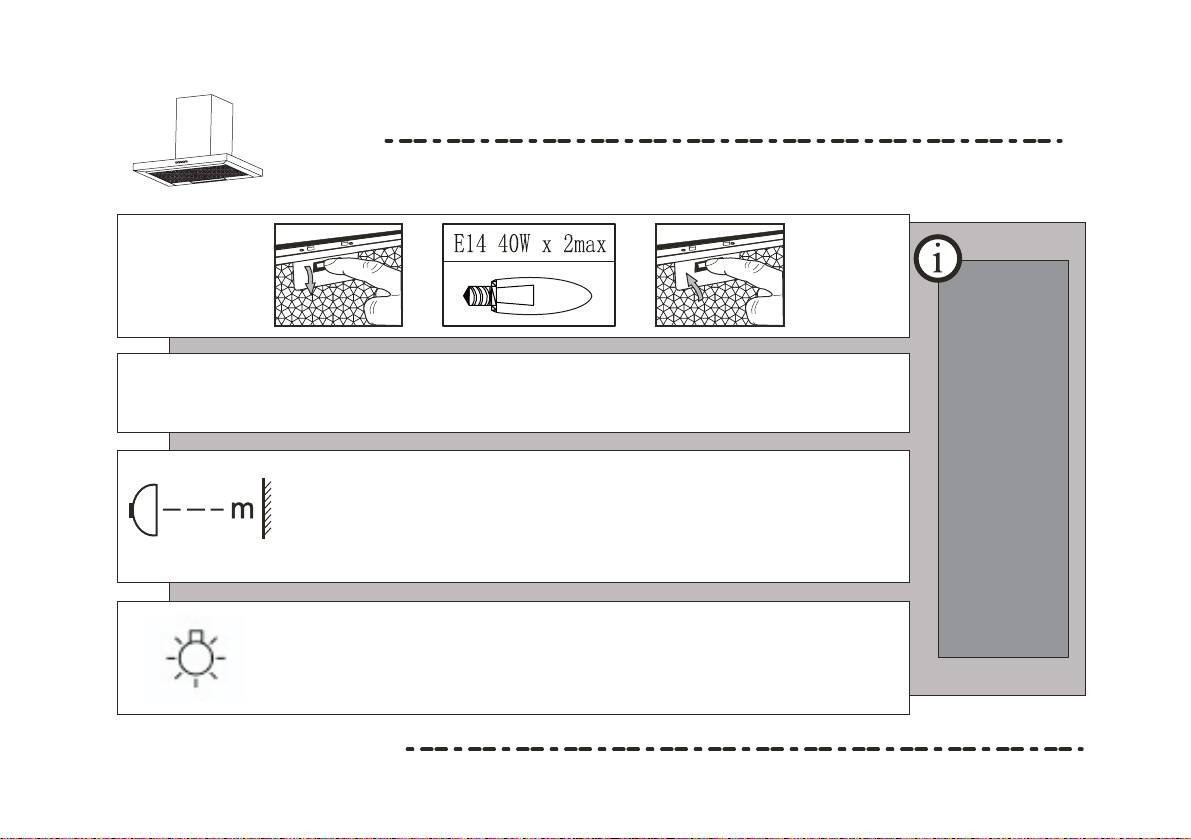

Replacing
lamp 16
1. Take the fixed lamp rim off by unscrewing it in an anti-clockwise direction.
2. Draw the old lamp out of the lamp holder, insert the new lamp in the lamp holder.
3. Screw the fixed lamp rim tightly in a clockwise direction.
Only self shielded lamps can be used in order to prevent
undue hot parts, fire hazards and exposure to UV
radiation.
If the supply cord is damaged, it must be replaced by the manufacturer
,
its service agent or similarly qualified persons in order to avoid a hazard
.
17
Required min. distance to surfaces (such as lids, oven
cloth or the like) in order to prevent hot parts and fire
hazards.
(- - - to be "0.45 m”)

Information
There is a
fire risk if
cleaning is
not carried
out in
accordance
with the
instructions.
19
·It is recommendable to clean the metallic filter every three
months by carrying out the following instructions:
-Remove the metallic filter from the cooker hood and wash it
in a solution of water and neutral liquid detergent, leaving to
soak
-Rinse thoroughly with warm water and leave to dry.
-The metallic filter may also be washed in the dishwasher.
The metallic filter may alter in colour after several washes.
This is not cause for customer complaint nor replacement of
metallic filter.

The manufacturer shall decline all responsibility if the foregoing
recommendations and instruction regarding installation, maintenance and use are
not observed and respected when using the cooker hood.
