EIS-B-RH-WH60-01
EIS-B-RH-SS60-01

Information and advice
Specifications:220 -240V/50Hz 200W
In certai n c i r c u mstance s electr i c a l a p pliance may be a
dange r hazard .
G) Disconnect the electrical plug prior to any maintenance.
F)Constantly check food frying to avoid that the overheated
oil may become a fire hazard.
E)Avoid opening gasometer when the re is no pan on the stove ,
as it i s damaging for the filters and a fire hazard
D)Do not flambe under the cooker hood.
C)Do not touch the light bulb within half a n hour after appliance
use.
B)Do not check the status of the filters while the cook er hood
is operating.
A) There shall be adequate ventilation of the room when the
cooker hood is used at the same time as appliances
burning gas or other fuels.

Information

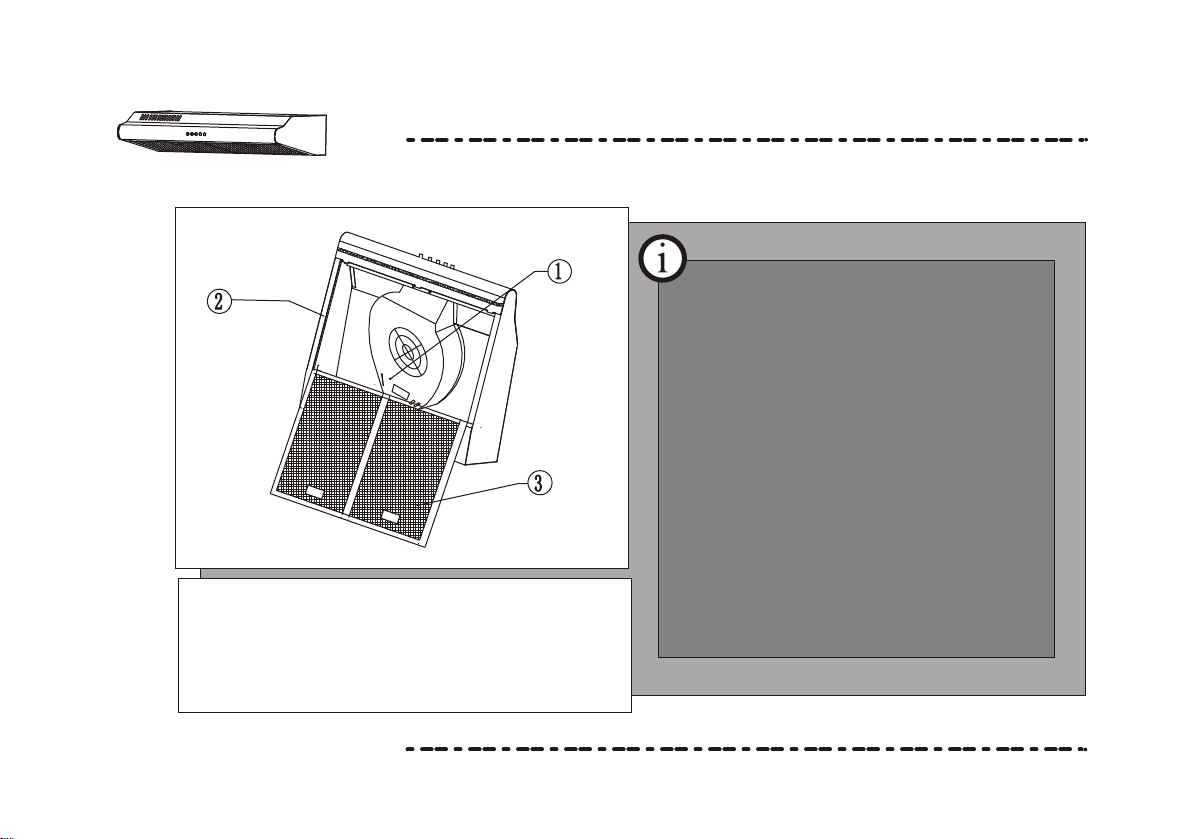

Know your cooker hood
Please read these instructions before using your cooker hood
1.Air duct assembly 2.Main body
3.Filter assembly
Also included:
*Damper flap
*User instructions
Congratulations on the
purchase of our Cooker hood,
which is designed to include
many superior features that
permit you the fullest expression
of your living.
Before installing and/or using
the cooker hood carefully read
all the instructions.

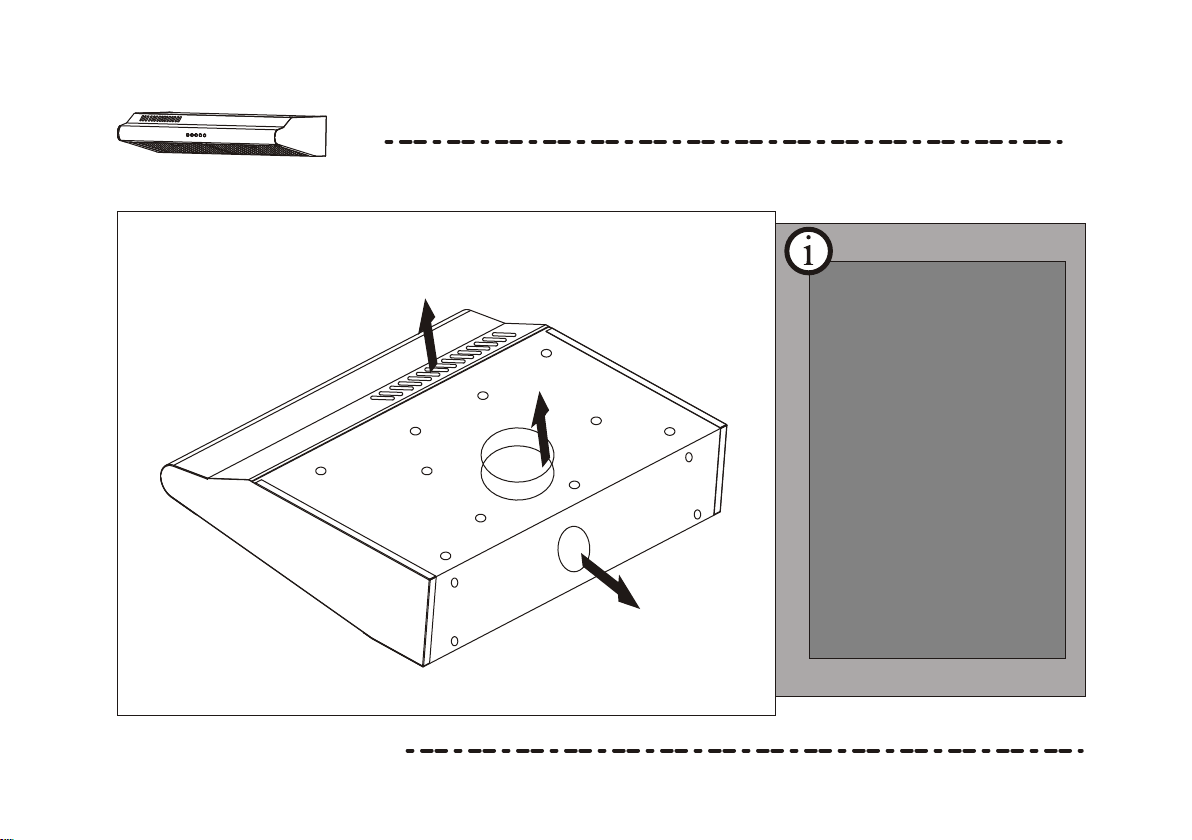

Selection of Venting Direction
Fully convertible for vertical, horizontal or ductless operation.
Information
1
The air must not
be discharged into
a flue that is used
for exhausting
fumes from
appliances
burning gas or
other fuels.
Regulations
concerning the
discharge of air
have to be
fulfilled.
Vet
rical
ishag
dcre
Ductle s
s
Horizontal
discharge
A
B
C

Information

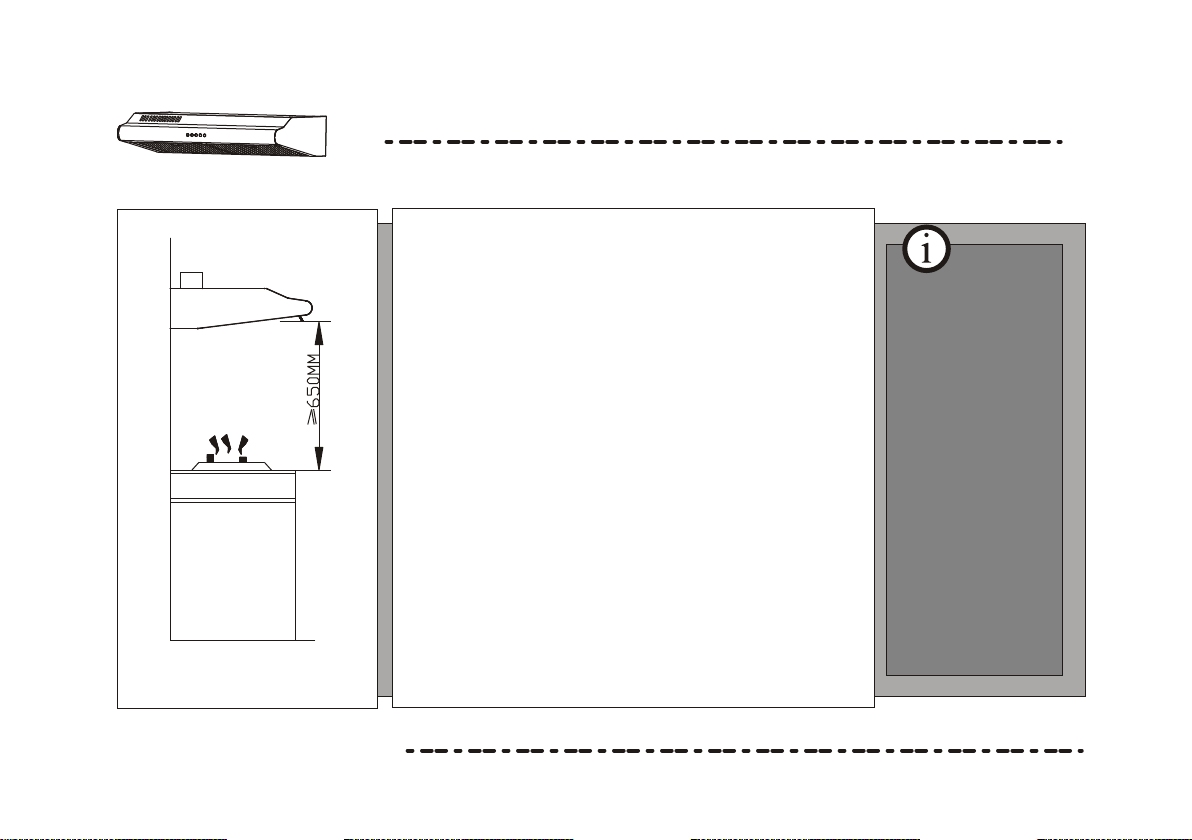

We recommend that after
installation the bottom of
the hood should be no less
than 650mm and no more
than 750mm above the
stove's heating elements
and burners.
We recommend that after
installation the bottom of
the hood should be no less
than 650mm and no more
than 750mm above the
stove's heating elements
and burners.
2
3
B
A

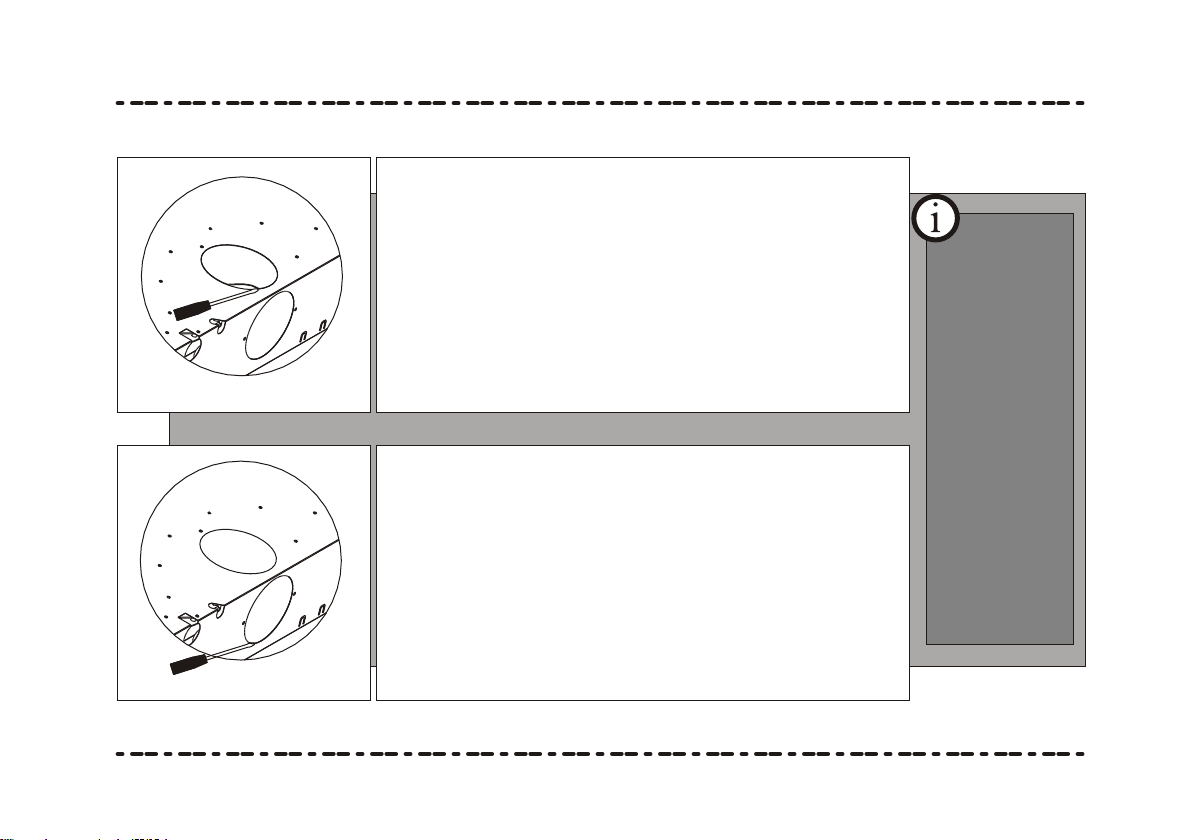

Vertical discharge
Vertical is the most common.
If you se lect this venting direction, you only need
to open t he ducting knockout A.Remove the
ducting knockout by inse rting a Flat head
screwdriver under one en d and prying it up. Then
snip or break the attanchment points by tin snips.
You must make sure that the ducting knockout B is
not removed.
B
A
Horizonta l discharge
Assuming that the range hood is locate d against an
outside wall, horizontal d ischarge is preferred
provided that there are no obstructions such as, wall
joists, or where openings are difficult to make.
If you select this venting direct ion, you only need to
open the ducting knockout B.
Same with rem oving the ducting knockout A, you must
make sure tha t the ducting knockout A is not removed.
Sufficient air
is needed for
proper
combustion
and
exhausting
of gases
through the
flue
(chimney) of
fuel burning
equipment to
prevent back
drafting.

Information

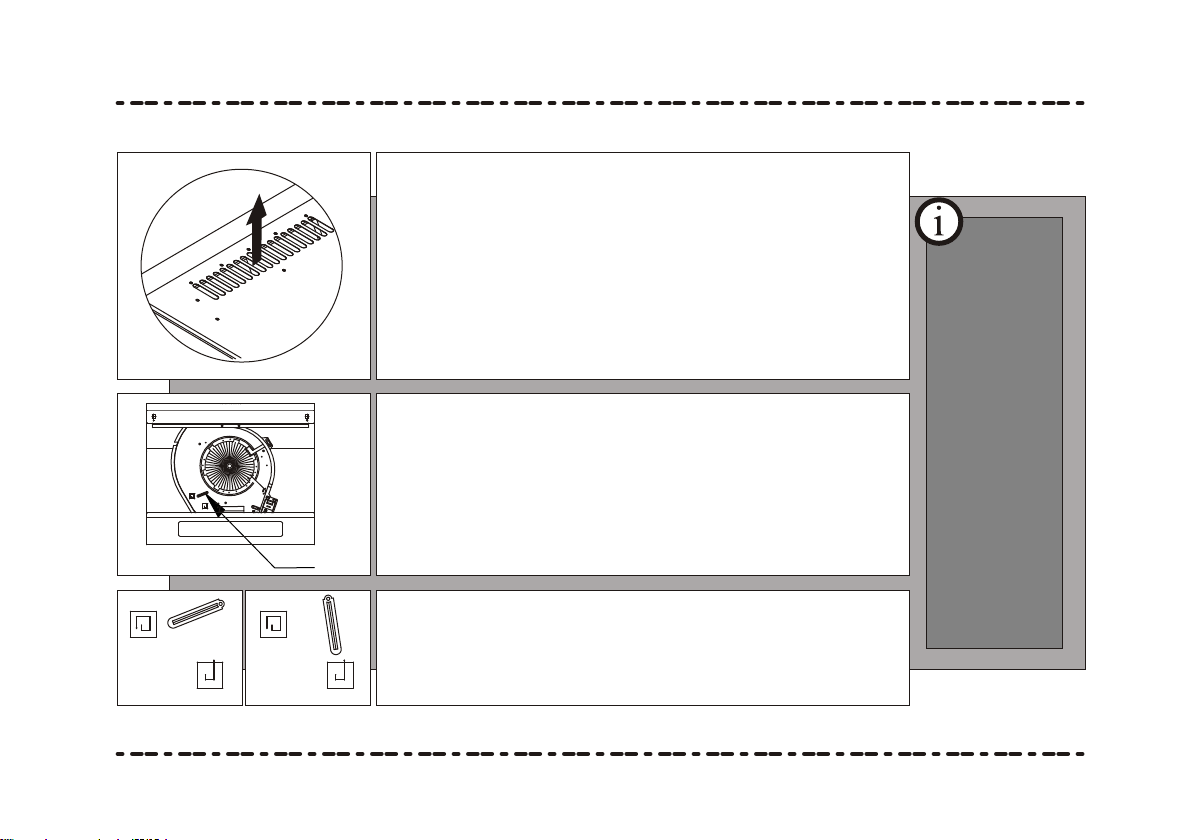

Ductless
fans must
always be
vented to
the
outdoors.
6 7
4
C
Ductless
Ductless
In a ductless installation the air is re-circulated
back into the kitchen. If you do not anticipate
heavy cooking this method will be preferred.
It will not be necessary to remove any duct
knockouts, you only need chose knockout C. You
should use filters to help remove cooking odors.
These filter must be washed and replaced at
regular intervals.
5
After selecting venting direction and completing
installation, you can turn the knob to achieve
ductless or duct.Open the filter, then you can see
the knob.
The knob arrowhead as per FIG. 7, then it is duct.
The knob arrowhead as per FIG. 6, then it is
ductless.
Knob

Installation
Ensure the power has been turned off before beginning this installation.
Information
To install this hood you will require two
assistants.
You will need the following tools and
material to complete this installation:
*Drill*Flat head screwdriver*Phillips
head screwdriver or cordless drill and
Phillips head bit*Tin snips*3/8″nut driver
or ratchet with extension*measuring
tape*hand saw or jig saw*electrical
tape*duct tape
1. Remove the range hood from the carton.
2. Lay the hood upside down on a table
covered with cardboard or paper to prevent
scratching of the table or hood.
3. Hood installation should be within 0.8m
radius range.
4. We recommend that after installation the
bottom of the hood should be no less than
650mm and no more than 750mm above
the stove's heating elements and burners.
Installation
work and
electrical
wiring must
be done by
qualified
person(s) in
accordance
with all
applicable
codes and
standards,
including fire-
rated
construction.
8

When
cutting or
drilling
into wall
or ceiling,
do not
damage
electrical
wiring or
other
hidden
utilities.
Information
9
1. According to the figure, ma ke su re
the position of hood in the cabinet.
The wood strips should be line up with
the 4 keyholes slots on the top of the
range hood. On th e cab inet, install 4
screws (supplied ) according to the
relative position of 4 key holes on the
bottom of hood. The extent of
screwing should be convenience to
the next installation .
2. Hang the hood and let it's 4
key holes aim at screws, the 4
screws should be in the narrow
parts of key holes. Screws
should be fasten firmly, make
sure that the installation
between the hood and cabinet is
enough fasten.
3. Install screws in the security
holes, in case of front and back
moving of hood, so that the using is
safer.
Security
hole

Information
10

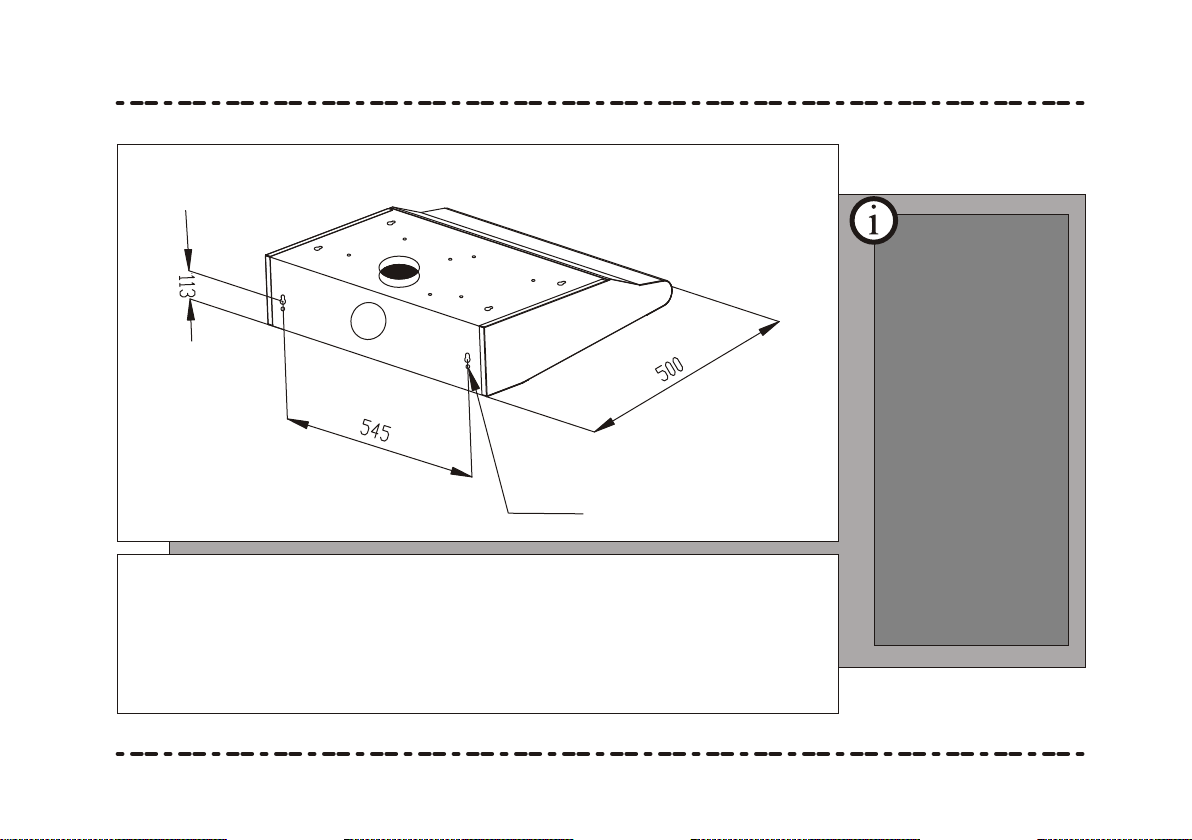

If the installation s urface in cabinet d on't adapt to i nstall the cooker h ood,
then as per FIG. 5, fix the position of cooker hood on the wall. On the wall,
install 2 screws (supplied) according to the relative position of 2 key holes
on the back of hood. The extent o f screwi ng should be convenience to the
next installation. Also install screws in the security holes, in case of front
and back moving of ho od, so that t he using is safer.
The cooker hood
must be installed
and connected to
flues where other
appliances are
installed and
which run off
other energy
supplied
different to
electricity (water
heaters boiler
cookers
(range/agas)
etc.).
Security
hole

12
11
13
Information

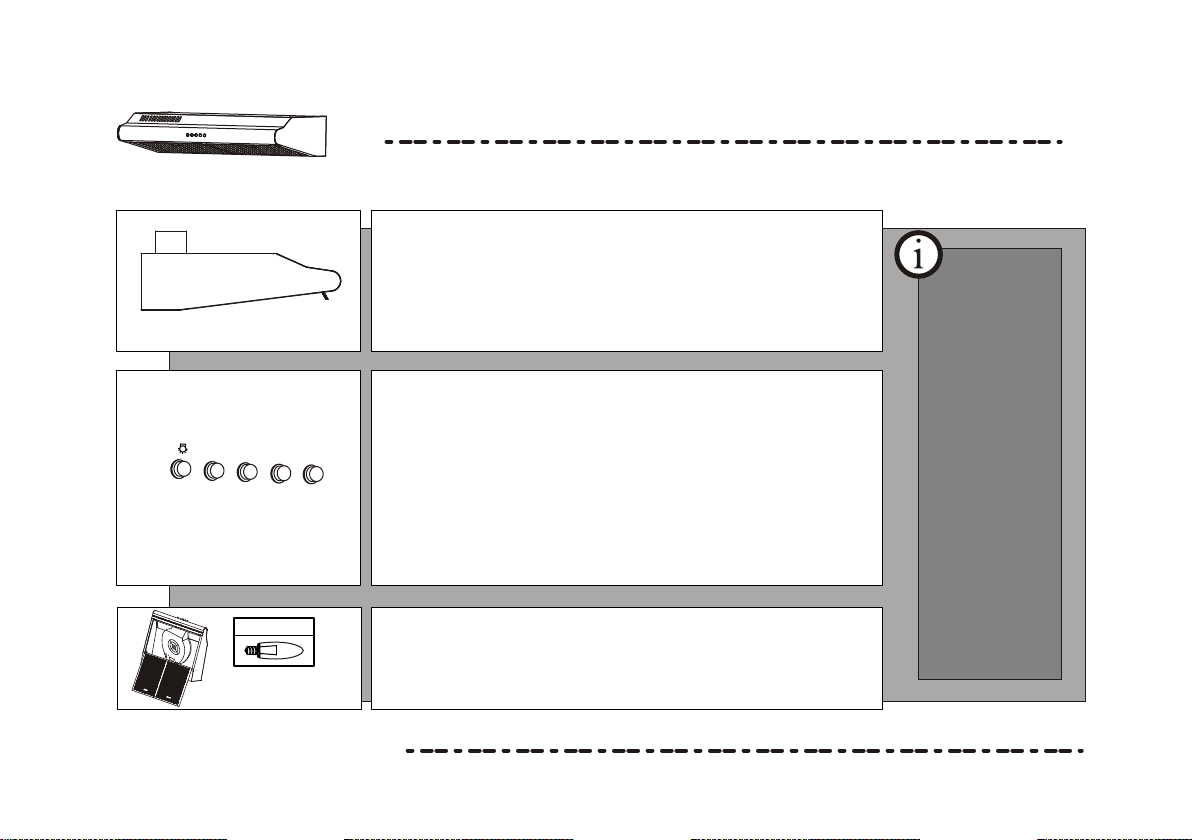

Hood Using Method
Turn the hood ON when cooking at high heat or when cooking flaming foods.
1. Adjust the knob to be right position.
2. Insert the power plug firmly.
Clean
ventilating
fans
frequently.
Grease
should not
be allowed
to
accumulate
on fan or
filter.
Replacing Bulb:Removing the bulb that need
to be replaced, then reinstall the new bulb. The
power of bulb must not be more than 40W.
E14 40W x 2max
Press the the switch of light to be on, th e bulbs
light on. Otherwise the bulbs don't work. When
press the push button “1”: on, the motor runs at
low speed. When press the push button “2” on,
the motor runs at middle speed. When press the
push button “3” on, the motor runs at high speed.
When press the push button “0” on, the motor
st ops running.
0
1
2
3

Cleaning Instructions
Disconnect range hood from power supply before cleaning or servicing.
Information
When
cleaning,
water must
not inter
into motor,
control
switch etc.
electrical
parts.
1. Cleaning the surface of hood frequently. Use mild soap or
detergent to clean the hood.
2. Do not use harsh alkalis or abrasives.
3. Avoid the use of scouring powers or dishwasher
compounds.
4. Grease filter may be washed using mild soap or detergent.
(heavy grease build-up may not be cleaned easily and the
filter may require replacement)
5. Charcoal filters cannot be cleaned and must be replaced
regularly.

The manufacturer shall decline all responsibility if the foregoing
recommendations and instruction regarding installation, maintenance and use are
not observed and respected when using the cooker hood.
