INSTRUCTION MANUAL
WINE COOLER
BEVERAGE COOLER
EIS-A-WN-SS60-01
EIS-A-BR-SS60-01

CONTENTS
!
IMPORTANT SAFETY INFOR M A TIO N ........................................................................................ P.1
!
!
STRUCTURE AND INSTALLATION DRAWING .......................................................................... .P.2
!
!
ACCESSORY INSTALLATION BEFORE OPE R A TING............................................................... P.4
!
!
OPERATING THE WINE COOLE R.............................................................................................. P.4
!
!
CARE AND MAINTENANCE ........................................................................................................ P.8
!
!
TROUBLESHOOTING ................................................................................................................. . P. 9

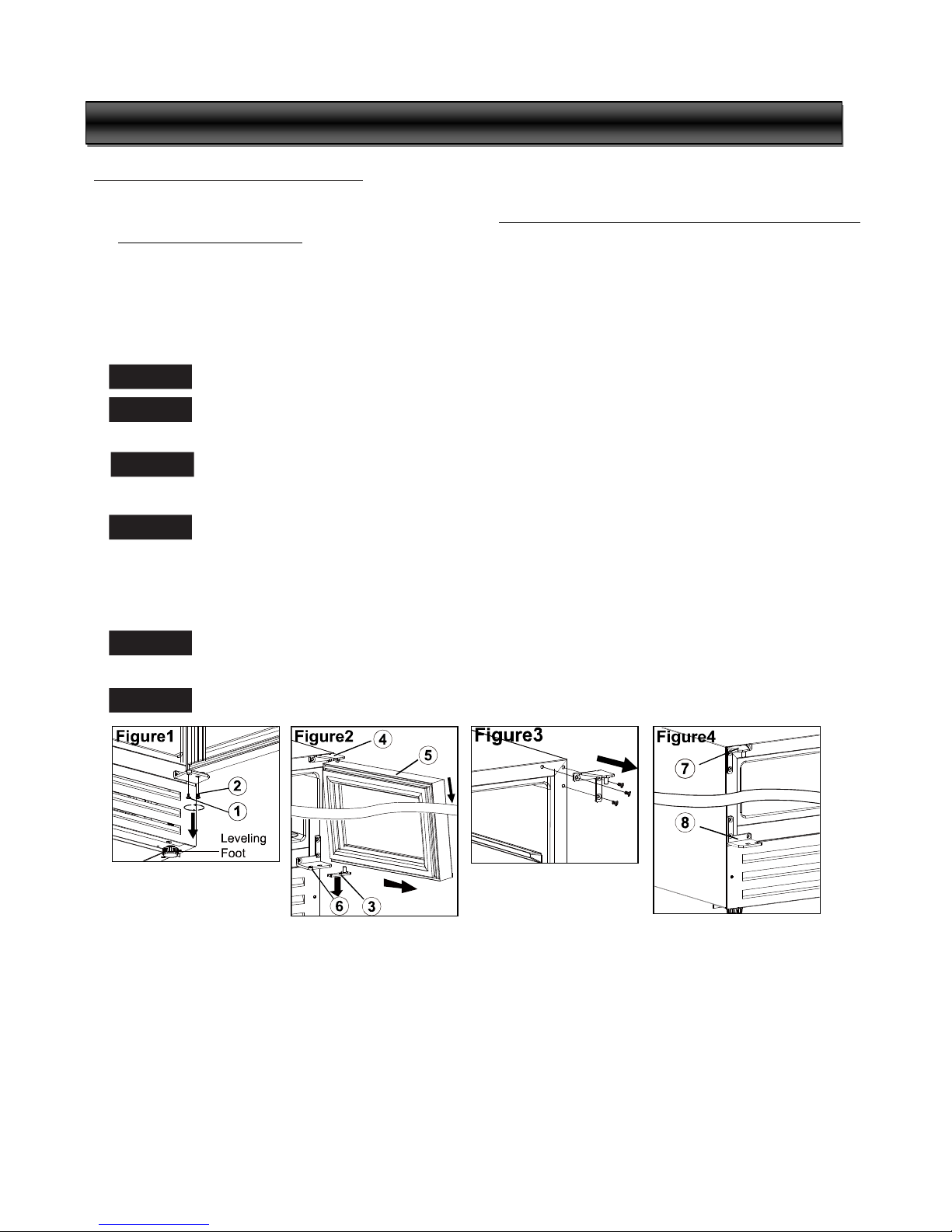

REVERSE THE DOOR SWING .................................................................. .............................. P. 1 0
!
!

IMPORTANT SAFETY INFORMATION
!
Before use the appliance, please properly position and install it as described in this manual.
To avoid the risk of fire, electrical shock, or injury when using the appliance, follow these basic
precautions:
●The appliance is intended to be used exclusively for the storage of wine.
!
●Make sure the voltage/current marked on the rating label corresponds with your supply voltage.
!
Plug into a grounded 3-pin outlet, do not remove grounding pin, do not use an adapter, and do not
use an extension cord.
●It is recommended that a separate circuit, serving only your appliance be provided.
!
●Never clean the appliance parts with flammable fluids which may create a fire hazard or explosion.
!
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of the appli-
ance.
●Do not connect or disconnect the electric plug when your hands are wet.
!
●Unplug the appliance or disconnect power before cleaning, maintenance or servicing. Failure to do
so can result in electrical shock or death.
●Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in
this material. All other servicing should be referred to a qualified technician.
●Ensure enough peoples to move and install the appliance to avoid any damage to the appliance or
injury to the peoples.
●To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed.
!
Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).
!
●The fuse (or circuit breaker) size should be 10 amps or higher.
!
●It is important for the appliance to be leveled in order to work properly. You may adjust the appliance’s
feet to level it.
●This appliance is not intended for use by young children. Never allow children to operate, play with
or crawl inside the appliance.
●Do not use solvent-based cleaning agents of abrasives on the interior. These cleaners may damage
or discolor the interior.
●Do not use this appliance for other than its intended purpose.
!
●The use of attachments not recommended by the manufacturer may be hazardous.
●When you dispose the appliance, take off the door and leave the shelves in place so that children
may not easily climb inside. And make sure the coolant circuit, particularly the heat exchanger at the
back/bottom of the unit not be damaged. The symbol on the product or its packaging indicates
that this product is not to be handled as normal household waste and it is to be taken to a recycling
collection point for electrical and electronic goods.
!
!
!
1

2
!
STURCTURE AND INSTALLATION DRAWING
!
The following pictures only show the structure of the appliance as well as the installation drawing.
The dimension and shelf quantity may differ among the models of the same series.
UNDERBENCH INSTALLATION INSTRUCTIONS(Built under a kitchen table top)
!

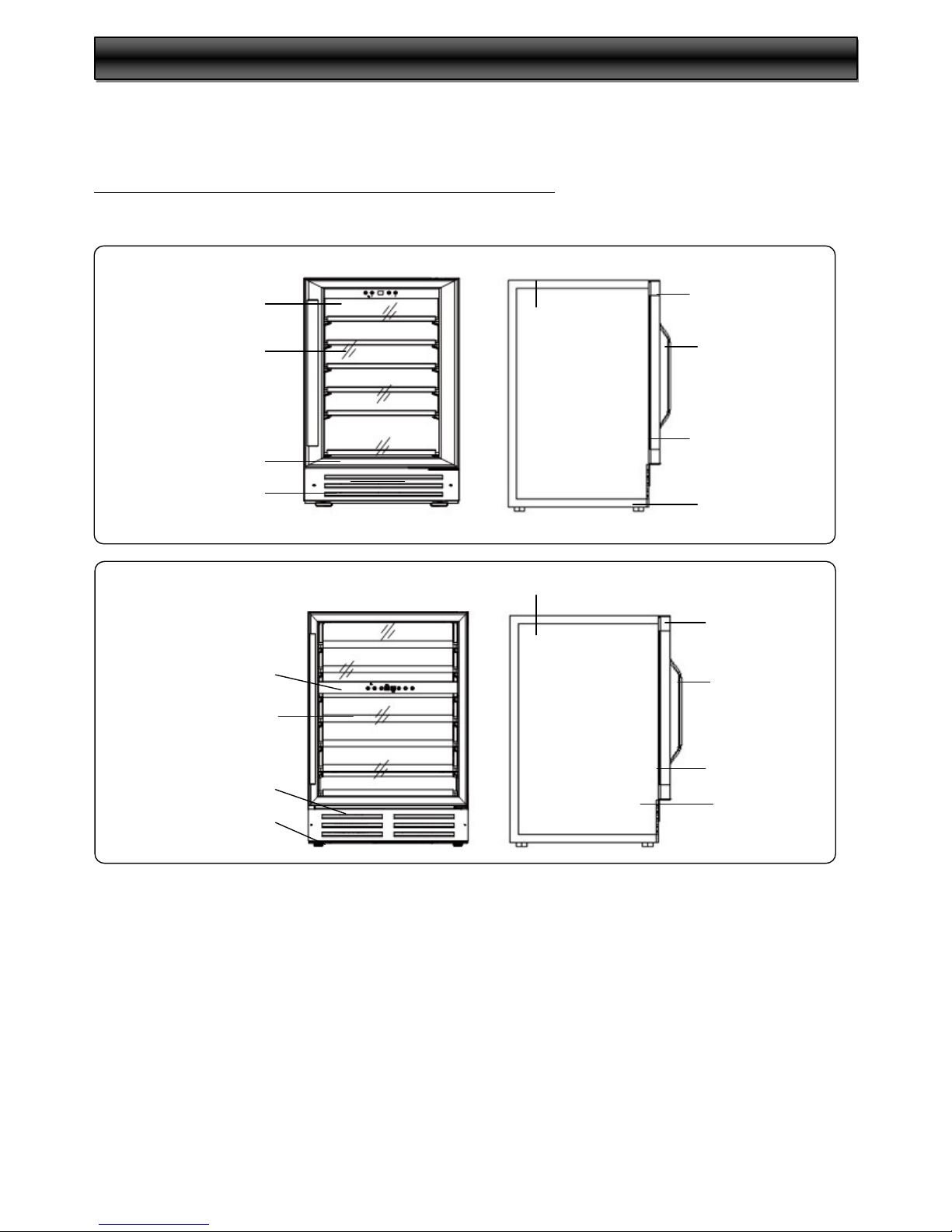

Single Zone Structure
!
T ouch - key Control Panel
& Digital D isplay
!
!
!
D eep S helf
!
!
!
!
!
S hallow Shelf!
Front Louver !
Outside!
Cabinet
!
!
!
Door
!
!
Handle
!
!
!
!
!
!
Gasket
!
!
!
Leveling Foot
!
!
!
!
!
!
!
!
Dual ZonesStructure!
!
!
T ouch - key Control Panel
& Digital D isplay
Dee p Shelf !
!
!
!
Shallow Shelf !
Front Louver
!
!
!
Outside Cabinet
!
!
Door
!
!
Handle
!
!
!
!
!
Gasket
!
Leveling Foot

3
!
1. EISNO “Built in” wine coolers are front venting but are not designed to be fully integrated behind
a joinery door.
2. EISNO “Built in” wine coolers require 10mm clearance on both sides and top, 30mm clearance at
the rear, to facilitate installation, removal, servicing and ventilation.
3. EISNO “Built in” wine coolers draw air from the rear and expels through the metal grid under the
door at the front. If a kick board is to be placed in front of the wine cellar’s grid another one must be
fitted into the kick board with a minimum air flow allowance of 150cm2.
4. EISNO Cabinet dimension:
Height 820mm – 860mm (40mm adjustable feet)
Width 595mm
Depth 575mm + 30mm stopper (=601mm)
5. EISNO cabinet is not designed to be fully integrated behind a joinery door.
6. Please note that a minimum cut out of 615mm is required to facilitate installation, removal and
servicing.
7. EISNO cabinet requires 10mm clearance on both sides and top and 30mm clearance at the rear.
A ventilation grid MUST be installed in the 30mm clearance at the rear. Because hot air rises it is
imperative that a grille with a Minimum grid size of 200mm x 40mm is installed at the top of the back
wall or on either side at the rear at the top giving cool fresh air full access to flow into the 30mm gap
at the rear of the cabinet. This means that you must not install the grille close to other appliances
such as an oven or to an area that is sealed or with out access to fresh cool air.

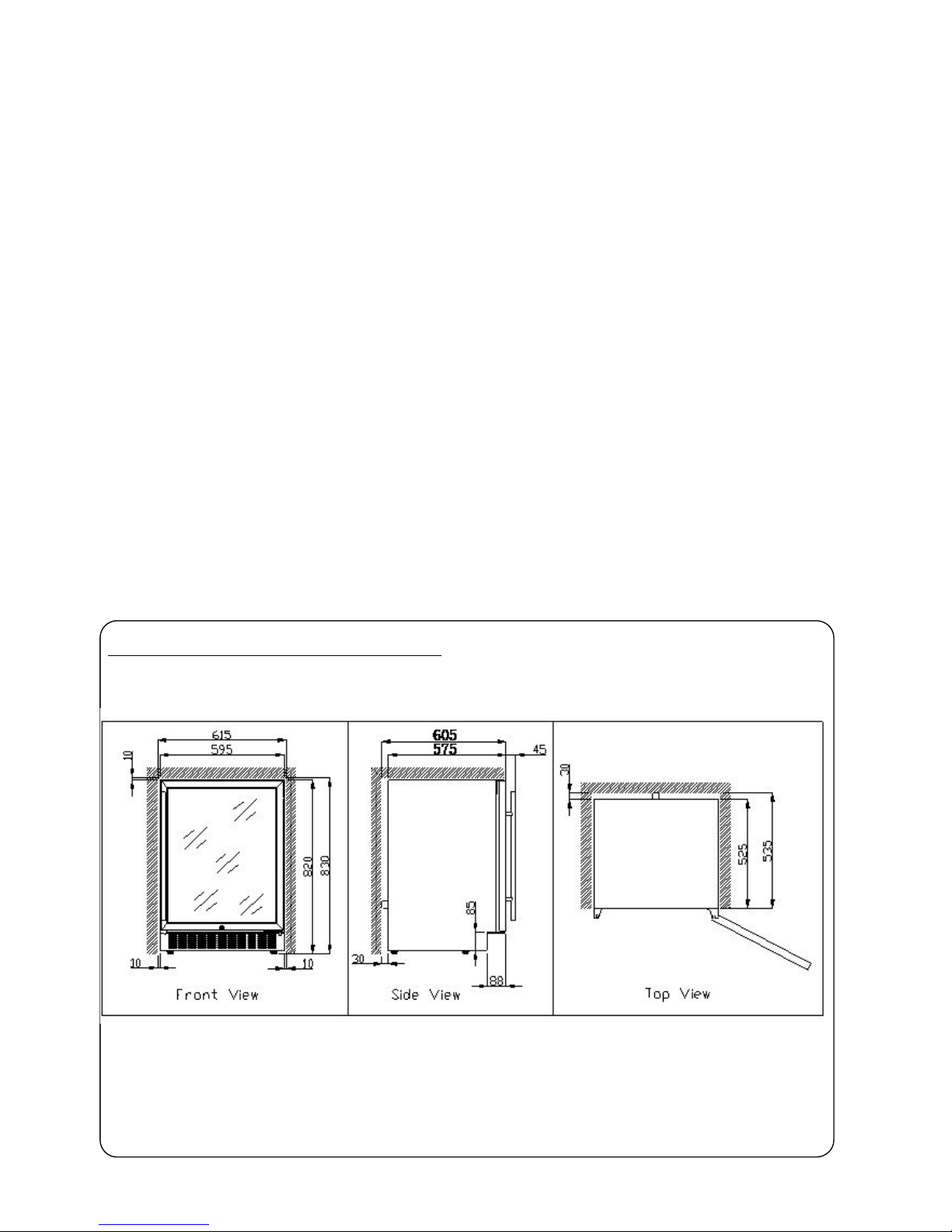

595mm Width Installation Drawing (mm)

4
!
8. EISNO cabinet is front venting. The cabinet draws air from the rear and expels through the grille
under the door at the front. If a kick board is to be placed in front of the ventilation grill at the front a grill
must be fitted in to the kick board with a minimum air flow allowance of 150cm2.
9. EISNO cabinet has a power switch located on the control panel so power point location is not critical.
10. EISNO cabinet requires a standard 240 volt / 10 amp power point.
11. The power cord is 1.9m in length and is fixed on the right side at the back when looking from front
of cabinet.
12. As with most appliances of today, this cabinet has sensitive electronic components which are
susceptible to damage through lightning and electricity supply faults. It is therefore advised to use a
power surge protector to avoid problems of this nature.
Further Instructions:
The location you have selected for your wine cellar should:
- Be unencumbered and well ventilated;
- Be well away from any heat source and direct sunlight;
- Not be too damp (laundry, pantry, bathroom etc. );
- Have a flat floor;
- Have a standard and reliable electricity supply (standard socket to country standards, linked to the
ground), it is NOT recommended to use a multi-socket or extension lead.
- Have a surge protector fitted to the electrical outlet
- Away from the microwave;
Certain microwave ovens do not have wave interference shield. When placed within 1 meter vicinity of
the wine cabinet, they may affect the operation of the wine cabinet.
Notes:
The wine cellar should be placed where the ambient temperature is between 5℃to 35℃. If the ambient
temperature is above or below this range, the performance of the unit may be affected. Placing your
unit in extreme cold or hot conditions may cause interior temperatures to fluctuate. The ideal range of
temperature may not be reached.
Not complying with any of the above instructions may result in WARRANTY void.

5
!
!
ACCESSORY INSTALLATION BEFORE OPERATING
UNPACKING AND CLEANING THE WINE COOLER & BEVERAGE COOLER
!
●Remove the exterior and interior packing materials.
!
●Let the appliance stand upright for approximately 2 hours before connecting it to the power
source, which helps to reduce the possibility of a cooling-system malfunction from handling
during transportation.
●Use a soft cloth to clean the interior surface with lukewarm water.
!

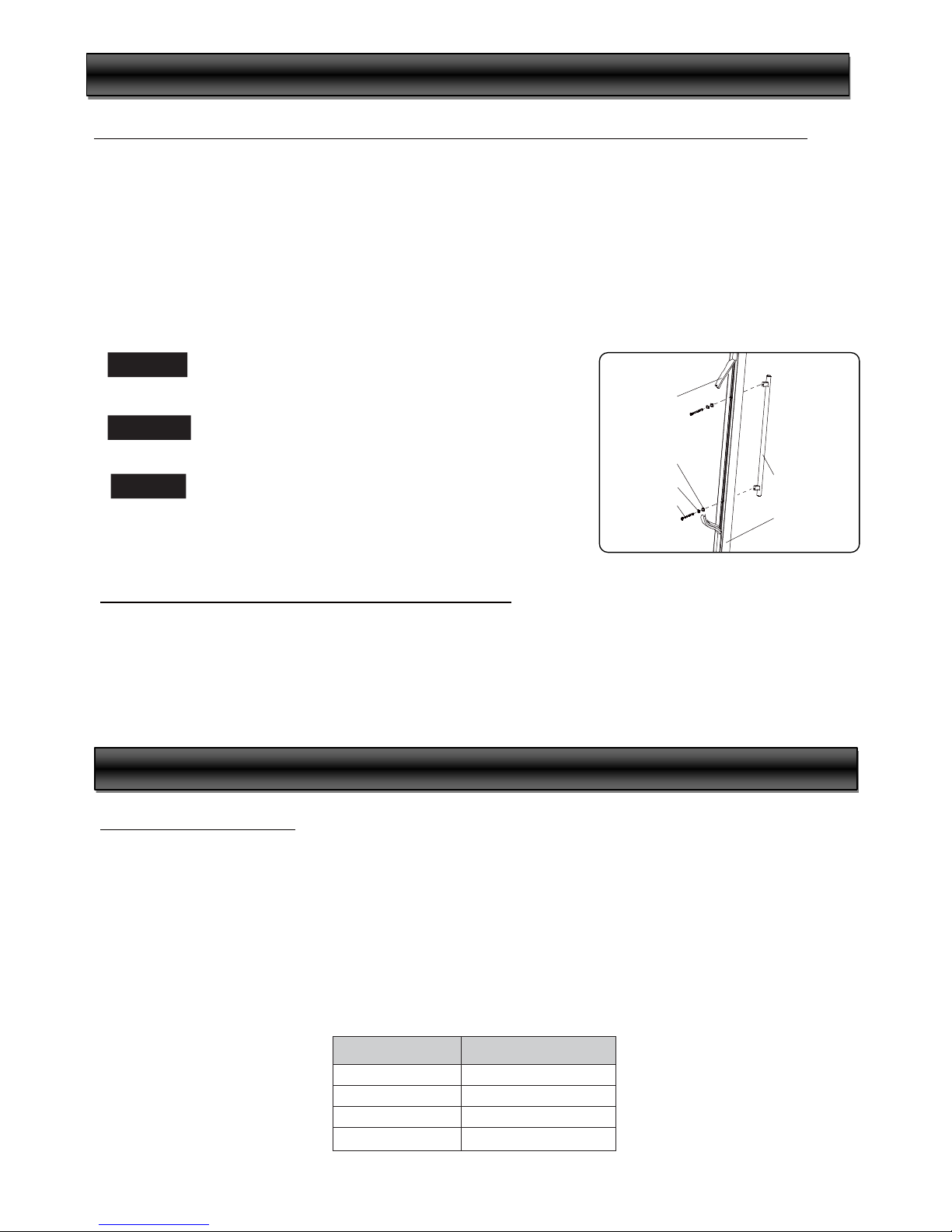

●Install the door handle provided with the appliance by following these steps:
!
1st step －Remove the gasket at the inner side of the door
to expose the two screw holes.
!
2nd step －Install the handle tightly with the screws
and washers provided.
!
3rd step －Tidy and restore the gasket.
!
!
!
!
!
!
!
LOCK & UNLOCK THE DOOR (FOR OPTION)
!
●Lock is an optional function. If your Wine Cooler has such function, a key should be attached
inside the packing of this Manual.
●Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock it, please
follow the reversed operation. Please save the key well.
!
!
!
OPERATING THE WINE COOLER AND BEVERAGE COOLER
!
!
WORKING CLIMATE
!
●The appliance is designed for operating from SN to T climate (see below climate class chart). It
is recommended to maintain the ambient around 22-25°C which helps the appliance working
with low power consumption.
●If the ambient temperature is above or below the designed climate range, the performance of
the unit may be affected. For example, the appliance operating in extreme cold or hot conditions
may cause interior temperatures to fluctuate, and the temperature set 5-22°C for wine cooler
or 2-10°C for beverage cooler may not be reached sometimes.!
Climate Class
Ambient Temp.
SN
10 - 32 °C
N
16 - 32 °C
ST
18 - 38 °C
T
18 - 43 °C
G a s k e t
F la t Washer
H a n d le
Locker Washer!
S c r e w
D oor F r a m e
!

6
!
CONTROL'PANEL'
!
WINE STORAGE
!
●The standard shelves are designed perfectly for Bordeaux bottle storage. The maximum
loaded bottles may vary subject to the different size or dimension of the wine bottles you store,
as well as the shelves quantity preinstalled in the Wine Cooler.
●There are two designs for the pull-out shelves:
1. The shelves are without telescopic rails, but
with a plastic stopper on each sides of the
shelf track to prevent bottles from falling.
See the right figure.
2. The shelves are with telescopic rails which
has stoppers by themselves.
●To prevent damaging the door gasket, make sure to have the door opened fully all the way
before pulling the shelves out.
●Please store wine in sealed bottles.
●Should the wine cooler be left empty for long periods it is suggested that the appliance is
unplugged, and after careful cleaning, leave the door ajar to allow air to circulate inside the
cabinet in order to avoid possible condensation, mold or odours forming.
●Recommended Temperatures for chilling/storage your wines.
!
Red Wines
15 - 18º C
Dry/White Wines
9 - 14º C
Rose Wines
10 - 11º C
Sparkling Wines
5 - 8º C
OPERATING
Single Zone
!
Lighting Temp. Up Temp. Down
Display Window Power
!
!
!
!
!
!
ºC/ºF Interchange
!
!
!
!
!

7
!
!
!
Dual Zones
Display Window
Power
Lighting
!
!
!
!
!
!
!
ºC/ºF Interchange
Temp.up/ Down Temp.up/ Down
'
POWER'ON/OFF'CONTROL
'
●When the appliance is plugged in to a power outlet, it powers on automatically.
●Touch the power mark and hold for 10 seconds to turn off (or turn on) the appliance.
●No matter it is under a locked or unlocked situation, you can turn off the appliance by touching the
power mark and holding for 10 second.s.!
!
Warning:
To avoid breaking the compressor, please do not turn on the appliance again within 5 Minutes
after you turn it off.
!
UNLOCKING THE CONTROL PANEL
!
●To unlock the control panel, touch the power mark and lighting mark with 2 fingers at the
same time and hold for 3 seconds . When unlocked a buzz sound will be heard.
●The control panel will be automatically locked with a buzz sound heard after 10 seconds without
being touched.
●Under the locked situation, the control panel will not react to any touching (except the power mark
which works as above Power On/Off Control description).
!
INTERIOR LIGHTING ON/OFF CONTROL
!
●Under the unlocked situation, touch the lighting mark to turn on (or turn off) the interior cool
LED lighting.
●The lighting will be continuously on if it is not turned off.
TEMPERATURE SETTING
!
For Singer Zone
!
●The temperature setting range is 5-22 ºC (41-72 ºF) for wine cooler.
●The temperature setting range is 2-10 ºC (36-50ºF) for beverage cooler.
●Directly touch the mark or to set the Wine Cooler temperature as you want.

8
!
●The first touch on mark or will recall the previous set temperature displayed in the digital
window. If the appliance runs after a power failure (or unplugging), the previous set temperature
does not exist and is replaced by the default temperature at 12ºC.
●Touch the mark to increase the set temperature by 1ºC. On the contrary, touch the mark
to decrease the set temperature by 1ºC.
●The digital will change to display the real temperature of the inside cabinet after 10 seconds
without being touched.
!
For Dual Zones
!
●The temperature setting ranges are 5-12 ºC (41-54 ºF) for the upper zone and 12-22 ºC (54-72
ºF) for the bottom zone.
●You need to select the set zone by touching the mark before touching the mark or to
set the wanted temperature. The display window with digital flashing indicates the zone ready
for temperature setting.
●The first touch on mark or will recall the previous set temperature displayed in the digital
window. If the appliance runs after a power failure (or unplugging), the previous set temperature
does not exist and is replaced by the default temperature at 10ºC for the upper zone while 16ºC
for the bottom zone.
●Touch the mark to increase the set temperature by 1ºC. On the contrary, touch the mark
to decrease the set temperature by 1ºC.
●The digital will change to display the real temperature of the inside cabinet after 10 seconds with-
out being touched.
Notice:
For the first time to use the appliance or to restart the appliance after having been shut off for a
long time, you may find a few degrees variance between the set temperature and the displayed
temperature. It is normal and everything of the appliance will be in the order after a few hours
running.
!
TEMPERATURE DISPLAY WINDOW
!
●The temperature is displayed in digital which is the best way to be read out. The digital is shown
as the set temperature when you are setting the temperature, and it will change to be the real
temperature of the inside cabinet after 10 seconds without being touched.
●When the temperature probe is out of order, the display window will show with “HH” or “LL”
instead of a digital figure while continuous buzz sound will be heard. In case of this happens, this
appliance is considerately designed to keep periodical running of compressor and fans which
helps to keep the coldness of the inside cabinet to protect your stored wines.
!
Warning:
To avoid destroying your stored wines, it is strongly recommended to have the appliance
repaired immediately, as the spare periodical running can not ensure the appliance to achieve
the temperature you have set.
!
!

9
!
!
!
SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC)
For Single Zone
!
Touch the marks with 2 fingers at the same time and hold for 5 seconds, you can
interchange the Fahrenheit (ºF) and Celsius display (ºC).
!
!
For Dual Zones
Just touch the mark, you can interchange the Fahrenheit (ºF) and Celsius (ºC) display for
both zones at the same time.
!
CARE AND MAINTENANCE
!
!
CLEANING THE WINE COOLER AND BEVERAGE COOLER
!
●Turn off the power, unplug the appliance, and remove all items including shelves.
●Wipe the inside surfaces with a sponge and baking soda solution. The solution should be about
2 tablespoons of baking soda to a quart (approx. 1 litre) of warm water.
●Wash the shelves with a mild detergent solution. Allow wooden shelves to dry before placing
back into the wine cooler.
●Wring excess water out of the sponge or cloth when cleaning area of the controls, or any
electrical parts.
●Wipe the outside cabinet with warm water and mild liquid detergent. Dry with a clean soft cloth.
●Do not use steel wool or steel brush on the stainless steel. These will contaminate the stainless
steel with steel particles and rusting may occur.
!
POWER FAILURE
!
Most power failures are corrected within a few hours and should not affect the temperature of your
appliance if you minimize the number of times of door opening. If the power is going to be off for a
longer period of time, you need to take the proper steps to protect your contents.
!
MOVING THE WINE COOLE
!
●Remove all items.
●Securely tape down all loose items (shelves) inside your appliance.
●Turn the adjustable leg up to the base to avoid damage.
●Tape the door shut.
●Be sure the appliance stays secure in the upright position during transportation. Also protect
outside of appliance with a blanket, or similar item.
!
!
!
!
!
ENERGY SAVING TIPS
!
●The appliance should be located away from heat producing appliances, and away from direct
sunlight.
●Ensure that the unit is adequately ventilated. Never cover air vents.
●Only open the door when necessary. Avoid leaving the door open for long periods or opening/

10
!
closing the door frequently.
TROUBLESHOOTING
If you feel the appliance is out of order, follow these instructions to try to see if you can solve the
problem simply by yourself before calling for service.
!
PROBLEM
POSSIBLE CAUSE / MEASURE
The Wine Cooler does not operate
Not plugged in.
The appliance is turned off.
The circuit breaker tripped or a blown fuse.
The Wine Cooler is not cold enough
Check the temperature control setting.
External environment may require a higher setting.
The door is opened too frequently.
The door is not closed completely.
The door gasket does not seal properly.
Automatically turn-on and turn-off
frequently
The room temperature is hotter than normal.
A large amount of contents has been added to the
Wine Cooler.
The door is opened too frequently.
The door is not closed completely.
The temperature control is not set correctly.
The door gasket does not seal properly.
!
The lighting does not work
!
Not plugged in.
The circuit breaker tripped or a blown fuse.
The lighting is turned off.
Too much vibration
Check to assure that the appliance is level.
Check to assure no parts inside the cabinet or in the
compressor chamber are loose.
The Wine Cooler seems to make too
much noise
The rattling noise may come from the flow of the
refrigerant, which is normal.
As each cycle ends, you may hear gurgling sounds
caused by the flow of refrigerant.
Contraction and expansion of the inside walls may
cause popping and crackling noises.
The appliance is not level.
The door will not close properly.
The wine COOLER is not level.
The door was reversed and not properly installed.
The gasket is dirty.
The shelves are out of position.
!
The display window is shown with “HH”
or “LL” instead of a digital figure,
and/or with continuous buzz sound.
!
The temperature probe is out of order.
!
!

11
!
REVERSE THE DOOR SWING
FOR BUITL-UNDER SERIES
Remarks:
!Reversible door swing function is only available for a unit with 870mm height, and with control
panel inside the cabinet.
!The instruction is based on a unit with right door hinge installed already.
!To reserve the door from right hinge to left hinge, you need to get ready 2 new spare parts: an
upper left hinge, and a bottom left hinge.
!All removed parts must be saved to do the door reinstallation, except those remarked with
“Disused”.
1st step –Open the door, and loosen the 2 screws  and . See Figure 1.
2nd step – Carefully remove the door from the upper right hinge  and prevent it from
scratching. Take out the support rod  from the door hinge hole. See Figure 2.
3rd step – Pull out the 6 decorating plastic bolts covering the reserved hinge screw holes at the front
left corner of the cabinet.
4th step – Unscrew the upper right hinge ○ 4 (Disused) and bottom left hinge ○ 6 (Disused) from
the cabinet. See Figure 3.
Install the upper left hinge ○ 7and bottom left hinge○ 8 to the left side of the
cabinet. Make sure the screws are tightened. See Figure 4.
5th step – Put upside down the door and install it to the left hinges by following the opposite
steps of taking down of the door as described above.
6th step – Cover the hinge screw holes on the right side with the 6 decorating plastic bolts.

12
!
