WCI6045-1BG / WI6045H-1B24
WCI6060-1BG / WCI6060-2BG / WI6060H-2B26 / WCISK60BG
WCI6088-2BG / WCI60188-2BG / WI60182H-2P101

2
TABLE OF CONTENTS
Warnings..........................................................................................................3
Before loading and plugging in the wine cabinet ............................................5
Grounding instructions ....................................................................................6
Installation .......................................................................................................6
Installation drawings........................................................................................8
Operation.......................................................................................................16
Turning on your wine cabinet........................................................................16
Operating noises ............................................................................................16
Loading your wine cabinet.............................................................................16
Temperature setting ......................................................................................18
Control panels................................................................................................19
Wine serving temperature chart ...................................................................24
Important information about temperature...................................................25
Defrosting/Condensation/Hygrometry/Ventilation ......................................25
Sliding shelves................................................................................................26
Reversibility of the door.................................................................................27
Operating instructions - Auto-door................................................................36
Operation abnormalities................................................................................37
Power failure..................................................................................................37
Troubleshooting guide...................................................................................38
Before disposal of the appliance....................................................................39
Thanks for buying our Wine Cooler/Beverage Cooler, hope our advanced product will
give your wine a different joyful taste. Before use, please read and follow all safety
rules and operating instructions.
*Note: Features and illustrations are model dependent and may vary slightly from
the manual to the actual product.

3
WARNINGS
The information in this document is subject to modification without any prior notice.
Some models are available in dedicated countries only.
Witt offers no guarantee for our wine cellar if it is being used for any purpose other
than that for which it was specifically designed. We cannot be held responsible for
any error in this manual. is not responsible or liable for any spoilage or damage to
wines or any other contents incidental or consequential to possible defects of the
wine cellar. Warranty applies to the wine cellar only and not to the content of the
wine cellar.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be made by children
without supervision.
Children should be supervised to ensure that they do not play with the appliance.
Please don't put such as acidic items, flammable, and explosive goods into wine cooler.
This equipment is intended for the storage and display of non-potentially-
hazardous bottled or canned products only.
This appliance is intended to be used in household and similar applications such as
•staff kitchen areas in shops, offices and other working environments;
•farmhouses and by clients in hotels, motels and other residential type
environments;
•bed and breakfast type environments;
•catering and similar non-retail applications.
DANGER: Risk of child entrapment. Before you throw away your old wine chiller:
•Take off the doors;
•Leave the shelves in place so that children may not easily climb inside;
•When disposing of the appliance, do so only at an authorized waste disposal
centre.

4
R600a WARNINGS:
For your safety observe the following recommendations.
•This appliance contains a small quantity of R600a refrigerant which is
environmentally friendly, but flammable. It does not damage the ozone layer,
nor does it increase the greenhouse effect.
•During transportation and installation, ensure that the tubing of the refrigerant
circuit is not damaged.
•Avoid using or manipulating sharp objects near by the appliances.
•Leaking refrigerant can ignite and may damage the eyes.
•In the event any damage does occur, avoid exposure to open fires and any
device which creates a spark. Disconnect the appliance from the mains power.
•Thoroughly ventilate the room in which the appliance is located for several
minutes.
•Notify Customer Service for necessary action and advice.
•The room for installing the appliance must be at least 1 cubic metre per 8 grams
of refrigerant. The refrigerant quantity contained in this appliance is listed
above in grams; it is also noted on the Rating Plate of the appliance.
•WARNING: To avoid a hazard due to instability of the appliance, it must be fixed
in accordance with the instructions.
•The symbol is a warning and indicates the refrigerant and insulation
blowing gas are flammable.
•Warning: Risk of fire / flammable materials
•WARNING — Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
•WARNING —When positioning the appliance, ensure the supply cord is not
trapped or damaged.
•WARNING —Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the appliance.
•WARNING — The refrigerant and insulation blowing gas are flammable. When
disposing of the appliance, do so only at an authorized waste disposal centre. Do
not expose to flame.
It is hazardous for anyone other than an Authorized Service Person to carry out
servicing or repairs to this appliance.
•WARNING: Keep ventilation openings in the appliance enclosure or in the built-in
structure clear of obstruction.
•WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.

5
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type recommended by
the manufacturer.
•WARNING: If you do not use the machine for a long time, please unplug the
power plug from the socket or switch off the power supply.
•Warning: This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance responsible for their safety.
•WARNNG: Children should be supervised to ensure that they do not play with
the appliance.
•WARNING: Do not use extension cords or ungrounded (two prong) adapters.
•WARNING: If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similar qualified person to avoid hazard.
Allow 24 hours before switching on the wine cellar. During this time, we
recommend that you leave the door open to clear any residual doors.
BEFORE LOADING & PLUGGING IN THE WINE CELLAR
Important: All models without front venting (air opening) are strictly for free
standing or built-in only. (See technical chart)
Recommendations:
The location you have selected for your wine cellar should:
•be unencumbered and well ventilated;
•be well away from any heat source and direct sunlight;
•not be too damp (laundry, pantry, bathroom etc.);
•have a flat floor;
•have a standard and reliable electricity supply (standard socket to country
standards, linked to the ground), it is NOT recommended to use a multi-socket
or extension lead;
•have a surge protector fitted to the electrical outlet;
•be kept away from the microwave oven. Certain microwave ovens do not have
wave interference shield. When placed within 1 meter vicinity of the wine
cabinet, they may affect the operation of the wine cabinet.

6
Notes:
•WCI6045-1BG, WI6045H-1B24,WCI6060-1BG, WCI6060-2BG, WI6060H-2B26,
WCI6088-2BG, WCI60188-2BG, WI60182H-2P101, WCISK60BG are built-in model
only.
Wine cellar should be placed where the ambient temperature is proper (Please view
the end of Manual). If the temperature is above or below this range, it will affect the
performance of the cellar. Placing in cold or hot temperature conditions may cause
cellar's temperatures fluctuating, and it will not reach the ideal one.
GROUNDING INSTRUCTIONS
The wine cellar must be grounded in case of wire leakage. Grounding reduces the risk
of electrical shock. The wine cellar is equipped with a power cord having a grounding
wire and plug. The wine cellar plug must be plugged into a properly affixed and
grounded electrical outlet.
Note: In locations where there is frequent lightning, it is advisable to use surge
protectors.
Improper use of the grounding plug can result in the risk of electric shock. Consult a
qualified electrician or service person if the grounding instructions are not
completely understood.
If the supply cord is damaged, it must be replaced by a qualified person to avoid
electrical hazard.
INSTALLING YOUR WINE CELLAR
Unpack and remove all the protection and adhesive strips from the packaging around
and inside the wine cellar.
The wine cellar must be positioned such that the plug is accessible. Release the
power cord. Move your wine cellar to its final location. The wine cellar should be
installed in a suitable place where the compressor will not be subject to physical
contact.
Levelling your wine cellar: Wine cellar must be levelled BEFORE loading your wines.
Your wine cellar is equipped with 4 adjustable feet to facilitate easy levelling. We
recommend that you tighten the back feet to the maximum and adjust the front feet
to level the wine cellar.

7
INSTALLATION INSTRUCTIONS
1. Please follow the installation diagram when installing wine cellars. No less than
the minimum installation dimension, or it will affect the venting of cellar.
2. All WCI and WI models have rear ventilation and must be able to draw air from
underneath the appliance.
3. All wine cellars have a power switch located on the control panel, so power
point location is not critical.
4. The wine cellar requires a standard 240 volt/10-amp power point. (Or according
to different countries specifications).
5. The power cord is 2.0m in length and is fixed on the right side at the back when
looking from front of cabinet.
6. As with most appliances of today, the wine cellar has sensitive electronic
components which are susceptible to damage through lightning and electricity
supply faults. It is therefore advised to use a power surge protector to avoid
problems of this nature.
7. IMPORTANT: The manufacturer does not recommend installing the wine cabinet
directly above a built-in oven. Depending on how often the wine cabinet is
exposed to heat from the oven, it can affect the wine cabinet's ability to cool the
wine and maintain an even temperature, and both the wine cabinet and its
contents can be damaged. The manufacturer will carry out service on the wine
cabinet in accordance with current legislation if the cabinet’s ventilation
requirements are carried out correctly, however the manufacturer cannot be
held responsible for the contents inside the wine cabinet if installed above a
built-in oven.
In Hot climate zone, an air vent or grid, with a minimum ventilation size of 200mm x
40mm MUST be cut out at the rear top of the back partitioning or at the top of either
side of the partitioning, allowing cool fresh air full access to flow into the 30mm gap
located at the rear of the cabinet.
This air vent or grid must not be opened on the same side as other appliances such as
ovens or an area that is sealed and without access to fresh cool air. Failing to comply
with the above specifications could result in WARRANTY void.

8

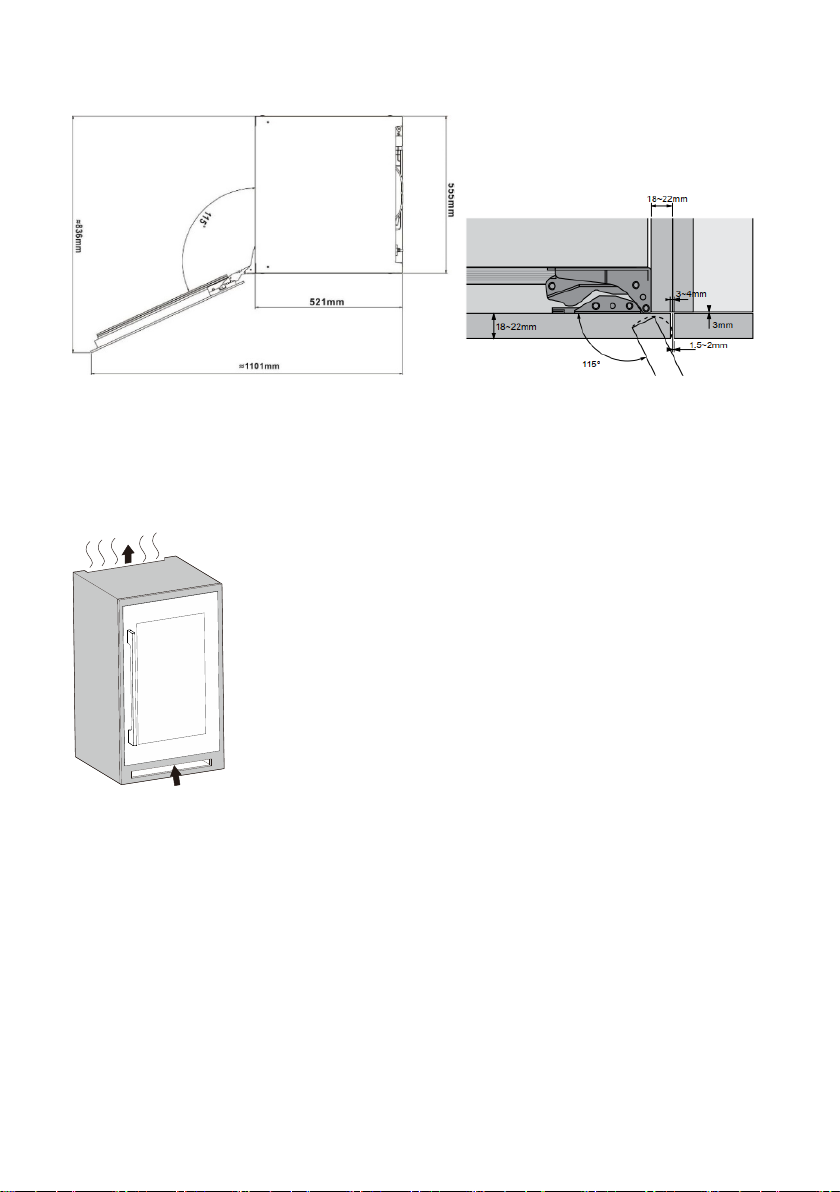

INSTALLATION DRAWINGS
Ensure good ventilation according to the installation drawings, otherwise it will affect
the wine cooler working normally.
Note: The appliance must be positioned so that the plug is accessible after
installed.
WCI6045-1BG/WI6045H-1B24
WCI6088-2BG
WCI6088-2BG
WCI6088-2BG
WCI6045-1BG with open door
WI6054H-1B24 with open door

9
WCI6088-2BG with open
door

10
WCI6060-1BG/WCI6060-2BG/WI6060H-2B26/WCISK60BG
WCI6060-1BG/WCI6060-
2BG/WI6060H-2B26/
WCISK60BG with open door

11
WCI60188-2BG
WCI60188-2BG with open door

12
WI60182H-2P101

13
Fixing bracket installation
1.Level the wine cooler, take 2 fixing brackets ① 2 x 5*16 flat head screws ② and 4
screw covers ③ from the polybag. Remove 4 trunk-nails on the left side frame, fix the
brackets ① on the left side of with a Philips screwdriver.
2.Take 4 X 4*12 self-tapping screws ④ from the polybag, fix the bracket ① on left
side of kitchen cabinet with a Philips screwdriver. And take another 4 X 4*12 self-
tapping screws ④, fix the right side door hinges to the kitchen cabinet with these
screws.
Installation of door panel
The wine cabinet door has the function of fine-tuning wood board:
1. Take out the bracket ⑦, two 5 * 35 flat screws and two 5 * 25 flat screws ⑥ from
the accessories package, fix the bracket on the upper and lower sides of the door panel
with 4 * 12 self-tapping screws ④ according to the dimensions shown in the figure,
pre hit two 5 * 35 screws on the bracket, hang the door panel on the door body, place

14
the screws in the oval groove in the door frame and adjust the door panel, and screw
up and down with a screwdriver.
After the approximate position of the door panel is adjusted, screw two 5 * 25 screws
through the oval hole of the positioning support ⑦ and let the screws pass through
the middle hole of the door frame according to following figures and tighten the
screws to prevent the door body from loosening. (See Figure 1.2)
2. After the door panel is fully adjusted, take out six 5 * 45 ⑧ long self-tapping screws
from the accessories package, uncover the door seal, drill the screws through the
screw holes in the left and right door frames, and tighten the door panel (see Figure
3).
3. Finally, put 4 * 12 self-tapping screws ④ through the holes on the upper and lower
door hinges and fix them on the door panel (see Fig. 4).

15
WI60182H-2P101 with open door
RADIATOR SYSTEM DESCRIPTION
WCI6045-1BG/WCI6060-1BG/ WCI6060-2BG/ WCI6088-2BG/WCI60188-2BG/
WI6045H-1B24/WI6060H-1B26/WCISK60BG adopt back heat dissipation system

16
TURNING ON YOUR WINE CELLAR
Plug in and switch on the cellar by pressing on the power button for a few seconds.
When you use the wine cellar for the first time (or restart the wine cellar after having
it shut off for a long time), there will be a few degrees variance between the
temperature you have selected and the one indicated on the LED readout. This is
normal and it is due to the length of the activation time. Once the wine cellar is
running for a few hours everything will stabilize.
Important: If the unit is unplugged, power is lost, or turned off, wait 3 to 5 minutes
before restarting the unit. The wine cellar will not start if you attempt to restart
before this time delay.
OPERATING NOISES
To reach the desired temperature settings, our wine cellars, like all wine cellars
operating with compressors and fans, may produce the following types of noises.
These noises are normal and may occur as follows:
•Gurgling sound - caused by the refrigerant flowing through the appliance’s coils.
•Cracking/popping sounds - resulting from the contraction and expansion of the
refrigerant gas to produce cold.
•Fan operating sound - to circulate the air within the wine cellar.
An individual’s perception of noise is directly linked to the environment in which the
wine cellar is located, as well the specific type of models. Our wine cellars are in line
with international standards for such appliance. We will always do its utmost to
satisfy its customers but will not retake possession of the goods due to complaints
based on normal operating noise occurrences.
LOADING YOUR WINE CELLAR
You may load your wine bottles in single or double rows while taking note of the
following: if you do not have enough bottles to fill your wine cellar, it is better to
distribute the load throughout the wine cellar to avoid “all on top” or “all below”
type loads.
•Do remove or relocate adjustable wooden shelves to accommodate larger type
of bottles or increase the capacity of the cellar by stacking the bottles up when
necessary. (See removing shelves)

17
•Keep small gap between the walls and the bottles to allow air circulation. Like an
underground cellar air circulation is important to prevent mould and for a better
homogeneous temperature within the cellar.
DANGER!
•Do not overload your wine cellar to facilitate air circulation.
•Do not stack more than 1.5 rows of standard 0.75L bottles per shelves to
facilitate air circulation.
•Avoid obstructing the internal fans (located inside on the back panel of the wine
cellar).
•Do not slide the shelves outwards beyond the fixed position to prevent the
bottles from falling.
•Do not pull out more than one loaded shelf at a time as this may cause the wine
cellar to tilt forward.
•Do not cover the wooden shelves with alloy foil or other materials, as it will
obstruct air circulation.
•Do not move your wine cellar while it is loaded with wines. This might distort the
body of the wine cellar and cause back injury.
TYPES OF REGULATION
Please note that depending on the loading and settings chosen it takes about 24
hours for the wine cellar to see the temperature stabilizing.
During this time LED seems to move erratically in particular, it is normal, and this
process occurs whenever the setting is modified and/or whenever many bottles are
added to the cellar.
Designed to store and mature all wines: red, white, and sparkling. These wine cellars
reproduce the ideal conditions for wine storage, at a constant recommended
temperature of 12ºC. They can also be set to provide ideal serving temperature for
full enjoyment of the wine’s qualities. Unless stated by the wine maker on the bottle
we recommend 7ºC for your champagne, 12ºC for whites and 18ºC for reds. (Refer to
“Wine Service Temperature” recommendation chart)

18
TEMPERATURE SETTINGS
Important: The LED displays by default the actual internal air temperature.
The temperature of the power, before all Settings will be resumed after the
electricity to power the pre-set temperature.
The electrical board of all models comes with memory function.
It is important to understand that there is a difference between the air temperature
inside the wine cellar and the actual temperature of the wine: You will need to wait
approximately 12 hours before noticing the effects of temperature adjustment due
to the critical mass within a full wine cellar.
Once the temperature is set, it is strongly advised not to toy with it or adjust
frequently. The thermostat will maintain the temperature inside the wine cellar
within a +/- 2.5ºC range. But the thermal inertia of the wine and the glass is such that
within this temperature range, the actual temperature of the wine will only fluctuate
0.5ºC to 1ºC.
If the light is turned off before you get the door closed, then light will turn on
automatically while you open the door, and it will be off automatically when the door
is closed. If you want to keep the light always on, just turn on the light after you open
the door.

19
CONTROL PANELS
Control panel WCI6045-1BG/WI6045H-1B24
①Display Window
Display the measured temperature inside the wine cooler.
② Cycle Button
Each time, the temperature inside will drop 1 ℃, until reduced to a minimum, and
then a return to the highest temperature.
Press for 3 seconds, the window to achieve Celsius / Fahrenheit display conversion.
③Cycle Button
In standby mode: press and hold for 3 seconds, power is turned on, the machine
starts.
In the boot state: short press this button, LED lights on / off switch
In the boot state: press the button for 3 seconds, the power is off, the whole
machine is closed.

20
Control panel WCI6060-1BG
①Lamp & Power Button
When power cord connected: press and hold for 3 seconds, power is turned on, the
machine starts.
In the machine power-on-state: press this button, LED lights on; Press once again,
LED lights off.
In the machine power-on-state: press and hold for 3 seconds, power is turned off,
the machine is off.
②Temperature setting up button
Setting up the temperature in window ⑥by 1 degree Celsius with each single touch,
max. setting temperature: 20 degrees Celsius.
③Temperature setting down button
Setting down the temperature in window ⑥by 1 degree Celsius with each single
touch, min. setting temperature: 5 degrees Celsius.
④C/F display conversion button
Converting the degrees Celsius / Fahrenheit display in windows ⑥, by
simultaneously pressing ②③ and hold for 3 seconds.
⑤Window
Temperature display.
