SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
WARNING: The mains are not disconnected in the off position,
but the circuits are de-powered.
WARNING: To reduce the risk of fire or electric shock, do not expose
this apparatus to rain or moisture.
RISK OF
ELECTRIC SHOCK
DO NOT OPEN
This equipment is a Class II or
double insulated Electrical
appliance. It has been
designed in such away that it
does not require a safety
connection to electrical earth.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual

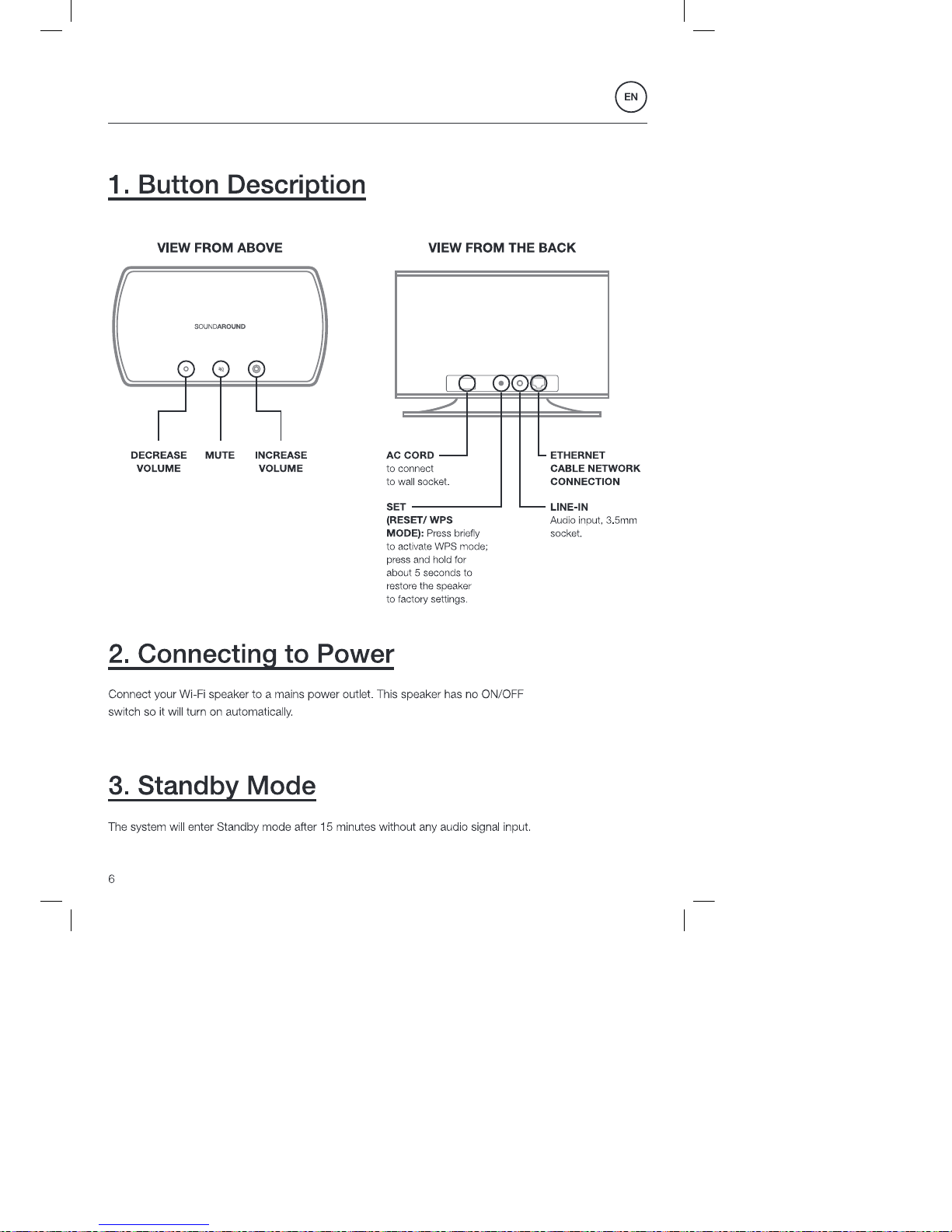

1. Button Description 6
2. Connecting to Power 6
3. Standby Mode 6
4. Led Display 7
5. Setup 7
5.1 Download the App 7
5.2 Connecting your Device to the Speaker 8
5.3 Connecting your speaker to a Wi-Fi network 9
5.4 Adding more Speakers (only for Android Users) 11
6. Music Playback 13
7. Grouping Speakers 15
8. Featured Apps 16
9. Restoring Factory Settings 17
10. FAQ’s 18
11. Speci cations 19

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Not e: Disconnect the power, to turn the speaker OFF.
* For best
sound quality, please
use cable supplied.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
STATUS DISPLAY STATUS
STANDBY Fade in and out RED
Standby mode after 15 minutes without any audio signal inputs
VOL- / + Flashes
Volume increase/ decrease
LINE-IN Lights up Orange
Connected via LINE IN (Auxiliary input)
WI-FI
Flashes White
Booting process / Establishing Wi-Fi connection (via WPS mode) / Pairing mode
Lights up White
System ready for Wi-Fi connection (AP Mode)
SET Flashes Green
Reset to Factory default / Firmware updated
MUTE Flashes Slowly
Mute audio

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Note: You will need to wait about 1 minute
before the Wi-Fi speaker appears. The
speaker will have 6 characters after the
model number. This is the speaker´s unique
MAC (hardware) address
Note: If you are unsure you are in pairing
mode, press and hold the SET button on
the back of the speaker for 5 seconds.
This will reset the unit back to factory
settings.
SOUNDAROUND SA30W
MA10092016
SOUNDAROUND SA30W
MA10092016
CHOOSE A NETWORK...

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Note: Repeat the process above if the connection has “timed out” and a connection has
not been made.
172.19.42.1
Next
Device Name
Please give your devide a name to identify it on the
network. Example: Kitchen, Bedroom.
powered by
* must be completed
* Devide Name
Speaker
172.19.42.1
Next
Wireless Network Settings
Choose the wireless network you would like to use,
and enter a password if one is required.
powered by
* must be completed
* Network Name
Works hop
* Password
•••••••
Show Password
DHCP

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
172.19.42.1
Connecting
Connecting, please wait...
powere d by
172.19.42.1
You’re connected!
Your network connection may be lost shortly.
Please make sure that you have the Qualcomm
®
AllPlay
TM
Jukebox app installed on your mobile
device to begin streaming music.
powere d by
Note: : If your network router does not assign an IP address automatically, switch the
DHCP function to OFF and then enter the IP address manually. Then enter the network
key again if required, and click “CONNECT”.
The speaker saves the connection, so you do not need to setup the connection next time
it is switched on. It will connect automatically.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Cancel
Pause All
Select a P... +
Bedroom
[Nothing playing]
Group
Dinning Room Group
Don’t Stop Me Now - Qu...
Next
Wi-Fi Network
Select your Wi-Fi
network
JAZZTEL_VCPj
WPA2_CCMP
Show password
Next
Set up AllPlay Player
Please plug in your
AllPlay player and
make sure it’s in
setup mode.
(You can check your
user manual if you´re
not sure.)
Bedroom
Choose Name
Please choose or enter a
name for your player
Living Room
Bedroom
Kitchen
Of ce
Patio
Custom Name

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Done
Setup Complete
Kitchen has been
set up successfully!
Bedroom
Set up another player
Cancel
Pause All
Select a P... +
Kitchen
Don’t Stop Me Now - Qu...
Group
Bedroom
[Nothing playing]
Group
Dinning Room
[Nothing playing]
Group

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Note: If you are not getting any audio, once the speaker/s are connected
to the network, please allow one 1 minute or so before playback begins.
Bedroom
[Nothing Playing]
Group
Kitchen
[Nothing Playing]
Group
Dinning Room
Don’t Stop Me Now - Queen
Group
Selec t a Pl ayer
Pause All
Music on This Device
Music On The Network
Music Services
Settings
Dinning Room
Music
Note: Each device will need to download the AllPlay Jukebox App and be connected
to the network.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Note: You can select more than one speaker for the playback.
Please refer to the app for details.
Note: When using direct mode, please remember to switch off the ‘Auto-Login’
and ‘Auto-Join” function on smartphone, to avoid smartphone trying to connect
with a valid network.
Note: You can select more than one speaker for the playback.
Please refer to the App for details.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Note: For best sound reproduction use the audio cable supplied.
The speaker will revert back to the previous Wi-Fi mode when there has been
no audio signal after 1 second.
[Nothing Playing]
Group
[Nothing Playing]
Group
Don’t Stop Me Now - Queen
Selec t a Pl ayer
Pause All
Group
Bedroom
Kitchen
Dining Room
Bedroom
Select the players that will play Don’t Stop Me Now
Group
Clear All Selec t All
Dining Room
Kitchen
Don’t Stop Me Now - Queen
Selec t a Pl ayer
Pause All
Bedroom
Dining Room
Group

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
Little Child
The Beatles
0:14 1:45
Note: The speaker icon at the bottom right of the screen will be coloured GREEN
(for premium accounts only) to indicate your speaker is connected to the Spotify App
for Wi-Fi music playback.
To reconnect and disconnect playback from
the Wi-Fi speaker, simply press this speaker icon.
CONNECT
Connect lets you play and control Spotify on all
your devices
Ron’s iPhone
This device
Speaker1
Available on network
Note: This process may take up to 1-2 minutes to fully reset.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
I’m not getting any audio. How do I x this?
Please reset the speaker/s by: press and hold
the SET button on the back on the speaker
for 5 seconds.
I can’t see the speaker under my Wi-Fi. Why?
Please make sure the speaker is in “Searching”
mode. It may take 1 to 2 minutes before you can
see the speaker in the Wi-Fi list.
Using Auxiliary, I don’t get any audio.
Please reset the speaker rst by: press and hold
the SET button on the back on the speaker for 5
seconds.
My speaker has a ashing red light. What is this? The speaker is the “Standby” mode.
Press the volume + or – to “wake up” the speaker.

SOUNDAROUND Wi-Fi Speaker SA 30W & SA 50W User Manual
SA30W /JS2238WA SA50W/JS3220WA
DIMENSIONS 264 x 124 x 173 mm 412 x 263 x 172 mm
CHANNELS 2.0
POWER INPUT 100 – 240V ~ 50/60Hz 150W
POWER RATING 30 Watts 50 Watts
SPEAKERS 2 x Full Range Drivers
PASSIVE RADIATOR 1
MULTI SPEAKER (CAPABILITY) Up to ten speakers
WI-FI FREQUENCY 5Ghz / 2.4Ghz
ETHERNET / LAN Yes
HUB/BRIDGE Not Required
WEIGHT 2.6 kg 4,85 Kg
APP SUPPORT iOS / Android
WI-FI CONNECT VIA APP WPS / Webpage
