EK MD HD EASY RC User manual

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
USER MANUAL
MD HD EASY RC
122014
DIGITAL MODULATOR WITH IR
V03

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
USER MANUAL MD HD EASY RC
TABLE OF CONTENTS
Introduction:................................................................................................................................................................................................................................ 3
Description: ............................................................................................................................................................................................................................ 3
Key features:......................................................................................................................................................................................................................... 3
Contenido del embalaje: ............................................................................................................................................................................................ 3
INTERFACES AND CONNECTION: ......................................................................................................................................................................... 4
Interfaces:................................................................................................................................................................................................................................ 4
Installation diagram: ....................................................................................................................................................................................................... 5
Basic programming by buttons: ................................................................................................................................................................................ 7
Advanced programming using MD HD Soft...................................................................................................................................................8
USB MEMORY USE..............................................................................................................................................................................................................9
Technical data ........................................................................................................................................................................................................................10
Frequency and channels table (Standard B/G)..........................................................................................................................................11

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
3
USER MANUAL MD HD EASY RC
Introduction:
Description:
Digital modulator with which you can transfer an FHD signal over a coaxial cable network to your TV
receivers with excellent quality.
Key features:
•Digital COFDM HD modulator-encoder with IR extender.
•Excellent modulation quality. MER ≥33 dB. HD resolution up to 1080p.
•Universal infrared extender. Allows IR frequency selection.
•LOOP HDMI IN / OUT.
•Recorder / Player USB.
•Quick menu. Easy selection with buttons of channel, attenuation, program indentifier and IR
frequency.
•Advanced programming via PC software.
•High dynamic range> 80dB.
Contenido del embalaje:
1. 1 x MD HD EASY RC
2. 1 x Power supply5V DC.
3. 1 x Jack cable to IR.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
4
USER MANUAL MD HD EASY RC

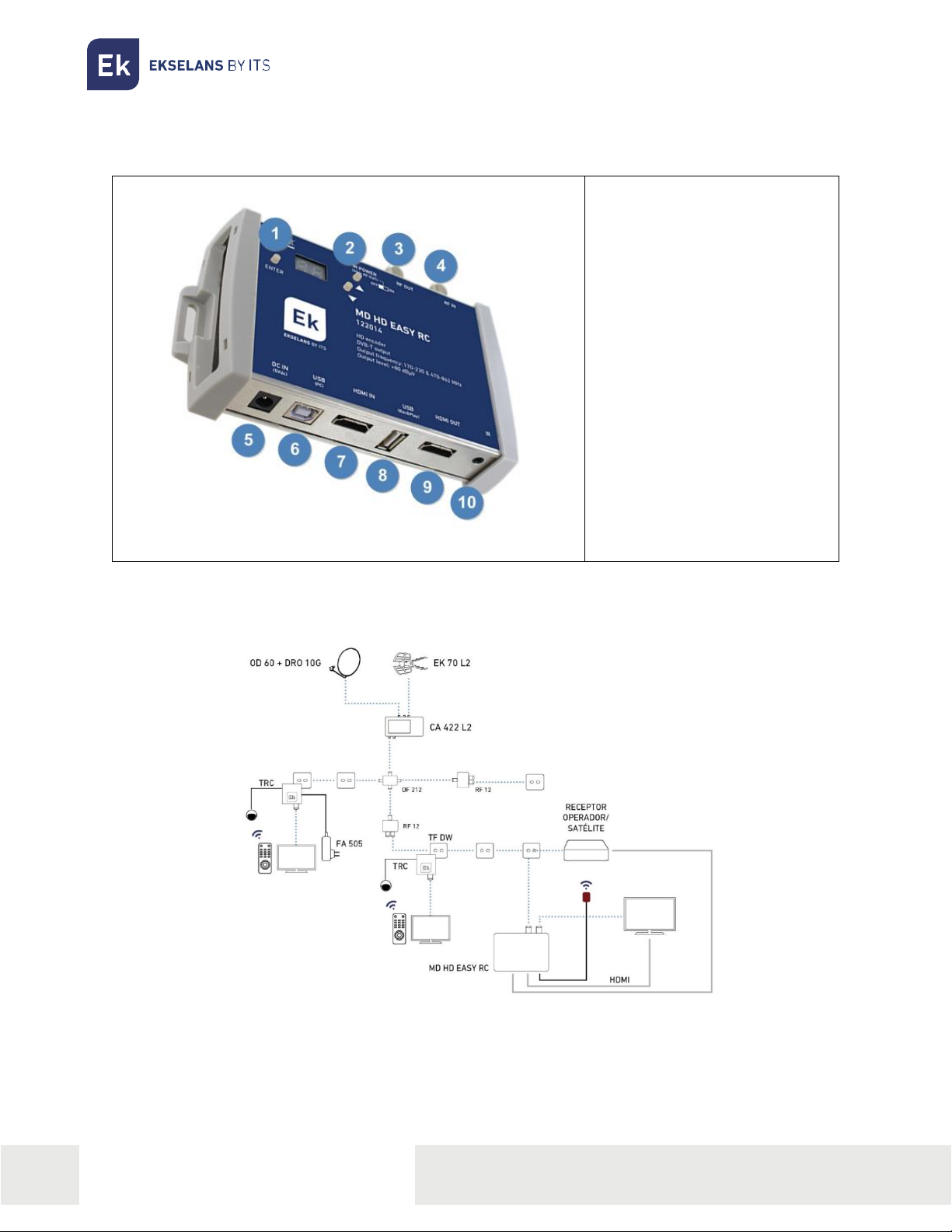

INTERFACES AND CONNECTION:
Interfaces:
1 y 2- Front programming buttons
3.-RF OUT.
4.-RF IN..
5.-DC IN.
6.-USB B type programming.
7.-HDMI IN.
8.-USB (REC & PLAY).
9.-HDMI OUT (LOOP)
10.-IR transmitter.
1 - 5VDC ON / OFF switch (To RF
Out)
2.- Display
3.- Infrared (IR) cable transmitter.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
5
USER MANUAL MD HD EASY RC
Installation diagram:
1 y 2- They are used to configure.
3.- Connects to the facility (for
receivers).
4.-RF signals are input.
5.- The built-in power supply is
connected and plugged into the
current.
6.-Connects to pc if necessary, to
set up with MD HD SOFT app.
7.-It connects the signal you
want to modulate.
8.-The video you want to
interleave is connected.
9.- LOOP from HDMI IN.
10.-In case that you needed; the
IR extender could be connected .
The two TRC allow the STB to be controlled. One of them is fed to 5V directly from the MD HD EASY
RC because there is current pass between them. The second TRC requires its FA 505 source because
TAP does not allow current flow.*TRC not included

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
6
USER MANUAL MD HD EASY RC
To obtain the maximum dynamic range and
greater power it is recommended to connect the
output of the modulator (OUT) to the TV socket
and the TV to the INPUT connector of the
modulator

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
7
USER MANUAL MD HD EASY RC
Basic programming by buttons:
Power supply connected
HDMI source detected
•Press to change the menu option:
•
Setting the output channel [5…12+
21…69]
•
Setting the IR carrier frequency [38 /
46 / 56 KHz]
•
Setting the program identifier [1…34]
•
Setting the desired output
attenuation [0…15 dB]
1. Press menu options in order to
modify their parameters.
•If a USB memory stick containing a file
named “Video01.ts” is connected”
•The file will be played when pressing
.
•The file will be created or overwritten
when pressing . If it does not
exist, it will be created.
•Press for finishing the recording
or playing.
•Playing, recording and stopping
require confirmation. Press
.
•Yes
•No
•Press while connecting the power supply for factory default values. . Will appear on
the display.
•Note:In case of using more than one modulator for the same receiver or TV set, it is necessary
to modify the “Program ID” so that they have different values.

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
8
USER MANUAL MD HD EASY RC
Advanced programming using MD HD Soft
•For advanced settings, download the SW “MD HD Soft” from the website: www.ek.plus
•Connect the modulator to the computer by using a Type A / Type B USB cable.
1. RF Parameters.
2. Video and TS parameters..
3. This box can be used to adjust an horizontal shift on the input video. With some sources (rare
cases), customers were facing a green part on the left of the picture. With this setting, the picture
can be moved to the left to make this green bar disappear.
4. Click the button on MDHDIface to write the EDID table in the modulator.
5. Frequency of the remote controller that points to the TRC.
6. Delay between audio and video of the output modulated signal. A delay of -999ms means that
the video is almost 1s in front of the video
7. Current time and adjustment.
8. Schedule by date, time and days of the week.
9. Programming of scheduled events of recording and playing files to/from the USB memory
stick
10. Name of the file that the modulator expects in the connected USB memory stick for playing or
overwriting
11. Selection of the .ts file stored inside the connected USB memory stick
12. Control with MDHDSoft of the stored files in the USB memory stick. PLAY,STOP or Record.
13. Panel where uploaded videos will be displayed. .

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
9
USER MANUAL MD HD EASY RC

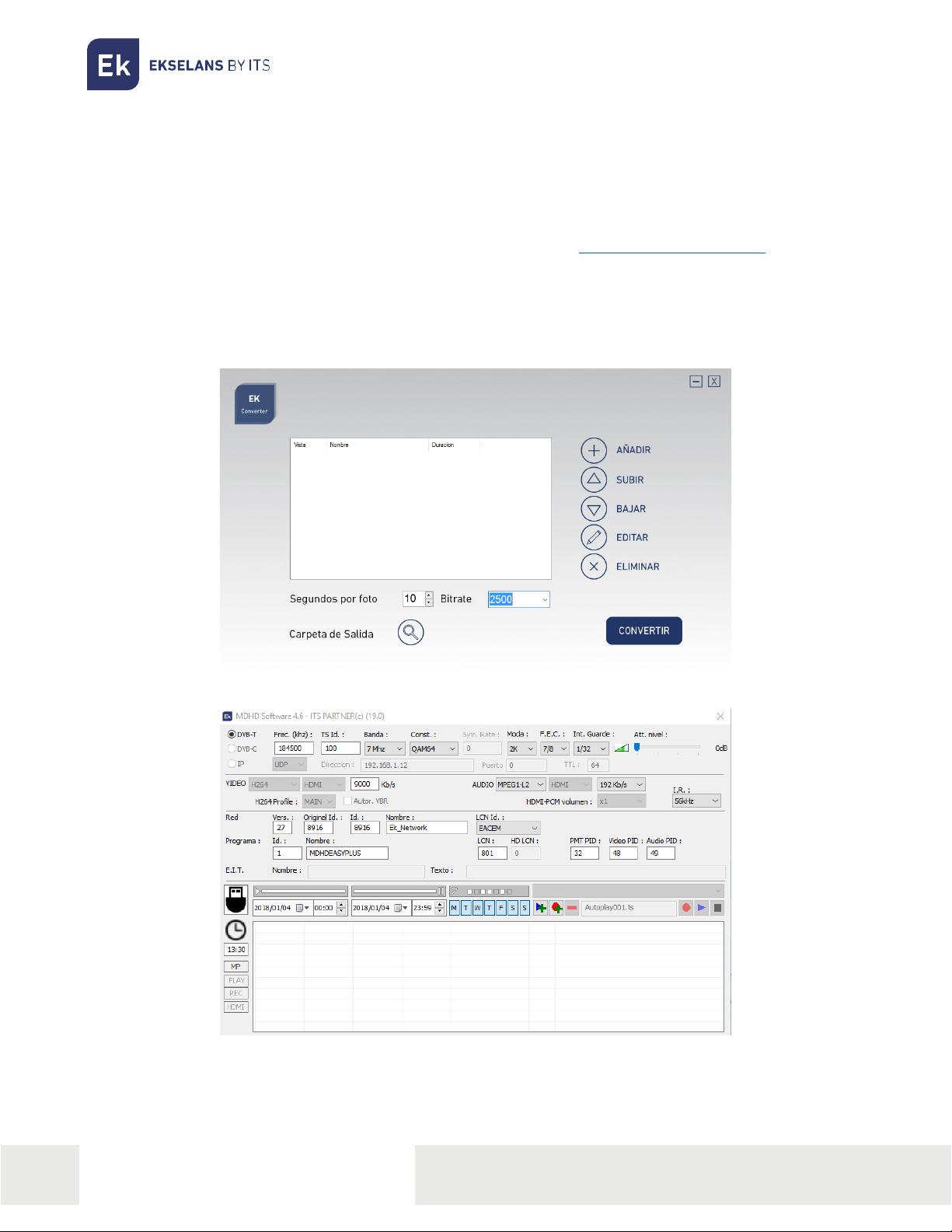

USB MEMORY USE
•The modulator allows recording and playing .TS files.
•.TS files must be stored on a USB 3.0 memory with FAT32 files system.
•The "EK Converter" software can be found on the website https://ek.plus/software/. This
converts the most common video and image formats to .TS format.
•Use the MD HD Soft software to program play / record time slots.
•The file “Video01.ts" hosted in the root of the memory will be played cyclically.
•If there are other files “Video02.ts", “Video03.ts", ... will be played consecutively.
Ek Converter
MD HD Soft

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
10
USER MANUAL MD HD EASY RC
Technical data
REFERENCE
MD HD EASY RC
Code
122014
HDMI INPUT
VIDEO
Video resolution
480p/576p/720p/1080p @
25/30/50/60 fps
Video compression
H.264
Video rate
Kbps
500-15000
AUDIO
Audio compression
MPEG1-L2, AAC-LC
Audio rate
Kbps
128, 192, 256, 320
HDMI OUTPUT
LOOP
MODULATION
DVB processing
NIT, PID
DVB adjustments
NID, ONID, Network ID, Network name,
TS ID, Program ID, Program name, PMT
PID, Video PID, Audio PID
Output frequency
MHz
170-230 & 470-862
Output channel
N.
5…12 + 21…69
Output level
dBµV
>80
Attenuation
dB
0…15
MER
dB
≥33
Bandwith
MHz
6, 7, 8
Constellation
QPSK, 16QAM, 64QAM
Mode
2K, 8K
FEC
1/2, 2/3, 3/4, 5/6, 7/8
Guard interval
1/4, 1/8, 1/16, 1/32
LCN
EACEM, ITC, NORDIG
RF loop
dB
-2
INFRARED EXTENDER
IR frequency carrier
KHz
38 / 46 / 56
IR emitter cable
Incluido / Included
Voltage RF output
Vdc
5 (ON / OFF Switch)
GENERAL
Voltage feeding
Vdc
5
Power consumption
W
<5
Dimensions
mm
170 x 130 x 35

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
11
USER MANUAL MD HD EASY RC
Frequency and channels table (Standard B/G)
•Band III. 7MHz Bandwith
•Band IV - V. 8MHz Bandwith
BAND
Channel
Start Freq.
End Freq
Central Freq
III
5
174 MHz
181 MHz
177,5 MHz
6
181 MHz
188 MHz
184,5 MHz
7
188 MHz
195 MHz
191,5 MHz
8
195 MHz
202 MHz
198,5 MHz
9
202 MHz
209 MHz
205,5 MHz
10
209 MHz
216 MHz
212,5 MHz
11
216 MHz
223 MHz
219,5 MHz
12
223 MHz
230 MHz
226,5 MHz
BAND
Channel
Start Freq.
End Freq
Central Freq
IV
21
470 MHz
478 MHz
474 MHz
22
478 MHz
486 MHz
482 MHz
23
486 MHz
494 MHz
490 MHz
24
494 MHz
502 MHz
498 MHz
25
502 MHz
510 MHz
506 MHz
26
510 MHz
518 MHz
514 MHz
27
518 MHz
526 MHz
522 MHz
28
526 MHz
534 MHz
530 MHz
29
534 MHz
542 MHz
538 MHz
30
542 MHz
550 MHz
546 MHz
31
550 MHz
558 MHz
554 MHz
32
558 MHz
566 MHz
562 MHz
33
566 MHz
574 MHz
570 MHz
34
574 MHz
582 MHz
578 MHz
35
582 MHz
590 MHz
586 MHz
36
590 MHz
598 MHz
594 MHz
37
598 MHz
606 MHz
602 MHz

ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C
08172 Sant Cugat del Vallés · Barcelona (Spain)
Phone: [phone] · [e-mail] · www.ek.plus
12
USER MANUAL MD HD EASY RC
BAND
LTE
Channel
Start Freq.
End Freq
Central
Freq
V
38
606 MHz
614 MHz
610 MHz
39
614 MHz
622 MHz
618 MHz
40
622 MHz
630 MHz
626 MHz
41
630 MHz
638 MHz
634 MHz
42
638 MHz
646 MHz
642 MHz
43
646 MHz
654 MHz
650 MHz
44
654 MHz
662 MHz
658 MHz
45
662 MHz
670 MHz
666 MHz
46
670 MHz
678 MHz
674 MHz
47
678 MHz
686 MHz
682 MHz
48
686 MHz
694 MHz
690 MHz
2
49
694 MHz
702 MHz
698 MHz
2
50
702 MHz
710 MHz
706 MHz
2
51
710 MHz
718 MHz
714 MHz
2
52
718 MHz
726 MHz
722 MHz
2
53
726 MHz
734 MHz
730 MHz
2
54
734 MHz
742 MHz
738 MHz
2
55
742 MHz
750 MHz
746 MHz
2
56
750 MHz
758 MHz
754 MHz
2
57
758 MHz
766 MHz
762 MHz
2
58
766 MHz
774 MHz
770 MHz
2
59
774 MHz
782 MHz
778 MHz
2
60
782 MHz
790 MHz
786 MHz
1
61
790 MHz
798 MHz
794 MHz
1
62
798 MHz
806 MHz
802 MHz
1
63
806 MHz
814 MHz
810 MHz
1
64
814 MHz
822 MHz
818 MHz
1
65
822 MHz
830 MHz
826 MHz
1
66
830 MHz
838 MHz
834 MHz
1
67
838 MHz
846 MHz
842 MHz
1
68
846 MHz
854 MHz
850 MHz
1
69
854 MHz
862 MHz
858 MHz
