Elation PROTEUS RAYZOR 760 User manual

User Manual
PROTEUS
RAYZOR 760 /
RAYZOR 760 WMG

2
©2022 ELATION PROFESSIONAL all rights reserved. Information, speci󰤱cations, diagrams,
images, and instructions herein are subject to change without notice. ELATION PROFES-
SIONAL logo and identifying product names and numbers herein are trademarks of ELATION
PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable
materials and information now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or registered trademarks of their
respective companies and are hereby acknowledged. All non-ELATION brands and product
names are trademarks or registered trademarks of their respective companies.
ELATION PROFESSIONAL and all a󰤳liated companies hereby disclaim any and all liabilities
for property, equipment, building, and electrical damages, injuries to any persons, and direct
or indirect economic loss associated with the use or reliance of any information contained
within this document, and/or as a result of the improper, unsafe, insu󰤳cient and negligent
assembly, installation, rigging, and operation of this product.
Elation Professional USA | 6122 S. Eastern Ave. | Los Angeles, CA. 90040
323-582-3322 | 323-832-9142 fax | www.elationlighting.com | [e-mail]
Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands
[phone] | [phone] fax | www.elationlighting.eu | [e-mail]
Elation Professional Mexico
AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000
[phone]
Date Document
Version
Software
Version DMX Channels Notes
05/28/2019 1.0 1.2.1 25 / 52 / 80 Initial release
09/30/2019 1.1 N/C No Change Included RJ4 data cable note.
10/15/2019 2.0 1.2.2 No Change Updated System sub menus, DMX Control
Channel, RGBW/ SparkLED FX Tables
03/05/2020 2.5 N/C No Change Added torque screw setting page
05/12/2020 3.0 N/C No Change Added Elation Proteus Rayzor 760 WMG
08/10/2020 3.5 N/C No Change Updated thermal
10/14/2020 4.0 N/C No Change Updated specifications
02/04/2021 4.5 1.2.4 No Change Updated primary/secondary modes
03/15/2021 5.0 N/C No Change Hibernation/sun protection warning and
information
05/20/2021 5.5 N/C No Change Updated Maintenance Guidelines
08/15/2022 6.0 N/C No Change
Updated Introduction, System Menu, DMX
Traits, and Torque settings for screws;
added RDM; updated formatting
DOCUMENT VERSION
Due to additional product features and/or enhancements, an updated version
of this document may be available online. Please check www.elationlight-
ing.com for the latest revision/update of this manual before beginning
installation and/or programming.

3
TABLE OF CONTENTS
Introduction 4
Warranty Returns 5
Safety Precautions 6
Maintenance Guidelines 8
Overview 9
Installation Guidelines 10
Torque Settings for Screws 15
Remote Device Management (RDM) 17
System Menu 18
Record Controller 22
Lighting Console Patching Guidelines 25
DMX Traits 30
Color Temperature Control Table 39
FX Generator Guidelines 41
RGBW FX Table 43
Spark LED FX Table 48
Error Codes 53
Specifications 54
Dimensional Drawings 55
Optional Accessories | FCC Statement 56

4
Please read and understand the instructions in this manual carefully and thoroughly before
attempting to operate this device. These instructions contain important safety and use infor-
mation. This device is intended for use by trained personnel only, and is not suitable for
private use.
UNPACKING
Every device has been thoroughly tested and has been shipped in perfect operating condition.
Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton is damaged, carefully inspect the device for damage, and be sure all accessories neces-
sary to install and operate the device have arrived intact. In the event that damage has been
found or parts are missing, please contact our customer support team for further instructions.
Please do not return this device to your dealer without 󰤱rst contacting customer support.
Please do not discard the shipping carton in the trash. Please recycle whenever possible.
IP65 RATED
An IP rated lighting 󰤱xture is commonly installed in outdoor environments and has been designed
with an enclosure that e󰤰ectively protects against the ingress (entry) of external foreign
objects such as dust and water. The International Protection (IP) rating system is commonly
expressed as “IP” followed by two numbers (i.e. IP65) where the numbers de󰤱ne the degree
of protection. The 󰤱rst digit (Foreign Bodies Protection) indicates the extent of protection
against particles entering the 󰤱xture, while the second digit (Water Protection) indicates the
extent of protection against water entering the 󰤱xture. An IP65 rated lighting 󰤱xture, such
as this one, has been designed and tested to protect against the ingress of dust (6) and
low-pressure water jets from any direction (5).
BOX CONTENTS
Omega Brackets (x2)
IP65 Rated 5-pin DMX Cable (x1)
IP65 Rated RJ45 Data Cable (x1) - FIXTURE TO FIXTURE INTERCONNECTION USE ONLY!
IP65 Locking Power Cable (x1)
CUSTOMER SUPPORT
Contact ELATION Service for any product related service and support needs.
Also visit forums.elationlighting.com with questions, comments or suggestions.
ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST
323-582-3322 | Fax [phone] | [e-mail]
ELATION SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET
[phone] | Fax [phone] | [e-mail]
REPLACEMENT PARTS - please visit parts.elationlighting.com
INTRODUCTION

5
WARRANTY RETURNS (USA ONLY)
To obtain warranty service, a Return Materials Authorization (RMA) number must first be
obtained from ELATION. It is the Customer’s responsibility to provide product proof of
purchase and serial number by acceptable evidence such as an invoice copy or an approved
ELATION Extended Warranty Certificate (“EWC”) and any relevant maintenance records at the
time warranty service is sought. Failure to provide acceptable evidence of product proof of
purchase or EWC and any relevant maintenance records may be cause for denial of warranty
service.
Products returned for warranty service must be sent without any accessories (i.e., power,
data, and safety cables, brackets, clamps, rigging hardware, frost filters, gel frames, barn
doors, lens, hoses, nozzles, rack mounting hardware, etc.), must be boxed using the original
and/or suitable packaging materials (double-box and foam) that provides ample product pro-
tection for ground and/or air freight transit, and must be shipped freight pre-paid and insured
to ELATION in Los Angeles, CA or an ELATION Authorized Service Center. The RMA number
must be clearly written on the outside of the return box, and a brief description of the prob-
lem and the RMA number must be documented and included in the box.
Products returned for warranty service without an RMA number clearly marked on the out-
side of the package will be refused and returned to the shipper at the Customer’s expense.
Products returned for warranty service, which are received damaged due to inadequate and/
or improper packaging and/or due to damage caused by shipping carrier, may incur addi-
tional repair charges before warranty service begins and/or may void this warranty. If any
product accessories (included and/or optional) are shipped with the product, ELATION and/
or the ELATION Authorized Service Center shall have no liability what so ever for the loss
and/or damage to any such accessories, nor the safe return thereof. If the requested war-
ranty repairs or service (including parts replacement) are within the terms of this warranty,
ELATION will pay return ground transportation shipping charges to a single designated point
within the United States.

6
SAFETY PRECAUTIONS
PROTECTION CLASS 1 - FIXTURE MUST BE PROPERLY GROUNDED.
THERE ARE NO USER SERVICEABLE PARTS INSIDE THIS UNIT. DO NOT ATTEMPT
ANY REPAIRS YOURSELF, AS DOING SO WILL VOID YOUR MANUFACTURER’S
WARRANTY. DAMAGES RESULTING FROM MODIFICATIONS TO THIS FIXTURE
AND/OR THE DISREGARD OF SAFETY INSTRUCTIONS AND GUIDELINES IN THIS
MANUAL VOID THE MANUFACTURER’S WARRANTY AND ARE NOT SUBJECT TO
ANY WARRANTY CLAIMS AND/OR REPAIRS.
NEVER LOOK DIRECTLY INTO THE LIGHT SOURCE!
RETINA INJURY RISK - MAY INDUCE BLINDNESS!
SENSITIVE PERSONS MAY SUFFER AN EPILEPTIC SHOCK!
This 󰤱xture is a sophisticated piece of electronic equipment. To guarantee a smooth opera-
tion, it is important to follow all instructions and guidelines in this manual. Elation Profes-
sional is not responsible for injuries and/or damages resulting from the misuse of this 󰤱xture
due to the disregard of the information printed in this manual. Only quali󰤱ed and/or certi󰤱ed
personnel should perform installation of this 󰤱xture and only the original rigging parts in-
cluded with this 󰤱xture should be used for installation. Any modi󰤱cations to the 󰤱xture and/
or the included mounting hardware will void the original manufacturer’s warranty and in-
crease the risk of damage and/or personal injury
DO NOT PLUG FIXTURE INTO A DIMMER PACK!
NEVER OPEN THIS FIXTURE WHILE IN USE!
UNPLUG POWER BEFORE SERVICING FIXTURE!
NEVER TOUCH FIXTURE DURING OPERATION, AS IT MAY BE HOT! KEEP
FLAMMABLE MATERIALS AWAY FROM FIXTURE!
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A
DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) TO PREVENT
WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.
MINIMUM DISTANCE TO OBJECTS/SURFACES
MUST BE 3.3 FEET (1 METER)
MAXIMUM TEMP OF EXTERNAL SURFACE 185° F (85°C)
MINIMUM DISTANCE OF FLAMMABLE MATERIALS FROM THE SURFACE IS 1.6 FEET
(0.5 METER)

7
SAFETY PRECAUTIONS
• DO NOT TOUCH the 󰤱xture housing during operation. Turn OFF the power and allow ap-
proximately 15 minutes for the 󰤱xture to cool down before servicing.
• DO NOT shake 󰤱xture, and avoid brute force when installing and/or operating 󰤱xture.
• DO NOT operate 󰤱xture if the power cord is frayed, crimped, damaged and/or if any of the
power cord connectors are damaged and do not insert into the 󰤱xture securely with ease.
• NEVER force a power cord connector into the 󰤱xture. If the power cord or any of its con-
nectors are damaged, replace it immediately with a new one of the same power rating.
• DO NOT block any air ventilation slots.
• All fan and air inlets must remain clean and never blocked.
• Allow approx. 6” (15cm) between 󰤱xture and other devices or a wall for proper cooling.
• Always disconnect 󰤱xture from main power source before performing any type of service
and/or cleaning procedure.
• Only handle the power cord by the plug end. Never pull out the plug by tugging the wire
portion of the cord.
• During the initial operation of this 󰤱xture, a light smoke or smell may emit from the inte-
rior of the 󰤱xture. This is a normal process and is caused by excess paint in the interior of
the casing burning o󰤰 from the heat associated with the lamp and will decrease gradually
over time.
• Consistent operational breaks will ensure 󰤱xture will function properly for many years.
• ONLY use the original packaging and materials to transport the 󰤱xture in for service.

8
MAINTENANCE GUIDELINES
DISCONNECT POWER BEFORE PERFORMING ANY MAINTENANCE!
CLEANING
Frequent cleaning is recommended to ensure proper function, optimized light output, and an
extended life. The frequency of cleaning depends on the environment in which the 󰤱xture
operates: damp, smoky or particularly dirty environments can cause greater accumulation of
dirt on the 󰤱xture’s optics. Periodically clean the external lens surface with a soft cloth to
avoid dirt/debris accumulation. NEVER use alcohol, solvents, or ammonia-based cleaners.
MAINTENANCE
Regular inspections are recommended to ensure proper function and extended life. There are
no user serviceable parts inside this 󰤱xture. Please refer all other service issues to an autho-
rized Elation service technician. Should you need any spare parts, please order genuine parts
from your local Elation dealer.
Please refer to the following points during routine inspections:
• A detailed electric check by an approved electrical engineer every three months, to make
sure the circuit contacts are in good condition and prevent overheating.
• Be sure all screws and fasteners are securely tightened at all times. Loose screws may fall
out during normal operation, resulting in damage or injury as larger parts could fall.
• Check for any deformations on the housing, color lenses, rigging hardware, and rigging
points (ceiling, suspension, trussing). Deformations in the housing could allow for dust to
enter into the 󰤱xture. Damaged rigging points or unsecured rigging could cause the 󰤱xture
to fall and seriously injure a person(s).
• Electric power supply cables must not show any damage, material fatigue or sediments.
NEVER remove the ground prong from the power cable.
FIXTURE DISASSEMBLY
The following points should be observed after performing any maintenance procedure that
requires disassembly of the unit:
• After the unit has been reassembled, open the valve and allow the unit to run for approxi-
mately 2 hours in order to dry out any moisture that has been trapped inside the 󰤱xture.
The process should continue until indicated humidity drops below 15% for the head and
30% for the base.
• Once this has been achieved, the light can be switched o󰤰, but the unit should remain
connected to power so that the cooling fan can cool down the unit. Please note that al-
lowing cool down time should ALWAYS be done after lamp operation.
• Some units may require partial disassembly in order to gain access to the valve. Please
contact Elation service for information regarding the location and access procedure for
the valve on your speci󰤱c unit model.

9

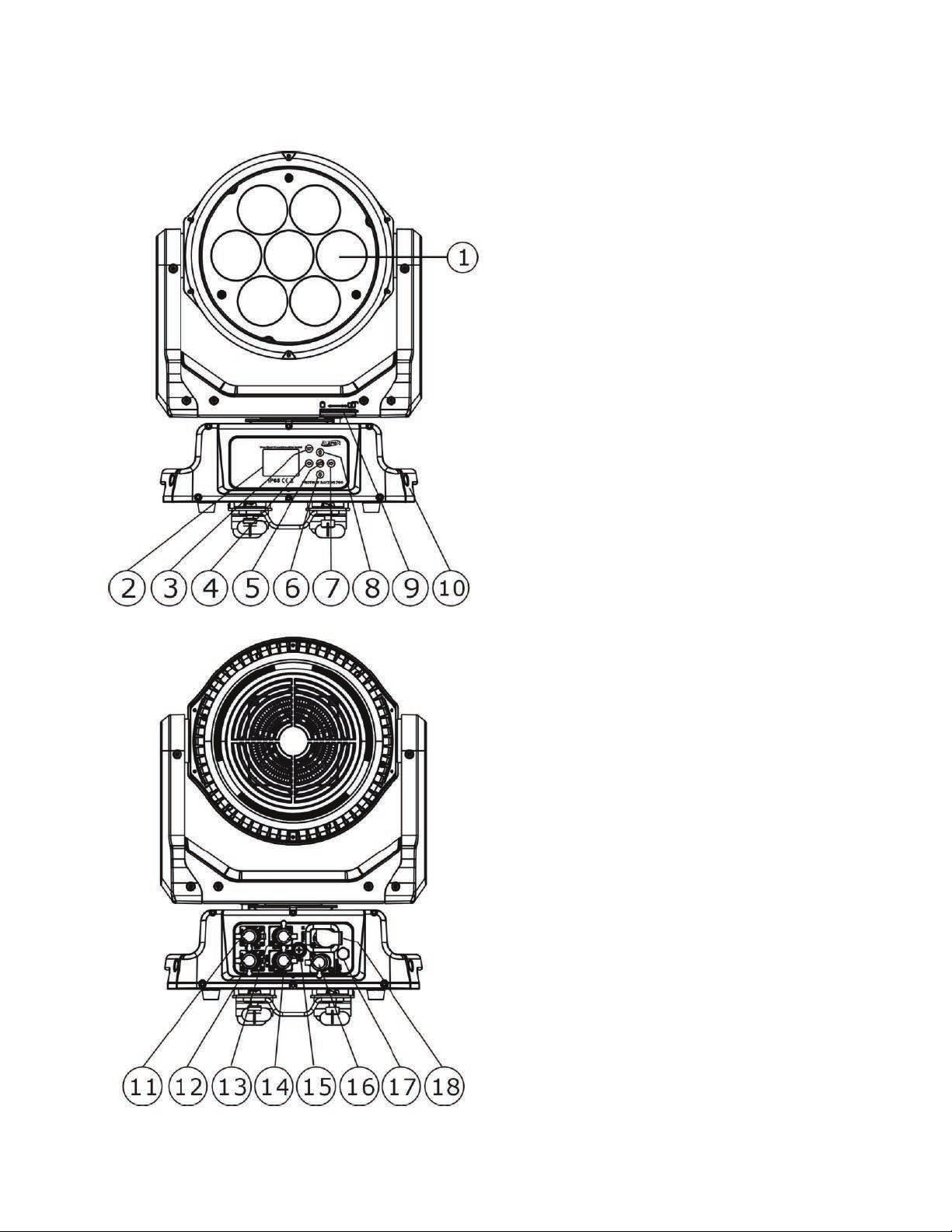

OVERVIEW
1. Lens
2. System Menu LCD Display
3. Mode/Esc Button
4. Left Button
5. Enter Button
6. Down Button
7. Right Button
8. Up Button
9. Pan Lock
10.Carrying Handle(s)
11.5-pin DMX Output
12.5-pin DMX Input
13.RJ45 Output
14.RJ45 Input
15.Fuse
16.Service Port
17.Value
18.Power Input

10
INSTALLATION GUIDELINES
FLAMMABLE MATERIAL WARNING
Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyro-
technics.
Fixture MUST be installed following all local, national, and country commercial electrical and
construction codes and regulations.
Before rigging/mounting a single fixture or multiple fixtures to any metal truss/structure or
placing the fixture(s) on any surface, a professional equipment installer MUST be consulted to
determine if the metal truss/structure or surface is properly certified to safely hold the com-
bined weight of the fixture(s), clamps, cables, and accessories.
Overhead rigging requires extensive experience, including calculating working load limits,
installation material being used, and periodic safety inspection of all installation material and
the fixture, among other skills. If you lack these qualifications, do not attempt the installa-
tion yourself. Improper installation can result in bodily injury.
Fixture ambient operating temperature range is -4° to 113°F (-20° to 45°C). Do not operate
the fixture when the ambient temperature falls outside of this range.
Fixture(s) should be installed away from walking paths, seating areas, or areas were unauthor-
ized personnel might reach the fixture by hand.
NEVER stand directly below the fixture(s) when rigging, removing, or servicing.
Overhead fixture installation must always be secured with a secondary safety attachment,
such as an appropriately rated safety cable.
Allow approximately 15 minutes for the fixture to cool down before serving.
ELECTRICAL CONNECTIONS
A qualified electrician should be used for all electrical connections and/or installa-
tions.
MINIMUM DISTANCE TO SURFACES/OBJECTS IS 3.3 FEET (1 METER).
MINIMUM DISTANCE TO FLAMMABLE MATERIALS IS 1.6 FEET (0.5 METER).
EXTERNAL SURFACE CAN REACH TEMPERATURES OF 185°F (85°C).
DO NOT INSTALL THE FIXTURE IF YOU ARE NOT QUALIFIED TO DO SO!

11
INSTALLATION GUIDELINES

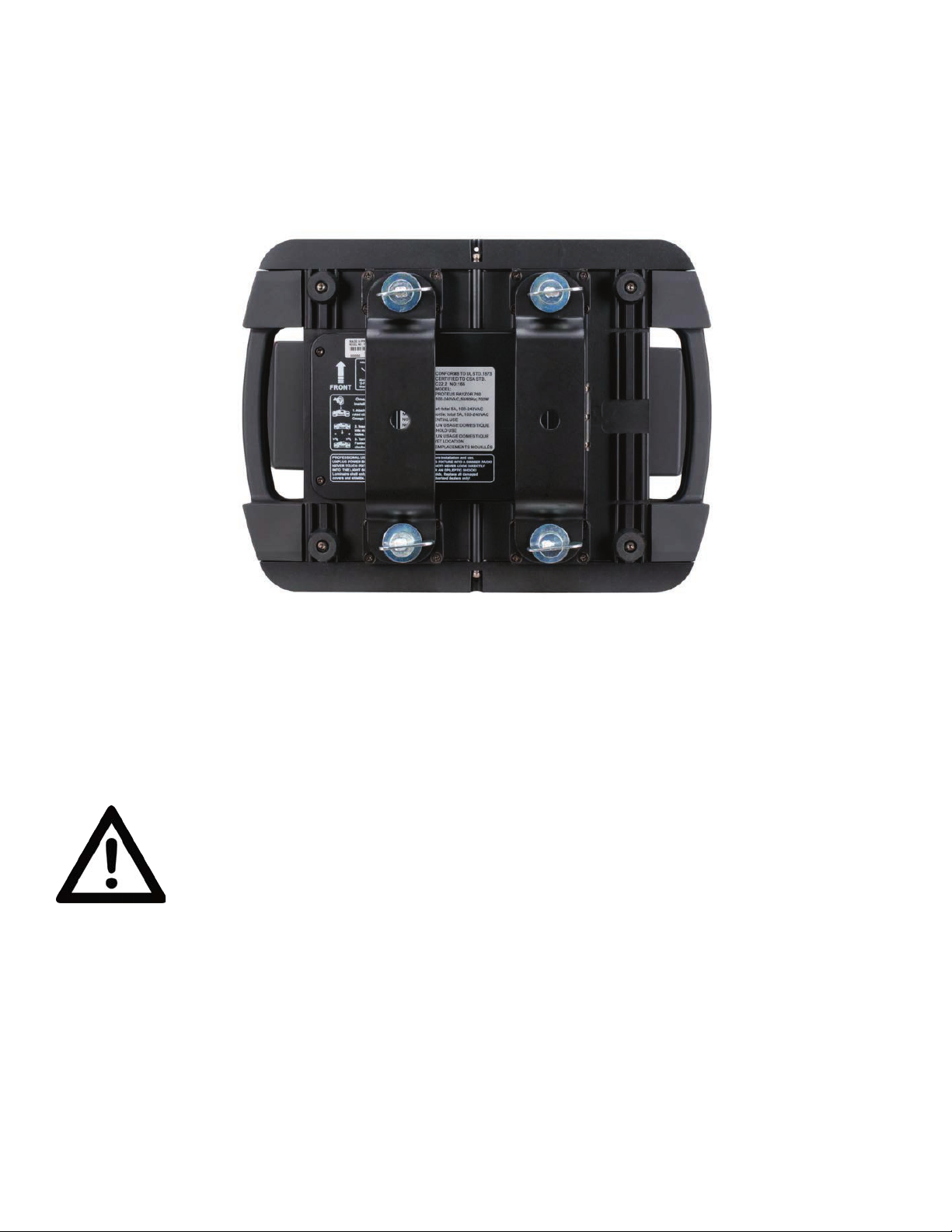

OMEGA BRACKET INSTALLATION
Insert the Omega Brackets into the matching holes on the bottom of the fixture. Secure the
Omega Brackets to the fixture by turning each quick-lock fastener ¼ turn clockwise. Always
check to make sure that each fastener is completely locked. Omega brackets can be
installed into the underside of the fixture’s base as illustrated below.
SAFETY CABLE:
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS FIXTURE
IN A SUSPENDED ENVIRONMENT TO ENSURE THAT THE FIXTURE WILL
NOT FALL IF THE CLAMP FAILS.
CLAMP INSTALLATION
When mounting the fixture to a truss, be sure to secure appropriately rated professional
grade rigging clamps to the included Omega Brackets using an M10 screw fitted through the
center hole of the Omega Brackets. This fixture requires the installation of two Omega
brackets and two clamps for secure truss mounting. The fixture also provides built-in rig-
ging points for a SAFETY CABLE. Be sure to only use the designated rigging point for the
safety cable and never secure a safety cable to a carrying handle.
ART-NET | sACN CONNECTION
When connecting fixture to a network switch to control multiple devices, a Gigabit Ethernet
Switch that supports IGMP (Internet Group Management Protocol) is required. Using a
Gigabit Ethernet Switch that does not support IGMP can cause erratic behavior of all con-
nected devices to the switch. Click link below for more information about IGMP.
https://en.wikipedia.org/wiki/Internet_Group_Management_Protocol

12
INSTALLATION GUIDELINES

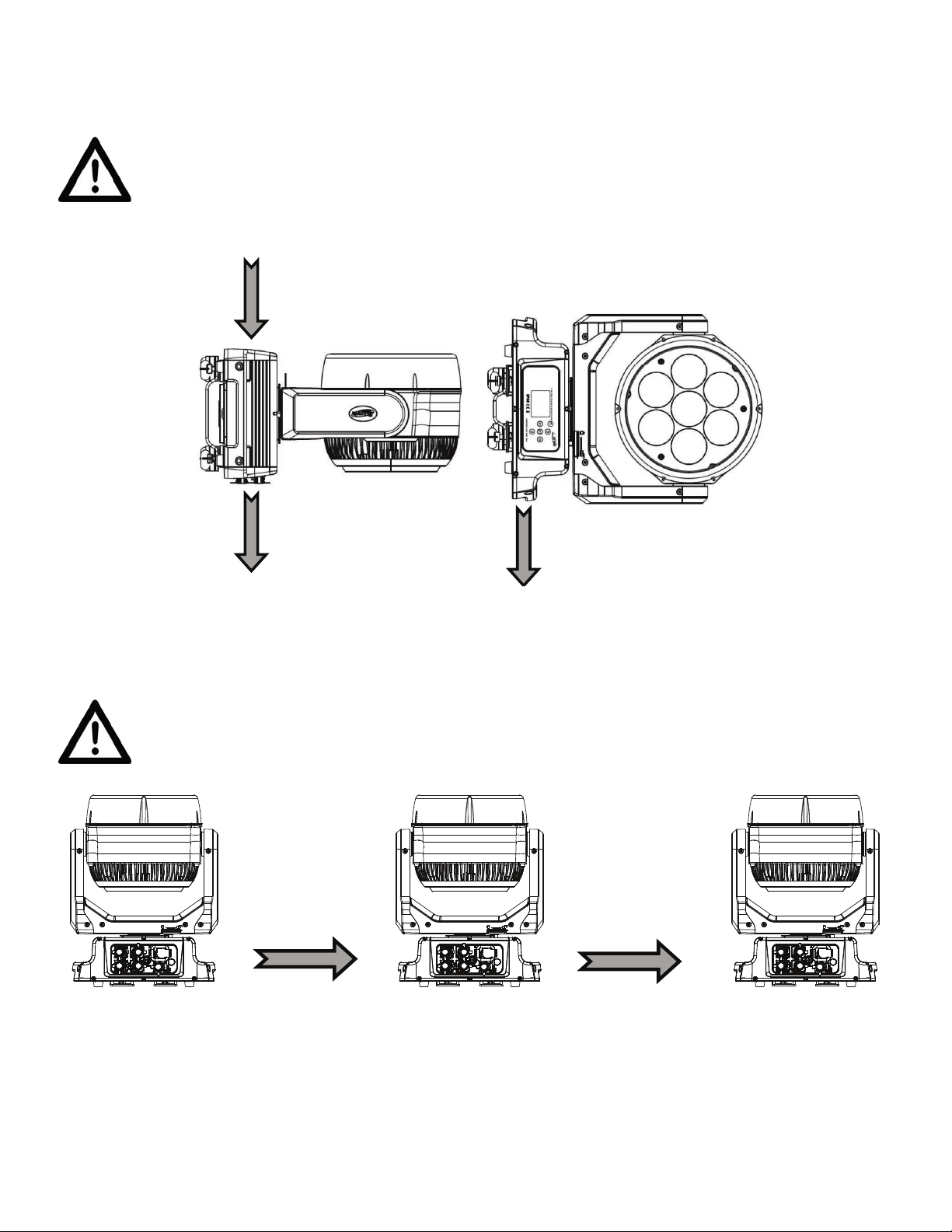

POWER AND DATA CABLES
TO MAINTAIN THE IP65 RATING INTEGRITY OF THE FIXTURE, ALL CABLES MUST
BE RUN TOWARDS THE GROUND IN ORDER TO PREVENT WATER ACCUMULATION
AROUND THE CONNECTIONS.
RJ45 DATA CABLES
THE INCLUDED RJ45 DATA CABLE IS FOR FIXTURE TO FIXTURE
INTERCONNECTIONS ONLY! THE RJ45 CABLE CONNECTORS MAY NOT BE
COMPATIBLE WITH OTHER RJ45 OR ETHERNET TYPE CONNECTORS.
CABLES
CABLES
SYSTEM MENU
LCD DISPLAY

13
POWER AND DATA CONNECTIONS
ENSURE ALL CONNECTIONS AND END CAPS ARE PROPERLY SEALED WITH A
DIELECTRIC GREASE (AVAILABLE AT MOST ELECTRICAL SUPPLIERS) IN ORDER TO
PREVENT WATER CORROSION AND/OR ELECTRICAL SHORT CIRCUIT.
TO MAINTAIN IP65 RATING INTEGRITY AND PREVENT WATER FROM ENTERING
THE FIXTURE, SEAL ALL UNUSED CONNECTION RUBBER CAPS.
INSTALLATION GUIDELINES
SAFETY
CABLE
LOOP
ALWAYS ATTACH A SAFETY CABLE WHENEVER INSTALLING THIS DEVICE IN A
SUSPENDED ENVIRONMENT TO ENSURE THE FIXTURE WILL NOT FALL IF THE
CLAMP FAILS!

14
INSTALLATION GUIDELINES
POTENTIAL INTERNAL FIXTURE DAMAGE FROM EXTERNAL SOURCES OF LIGHT BEAMS
External sources of light beams from direct sunlight, lighting and moving head fixtures, and
lasers, which are focused directly towards the exterior housing and/or penetrate the front
lens opening of ADJ lighting fixtures, can cause severe internal damage including burning of
optics, dichroic color filters, glass and metal gobos, prisms, animation wheels, frost filters,
iris, shutters, motors, belts, wiring, discharge lamps, and LEDs.
This issue is not specific only to ADJ lighting fixtures, but rather it is a common issue with
lighting fixtures from all manufacturers. Although there is no true way to fully prevent this
issue from happening, the guidelines below can reduce the risk of potential damage. Contact
ADJ Service for more details.
DO NOT EXPOSE THE FIXTURE AND/OR FRONT LENS OPENING TO LIGHT BEAMS FROM
DIRECT SUNLIGHT, OTHER LIGHTING OR MOVING HEAD FIXTURES, AND LASERS DURING
UNPACKING, INSTALLATION, USE, AND EXTENDED IDLE TIMES OUTDOORS. DO NOT FOCUS
A LIGHT BEAM FROM ONE LIGHTING FIXTURE DIRECTLY TOWARDS ANOTHER.
SUN PROTECTION MODE / HIBERNATION MODE
This state can be set via DMX, or the fixture will go into this state after 3 minutes without a
DMX signal.
When the sun protection is activated, the pan-and-tilt function of the moving-head will posi-
tion the lens away from direct sunlight, or other high intensity light source, to protect the
internal belts, electronics etc. from burn damage.
When the unit is in the ‘sun protection state’, it uses its accelerometer sensors (X-Y-Z) (only
present on discharge units and IP units) to position the front lens downwards, even when the
unit(s) is moved from its position. This will keep on changing the position of the head.
Please note that ‘manual mode’ overrides the ‘sun-protection mode’. The hibernation
function is an existing feature that puts the unit into a ‘sleep state’ to save power (this is
a state where only the electronics remain on, and all other functions are turned off). This
state is automatically activated when no DMX signal is present for a pre-defined period time
(1-99min or off).

15
TORQUE SETTINGS FOR SCREWS
PANEL SCREWS MUST BE TIGHTENED WITH A TORQUE WRENCH ACCORDING TO
THE TORQUE SPECIFICATION DESCRIBED BELOW.
The hex-head screws holding the panels MUST be tightened with a torque wrench. (not
included).
TORQUE SETTING = 11 lbf-in. (12.7kgf-cm)

16
TORQUE SETTINGS FOR SCREWS
CAUTION! DO NOT OVER TORQUE SCREWS AS THIS CAN CAUSE LEAKAGE
ISSUES! TO CONFIRM THE IP65 INTEGRITY AFTER A LAMP REPLACEMENT,
TEST THE FIXTURE USING THE IP TESTER. CONTACT ELATION SERVICE
FOR MORE DETAILS.
CAUTION! THE USE OF PROTECTIVE GLOVES AND SAFETY GOGGLES IS
STRONGLY RECOMMENDED WHILE PERFORMING THE IP PRESSURE TEST!
AVOID PLACING YOUR FACE, EYES, HANDS, ETC IN CLOSE PROXIMITY TO
THE FIXTURE’S LENS WHILE PERFORMING THE TEST!
IP PRESSURE TESTING PARAMETERS
Test Type Minimum Pressure Maximum Pressure Steady/Hold Time
Vacuum Test -1.88 psi
(-13.0 0 KPa)
-2.46 psi
(-17.0 0 K Pa) 10 sec
Pressure Test 1.88 psi
(13.00 KPa)
2.46 psi
(17.0 0 K Pa) 10 sec

17
REMOTE DEVICE MANAGEMENT (RDM)
NOTE: In order for RDM to work properly, RDM enabled equipment must be used through-
out the entire system, including DMX data splitters and wireless systems.
Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data stan-
dard for lighting, allowing the DMX systems of the 󰤱xtures to be modi󰤱ed and monitored
remotely. This protocol is ideal for instances in which a unit is installed in a location that is
not easily accessible.
With RDM, the DMX512 system becomes bi-directional, allowing a compatible RDM enabled
controller to send out a signal to devices on the wire, as well as allowing the 󰤱xture to re-
spond (known as a GET command). The controller can then use its SET command to modify
settings that would typically have to be changed or viewed directly via the unit’s display
screen, including the DMX Address, DMX Channel Mode, and Temperature Sensors.
FIXTURE RDM INFORMATION:
RDM Code Device ID Device Model ID Personality ID
0x608 1544 Open Open
Please be aware that not all RDM devices support all RDM features, and therefore it is im-
portant to check beforehand to ensure that the equipment that you are considering includes
all of the features that you require.
The following parameters are accessible in RDM on this device:
Sensor De󰤱nition
Sensor Value
Device Model Description
Manufacturer Label
Device Label
DMX Personality
DMX Personality Description
Device Hours
Lamp Hours
Lamp State
Pan Invert
Tilt Invert
Display Invert

18
SYSTEM MENU
The 󰤱xture includes an easy to navigate system menu. The control panel (see image below)
is located on the front of the 󰤱xture and provides access to the main system menu where
all necessary system adjustments can be made. During normal operation, pressing MODE/
ESC button once will access the 󰤱xture’s main menu. Once in the main menu, you can navi-
gate through the di󰤰erent functions and access the sub-menus with the UP, DOWN, RIGHT,
and LEFT buttons. Once you reach a 󰤱eld that requires adjusting, press the ENTER button to
activate that 󰤱eld and use the UP and DOWN buttons to adjust the 󰤱eld. Pressing the ENTER
button once more will con󰤱rm your setting. You may exit the main menu at any time without
making any adjustments by pressing the MODE/ESC button.
To access the LCD Menu Control Display via the internal battery, press and hold the MODE/
ESC button for 10 seconds. The LCD Menu Control Display will shut OFF automatically about
1 minute from the last button press.
BATTERY
This unit features a dedicated battery that can be used to power the screen display. This
allows the user to con󰤱gure the device’s channel mode, DMX address, or any other screen-
accessible features without needing to power on the device or even connect it to a power
source. To activate the display on battery power, press and hold the MODE button for 3 sec-
onds.
ALTHOUGH E-FLY SETTINGS MAY APPEAR IN THE SYSTEM MENU, THIS FEATURE IS NOT
ACTIVATED. E-FLY WIRELESS DMX IS AN OPTIONAL FEATURE WHICH MUST BE ACTIVATED
IN THE SERVICE MENU. PLEASE CONTACT ELATION SERVICE FOR FURTHER DETAILS.

19
SYSTEM MENU
ELATION PROTEUS RAYZOR 1960
SYSTEM MENU
Supports Software Versions: 1.2.1
Features subject to change without notice.
Rotation direction (clockwise/counter-clockwise) and control of e󰤰ects depend on head orientation and pan/tilt settings.
Default settings listed in bold.
MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION
FUNCTION
Set DMX Address A001 - Axxx Set DMX address
DMX Value All... Display DMX value
Secondary Mode
Secondary1 Active secondary mode and
select grouping
Secondary2
Secondary3
Auto Program Primary / Alone
INFORMATION
Time Information
Current Time xxxx hours Run hours since 󰤱xture was
powered on
Total Run Time xxxx hours Total 󰤱xture lifetime run
hours
Last Run Time xxxx hours Run hours since last reset
Last Run Password 038
Clear Last Run On / O󰤰 Clear Last Run Time
Temperature Info
LED Temperature xxx C / xxx F
Head Temperature xxx C / xxx F
Base Temperature xxx C / xxx F
Humidity Info Head Humidity xx %
Base Humidity xx %
Ethernet IP xxx.xxx.xxx.xxx Displays 󰤱xture ethernet ad-
dress
Fan Info
Head Fan 1 xxxx RPM
Standby / Fault
... ...
Head Fan 6 xxxx RPM
Standby / Fault
Base Fan 1 xxxx RPM
Standby / Fault
Base Fan 2 xxxx RPM
Standby / Fault
Software Version Vx.x.x
Error Info Error Record 1 - 10 Displays last 10 error codes
CONTINUED ON NEXT PAGE

20
SYSTEM MENU
PERSONALITY
Status Settings
Address via DMX On / O󰤰
No DMX Status
Close
Hold
Auto
Pan Reverse On / O󰤰
Tilt Reverse On / O󰤰
Pan Degree 360 / 540
Tilt Degree 360 / 270
Pan Tilt Path Shortest Path
Continue Path
Feedback On / O󰤰
LED Degree Change 0/ 180
Hibernation O󰤰, 01min - 99min Default = 15min
Service Setting
Password = 050
RDM UID 22A6xxxxxxxx RDM PID Code
Clear Err Info On / O󰤰 Clear error info
USB Update Yes / No Service port for software
updates
Fan Control
Auto
High
Silent
Display Setting
Shuto󰤰 Time 02min - 60min Default = 05min
Display Reverse On / O󰤰 Flip display 180 degrees
Key Lock On / O󰤰 Key Lock
Temperature C/F Celsius / Fahrenheit
Initial Status Control = xxx Initial e󰤰ect position
Select Signal
DMX Only DMX In / Out
Art-Net Select Art-Net
sACN Activate sACN
Ethernet IP xxx.xxx.xxx.xxx
Ether Mask IP xxx.xxx.xxx.xxx
Set Universe 000 - 32767 Set ArtNet universe
Dimmer Mode
Standard
Stage
TV
Architectural
Theatre
Stage 2
Refresh
900Hz - 1500Hz, 2500Hz, 4000Hz,
5000Hz, 6000Hz, 10000Hz, 15000Hz,
20000Hz, 25000Hz
Select LED refresh rate;
Default = 1200Hz
CONTINUED ON NEXT PAGE
