Elba 120 DX 634 ZA Technical manual

COOKER
120 DX 634 “ZA”
Made in Italy
HOME APPLIANCES
ELBA QUALITY
MADE IN ITALY
Instructions for the use - Installation advices
10 0%

2

3
Dear Customer,
Thank you for having purchased and given your preference to our
product.
The safety precautions and recommendations reported below are
for your own safety and that of others. They will also provide a means
by which to make full use of the features offered by your appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should arise
relating to its operation.
This appliance must be used only for the task it has explicitly been
designed for, that is for cooking foodstuffs. Any other form of usage
is to be considered as inappropriate and therefore dangerous.
The manufacturer declines all responsibility in the event of damage
caused by improper, incorrect or illogical use of the appliance.

4
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
• After having unpacked the appliance, check to ensure that it is
not damaged and that the oven door closes correctly.
In case of doubt, do not use it and consult your supplier or a
professionally qualified technician.
• Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
• Some appliances are supplied with a protective film on steel and
aluminium parts. This film must be removed before using the
appliance.
• IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
• Do not attempt to modify the technical characteristics of the
appliance as this may become dangerous to use. The manufac-
turer declines all responsibility for any inconvenience resulting
from the inobservance of this condition.
• CAUTION: this appIiance must only be installed in a permanent-
ly ventilated room in compliance with the applicable regulations.
• Do not operate your appliance by means of an external timer or
separate remote-control system.
• Do not carry out cleaning or maintenance operations on the ap-
pliance without having previously disconnected it from the elec-
tric power supply.

5
• WARNING: Ensure that the appliance is switched off before re-
placing the oven lamp to avoid the possibility of electric shock.
• Do not use a steam cleaner because the moisture can get into
the appliance thus make it unsafe.
• Do not touch the appliance with wet or damp hands (or feet).
• Do not use the appliance whilst in barefoot.
• If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
• The various components of the appliance are recyclable. Dis-
pose of them in accordance with the regulations in force in your
country. If the appliance is to be scrapped, remove the power
cord.
• After use, ensure that the knobs are in the off position.
• Children less than 8 years of age shall be kept away unless con-
tinuously supervised.
• This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements (on
the hob and inside the oven).
– The door is hot, use the handle.

6
–To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooker cannot come into contact with the
hob or become entrapped in the oven door.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire. NEVER try to extinguish a fire
with water, but switch off the appliance and then cover flame
e.g. with a lid or a fire blanket.
• WARNING: Danger of fire: do not store items on the cooking
surfaces.
• Do not place or leave empty pans on the glass ceramic hob.
• Do not allow heavy or sharp objects to drop on the glass ce-
ramic hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
• WARNING: If the hob is cracked or otherwise damaged by fall-
ing objects etc., disconnect the appliance from the electrical
power supply to avoid the possibility of electric shock and call
Customer Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the rear or the
underneath of the appliance as these areas are not designed or
intended to be touched and may contain sharp or rough edges,
that may cause injury.
• FIRST USE OF THE OVEN - it is advised to follow these instruc-
tions:
– Furnish the interior of the oven as described in the chapter
“CLEANING AND MAINTENANCE”.
– Switch on the empty oven on max to eliminate grease from
the heating elements.
– Disconnect the appliance from the electrical power supply, let
the oven cool down and clean the interior of the oven with a
cloth soaked in water and neutral detergent; then dry carefully.

7
• CAUTION: Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can scratch the
surface, which may result in shattering of the glass.
• Do not line the oven walls with aluminium foil. Do not place bak-
ing trays or the drip tray on the base of the oven chamber.
• FIRE RISK! Do not store flammable material in the oven or in the
storage compartment.
• Always use oven gloves when removing the shelves and food
trays from the oven whilst hot.
• Do not hang towels, dishcloths or other items on the appliance
or its handle – as this could be a fire hazard.
• Clean the oven regularly and do not allow fat or oils to build up in
the oven base or tray. Remove spillages as soon as they occur.
• Do not stand on the cooker or on the open oven door.
• Always stand back from the appliance when opening the oven
door to allow steam and hot air to escape before removing the
food.
• SAFE FOOD HANDLING: Leave food in the oven for as short a
time as possible before and after cooking. This is to avoid con-
tamination by organisms which may cause food poisoning. Take
particular care during warmer weather.
• WARNING: Take care NOT to lift the cooker by the door handle.

8
Fig. 1.1
TECHNICAL FEATURES - Cooking hob
1. Semi-rapid burner (SR) 1,75 kW
2. Triple-ring burner (TC) 3,50 kW
3. Dual burner (D) 4,50 kW
4. Ceramic griddle 1300 W
Note:
The electric ignition is incorporated in the knobs.
The appliance has a safety valve system fitted, the flow of gas will be stopped if and
when the flame should accidentally go out.
Attention: Do not use the ceramic griddle if the glass surface is broken or cracked in
any way. Please disconnect the hob from the mains and contact the after-sales service.
1COOKING HOB - CONTROL PANEL
11
3
11
2
3
2
4

9
CONTROL PANEL - Controls description
1. Conventional oven thermostat knob (Top left oven)
2. Conventional oven switch knob (Top left oven)
3. Fan oven thermostat knob (Lower left oven)
4. Fan oven switch knob (Lower left oven)
5. Front left triple-ring burner control knob
6. Rear left semi-rapid burner control knob
7. Central dual burner control knob
8. Ceramic griddle control knob
9. Rear right semi-rapid burner control knob
10. Front right triple-ring burner control knob
11. Clock and timer with “Touch-Control” keys (Right main oven only)
12. Multifunction oven switch knob (Right main oven)
13. Multifunction oven thermostat knob (Right main oven)
14. Indicator light (Right main oven)
15. Ceramic griddle control lamp
16. Indicator light (Lower left oven)
17. Indicator light (Top left oven)
Please note: This appliance incorporates no. 2 (two) safety cooling fans which you will
hear operating whenever the oven or grill are in use. The cooling fans may also operate
when the oven is switched off. These fans are to reduce the external temperature of the
appliance and cool the internal components.
Fig. 1.2
21 3 4 5 6 7 8 9 10 11 12 13
17 16 1415

10
2USE OF COOKING HOB
GAS BURNERS
(Semi-rapid and triple ring)
Gas flow to the burners is adjusted by turning the knobs (illus-
trated in fig. 2.1) which control the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on the
control panel achieves the following functions:
11
3
The maximum aperture position permits rapid boiling of liquids, whereas the minimum
aperture position allows simmer warming of food or maintaining boiling conditions of
liquids.
To reduce the gas flow to minimum, rotate the knob further anti-clockwise to point the
indicator towards the position.
Other intermediate operating adjustments can be achieved by positioning the indi-
cator between the maximum and minimum aperture positions, and never between the
maximum aperture and ● positions.
Knob
position Function SEMI-RAPID burner TRIPLE RING burner
Closed
valve
Maximum
rate
Minimum
rate

11
11
3
Fig. 2.1
Caution!
The cooker becomes very hot dur-
ing operation.
Keep children well out of reach.
N.B. When the cooker top is not
being used, set the gas knobs to
their closed positions and also
close the cock valve on the gas
bottle or the main gas supply line.
LIGHTING GAS BURNERS FITTED WITH SAFETY VALVE DEVICE
(Semi-rapid and triple-ring burners)
Fig. 2.2
In order to light the burner, you must:
1 – Push and turn the knob in an anti-
clockwise direction up to the
position (maximum rate), push in
and hold the knob until the flame
has been lit (fig. 2.2).
The sparks produced by the lighter
situated inside the relative burner
will light the flame.
In the event that the local gas sup-
ply conditions makes it difficult to
light the burner in position, try
again with the knob in position.
If there is no main electrical supply,
bring a lighted match close to the
burner.
2 – Wait for about ten seconds after
the gas burner has been lit before
letting go the knob (safety device
activation delay).
3 – Adjust the gas valve to the desired
position.
If the burner flame should go out for
some reason, the safety valve will auto-
matically stop the gas flow.
To re-light the burner, return the knob to
the closed ●position, wait for at least
1 minute and then repeat the lighting
procedure.
If your local gas supply makes it difficult
to light the burner with the knob set to
maximum, set the knob to minimum and
repeat the operation.

12
GAS BURNERS (Dual)
The Dual Burner is a very flexible burner which allows different
regulations and optimal cooking.
It is composed by one inner and two outer crowns; the flame of
the inner crown can be regulated separately from the flames of the outer crowns.
The Dual Burner can be used:
- as a small burner (flame produced only by the inner crown) which can be adjusted from the
maximum ( )to the minimum ( )position.
Intermediate operating adjustments can be achieved by positioning the indicator between
the maximum and minimum opening positions, and never between the maximum opening
and ●position.
- as a high-power burner (all flames produced simultaneously by inner and outer crowns)
which can be adjusted from the maximum ( )to the minimum ( )position.
Gas flow to the burner is adjusted by turning the knob (illustrated in fig. 3.3) which controls
the valves.
Turning the knob so that the symbols printed on itself point to the symbol printed on the con-
trol panel achieves the following functions:
Note: To change from using the inner crown only to using both the inner and outer crowns
together, press the control knob down before turning it. You have to do the same when going
from using both crowns to using just the inner crown.
11
3

13
Knob position Function DUAL burner
Closed valve
Maximum rate
of inner crown
(only inner flame
at the maximum
Minimum rate
of inner crown
(only inner flame
at the minimum)
Maximum rate of inner + outer
crowns (inside and outside
flames in simultaneously
at the maximum)
Minimum rate of inner + outer
crowns (inside and outside
flames in simultaneously
at the minimum)

14
Fig. 2.3

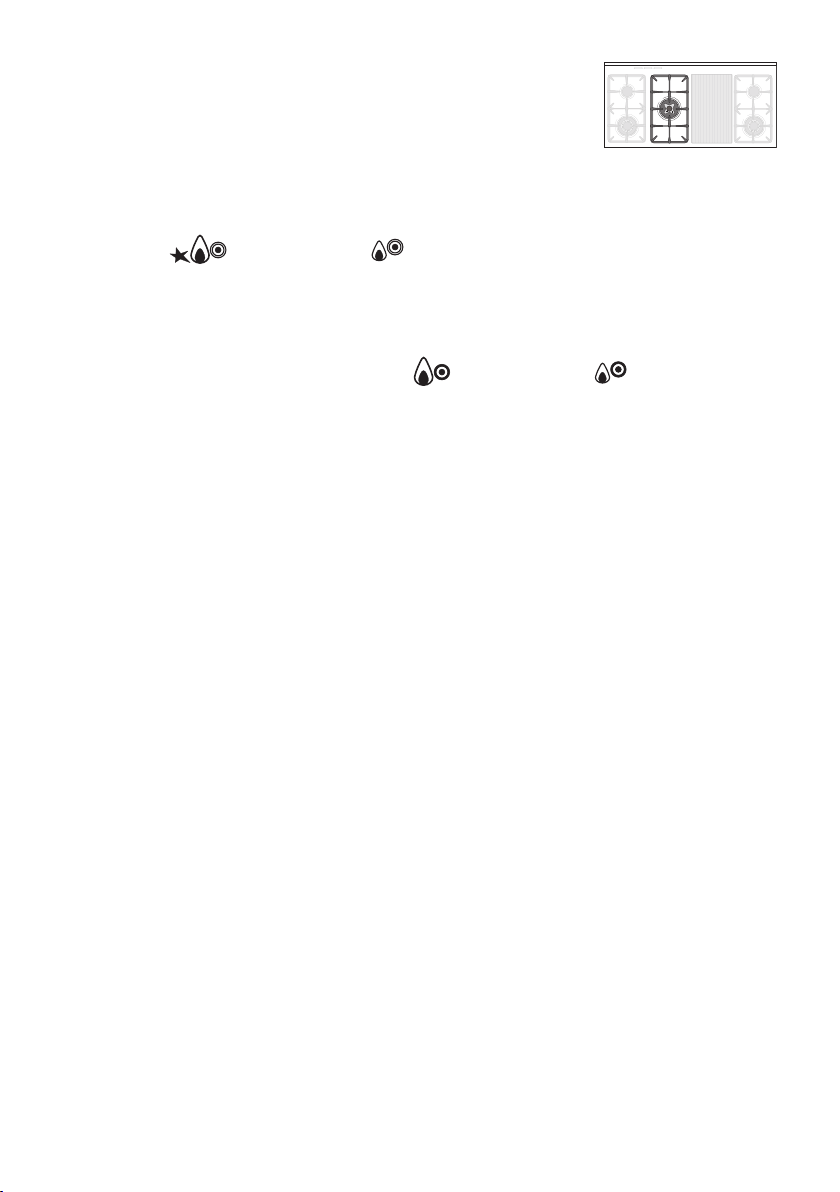

LIGHTING GAS BURNERS FITTED WITH SAFETY VALVE DEVICE
(Dual Burners)
Caution!
The cooker becomes very hot dur-
ing operation.
Keep children well out of reach.
N.B. When the cooker top is not
being used, set the gas knobs to
their closed positions and also
close the cock valve on the gas
bottle or the main gas supply line.
Fig. 2.4
11
3
In order to light the burner, you must:
1 – Push and turn the knob in an
anti-clockwise direction up to the
position (maximum rate of
inner crown); push in and hold the
knob until the flame has been lit.
The sparks produced by the lighter
situated inside the relative burner
will light the flame.
In the event that the local gas sup-
ply conditions makes it difficult to
light the burner in position,
try again with the knob in posi-
tion.
If there is no main electrical supply
connection, bring a lighted match
close to the burner.
2 – Wait for about ten seconds after
the gas burner has been lit before
letting go the knob (safety device
activation delay).
3 – Adjust the gas valve to the desired
position.
If the burner flame should go out for
some reason, the safety valve will auto-
matically stop the gas flow.
To re-light the burner, return the knob to
the closed position (●), wait for at least
1 minute and then repeat the lighting
procedure.

15
Fig. 2.5
CORRECT USE OF TRIPLE-RING BURNERS (Figs. 2.6a - 2.6b)
The flat-bottomed pans are to be placed directly onto the pan-
support.
To use the WOK you need to place the proper stand in order to
avoid any faulty operation of the triple-ring (figs. 2.6a - 2.6b).
Important: The wok pan stand (figs. 2.6a - 2.6b) MUST BE PLACED ONLY over the pan-
rest for the triple-ring burner.
DIAMETERS OF PANS WHICH
MAY BE USED ON THE HOB BURNERS
BURNERS MINIMUM MAX.
Semirapid 16 cm 24 cm
Triple-ring 26 cm 28 cm
Dual 26 cm 28 cm
Maximum diameter for woks: 36 cm
do not use pans with concave or convex bases
CHOICE OF
BURNER
(fig. 2.5)
The symbols printed on the panel beside
the gas knobs indicate the correspond-
ence between the knob and the burner.
The most suitable burner is to be chosen
according to the diameter and volume
capacity of the container to be warmed.
It is important that the diameter of the
pots or pans suitably match the heating
potential of the burners in order not to
jeopardise the efficiency of the burners,
bringing about a waste of gas fuel.
A small diameter pot or pan placed
on a large burner does not necessarily
mean that boiling conditions are reached
quicker.
WRONG CORRECT
Fig. 2.6a Fig. 2.6b
11
3
11
3

16

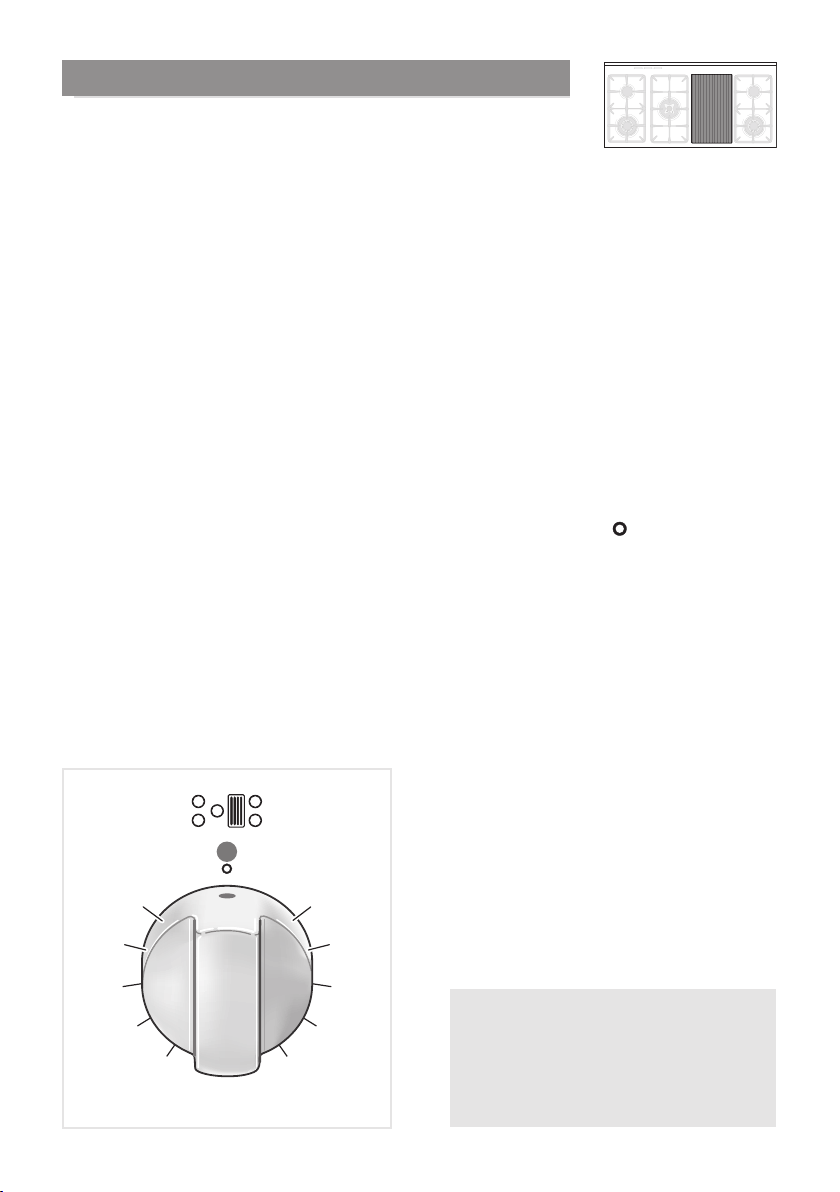

CERAMIC GRIDDLE
3
4
5
6
7
8
9
10
1
2
11
12
Fig. 2.7
Caution!
The griddle becomes very hot dur-
ing use and remains very hot even
after it is switched off.
Keep children well out of reach.
USING THE CERAMIC GRIDDLE FOR
THE FIRST TIME
– Remove the adhesive film which pro-
tects some parts.
– Remove any residual glue carefully,
without using abrasive substances, to
avoid scratching the surfaces.
– Clean the cooking surface carefully.
– Switch the griddle on by turning the
power setting knob to the maximum
position (11-12) for about 15 minutes
to remove residual working greases.
The griddle reaches the working temper-
ature very quickly and can grill any food,
without fat and oil, directly on the radiant
zone’s glass-ceramic surface.
Operation of the radiant zone is con-
trolled by a continuous
12-position power regulator.
The signal lamp lights up when the grid-
dle is ON.
USE OF THE CERAMIC GRIDDLE
– Before cooking make sure that the
radiant zone is clean.
– Switch the griddle on by turning the
knob to position 12.
– Preheat until the cooking surface
becomes red.
– Then turn the knob to the position
required. The numbers from 1 to 12
indicate the working positions with
temperature increasing as the num-
ber increases.
– Place the food on the radiant zone
and check the cooking by eye.
– Turn off the griddle by turning the
knob to position “ ”.
– As the radiant zone remains hot for
some time after the hob is switched
off, turn the zone off a few minutes
before the end of cooking.
The residual heat will complete the
cooking.
– Do not use the griddle for more
than 30 minutes.
11
3

17
Do not scratch the cooktop with
cutting or sharp objects.
Do not use the cooktop as a work
surface.
CAUTION: Never use abrasive sub-
stances or no-neutral detergent
which could irreversibly damages.
TIPS FOR GRILLING:
– Preheat the radiant zone sufficiently to
obtain quick and uniform cooking.
– Do not pour water on the cooking sur-
face when it is switched on or still hot.
– If cooking very fatty foods, leave the
griddle switched on for a few minutes
after cooking is finished, to burn off
the fatty residues.
ADVICE FOR THE SAFE USE OF
CERAMIC GRIDDLE
– Do not lean on the cooking zones
when they are switched on.
– Do not put aluminium foil or plastic
objects on the cooking zones when
they are hot.
– Do not leave objects of any type on
the surfaces made of ceramic, glass
or similar fragile material.
– Remember that the cooking zones
remain hot for some time after they
are switched off (about 30 min.).
– Follow the cleaning instructions care-
fully.
– If you note a crack in the cooktop,
switch the appliance off immediately
and call the After-Sales Service.
CLEANING THE CERAMIC GRIDDLE
Make sure that the cooktop is switched off
before cleaning it.
– Remove any encrustation.
– Remove dust with a damp cloth.
– Detergents can be used, but they
must not be abrasive or corrosive.
– Any remaining detergent must be
completely removed with a damp
cloth.
– Do not put any objects on the cooktop
which can melt with heat, such as
plastic objects, aluminium foil, sugar
or sugar products.
– If any object melts on the cooktop,
remove it immediately (while the
cooktop is still hot) using a special
scraper, to prevent any irreversible
damage to the glass ceramic surface.
– Do not use knives or sharp objects
which could damage the cooktop sur-
face.
– Do not use abrasive sponges or pads
which could irreversibly damage the
glass ceramic surface.

18
Attention: the oven door becomes
very hot during operation.
Keep children away
GENERAL FEATURES
As its name indicates, this is an oven
that presents particular features from an
operational point of view.
In fact, it is possible to insert 7 different
programs to satisfy every cooking need.
The 7 positions, thermostatically con-
trolled, are obtained by 4 heating ele-
ments which are:
– Bottom element 1300 W
– Top element 1000 W
– Grill element 2000 W
– Circular element 2200 W
NOTE:
Upon first use, it is advisable to oper-
ate the oven for 30 minutes in the posi-
tion and for another 15 minutes at
the maximum temperature (thermostat
knob on position 250) in the positions
and , to eliminate possible traces
of grease on the heating elements.
Clean the oven and accessories with
warm water and washing-up liquid
.
OPERATING PRINCIPLES
Heating and cooking in the MULTI-
FUNCTION oven are obtained in the
following ways:
a. by normal convection
The heat is produced by the upper
and lower heating elements.
b. by forced convection
A fan sucks in the air contained in
the oven muffle, which sends it
through the circular heating element
and then sends it back through the
muffle. Before the hot air is sucked
back again by the fan to repeat the
described cycle, it envelops the food
in the oven, provoking a complete
and rapid cooking.
It is possible to cook several dishes
simultaneously.
c. by semi-forced convection
The heat produced by the upper and
lower heating elements is distributed
throughout the oven by the fan.
d. by radiation
The heat is irradiated by the infra red
grill element.
e. by radiation and ventilation
The irradiated heat from the infra red
grill element is distributed throughout
the oven by the fan.
f. by ventilation
The food is defrosted by using the fan
only function without heat.
3MULTIFUNCTION ELECTRIC OVEN (Right oven)
WARNING:
The door is hot, use the handle.
During use the appliance becomes
hot. Care should be taken to avoid
touching heating elements inside the
oven.

19
FUNCTION SELECTOR KNOB (fig. 3.2)
Rotate the knob clockwise to set the
oven for one of the following functions:
THERMOSTAT (fig. 3.1)
This only sets the cooking temperature
and does not switch the oven on.
Rotate clockwise until the required tem-
perature is reached (from 50 to 250).
125
150
175
200
225
100
50
75
250
Fig. 3.1 Fig. 3.2
OVEN LIGHT
By turning the knob onto this setting we
light the oven cavity.
The oven remains alight while any of the
functions is on.
TRADITIONAL CONVECTION
COOKING
The upper and lower heating elements are
switched on. The heat is diffused by natu-
ral convection and the temperature must
be regulated between 50° C and 250° C
with the thermostat knob.
It is necessary to preheat the oven before
introducing the foods to be cooked.
Recommended for:
For foods which require the same
cooking temperature both internally
and externally, i. e. roasts, spare ribs,
meringue, etc.

20
VENTILATED GRILL COOKING
The infra-red ray grill and the fan are on.
The heat is mainly diffused by radiation
and the fan then distributes it throughout
the oven.
The temperature must be regulated
between 50° and 200°C maximum
with the thermostat knob. It is neces-
sary to preheat the oven for about 5
minutes.
For correct use see chapter “GRILLING
AND AU GRATIN.
Grilling with the oven door closed.
It is recommended that you do not grill
for longer than 30 minutes at any one
time.
ATTENTION: the oven door becomes
very hot during operation.
Keep children away.
Recommended for:
For grill cooking when a fast outside
browning is necessary to keep the juices
in, i. e. veal steak, steak, hamburger, etc.
GRILLING
The infra-red heating element is switched
on. The heat is diffused by radiation.
Use with the function selector knob to
position and the thermostat knob
between 50°C and 225°C maximum
and with the oven door closed.
For correct use see chapter “USE OF
THE GRILL”
Before using the grill, preheat for about
five minutes.
Always grill with the oven door closed
and do not use the grill for longer than
30 minutes at any one time.
Caution: The oven door becomes very
hot during operation.
Keep children well out of reach.
Recommended for:
Intense grilling action for cooking with a
broiler; browning, crisping, “au gratin”,
toasting, etc.
HOT AIR COOKING
The circular element and the fan are on.
The heat is diffused by forced convec-
tion and the temperature must be regu-
lated between 50° and 250 °C with the
thermostat knob.
It is not necessary to preheat the oven.
Recommended for:
For foods that must be well done on the
outside and tender or rare on the inside,
i. e. lasagna, lamb, roast beef, whole
fish, etc.
DEFROSTING FROZEN FOODS
Only the oven fan is on. To be used with
the thermostat knob on “●” because
the other positions have no effect. The
defrosting is done by simple ventilation
without heat.
Recommended for:
To rapidly defrost frozen foods; 1 kilogram
requires about one hour.
The defrosting times vary according to the
quantity and type of foods to be defrosted.
