ELM-96BP-LON ELECTRICAL MULTIFUNCTION METER

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 1

ELECTRICAL MULTIFUNCTION METER with LON communication

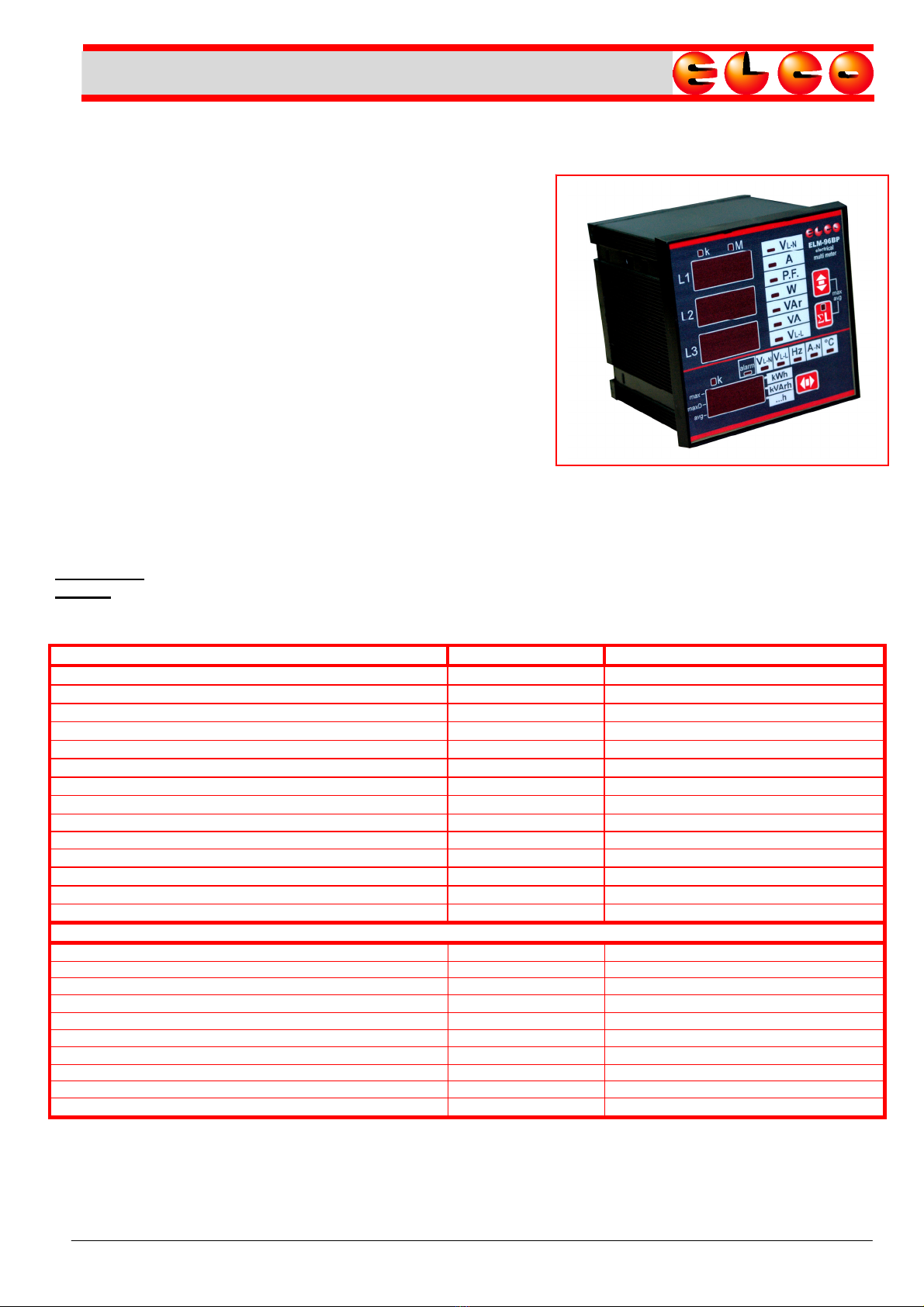

GENERALITY

These digital multimeters allow to monitor all the electrical parameters

present on a distribution line. The local display of 30 electrical

parameters is carried out by 4 display with red LED guaranteeing a

good and contemporary reading of more measures. A simple front

panel completes the intuitive selection of several electrical

parameters, with a great quantity of information. These instruments,

over of the instantaneous measures, display the maximum peak of the

main parameters (maximum peak and maximum demand).

These multimeters replace in a unique device, all the functions of

voltmeters, ammeters, energy meters, cosphimeters, wattmeters,

varmeters, frequency meters permitting a great economic saving, a

reduction of dimension and the wiring energy and a simplification in

the purchase and management of the instruments because this is a

model usable at all of need of local measure in the electrical panel,

machine, etc.

AVAILABLE MODELS

It’s available only a model for flush mounting for panel.

-ELM-96BP-LON basic version in execution for flush mounting DIN 96x96mm

ACCESSORIES AND OPTIONS

accessories: frontal protection transparent cover IP65

options: insulated current inputs

neutral current input (or residual current input)

MEASURED PARAMETERS

parameters unit of measurement initial identification

phase and three phase voltages [V-kV] V L1-N V

L2-N V

L3-N ΣV L-N

phase to phase and three phase system voltages [V-kV] V L1-L2 V

L2-L3 V

L3-L1 ΣV L-L

phase and three phase currents [A-kA] A L1 A

L2 A

L3 ΣA

neutral current [A-kA] An

phase and three phase power factors PF L1 PF

L2 PF

L3 Σ PF

phase and three phase active powers [W-kW-MW] W L1 W

L2 W

L3 Σ W

phase and three phase system reactive powers [VAr-kVAr-MVAr] VAr L1 VAr

L2 VAr

L3 Σ VAr

phase and three-phase system apparent powers [VA-kVA-MVA] VA L1 VA

L2 VA

L3 Σ VA

frequency [Hz] Hz

temperature [°C] T

three phase system active energy [kWh] ΣkWh

three phase system reactive energy [kVArh] ΣkVArh

three phase system apparent energy [kVAh] ΣkVAh

hour counter [hr] h

average and peak values (maximums):

maximum phase voltages [V-kV] V L1-N max V

L2-N max V

L3-N max

maximum phase currents [A-kA] A L1 max A

L2 max A

L3 max

maximum neutral current [A-kA] An max

maximum three-phase powers [W-VAr-VA (k-M)] ΣW max ΣVAr max ΣVA max

maximum average phase currents (maximum demand) [A-kA] I L1 max (avg) I

L2 max (avg) I

L3 max (avg)

maximum average neutral current (maximum demand) [A-kA] An max (avg)

maximum average three-phase powers (maximum demand) [W-VAr-VA (k-M)] ΣW max (avg) ΣVAr max (avg) ΣVA max (avg)

average phase currents [A-kA] A L1 avg A

L2 avg A

L3 avg

average neutral current [A-kA] An avg

average three-phase powers [W-VAr-VA (k-M)] ΣW avg ΣVAr avg ΣVA avg

INSTALLATION

WARNING FOR THE USER

Read carefully the instructions/indications contained in this manual before installing and using the instrument.

The instrument described in this manual is intended for use by properly trained staff only.

SAFETY

This instrument has been manufactured and tested in compliance with EN 61010-1standards. In order to maintain these conditions

and to ensure safe operation, the person must comply with the indications and markings contained in the manual. When the

instrument is received, before beginning installation, check that it's O.K. And it has not suffered any damage during transport. When

starting installation make sure that the operating voltage and mains voltage are compatible with the device instructions. The

instrument power supply must not be earthed. Maintenance and/or repair must be carried out only by qualified and authorized

personnel. If there is ever the suspicious that, that there is a lack of safety ,during operation, the instrument must be disconnected

and cautions taken against accidental use.

Operation is no longer safe when: - The instrument doesn't work. / - The measured value are obviously wrong or

unreasonable / - There is clearly visible damage. / - After serious damage incurred during transport. / - After a storage

under unfavourable conditions

CONNECTIONS

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 2

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 3

For a correct use of the device, the wiring diagram contained in the present manual, must be respected.

The connections are the same for all models and are subdivided in five groups:

- auxiliary power supply:

On the instrument are available 4 terminals to connect the auxiliary power supply to the instrument:

Standard Vac version Optional Vac/cc version Optional Vac/cc version

Terminals Power Supply Terminals Power Supply Terminals Power Supply

1-2 0-110V = 100-125Vac 50-60Hz

1-3 0-230V = 220-240Vac 50-60Hz

1-4 0-400V = 380-415Vac 50-60Hz

1-3 20-60Vac

24-72Vdc 1-3 85-230Vac

90-250Vdc

It’s possible, for example, to take the auxiliary power supply between phase and neutral, in a 4 wires system, or

phase-phase in a 3 wires system, without neutral or from a VT in a medium voltage application.

- measure voltage inputs:

4 terminals are available for the connection to the 3 phase and neutral of the network of measure, the maximum

voltage phase to phase shouldn't be over 500 V rms.

In case of a 3 phase system without neutral, or non distributed neutral to leave terminal N free. In a single phase

connection the phase input 2 and 3 must be connected to neutral.

- measure current inputs:

6 terminals are available for the connection to 3 external amperometric transformers with secondary 5A, it’s possible

to use 2 TA on lines with 3 wires (insertion three phase Aron). The utilization of external TA is obligatory.

With the neutral current input option installed, the multimeter allows the measure of the neutral current, using a current

transformer /5A; the secondary must be connected to the In S1 and S2 terminals available on the rear of the

instrument (see the wiring diagram).

It’s possible, on request, to have the CT input with 1A secondary and the residual (differential) current input using a

specific toroidal current transformer.

- digital outputs:

there are available 2 digital outputs (ON/OFF).

The changeover switch free voltage outputs with common terminal are used to emit pulse proportional to energy and

alarms. It’s possible to use loads up to 230Vac/dc and 150 mA.

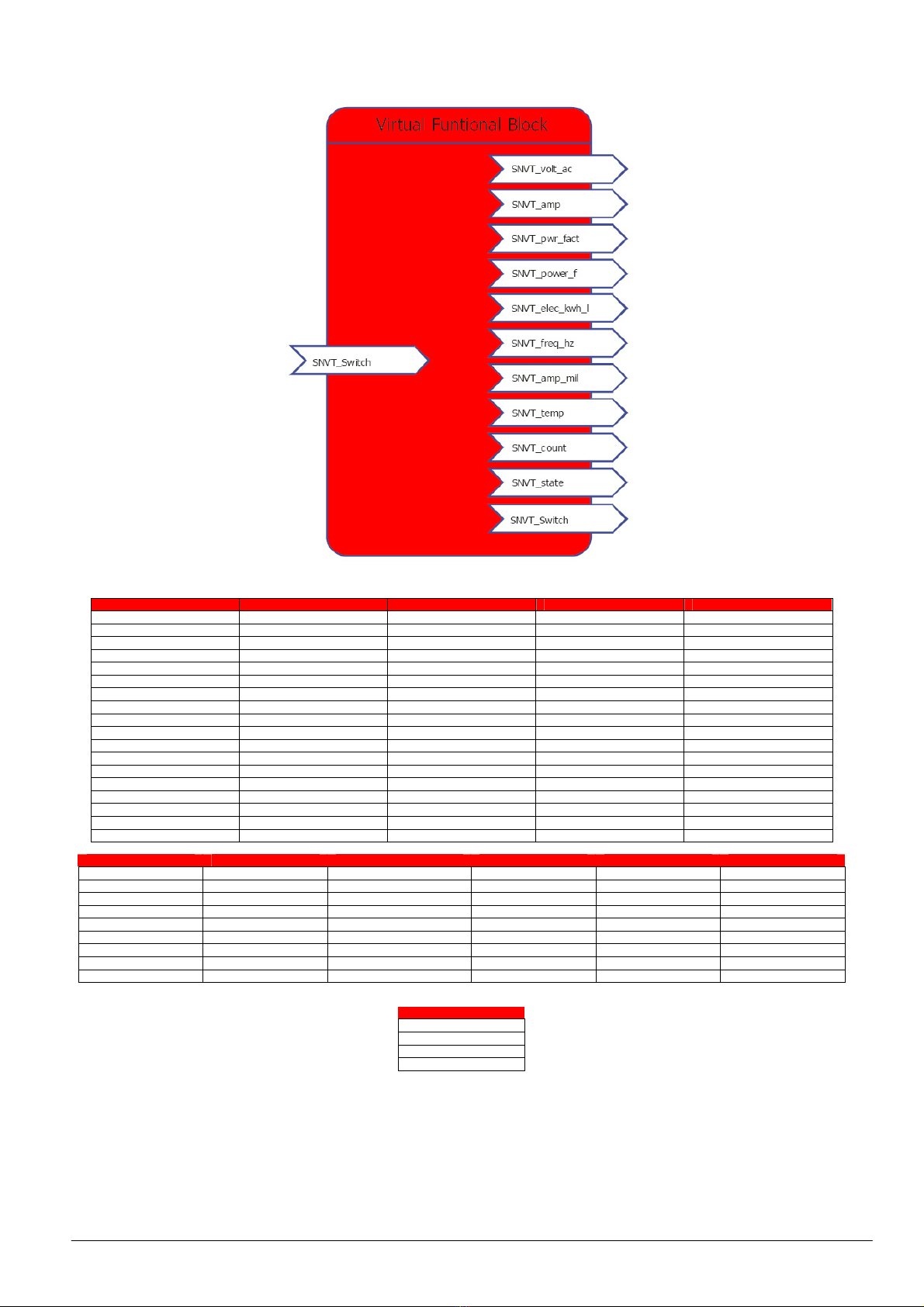

- communication LON output:

FTT 10A communication channel

REMARKS: It's a must to respect the phase sequence. The connections between current and voltage phase inputs must not be

inverted (for example, CT placed on phase L1 must correspond to the I1 input). So as it is not correct to invert S1 and S2 terminals,

since power factors and powers might not be reliable.

For fixing the flush mount version instrument to the panel, use the fixing devices supplied, by inserting them in the side groves of the

enclosure and tighten the screws.

For safety reasons, place an external fuse protection at the input voltages, and use adequate cables for the working voltages and

currents, with a cross sections from 0,5 to 2,5 mm2.

WIRING DIAGRAMS

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 4

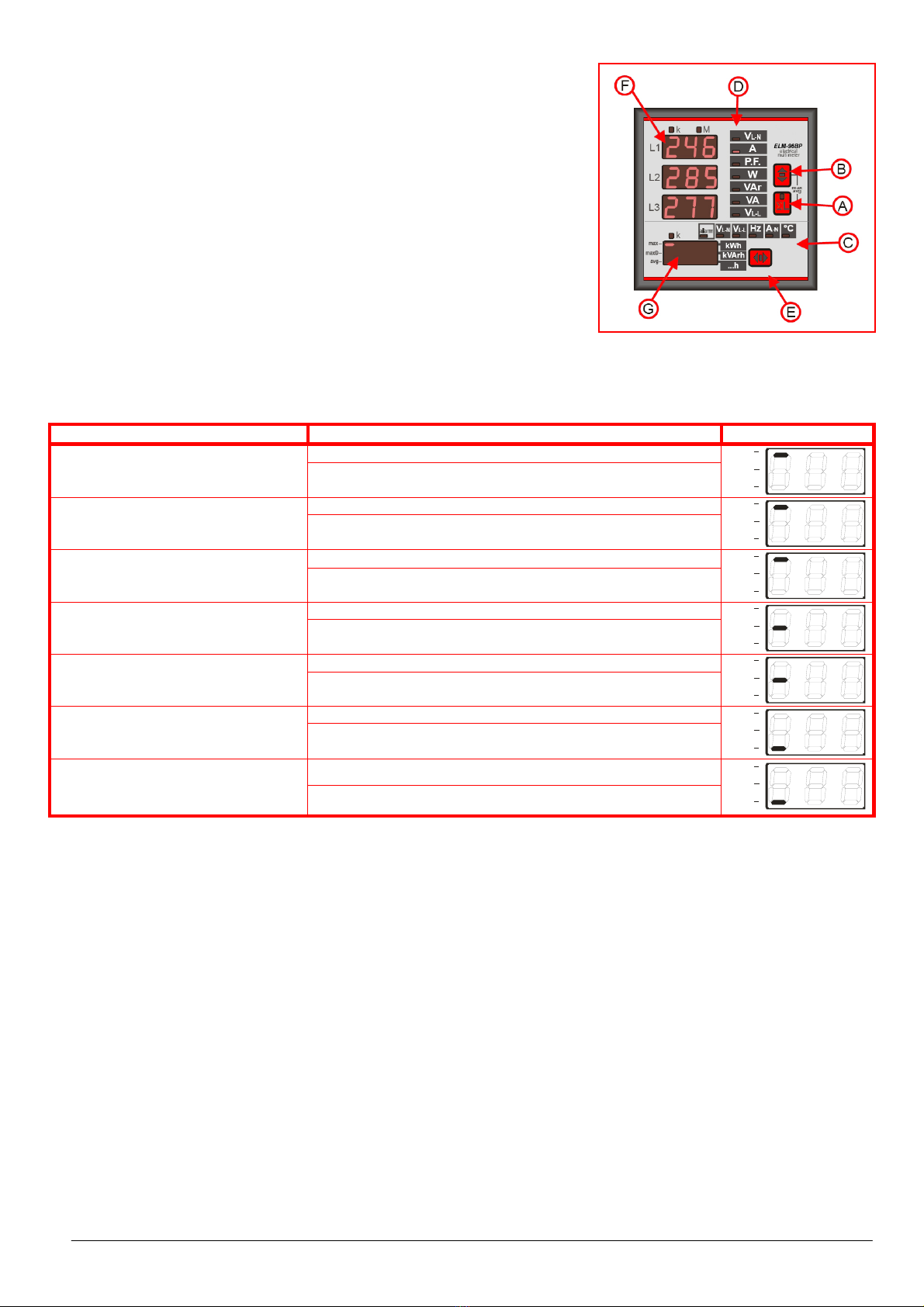

DESCRIPTION FRONT PANEL– OPERATORS

LEGEND:

A: push-button for the visualization of electrical parameters of three-phase system with the corresponding LED

indication. In modality programming (SETUP) it’s used to confirm the parameter set.

B: push-button for the selection of the electrical parameter to be displayed on display F. In modality programming

(SETUP) it’s used to increase the value of the parameters to set.

C: push-button for the selection of the electrical parameter to be displayed on display G. In modality

programming (SETUP) it’s used to reduce the value of the parameters to set.

D: LED bar for the indication of the electrical parameter displayed on display F.

E: LED bar for the indication of the electrical parameter displayed on display G.

F: 3 displays for the visualization of electrical measures of every phase. When ΣLLED is ON, only the main

display will be active showing the three-phase system value of the electrical measure selected.

LED kand Mshow the eventual multiplying factor (k = kilo=x 1.000, M =Mega= x 1.000.000)

Using the Ckey the display indicates also the values of the active and reactive energy counters.

Using the Aand Bkeys the display indicates the maximum and average values.

G: display for the visualization of the electrical measure indicated in LED E(energy counters excluded).

The voltage values are referred to the three-phase system.

The kLED displays the reading in kilo (x 1000).

Using the Ckey the display indicates the type of the energy displayed.

Using the Aand Bkeys the displays indicate the type of the value: average or maximum.

A+C:when pressing simultaneously the instrument pass to the following menu:

- instrument programming (SETUP)

- energy counters and peak values deleting (RESET)

- digital outputs programming (SET DO1; SET DO 2)

- hour counter programming (HR_)

- I/O diagnostic page

A+B:when pressing simultaneously the instrument pass to the visualization of average and maximum values stored.

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 5

MENU OF INSTRUMENT PROGRAMMING (SETUP)

To enter in SETUP it’s necessary to press at the same time Aand Ckeys, on the Fdisplay will appear the message

SeTUp. Pressing the Akey on the Gdisplay will appear the message SET that will remain always displayed during

the set of each parameter to highlight the setup phase in running.

The set values will be keep also in absence of auxiliary power supply.

MAIN PARAMETERS SETTING (SET UP)

Entry to menu: seT UP ÆseT Up

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 6

RESET

SET DO1

SET DO2

SET HR_

DO_ OFF OFF

SET CT Increase

Set CT ratio

from1to 2000 Decrease

SET VT Increase

Set VT ratio

from0.1 to 400.0 Decrease

(version with Aninput) SET CTN Increase

Set CT ratio of the neutral

input from 1a 2000 Decrease

seT AV9 T Increase

Set average time

from1to 30 minutes Decrease

seT EN TOT PAR

Set Energy visualization

type NORMAL

seT 3pH BALANC

Set connection UN_BAL

type 1PH L1

seT MDE -3-

Set wiring connection

type -4-

seT SYN MDE L1

Set synchronism 50

type 60

(version with digital output) seT PUL SE 10.0 kW-kVAr / pulse

Set pulse weight 01.0 kW-kVAr / pulse

0.10 kW-kVAr / pulse

0.01 kW-kVAr / pulse

(version with digital output) seT TPL Increase

from 100 to 500 mS

in step by 100 mS Decrease

SETPAS Increase

Set Password

OFF - 0002 ÷ 9999 Decrease

Confirm and end of general settings

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 7

Programming of the transformation ratio of the external current transformers (SET CT)

The programming of the CT ratio, intended as the ratio between the primary and the secondary circuit (example: with

CT 1000/5 it must be set 200), has to be performed by using the front keys.

After the enter in the setup (message SETUP on Fdisplay) pressing the Ckey, the message seT will appear on the G

display and the message CT (Current transformer ratio) on the first Fdisplay; the transformation ratio value (set to 1

by the manufacturer) on the second and the third Fdisplay. Press Bor Ckeys to increase or decrease the value

respectively (the variation is performed unit by unit). In order to speed up the operation, keep the Bor Ckey pressed,

the variation will be performed by tens and hundreds. To increase or decrease the value by unit, it is necessary to

release and to press the button again. To confirm the set value, press the Abutton; in this way it is possible to enter

the next programming. If none key is pressed for 10 seconds, the instrument will automatically leave the programming

menu and the eventual setting SHALL NOT be stored.

- Programming of the transformation ratio of the external voltage transformers (SET VT)

After the precedent programming phase, on Fdisplay will appear the inscription Vt (voltage transformer) and the value

of the transformation rate of the external TV (set to 1 from the constructor), considered as the rate between primary

and secondary (example with TV 15/0.1 kV the value will be 150). In the same way at the programming of the CT rate

will be possible to set this value. If the external TV are not used the value to set will be 1. To confirm the value press

the Abutton.

If the instrument has not options the programming continues with the set of average time AVG T’ and after with the

password PASS, then it come back at the first page SETUP. The presence or the absence of the options, neutral

current, digital output and serial output, will allow the visualization or not of the other settings.

Programming of the transformation ratio of the current transformer for the neutral current input (CTN)

(version with neutral current input)

This setting is active only for the models with this option installed; the message SET will appear on Gdisplay; the

message CTN (Current transformer neutral ratio) and the set value on the Fdisplay. In the same way at the

programming of the CT rate will be possible to set this value (example with CT 1000/5the value will be 200).

Pressing the Akey, confirm and go away with the next setting.

Programming of the average time (seT AVG T’)

After the programming phase previously described, pressing another time the Akey, on the Fdisplay will appear the

message AVG T’ and the average time settable from 1 to 30 minutes.

To increase the value press the Bkey. To decrease it, press the Ckey. To confirm it press the Akey.

The average time is the time used to calculate the average parameters (avg) and the maximum demand (maxD).

Programming of the energy visualization type (seT EN)

This setting allows to define the energy visualization type.

With TOT PAR will have the visualization of the partial and total energy counters; With NORMAL there will be only the

visualization of total counters.

Programming insertion mode (3PH)

In aunbalance three phase system it’s necessary to set UN_BAL (unbalance) while in abalance system (only one CT

and only one VT) the correct set is BALANC (balance). For asingle phase insertion it’s necessary to set 1PH L1.

Programming wiring connection mode (MDE)

This setting allows to definite the wiring type connection. It’s possible to chose 3 wires or 4 wires. With the 4 wires

connection the neutral parameter are displayed and enabled to use for the digital outputs settings.

Programming of the synchronism type (SYN MDE)

In this setting for the synchronization type, it’s possible to choose L1 to use the external frequency (on L1 phase) or

50, 60 Hz to use the internal clock.

Programming of the weight of the active and reactive energypulse (seT PULSE) (only for vers. withdigital output)

After the above mentioned programming, by pressing the Akey again, the message PUlse will appear on the F

display and the value of the weight of one pulse settable on three phase values: 0,01 - 0,1 - 1- 10 kWh or kVArh (for

each emitted pulse the instrument will have counted 0,01 - 0,1 - 1 - 10 kWh o kVArh).

Press the Bkey to increase the value or Ckey to decrease the value and Ato confirm.

Programming of the duration pulse (SET TPL) (only for vers. with digital output)

The message TPLwill appear together the value of the duration pulse expressed in mS. It’s possible to select the

value from 100 mS to 500 mS, with 100 ms steps by using Bkey (to increase the value) and C(to decrease the

value). Confirm the value pressing the Akey.

This setting is used by all digital outputs.

Programming of the Password (SET PAS)

The instrument is supplied without password. When a password (from 0002 to 9999) is set, using the B(to increase),

C(to decrease) and A(to confirm) keys, only who know this value can to enter in the setup. The password, in fact, is

required all the time that someone try to enter in the setup (pressing the Aand Bkey at the same time). If the

password is wrong, the message PASS ERR will appear on Fdisplay and the instrument go back to the measures

visualization. To input the password, when required by the instrument, at the enter of the setup, use the A, Band C

keys as the same way done previously.

The menu is cyclic. After the last setting, the instrument go back to the first page of Setup (SETUP). It’s always

possible to come back to measures visualization mode pressing at the same time the Aand Ckeys.

PEAK VALUES AND ENERGY COUNTERS RESET (RESET)

From the measures visualization mode, pressing the Aand Ckeys simultaneously the message SETUP will appear

on Fdisplay, press the key Cuntil the message RESET appears on the same display. To accede to the menu, press

the Akey. Now it’s possible to select the enabling of cancellation type, by pressing the Ckey, according with following

types:

RESET PEA: all maximum value will be delete.

RESET AVG: all average and average maximum value (maximum demand) will be delete.

RESET EN: with NORMAL as energy mode (EN) the total energy counters will be delete, with TOT PAR the partial

energy counters will be delete.

RESET ALL: to delete average maximum values and energy counters.

Entry to menu:

seT UP ÆseT Up

RESET

SET DO1

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 8

SET DO2

SET HR_

--- OFF OFF (the visualization depends on the settings and the I/O status)

RESET PEA NO / YES Confirm Reset

Deleting maximum values (max)

RESET AVG NO / YES Confirm Reset

Deleting average values (avg)

and maximum demand (maxD)

RESET EN NO / YES Confirm Reset

Deleting energy counters

RESET ALL NO / YES Confirm Reset

Deleting maximum and average

values, and energy counters

To enable the chosen type, press the Bkey to change the indication on display Gfrom NO to yes.

Confirm enabling cancellation, by pressing the Akey. The indication on display Gchange from yes to ---.

PROGRAMMING OF THE DIGITAL OUTPUT (SET DO1 SET DO2)

The DO1 and DO2 digital outputs have three modality of functioning: PULSE, alarm (ALR) and REMOTE command.

The DO1 modality setting is independent from DO2. For example it’s possible to set DO1 on PULSE (pulse emission)

and DO2 on alarm mode (ALR).

In the menu SET DO1 and SET DO2 it’s possible to program the function of all digital outputs. In these menus are

available the following modality: PULSE, ALR and REMOTE.

In PULSE mode the digital output DO1 will emit pulses proportional to the active energy counted while the digital

output DO2 will emit pulses proportional to the reactive energy counted. The proportionality will depend from the

PULSE set in the SETUP and the duration of the impulse is set in the TPL voice of the SETUP.

The ALR modality is divided in two parts: ALR SYS 3PH and ALR SYS 123. With ALR SYS 3PH the digital output will

function as alarm verifying that the three phase value doesn’t exceed the threshold set (ALR HI and ALR LO). With

ALR SYS 123 the digital output will function as alarm verifying that the maximum value of the single phases doesn’t

exceed the maximum threshold set (ALR HI) and that the minimum value of the single phases doesn’t come down the

minimum threshold set (ALR LO). The activation of the alarm output will come after some seconds of delay set(ALR

DL).

In REMOTE mode, the LON variable define the status of the output.

Enter to menu:

seT UP ÆseT Up

RESET

SET DO1

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 9

SET DO2

SET HR_

--- OFF OFF (the visualization depends on the settings and the I/O status)

Pul se To choose the output modality

ALR SYS 3PH (selecting PULSE or

ALR PH_ 123 BY_ REMOTE

BY_ REMOTE the setting finish)

ALR SEl uLN

ALR SEl AMP

ALR SEl AN (only for ALR SYS 3PH)

ALR SEl P.f To chose the parameter

ALR SEl ACT to control

ALR SEl REA (see variable list)

ALR SEl APP

ALR SEl VLL

ALR SEL FRE (only for ALR SYS 3PH)

Alr sel T°c (only for ALR SYS 3PH)

Set maximum alarm threshold Increase

ALR HI Decrease (after 0 there is OFF)

Set minimum alarm threshold Increase

ALR LO Decrease (after 0 there is OFF)

Set delay Increase

ALR Dl Decrease

Confirm and end of digital output settings.

ENTER IN THE SETUP

From the measures visualization, press at the same time the Aand Ckeys, the message SeT Up will appear on the F

displays.

CHOOSE THE DIGITAL OUTPUT TO PROGRAM

Press repeatedly the Ckey until the message SET DO1 (DO1 output) or SET DO2 (DO2 output) appears on the F

display. Press the Akey to select this setting.

SELECT THE MODALITY OF FUNCTIONING OF THE DIGITAL OUTPUT

To select the functioning mode, using the Band Ckeys, it’s possible to select: PULSE (pulse emission), ALR SYS

3PH, (alarm on three phase value), ALR PH_ 123 (alarm on minimum and maximum single phase value) and BY_

REMOTE (the digital output is managed using serial output). Press Akey to confirm.

CHOOSE THE PARAMETER TO LINK TO THE DIGITAL OUTPUT

With an alarm modality set, it’s necessary to select the parameters associated to the alarm output; by pressing the B

and Ckeys until the parameter choice appears on the third part (L3) of Fdisplay and the glowing the corresponding

led on the Dbar. Press Akey to confirm the set.

SET THE HIGH AND THE LOW THRESHOLDS

On Fdisplay will appear the message ALR Hi with the high threshold value; confirming with the Akey on the same

display will appear the message ALR LO with low threshold value. The B(to increase) and C(to decrease) keys are

used to set the high and the low thresholds values. The range depends by the parameter and it is linked to the CT and

VT ratios. Pressing Akey to confirm.

The threshold set is linked with CT and VT ratios, for this reason it’s necessary to make this operation after the

programming of the CT and VT. The end scale value must be confirmed when CT and VT ratios are modified.

The low threshold will be lower than high threshold. If the high threshold is set as OFF the low threshold will have the

range of the high threshold.

SET THE DELAY TO THE DIGITAL OUTPUT ACTIVATION

Now it’s possible to set the delay that will pass between the alarm condition set and the activation of digital output. On

Fdisplay will appear ALR DLY and the value expressed in seconds (range 1÷900). The modification of the value is

done in the same way of the threshold set. With the confirmation (Akey) the set is complete.

The programming will be referred to the digital output indicated on Gdisplay (DO1 o DO2).

PROGRAMMING OF THE HOURS COUNTER (SET HR_)

The hour counter will be increased when the measure of the parameter will exceed the set threshold value.

seT UP ÆseT Up

RESET

SET DO1

SET DO2

SET AN OUT

SET HR_

--- OFF OFF (the visualization depends on the settings and the I/O status)

HR_ SEl uLN

HR_ SEl AMP

HR_ SEl AN

HR_ SEl P.f To chose the parameter

HR_ SEl ACT (see the variable list)

HR_ SEl REA

HR_ SEl APP

HR_ SEl VLL

HR_ SEL FRE

HR_ sel T°c

Set the threshold Increase

HR_ HI Decrease

Confirm and end of hour counter settings.

SELECT THE PARAMETER TO LINK TO THE HOURS COUNTER

From the previous setting, pressing the Ckey it’s possible to set the hours counter: the message SET HR_ appears

on the Fdisplay. Press the Akey to define the parameter to link to the hours counter. Press more time the Bkey to

select the parameter and the Akey to confirm it.

SET THE THRESHOLD

Subsequently it’s necessary to set the threshold using the B(to increase) and C(to decrease) keys. Confirm with A

key.

I/O INFO PAGE

After the hour counter set, the I/O info page appears in F displays: on the first part (L1) the status of digital input, on

the second part (L2) the status of the first digital output (DO1), on the third part (L3) the status of the second digital

output (DO2).

The status of the two digital outputs is ON if the digital output is activated or OFF if deactivated.

Only if the instrument is “commissioned” on the Gdisplay will be displayed the communication status between the

microprocessor and the LON interface.

VARIABLE LIST

VLN three-phase voltage

AMP three-phase current

AN neutral current

P.F three-phase power factor

ACT active power

REA reactive power

APP apparent power

VLL phase to phase voltage

FRE frequency

T°C temperature

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 10

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 11

MEASURES VISUALIZATION

The instrument is divided in two distinct section:

the first is composed by three displays (F), by Aand Bkeys and by

LED bar D; the second (in the low part) is composed by Gdisplay,

by Ckey and by LED bar E.

The two sections are to consider as two different instruments in a

only one box, in fact it’s possible to act in a zone without to modify

the visualization in the other (peak value and energy counters

visualization excluded).

Visualization section 1

The three measures of phases (on L1, L2 and L3), of the parameter

indicated from the led Don, appears on Fdisplay. For the measure of the phase to phase voltages (V L-L), the three

measures are V L1-L2, V L2-L3, V L3-L1.

It’s necessary to press the Bbutton to select the parameter that can be displayed and indicated from DLED.

Press Abutton to see on Fdisplay the three phase value (the average of the single phase of voltage, current, power

factor and the sum of single phase for the power) of the parameter selected,: the led inside the Akey is on.

To press another time the same key the visualization come back at the phase values.

The unit of measurement can be expressed in kilo or Mega, in the this case the relative LED is on.

A sign – on the first digit indicates the visualization of the capacitive power factor (example the reading -.95 indicates

a power factor of 0.95 capacitive)

Note: If in the Setup the single phase mode (1PH L1) is set, all the measures appear on the L1 display.

Visualization section 2

At the same way of the section 1, press the Cbutton to select the parameter that can be displayed and indicated from

ELED. The voltage values are of the three phase system, the frequency is of the L1 channel.

Visualization energy and hours counters

With the Ckey it’s possible to visualize on Fdisplay the active, reactive and apparent energy counters. One segment

of the right digit of the Gdisplay, in correspondence of the kWh and KVArh on the front panel, turn on, to indicate the

visualization of the active and reactive energy counters. The led VA and the segment of the right digit of the Gdisplay,

in correspondence of …h on the front panel, turn on, to indicate the visualization of the apparent energy counter. To

complete the visualization the led kover the Fdisplay could be on.

This is the visualization if NORMAL is the set in EN voice of the setup. Instead if the setting is TOT PAR on the F

display will be visualized alternatively the partial and the total active, reactive and apparent energy counters; the first

digit of the Gdisplay indicates the type of the counter: Pfor the partial (the user could be reset it) and Tfor the total

(it’s no possible to reset it).

The right digit of Gdisplay, in correspondence of the …h, turn on, when the visualization of hours counters is active.

The reading of the counters use the 9 digits (maximum reading 99999999.9) of the Fdisplay: the measure is

displayed in the way that the L1 display will indicate the first 3 digits, the display L2 the seconds 3 digits and the L3

display the last 3.

For example if: L1=000, L2=028, L3=53.2 the reading is 2853.2 kWh.

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 12

VISUALIZATION PEAK AND AVERAGE VALUES

Pressing at the same time the Aand Bkeys, on Fdisplay will appear the

average and maximum stored value, that are selected using the Bkey while

a luminous segment on the Gdisplay indicates the type of the maximum

and/or average value.

AVG: the average values are calculated on a average time set. The

calculation is at fixed window and it’s sinchronized when the instrument turn

on.

The stored maximum values are the two types:

MAX: the instantaneous maximum values store the maximum value

achieved by the parameter of measure for at least one second.

MAX AVG: the average maximum values (maximum demand) store the

maximum value achieved in the average time as set in the setup menu;

The integration for the calculating of the average values is synchronized all the time that the instrument turn on.

Press Aand Bkeys another time to come back to the measures visualization. The instrument will come back to the

measure visualization automatically if for 10 seconds no one button is pressed.

The average value, the maximum value and the maximum average value selectable with Bkey are the following:

parameter Identifications / description G display

V L1-N max V

L2-N max V

L3-N max

phase voltages maximum instantaneous phase voltages

max

maxD

avg

I L1 max I

L2 max I

L3 max I

N max

phase and neutral currents maximum instantaneous phase currents

max

maxD

avg

ΣW max ΣVAr max ΣVA max

three-phase power maximum three phase powers (Σ)

max

maxD

avg

I L1 max avg I

L2 max avg I

L3 max avg I

N max avg

phase and neutral currents maximum of average phase and neutral currents (max. demand)

max

maxD

avg

ΣW max avg ΣVAr max avg ΣVA max avg

three-phase power maximum of average three phase powers (maximum demand)

max

maxD

avg

I L1 avg I

L2 avg I

L3 avg I

N avg

phase and neutral currents average phase and neutral currents

max

maxD

avg

ΣW avg ΣVar avg ΣVA avg

three-phase power

average three phase powers

max

maxD

avg

NOTE relative to the measure

The refresh time of the display is lower of a second and it depends by the time of calculating of the measure and concerning the

methodology of measure used in the way to allow a comfortable reading of value also in presence of fast variation of the measure

parameter.

If the multimeters are used on single phase lines, the measures are referred at the phase L3. The other data displayed and relative

to the three-phase system must not considered.

If the measure indicated by the instrument are not reliable or absurd it’s necessary to verify the connection of the measure inputs of

currents and voltages because must be respected the sequence of the phase, the corresponding of the currents and voltages of the

same phase (the L1 voltage phase and the TA located on L1 phase must be connected on the L1 input) and the sense of the

current (the S1 terminals of the TA must be connected at the S1 terminals of the instrument).

In some application where the secondary is connected to other instruments apart from the ELM multimeter, some problems could

happen concerning the typology of the amperometric inputs.

If there are some problem call the assistance service.

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 13

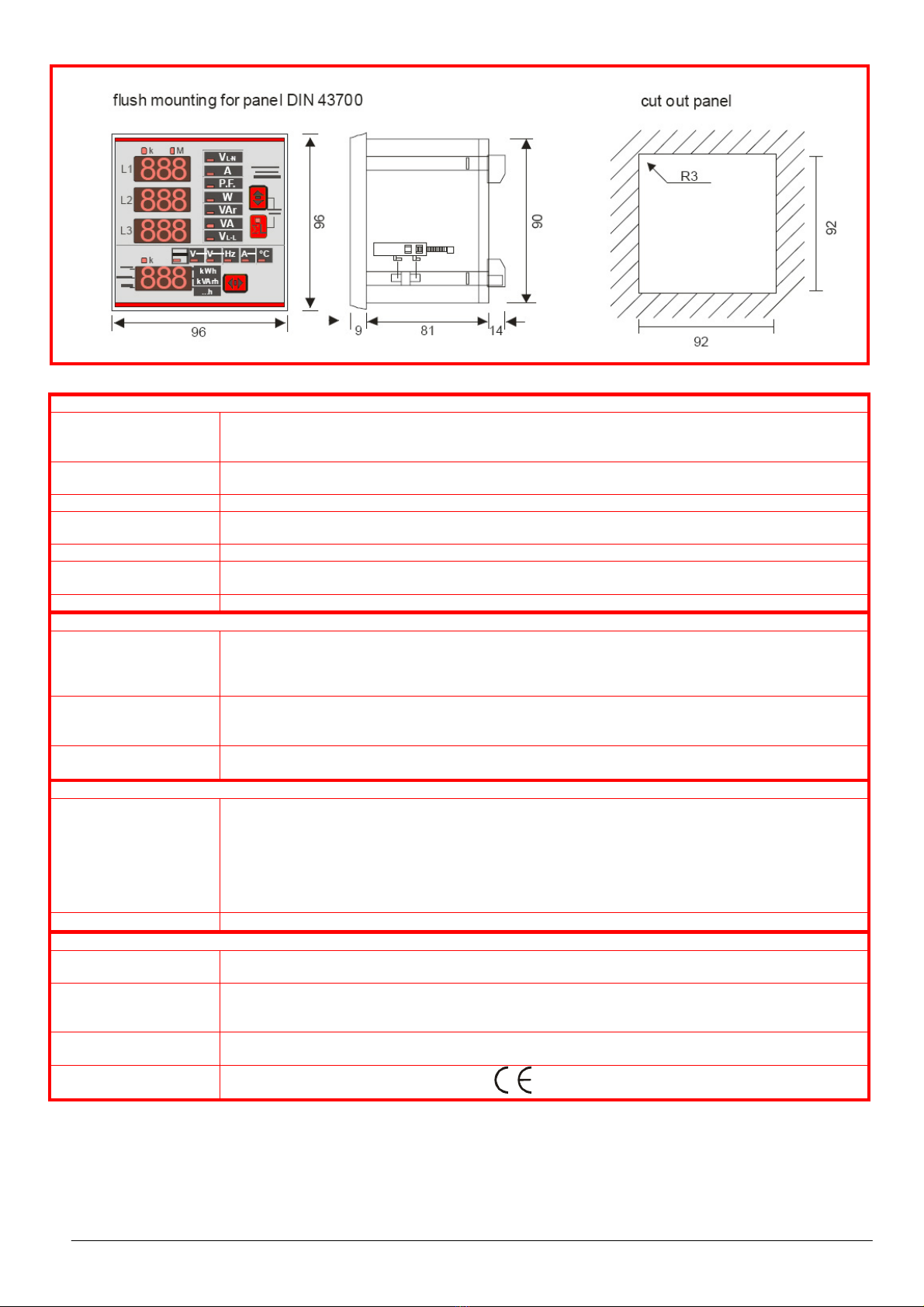

DIMENSIONS

TECHNICAL FEATURES

MEASURES, PRECISIONS

voltage true RMS of the phase voltages and the phase to phase voltages and values of three phase system

range of total measure: 20÷500V trms phase-phase - 290V rms phase-neutral

visualization (0,02÷50,0kV) - measure precision: ±0,5% ±1 digit– management maximum values

current true RMS of the phase currents and of the value of three phase system

range of measure: 0,02÷5A trms - measure precision: ±0,5% ±1 digit - visualization 0,02÷9990A

frequency frequency of the L1 phase –range of measure: 40÷500Hz - precision: ±0,5% ±1 digit

powers phase and three phase system apparent, reactive and active power

range of measure: 0,001÷9990kW - 0,001÷9990kVAr - 0,001÷9990kVA - precision: ±1% ±1 digit

power factor phase and three phase power factor - range of measure: -0,1÷0,1 / precision: ±1% ±1 digit

energy measure three phase system apparent, active and reactive energy

range of measure: 0÷99999999,9 kWh / kVArh class 2 ( IEC 1036) - precision: ±1

hours counters precision: ±1%; resolution 1/10 of hour

AUXILIARY POWER SUPPLY, INPUTS

auxiliary power supply Version Vac: 100-125V / 220-240V / 380-415V ±10% - frequency 50-60Hz

Version Vac/dc: 20-60Vac – 24-72Vdc

Version Vac/dc: 80-230Vac – 90-250Vdc

consumption max 4VA

voltage inputs from 20 to 500V phase-phase; permanent overload +20% - input impedance: 1 MΩ

insertion on three phase line with 3 wires, 4 wires and single phase

insertion in MT with external TV and transforming rate programmable from 1 to 400

current inputs from 0,02 to 5A; permanent overload 30% - from external TA with secondary 5A,

primary programmable from 5 to 10000A - auto-consumption <0,5VA

INPUTS / OUTPUTS

digital outputs Two outputs with common, optomos 12÷230Vac/dc, max 150mA,

insulation: 3kV for 60 seconds

Pulse Function:

Weight programmable 0,01-0,1-1-10 kWh/pulse

Pulse duration 100-200-300 400 500 milliseconds selectable

DO1: active energy pulse output (accumulated Tb1+Tb2)

DO2: reactive energy pulse output (accumulated Tb1+Tb2)

LonWork communication transceiver FTT10A

GENERAL

display, operators 4 displays with red LED 10mm everyone of 3 digit by 7 segments

3 push-button for selecting measure and programming

mechanic protection degree: IP52 frontal - IP20 enclosure and terminals - weight: about 0,5 kg

connections with screw terminals for cable 2,5 mm2

enclosure thermoplastic self-extinguishing - flush mounting DIN 96x96mm, depth 95mm

environmental working temperature: -10÷60°C; humidity <90%

storing temperature: -25÷70°C - insulation test: 3 kV for 1 minute

standards EN 50081-2; EN 61000-6-2

EN 61036-1; EN 61010-1

LonWorks communication port

The ELM-96BP-LON is supplyed of FTT-10 standard interface

VIRTUAL FUNCTIONAL BLOCK

Output variable list

SNVT_volt_ac SNVT_amp SNVT_pwr_fact SNVT_power_f SNVT_elec_kwh_l

nvo_3phase_volt nvo_3phase_curr nvo_3ph_pwr_fac nvo_3ph_Apwr nvo_3ph_Wh_T1

nvo_voltage_ph1 nvo_current_ph1 nvo_pwr_fac_ph1 nvo_Apwr_ph1 nvo_3ph_Wh_T2

nvo_voltage_ph2 nvo_current_ph2 nvo_pwr_fac_ph2 nvo_Apwr_ph2 nvo_3ph_RVAh_T1

nvo_voltage_ph3 nvo_current_ph3 nvo_pwr_fac_ph3 nvo_Apwr_ph3 nvo_3ph_RVAh_T2

nvo_voltage_l12 nvo_3ph_cos nvo_3ph_pwr; nvo_3ph_AVAh_T1

nvo_voltage_l23 nvo_cos_ph1 nvo_pwr_ph1; nvo_3ph_AVAh_T2

nvo_voltage_l31 nvo_cos_ph2 nvo_pwr_ph2;

nvo_cos_ph3 nvo_pwr_ph3;

nvo_3ph_Rpwr

nvo_Rpwr_ph1

nvo_Rpwr_ph2

nvo_Rpwr_ph3

nvo_MaxAvg3PhAP

nvo_MaxAvg3PhRP

nvo_MaxAvg3PhApP

nvo_LastAv3PhAcP

nvo_LastAv3PhRP

nvo_LastAv3PhApP

SNVT_switch SNVT_freq_hz SNVT_amp_mil SNVT_temp SNVT_count SNVT_state

nvo_Debug nvo_Frequency nvo_N_Current nvo_temperature nvo_hours_cnt nvo_IO_State

nvo_MaxAvgCurrL1

nvo_MaxAvgCurrL2

nvo_MaxAvgCurrL3

nvo_MaxAvCurrN;

nvo_LastAvCurrN;

nvo_LastAvCurrL1

nvo_LastAvCurrL2

nvo_LastAvCurrL3

Input variable list

SNVT_switch

nvi_Out1

nvi_Out2

nvi_REC;

nvi_RMA;

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 14

ELM-96BP-LON instruction manual IM447-U v0.67 pag. 15

Output variable list

Type Name Content

SNVT_volt_ac nvo_3phase_volt 3-PHASE SYSTEM VOLTAGE [V]

SNVT_volt_ ac nvo_voltage_ph1 PHASE VOLTAGE L1-N [V]

SNVT_volt_ ac nvo_voltage_ph2 PHASE VOLTAGE L2-N [V]

SNVT_volt_ ac nvo_voltage_ph3 PHASE VOLTAGE L3-N [V]

SNVT_volt_ ac nvo_voltage_l12 LINE VOLTAGE L1-2 [V]

SNVT_volt_ ac nvo_voltage_l23 LINE VOLTAGE L2-3 [V]

SNVT_volt_ ac nvo_voltage_l31 LINE VOLTAGE L3-1 [V]

SNVT_amp nvo_3phase_curr 3-PHASE SYSTEM CURRENT [A]

SNVT_amp nvo_current_ph1 LINE CURRENT L1 [A]

SNVT_amp nvo_current_ph2 LINE CURRENT L2 [A]

SNVT_amp nvo_current_ph3 LINE CURRENT L3 [A]

SNVT_pwr_fact nvo_3ph_pwr_fac 3-PHASE SYS. POWER FACTOR [-]

SNVT_pwr_fact nvo_pwr_fac_ph1 POWER FACTOR L1 [-]

SNVT_pwr_fact nvo_pwr_fac_ph2 POWER FACTOR L2 [-]

SNVT_pwr_fact nvo_pwr_fac_ph3 POWER FACTOR L3 [-]

SNVT_power_f nvo_3ph_Apwr 3-PHASE S. APPARENT POWER [kVA]

SNVT_power_f nvo_Apwr_ph1 APPARENT POWER L1 [kVA]

SNVT_power_f nvo_Apwr_ph2 APPARENT POWER L2 [kVA]

SNVT_power_f nvo_Apwr_ph3 APPARENT POWER L3 [kVA]

SNVT_power_f nvo_3ph_pwr 3-PHASE SYS. ACTIVE POWER [kW]

SNVT_power_f nvo_pwr_ph1 ACTIVE POWER L1 [kW]

SNVT_power_f nvo_pwr_ph2 ACTIVE POWER L2 [kW]

SNVT_power_f nvo_pwr_ph3 ACTIVE POWER L3 [kW]

SNVT_power_f nvo_3ph_Rpwr 3-PHASE S. REACTIVE POWER [kVAr]

SNVT_power_f nvo_Rpwr_ph1 REACTIVE POWER L1 [kVAr]

SNVT_power_f nvo_Rpwr_ph2 REACTIVE POWER L2 [kVAr]

SNVT_power_f nvo_Rpwr_ph3 REACTIVE POWER L3 [kVAr]

SNVT_elec_kwh_l nvo_3ph_Wh_T1 3-PHASE SYS. ACTIVE ENERGY T1 [kWh]

SNVT_elec_kwh_l nvo_3ph_RVAh_T1 3-PHASE S. REACTIVE ENERGY T1 [kVArh]

SNVT_elec_kwh_l nvo_3ph_Wh_T2 3-PHASE SYS. ACTIVE ENERGY T2 [kWh]

SNVT_elec_kwh_l nvo_3ph_RVAh_T2 3-PHASE S. REACTIVE ENERGY T2 [kVArh]

SNVT_freq_hz nvo_Frequency FREQUENCY [Hz]

SNVT_amp_mil nvo_N_Current NEUTRAL CURRENT [A]

SNVT_elec_kwh_l nvo_3ph_AVAh_T1 3-PHASE S. APPARENT ENERGY T1 [kVAh]

SNVT_elec_kwh_l nvo_3ph_AVAh_T2 3-PHASE S. APPARENT ENERGY T1 [kVAh]

SNVT_temp nvo_temperature TEMPERATURE [°C]

SNVT_count nvo_hours_cnt HOURS COUNTER [h]

SNVT_amp_mil nvo_MaxAvgCurrL1 MAX AVG CURRENT L1 [A]

SNVT_amp_mil nvo_MaxAvgCurrL2 MAX AVG CURRENT L2 [A]

SNVT_amp_mil nvo_MaxAvgCurrL3 MAX AVG CURRENT L3 [A]

SNVT_power_f nvo_MaxAvg3PhAP MAX AVG 3-PH. ACTIVE POWER [kW]

SNVT_power_f nvo_MaxAvg3PhRP MAX AVG 3-PH. REACTIVE POWER [kVAr]

SNVT_power_f nvo_MaxAvg3PhApP MAX AVG 3-PH. APPARENT POWER [kVA]

SNVT_power_f nvo_LastAv3PhAcP LAST AVERAGE 3-PHASE ACTIVE POWER [kW]

SNVT_power_f nvo_LastAv3PhRP LAST AVERAGE 3-PHASE REACTIVE POWER [kVAr]

SNVT_power_f nvo_LastAv3PhApP LAST AVERAGE 3-PHASE APPARENT POWER [kVA]

SNVT_amp_mil nvo_MaxAvCurrN MAX AVG CURRENT NEUTRAL [A]

SNVT_amp_mil nvo_LastAvCurrN LAST AVERAGE CURRENT NEUTRAL [A]

SNVT_amp_mil nvo_LastAvCurrL1 LAST AVERAGE CURRENT L1 [A]

SNVT_amp_mil nvo_LastAvCurrL2 LAST AVERAGE CURRENT L2 [A]

SNVT_amp_mil nvo_LastAvCurrL3 LAST AVERAGE CURRENT L3 [A]

SNVT_state nvo_IO_State DIGITAL OUTPUT DO1, DO2,

Input variable list

Type Name Content

SNVT_switch nvi_Out1 DIGITAL OUTPUT DO1 CONTROL REGISTER

SNVT_switch nvi_Out2 DIGITAL OUTPUT DO2 CONTROL REGISTER

SNVT_switch nvi_REC RESET ENERGY COUNTERS

SNVT_switch nvi_RMA RESET MAX AVG (max demand) VALUES

NOTE

(*)

The nvo_IO_State is a 16 bit variable. The bit have the following meaning:

•Bit 0 DO1 state

•Bit 1 DO2 state

•Bit 2 Input state

Service Led: If the “decommission” instrument will be connected to a LON network, the Service Led must have a regular blink (the time with Led ON it’s similar to the time with

Led OFF). After the “commission” operation, during the normal functioning, the Led must remain OFF. If the Led works in a different way, the instrument could have some

problem. In this case it’s better to send the instrument to the Service Center.

Service Push-Button: It’s used to “commission” the instrument. “Commission” mean to give a logic address in the LON network in the way to allow the communication with other
