elddis Xplore 2014 User guide

All the illustrations and descriptive matter in this guide are intended to give a general idea of the
caravan. Changing market and supply situations may prevent the manufacturer from maintaining
the exact specifications and details in this handbook and we therefore reserve the right to alter
specifications and materials as conditions demand.
Retailers are independent of the manufacturer and have absolutely no authority to bind the
manufacturer by any express or implied undertaking or representation.
The Explorer Group Limited Delves Lane, Consett, Co. Durham DH8 7PE
Telephone: [phone] • Facsimile: 01207 699001 • www.explorer-group.co.uk
Issue 6
Model Year 2014
OWNERS
HANDBOOK
Touring Caravan

CONTENTS-1
CONTENTS
WELCOME AND INTRODUCTION ........ 1-1
Model Year .............................................. 1-1
Xplore Technical Approvals ..................... 1-1
GENERAL SAFETY ............................... 2-1
Please read before using your new
caravan. .................................................. 2-1
Ventilation ............................................... 2-2
High-Level Ventilation ............................. 2-2
Low-Level Ventilation .............................. 2-2
Ventilation in Separate Bedrooms ........... 2-2
Gas Dispersal Holes ............................... 2-2
Petrol/Diesel Fumes ................................ 2-2
Fire Safety ............................................... 2-2
Fire Extinguishers ................................... 2-2
In Case Of Fire ........................................ 2-2
Fire Retardant Foams ............................. 2-2
Your Caravan Payload Explained ........... 2-3
PREPARING FOR THE ROAD ............... 3-1
Caravan Towing Vehicle Weight Ratio .... 3-1
Loading ................................................... 3-1
Internal Loading & Checks ...................... 3-1
External Loading & Checks ..................... 3-1
Pre-Tow Checklist & Hitch-Up ................. 3-2
Coupling & Uncoupling ........................... 3-2

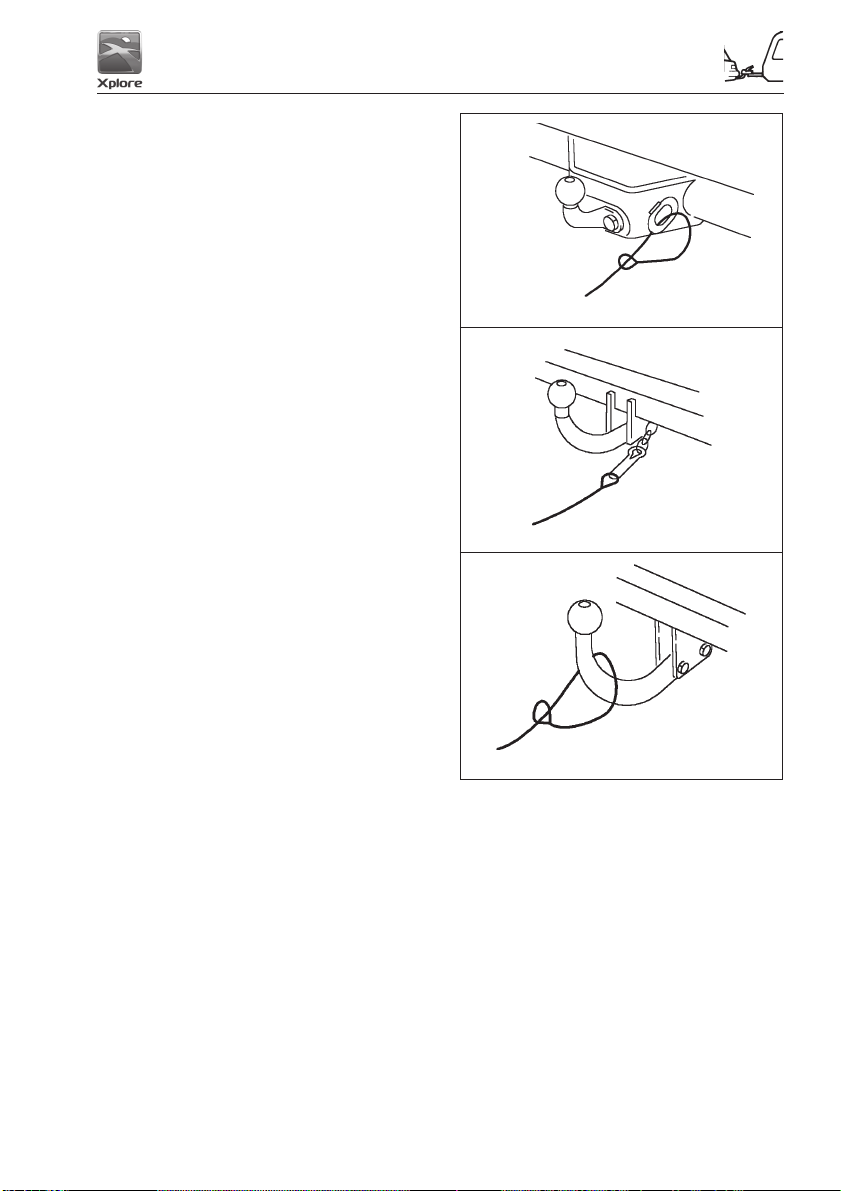

Use of Your Caravans Breakaway Cable 3-2
Before Setting Off.................................... 3-4

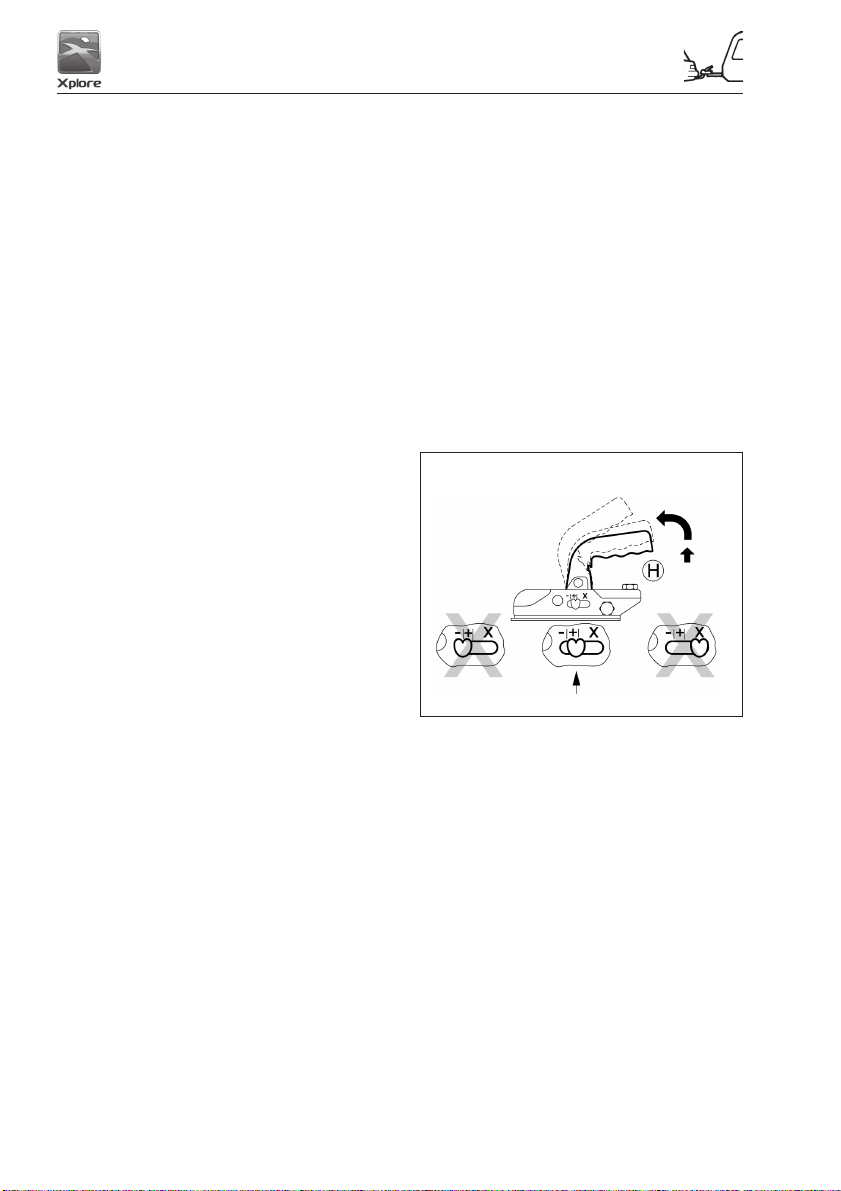

Handbrake .............................................. 3-4
Cables ..................................................... 3-4
TOWING AND DRIVING ......................... 4-1
Reversing ................................................ 4-1
Speed Limits ........................................... 4-1
Setting Off ............................................... 4-1
Caravan Handling ................................... 4-1
ARRIVING ON SITE ............................... 5-1
Check Site Regulations ........................... 5-1
Selecting a Pitch ..................................... 5-1
Side-To-Side Levelling ............................ 5-1
Leveller Jack ........................................... 5-1
Ramp ...................................................... 5-1
Front & Back Levelling ............................ 5-1
Parking on a Reverse-Sloping Site
or Steep Hill ............................................ 5-2
GETTING STARTED .............................. 6-1
Electricity ................................................. 6-1
Power Supply Charger ............................ 6-1
12v Systems: .......................................... 6-1
Generator/Charger .................................. 6-1
Electricity Mains Supply .......................... 6-1
Connecting To Mains Supply On
Arrival at Site ........................................... 6-1
Disconnecting Mains Supply When
Leaving Site ............................................ 6-2
Overseas Electrical Connection .............. 6-2
Gas Safety Advice ................................... 6-3
Facts about LPG ..................................... 6-3
Awning Spaces, LPG and
Appliance Exhaust .................................. 6-3
LPG Gas System .................................... 6-3
Gas Supply ............................................. 6-4
Connection .............................................. 6-4
Changing a Gas Cylinder ........................ 6-4
Gas Regulator ......................................... 6-4
High Pressure Gas Hoses ...................... 6-4
Water System .......................................... 6-5
High Flow Watermaster Pump with
Intelligent Control (IC) ............................. 6-5
To calibrate the Water System ................ 6-5
To prime the Water System ..................... 6-5
Maintenance ........................................... 6-6
Helpful Hints ............................................ 6-6
Troubleshooting ...................................... 6-7
Diagnostic Codes .................................... 6-7
Winterising .............................................. 6-7
ELECTRICAL SYSTEM .......................... 7-1
12v Power Supply ................................... 7-1
Battery Installation .................................. 7-1
Battery Maintenance ............................... 7-1
Generators / Charger .............................. 7-1
230v Power Supply ................................. 7-1
Mains Unit ............................................... 7-1
Resetting the RCD .................................. 7-1
Automatic Charging System ................... 7-2
Maximum Bulb Ratings for Internal Lights7-2
Maximum Bulb Ratings for
Road Lights ............................................. 7-2
HOW TO USE YOUR CARAVAN’S
EQUIPMENT ........................................... 8-1
Electrical Control Panels ......................... 8-1
Spinflo Duplex Combi Oven .................... 8-2
3 Burner Hob ........................................... 8-4
Refrigerator (RM8551) ............................ 8-6
Operation ................................................ 8-6
Whale underfloor Heater ......................... 8-9
Whale Water Heater ............................... 8-11
Water Heater Control Panel ...................8-11
Microwave
(Optional on this Range) ....................... 8-13
Battery Charger ..................................... 8-13
Smoke Alarm ......................................... 8-13
MY2014/Xplore

CONTENTS-2
CONTENTS
Operation .............................................. 8-13
Nuisance Alarms ................................... 8-14
Maintenance ......................................... 8-14
Cleaning your alarm .............................. 8-14
Carbon Monoxide Alarm ....................... 8-15
Recognising alarm signals and
warnings ................................................ 8-15
Using your alarm ................................... 8-15
Switching on your CO alarm ................. 8-15
Re-setting the alarm .............................. 8-15
Replacement of batteries ...................... 8-15
Carbon Monoxide Alarm Procedure ...... 8-16
Maintenance of your alarm ................... 8-16
Thetford C260 Toilet .............................. 8-17
Introduction ........................................... 8-17
Preparing for use (standard) ................. 8-17
Using the toilet (standard) ..................... 8-19
Emptying ............................................... 8-19
Emptying with Optional Features .......... 8-19
Cleaning and Maintenance ................... 8-20
Toilet Bowl ............................................. 8-20
Waste Holding Tank .............................. 8-20
Cleaning and Maintenance for
Optional Features ................................. 8-21
Winter operation .................................... 8-21
Storage ................................................. 8-21
Toilet unit malfunctions .......................... 8-21
Windows ............................................... 8-24
Polyplastic Window Opening ................ 8-24
Rooflights .............................................. 8-24
Standard MPK Rooflight ....................... 8-24
Midi Heki Rooflight ................................ 8-24
Blinds & Flyscreens .............................. 8-24
Flyscreens ............................................. 8-25
Door Flyscreen (If Fitted) ...................... 8-25
Gas Locker Door ................................... 8-26
Internal Doors ....................................... 8-26
Locker Door Catches (Paddle Latch) .... 8-26
Magnetic Catches ................................. 8-27
Sprung Hinges ...................................... 8-27
Sliding Doors ......................................... 8-27
Bed Make-up ......................................... 8-27
L-Shape Lounge Double Bed ................ 8-28
Front Wrap Round Seating (Option) ..... 8-28
Removable Drawer Locker ................... 8-31
Avtex Aerial ........................................... 8-31
Entertainment System ........................... 8-31
Radio/CD with MP3 Connectivity
(Option Only) ......................................... 8-31
BPW Intelligent Drive Control (iDc)
System (Option) .................................... 8-31
iDC operating instructions ..................... 8-31
SECURITY .............................................. 9-1
Caravan Theft ......................................... 9-1
Tracker .................................................... 9-1
CRIS - The Caravan Registration and
Identification Scheme - VIN .................... 9-1
Diamond standard Wheel Lock (Option) . 9-2
How to fit your Diamond Standard
Wheel Lock ............................................. 9-2
Hints for using the Diamond Standard
Wheel Lock ............................................. 9-2
Key Card ................................................. 9-2
Window Etching & Chassis Marking ....... 9-3
Electronic Tagging ................................... 9-3
CARE OF YOUR CARAVAN ................ 10-1
Exterior Cleaning .................................. 10-1
Acrylic Windows .................................... 10-1
Care Instructions for Seitz Rooflights .... 10-1
Window Blinds & Flyscreens ................. 10-1
Winterisation/Storage ............................ 10-1
Interior Walls ......................................... 10-1
Furniture ................................................ 10-2
Cooking Equipment ............................... 10-2
Carpets, Upholstery and Curtains ......... 10-2
Shower Trays, Shower Room and
Wash Basin Fittings .............................. 10-2
Cleaning of all Taps ............................... 10-2
Water Containers .................................. 10-2
pre-season water system preparation ... 10-3
Getting Ready for the Winter ................ 10-4
Chassis Mounted Spare Wheel Carrier 10-5
Tyres ..................................................... 10-5
Pressures .............................................. 10-5
Tyre Wear and Damage ........................ 10-5
Changing a Wheel ................................ 10-5
Jacking .................................................. 10-7
Lubrication ............................................ 10-7
Maintenance of your BPW Chassis ...... 10-8
Procurement of Spare Parts ................. 10-8
Caravan Motor Movers ......................... 10-8
STORAGE ............................................ 11-1
Long Term & Winter Storage .................. 11-1
Caravan Covers ..................................... 11-1
Power Drain ........................................... 11-1
CARAVAN WARRANTY COVER ......... 12-1
non warranty repairs ............................. 12-3
Remedial Work...................................... 12-3

CONTENTS-3
CONTENTS
CARAVAN CONSTRUCTION -
MAIN COMPONENTS .......................... 13-1
BPW Chassis ........................................ 13-1
Braking System ..................................... 13-1
Solid Construction Body Shell ............... 13-1
Windows ............................................... 13-1
Insulation ............................................... 13-1
Front Panel and Gas Bottle Locker Door13-1
Awning Channel .................................... 13-1
EQUIPMENT LIST ................................ 14-1
Xplore Range ........................................ 14-1
ELECTRICAL DRAWINGS ................... 15-1
13 Pin Drawing ...................................... 15-1
Wiring Diagram ..................................... 15-2
Road Lights ........................................... 15-3
GENERAL QUESTIONS ...................... 16-1
GLOSSARY .......................................... 17-1
SERVICE DOCUMENTS ...................... 18-1
NOTIFICATION OF CHANGE OF
OWNERSHIP ........................................ 19-1
NOTIFICATION OF CHANGE
TO NAME AND ADDRESS .................. 20-1
INDEX ................................................... 21-1

CONTENTS-4
CONTENTS

1-1
INTRODUCTION
WELCOME AND
INTRODUCTION
Congratulations on choosing an Xplore
Touring Caravan.
This Owner’s Handbook has been prepared
for your guidance to help you derive the
greatest amount of pleasure from the use of
your caravan and your leisure time. We
strongly recommend that you read this guide
thoroughly so that you are fully aware of all
the caravan’s features, equipment and
systems.
Additional information and detailed appliance
instruction manuals are also contained in your
Owner’s Information Pack.
Your new Xplore caravan has been
designed as a recreational vehicle and is
intended for recreational use only. It is not
intended for business, hire use or for
permanent habitation. Xplore accepts no
liability if the caravan is used for any
purpose other than recreational/holiday
use. Any other use other than recreational/
holiday use will invalidate your warranty.
Your new Xplore caravan has been fitted with
a GRP underskin to the floor, this reduces
weight and provides a water resistant barrier.
This will eliminate the problem of long term
water damage and rotten floor underside.
Your caravan has been designed for towing
behind a normal motor car. Additional care
should be exercised when towing with a 4x4
because of the ‘off-road’ nature of the
suspension. Owners should not tow their
touring caravans with commercial vehicles.
When selecting a towing vehicle it is
recommended that you consult the Caravan
Towing Code, which is available from the
NCC.
By following the instructions provided in this
handbook and maintaining your caravan in a
first class roadworthy condition, you are sure
to have many years of carefree use.
To ensure the very best quality and reliability
all touring caravan designs and new
developments are rigorously tested. Therefore
Xplore will accept no liability or uphold the
warranty if the caravan is altered or modified
in such a way that would adversely affect the
reliability.
Please note: It is a condition of your
warranty that the caravan must have an
“annual service” carried out by an Xplore
approved Retailer / Service Centre or NCC
Approved workshop and a record is kept.
Pages are provided in the back of this guide,
for your assistance.
An Xplore Approved Retailer / Service Centre
will be able to supply any replacement parts
for your caravan, should the need arise, and
in most cases any accessories you may
require.
Please note: It is not possible to purchase
replacement parts direct from Xplore.
Changing market and supply situations may
prevent us from maintaining the exact
specification details in this guide and we
therefore reserve the right to alter
specifications as materials and conditions
demand.
Enjoy your new caravan
Model Year
All Touring caravans manufactured by Xplore
are designated by their model year. The 2014
model year runs from 1st September 2013 to
31st August 2014.
Xplore Technical Approvals
All Xplore Caravans have been European
Commission Whole Vehicle Type Approved
via the Vehicle Certification Agency (VCA).
In order to ensure your new caravan is safe
to use, Xplore are members of and have
been inspected by the following bodies.
NCC who operated a certification scheme to
ensure compliance with the European safety
standards for caravans.
National Inspection Council for Electrical
Installation and Contracting (NICEIC) who
carry out an annual inspection of Xplore
electrical installations within caravans.
Gas Safe Register™ approved installers
carry out an annual inspection to ensure that
the gas installations carried out by Xplore
fully comply with all relevant regulations and
standards.
Xplore has also obtained ISO9001:2008
accreditation and this is audited by SGS UK
Limited

1-2
INTRODUCTION

2-1
GENERAL SAFETY
GENERAL SAFETY
Please read before using your new
caravan.
In order for you to get the most out of your
new Xplore touring caravan it is necessary
for you to be aware of the following:
(i) Do not obstruct ventilators and clean
them regularly, it is advisable to clean
and check all the ventilators annually
for blockages and where necessary
rectify any blockages found.
(ii) Inspect the high pressure flexible gas
hose (available from your retailer)
regularly for deterioration and renew
as necessary, with an approved type,
in any case no later than the expiry
date stated on the hose.
(iii) Ensure the gas supply and all
appliances are turned off before towing
your caravan.
(iv) If your caravan has been fitted with a
gas BBQ it must be only used for its
intended purpose. Do not use a gas
barbeque within an awning.
(v) Never use portable cooking or heating
equipment inside your caravan. Do not
use your fitted cooking equipment as
heating at any time.
(vi) Never allow modification to your gas or
electrical system unless qualified
persons carry them out. All
modification to the gas system should
be carried out by a Gas Safe
Register™ approved gas fitter. Any
modifications carried out on the
electrical system must be carried out
by an electrician on the roll of the
NICEIC or be a member of the ECA.
(vii) If you suspect there is a gas leak
please open all the windows then
vacate the caravan. Then contact your
nearest Xplore Retailer to arrange for
them to check the gas system.
(viii) In the interest of safety, replacement
parts for an appliance should conform
to the appliance manufacturer’s
specifications and must be fitted by
them or an authorised agent.
(ix) It is recommended that you provide a
dry powder fire extinguisher complying
with ISO 7165 of at least 1KG capacity
by the exit door and a fire blanket next
to the cooker. Ensure you read the
‘advice to occupier label’ fitted to your
caravan usually found on the inside of
the wardrobe door.
(x) Never exceed your caravans Maximum
Technical Permissible Laden Mass.
(see Caravan Towing Vehicle Weight
Ratio)
(xi) The laden nose weight for your
caravan should not exceed the lower
of the following:
•Towing vehicles maximum nose
weight
•Tow bar maximum nose weight
•The caravan’s maximum nose weight
(xii) Ensure heavy and large items are
secured before towing your new
caravan to reduce the risk of damage
being caused while the caravan is in
motion.
(xiii) Pull out worktop extensions, where
fitted, are only designed to take
maximum weight of 6kgs.
(xiv) When your caravan is connected to
your towing vehicle it should be level
or slightly nose down. However, in the
UK the maximum speed allowed for
towing a caravan is 100kmh/60mph.
(xv) When your caravan is loaded to its
MTPLM and the weight distributed in
accordance with the handbook, your
caravan is designed to be towed at a
maximum speed of 100kmh/60mph.
(xvi) It is illegal to tow your caravan
whilst it is occupied.
(xvii) If your caravan is fitted with a lift up
bunk it is designed for a maximum
weight of 11 stone and is not suitable
for children under 3 years old without
supervision.
(xviii) Do not leave children under 14 years
of age unattended in your caravan.
(xix) The coupling head operating handle
MUST NOT be used to manually
manoeuvre the caravan at any time.
(xx) In order to manually manoeuvre your
caravan please use the front and rear
grab handles fitted to the caravan.

2-2
GENERAL SAFETY
IMPORTANT: Your attention is drawn to
the notice affixed in the caravan’s
wardrobe advising on fire prevention,
ventilation and what to do in case of fire.
VENTILATION
All caravans manufactured by Xplore are
ventilated at both high and low level in
accordance with BSEN 721 Safety
Ventilation.
High-Level Ventilation
This is always provided by fixed ventilation
within the fitted roof skylight. All roof skylights
fitted by Xplore provide fixed free area
ventilation. These roof skylights should be
cleaned annually by use of a small brush to
remove any dust that may have accumulated
around the mesh fitted. On some roof
skylights the mesh can be easily removed to
aid cleaning. On fan-assisted roof skylights it
is essential that the fan is switched off prior to
cleaning.
Low-Level Ventilation
Low-level ventilation is provided under the
front chest of drawers, except in an L shape
layout, where it can be found either in the
nearside or offside bed box. The exact
position can be identified via a cover used to
prevent the ventilation from being obstructed.
In order to clean the ventilator, remove the
cover by undoing the two screws and clean
using a small brush. It is essential that the
cover is replaced once cleaning is complete.
Ventilation in Separate Bedrooms
In caravans with separated sleeping areas,
separate ventilation is required and is
provided via a roof skylight at high level and
a ventilator at low level within a bed box or
under the fixed bed.
Gas Dispersal Holes
All appliances and gas taps have a gas
dispersal hole nearby. It is essential that
these are not blocked or made ineffective.
Petrol/Diesel Fumes
The fitting of a tail pipe to your exhaust will
reduce the possibility of fumes entering your
caravan through the front fixed ventilation
points.
FIRE SAFETY
Fire Extinguishers
It is recommended that a 1 kg (2lb) minimum
capacity dry powder fire extinguisher be
carried inside your caravan at all times. A
pan fire must not have an extinguisher aimed
at it, but must be smothered with a fire
blanket.
In Case Of Fire
(i) Get everyone out of the caravan as
quickly as possible using whichever exit
is quickest including windows. Do not
stop to collect any personal items.
(ii) Raise the alarm. Call the fire brigade.
(iii) Turn off the gas container valve if safe to
do so.
Fire Retardant Foams
All caravans are equipped with either
Combustion Modified High Resilient
(C.M.H.R.) foam cushions or sprung
mattresses and fire retardent fabric. All
furnishings and fabrics used by Xplore
comply with the Furniture and Furnishings
(Fire Safety) Regulations. In addition all
upholstery is made of fire retardant fabric.

2-3
GENERAL SAFETY
YOUR CARAVAN PAYLOAD
EXPLAINED
Definitions
Plated maximum technical
permissible laden mass (PMTPLM)
As specified by Xplore and in compliance
with the European Directive on Masses and
dimensions of vehicles.
Actual MTPLM
Maximum mass of the vehicle, which takes
into account operating conditions including,
factors such as the strength of materials,
loading capacity of the tyres etc.
Mass of the caravan in running
order (MIRO)
This is the weight of your caravan as it
leaves our factory plus the following:
18kgs to allow for the carrying of 2 x
6kgs BP gas light bottles.
7/9kgs of water in the water heater
(dependent on model).
Personal effects payload (PEP)
This is calculated by the following formula:
10L + 10N + 50
L is the body length of the caravan in
meters.
N is the number of berths.
50 is for normal equipment carried in the
caravan, a sample list is given below.
Kettle ................................... 0.5kgs
Bed linen ................................. 6kgs
Crockery .................................5kgs
Saucepans .............................. 3kgs
Wastemaster ........................... 6kgs
Aquaroll (empty) ..................... 5kgs
Waste bin ................................. 1kg
Cutlery ....................................2kgs
Toilet fluid etc ....................... 2.5kgs
Battery ..................................25kgs
Optional equipment payload (OEP)
This is an amount of weight provided by us
for factory fitted options.
Please note: Any options fitted by the retailer
will reduce the overall payload available to
the customer.
User Payload is the sum of the PEP and the
OEP.
Note: It is possible to upgrade your Plated
MTPLM to the Actual MTPLM up to the
caravan being 3 years old, there is an
administration fee for this service.
Note: Please ensure you never load your
caravan above the plated MTPLM.

2-4
GENERAL SAFETY

3-1
PREPARING FOR THE ROAD
PREPARING FOR THE ROAD
Before venturing out on to the road with your
Xplore touring caravan, it is important that
you prepare correctly.
Caravan Towing Vehicle Weight
Ratio
This ratio has a major influence on stability. It
is recommended that:
(i) The laden nose weight for your caravan
should not exceed the lower of the
following:
*Towing vehicles maximum nose
weight,
*Tow bar maximum nose weight
*The caravan’s maximum nose weight,
which is 100/150kgs depending on
model.
(ii) The actual laden weight of the caravan
should always be kept as light as
possible. The lighter it is whilst being
towed on a road, the safer the outfit
combination will be.
(iii) What you are able to tow is dependent
on your driving licence.
(iv) If you are a B licence holder you can
only tow a car/caravan combination of
total weight not exceeding 3500kgs and
the cars kerb weight must be greater
than the caravans plated MTPLM.
Note: It is strongly recommended that
the caravan plated MTPLM should not
exceed the cars kerb weight.
(v) If you hold a B + E licence you can tow
up to a combination weight of 7000kgs.
WARNING: It is strongly recommended
the loaded weight of the caravan does not
exceed the kerb weight of the towing
vehicle.
LOADING
Always lower and secure the jockey wheel
and the four corner steadies (with the brace
provided) before entering the caravan. This
will ensure that the caravan does not tip up
when you are inside.
Please note: Corner steadies should not be
used as a jacking or levelling device.
Internal Loading & Checks
When loading your caravan it is advisable to:
(i) Distribute items evenly over the axle and
as low as possible to optimise road
holding and achieve the best possible
braking effect.
(ii) Do not overload on one side as this will
cause the caravan to lean and affect the
road holding and stability.
(iii) Do not stow tins, bottles or heavy items
in overhead lockers when towing.
(iv) Loose articles should be stowed
securely to avoid movement and
possible damage.
(v) Ensure that all lockers and cupboard
doors are closed and secured.
(vi) Secure all bunks (if appropriate).
(vii) Store the main dining table in its transit
position.
(viii) Set the refrigerator for 12V operation if
any fresh food is stored in it and ensure
the door is locked.
(ix) Fully close and lock all windows and
rooflights. Never tow with windows on
night setting.
(x) Leave all curtains and blinds open to
prevent damage in transit. If your
caravan has a rear window this may aid
visibility.
(xi) Ensure you remove all items from the
microwave before towing.
External Loading & Checks
(i) Gas cylinders should only be stored,
correctly positioned, and secured in the
gas bottle locker. The gas should be
turned off.
(ii) The leisure battery is stored and
secured in the battery locker box, set
into the tray provided and secured.
(iii) Any external connections (battery
chargers, connecting cables etc), should
be disconnected and stowed.
(iv) Check that all exterior locker doors are
secure and locked.
(v) Secure and lock the main caravan
entrance door.
(vi) Ensure the water heater flue cowl is in
place.

3-2
PREPARING FOR THE ROAD
PRE-TOW CHECKLIST & HITCH-UP
Having loaded the touring caravan and
secured the lockers and main entrance door:
(i) Check touring caravan wheel bolts are
torquetightened to the required level
(See Index - Changing a Wheel).
(ii) Check tyre pressures (Refer to the
Technical Data Sheet) and tyre condition
for roadworthiness.
(iii) Ensure the jockey wheel is down, in
good contact with the ground, clamp
tightly secured, and the caravan
handbrake is fully on.
(iv) Wind up the corner steadies.
(v) Reverse the car close up to the
caravan’s hitch. It is advisable to seek
assistance to guide you so that the car
tow ball aligns with the caravan’s hitch.
(Use of the caravan handbrake is
advised. Extreme caution should be
taken if manoeuvring the caravan down
hill or on wet, slippery surfaces).
(vi) Make sure the jockey wheel height is
sufficient for the hitch head to clear the
towing vehicles tow ball.
(v) Manoeuvre the hitch head over the tow
ball and lower the jockey wheel using
the winding handle, until the hitch head
opening sits comfortably over the tow
bar ball.
COUPLING & UNCOUPLING
Note: The handle of the ball hitch and the
handbrake lever must not be used as a
manoeuvring aid. There is a risk of damage
to the internal components!
The caravan hitch (ball head hitch) on your
BPW chassis is design tested. The maximum
support load at the coupling point must not
be exceeded. When coupling your caravan to
the towing vehicle lower the jockey wheel to
the ground. Reverse the car up to the
caravan or, in the case of a small caravan,
manoeuvre the caravan up to the car’s
caravan coupling.
Coupling:
Open coupling jaw by pulling lever H
vigorously upwards in the direction of the
arrow until lever locks open. Lower the
opened hitch onto the ball head vehicle
coupling and the lever will automatically
release. Closing and locking are carried out
automatically. Heed the “+” (Fig 3-1) position!
Connect the breakaway cable and electrical
plug to the towing vehicle. Raise the jockey
wheel up fully and secure by firmly clamping
it. Ensure that you release parking brake
before setting off.
Visual check: the ball head should no longer
be visible in coupled condition.
Uncoupling:
Lower the jockey wheel down. Disconnect
breakaway cable and electrical plug. Pull
lever ‘H’ vigorously upwards in the direction
of the arrow and hold. Wind down jockey
wheel and lift the caravan off the ball head of
the towing vehicle. Secure the caravan by
means of a wheel chock and/or by applying
the parking brake.
USE OF YOUR CARAVANS
BREAKAWAY CABLE
UK LAW requires that all caravans with
brakes (e.g. caravans, horse boxes, car
transporters etc), built on or after 1st October
1982, are fitted with a safety device to
provide protection in the unlikely event of the
separation of the main coupling while in
motion. It’s also a legal requirement to use
the breakaway cable whenever it’s provided.
The purpose of the breakaway cable is to
apply the caravan’s brakes if it becomes
separated from its towing vehicle. The cable
assembly is designed to part, allowing the
caravan to come to a halt away from the
towing vehicle.
Fig 3-1
Raising not necessary
for versions: EM...R or
EM...V

3-3
PREPARING FOR THE ROAD
Construction - Usually a thin steel cable,
possibly plastic coated, and fitted with a
means of attachment to connect to the towing
vehicle.
Operation - The cable should be able to pull
tight to engage the caravan’s brakes without
any hindrance to its action, if the main
coupling of the caravan separates from the
towing vehicle. It should never become taut
during normal use.
Correct Procedure For Use
(i) Check cable assembly for damage. If in
doubt contact your Retailer or Service
Centre.
(ii) Make sure the cable runs as straight as
possible, and goes through a cable
guide underneath the caravan coupling.
(iii) Determine whether or not you have a
designated attachment point (a feature
of the tow bar which has been identified
by the tow bar supplier as being for the
attachment of a breakaway cable).
Where a Designated Attachment
Point Is Provided On The Tow Bar
(i) Pass the cable through attachment point
and clip it back on itself (Fig 3-2, Step
1);
or
(ii) Attach the clip directly to the attachment
point (Fig 3-3, Step 2).
Note: this must be specifically permitted by
the caravan manufacturer’s guidance, as the
clip may not be sufficiently strong.
Where No Designated Attachment
Point Is Provided On The Tow Bar
(i) Fixed Ball - Loop the cable around the
neck of the tow ball. If you fit the cable
like this use a single loop only (Fig 3-4,
Step 3).
(ii) Detachable Ball - You must contact the
tow bar supplier for advice.
Other Means of Attachment
Alternatively, it may be possible to attach the
cable assembly to a permanent part of the
tow bar structure with the approval of the tow
bar supplier, or to an accessory sold for the
purposes of breakaway cable attachment.
When The Breakaway Cable Is
Attached Check To Ensure
(i) That the cable cannot snag in use on the
caravan hitch, jockey wheel or any
accessories e.g. a stabiliser, bumper
shield, cycle carrier etc.
(ii) That there must be sufficient slack in the
cable to allow the towing vehicle and
caravan to fully articulate without the
cable ever becoming taut and applying
the brakes.
(iii) That it is not so slack that it can drag on
the ground. Leave it too loose, and the
cable may scrape along the ground, and
be weakened so that it fails before doing
its job!
STEP 1
Fig 3-2
Fig 3-3
STEP 2
STEP 3
Fig 3-4

3-4
PREPARING FOR THE ROAD
BEFORE SETTING OFF
(i) Connect the 13 pin plug on the caravan
A-frame to the towing vehicle.
(ii) Check that all tail-lights, brake lights,
road lights and indicators work correctly.
(iii) Ensure that the correct vehicle license /
registration plate is attached to the rear
of the touring caravan.
(iv) Using the jockey wheel lift the tow ball
slightly to check hitch is locked onto the
ball
(v) Wind up the jockey wheel until the wheel
supports locate into the cut out sections
at the base of the winding section.
(vi) Raise and secure the jockey wheel
using the clamp. The jockey wheel
should be parallel to the direction of
travel at all times.
(vii) Check condition of and secure the
breakaway cable to the tow vehicle.
HANDBRAKE
Your caravan is fitted with BPW running gear
and handbrake. It is essential that prior to
towing you ensure that your handbrake is in
the fully off position. This can be confirmed
by ensuring that the handbrake arm is resting
on the blue stop fitted to the side of the A
frame as shown in Fig 3-5 below.
CABLES
For peace of mind, you may wish to check
the ability of the cables to be able to cope
with towing the vehicle at extreme angles
before setting off. To do so position the
vehicle at alternate extreme angles and
check that the cables do not pull too tight, are
liable to stretch or become unplugged. No
cables should be allowed to touch the ground
as they will wear and become damaged and
ineffective.
Please note: If having followed this advice,
you feel you cannot achieve a satisfactory
cable arrangement, consult your caravan or
tow bar supplier or service agent.
Fig 3-5

4-1
TOWING AND DRIVING
Fig 4-1
TOWING AND DRIVING
REVERSING
It is advisable to have a second person
assisting when reversing the caravan.
Start practising by choosing a left-hand bend
for ease. Reverse slowly; turning the wheel,
initially the opposite way to the direction you
want the caravan to go.
Now the front of the caravan is nudged out
and is moving the rear in the intended
direction. Take care not to hit the van with the
car!
Midways through the manoeuvre, when the
caravan is correctly angled, reduce speed to
a crawl and gradually apply opposite lock.
Make the car follow the caravan round then
finally straighten up.
Please note: Proficiency at reversing can
only be achieved with practice.
SPEED LIMITS
•Always adhere to the speed limits in
force.
•When national speed limits apply, when
towing on a single carriageway, the
speed limit is reduced to 50mph. Dual
carriageway and motorways, the speed
limit is reduced to 60mph.
SETTING OFF
(i) Pull away smoothly in the towing
vehicle. Allow more engine speed to
produce the power to move the
additional weight of the caravan.
(ii) Avoid wear and tear on the clutch and
transmission by taking extra care not to
‘ride’ the clutch.
(iii) Change gears smoothly. Try not to jerk
the clutch.
CARAVAN HANDLING
(i) Allow for the caravan being wider than
the car. Ensure you have a clear view
to the rear. This may require the fitting
of extended mirrors for towing your
caravan.
(ii) Give yourself more room when
cornering to ensure your caravan
wheels do not strike the kerb.
(iii) When passing other vehicles, allow
more than the normal clearance for
driving solo.
(iv) Allow longer to obtain a fast enough
speed to pass other vehicles.
(v) Allow for the vehicle being twice its
normal length. Do not suddenly swing
out.
(vi) Carry out all manoeuvres as smoothly
as possible.
(vii) Use the wing mirror to check the
caravan has clearly passed other road
users when overtaking and changing
lanes.
(viii) Adverse weather conditions may affect
the steering and braking characteristics
of your caravan.

4-2
TOWING AND DRIVING

5-1
ARRIVING ON SITE
ARRIVING ON SITE
CHECK SITE REGULATIONS
On arrival at a site, you should always check
the site regulations. This will help avoid any
unnecessary conflict with site management
and other site users.
WARNING: Care has to be taken to
prevent grounding when traversing ramps
or other ground obstacles.
SELECTING A PITCH
Carefully select where you wish to place your
caravan. The site should be as level as
possible, preferably not under or near trees,
well drained and away from possible boggy
areas. Consider how you will move the
caravan when it is time to leave the site. On
sloping ground it is better to pitch facing
downhill, especially during wet weather.
SIDE-TO-SIDE LEVELLING
A quick glance at your pitch should tell you if
you are likely to need side to side levelling
i.e. levelling across the axle. On uneven
ground lateral levelling is accomplished by
the use of a leveller jack or ramp and a spirit
level placed ‘across’ the caravan floor (not
supplied).
Leveller Jack
Place the leveller jack, folded flat, in front of
the wheel needed to be raised to level the
axle. Tow the caravan onto the leveller jack
and adjust the height until the spirit level
shows that the caravan is laterally level.
Ramp
(i) Reverse onto your pitch about 30cm
(12") further back than you wish to end
up.
(ii) Then place the levelling ramp in front of
the wheel that needs to be raised.
(iii) Place a spirit level parallel to the axle on
the A-frame or just inside the caravan
door.
It helps to have two people at this point. One
should drive the car very slowly forward
moving the caravan wheel up the ramp, and
the other should indicate when the spirit level
bubble is in the middle.
Whichever method you use, and once level:
(i) Apply the caravan handbrake and chock
the caravan wheel if necessary.
(ii) Lower the jockey wheel to ground level
before unhitching. (See index
uncoupling)
(iii) If necessary use a load spreader, such
as a big foot or alternative suitable
device.
You should then park your car, usually next to
the caravan furthest away from the door side.
Please note: On upward facing pitches when
the hydraulically damped drawbar of the hitch
becomes fully extended, it will be necessary
to compress the drawbar slightly in order to
achieve a clean’ unhitching. With the caravan
brake on, reverse the towing vehicle about
2.54cm (1") to release hitch lock tension and
using the jockey wheel adjustment, unhitch
the caravan as previously described.
FRONT & BACK LEVELLING
This should be done only when the lateral
levelling is complete.
(i) Place the spirit level pointing front to
back just inside the caravan door or on
the A frame.
(ii) Then raise or lower the jockey wheel
until the caravan is horizontally level.
Please note: If there is a significant front to
back slope, you may need to place a block
under the jockey wheel.
(iii) Next, wind down the corner steadies
onto load spreaders (blocks of wood a
minimum of 15.25cm (6") square or ‘Big
Foot’ steady attachments) until they are
firmly set against the ground.
Please note: It is possible on very uneven
sites that when fully extended blocks may be
required under the corner steadies to achieve
this. It is important that the caravan is
correctly levelled to ensure the correct
working of the refrigerator, cooker etc.
(iv) Now that your caravan is level, place the
caravan step in front of the door
ensuring that it is stable and safe to use.

5-2
ARRIVING ON SITE
PARKING ON A REVERSE-SLOPING
SITE OR STEEP HILL
For successful parking on a reverse slope or
steep hill, the operator need only apply the
handbrake with one hand while gently but
purposely inching the caravan a small
distance backwards with the other.
CAUTION: Never enter the caravan without
first lowering the four corner steadies with the
brace provided. Corner steadies should not
be used as a jack. Take care not to lift the
caravan wheels.

6-1
GETTING STARTED
GETTING STARTED
You have arrived at your destination and now
want to start to enjoy your new Xplore touring
caravan. The following is a step by step
guide to connecting your services and getting
everything in your caravan working.
ELECTRICITY
Power Supply Charger
Your caravan is fitted with a power supply/
charger. This will charge the caravan battery
“not supplied” when fitted and also power the
12V systems in your caravan.
It is recommended that you always carry a
leisure battery.
The Charger is fully automatic and will not
overcharge the leisure battery.
12v Systems:
Your caravan is fitted with an automatic
system for selection of power.
When connected to the 230V site supply the
automatic Power Supply/Charger will charge
the leisure battery and the 12V systems.
When connected to the car (always
disconnect 230V supply), the system
automatically switches to the car supply.
When the towing vehicle’s engine is running
and the caravan’s 13 pin plug is connected,
the internal 12 volt power supply in the
caravan is turned off and all internal lights will
go out. The only 12 volt power left
operational within the caravan is the fridge
and the battery charger.
GENERATOR/CHARGER
When connecting to a generator, always
switch off the RCD (residual current device),
start the generator and allow running for a
few minutes to stabilise. When this has
happened, switch the RCD to the ON
position.
ELECTRICITY MAINS SUPPLY
Your caravan’s main electrical installation is
designed to run on 230V at 50 hertz AC
supply.
CONNECTING TO MAINS SUPPLY ON
ARRIVAL AT SITE
Before connecting the caravan installation to
the mains supply, check that:
(i) The mains supply is suitable for your
installation and appliances, i.e. whether
it is AC or DC and whether it is at the
correct voltage and frequency.
(ii) Your caravan is properly earthed. Never
accept a supply from a socket outlet or
plug having only two pins, or from a
lighting outlet.
(iii) Any residual current device (earth
leakage circuit breaker) in the mains
supply to the caravan has been tested
within the last month. In case of doubt,
consult the site owner or their agent.
(iv) Make sure that the switch at the site
supply point is off and that all electrical
equipment in the caravan is switched off
by ensuring your caravan mains
isolating switch on the MCB (miniature
circuit breaker) is in the ‘OFF’ position.
ELECTRICAL WARNING
Attention: Always disconnect the
electrical connector between the towing
vehicle and the caravan before
connecting a mains electric supply to the
caravan and before charging the caravan
battery by any other means.
Once the above checks have been made:
(v) Open the battery box on the nearside of
your caravan and insert the female
connector of the mains connection cable
supplied with your caravan into the inlet
within the battery box as shown below.
(vi) Locate the site supply and remove any
cover from the socket outlet provided at
the supply point. Insert the male plug at
the other end of the flexible orange
supply cable. Switch on the main switch
at the site supply point (if appropriate).
