ElectrIQ EIQMW9BEAINV User manual

Thank you for choosing electriQ.
Please read this user manual before using this microwave and keep it safe for
future reference .
Visit our page www.electriQ.co.uk for our entire range of electricals
.
Microwave Oven
User Manual
Model: EIQMW9BEAINV

CONTENTS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY
……… 3
SPECIFCATIONS………………………………………………………………………………………...............
4
IMPORTANT SAFETY INSTRUCTIONS 4
SETTING UP YOUR OVEN………………………………………………………………………………………8
TURNTABLE INSTALLATION……………………………………………………………………………………8
INSTALLATION…………………………………………………………………………………………………….
9
BEFORE YOU CALL FOR SERVICE…………………………………………………………………………...
9
GROUNDING INSTRUCTIONS…………………………………………………………………………………10
RADIO INTERFERRANCE………………………………………………………………………………………10
MICROWAVE COOKING PRINCIPLES………………………………………………………………………..10
UTENSILS GUIDE ………………………………………………………………………………………………..11
MATERIALS YOU CAN USE IN THE MICROWAVE……………………………………………………...…..12
HOW TO SET THE MICROWAVE CONTROLS ………………………………………………………………13
AUTO COOK MENU……………………………………………………………………………………...………15
CLEANING AND CARE ………………………………………………………………………………………….16

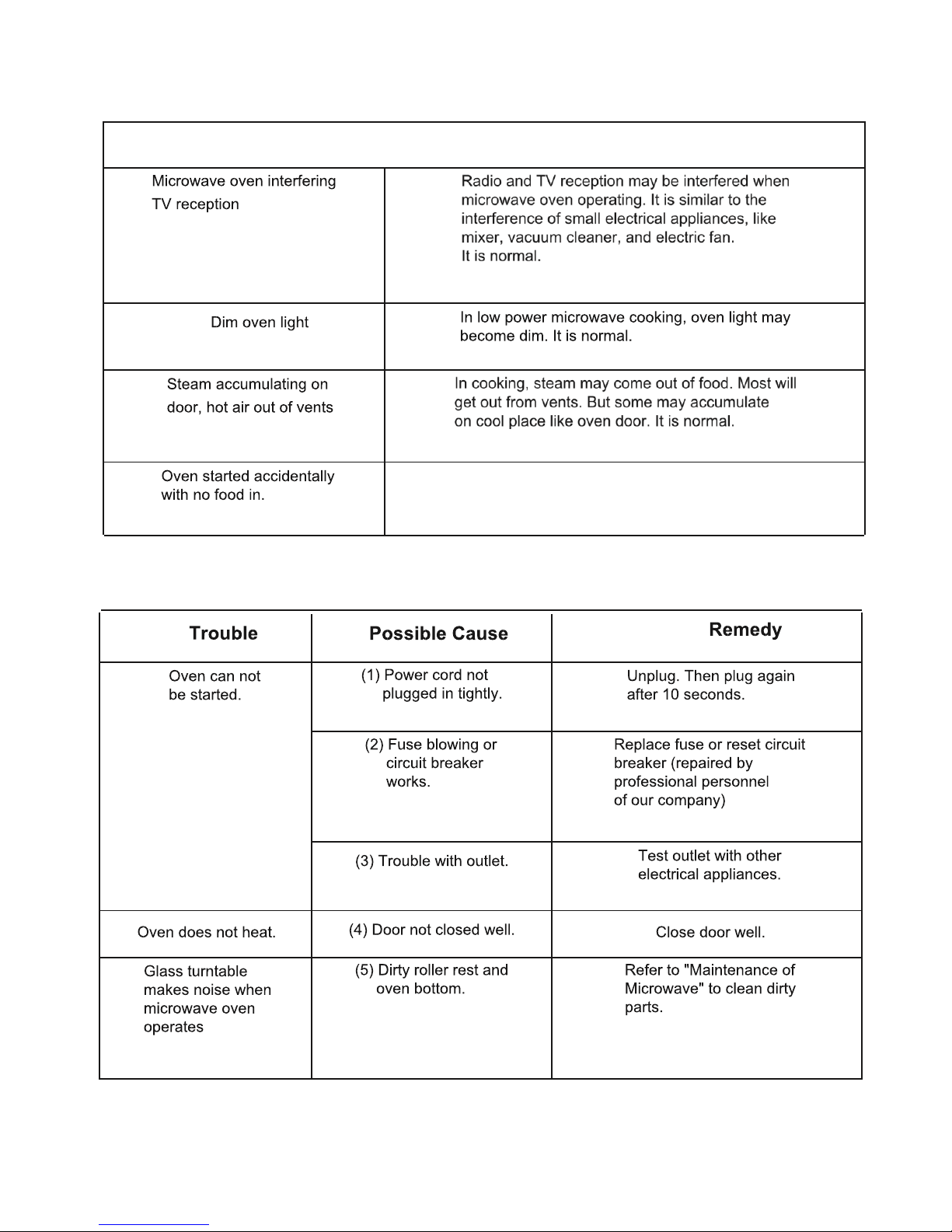

TROUBLE SHOOTING …………………………………………………………………………………………..17
CUSTOMER CARE LINE………………………………………………………………………………………...18
2
...
……………………………………………………………………….

3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door open since open door operation can
result in harmful exposure to microwave energy. It is important not to damage or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
closes properly and that there is no damage to the 3 components listed below:
Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven
and retain this information for future reference.
SERIAL NO.

SPECIFICATIONS
Model:
Rated Voltage:
230V~
50Hz
Rated Input
Power(Microwave):
1380W
Rated Output
Power(Microwave):
900W
Rated Input power (Grill):
1000W
Oven Capacity:
25 L
Turntable Diameter:
315 mm
External Dimensions:
513 x 409 x 306mm
Net Weight:
Approx. 11.54 kg
4
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, injury to persons or exposure to
excessive microwave oven energy when using your appliance, follow basic
precautions, including the following:
1.Warning: Liquids and other foods must not be heated in sealed containers
since they are liable to explode.
2.Warning: It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the removal of a
cover which gives protection against exposure to microwave energy.
3.This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved.
4. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8 and supervised.
5.Keep the appliance and its cord out of reach of children less than 8 years.
Only use utensils that are suitable for use in microwave ovens.
6.The oven should be cleaned regularly and any food deposits should be
removed.
7.Read and follow the specific:
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8.When heating food in plastic or paper containers,
EIQMW9BEAINV

5
Keep an eye on the oven due to the possibility of ignition.
9.If smoke is emitted, switch off or unplug the appliance and keep the door
closed in order to stifle any flames.
10.Do not overcook food.
11.Do not use the oven cavity for storage purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12.Remove wire twist-ties and metal handles from paper or plastic
containers/bags before placing them in the oven.
13.Install or locate this oven only in accordance with the installation instructions
provided.
14.Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave heating has
ended.
15.This appliance is intended to be used in household and similar applications
such as:
-staff kitchen areas in shops, offices and other working environments;
-by clients in hotels, motels and other residential type environments;
-farm houses;
-bed and breakfast type environments.
16.If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
17.Do not store or use this appliance outdoors.
18.Do not use this oven near water, in a wet basement or near a swimming pool.
19.The temperature of accessible surfaces may be high when the appliance is
operating. The surfaces are liable to get hot during use. Keep cord away
from heated surface, and do not cover any vents on the oven.
20.Do not let cord hang over edge of table or counter. Failure to maintain the
oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous
situation.
21.The contents of feeding bottles and baby food jars shall be stirred or shaken
and the temperature checked before consumption, in order to avoid burns.
22.Microwave heating of beverages can result in delayed eruptive boiling,
therefore care must be taken when handling the container.
23.The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
24.Children should be supervised to ensure that they do not play with the
appliance.
25.The appliances are not intended to be operated by means of an external
timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
To Reduce the Risk of Injury to Persons Grounding Installation
DANGER
Electric Shock Hazard Touching
some of the internal components
can cause serious personal injury or
death. Do not disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can
result in electric shock. Do not plug
into an outlet until appliance is
properly installed and grounded.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of
electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
cord having a grounding wire with a
grounding plug. The plug must be
plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or
serviceman if the grounding
instructions are not completely
understood or if doubt exists as to
whether the appliance is properly
grounded. If it is necessary to use
an extension cord, use only a 3-wire
extension cord.
A short power-supply cord is
provided to reduce the risks
resulting from becoming entangled
in or tripping over a longer cord.
If a long cord set or extension cord
is used:
1) The marked electrical rating of
the cord set or extension cord
should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a
grounding-type 3-wire cord.
3) The long cord should be arranged
6
26.Accessible parts may become hot during use. Young children should be kept
away.
27.Steam cleaner is not to be used.
28.During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
29.Only use the temperature probe recommended for this oven (for ovens
provided with a facility to use a temperature-sensing probe.)
30.WARNING: The appliance and its accessible parts become hot during use.
31.Care should be taken to avoid touching heating elements. Children less than
8 years of age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the decorative door open. (For
ovens with a decorative door.) The rear surface of appliance shall be placed
against a wall.
33.The microwave oven must not be placed in a cabinet. The microwave oven is
intended for heating food and beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges, damp cloth and similar may
lead to risk of injury, ignition or fire.

so that it will not drape over the
counter top or tabletop where it can
be pulled on by children or tripped
over unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
Clean the cavity of the oven after using with a slightly damp cloth.
Clean the accessories in the usual way in soapy water.
The door frame and seal and neighbouring parts must be cleaned carefully
with a damp cloth when they are dirty.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
Cleaning Tip---For easier cleaning of the cavity walls that the food cooked
can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and
heat on 100% microwave power for 10 minutes. Wipe the oven clean using a
soft, dry cloth.
UTENSILS CAUTION
Personal Injury Hazard It is
hazardous for anyone other than a
competent person to carry out any
service or repair operation that
involves the removal of a cover
which gives protection against
exposure to microwave energy.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave
oven." There may be certain non-metallic utensils
that are not safe to use for microwaving. If in
doubt, you can test the utensil in question
following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time
7

SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove all materials from the carton and oven cavity. Your oven comes with the following
accessories:
Glass tray
1
and place on the glass tray)
Turntable Installation
Hub (underside)
Glass tray
Turntable shaft
a. Never place the glass tray upside down. The
glass tray should never be restricted.
b. Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food should always
be placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks
or breaks, contact your nearest authorized
service Centre.
Turntable ring assembly
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Turntable ring assembly 1
Instruction Manual 1
Grill Rack (Only use in grill function
8
F
G
A
C B
ED

INSTALLATION
Countertop Installation
Remove all packing material and accessories.
Examine the oven for any damage such as dents
or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the
microwave oven cabinet surface. Do not remove
the light brown Micra cover that is attached to the
oven cavity to protect the magnetron.
Installation
1. Select a level surface that provides enough
open space for the intake and/or outlet
vents.
2. The minimum installation height is 85cm.
3. The rear surface of appliance needs to be
placed against a wall.
4. Leave a minimum clearance of 30cm above
the oven and a minimum clearance of 20cm
between the oven and any adjacent walls.
5. Do not remove the legs from the bottom of
the microwave.
6. Blocking the intake and/ or outlet openings
can damage the microwave.
7. Place the microwave as far away from radios
and TV as possible. Operation of microwave
oven may cause interference to your radio or
TV reception.
8. Plug your oven into a standard household
outlet. Be sure the voltage and the frequency
is the same as the voltage and the frequency
on the rating label.
9. WARNING: Do not install the microwave
over a range cooktop or other
heat-producing appliance. If installed near or
over a heat source, the oven could be
damaged and the warranty would be void.
10. The accessible surface may be hot during
operation
BEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
1. Make sure that the microwave is plugged in
securely. If it is not, remove the plug from the
outlet, wait 10 seconds, and plug it in again
securely.
2. Check for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be
operating properly, test the outlet with
another appliance.
3. Make sure that the control panel is
programmed correctly and the timer is set.
4. Check that the door is securely closed
engaging the door safety lock system.
Otherwise, the microwave energy will not
flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
9
64Zd
74Zd
64Zd
d`e<9Zd
4Zd

GROUNDING INSTRUCTIONS
This appliance must be grounded. This
microwave oven is equipped with a cord that has
a grounding wire with a grounding plug. It must be
plugged into a wall receptacle that is properly
installed and grounded. In the event of an
electrical short circuit, grounding reduces risk of
electric shock by providing an escape wire for the
electric current. We recommended that you use a
separate circuit for the microwave. Using a high
voltage is dangerous and may result in a fire or
other accident causing oven damage.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
Note:
1. If you have any questions about the
grounding or electrical instructions, consult a
qualified electrician or service person.
2. Neither the manufacturer nor the dealer can
accept any liability for damage to the oven or
personal injury resulting from failure to
observe the electrical connection
procedures.
The wires in this cable main are colored in
accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
RADIO INTERFERENCE
Operation of the microwave oven can cause
interference to your radio, TV, or similar
equipment.
When there is interference, it may be reduced or
eliminated by taking the following measures:
1. Clean door and sealing surface of the
oven.
2. Reorient the receiving antenna of radio or
television.
3. Relocate the microwave oven with respect
to the receiver.
4. Move the microwave oven away from the
receiver.
5. Plug the microwave oven into a different
outlet so that microwave oven and receiver
are on different branch circuits.
MICROWAVE COOKING PRINCIPLES
1. Arrange food carefully. Place thickest areas
towards outside of dish.
2. Watch cooking time. Cook for the shortest
amount of time indicated and add more as
needed. Food severely overcooked can
smoke or ignite.
3. Cover foods while cooking. Covers prevent
spattering and help foods to cook evenly.
4. Turn foods over once during microwave
cooking to speed cooking of such foods as
chicken and hamburgers. Large items like
roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway
through cooking both from top to bottom and
from the center of the dish to the outside.
10
