ElectrIQ EIQMOBISOLO25 User manual

INSTRUCTION MANUAL
MICROWAVE OVEN
EIQMOBISOLO25
EIQMOBISOLO25BLACK
Read these instructions carefully before using your microwave,
and keep them safe for future reference.

2
CONTENTS
IMPORTANT SAFETY INFORMATION
3
INSTALLATION INSTRUCTIONS
7
SETTING UP YOUR OVEN
11
OPERATION INSTRUCTIONS
12
CLEANING
18
USE OF SUITABLE UTENSILS
18
TROUBLESHOOTING
20
SPECIFICATIONS
21
ELECTRIQ UK SUPPORT
21
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
a Do not attempt to operate this oven with the door open since this can
result in harmful exposure to microwave energy. It is important not to
break or tamper with the safety interlocks.
b Do not place any object between the oven front face and the door or
allow dirt or cleaner residue to accumulate on the sealing surfaces.
c WARNING: If the door or door seals are damaged, the oven must not
be operated until it has been repaired by a competent person.
If the apparatus is not maintained in a good state of cleanliness, its surface
could be degraded and affect the lifespan of the apparatus and lead to a
dangerous situation.

3
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, injury to persons or exposure to
excessive microwave oven energy when using your appliance, follow basic
precautions, including the following:
•Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
•This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children unless they are older than 8 and supervised. Children less
than 8 years of age shall be kept away unless continuously
supervised.
•Keep the appliance and its cord out of reach of children less than 8
years.
•If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order to
avoid a hazard.
•WARNING: Ensure that the appliance is unplugged before replacing
the lamp to avoid the possibility of electric shock.
•WARNING: It is hazardous for anyone other than a competent person
to carry out any service or repair operation that involves the removal of
the cover which gives protection against exposure to microwave
energy.
•WARNING: Liquids and other foods must not be heated in sealed
containers since they are liable to explode.
•When heating food in plastic or paper containers, keep an eye on the
oven due to the possibility of ignition.
•Only use utensils that are suitable for use in microwave ovens.
•If smoke is emitted, switch off or unplug the appliance and keep the
door closed in order to stifle any flames.
•Microwave heating of beverages can result in delayed eruptive boiling,
therefore care must be taken when handling the container.
•The contents of feeding bottles and baby food jars shall be stirred or
shaken and the temperature checked before consumption, in order to
avoid burns.

4
•Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave
heating has ended.
•The oven should be cleaned regularly and any food deposits removed.
•Failure to maintain the oven in a clean condition could lead to
deterioration of the surface that could adversely affect the life of the
appliance and possibly result in a hazardous situation.
•Do not use a temperature probe with this oven.
•Metallic containers for food and beverages are not allowed during
microwave cooking.
•The appliance shall not be cleaned with a steam cleaner.
•Care should be taken not to displace the turntable when removing
containers from the appliance.
•This appliance is intended to be used in domestic household
applications only –It is not suitable for commercial use.
•The microwave oven is intended for heating food and beverages.
Drying of food or clothing and heating of warming pads, slippers,
sponges, damp cloths and similar may lead to risk of injury, ignition or
fire.
•The appliance must not be installed behind a decorative door in order
to avoid overheating.
•The microwave oven is intended to be used built-in.
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

5
TO REDUCE THE RISK OF INJURY TO PERSONS ENSURE THE UNIT
IS CORRECTLY EARTHED.
DANGER
Electric Shock Hazard - Touching some of the internal components can
cause serious personal injury or death. Do not disassemble this appliance.
WARNING
Electric Shock Hazard - Incorrectly earthed units can result in electric
shock.
This appliance must be earthed. In the event of an electrical short circuit,
an earth connection reduces the risk of electric shock by providing an
escape wire for the electric current. This appliance is equipped with a cord
containing an earth wire with an earth pin on the plug. The plug must be
plugged into an outlet that is properly installed and earthed.
Consult a qualified electrician or serviceman if the earth instructions are not
completely understood or if doubt exists as to whether the appliance is
properly earthed. If it is necessary to use an extension cord, use only a 3
core extension cord.
1. A short power-supply cord is provided to reduce the risks resulting from
becoming entangled in or tripping over a longer cord.
2. If a long cord set or extension cord is used:
a. The marked electrical rating of the cord set or extension cord
should be at least as great as the electrical rating of the appliance.
b. The extension cord must be an earthed 3 core cord.
c. The long cord should be arranged so that it will not drape over the
counter top or tabletop where it can be pulled on by children or
tripped over unintentionally.

6
INSTALLATION AND CONNECTION
1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for
counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall mounted
cupboard.
5. The appliance is fitted with a plug and must only be connected to a
properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the
rating plate.
7. The socket must be installed and connecting cable must only be
replaced by a qualified electrician. If the plug is no longer to
accessible following installation, an all-pole disconnecting device
must be present on the installation side with a contact gap of at least
3mm.
8. Adapters, multi-way strips and extension leads must not be used.
Overloading can result in a risk of fire.
The accessible surface may be hot during operation.

7
INSTALLATION INSTRUCTIONS
Please Note - Electrical Connection
The oven is fitted with a plug and must only be connected to a properly
installed earthed socket. The socket must only be installed and the
connecting cable must only be replaced by a qualified electrician, in
accordance with the appropriate regulations. If the plug is no longer
accessible following installation, an all-pole isolating switch must be
present on the installation side with a contact gap of at least 3mm.
The fitted cabinet must not have a back wall behind the appliance.
A gap must be maintained between the wall and the base of the unit above.
Specific gap size should be referenced by the diagrams.
Minimum installation height: 85cm
Do not cover ventilation slots and suction holes.
Note:
Do not trap or bend the power cable
Screws
Bracket

8
BUILT-IN FURNITURE
Note:
The bracket and bottom cabinet template are needed during installation
A
Overall Width
595mm
B
Overall Height
388mm
C
Overall Depth
410mm
D
Cutout Width
560mm
E
Cutout Height
380mm
F
Cutout Depth
500mm(min)
G
Drawer Clearance
10mm
H
Door Clearance
10mm
I
Side Wall Thickness
20mm
J
Notch Width
45mm

9

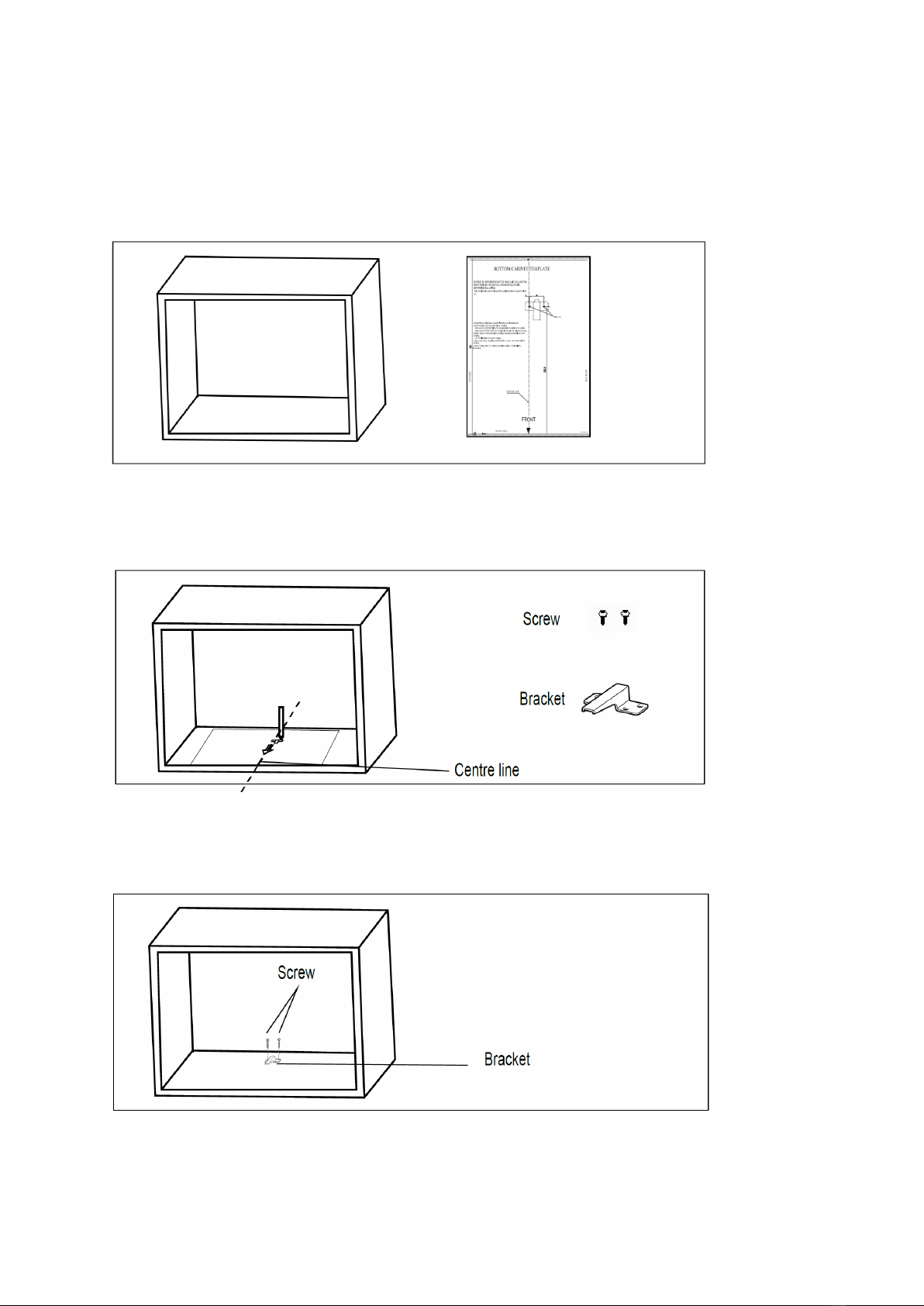

PREPARE THE CABINET
1. Read the instructions on the BOTTOM CABINET TEMPLATE, put
the template on the bottom plane of cabinet.
2. Make the marks on the bottom plane of cabinet according to
marks "a" of the template
3. Remove the bottom cabinet template and fix the bracket with the
supplied screws.

10
INSTALL THE OVEN
4. Install the oven to the cabinet
- Make sure the back of the oven is locked by the bracket.
- Do not trap or kink the power cord.
5. Open the door, fix the oven to the cabinet with a screw, through
the installation hole.
Bracket
Screw
Installation hole

11
SETTING UP YOUR OVEN
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
A
A
Control Panel
E
Observation Window
B
Turntable Shaft
F
Door Assembly
C
Turntable Ring Assembly
G
Safety Interlock System
D
Glass Tray
Instruction Manual
TURNTABLE INSTALLATION
C
B
E
D
F
G
Hub (Underside)
Glass Tray
Turntable Shaft
Turntable Ring Assembly
•Never place the glass tray upside down.
The rotation of the glass tray should
never be restricted.
•Both the glass tray and turntable ring
assembly must always be used during
cooking.
•All food and containers of food are
always placed on the glass tray for
cooking.
•If the glass tray or turntable ring
assembly cracks or breaks, contact the
retailer the microwave was purchased
from.

12
OPERATION INSTRUCTIONS
SYMBOLS ON THE DISPLAY
Microwave Function
Clock
Grill Function ( N/A )
Timer
Defrost by time
Auto Mode Function
Defrost by weight
Child Lock
Power Symbol
(Shown when running at
P100 or P80)
Weight
Microwave
Weight/Time Defrost
Kitchen Timer/Clock
Stop/Clear
Start/+30 seconds/Confirm

13
SETTING THE CLOCK
When the microwave oven is switched on, the screen will display "0:00", and
the microwave will bleep once.
1) Press “Kitchen Timer/Clock” twice to select the clock function, the hour
figures will flash.
2) Turn the dial to adjust the hour value, this should be between 0--23.
3) Press the “Kitchen Timer/Clock” and the minute figures will flash.
4) Turn the dial to adjust the minute value, this should be between 0--59.
5) Press “Kitchen Timer/Clock” to finish setting the time. ":" will flash, and the
time will light.
Note: 1) The clock will only function after the time has been set.
2) While setting the clock, if Stop/Clear is pressed, the clock will not
be set, and the above steps would need to be repeated.
MICROWAVE COOKING
1) Press “Microwave” once, the screen will display "P100".
2) Press “Microwave” repeatedly or turn the dial to select the desired
power level. "P100", "P 80", "P 50", "P 30", "P 10" will display for each
additional press.
3) Press “Start/+30 seconds/Confirm” to confirm the power level
4) Turn the dial to set the cooking time between 0:05 to 95:00.
5) Press “Start/+30Sec./Confirm" again to start cooking.
Example: If you want to use 80% microwave power to cook for 20 minutes, you
can operate the oven as the following steps.
1) Press “Microwave” once, the screen will display "P100".
2) Press “Microwave” again or turn the dial to choose 80% power.
3) Press “Start/+30 seconds/Confirm” to confirm the power level.
4) Turn the dial to adjust the cooking time until the oven displays "20:00".
5) Press "Start/+30Sec./Confirm" to start cooking.

14
Note: The step quantities will increase as the time set increases, following the
table below:
0---1 min
5 seconds
1---5 min
10 seconds
5---10 min
30 seconds
10---30 min
1 minute
30---95 min
5 minutes
MICROWAVE POWER LEVELS
Order
Display
Microwave
Power
1
P100
100%
2
P80
80%
3
P50
50%
4
P30
30%
5
P10
10%
QUICK START
1) In standby, Press “Start/+30 seconds/Confirm” to start cooking for 30 seconds
with 100% power, each additional press will increase the cooking time by 30
seconds, up to a maximum of 95 minutes.
2) While using the microwave or time defrost functions, each press of “Start/+30
seconds/Confirm” will increase the cooking time by 30 seconds.
3) In standby, turn the dial left to set cooking time with 100% microwave power,
then press “Start/+30 seconds/Confirm” to start cooking.
DEFROST BY WEIGHT
1) Press “Weight/Time Defrost” once, and the oven will display "dEF1".
2) Turn the dial to select the weight of the food between 100 and 2000g.
3) Press “Start/+30 seconds/Confirm” to start defrosting.

15
DEFROST BY TIME
1) Press “Weight/Time Defrost” twice, and the microwave will display
"dEF2".
2) Turn the dial to select the defrost time. The max time is 95 minutes.
3) Press “Start/+30 seconds/Confirm” to start defrosting. The defrost power is
P 30, and it cannot be changed.
KITCHEN TIMER
1) Press "Kitchen Timer/Clock" once, the screen will display 00:00.
2) Turn the dial to enter the cooking time. The maximum cooking time is 95
minutes.
3) Press “Start/+30 seconds/Confirm” to start the timer.
4) When the set time elapses, the microwave will bleep 5 times.
If the clock has been set (24-hour system), the screen will display the current
time.
The kitchen timer is separate from the 24 hour clock and can be used as a
countdown timer.
AUTO MENU
1) Turn the dial clockwise to choose between the auto menus, and "A-1" to "A-
8" will display. Please see the table on the following page for more details of
each function.
2) Press “Start/+30 seconds/Confirm” to confirm the function.
3) Turn the dial to choose between the default weights as shown on the menu
chart.
4) Press “Start/+30 seconds/Confirm” to start cooking.
Example: If you want to use "Auto Menu" to cook 350g of fish.
1) Turn the dial clockwise until "A-6" displays.
2) Press “Start/+30 seconds/Confirm” to confirm the function.
3) Turn the dial to select the weight of fish until "350" is displayed.
4) Press “Start/+30 seconds/Confirm” to start cooking.

16
THE AUTO MENUS:
Menu
Weight
Display
A-1 Pizza
200 g
200
400 g
400
A-2 Meat
250 g
250
350 g
350
450 g
450
A-3 Vegetable
200 g
200
300 g
300
400 g
400
A-4 Pasta
50g(with 450 ml cold water)
50
100g(with 800 ml cold water)
100
A-5 Potato
200 g
200
400 g
400
600 g
600
A-6 Fish
250 g
250
350 g
350
450 g
450
A-7 Beverage
1 cup(120 ml)
1
2 cups(240 ml)
2
3 cups(360ml)
3
A-8 Popcorn
50 g
50
100 g
100

17
MULTI-STAGE COOKING
A maximum of 2 stages can be set for cooking. In multi-stage cooking, if one
stage is defrost, then the defrost function must be the first stage.
Example: If you want to defrost food for 5 minutes and then cook with 80%
microwave power for 7 minutes, operate it as below:
1) Press “Weight/Time Defrost” twice, and the oven will display "dEF2".
2) Turn the dial until "5:00" displays.
3) Press “Microwave” once, the screen will display “P100”
4) Press “Microwave” again or turn the dial to choose 80%
microwave power.
5) Press “Start/+30 seconds/Confirm” to confirm.
6) Turn the dial until "7:00" displays.
7) Press “Start/+30 seconds/Confirm” to start cooking. The microwave
will bleep once when starting the first stage, and will count down the time
remaining on that stage. It will then bleep to signal entering the second
cooking stage. When cooking finishes, the unit will bleep sounds five
times.
INQUIRING FUNCTION
1) While the microwave is running, press “Microwave” and the current power
level will be displayed for 3 seconds.
2) In cooking state, press “Kitchen Timer/Clock” and the current time will be
displayed for 3 seconds.
CHILD LOCK
Lock: In standby mode, hold “Stop/Clear” for 3 seconds, there will be a
long beep denoting entering the child lock state. will light and the current
time will be displayed ifthe time has been set. Otherwise, " " will display.
Unlock: In locked state, hold “Stop/Clear”for 3 seconds, there will be a long
"beep" denoting that the lock is released.

18
CLEANING
Be sure to disconnect the appliance from the power supply before
commencing cleaning
1. Clean the cavity of the oven with a slightly damp cloth.
2. The accessories can be removed from the oven and cleaned in a bowl
of soapy water.
3. The door frame and seal and neighbouring parts must be cleaned
carefully with a damp cloth when they become dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean
the oven door glass since they can scratch the surface, which may
result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of food residue on the cavity walls:
Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on
100% microwave power for 10 minutes. Wipe the oven clean using a
soft, dry cloth.
USE OF SUITABLE UTENSILS
See the table on "Materials you can use in microwave oven or to be avoided in
microwave oven." There may be certain non-metallic utensils that are not safe
to use for microwaving. If in doubt, you can test the utensil in question
following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with
the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for
microwave cooking.
4. Do not exceed 1 minute cooking time.

19
Materials you can use in microwave oven
Utensils
Remarks
Browning dish
Follow manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5mm) above the turntable.
Incorrect usage may cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do
not use cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no
metallic trim. Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer’s instructions. Do not close with a metal
tie. Make slits to allow steam to escape.
Paper plates and
cups
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for
steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labelled "Microwave Safe". Some plastic containers
soften, as the food inside gets hot. "Boiling bags" and tightly
closed plastic bags should be slit, pierced or vented as directed
on the packaging.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Thermometers
Microwave-safe only
Wax paper
Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Utensils
Remarks
Aluminium tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal
trimmed utensils
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and may
split or crack.

20
TROUBLESHOOTING
Normal Behaviour
Microwave interfering
with TV reception when
running
Radio and TV reception may be interfered
when microwave is operating. It is similar
to interference from other small electric
appliances such as electric fans and is
normal.
Dim Oven light
In low power microwave cooking, the oven
light may become dim. This is normal
Steam accumulating on
door and hot air out of
vents
In cooking, water is released from the food
as steam, and most will exit via the vents,
but some will accumulate in cold places
such as the door. This is normal.
Oven started
accidentally with no
food in
The oven should not be operated without
any food inside, as it is very dangerous.
Problem
Possible cause
Remedy
Oven will not start
Power cord not fully
inserted
Unplug and plug back in
after 10 seconds
Fuse blowing, or circuit
breaker tripped
Replace fuse or reset circuit
breaker
Trouble with socket
Test Socket with other
electrical appliances
Oven does not
heat
Door not fully closed
Ensure door is fully closed
and sealed before operating
Glass turntable
makes a noise
when the oven
operates
Dirty roller rest or oven
bottom
Refer to "Cleaning" section
for advice on cleaning dirty
parts
