ElectrIQ EIQMW9BEH User manual

Microwave Oven
User Manual
Model: EIQMW9BEH
Thank you for choosing electriQ.
Please read this user manual before using this microwave and keep it safe for
future reference .
Visit our page www.electriQ.co.uk for our entire range of electricals
.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY……… 3
SPECIFCATIONS………………………………………………………………………………………...............
4
IMPORTANT SAFETY INSTRUCTIONS 4
SETTING UP YOUR OVEN……………………………………………………………………………………
…
8
TURNTABLE INSTALLATION……………………………………………………………………………………8
INSTALLATION…………………………………………………………………………………………………….9
BEFORE YOU CALL FOR SERVICE…………………………………………………………………………...9
GROUNDING INSTRUCTIONS…………………………………………………………………………………10
RADIO INTERFERRANCE………………………………………………………………………………………10
MICROWAVE COOKING PRINCIPLES………………………………………………………………………..10
UTENSILS GUIDE ………………………………………………………………………………………………..
11
MATERIALS YOU CAN USE IN THE MICROWAVE……………………………………………………...…..12
CONTROL PANEL………………….……………………………………………………………………………..13
HOW TO SET THE MICROWAVE CONTROLS ………………………………………………………………14
AUTO COOK MENU……………………………………………………………………………………...………18
CLEANING AND CARE ………………………………………………………………………………………….19
TROUBLE SHOOTING …………………………………………………………………………………………..20
CUSTOMER CARE LINE………………………………………………………………………………………...21
2
.
……………………………………………………………………….
CONTENTS

Please read these instructions carefully before installing and operating the oven.
Record in the space below the SERIAL NO. found on the nameplate on your oven
and retain this information for future reference.
SERIAL NO.
3
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
1. Do not attempt to operate this oven with the door open since open door operation can
result in harmful exposure to microwave energy. It is important not to damage or tamper
with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door
closes properly and that there is no damage to the 3 components listed below:
Door (bent),
Hinges and latches (broken or loosened),
Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.

SPECIFICATIONS
Rated Output
Power(Microwave):
850-900 W
Rated Input power (Grill):
1050-1100W
Rated Input Power
(Convection):
2300-2500W
Oven Capacity:
25 L
Turntable Diameter:
315 mm
External Dimensions:
513 x 479 x 306
Net Weight:
Approx.
17.9 kg
4
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electric shock, injury to persons or exposure to
excessive microwave oven energy when using your appliance, follow basic
precautions, including the following:
1.Warning: Liquids and other foods must not be heated in sealed containers
since they are liable to explode.
2.Warning: It is hazardous for anyone other than a competent person to
carry out any service or repair operation that involves the removal of a
cover which gives protection against exposure to microwave energy.
3.This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand the
hazards involved.
4. Children shall not play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8 and supervised.
5.Keep the appliance and its cord out of reach of children less than 8 years.
Only use utensils that are suitable for use in microwave ovens.
6.The oven should be cleaned regularly and any food deposits should be
removed.
7.Read and follow the specific:
"PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
8.When heating food in plastic or paper containers,
mm
Model:
EIQMW9BEH
Rated Voltage: 230-240V~
50Hz
Rated Input
Power(Microwave): 1450-1500 W

5
Keep an eye on the oven due to the possibility of ignition.
9.If smoke is emitted, switch off or unplug the appliance and keep the door
closed in order to stifle any flames.
10.Do not overcook food.
11.Do not use the oven cavity for storage purposes. Do not store items, such as
bread, cookies, etc. inside the oven.
12.Remove wire twist-ties and metal handles from paper or plastic
containers/bags before placing them in the oven.
13.Install or locate this oven only in accordance with the installation instructions
provided.
14.Eggs in their shell and whole hard-boiled eggs should not be heated in
microwave ovens since they may explode, even after microwave heating has
ended.
15.This appliance is intended to be used in household and similar applications
such as:
-staff kitchen areas in shops, offices and other working environments;
-by clients in hotels, motels and other residential type environments;
-farm houses;
-bed and breakfast type environments.
16.If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
17.Do not store or use this appliance outdoors.
18.Do not use this oven near water, in a wet basement or near a swimming pool.
19.The temperature of accessible surfaces may be high when the appliance is
operating. The surfaces are liable to get hot during use. Keep cord away
from heated surface, and do not cover any vents on the oven.
20.Do not let cord hang over edge of table or counter. Failure to maintain the
oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous
situation.
21.The contents of feeding bottles and baby food jars shall be stirred or shaken
and the temperature checked before consumption, in order to avoid burns.
22.Microwave heating of beverages can result in delayed eruptive boiling,
therefore care must be taken when handling the container.
23.The appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
24.Children should be supervised to ensure that they do not play with the
appliance.
25.The appliances are not intended to be operated by means of an external
timer or separate remote-control system.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
To Reduce the Risk of Injury to Persons Grounding Installation
DANGER
Electric Shock Hazard Touching
some of the internal components
can cause serious personal injury or
death. Do not disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper use of the grounding can
result in electric shock. Do not plug
into an outlet until appliance is
properly installed and grounded.
This appliance must be grounded. In
the event of an electrical short circuit,
grounding reduces the risk of
electric shock by providing an
escape wire for the electric current.
This appliance is equipped with a
cord having a grounding wire with a
grounding plug. The plug must be
plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or
serviceman if the grounding
instructions are not completely
understood or if doubt exists as to
whether the appliance is properly
grounded. If it is necessary to use
an extension cord, use only a 3-wire
extension cord.
A short power-supply cord is
provided to reduce the risks
resulting from becoming entangled
6
26.Accessible parts may become hot during use. Young children should be kept
away.
27.Steam cleaner is not to be used.
28.During use the appliance becomes hot. Care should be taken to avoid
touching heating elements inside the oven.
29.Only use the temperature probe recommended for this oven (for ovens
provided with a facility to use a temperature-sensing probe.)
30.WARNING: The appliance and its accessible parts become hot during use.
31.Care should be taken to avoid touching heating elements. Children less than
8 years of age shall be kept away unless continuously supervised.
32.The microwave oven must be operated with the decorative door open. (For
ovens with a decorative door.) The rear surface of appliance shall be placed
against a wall.
33.The microwave oven must not be placed in a cabinet. The microwave oven is
intended for heating food and beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges, damp cloth and similar may
lead to risk of injury, ignition or fire.

in or tripping over a longer cord.
If a long cord set or extension cord
is used:
1) The marked electrical rating of
the cord set or extension cord
should be at least as great as the
electrical rating of the appliance.
2) The extension cord must be a
grounding-type 3-wire cord.
3) The long cord should be arranged
so that it will not drape over the
counter top or tabletop where it can
be pulled on by children or tripped
over unintentionally.
CLEANING
Be sure to unplug the appliance from the power supply.
Clean the cavity of the oven after using with a slightly damp cloth.
Clean the accessories in the usual way in soapy water.
The door frame and seal and neighbouring parts must be cleaned carefully
with a damp cloth when they are dirty.
Do not use harsh abrasive cleaners or sharp metal scrapers to clean the
oven door glass since they can scratch the surface, which may result in
shattering of the glass.
Cleaning Tip---For easier cleaning of the cavity walls that the food cooked
can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat
on 100% microwave power for 10 minutes. Wipe the oven clean using a soft,
dry cloth.
UTENSILS CAUTION
Personal Injury Hazard It is
hazardous for anyone other than a
competent person to carry out any
service or repair operation that
involves the removal of a cover
which gives protection against
exposure to microwave energy.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave
oven." There may be certain non-metallic utensils
that are not safe to use for microwaving. If in
doubt, you can test the utensil in question
following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
7

SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove all materials from the carton and oven cavity. Your oven comes with the following
accessories:
Glass tray 1
Turntable Installation
Hub (underside)
Glass tray
Turntable shaft
a. Never place the glass tray upside down. The
glass tray should never be restricted.
b. Both glass tray and turntable ring assembly
must always be used during cooking.
c. All food and containers of food should always
be placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks
or breaks, contact your nearest authorized
service Centre.
Turntable ring assembly
8
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Grill Rack( Only be used in grill function
and be placed on the glass tray )
Turntable ring assembly 1
Instruction Manual 1
F
G
A
C B
ED

INSTALLATION
Countertop Installation
Remove all packing material and accessories.
Examine the oven for any damage such as dents
or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film found on the
microwave oven cabinet surface. Do not remove
the light brown Micra cover that is attached to the
oven cavity to protect the magnetron.

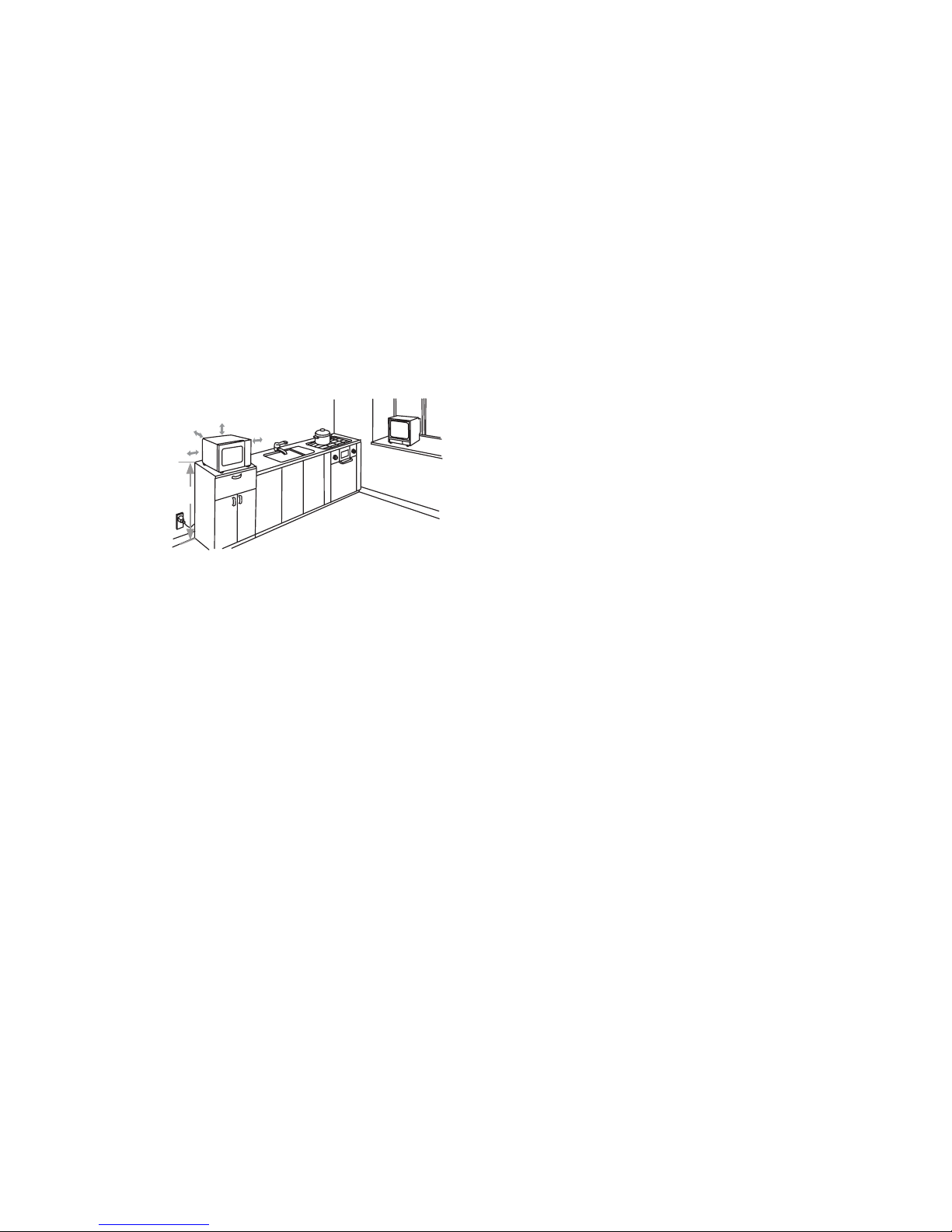

Installation
1. Select a level surface that provides enough
open space for the intake and/or outlet
vents.
2. The minimum installation height is 85cm.
3. The rear surface of appliance needs to be
placed against a wall.
4. Leave a minimum clearance of 30cm above
the oven and a minimum clearance of 20cm
between the oven and any adjacent walls.
5. Do not remove the legs from the bottom of
the microwave.
6. Blocking the intake and/ or outlet openings
can damage the microwave.
7. Place the microwave as far away from radios
and TV as possible. Operation of microwave
oven may cause interference to your radio or
TV reception.
8. Plug your oven into a standard household
outlet. Be sure the voltage and the frequency
is the same as the voltage and the frequency
on the rating label.
9. WARNING: Do not install the microwave
over a range cooktop or other
heat-producing appliance. If installed near or
over a heat source, the oven could be
damaged and the warranty would be void.
10. The accessible surface may be hot during
operation
BEFORE YOU CALL FOR SERVICE
If the oven fails to operate:
1. Make sure that the microwave is plugged in
securely. If it is not, remove the plug from the
outlet, wait 10 seconds, and plug it in again
securely.
2. Check for a blown circuit fuse or a tripped
main circuit breaker. If these seem to be
operating properly, test the outlet with
another appliance.
3. Make sure that the control panel is
programmed correctly and the timer is set.
4. Check that the door is securely closed
engaging the door safety lock system.
Otherwise, the microwave energy will not
flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED
TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF.
9
64Zd
74Zd
64Zd
d`e<9Zd
4Zd

GROUNDING INSTRUCTIONS
This appliance must be grounded. This
microwave oven is equipped with a cord that has
a grounding wire with a grounding plug. It must be
plugged into a wall receptacle that is properly
installed and grounded. In the event of an
electrical short circuit, grounding reduces risk of
electric shock by providing an escape wire for the
electric current. We recommended that you use a
separate circuit for the microwave. Using a high
voltage is dangerous and may result in a fire or
other accident causing oven damage.
WARNING Improper use of the grounding plug
can result in a risk of electric shock.
Note:
1. If you have any questions about the
grounding or electrical instructions, consult a
qualified electrician or service person.
2. Neither the manufacturer nor the dealer can
accept any liability for damage to the oven or
personal injury resulting from failure to
observe the electrical connection
procedures.
The wires in this cable main are colored in
accordance with the following code:
Green and Yellow = EARTH
Blue = NEUTRAL
Brown = LIVE
RADIO INTERFERENCE
Operation of the microwave oven can cause
interference to your radio, TV, or similar
equipment.
When there is interference, it may be reduced or
eliminated by taking the following measures:
1. Clean door and sealing surface of the
oven.
2. Reorient the receiving antenna of radio or
television.
3. Relocate the microwave oven with respect
to the receiver.
4. Move the microwave oven away from the
receiver.
5. Plug the microwave oven into a different
outlet so that microwave oven and receiver
are on different branch circuits.
MICROWAVE COOKING PRINCIPLES
1. Arrange food carefully. Place thickest areas
towards outside of dish.
2. Watch cooking time. Cook for the shortest
amount of time indicated and add more as
needed. Food severely overcooked can
smoke or ignite.
3. Cover foods while cooking. Covers prevent
spattering and help foods to cook evenly.
4. Turn foods over once during microwave
cooking to speed cooking of such foods as
chicken and hamburgers. Large items like
roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway
through cooking both from top to bottom and
from the center of the dish to the outside.
10

UTENSILS GUIDE
1. The ideal material for a microwave utensil is
transparent to microwave, it allows energy to
pass through the container and heat the food.
2. Microwave cannot penetrate metal, so metal
utensils or dishes with metallic trim should not
be used.
3. Do not use recycled paper products when
microwave cooking, as they may contain
small metal fragments which may cause
sparks and/or fires.
4. Round /oval dishes rather than square/oblong
ones are recommend, as food in corners
tends to overcook.
The list below is a general guide to help you select the correct utensil
.
COOKWARE
MICROWAVE
GRILL
COMBINATION
Heat–Resistant Glass
Yes
Yes
Yes
Non Heat–Resistant Glass
No
No
No
Heat–Resistant Ceramics
Yes
Yes
Yes
Microwave–Safe Plastic Dish
Yes
No
No
Kitchen Paper
Yes
No
No
Metal Tray
No
Yes
No
Metal Rack
No
Yes
No
Aluminum Foil & Foil Container
No
Yes
No
11

Aluminum foil and trays
May cause arcing. Transfer food into microwave-safe dish.
Carton with metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal/ltrimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood
Wood will dry out when used in the microwave oven and may split or crack.
Browning dish
Follow manufacturer’s instructions. The bottom of browning dish must be at least 3/16 inch (5mm)
above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and
may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or
chipped dishes.
Cooking bags
Follow manufacturer’s instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates &
cups
Use for short–term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer’s instructions. Should be labeled "microwave safe".
Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic
bags should be slit, pierced or vented as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap
to touch food.
Thermometer
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain moisture.
12
Materials you can use in the microwave
Materials to be avoided in the microwave

CONTROL PANEL
Microwave
Grill/Combi.
Convection
W.T/Time Defrost
Clock/Kitchen Timer
Stop/Clear
Start/+30Sec./Confirm
13

HOW TO SET THE MICROWAVE CONTROLS
SETTING CLOCK
When the microwave oven is plugged in, the
screen will display "0:00" and the buzzer will ring
once.
1. Press “CLOCK/KITCHEN TIMER” once and
“00:00” will display.
2. Turn the dial to adjust the hour figures, the
input time should be within 0-23(24-hour).
3. Press “CLOCK/KITCHEN TIMER”, and the
minute figures will flash.
4. Turn the dial to adjust the minute figures, the
input time should be within 0-59.
5. Press “CLOCK/KITCHEN TIMER” to finish
clock setting. “.” Will flash.
Note: 1) If the clock is not set, it will not function
when powered.
2) During the process of clock setting, if you press
“STOP/CLEAR”, the oven will go back to the
previous status automatically.
KITCHEN TIMER
1. Press “CLOCK/KITCHEN TIMER” twice and
the LED will display 00:00.
2. Turn the dial to enter the correct timer. (The
maximum cooking time is 95 minutes).
3. Press “START/+30SEC./CONFIRM” to
confirm setting.
4. When the kitchen time is reached, the buzzer
will ring 5 times.
If the clock has been set (24-hour system), the
LED will display the current time.
Note: The kitchen Time is different from the
24-hour system, the Kitchen timer is a different
timer.
MICROWAVE COOKING
Press “MICROWAVE” and the LED will display
“P100”. Press “MICROWAVE” or turn
the dial to choose the power you want, and
“P100”, “P80”, “P50”, “P30” or “P10” will display
for each added press. Then press
“START/+30SEC./CONFIRM” to confirm and turn
the dial to set the cooking time from 0:05 to 95:00.
Press “START/+30SEC./CONFIRM” again to start
cooking.
Example: If you want to use 80% microwave
power to cook for 20 minutes, you can operate
the oven as follows:
1. Press “MICROWAVE” once and the screen
will display “P100”.
2. Press “MICROWAVE” once again or turn the
dial to choose 80% microwave power.
3. Press “START/+30SEC./CONFIRM” to
confirm and the screen will display “P80”
4. Turn the dial to adjust the cooking time until
the oven displays “20:00”.
5. Press “START/+30SEC./CONFIRM” to start
cooking.
Note: The step quantities for the adjustment time
of the coding switch are as follows:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minute
30---95 min : 5 minutes
“MICROWAVE” Pad instructions:
“Microwave”
order
Display
Cooking power
1
P100
100%
2
P80
80%
3
P50
50%
4
P30
30%
5
P10
10%
14

“G-1”,
“C-1”, “C-2”, “C-3” or “C-4” will display with
each added press. Then press
“START/+30SEC./CONFIRM ” again
to confirm.
Example: If you want to use grill power to cook for
10 minutes, you can operate the oven as the
following steps:
1. Press “GRILL/COMBI.” Once and the screen
will display “G
-
1”.
2. Press “START/+30SEC./CONFIRM” to
confirm.
3. Turn the dial to adjust the cooking time until
the oven displays “10:00”.
4. Press “START/+30SEC./CONFIRM” to start
cooking.
Note: It is normal for the microwave to sound the
buzzer twice when half the grilling time has
passed because turning your food over half way
through grilling will deliver better results. Once
you have turned food over, close the door and
press “START/+3-SEC./CONFIRM” to continue
cooking. If you decide not to turn the food over,
the microwave will continue to work.
Note: Combination Instructions
Instruction
1
2
3
4
Display
C-1
C-2
C-3
C-4
Microwave
Grill
Convection
CONVECTION COOKING (WITH PREHEATING)
The convection cooking can let you cook the food
like it was in a traditional oven. The microwave is
not used. We recommend you preheat the oven
to the appropriate temperature before placing the
food in the oven.
1. Press the “CONVECTION” key once and
“150” will flash.
2. Keep pressing “CONVECTION” or turn the
dial to select the convection function.
Note: The temperature can be chosen from
150 degrees to 240 degrees,
3. Press the “START/+30SEC./CONFIRM” to
confirm the temperature.
4. Press the “START/+30SEC./CONFIRM”to
start preheating. When the oven has reached
the programmed temperature, the buzzer will
sound twice to remind you to put food in the
oven. The preheated temperature is
displayed and flashing.
5. Put food into the oven and close the door.
Turn the dial to adjust the cooking time. (The
maximum setting is 95 minutes).
6. Press the “START/+30SEC./CONFIRM” key
to start cooking.
Note: a) Cooking time cannot be entered until
the oven has preheated. When it has preheated,
the door must be opened to input the cooking
time.
b) If a time has not be entered after 5 minutes of
preheating, the oven will stop heating and the
buzzer will sound 5 times and turn back to its
waiting state.
CONVECTION COOKING (WITHOUT PREHEAT)
1. Press “CONVECTION” key once and “150”
will flash.
2. Keep pressing “CONVECTION” or turn the
dial to select the convection function.
Note: The temperature can be set between
150 degrees to 240 degrees.
3. Press the “START/+30SEC./CONFIRM” to
confirm the temperature.
4. Turn the dial to adjust the cooking time (the
maximum time you can set is 95 minutes).
5. Press the “START/+30SEC./CONFIRM” key
to start cooking.
15
GRILL OR COMBI.COOKING
Press “GRILL/COMBI” and the LED will display
“G-1”, and press “GRILL/COMBI” or turn the
dial to choose the power you want, and
Turn the dial to choose the cooking time.
Press “START/+30SEC./CONFIRM” to start
cooking.

as one of the multi-stages.
Example: If you want to defrost food for 5 minutes
1. Press “W.T./TIME DEFROST” twice, the
screen will display “d-2”
2. Turn the dial to adjust the defrost time of 5
minutes.
3. Press “MICROWAVE” once.
4. Turn the dial to choose 80% microwave
power till “P80” displays.
5. Press “START/+30SEC./CONFIRM” to
confirm.
6. Turn the dial to adjust the cooking time to 7
minutes.
7. Press “START/+30SEC./CONFIRM” to start
cooking.
SPEEDY COOKING
1. In the waiting state, press
“START/+30SEC./CONFIRM” key to cook
with 100% power level for 30 seconds.
Each press on the same key can increase
30 seconds. The maximum cooking time is
95 minutes.
2. During microwave, grill, convection and
combination states, press
“START/+30SEC./CONFIRM” key to cook
with 100% power level for 30 seconds.
Each press on the same key can increase
30 seconds.
Note: This function cannot work under
weight defrost, multi-stage and auto menu
cooking.
SPEEDY MICROWAVE COOKING
In waiting state turn the dial left to choose
cooking time directly then press
“START/+30SEC./CONFIRM” key to cook with
100% microwave power. This program can be
set as the first one of multistage.
AUTO MENU
1. In waiting state turn the dial right to choose
the function you want, and “A1”, “A2”,
“A3”…”A10” will be displayed.
2. Press “START/30+SEC./CONFIRM” to
confirm the menu you want.
3. Turn the dial to choose the weight of the
menu and the “g” indicator will light up.
4. Press “START/30+SEC./CONFIRM” to start
cooking.
Note: When you choose A9 cake, please do not
put the cake into the oven at the beginning. The
oven needs to be preheated to 180 degree first.
After several minutes, the buzzer sounds twice
to remind you to put the cake into the oven.
After putting the cake in the oven, please press
start again. The timer will count down, and the
cake will be cooked perfectly.
DEFROST BY WEIGHT
1. Press “W.T/TIME DEFROST” pad once and
the oven will display “d-1”
2. Turn the dial to select the weight of your
food. Whilst you are doing this, the “g”
indicator will be lit. The weight should be
between 100-2000g.
3. Press “START/30+SEC./CONFIRM” key to
start defrosting.
DEFROST BY TIME
1. Press “W.T/TIME DEFROST” pad twice
and the oven will display “d-2”
2. Turn the dial to select the cooking time. The
maximum setting time is 95 minutes.
3. Press “START/30+SEC./CONFIRM” key to
start defrosting.
16
MULTI-SECTION COOKING
Two stages maximum can be set. If one of the
stages is defrosting, it will be put in the first stage
automatically. The buzzer will ring once after each
stage and the next stage will begin.
Note: Auto menu and preheating cannot be set
then cook it with 80% microwave power for 7
minutes. The steps are as following:

“CONVECTION”, the current power will be
displayed for 2-3 seconds.
LOCK-OUT FUNCTION FOR CHILDREN
Lock: In waiting state, press “STOP/CLEAR” for
3 seconds and there will be a long beep
indicating that the microwave has entered the
lock mode and the indicator will light. LED
will display current time or 0:00.
Lock quitting: In locked state, press
“STOP/CLEAR” for 3 seconds, there will be a
long “beep” indicating that the lock is released
and “ ” indicator will disappear.
SPECIFICATION
1. The buzzer will sound once when turning
the knob at the beginning.
2. “START/30+SEC./CONFIRM” must be
pressed to continue cooking if the door is
opened during cooking.
3. Once the cooking programme has been set
and the “START/30+SEC./CONFIRM” is
not pressed in 5 minutes, the current time
will be displayed and the setting will be
cancelled.
4. If you press the button properly, the beep
will sound. If you haven’t pressed the
button properly, there will be no beep
response.
5. The buzzer will sound 5 times to remind
you when cooking has finished.
17
INQUIRING FUNCTION
1. If the microwave is in a middle of a cooking
function, you can check the time by
pressing the “CLOCK/KITCHEN TIMER”. It
will be displayed for 2-3 seconds.
2. If you want to check the power level during
a cooking function, press the
“MICROWAVE”, “GRILL/COMBI” or

Menu
Weight (g)
Display
Power
A-1
Pizza
200
200
C-4
300
300
400
400
A-2
Potato
1 (about 230g)
1
100%
2 (about 460g)
2
3 (about 690g)
3
A-3
Meat
150
150
100%
300
300
450
450
600
600
A-4
Fish
150
150
80%
250
250
350
350
450
450
650
650
A-5
Vegetable
150
150
100%
350
350
500
500
A-6
Beverage/coffee
1 (about 240g)
1
100%
2 (about 480g)
2
3 (about 720g)
3
A-7
Pasta
50(with water 450ml)
50
80%
100(with water 800ml)
100
150(with water 1200ml)
150
A-8
Popcorn
50
50
100%
100
100
A-9 Cake
475
475
Preheat at 180 degrees
A-10
Chicken
500
500
C-4
750
750
1000
1000
1200
1200
18

CLEANING AND CARE
1. Turn off the oven and remove the power plug
from the wall socket before cleaning.
2. Keep the inside of the oven clean. When
food splatters or spilled liquids adhere to
oven walls, wipe with a damp cloth. Mild
detergent may be used if the oven gets very
dirty. Avoid the use of spray and other harsh
cleaners as they may stain, streak or dull the
door surface.
3. The outside surfaces should be cleaned with
a damp cloth. To prevent damage to the
operating parts inside the oven, water should
not be allowed to seep into the ventilation
openings.
4. Wipe the both sides of the door and window,
the door seals and adjacent parts frequently
with a damp cloth to remove any spills or
spatters. Do not use abrasive cleaner.
5. Do not allow the control panel to become wet.
Clean with a soft, damp cloth. When
cleaning the control panel, leave oven door
open to prevent oven from accidentally
turning on.
6. If steam accumulates inside or around the
outside of the oven door, wipe with a soft
cloth. This may occur when the microwave
oven is operated under high humidity
condition. This is normal.
7. It is occasionally necessary to remove the
glass tray for cleaning. Wash the tray in
warm sudsy water or in a dishwasher.
8. The roller ring and oven floor should be
cleaned regularly to avoid excessive noise.
Simply wipe the bottom surface of the oven
with mild detergent. The roller ring may be
washed in mild sudsy water or dishwasher.
When removing the roller ring from cavity
floor for cleaning, be sure to replace in the
proper position.
9. Remove odors from your oven by combining
a cup of water with the juice and skin of one
lemon in a deep microwaveable bowl,
microwave for 5 minutes. Wipe thoroughly
and dry with a soft cloth.
10. When it becomes necessary to replace the
oven light, please consult a dealer to have it
replaced.
11. The oven should be cleaned regularly and
any food deposits removed. Failure to
maintain the oven in a clean condition could
lead to deterioration of the surface that could
adversely affect the life of the appliance and
possibly result in a hazard.
12. Please do not dispose this appliance into the
domestic rubbish bin; it should be disposed
to the particular disposal center provided by
the municipalities.
13. When the microwave oven with grill function
is first used, it may produce slight smoke and
smell. This is a normal phenomenon,
because the oven is made of a steel plate
coated with lubricating oil, and the new oven
will produce fumes and odor generated by
burning the lubricating oil. This phenomenon
will disappear after a period of using.
19

20
Trouble Shooting
Normal
It is forbidden to run the unit without any food inside.
It is very dangerous.
