Electro-Craft EPS-HDM1004ECO User manual

EPS-HDM1004ECO
Encoder Modulator User Manual

About This Manual
Intended Audience
This user manual has been written to help people who have to use, to integrate and to
install the product. Some chapters require some prerequisite knowledge in electronics
and especially in broadcast technologies and standards.
Director
CHAPTER 1 INTRODUCTION ............................................................................................................... 1
1.1 P RO UCT O VERVIEW ............................................................................................................................... 1
1.2 K EY F EATURES ........................................................................................................................................ 1
1.3 S PECIFICATIONS ....................................................................................................................................... 1
1.4 P RINCIPLE C HART .................................................................................................................................... 2
CHAPTER 2 INSTALLATION GUIDE ................................................................................................... 3
2.1 G ENERAL P RECAUTIONS .......................................................................................................................... 3
2.2 P OWER PRECAUTIONS .............................................................................................................................. 4
2.3 EVICE ’ S I NSTALLATION F LOW C HART I LLUSTRATE AS FOLLOWING ..................................................... 4
2.4 E NVIRONMENT R EQUIREMENT ................................................................................................................ 4
2.5 G ROUN ING R EQUIREMENT .................................................................................................................... 5
CHAPTER 3 WEB NMS OPERATION ................................................................................................... 5
3.1 L OGIN ...................................................................................................................................................... 5
3.2 O PERATION .............................................................................................................................................. 6
CHAPTER 4 TROUBLESHOOTING ................................................................................................... 18
CHAPTER 5 PACKING LIST ................................................................................................................ 18

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Chapter 1 Introduction
1.1 Product Overview
EPS-H M1004ECO is a professional high integration device which includes encoding,
multiplexing, and modulating in one box. It supports 4 H MI inputs and VB-C/T RF out
with 2 adjacent carries and 2 MPTS out as mirror out of the 2 modulation carriers via ATA
(GE) port. This full function device makes it ideal for small CATV head end system, and it’s
a smart choice for hotel TV system, entertainment system in sports bar, hospital, apartment…
1.2 Ke Features
 Support LOGO, OSD and QR code insertion for ever local channel
(Language Supported:中文
中文中文
中文, English, ﺔﻴﺑﺮﻌﻟﺍ , ไทย, 󰬁
󰬁󰬁
󰬁, руская, ﻭﺩﺭﺍ , for more
languages please consult us…)
 4 HDMI input, MPEG-4 AVC/H.264 Video encoding
 MPEG1 La er II, LC-AAC，
，，
，HE-AAC audio encoding format and AC3 Pass
Through and support audio gain adjustment
 2 groups of multiplexing/modulating output channels
 2 DVB-T RF out
 Support64 IP inputs, 2 MPTS IP output over UDP and RTP/RTSP
Support PI remapping/PSI/SI editing and inserting
 Control via web management, and eas updates via web
1.3 Specifications
Input 4 H MI inputs, 64 IP inputs
Video
Encoding MPEG-4 AVC/H.264
Resolution
In-put
1920×1080_60P, 1920×1080_60i,
1920×1080_50P, 1920×1080_50i,
1280×720_60P, 1280×720_50P,
720×576_50i,720×480_60i,
Out-put
1920×1080_30P, 1920×1080_25P,
1280×720_30P, 1280×720_25P,
720×576_25P,720×480_30P,
Bit-rate 1Mbps~13Mbps each channel
Rate Control CBR/VBR

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Audio
Encoding MPEG-1 Layer 2, LC-AAC, HE-AAC and AC3 Pass Through
Sampling rate 48KHz
Resolution 24-bit
Audio Gain 0-255 Adjustable
MPEG-1 Layer 2
bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
LC-AAC bit-rate 48/56/64/80/96/112/128/160/192/224/256/320/384 kbps
HE-AAC bit-rate 48/56/64/80/96/112/128 kbps
Multiplexing
Maximum PI
Remapping 180 input per channel
Function PI remapping ( automatically or manually)
Generate PSI/ SI table automatically
Modulation VB-T
RF out 2*RF VB-T out (2 carriers combined
output)
Standard EN300 429/ITU-T J.83A/B
MER ≥40db
RF frequency 50~960MHz, 1KHz step
RF output level -25~-1dBm (82~105 dbµV), 0.1dBm
Symbol Rate 5.0Msps~7.0Msps, 1ksps stepping
J.83A J.83B
Constellation 16/32/64/128/256QAM 64/256 QAM
Bandwidth 7M 6M
Stream output RF output (F type interface)
2 IP MPTS output over U P/RTP/RTSP, 1*1000M Base-T Ethernet interface
S stem
function
Network management(WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous
imension(W×L×H) 482mm×328mm×44mm
Environment 0~45℃(work)；-20~80℃（Storage）
Power requirements AC 110V± 10%, 50/60Hz, AC 220 ±10%,50/60Hz

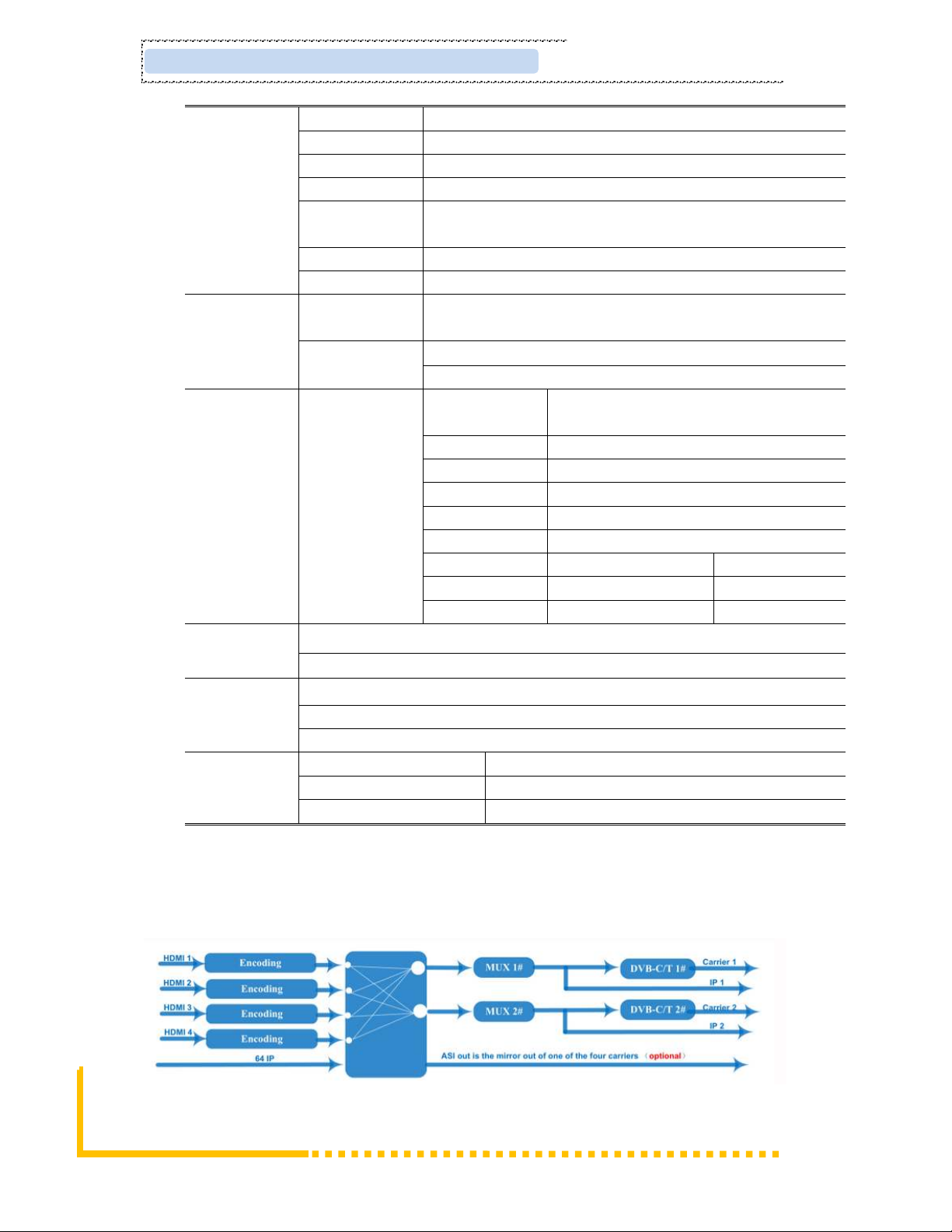

1.4 Principle Chart

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual

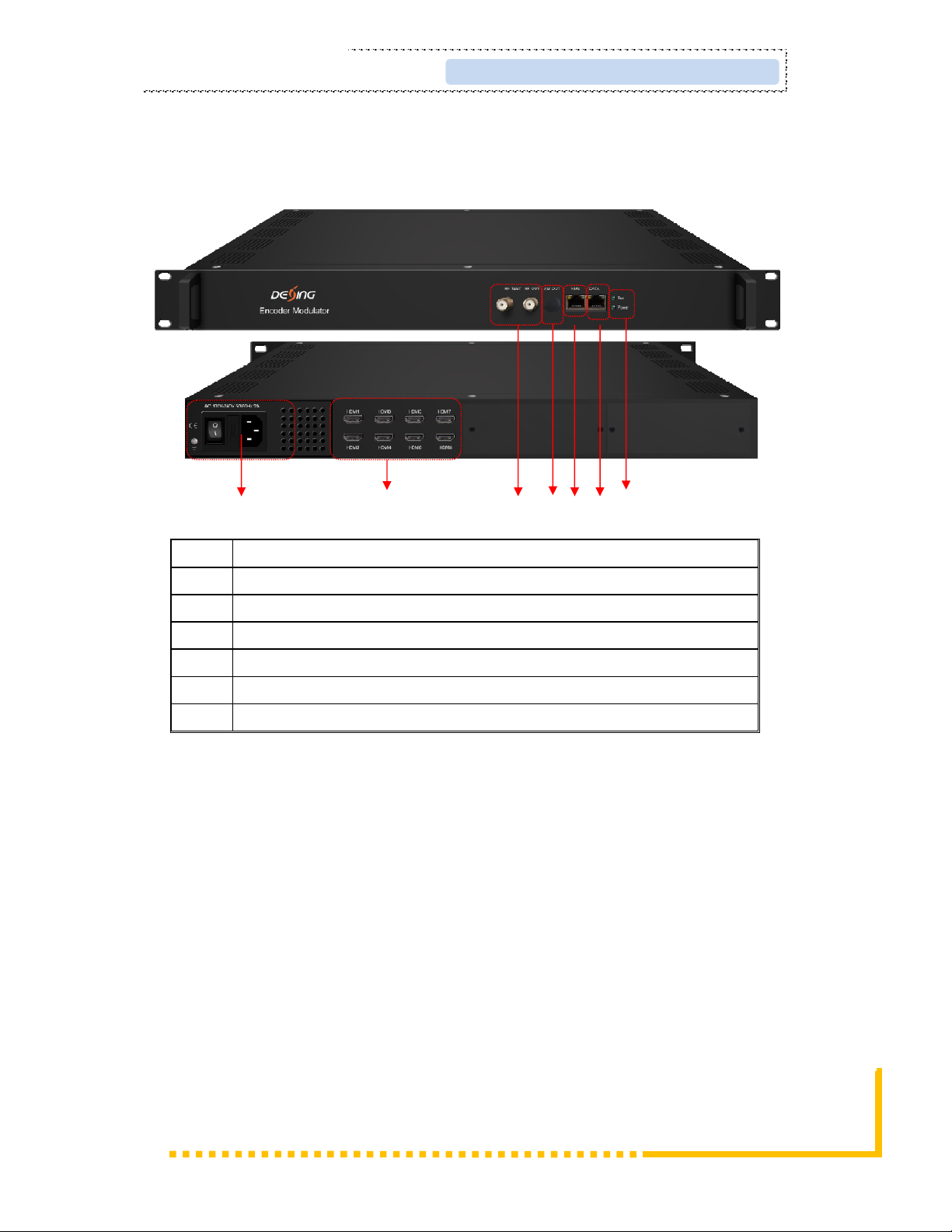

1.5 Appearance and Description
Front and Rear Panel Illustration
2 3 1 4 7 6 5
1 RF test and RF out port
2 Port Power supply and Grounding Pole
3 4 H MI inputs
4 ASI out (Optional)
5 Run and Power Indicators
6 ATA: IP input/output port (GE)
7 NMS (Network management port)
Chapter 2 Installation Guide
This section is to explain the cautions the users must know in some case that possible
injure may bring to users when it’s used or installed. For this reason, please read all
details here and make in mind before installing or using the product.
2.1 General Precautions
 Must be operated and maintained free of dust or dirty.
 The cover should be securely fastened, do not open the cover of the products when the

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
power is on.
 After use, securely stow away all loose cables, external antenna, and others.
2.2 Power precautions
 When you connect the power source, make sure if it may cause overload.
 Avoid operating on a wet floor in the open. Make sure the extension cable is in good
condition
 Make sure the power switch is off before you start to install the device
2.3 Device’s Installation Flow Chart Illustrated as following
2.4 Environment Requirement
Item Requirement
Machine Hall
Space
When user installs machine frame array in one machine hall,
the distance between 2 rows of machine frames should be
1.2~1.5m and the distance against wall should be no less than
0.8m.
Machine Hall Floor
Electric Isolation, ust Free
Volume resistivity of ground anti-static material:
1X10
7
~1X10
10
，Grounding current limiting resistance: 1M
(Floor bearing should be greater than 450Kg/㎡)
Environment
Temperature
5~40℃(sustainable )，0~45℃(short time)，
installing air-conditioning is recommended
Relative Humidity 20%~80% sustainable 10%~90% short time
Pressure 86~105KPa
oor & Window Installing rubber strip for sealing door-gaps and dual level
glasses for window

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Wall It can be covered with wallpaper, or brightness less paint.
Fire Protection Fire alarm system and extinguisher
Power
Requiring device power, air-conditioning power and lighting
power are independent to each other. evice power requires
AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz. Please
carefully check before running.
2.5 Grounding Requirement
 All function modules’ good grounding is the basis of reliability and stability of devices.
Also, they are the most important guarantee of lightning arresting and interference
rejection. Therefore, the system must follow this rule.
 Grounding conductor must adopt copper conductor in order to reduce high frequency
impedance, and the grounding wire must be as thick and short as possible.
 Users should make sure the 2 ends of grounding wire well electric conducted and be
antirust.
 It is prohibited to use any other device as part of grounding electric circuit
 The area of the conduction between grounding wire and device’s frame should be no
less than 25 mm
2
.
Chapter 3 WEB NMS Operation
Users can only control and set the configuration in computer by connecting the device to
web NMS Port. User should ensure that the computer’s IP address is different from this
device’s IP address; otherwise, it would cause IP conflict.
3.1 Login
The default IP address of this device is 192.168.0.136.
Connect the PC (Personal Computer) and the device with net cable, and use ping command

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
to confirm they are on the same network segment.
I.G. the PC IP address is 192.168.99.252, we then change the device IP to 192.168.99.xxx
(xxx can be 1 to 254 except 252 to avoid IP conflict).
Use web browser to connect the device with PC by inputting the Encoder & Modulator’s
IP address in the browser’s address bar and press Enter.

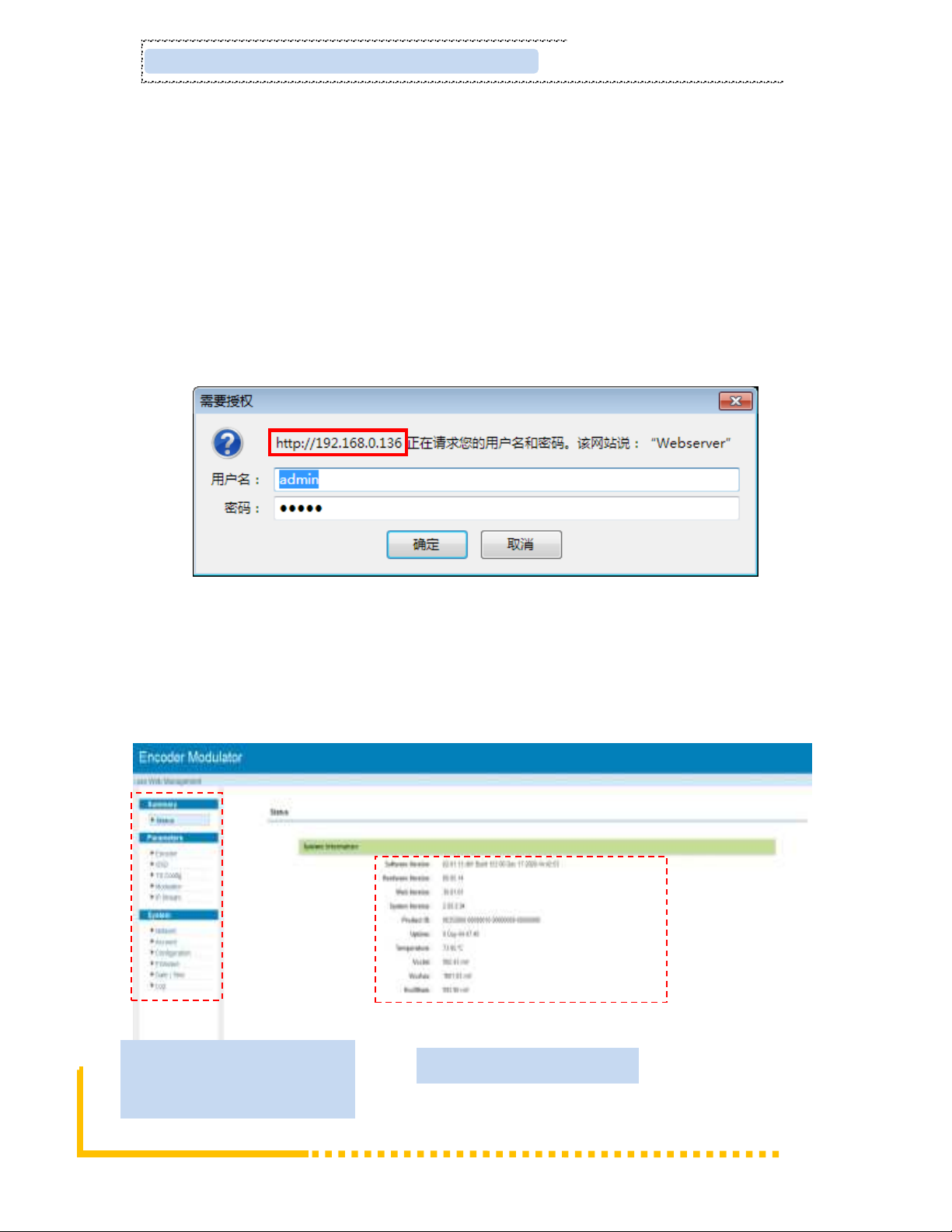

It displays the Login interface as Figure-1. Input the Username and Password (Both the
default Username and Password are “admin”.) and then click “LOGIN” to start the device
setting.
Figure-1
3.2 Operation
Summar →
→→
→ Status
When we login into encoder module, it displays the status interface as Figure-2.
Figure-2
User can click any item here to enter
the corresponding interface to check
information or set the parameters.
Current software version
information

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Parameters →
→→
→ Encoder

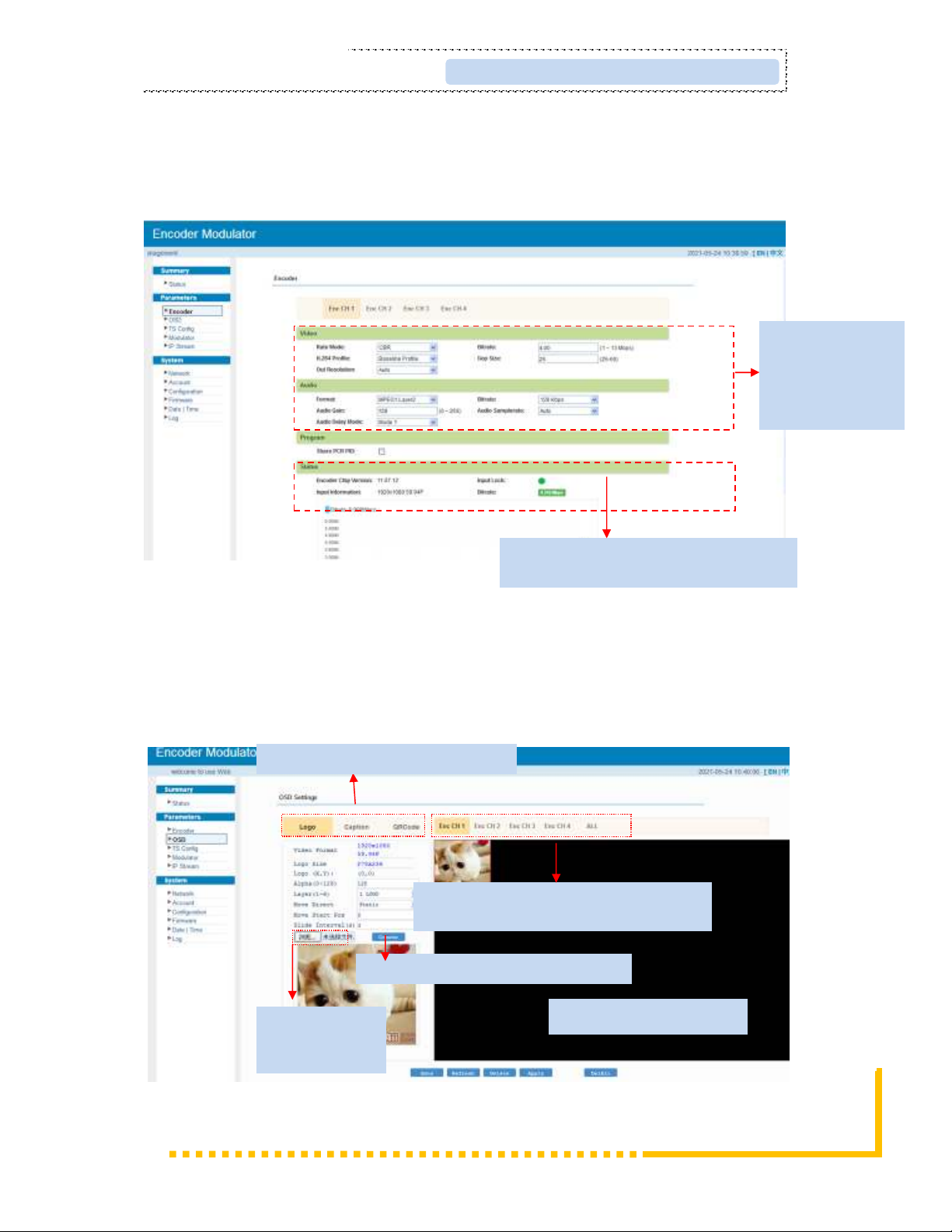

From the menu on left side of the webpage, clicking “Encoder”, it displays the
information of each encoding channel from the encoder as Figure-3.
Figure-3
Parameters →
→→
→ OSD:
Clicking “OS ”, it displays the interface as Figure-4/5/6 where to set Logo/ Caption/ QR
Code parameters.
Figure-4
General settings for
the Encoding program:
User can edit any item
listed as needed.
T
he light will turn green if there is source inputting
from module. Otherwise, the light will turn red.
S
elect to configure logo, caption or QRcode
Select program1-4 to apply the logo insertion, or
you can select “all” to apply all programs
Click here to confirm the LOGO you selected
Browse and select
the Logo which has
been created
Put your logo everywhere

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Figure-5
Enter your text
here
Put your caption anywhere
Select the text color and
background color
Set when to show caption. So do
Logo and QRCode.

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual

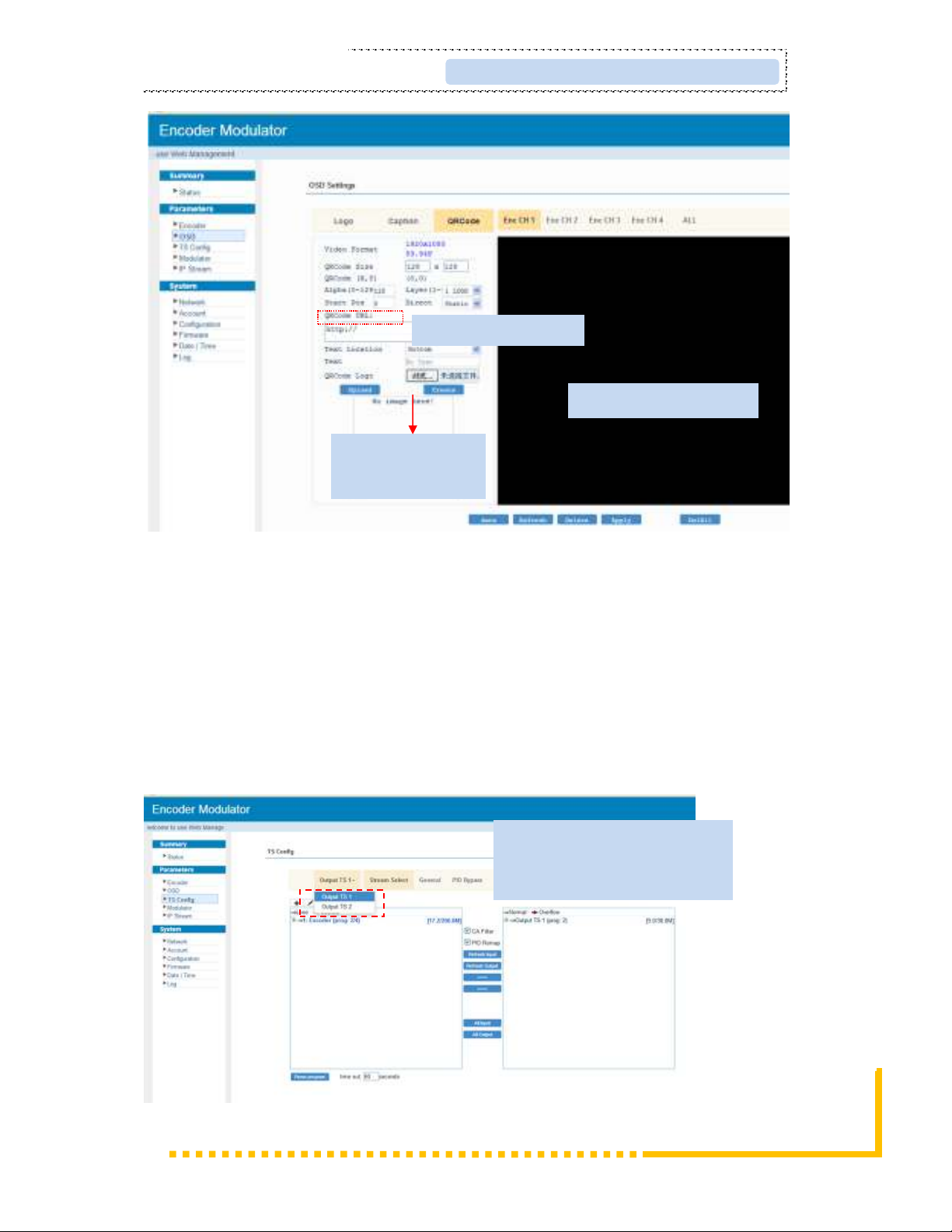

Figure-6
Parameters →
→→
→ TS Config:

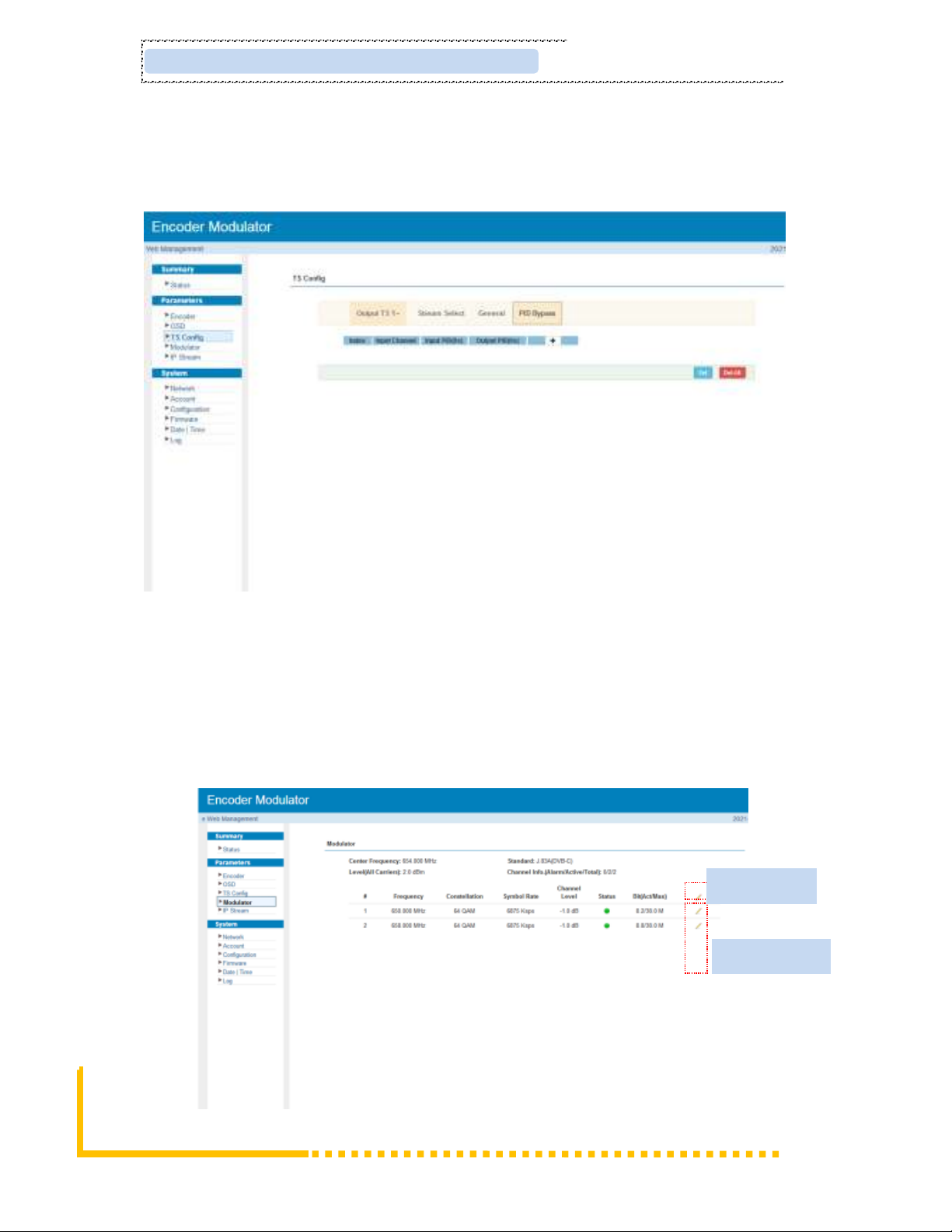

From the menu on left side of the webpage, clicking “TS Config”, it displays the interface
where users can configure the TS output parameters.
 TS Config→
→→
→Output TS X:
Clicking “Output TS X”, it displays the interface where users can select the TS output
carrier (Figure-7)
Clicking output TS 1-4 to set each
output channel’s programs, general
parameters and PI .
Put the QR code everywhere
Browse and select the
QRcode which has been
created
Input the QR code URL

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual

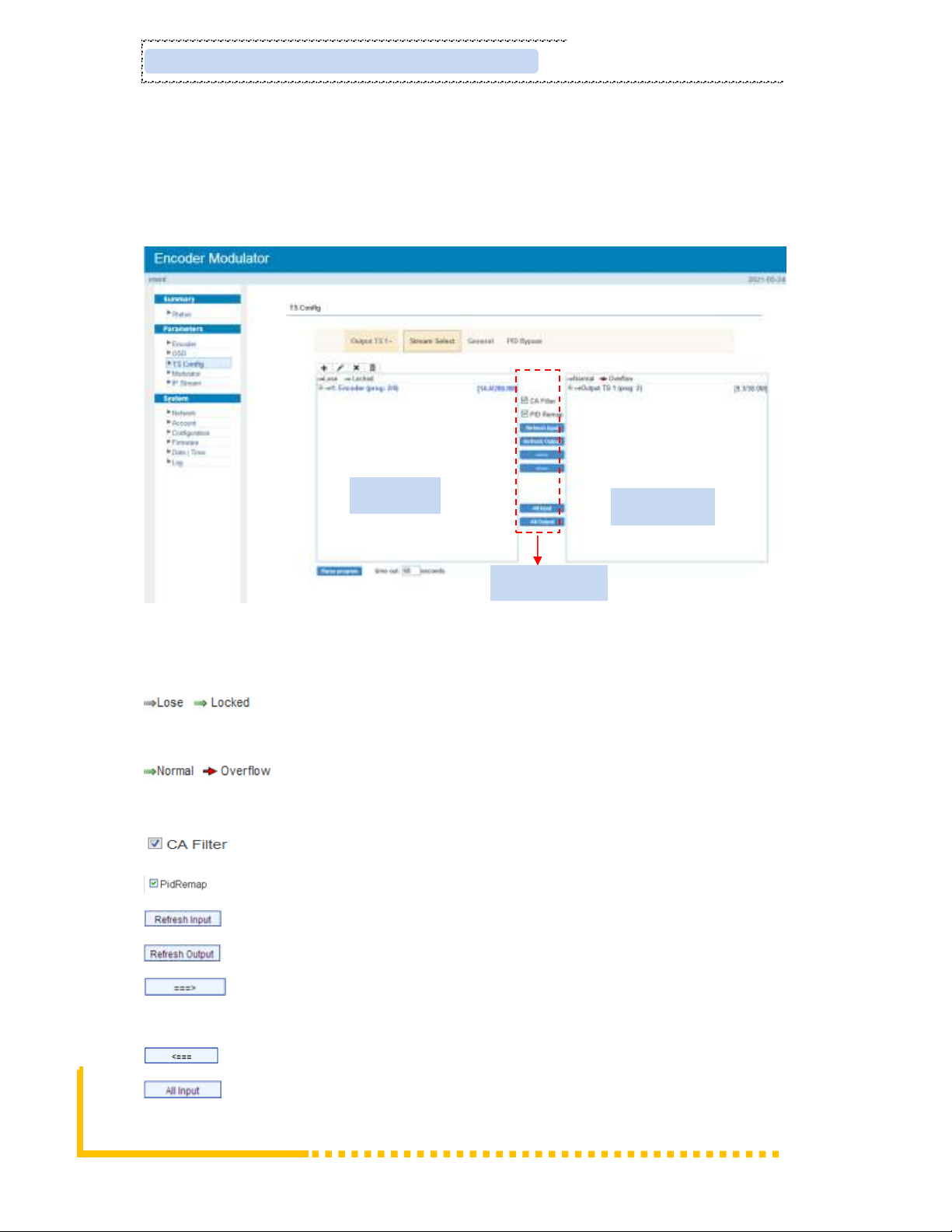

Figure-7
 TS Config→
→→
→Stream select:
Clicking “Stream select”, it displays the interface where users can select program(s) to
multiplex out and modify program info. (Figure-8)
Figure-8
Configure ‘Input Area’ and ‘Output Area’ with buttons in ‘Operation Area’. Instructions are
as below:
: To check encoder stream locked or not, green means current encoder
stream locked
: To check current TS overflowing or not, red color means current TS
overflowing, need reduce program
: To filter/not filter the source CA information
: To enable/disable the PI remapping
To refresh the input program information
To refresh the output program information
Select one input program first and click this button to transfer the selected
program to the right box to output.
Similarly, user can cancel the multiplexed programs from the right box.
To select all the input programs
Input Area Output Area
Operation Area

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
To select all the output programs

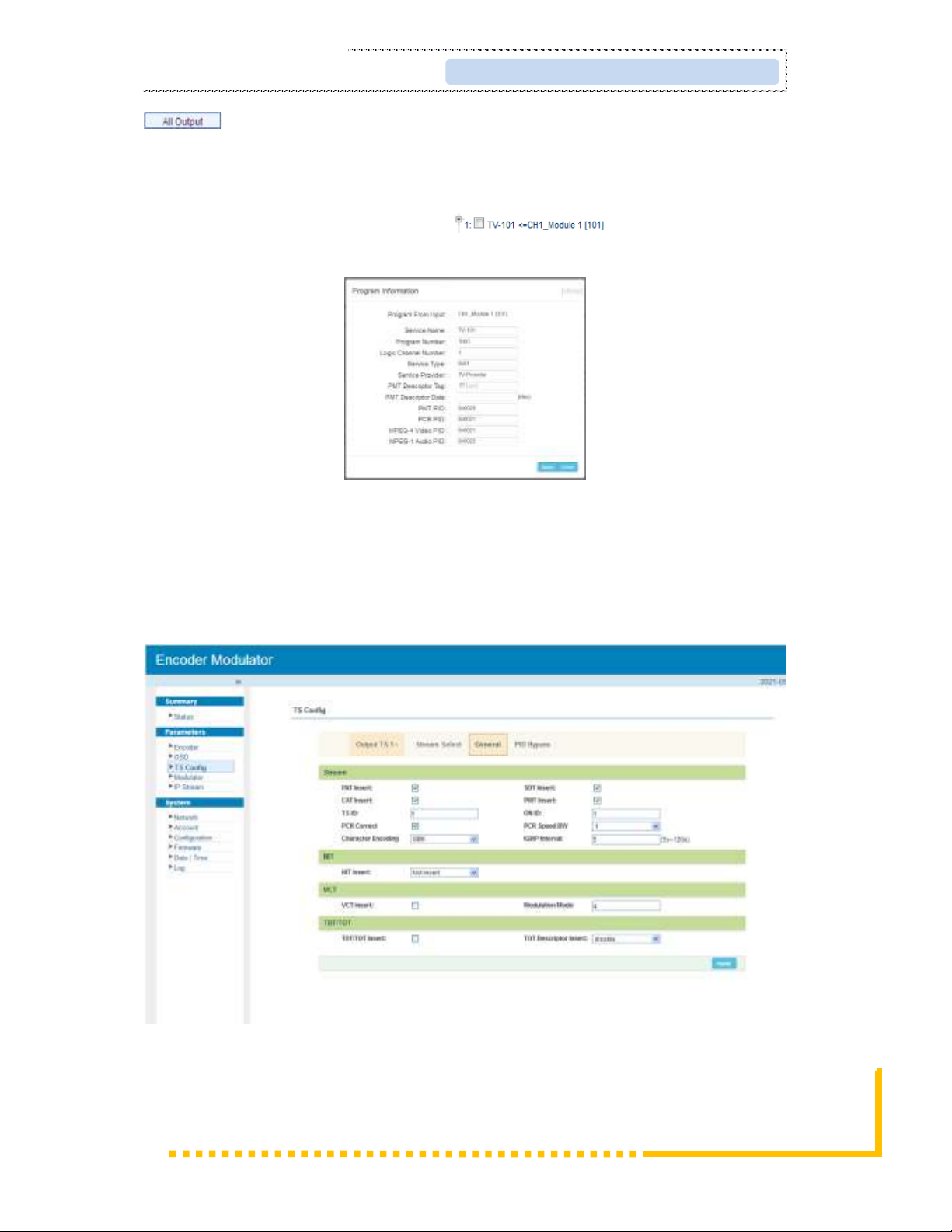

 Program Modification:
The multiplexed program information can be modified by clicking the program in the
‘output’ area. For example, when clicking , it triggers a dialog box
(Figure-9) where users can input new information.
Figure-9
 TS Config→
→→
→General:
From the TS Config menu on up side of the webpage, clicking “General”, it displays the
interface where users can enable PSI/SI table out, NIT insert and Character Encoding.
(Figure-10)
Figure-10

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
 TS Config→
→→
→PID B pass:
From the TS Config menu on up side of the webpage, clicking “PI Bypass”, it displays
the interface where users can enable PI Pass-through. (Figure-11)
Figure-11
Parameters →
→→
→ Modulator:
Clicking “Modulator”, it displays the Modulator Configuration screen as Figure-12.
EPS-H M1004ECO supports 2 VB-T RF out. Here user can set modulation
parameters, such as level, frequency and bandwidth etc.
Quickly Config
Channel Config

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Figure-12
Parameters →
→→
→ IP Stream:
EPS-H M1004ECO supports 2 TS to output in IP format through the ATA port.
Clicking “IP Stream”, it displays the interface where to set IP out parameters (Figure-13).
Figure-13

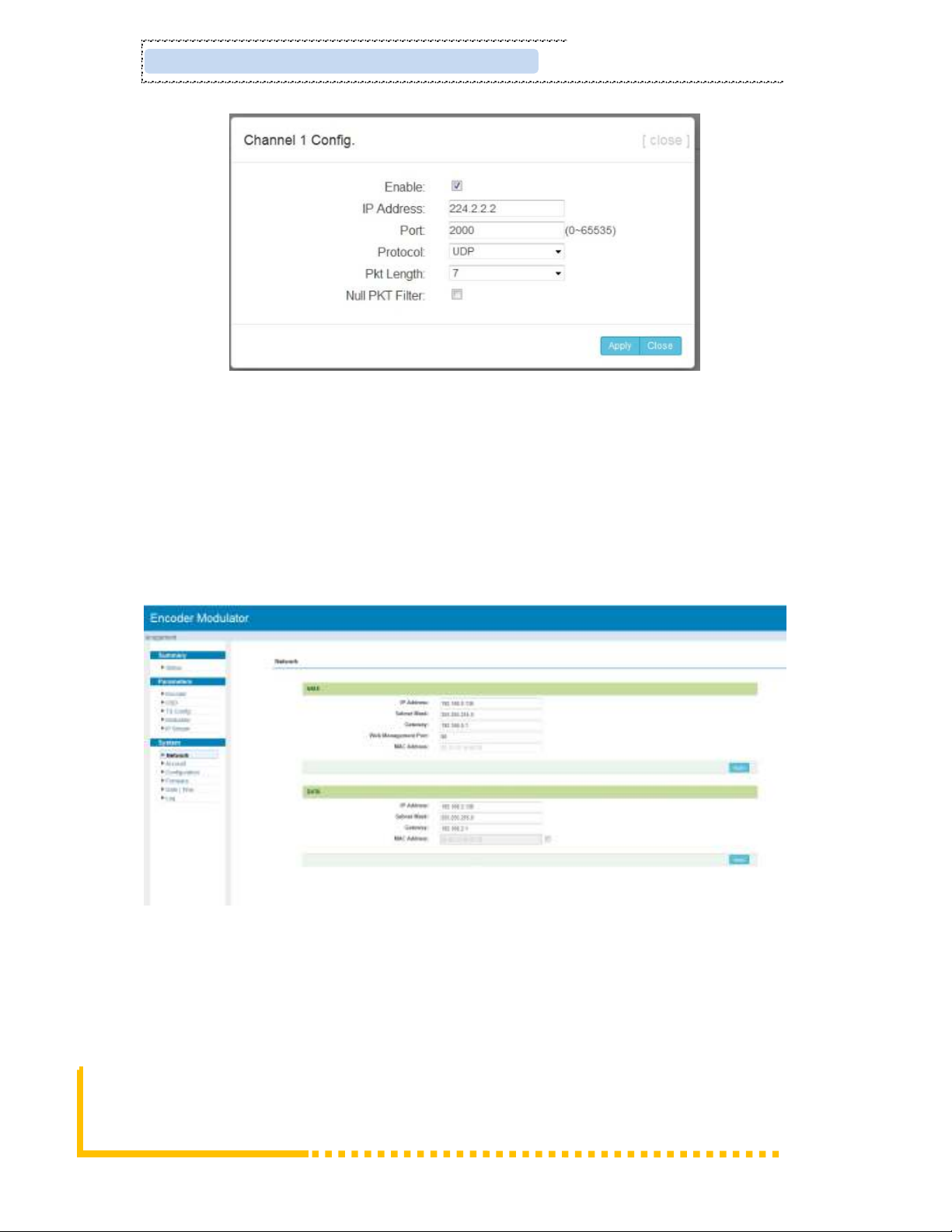

When users click “pen” button, it triggers a dialog box (Figure-14) where users can set the
corresponding channel configuration.
Channel Config

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Figure-14
When users click “ASI Out” list, users can set MPTS 1, 2 as the TS out via ASI out.
S stem →
→→
→ Network:
Clicking “Network”, it displays the interface as Figure-15 where to set network parameters.
Figure-15
S stem →
→→
→ Account:
Clicking “Account”, it displays the screen as Figure-16 where to set the login account and
password for the web NMS. Both the current username and password are “admin”.

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Figure-16
S stem →
→→
→ Configuration:
Clicking “Configuration”, it displays the screen as Figure-17 where to save/
restore/factory setting/ backup/ load your configurations.
Figure-17
S stem →
→→
→ Firmware:
Clicking “Firmware”, it displays the screen as Figure-18 where to update firmware for
the modulator.

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Figure-18
S stem→
→→
→ Date/Time:
From the menu on left side of the webpage, clicking “ ate/Time”, it will display the
screen as Figure-19 where to set date and time for the device.
Figure-19
S stem→
→→
→ Log:
Clicking “Log”, it displays the log interface as Figure-20 where to check or export the
Kernel/System log.

-16
EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Figure-20

EPS
-
H M
1004EC
O
Encoder Modulator
User Manual
Chapter 4 Troubleshooting
Prevention Measure
 Installing the device at the place in which environment temperature between 0 to
45 °C
 Making sure good ventilation for the heat-sink on the rear panel and other heat-sink
bores if necessary
 Checking the input AC within the power supply working range and the connection
is correct before switching on device
 Checking the RF output level varies within tolerant range if it is necessary
 Checking all signal cables have been properly connected
 Frequently switching on/off device is prohibited; the interval between every
switching on/off must greater than 10 seconds.
Conditions need to unplug power cord
 Power cord or socket damaged.
 Any liquid flowed into device.
 Any stuff causes circuit short
 evice in damp environment
 evice was suffered from physical damage
 Longtime idle.
 After switching on and restoring to factory setting, device still cannot work properly.
 Maintenance needed
Chapter 5 Packing List
EPS-H M1004ECO Encoder Modulator 1pc
H MI Cables 4pcs
Power Cord 1pc
