ELECTROCOMPANIET ECI 6DX MKI User manual

ECI 6DX MKII
Balanced Integrated Amplifier
with built-in DAC and next-gen streamer
Owner's Manual
EN
ECI 6 DX MK II

2
ENG
Welcome to the world of Electrocompaniet!
We thank you for choosing an Electrocompaniet high-end product.
At Electrocompaniet we are relentlessly focused on developing
audio equipment that is capable of bringing the fabulous
experience of the concert hall into the very heart of your home.
Our aim when developing and testing new products is to ensure
that the wonderful richness of tone and every nuance of feeling
and emotion of a piece of music is delivered to you just as the artist
intended.
We continually strive to give you the very best musical listening
experience available whatever your preferred musical genre.
Sincerely yours,
The Electrocompaniet team

3
ENG
Unpacking the ECI 6DX MKII
Immediately upon receipt of the ECI 6DX MKII, inspect the carton for possible damage
during shipment. The carton and packaging have been designed to provide the safest
possible protection for transport of your integrated amplifier. Unpack the unit carefully.
Save all packaging materials for future shipment.
The contents of the carton
• 1 pc. Electrocompaniet ECI 6DX MKII Integrated amplifier
• 1 pc. AC main cord.
• 1 pc. Spare main fuse (located in the fuse drawer, 3.15AT /250VAC or 5AT/115VAC)
• 1 pc. Inspection card.
• 1 pc. Important notice.
• 1 pc. IR Remote control .
• 2 pcs. Batteries.
Set up procedure
Before connecting the ECI 6DX MKII to the AC Power outlet, check that the main
voltage indicated on the rear panel corresponds to the line voltage in the country
where you intend to use the unit.
How to avoid damages
Do not under any circumstances connect or disconnect equipment when power is
turned on. The design of the RCA plug generates a huge transient when inserted.
Connecting or disconnecting equipment with the power on can result in severe
damage to both speakers and amplifier.
How to avoid noise problems
The ECI 6DX MKII contains delicate circuits that are sensitive to magnetic stray fields. The
unit should not be placed near power voltage transformers, TV sets etc. Care should also
be taken regarding placement of the interconnect cables. Do not run interconnect cables in
parallel with main cords or speaker cables. Keep interconnect cables as short as possible.
How to avoid possible antenna problems
In some set-ups hum may occur when you connect the radio, VCR or TV to your
system. The problem is caused by DC voltage coming from your antenna. Please
contact your cable network operator.

4
ENG
How to connect your system

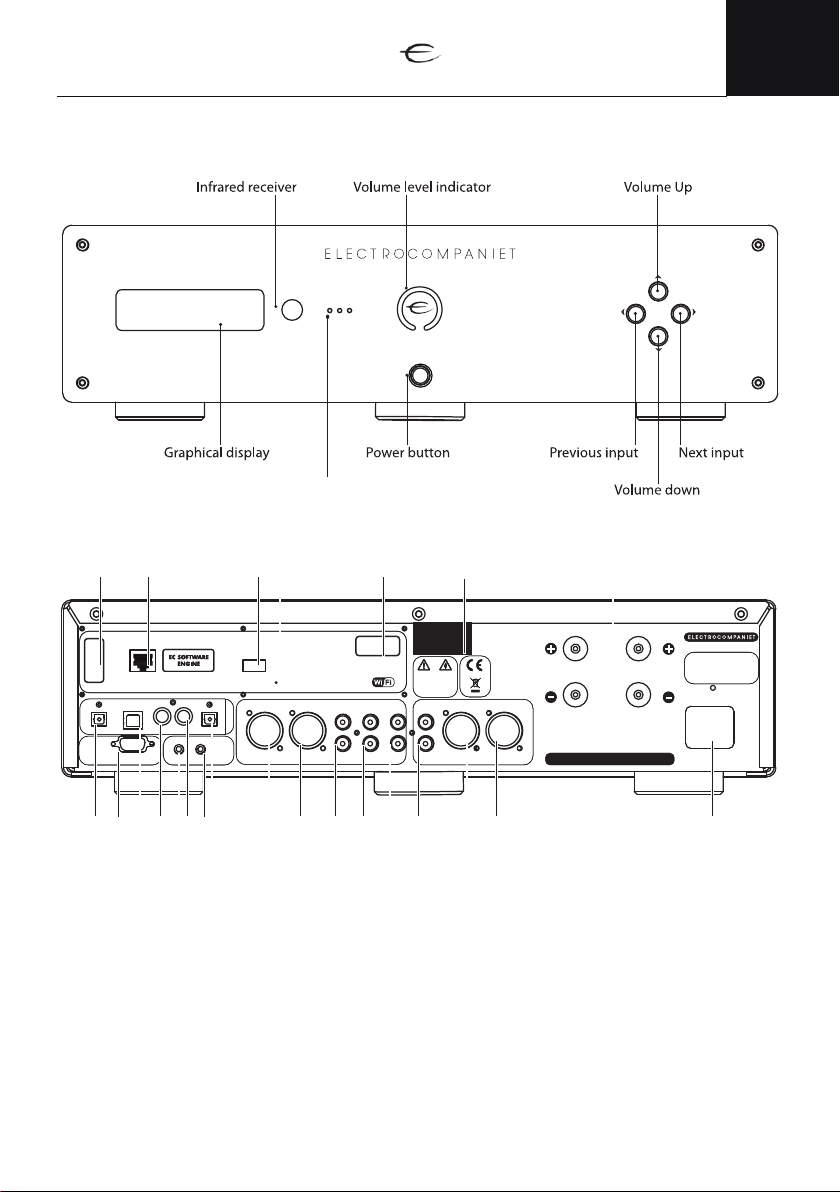

Please read this page carefully and use rear panel illustration at page 17 as reference.
Balanced XLR input and operation
The balanced mode can only be used if the signal source has a balanced output. Use
an XLR interconnect with GND on pin 1, + on pin2, and - on pin 3. To use the balanced
input with a single ended source, connect the ECP5XLR in the XLR.
Single ended RCA input and operation:
The left channel is the top row on the rear, marked black. All inputs are similar
regarding sonic performance. Unused inputs may be shorted to ground, using a RCA
shorting plug.
HT (Home Theatre)
HT is a direct input where the volume control is bypassed. ECI 6DX MKII will work like
a power amplifier with fixed gain. When selected the output will be muted for a few
seconds as a safety against accidental overload.
Preamp out:
The preamp out is dependent on the volume control setting, and MUTE function. These
outputs (balanced and single ended) can be used to control an additional power
amplifier.
Speaker output:
Never short the positive output to ground or chassis. Switch the amplifier off when
connecting the speakers.
How to power up your system
You should always power up your system the following way:
Signal sources (CD player, tuner etc.) first. Allow a 30 seconds warm-up before you turn
on the ECI 6DX MKII.
When switching off your system
Start with the ECI 6DX MKII, then the signal sources. If the preamplifier output is
connected to a power amplifier, then turn off the power before or at the same time as
ECI 6DX MKII.
SPDIF inputs
ECI 6DX MKII will accept optical SPDIF sources up to 96 kHz/24bit on inputs TOSLink1
and TOSLink2. Please use a optical TOSLink cable for this connection. Connect coaxial
sources up to 192kHz/24bit to inputs COAX1 and COAX2. Please use a coaxial SPDIF
cable for this connection.

5
ENG
12V trigger Input/Output
The 12V trigger output may be used to automatically power up a CD-player (or other
equipment with 12V trigger input) when ECI 6DX MKII is powered up. When ECI 6DX
MKII powers up the 12V trigger output will be set to 12V and will support up to 75
mA current output. Please keep the current draw below 75 mA by limiting the number
of devices connected to the 12V trigger output.
The ECI 6DX MKII will power up (leave standby) when a voltage in range 8-20V (AC
or DC) is present on the 12V trigger input, and stays powered on for as long as the
voltage is present. The current draw at the 12V trigger input is 3.3mA.
RS-232 Control Port
The RS-232 control port may be used in home installation setups or general usage for
controlling basic functionality on the ECI 6DX MKII. Please refer to document "ECI6DX
RS232 Command Reference V1.pdf" for further information. This document may be
downloaded from www.electrocompaniet.com
Streaming from your network, or the internet
The media streamer of the ECI 6DX MKII can connect to your network wirelessly, or using
a cable. For optimal stability, a cabled connection is recommended.
Since the ECI 6DX MKII supports gigabit ethernet, category CAT5e or higher is recom-
mended. We recommend the use of unshielded cables (UTP), to avoid ground loops.
When using a wireless connection, one has a choice between using a 2.4GHz or a
5GHz network. The optimal choice is highly dependent on the environment. Generally
speaking, 5GHz is recommended for short-range since it will then offer the highest
throughput and stability. At longer ranges, 2.4GHz is recommended due to its superior
range.
Direct USB input (square USB-B connector):
This connection is to use the amplifier as a sound-card for your PC. It allows you to play up
to 196kHz/24bits directly through the DAC of the amplifier.
USB media library input (rectangular USB-A connector):
This connects to the streamer and allows you to attach music storage media, such as USB
sticks and hard drives. These can then be added to the music library, making these files
always available for playback.
From within the app, go to More (...) -> Bluetooth to enable pairing. The red LED on the
front panel flashes to indicate the unit is in pairing mode. Go to your phone or tablet’s
Bluetooth settings to find your unit and connect to it. Subsequent connections from the
paired device wil not need pairing to be enbled.
ENABLING

6
ENG
FIRST TIME SETUP
Your ECI 6 DX MKII is equipped with a setup guide through the App that quickly configures the
most common settings. In order to access this guide, the ECI 6 DX MKII should be connected
to your network by ethernet cable. (not included)
WiFi link
LAN Cabl
Wireless Router
iOS / Android/ PC or Mac
e
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
DIGITAL INPUT
NETWORK & STREAMING SECTION
COAX 1 COAX 2 TOSLINK 2
TOSLINK 1
USB
LAN USB RESET
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT

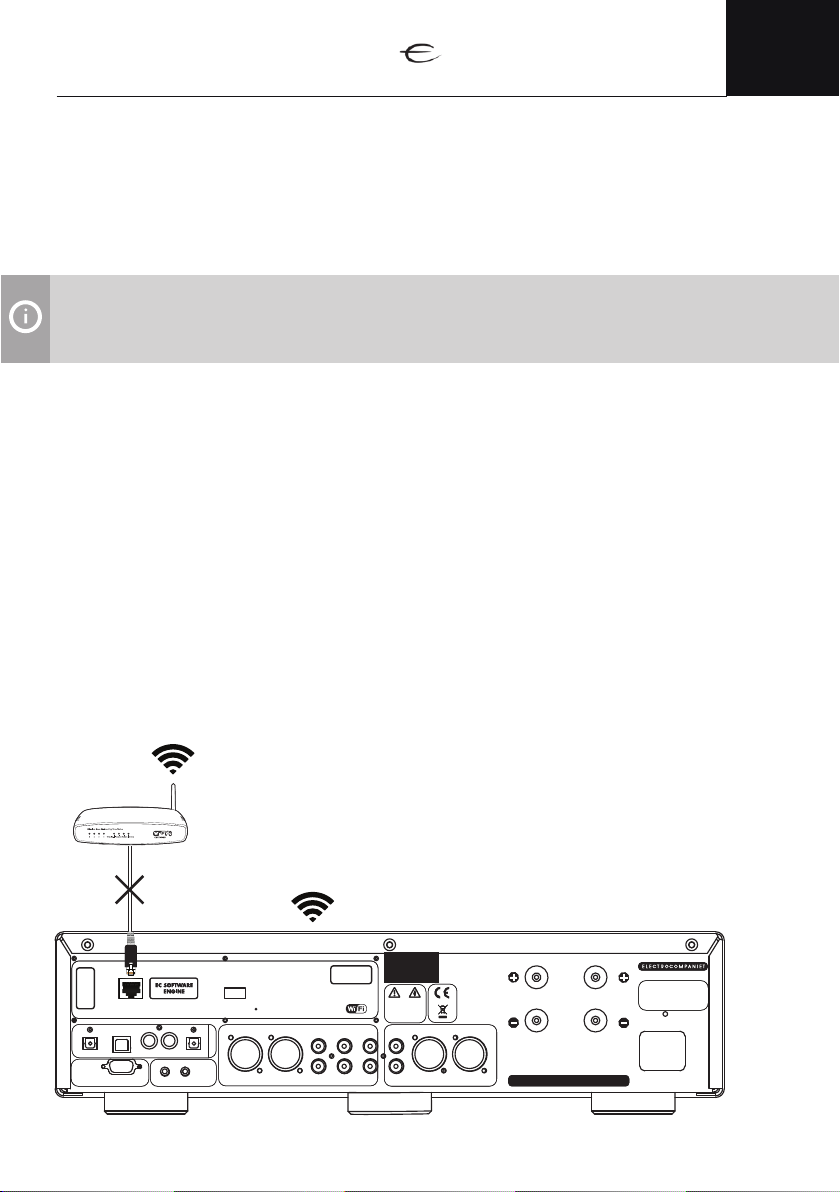

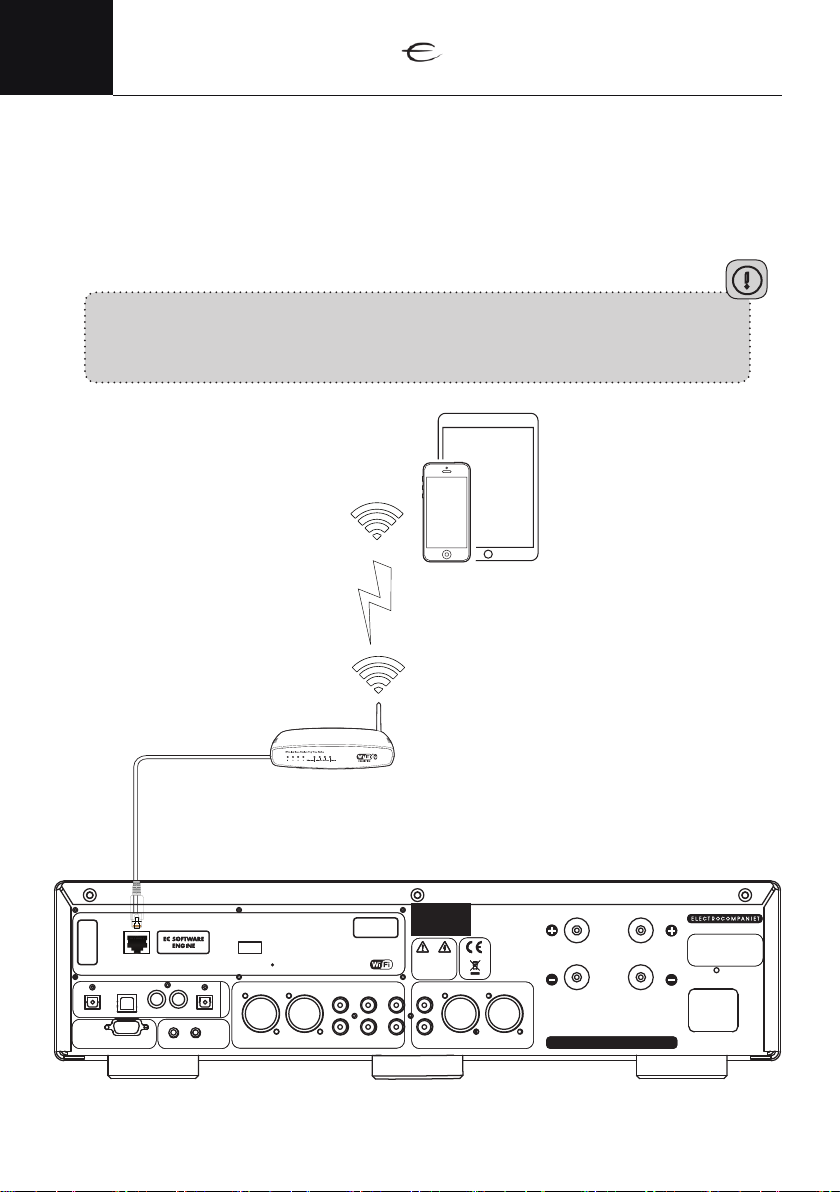

If you don’t have access to a router or can’t connect the system using an Ethernet cable,
please go to page10 to set up the system wirelessly.”

7
ENG

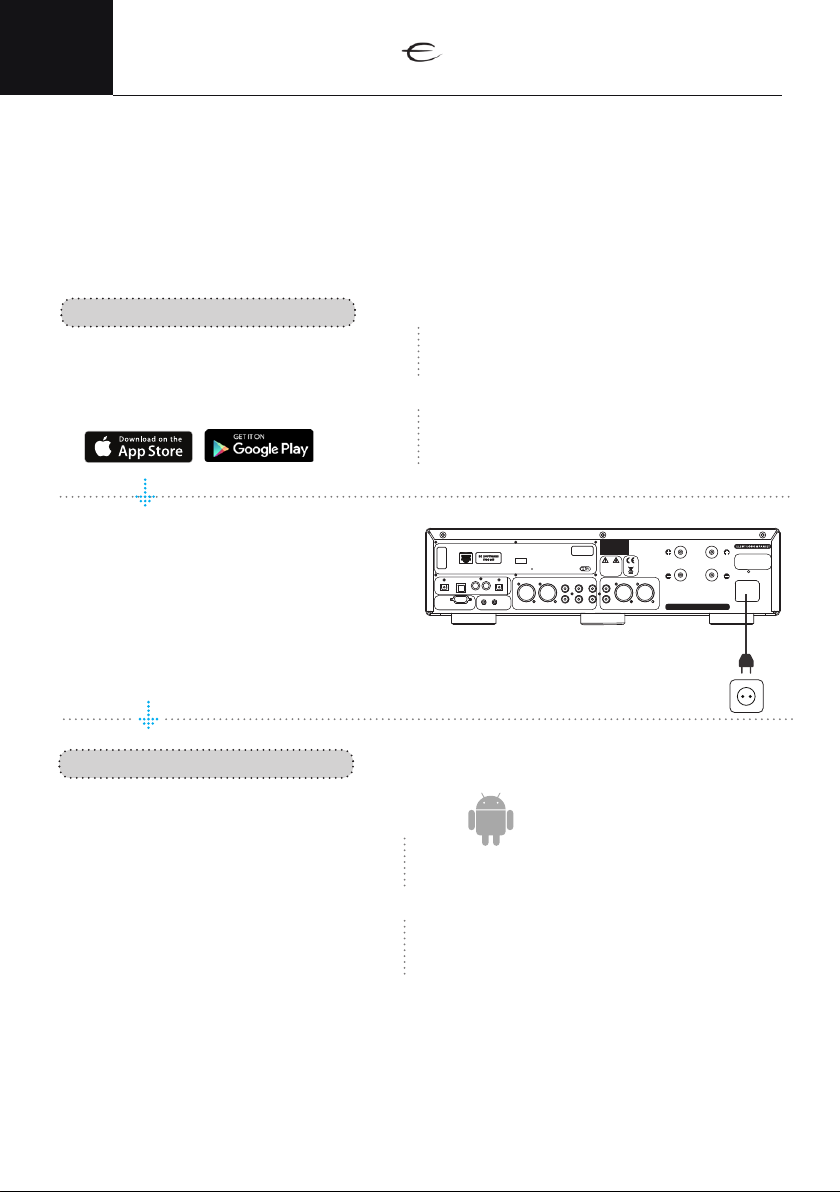

Download the “EC PLAY” App
The free App is available at Apple
store or Google Play. Search for:
“EC PLAY” or “Electrocompaniet”
Connect to your router
In order to establish a Wi-Fi connection
you have to use a LAN cable which
connects to you local network, or
directly to your router.
*LAN cable is not included. Please
use any standard RJ45 cable.
Connect the power cable
Power up the ECI 6DX MKII by
connecting the power cable included
in the box and pressing the power on
button at the front panel.
Use your PC, Mac or Linux
machine with a web browser
INITIAL SETUP PROCEDURE WITH A CABLE CONNECTION
The first time you set up your ECI 6DX MKII
OR
RECOMMENDED
WiFi link
LAN Cabl
Wireless Router
iOS / Android/ PC or Mac
e
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
DIGITAL INPUT
NETWORK & STREAMING SECTION
COAX 1 COAX 2 TOSLINK 2
TOSLINK 1
USB
LAN USB RESET
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
DIGITAL INPUT
NETWORK & STREAMING SECTION
COAX 1 COAX 2 TOSLINK 2
TOSLINK 1
USB
LAN USB RESET
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT

8
ENG
Start your “EC PLAY” App
As long as you have downloaded the
App following the previous instructions,
you will find the App where you nor-
mally find other Apps on your device.
1. Start the App.
2. Press the “setup a new system” in the
app. Follow the on-screen instructions in
the app to setup your system.
Use a web browser
Enter the address of your ECI 6DX MKII in
the web browser.
If you are using a Mac or Linux machine,
this will be “ ECI 6DX MKII -<number>.
local”. Where <number> is the last 4 digits
of the serial number, excluding leading
zeros
(e.g. “ECI6DXMKII-565.local”).
On a PC, please enter the system’s IP ad-
dress. You may find this address in your
router, by referencing the ECI 6DX MKII
MAC address. Please follow your router
manufacturer’s instructions for finding an
IP address given a MAC address.
FOLLOW THE ON-SCREEN INSTRUCTIONS
OR
RECOMMENDED ALTERNATIVE
You are done, tap FINISH to complete
You have now completed the setup of your system.
For test, please select Radio from the main screen.
Select Top100 stations and pick a station to test the system.

9
ENG
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
DIGITAL INPUT
NETWORK & STREAMING SECTION
COAX 1 COAX 2 TOSLINK 2
TOSLINK 1
USB
LAN USB RESET
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
ENABLING WIRELESS CONNECTION
This step is only necessary if you want the system connected to your wireless network.
If you want to continue using wired connection (LAN cable), simply skip this page.
(We recommend using wired connection if possible to reduce Wi-Fi traffic and
achieve best possible network stability for the system.)
NOTE:
There is no benefit in connecting both WiFi and cable. Please only use one or the other.
Wireless network setup:
1. Start the EC PLAY App.
2. Tap MORE button at the bottom right menu.
3. Tap NETWORK.
4. Scroll down and tap CONFIGURE WIFI .
5. Select your wireless network. (Mobile/tablet must be on the same network)
6. Enter your password, tap “Join” or “OK”
7. Remove the LAN cable and wait until the Rooms button appear.
Tap Room and reselect your ECI 6DX MKII.
If you loose connection with the system, reconnect the network cable and
check your network password carefully.

10
ENG
Download the “EC PLAY” App
The free App is available at Apple store
or Google Play. Search for: “EC PLAY” or
“Electrocompaniet”
Connect the power cable
Power up the ECI 6DX MKII by connecting
the power cable included in the box and
pressing a power on button at the back
panel.
iOS Apple devices:
1. Go to settings -> WiFi.
2. Wait until you see on the right side
an entry under “SET UP NEW AIRPLAY
SPEAKER” on the lower part of the display.
The unit will appear as ECI6DXMKII -
<serial nr.>. Select it. Follow the steps on
screen.
( Leave the password empty )
3. Start the EC PLAY App and follow
on-screen instructions.
Android devices:
1. Go to settings -> WiFi
2. Select the system access point in your
Wi-Fi settings. The access point will
be named after your system and serial
number. For example, “ECI6DXMKII -10”,
3. Start the EC PLAY App and follow
on-screen instructions.
Use your PC, Mac or Linux
machine with a web browser
PERFORMING THE INITIAL SETUP WIRELESSLY
The first time you set up your ECI 6DX MKII .
If you can’t perform the setup via ethernet cable (recommended).
Then please follow the steps below. Otherwise, please skip this page.
OR
OR
RECOMMENDED
RECOMMENDED
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
DIGITAL INPUT
NETWORK & STREAMING SECTION
COAX 1 COAX 2 TOSLINK 2
TOSLINK 1
USB
LAN USB RESET
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT

11
ENG

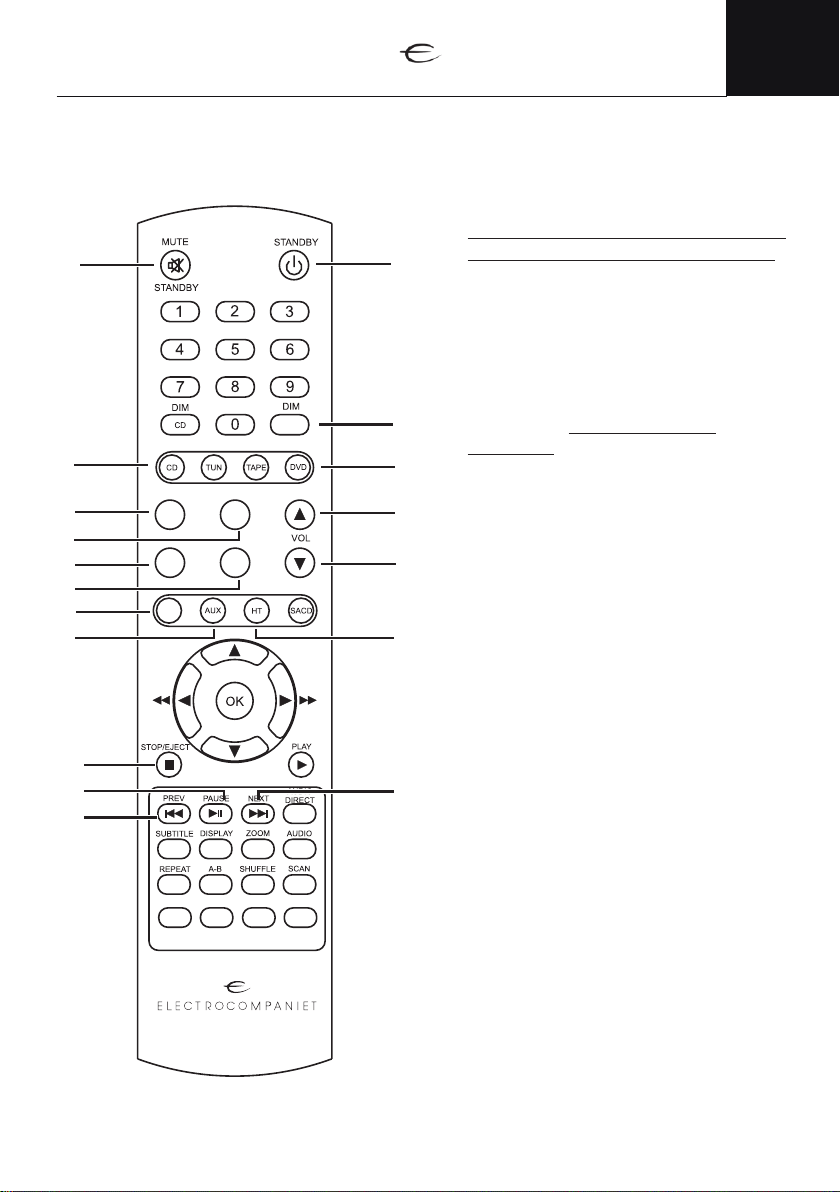

Remote control
1. Mute - on/off.
Standby mode - hold mute1-2 sec. to set
the ECI 6DX MKII into a standby mode.
2. CD - switch to CD input
3. COAX1 - switch to COAX 1 input.
4. TosLink1 - switch to TosLink1 input.
5. COAX 2 - switch to COAX 2 input.
6. TosLink2 - switch to TosLink2 input.
7. USB - switch to USB input.
8. AUX - switch to AUX input.
9. Standby - not in use with the
amplifiers. Work as Standby with a
players.
10. Amp DIM - dimming the amplifiers
display.
11. DVD - switch to DVD input.
12. Volume up - increase the volume.
13. Volume down - decrease the volume.
14. HT - switch to a Home theater input.
15. Next track
16. Stop
17. Play/Pause
18. Previous track
Replacing batteries
Use 2pcs AAA or LR03 batteries.
Observe correct polarization when
inserting batteries.Please remove
batteries when the remote is not used for
a prolonged period of time.
Using the remote
When using the remote control, the
front end of the remote control should
be pointed to the front panel of your
ECI 6DX MKII. A free line of sight is
required between the remote and the
infrared sensor on the front panel.
MENU
USB
COAX1
AMP
COAX2 TOS
Link 2
TOS
Link 1
TOP MENU SETUP S.MODE
1
2
3
4
5
6
7
16
17
18
8
9
10
11
12
13
15
14

12
ENG
Audio
Source
Display
Text
Description
CD CD Analog balanced XLR input
AUX AUX Analog single-ended RCA input
DVD DVD Analog single-ended RCA input
HT HT Analog single-ended home theater RCA input
COAX 1 COAX1 Coaxial S/PDIF input up to 192 kHz/24 bit
COAX 2 COAX2 Coaxial S/PDIF input up to 192 kHz/24 bit
TosLink 1 TOSLNK1 Optical S/PDIF input up to 96 kHz/24 bit
TosLink 2 TOSLNK2 Optical S/PDIF input up to 96 kHz/24 bit
USB USB Asynchronous High Speed USB 2.0 input up to
192kHz/24bit
Streamer <Current
source>
Streaming audio from network or internet. Streaming source is
shown on the display (e.g. “TIDAL”)
Front panel (see illustration, page 15)
The main switch is located in the center of the lower part of the front panel. In daily
operation, switch off the ECI 6DX MKII by press and hold the Mute button on the
remote control (see page 17). If the ECI 6DX MKII has been switched off, allow two
hours of warm-up for optimal sonic performance. When the ECI 6DX MKII is not to be
used for a long period of time, use the main switch to turn the unit off. Then disconnect
the AC main cord for maximum safety.
Navigator
Button Function Description
UP Volume Up Increases the volume level.
DOWN Volume Down Decreases the volume level.
LEFT Select source left Selects the next source to the left.
RIGHT Select source right Selects the next source to the right.
Navigator window

13
ENG
Replacing a blown main fuse
The main fuse is located in a small drawer inside the AC inlet of the unit. If, for some
reason the fuse is blown, turn the unit off, and remove the AC cord from the AC inlet.
Open the drawer with a small screwdriver and remove the blown fuse. The spare fuse
is located inside a holder in front of the main fuse.
1. Remove the spare fuse gently by pushing it sideways out of its holder.
2. Insert the spare fuse as the active fuse.
3. Push the drawer gently back to closed position.
4. Re-insert the AC cord and turn the unit on.
Never replace the fuse with another value than indicated on the unit!
Input configurations
XLR input: 1 = ground 2 = positive 3 = negative
RCA: Center = positive Circle = ground.
Output configurations
XLR output: 1 = ground 2 = positive 3 = negative
Speaker: Red = positive Black or White = ground
ECP5XLR:
RCA to XLR adapter: 1 & 3; ground and negative = shorted 2 = positive
Updating the ECI 6DX MKII firmware
When connected to the internet, the ECI 6DX MKII will automatically download and
install the latest firmware.
For release notes and further information, please refer to our website, in the “Firmware
and software” area (under “Downloads”).

14
ENG
ERROR CODES
If the ECI 6DX MKII is not working properly, the display will show an error code.
The error codes are:
Display Error
text
Description What to do
DC FAULT LEFT DC voltage left channel Please contact service center.
DC FAULT
RIGHT
DC voltage right
channel
DC DC left + right channels
OVERLOAD
FAULT
LEFT
Overload of left
channel Make sure that the + and – leads of the
loudspeaker cables are not shorted, and
that the speaker cables are not in contact
with the chassis of ECI 6DX MKII.
OVERLOAD
FAULT
RIGHT
Overload right channel
OVRLOAD Overload left+right
channels
TEMPERATURE Over temperature left+right
channel
The amplifier is overheated. This is caused
by either playing to loud for a long period
of time, or not enough free space on the
sides or above the ECI 6DX MKII.
Turn down the volume and make sure there
is enough free space around the amplifier.
For troubleshooting please contact your local dealer or our support department. All
contact information you will find at www.electrocompaniet.com
ECI 6DX MKII STATUS INDICATORS (see illustration, page 17)
There are three status LEDs on a front panel indicating the status of your system.
System state Led state Colour
Start-up Flashing fast, then on only for 10s Green
Scanning library Flashing slow. Will turn off when
the scanning is completed
Green
No network Solid Orange
Bluetooth pairing Flashing fast for 1 minute Red
Recovery Solid Red
Recovering USB Solid / Flashing Green/Red
Ready for Airplay WAC setup Solid Green

15
ENG
TIPS AND TROUBLESHOOTING
Streaming from Apple devices
On Apple devices, it is possible to stream all audio from your iPhone/iPad to the
ECI 6DX MKII via “Airplay”. This is represented by this symbol
We do not recommend using this system playing from Spotify, Qubuz and Tidal. Instead,
use our EC PLAY App to control playback.
For Spotify, use Spotify connect, as represented in the Spotify App by the device icon.
This will allow the ECI 6DX MKII to stream directly from the internet, which optimizes the
bandwidth, and saves battery life on your iPhone/iPad.
Connecting to WiFi
We recommend that the ECI 6DX MKII has a link quality of minimum 70%, and better
than 40 Mb/s link speed. This can be verified in our App, in the More -> Network
menu. Higher link quality and speed is recommended for a better user experience. We
recommend a wireless AC router with MIMO technology for maximum performance.
Resetting your system
If your system acts strangely, it can be reset to its default settings by using a paperclip
to press the RESET button in the back ( see illustration “rear panel overview”) The yellow
led will blink a few times, after which the green led will start to blink. The unit will have
restarted into the initial setup and you can then follow the steps in this quick start guide.
To fully reset the software of the system, please go to Firmware and Software chapter under
support on www.electrocompaniet.com and follow the instructions for software download.
WI-FI Setup with WAC ( Wirelesss accessory configuration)
- If airplay speaker is not shown, or my unit does not appear there?
Make sure that the green LED is on. If it is off, press the RESET button.This resets and
restarts the unit, and it will be back online in about one minute.
If the LED still not turns on green, please contact support. If the LED is on but the unit still
does not appear, please temporarily connect the unit to the network by Ethernet cable, and
follow the steps on page 7.

16
ENG
Technical specifications ECI 6DX MKII:
The following technical data were measured on randomized test objects and are
typical data. All measurements are made at 120V / 240V // 50Hz / 60Hz. Clipping
point of the amplifier is set to a level where total harmonic distortion (THD) is 0.2 %.
Fuse value: 250VAC/ 3.15AT, 115VAC/5AT.
Preamplifier section:
Input impedance (Balanced input)............................................................ 47 kOhm
Noise floor (1Vrms, 20 - 20 kHz, balanced)............................................ < -135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced) .............................................. <0,003%
Gain (Balanced)............................................................................................0 dB
Amplifier section:
Output Impedance .............................................................................< 0,02 Ohm
Frequency response (- 3 dB)................................................................1 – 150 kHz
Channel separation.................................................................................> 120 dB
THD + N (20 - 20 kHz).........................................................................< 0,004%
Maximum peak current................................................................................>100A
Damping factor (8 ohm load).........................................................................>350
Input sensitivity (125W output).................................................................1.3Vrms
Input sensitivity HT (125W output).................................................................1Vrms
Gain HT (input)....................................................................................31dB (x36)
SPDIF inputs........................................................................ 2 x Coax, 2 x TOSLink
USB...........................................................................................1x 192kHz/24bit
Streamer section:
• Advanced 802.11 AC WiFi with MIMO
• 1x Gigabit Ethernet (1000Mbps)
• 1x USB for external storage
• iOS, Android and web app
Rated output power 10 % change in line voltage will give approximately 20 % change in output power.
8 Ohm................................................................................................2 x 125 W
4 Ohm................................................................................................2 x 200 W
2 Ohm................................................................................................2 x 370 W
Power consumption (no load or signal).........................................................110 W
Standby..........................................................................................................1W
Dimensions
Width: 470 mm - 18,5 inch
Depth: 430 mm - 16,9 inch
Height: 128 mm - 5,0 inch
Weight: 20,5 Kg - 45 lbs
*Specifications are subject to change without further notice.

17
ENG
ECI 6 DX MK II
Status indicators
ECI 6DX MKII Front and Rear panel illustrations
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
DIGITAL INPUT
NETWORK & STREAMING SECTION
COAX 1 COAX 2 TOSLINK 2
TOSLINK 1
USB
LAN USB RESET
ANALOG INPUT
RS-232 12V TRIGGER PREAMP OUTPUT
L
R
L
R
L
R
IN OUT
DVD AUX HT RIGHT LEFT
CD RIGHT CD LEFT
SPEAKERS MAINS INPUT
CAUTION!
DO NOT OPEN
RISK OF ELECTRICAL
SHOCK
FUSE:
200-240VAC: 3.15AT/250V
100-120VAC: 5AT/250V
DESIGNED AND MANUFACTURED BY
BREIVIKVEIEN 7, 4120 TAU, NORWAY
RIGHT LEFT
1 2 3 4 5 6 7 8 910 11 12 13 14 15 16
17
18
19 19 2321 22
20
1. Optical digital input, TOSLink 1
2. RS 232 connection
3. USB audio input
4. Coaxial digital input 1
5. 12 V trigger input
6. Coaxial digital input 2
7. 12 V trigger output
8. Optical digital input 2, TOSLink 2
9. Balanced analog right CD input
10. Balanced analog left CD input
11. DVD analog inputs
12. AUX analog inputs
13. Home theater analog inputs
14. Pre-amplifier analog output
15. Pre-amplifier Balanced analog right output
16. Pre-amplifier Balanced analog left output
17. Serial number
18. AC Power Inlet
19. WLAN antenna
20. Ethernet connection
21. USB port
22. Reset button
23. Speaker outputs

18
ENG
IR Remote control codes
RC5 codes are denoted as xx.yy where xx is 5 bit adress and yy is 6 bit command/
data. All numbers are in decimal. RC6 codes are denoted as xxx.yyy. xxx is 8 bit
adress. yyy is 8 bit command code. All numbers in decimal. All RC6 codes are mode 0.
Key label Code
Type
Code
Hex
Comments
MUTE RC5 10.0D Same as on the integrated- and pre-amplifiers.
DIM AMP RC5 10.0F
NEXT RC6 04.20
PREV RC6 04.21
STOP RC6 04.31
PAUSE RC6 04.30
VOL UP RC5 10.10 Same as on the integrated- and pre-amplifiers.
VOL DOWN RC5 10.11 Same as on the integrated- and pre-amplifiers.
COAX1 RC5 10.12
COAX2 RC5 10.13
TOSLink1 RC5 10.0A
TOSLink2 RC5 10.0B
HT RC5 10.3A
AUX RC5 10.3C
DVD RC5 10.39
CD RC5 10.14
TUNER RC5 10.15
USB RC5 10.1C

19
ENG
If service is needed
Your dealer will have all relevant information regarding the service centers in your area,
and will ensure that your unit is serviced with minimum delay. It is our general policy to
have your unit returned to you within five working days. This is an average time and can
vary locally, depending on the workload at that particular service station. If, for some
reason there are no service facilities available in your country, contact Electrocompaniet support
first. If requested to do so by technical personell, please ship the unit to the following address:
EC Living AS,
Breivikveien 7,
N-4120 Tau,
Norway
Web: www.electrocompaniet.com
Service department: support.electrocompaniet.com
The end user is responsible for all shipping charges, insurance, re-import and dutycharges.
When shipping a product to the factory for service, always include the following:
1. A sales slip or other proof of purchase if repair is claimed under warranty.
2. A proforma invoice with value of goods, stating that the ECI 6 DX MKII is returned to
Norway for repair.
3. An accompanying letter describing faults, symptoms, or problems with the unit.
4. Always ship the unit in its original carton and packaging material to prevent damage in
transit.
Electrocompaniet will not cover damages incurred in transit. If you require further information
concerning the operation of the unit, or if you have any questions related to service, please do
not hesitate to contact your dealer or your national distributor.
User Manual Updates Online
An updated version of the User Manual may be available online at the Electrocompaniet
web site. Occasional updates are needed to reflect new features added to the player
since the user Manual was printed. As future firmware updates bring in new features and
functions, the online version of the user Manual will be updated accordingly.
Copyright Protection
Reverse engineering or disassembly is prohibited. Part of the software is open-sourced
under the GPL license. Please contact us for availability.

Warning!
To avoid risk of fire or electric shock, do not expose this appliance to rain or moisture.
Verify line voltage before use. Do not remove cover. No user serviceable parts inside.
Refer servicing to qualified service personal. The warranty is void if the product is tampered
by non-authorised personnel.Use only authorized Electrocompaniet service center.
LOCAL DEALER
DEALER
STICKER
HERE
REV 1.0 2020
Designed and manufactured in Norway
www.electrocompaniet.com
