Welcome to the world of Electrocompaniet!
We thank you for choosing an Electrocompaniet high-end product.
At Electrocompaniet we are relentlessly focused on developing
audio equipment that is capable of bringing the fabulous experi-
ence of the concert hall into the very heart of your home.
Our aim when developing and testing new products is to ensure
that the wonderful richness of tone and every nuance of feeling
and emotion of a piece of music is delivered to you just as the artist
intended.
We continually strive to give you the very best musical listening
experience available whatever your preferred musical genre.
Sincerely yours
Mikal Dreggevik
CEO

3
ENG
Unpacking the ECI 6
Immediately upon receipt of the ECI 6, inspect the carton for possible damage
during shipment. The carton and packaging have been designed to provide the
safest possible protection for transport of your integrated amplifier. Unpack the
unit carefully. Save all packaging materials for future shipment.
The contents of the carton
• 1 pc. Electrocompaniet ECI 6 Integrated amplifier.
• 1 pc. AC main cord.
• 1 pc. Spare main fuse (located in the fuse drawer,
3.15AT /250VAC or 5AT/115VAC)
• 1 pc. Inspection card.
• 1 pc. Owner's manual.
• 1 pc. IR Remote control
• 2 pcs. AAA/LR03 Batteries
Set up procedure
Before connecting the ECI 6 to the AC Power outlet, check that the main voltage
indicated on the rear panel corresponds to the line voltage in the country were
you intend to use the unit.
How to avoid damages
Do not under any circumstances connect or disconnect equipment when power
is turned on. The design of the RCA plug generates a huge transient when
inserted. Connecting or disconnecting equipment with the power on can result in
severe damage to both speakers and amplifier.
How to avoid noise problems
The ECI 6 contains delicate circuits that are sensitive to magnetic stray fields. The
unit should not be placed near power voltage transformers, TV sets etc. Care
should also be taken regarding placement of the interconnect cables. Do not run
interconnect cables in parallel with main cords or speaker cables. Keep intercon-
nect cables as short as possible.
How to avoid possible antenna problems
In some set-ups hum may occur when you connect the radio, VCR or TV to your
system. The problem is caused by DC voltage coming from your antenna. Please
contact your cable network operator.

4
ENG
How to connect your system
Please read this page carefully and follow, page 11-12 as reference.
Balanced XLR input and operation
The balanced mode can only be used if the signal source has a
balanced output. Use an XLR interconnect with GND on pin 1, + on
pin2, and - on pin 3. To use the balanced input with a source single
ended, connect the ECP5XLR in the XLR
Single ended RCA input and operation:
The left channel is the top row on the rear, marked black. All inputs are
similar regarding sonic performance. Unused inputs may be shorted to
ground, using a RCA shorting plug.
HT (Home Theatre)
HT is a direct input where the volume control is bypassed. ECI 6 will
work like a power amplifier with fixed gain. When selected the output
will be muted for a few seconds as a safety against accidental overload.
Preamp out:
The preamp out is dependent on the volume control setting, and MUTE
function. These outputs (balanced and single ended) can be used to
control an additional power amplifier.
Speaker output:
Never short the positive output to ground or chassis. Switch the amplifier
off when connecting the speakers.
How to power up your system
You should always power up your system the following way:
Signal sources (CD player, tuner etc.) first. Allow a 30 seconds warm-up
before you turn on the ECI 6.
When switching off your system
Start with the ECI 6, then the signal sources. If the preamplifier output is
connected to a power amplifier, then turn off the power before or at the
same time as ECI 6.

5
ENG
12V trigger Input/Output
The 12V trigger output may be used to automatically power up a
CD-player (or other equipment with 12V trigger input) when ECI 6 is
powered up. When ECI 6 powers up the 12V trigger output will be set
to 12V and will support up to 75 mA current output. Please keep the cur-
rent draw below 75 mA by limiting the number of devices connected to
the 12V trigger output.
The ECI 6 will power up (leave standby) when a voltage in range 8-20V
(AC or DC) is present on the 12V trigger input, and stays powered on
for as long as the voltage is present. The current draw at the 12V trigger
input is 3.3mA.
RS-232 Control Port
The RS-232 control port may be used in home installation setups or general
usage for controlling basic functionality on the ECI 6. Please refer
to document "ECI6DS RS232 Command Reference V1.pdf" for further infor-
mation. This document may be downloaded from www.electrocompaniet.no

6
ENG
Audio
Source
Display
Text
Description
CD CD Analog balanced XLR input
AUX AUX Analog single-ended RCA input
DVD DVD Analog single-ended RCA input
HT HT Analog single-ended home theater RCA input
Front panel (see illustration below)
The main switch is located in the center of the lower part of the front
panel. In daily operation, switch off the ECI 6 by press and hold the
Mute button on the remote control (see page 13). If the ECI 6 has been
switched off, allow two hours of warm-up for optimal sonic performance.
When the ECI 6 is not to be used for a long period of time, use the main
switch to turn the unit off. Then disconnect the AC main cord for maxi-
mum safety.
Navigator
Button Function Description
UP Volume Up Increases the volume level.
DOWN Volume Down Decreases the volume level.
LEFT Select source left Selects the next source to the left.
RIGHT Select source right Selects the next source to the right.
Navigator window

7
ENG
Error codes
If the ECI 6 is not working properly, the display will show an error code.
The error codes are:
Display Error
text
Description What to do
DC FAULT LEFT DC voltage left channel Please contact service center.
DC FAULT
RIGHT
DC voltage right channel
DC DC left + right channels
OVERLOAD
FAULT
LEFT
Overload of left
channel Make sure that the + and – leads
of the loudspeaker cables are
not shorted, and that the speaker
cables are not in contact with the
chassis of ECI 6.
OVERLOAD
FAULT
RIGHT
Overload right channel
OVRLOAD Overload left+right
channels
TEMPERATURE Over temperature
left+right channel
The amplifier is overheated. This is
caused by either playing to loud
for a long period of time, or not
enough free space on the sides or
above the ECI 6.
Turn down the volume and make
sure there is enough free space
around the amplifier.
For troubleshooting please contact your local dealer or our support department.
All contact information you will find at www.electrocompaniet.no/support

8
ENG
Replacing a blown main fuse
The main fuse is located in a small drawer inside the AC inlet of the unit.
If, for some reason the fuse is blown, turn the unit off, and remove the
AC cord from the AC inlet. Open the drawer with a small screwdriver
and remove the blown fuse. The spare fuse is located inside a holder in
front of the main fuse.
1. Remove the spare fuse gently by pushing it sideways out of its holder.
2. Insert the spare fuse as the active fuse.
3. Push the drawer gently back to closed position.
4. Re-insert the AC cord and turn the unit on.
Never replace the fuse with another value than indicated on the unit!
Input configurations
XLR input: 1 = ground 2 = positive 3 = negative
RCA: Center = positive Circle = ground.
Output configurations
XLR output: 1 = ground 2 = positive 3 = negative
Speaker: Red = positive Black or White = ground
ECP5XLR:
RCA to XLR adapter: 1 & 3; ground and negative = shorted 2 = positive

9
ENG
Technical specifications ECI 6:
The following technical data were measured on randomized test objects
and are typical data. All measurements are made at 120V / 240V //
50Hz / 60Hz. Clipping point of the amplifier is set to a level where
total harmonic distortion (THD) is 0.2 %.
Preamplifier section
Input impedance (Balanced input)....................................... 47 kOhm
Noise floor (1Vrms, 20 - 20 kHz, balanced)....................... < -135 dB
THD + N (1Vrms, 20 - 20 kHz, balanced) ......................... <0,003%
Gain (Balanced)................................................................... ...0 dB
Amplifier section
Output Impedance ........................................................< 0,02 Ohm
Frequency response (- 3 dB)............................................1 – 150 kHz
Channel separation........................................................> 120 dB
THD + N (20 - 20 kHz).................................................< 0,004%
Maximum peak current...................................................>100A
Damping factor (8 ohm load)..........................................>350
Input sensitivity (125W output)......................................1.3Vrms
Input sensitivity HT (125W output)....................................1Vrms
Gain HT (input)..............................................................31dB (x36)
Rated output power
10 % change in line voltage will give approximately 20 % change in
output power.
8 Ohm..........................................................................2 x 125 W
4 Ohm..........................................................................2 x 200 W
2 Ohm..........................................................................2 x 370 W
Power consumption (no load or signal)...................................110 W
Standby....................................................................................1W
Dimensions
Width: 483 mm - 19 inch
Depth: 405 mm - 16 inch
Height: 135 mm - 5,3 inch
Weight: 20 Kg - 44 lbs
*Specifications are subject to change without further notice.

10
ENG
ECI 6 Front panel illustration

11
ENG
12V TRIGGER
RS-232 IN OUT CD-R CD-L DVD AUX HT RIGHT LEFT
PREAMP OUTPUT
ANALOG INPUT
RIGHT LEFT
SPEAKER OUTPUT
AC INPUT
1 2 3 4 5 6 7 8 910 11 12 13
ECI 6 Rear panel illustration
1. RS 232 connection 2. 12 V trigger input/output 3. Balanced analog right CD input 4. Balanced analog left CD input 5. DVD analog inputs 6. AUX analog inputs 7. Home theater analog inputs
8. Pre-amplier analog output 9. Pre-amplifier Balanced analog right output 10. Pre-amplifier Balanced analog left output 11. Speaker outputs 12. Serial number 13. AC Input

12
ENG
How to connect the system (Analog Inputs)
CD player
AV-Receiver
DVD / Blu-ray player
12V TRIGGER
RS-232 IN OUT CD-R CD-L DVD AUX HT RIGHT LEFT
PREAMP OUTPUT
ANALOG INPUT
RIGHT LEFT
SPEAKER OUTPUT
AC INPUT

13
ENG

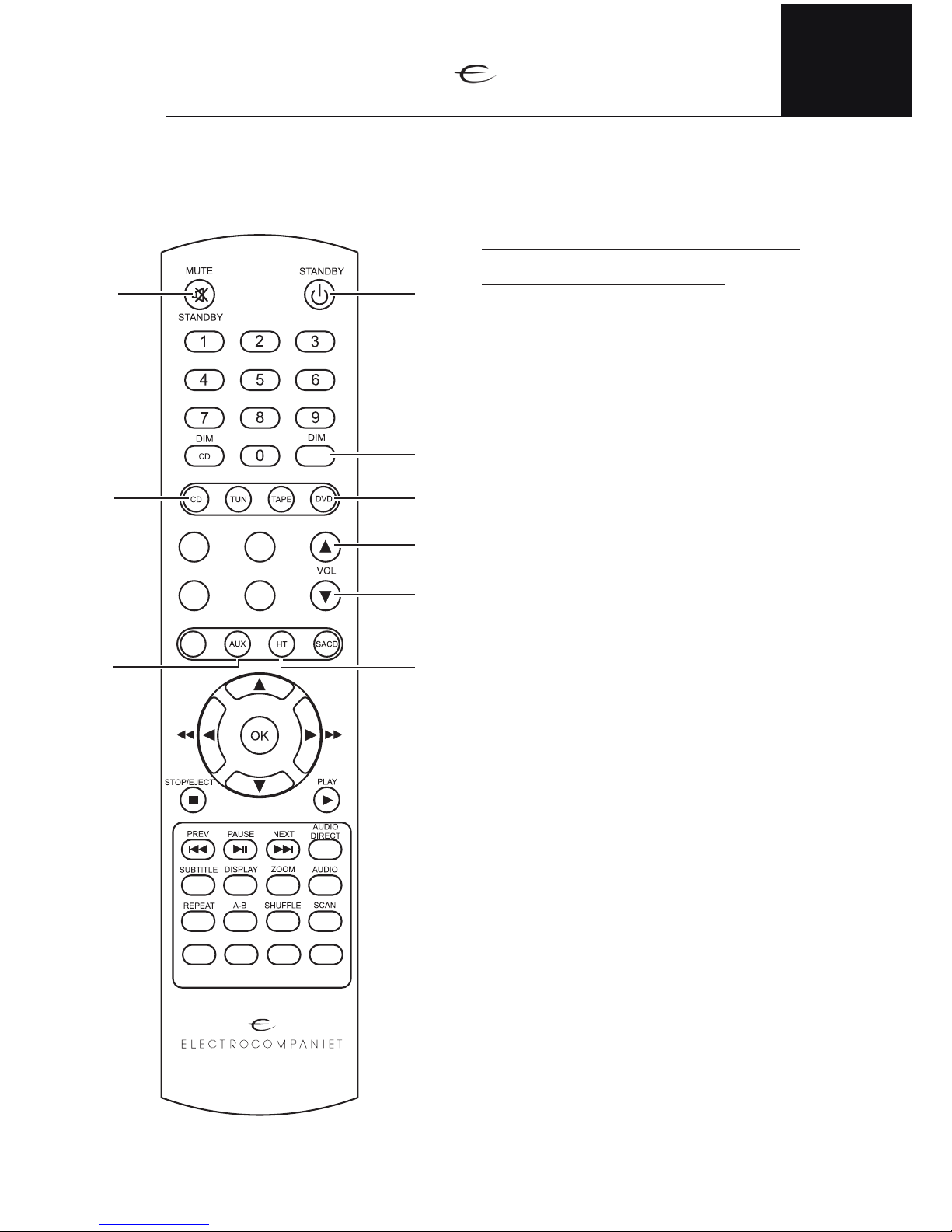

Remote control
MENU
USB
COAX1
AMP
COAX2 TOS
Link 2
TOS
Link 1
TOP MENU SETUP S.MODE
1
2
3
4
5
6
7
8
9
1. Mute - on/off.
Standby mode - hold mute1-2 sec. to set
the ECI 6 into a standby mode.
2. CD - switch to CD input
3. AUX - switch to AUX input.
4. Standby - not in use with the amplifiers.
Work as Standby with a players.
5. Dim - dimming the amplifiers display.
6. DVD - switch to DVD input
7. Volume up - increase the volume.
8. Volume down - decrease the volume.
9. HT - switch to a Home theater input.
Replacing batteries
Use 2pcs AAA or LR03 batteries.
Observe correct polarization when
inserting batteries. Please remove
batteries when the remote is not used
for a prolonged period of time.
Using the remote
When using the remote control, the
front end of the remote control should
be pointed to the front panel of your
ECI 6. A free line of sight is required
between the remote and the infrared
sensor on the front pane

14
ENG
Important Notice
For optimal sonic performance, the ECI 6 should be burned in for a mini-
mum time of 72 hours. The easiest way to burn in your ECI 6 is to put
a signal at any input, without the speakers connected In daily operation,
switch off the ECI 6 by using the MUTE button on the remote control. If
the ECI 6 has been switched off, allow two hours of warm-up to optimal
sonic performance. Due to high class A operation in all Electrocompaniet
designs, it is normal for the ECI 6 to feel warm. Proper ventilation is
important. It is important that there is at least 3-5 cm (1-2inches) of air
on the left side of the amplifier and 5-8 cm (2-3 inches) above. Never
cover the ventilation area.
If Service is needed
Your dealer will have all relevant information regarding the service cen-
ters in your area, and will ensure that your unit is serviced with minimum
delay. It is our general policy to have your unit returned to you within
five working days. This is an average time, and can vary locally,
depending on the workload at that particular service station. If, for some
reason, there are no service facilities available in your country, please
ship the unit to the following address:
Electrocompaniet AS,
Breivikveien 7,
N-4120 Tau,
Norway
Web: www.electrocompaniet.com
Service department: www.electrocompaniet.no/support
The end user is responsible for all shipping charges, insurance, re-impor-
tation and duty charges. When shipping a product to the factory for
service, always include the following:
1. A sales slip or other proof of purchase if repair is claimed under warranty.
2. A proforma invoice with value of goods, stating that the amplifier is
returned to Norway for repair.
3. An accompanying letter describing faults, symptoms, or problems with
the unit.
4. Always ship the unit in its original carton and packaging material to
prevent damage in transit.
Electrocompaniet will not cover damages incurred in transit. If you
require further information concerning the operation of the unit, or if you
have any questions related to service, please do not hesitate to contact
your dealer or your national distributor.

15
ENG

Warning!
To avoid risk of fire or electric shock, do not expose this appliance to rain or moisture.
Verify line voltage before use.
Do not remove cover. No user serviceable parts inside.
Refer servicing to qualified service personal.
The warranty is void if the product is tampered with by non-authorised personnel.
Use only authorized Electrocompaniet service center.
LOCAL DEALER
DEALER
STICKER
HERE
Made in Norway
www.electrocompaniet.no
