Electrolux Professional Lagoon WH6-6 User manual

Installation manual
Washer extractor
WH6–6 Lagoon
Type W.55H..
Original instructions
438917520/EN
2022.08.10

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................6
1.2 Commercial use only..................................................................................................................6
1.3 Symbols....................................................................................................................................6
2 Warranty terms and exclusions.............................................................................................................7
3 Technical data.....................................................................................................................................8
3.1 Drawing ....................................................................................................................................8
3.2 Technical data ...........................................................................................................................9
3.3 Connections ..............................................................................................................................9
4 Setup ...............................................................................................................................................10
4.1 Unpacking...............................................................................................................................10
4.2 Recycling instruction for packaging ........................................................................................... 11
4.3 Siting ......................................................................................................................................12
4.4 Mechanical installation .............................................................................................................13
5 Water connection ..............................................................................................................................14
6 Water hardness and dosage...............................................................................................................15
7 Connection of external dosing systems ...............................................................................................16

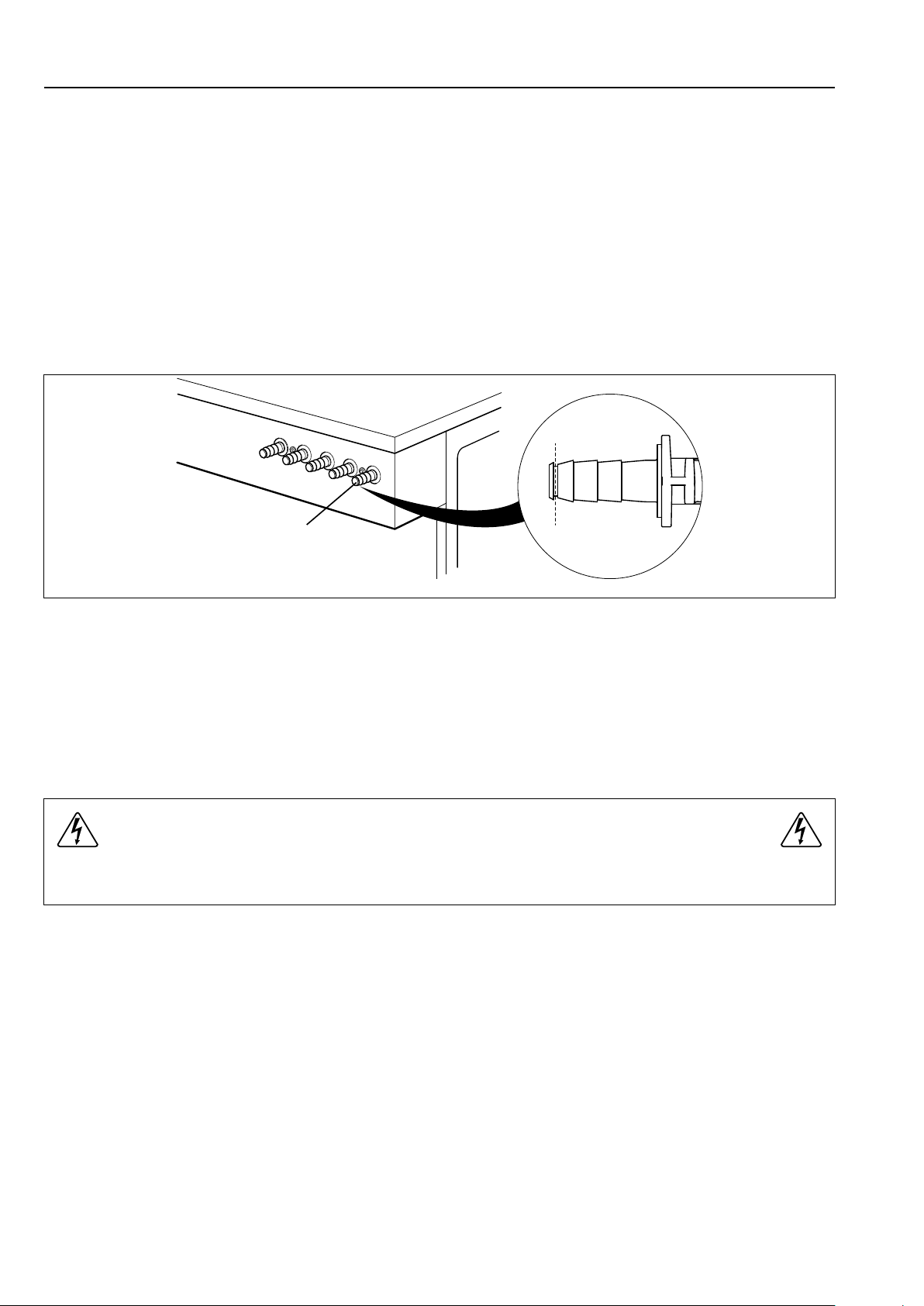

7.1 Connection of the hoses...........................................................................................................16

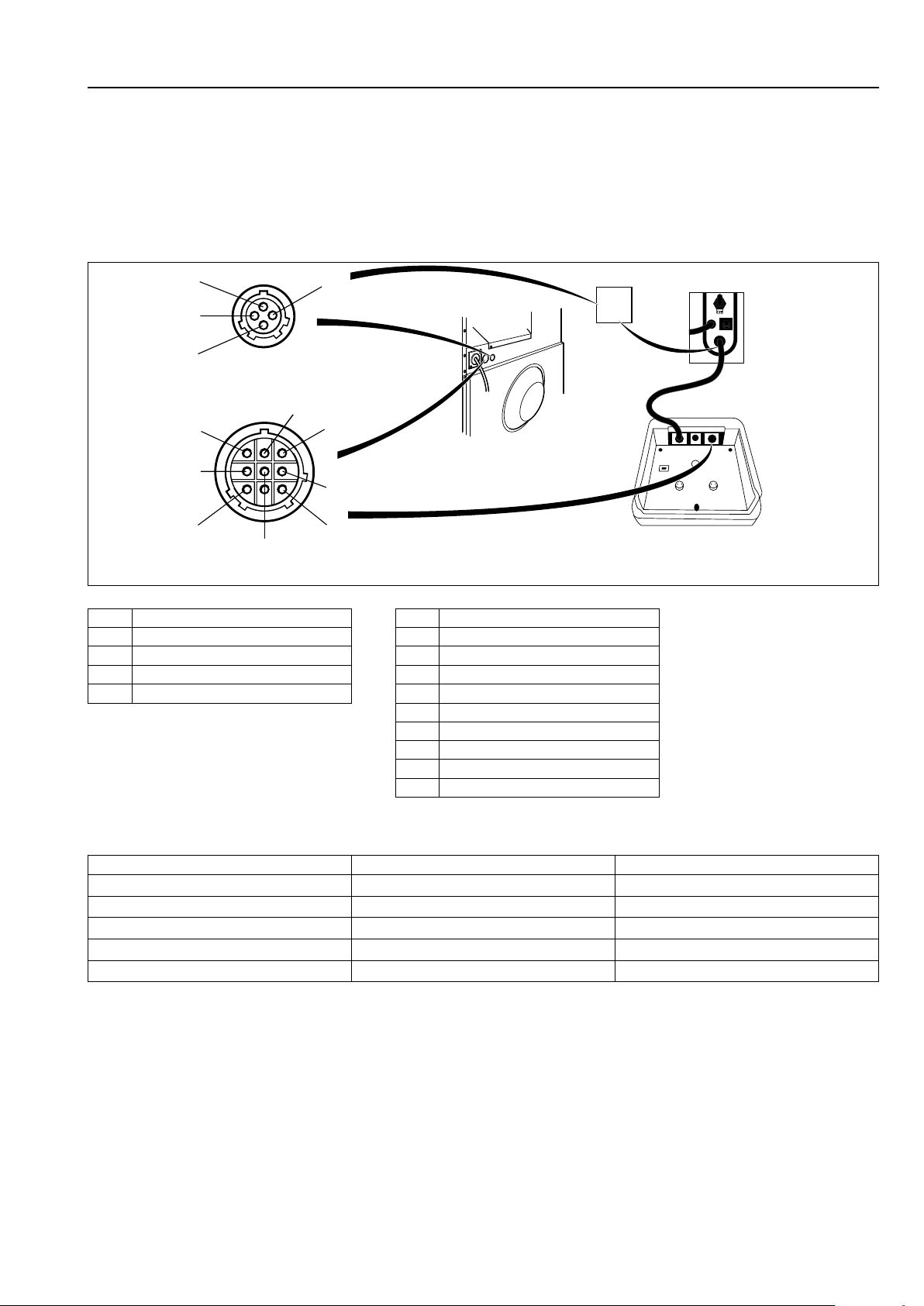

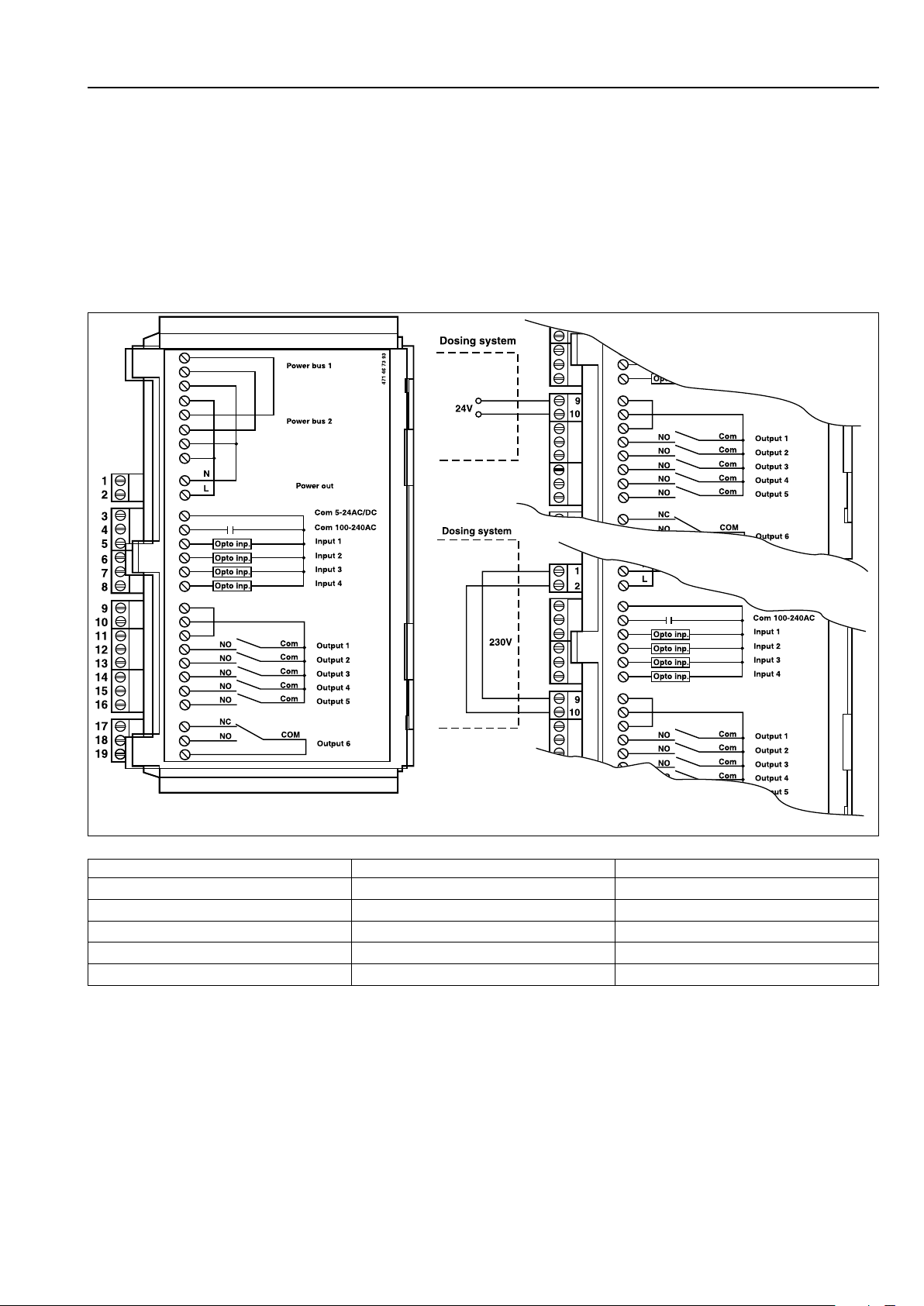

7.2 Electrical connection of external dosing system..........................................................................16
7.2.1 Machine with connectors.................................................................................................17
7.2.2 Machine without connectors............................................................................................18
7.2.3 Outputs .........................................................................................................................19
7.2.4 Inputs ............................................................................................................................20
8 Drain connection ...............................................................................................................................21
9 Electrical connection..........................................................................................................................21
9.1 Electrical installation ................................................................................................................21
9.2 Electrical connections ..............................................................................................................21
9.3 Machine connection .................................................................................................................22
10 At first power up ................................................................................................................................24
10.1 Select language.......................................................................................................................24
10.2 Set time and date.....................................................................................................................24
11 Function check..................................................................................................................................25
12 Disposal information..........................................................................................................................26
12.1 Disposal of appliance at end of life ............................................................................................26
12.2 Disposal of packing..................................................................................................................26
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
• Servicing shall be carried out only by authorized personnel.
• Only authorized spare parts, accessories and consumables shall be used.
• Only use detergent intended for water-wash of textiles. Never use dry cleaning agents.
• The machine shall be connected with new water hoses. Re-used water hoses must not
be used.
• The machine's door lock must under no circumstances be bypassed.
• If the machine develops a fault, this must be reported to the person in charge as soon
as possible. This is important both for your safety and that of others.
• DO NOT MODIFY THIS APPLIANCE.
• When performing service or replacing parts, the power must be disconnected.
• When the power is disconnected, the operator must see that the machine is discon-
nected (that the plug is removed and remains removed) from any point to which he has
access. If this is not possible, due to the construction or installation of the machine, a
disconnection with a locking system in the isolated position shall be provided.
• In accordance with the wiring rules: mount a multi-pole switch prior to the machine to
facilitate installation and service operations.
• If different rated voltages or different rated frequencies (separated by a /) are stated at
the machine data plate, instructions for adjusting the appliance for operation at the re-
quired rated voltage or rated frequency are stated in the installation manual.
• Stationary appliances not fitted with means for disconnection from the supply mains
having a contact separation in all poles that provide full disconnection under overvolt-
age category III, the instructions state that means for disconnection must be incorpo-
rated in the fixed wiring in accordance with the wiring rules.
• The openings in the base, shall not be obstructed by a carpet.
• Maximum mass of dry cloth:
– Lagoon programs: 3.7 kg.
– General programs: 6 kg.
• A-weighted emission sound pressure level at working stations:
– Wash: <70 dB(A).
– Extraction: <70 dB(A).
• Maximum inlet water pressure: 1000 kPa
• Minimum inlet water pressure: 50 kPa
• Additional requirements for the following countries; AT, BE, BG, HR, CY, CZ, DK, EE,
FI, FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH,
TR, UK:
– The appliance can be used in public areas.
– This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and knowl-
edge if they have been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the ap-
pliance. Cleaning and user maintenance shall not be made by children without
supervision.
• Additional requirements for other countries:

6Installation manual
– This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
– This appliance is intended to be used in household and similar applications such as:
(IEC 60335-2-7) staff kitchen areas in shops, offices and other working environments,
farm houses, by clients in hotels, motels and other residential type environments, bed
and breakfast type environments, areas for communal use in blocks of flats or in
launderettes.
1.1 General safety information
The machine is only intended for water-wash use.
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Commercial use only
The machine/machines covered by this manual is/are made for commercial and industrial use only.
1.3 Symbols
Caution
Caution, high voltage
Read the instructions before using the machine

Installation manual 7
2 Warranty terms and exclusions
If the purchase of this product includes warranty coverage, warranty is provided in line with local regulations and sub-
ject to the product being installed and used for the purposes as designed, and as described within the appropriate
equipment documentation.
Warranty will be applicable where the customer has used only genuine spare parts and has performed maintenance
in accordance with Electrolux Professional user and maintenance documentation made available in paper or elec-
tronic format.
Electrolux Professional strongly recommends using Electrolux Professional approved cleaning, rinse and descaling
agents to obtain optimal results and maintain product efficiency over time.
The Electrolux Professional warranty does not cover:
• service trips cost to deliver and pick up the product;
• installation;
• training on how to use/operate;
• replacement (and/or supply) of wear and tear parts unless resulting from defects in materials or workmanship re-
ported within one (1) week from the failure;
• correction of external wiring;
• correction of unauthorized repairs as well as any damages, failures and inefficiencies caused by and/or resulting
from;
– insufficient and/or abnormal capacity of the electrical systems (current/voltage/frequency, including spikes and/
or outages);
– inadequate or interrupted water supply, steam, air, gas (including impurities and/or other that does not comply
with the technical requirements for each appliance);
– plumbing parts, components or consumable cleaning products that are not approved by the manufacturer;
– customer’s negligence, misuse, abuse and/or non-compliance with the use and care instructions detailed within
the appropriate equipment documentation;
– improper or poor: installation, repair, maintenance (including tampering, modifications and repairs carried out
by third parties not authorized third parties) and modification of safety systems;
– Use of non-original components (e.g.: consumables, wear and tear, or spare parts);
– environment conditions provoking thermal (e.g. overheating/freezing) or chemical (e.g. corrosion/oxidation)
stress;
– foreign objects placed in- or connected to- the product;
– accidents or force majeure;
– transportation and handling, including scratches, dents, chips, and/or other damage to the finish of the product,
unless such damage results from defects in materials or workmanship and is reported within one (1) week of deliv-
ery unless otherwise agreed;
• product with original serial numbers that have been removed, altered or cannot be readily determined;
• replacement of light bulbs, filters or any consumable parts;
• any accessories and software not approved or specified by Electrolux Professional.
Warranty does not include scheduled maintenance activities (including the parts required for it) or the supply of
cleaning agents unless specifically covered within any local agreement, subject to local terms and conditions.
Check on Electrolux Professional website the list of authorized customer care.

8Installation manual
3 Technical data

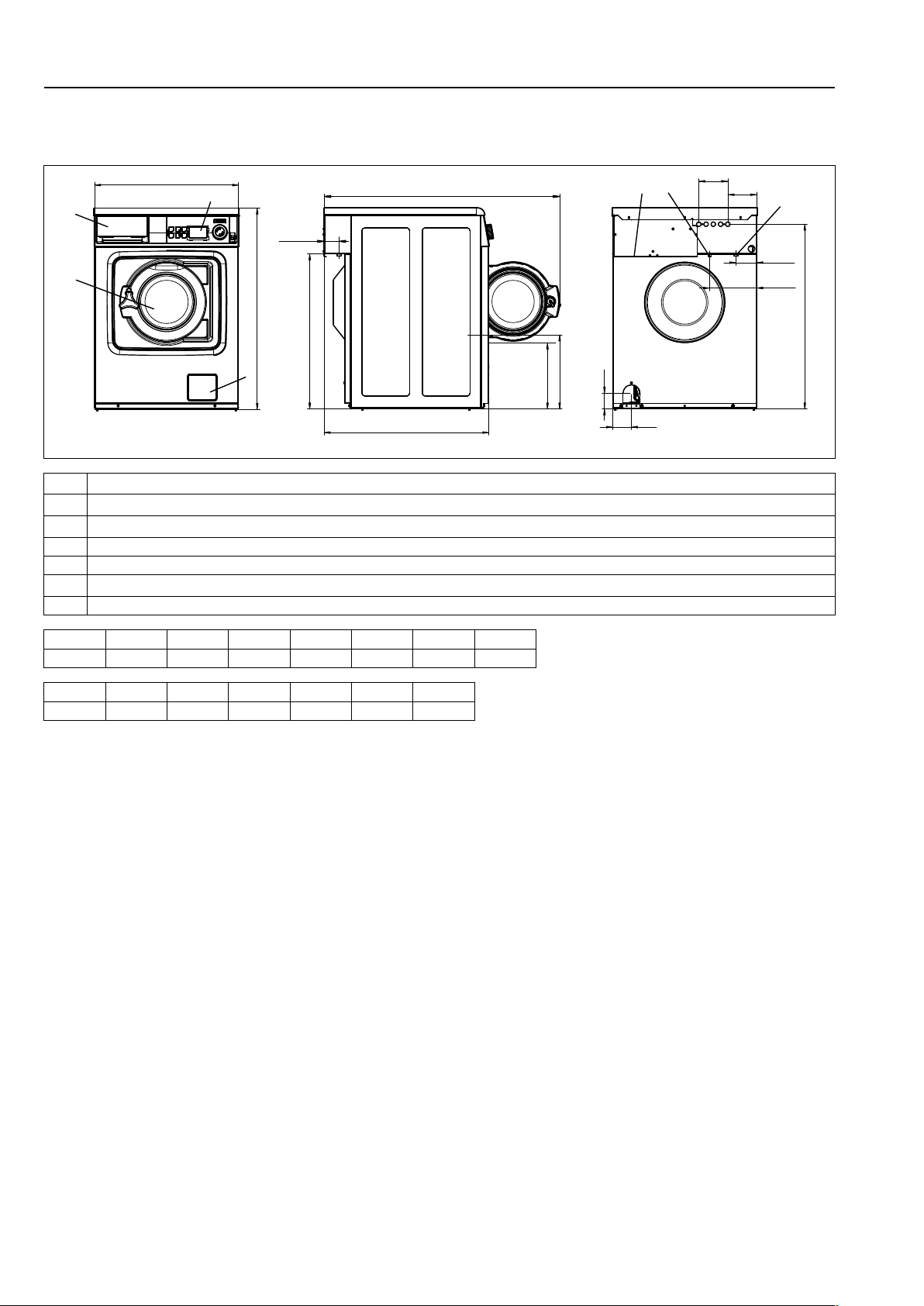

3.1 Drawing
A
2
3
1
C
6
I
J7
4
5
F
G
I
J
L
K
H
E
D2
B
D1
fig.8025E
1 Operating panel
2 Detergent container
3 Door opening, ⌀255 mm
4 Cold water
5 Hot water
6 Drain pump
7 Electrical connection
A B C D1 D2 E F
mm 595 680 830* 285 310 640 85
G H I J K L
mm 195 50 120 120 975 765
* Adjustable height: 25 mm.

Installation manual 9
3.2 Technical data
Weight, net kg 100
Drum volume litres 53
Drum diameter mm 452
Drum speed during wash rpm 35/54
Drum speed during extraction rpm 1450
G-factor, max. 530
Heating: Electricity kW 4.4
Frequency of the dynamic force Hz 24.2
Floor load at max extraction kN 1.2±0.3
Sound power/pressure level at extraction* dB(A) 70/56
Sound power/pressure level at wash* dB(A) 56/42
Heat emission of installed power, max % 5
* Sound power levels measured according to ISO 60704.
3.3 Connections
Water valves DN
BSP
20
3/4”
Recommended water pressure kPa 200–600
Continuous operating pressure kPa 50–800
Capacity at 300 kPa l/min 17
Draining capacity (drain pump) l/min 25

10 Installation manual
4 Setup

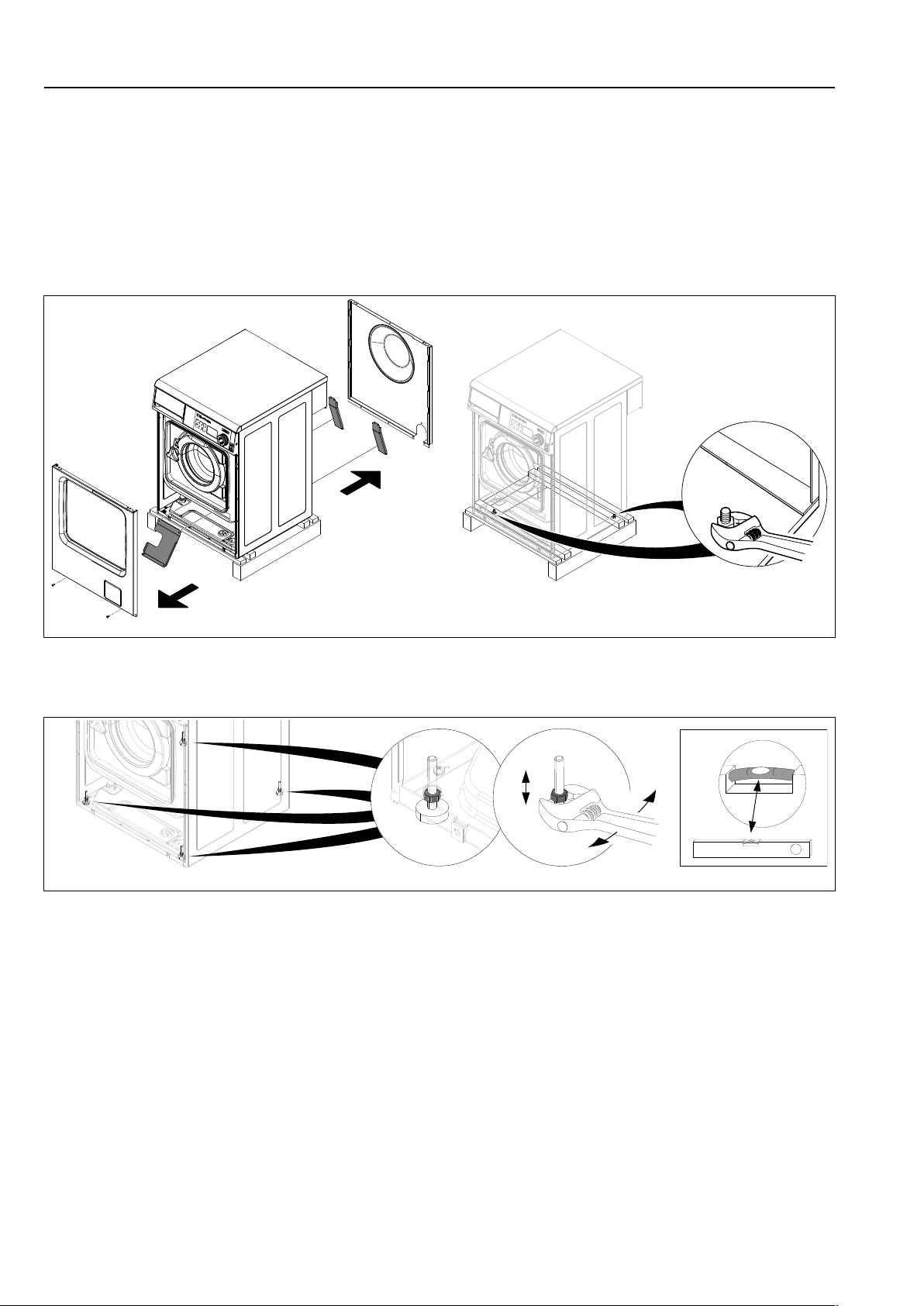

4.1 Unpacking
Remove the front panel by undoing the two screws on the bottom edge.
Remove the rear panel by undoing the screws.
Remove the three transport supports, one at the front and two at the back. Save the transport supports if the machine
needs to be moved in the future.
Remove the bolts between the machine and pallet. There is one to the right in the front of the machine and another
diagonally opposed to it, at the back of the machine.
fig.W00980B
Remove the machine from the pallet. The machine shall be lifted in the bottom frame.
Mount the enclosed supporting feet and level the machine.
fig.W00981
Remount the front- and the back panel.
Place the machine on its final position.

Installation manual 11

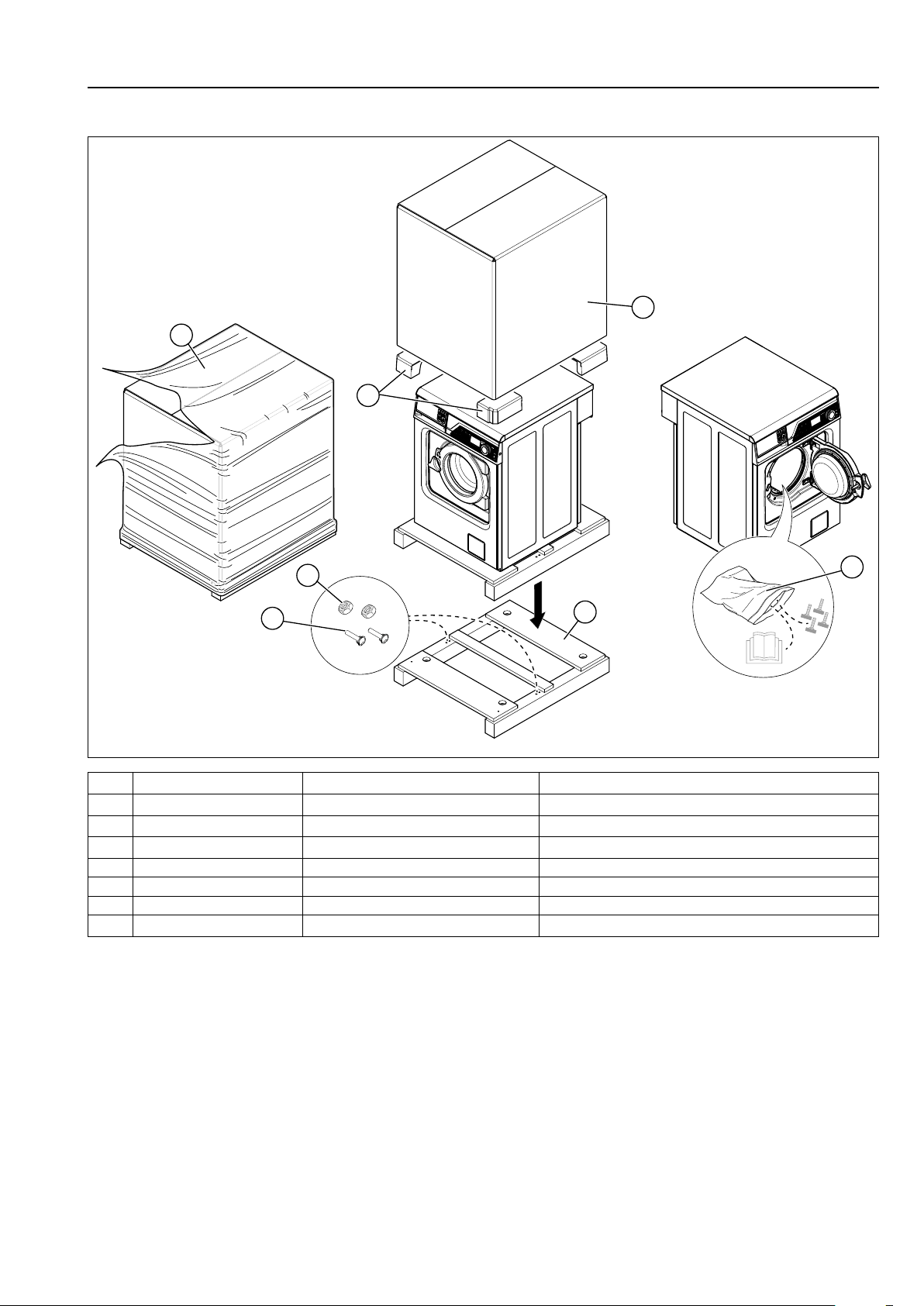

4.2 Recycling instruction for packaging
5
6
4
3
1
2
7
fig.X02404
Fig. Description Code Type
1 Wrapping film LDPE 4 Plastics
2 Corner protection PS 6 Plastics
3 Cardboard packaging PAP 20 Paper
4 Pallet FOR 50 Wood
5Screw FE 40 Steel
6 Nut FE 40 Steel
7 Plastic bag PET 1 Plastics

12 Installation manual
4.3 Siting
Install the machine close to a floor drain or open drain.
The machine should be positioned so that there is plenty of room for working, both for the user and service personnel.
The figure shows minimum distance to a wall and/or other machines. Failure to respect the prescribed distances will
prevent easy access for maintenance and service operations.
A A
B
fig.X00959
A 25 mm
B 500 mm

Installation manual 13
4.4 Mechanical installation
If the machine is not to be mounted on a base the machine must be fastened to the floor.
Mark and drill two holes (⌀8 mm) about 40 mm deep.
C A
D
G
FE
B
H
FRONT = drilling points
= position of feet
fig.5358
A B C D E F G H
mm 530 490 35 125 290 150 40 50
Place the machine over the two drilled holes. The holes are at the front of the machine.
Level the machine with the feet of the machine. Screw in the feet as much as possible before starting to level the ma-
chine. This will make the machine stand steadier.
Insert the expansion bolts supplied into the holes drilled in the floor. Fit the washers and nuts and tighten well.
It is of the upmost importance that the machine is placed in level, from side to side as well as front to rear.

14 Installation manual
5 Water connection
All water intake connections to the machine should be fitted with manual shut-off valves and filters, to facilitate instal-
lation and servicing.
Water pipes and hoses should be flushed clean before installation.
The machine shall be connected with new water hoses. Re-used water hoses must not be used.
Hoses are to be of an approved type and grade and comply with IEC 61770.
After installation hoses must hang in gentle arcs.
The machine can have one or two supply hoses.
Machine with hot and cold water intake.
When the machine is prepared for cold and hot water but no hot water
is available, both valves must be connected with cold water.
Note!
The inlet temperature for cold water must not be higher than 25℃. If so, a water cooling system must be
installed.
Water pressure:
Continuous operating pressure: 50–800 kPa (0.5-80 kp/cm2)
Maximum: 1000 kPa (10 kp/cm2)
Recommended: 200–600 kPa (2–6 kp/cm2)
For WRAS-approved machines; always check connection requirements on WRAS website.
For KIWA-approved machines; always check connection requirements on KIWA website.
For NSF-approved machines; always check connection requirements on NSF website.
Plumbing
This machine is approved for all UK applications as suitable for category 5.
The product is listed in the WRAS regulations advisory scheme directory and is suitable for direct connection to
mains drinking water. No special plumbing arrangements e.g. break tanks are required.
Water Council approved double check valves should be fitted in between the stopcocks and the water inlet hoses.
FOR AUSTRALIA:
The appliance shall be installed in accordance with the Plumbing Code of Australia (the PCA).
The appliance need to be installed using dual check valves.
Contact details for after sales service: [email protected]

Installation manual 15
6 Water hardness and dosage
Check the water hardness at your location and adjust the dosage according to the tables. The tables shows different
dosage for different programs.
A water hardness kit is available at Part No. 0S0586.
With full lagoon load
Water hardness range ppm Water softener W01 - Lagoon Sensitive Detergent
Sensitive Programs (Wool High, Wool Medium, Silk, Ties)
°D °F °E Dosage ED ml Dosage ml/kg ml/load
0–5 0–9 0–6 0–90 Not required 5.0 8.2 30
5–10 9–18 6–12 90–180 Preferable 6.0 9.8 36
10–15 18–27 12–19 180–270 Recommended 7.0 11.5 42
>15 >27 >19 >270 Highly
recommended
7.5 12.3 45
Water hardness range ppm Water softener W03 - Lagoon Sensitive Conditioner
Sensitive Programs (Wool High, Wool Medium, Silk, Ties)
°D °F °E Dosage ED ml Dosage ml/kg ml/load
0–5 0–9 0–6 0–90 Not required 5.0 8.2 30
5–10 9–18 6–12 90–180 Preferable 6.0 9.8 36
10–15 18–27 12–19 180–270 Recommended 7.0 11.5 42
>15 >27 >19 >270 Highly
recommended
7.5 12.3 45
Water hardness range ppm Water softener W02 - Lagoon Delicate Detergent
Delicate Programs (Mixed-Synthetics Medium, Mixed-Syn-
thetics Low)
°D °F °E Dosage ED ml Dosage ml/kg ml/load
0–5 0–9 0–6 0–90 Not required 4.2 6.8 25
5–10 9–18 6–12 90–180 Preferable 5.0 8.2 30
10–15 18–27 12–19 180–270 Recommended 5.8 9.5 35
>15 >27 >19 >270 Highly
recommended
6.7 10.9 40
Water hardness range ppm Water softener W03 - Lagoon Sensitive Conditioner
Delicate Programs (Mixed-Synthetics Medium, Mixed-Syn-
thetics Low)
°D °F °E Dosage ED ml Dosage ml/kg ml/load
0–5 0–9 0–6 0–90 Not required 2.0 3.3 12
5–10 9–18 6–12 90–180 Preferable 2.5 4.1 15
10–15 18–27 12–19 180–270 Recommended 3.0 4.9 18
>15 >27 >19 >270 Highly
recommended
3.3 5.3 20
Water hardness range ppm Water softener W02 - Lagoon Delicate Detergent
Delicate - 40°C *
°D °F °E Dosage ED ml Dosage ml/kg ml/load
0–5 0–9 0–6 0–90 Not required 6.0 6.0 36
5–10 9–18 6–12 90–180 Preferable 7.0 7.0 42
10–15 18–27 12–19 180–270 Recommended 8.0 8.0 48
>15 >27 >19 >270 Highly
recommended
9.0 9.0 54
* Program ED-Dosage of 0.1 ml for W03 - Lagoon Sensitive Detergent in this program when creating ED-formula.
Failing to do so will result in an error message of ED-Controller and freeze of the washer since a dosing signal (Sig-
nal 4 or 9) is present in wash program. If customer requires higher concentration of conditioner (fragrance/ handle)
the ED-Dosage should be increased to 2.0 ml.

16 Installation manual
7 Connection of external dosing systems
7.1 Connection of the hoses
The machine is prepared for connection of external dosing systems or water re-use systems etc.
EDS, Efficient Dosing System:
• Cut the top of the hose nipples to be used as showed in the figure.
• Connect the hoses to the hose nipples.
Venturi, Efficient Dosing System:
Note!
Connect the hose to the nipple at port (A) only.
• Cut the top of the hose nipple (A) as showed in the figure.
• Connect the hose to the hose nipple (A).
A
fig.X01844
Always connect hoses on connections with a hose clamp.
If the hoses are made of a soft material such as silicon or similar, use a cable tie to fasten the hose on the connection.
If the hoses are made of a hard material, it is not recommended to make the connection tighter by using a cable tie.
Note!
Equipment for external dosing must only be connected to work on pump pressure and not on network
pressure.
7.2 Electrical connection of external dosing system
The power supply to the external dosing system must never be connected to the machine’s incoming terminal
block or to the edge connectors on the I/O-board.

Installation manual 17
7.2.1 Machine with connectors
Connect the external dosing system to connections A and B on the machine.
Connect the signal cable to B and the power supply to A.
For Efficient dosing system the cables are delivered with the machine.
Connect the power supply cable to the machine A and the other end of the cable together with the cable from Effi-
cient Dosing in a connection box or with plug and receptacle.
Connect one end of the cable to the Efficient Dosing Controller J2 and the other end to the machine B.
Connection box
B
12
3
4
1
2
3
4
5
7
6
9
J1 RJ11 J2
Controller
Pump unit
A
fig.6598B
A B
1 Line 1
2 Neutral 2
3 3 Gnd
4 Ground 4
5
6
7
8 Rx
9 Tx
Signal 1–5 are used in the Efficient dosing controller.
6W02 6G01
Signal 1 Detergent Lagoon -
Signal 2 -Detergent Main wash
Signal 3 Conditioner Lagoon -
Signal 4 All in one Lagoon -
Signal 5 -Bleach Main wash

18 Installation manual
7.2.2 Machine without connectors
Connect the external dosing system to the I/O board, which is located to the right of the incoming power supply.
The I/O board has edge connectors for connecting external dosing systems.
Edge connectors on the I/O board can be loosened for connecting cables.
1357911 13 15 17 19
246810 12 14 16 18
fig.6238
11 = N
18 = Program run
12 = Signal 6
13 = Signal 7
14 = Signal 8
15 = Signal 9
16 = Signal 10

Installation manual 19
7.2.3 Outputs
Connect the power supply (e.g. 24V DC) for the external liquid supplies to 9 and 10. If an internal power supply (from
the machine) is being used, it can be taken from 1 (N) and connected to 9 and from 2 (L) and connected to 10. Max
load on the outputs 0.5 A.
Signals for external liquid supplies 6–10 are connected to 12-16 on the second I/O board type 2:
12 = Signal 6
13 = Signal 7
14 = Signal 8
15 = Signal 9
16 = Signal 10
fig.6236B
6W12 6G01
Signal 6 Detergent Lagoon -
Signal 7 -Detergent Main wash
Signal 8 Conditioner Lagoon -
Signal 9 All in one Lagoon -
Signal 10 -Bleach Main wash

20 Installation manual
7.2.4 Inputs
The signal level can be 5-24V DC/AC or 100- 240V AC. For 5-24V, the signal reference is connected to 3 and for
100-240V to 4. Potentials on the inputs cannot be mixed.
Note!
The I/O board will be damaged if the voltage on connection 3 is too high > 24V.
Connection 8 may be connected if the program is to pause, e.g. while detergent is being dosed.
The figure shows an example of engaging a 24V pause signal. The program will pause for as long as the pause sig-
nal remains activated (high).
fig.6266
Connection 7. If this is connected, an error message will be displayed if any of the chemical tanks are empty. The pro-
gram will continue, however.
The figure shows an example of engaging a normal open contact.
fig.6265
