Haier HW90 User manual

HW90-B14979S8U1

Thank You EN
2
Legend
Warning – Important Safety information
General information and tips
Environmental information
Disposal
Help protect the environment and human health. Put
the packaging in applicable containers to recycle it.
Help to recycle waste of electrical and electronic ap-
pliances. Do not dispose appliances marked with this
symbol with the household waste. Return the product
to your local recycling facility or contact your municipal
Thank you for purchasing a Haier Product.
Please read these instructions carefully before using this appliance. The instructions con-
tain important information which will help you get the best out of the appliance and ensure
safe and proper installation, use and maintenance.
Keep this manual in a convenient place so you can always refer to it for the safe and proper
use of the appliance.
If you sell the appliance, give it away, or leave it behind when you move house, make sure
you also pass this manual so that the new owner can become familiar with the appliance
and safety warnings.
WARNING!
of it. Remove the door catch to prevent children and pets to get closed in the appliance.

EN Content
3
1-Safety information........................................................................................................................... 4
2-Product description......................................................................................................................... 7
3-Control panel .................................................................................................................................... 8
4-Programmes...................................................................................................................................12
5-Consumption..................................................................................................................................13
6-Daily use ...........................................................................................................................................14
7-APP Instructions ...........................................................................................................................19
8-Eco-friendly washing .....................................................................................................................20
9-Care and cleaning ...........................................................................................................................21
10-Troubleshooting...........................................................................................................................24
11-Installation......................................................................................................................................27
12-Technical data...............................................................................................................................31
13-Customer service..........................................................................................................................
32

1-Safety information EN
4
%HIRUHVZLWFKLQJRQWKHDSSOLDQFHIRUWKHnjUVWWLPHUHDGWKHIROORZ-
ing safety hints!
WARNING!
%HIRUHnjUVWXVH
▶Make sure there is no transport damage.
▶Make sure all transport bolts are removed.
▶Remove all packaging and keep out of children´s reach.
▶Handle the appliance always with at least two persons because it
is heavy.
Daily use
▶This appliance is not intended for use by persons (including
children) with reduced physical,sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety.
▶
with the appliance.
▶Do not let children or pets come close to the appliance when the
door is open.
▶Store washing agents out of reach of children.
▶3XOOXS]LSVnj[ORRVHWKUHDGVDQGWDNHFDUHIRUVPDOOLWHPVWRSUH-
vent laundry from being entangled. If necessary, use an appropri-
ate bag or net.
▶Do not touch or use the appliance when barefoot or with wet or
damp hands or feet.
▶Do not cover or encase the appliance during operation or after-
wards to allow any moisture or dampness to evaporate.
▶Do not place heavy objects or sources of heat or damp on top of
the appliance.
▶'RQRWXVHRUVWRUHǍDPPDEOHGHWHUJHQWRUGU\FOHDQLQJDJHQWLQ
close vicinity to the appliance.
▶'RQRWXVHDQ\ǍDPPDEOHVSUD\VLQFORVHYLFLQLW\WRWKHDSSOLDQFH
▶Do not wash any garments treated with solvents in the appliance
without having dried them previously in the air.
Children should be supervised to ensure that they do not play

EN 1-Safety information
5
WARNING!
Daily use
▶Do not remove or insert the plug in the presence of ǍDPPDEOH
gas.
▶Do not hot wash fRDPUXEEHURUVSRQJHOLke materials.
▶Do not wash any laundry which is polluted with Ǎour.
▶Do not open detergent drawer during any wash cycle.
▶Do not touch the door during the washing process, it gets hot.
▶Do not open the door if the water level is YLVLEly over the porthole.
▶Do not force the door to open. The door is tted with a self-lock
device and will open shortly after the washing procedure is ended.
▶
undertaking any routine maintenance and disconnect the appli-
ance from the electrical supply to save electricity and for safety.
▶Hold the plug, noWWKHFDEOHZKHQXQSOXJJLQJWKHDSSOLDQce.
Maintenance / cleaning
▶Make sure children are supervised if they carry out cleaning and
maintenance.
▶Disconnect the appliance from the electrical supply EHfore un-
dertaking any routine maintenance.
▶Keep the lower part of the porthole clean and open door and de-
tergent drawer if appliance is not in use to prevent odours.
▶Do not use water spray or steam to clean the appliance.
▶Replace a damaged supply cord only E\ the manufacturer, its ser-
▶Do not try to repair the appliance E\ yourself. In case of repair
please contact our customer service.
Installation
▶The appliance should EH placed in a well-ventilated place. Ensure
a location which allows opening the door fully.
▶Never install the appliance outdoors in a damp place, or in an area
which may EH prone to water leaks such as under or near a sink
unit. In the event of a water leak cut power supply and allow the
machine to dry naturally.

1-Safety information EN
6
Intended use
This appliance is intended for washing machine-washable laun-
dry only. Anytime follow the instructions given on the label of each
garment label. It is designed exclusively for domestic use inside the
house. It is not intended for commercial or industrial use.
use may cause hazards and loss of of all warranty and liability claims.
WARNING!
Installation
▶Install or use the appliance only where the temperature is above
5 °C.
▶Do not place the appliance directly on a carpet, or close to a wall
or furniture.
▶Do not install the appliance in direct sunlight or in the near of heat
sources(e.g. stoves, heaters).
▶Make sure that the electrical information on the rating plate
agrees with the power supply. If it does not, contact an electri-
cian.
▶Do not use multi-plug adapters and extension cables.
▶Make sure only the delivered electric cable and hose set are used.
▶Make sure not to damage the electric cable and the plug. If dam-
aged have it replaced by an electrician.
▶Use a separate earthed socket for the power supply which is easy
accessible after installation. The appliance must be earthed.

Stain removal
Delay
Anti-crease
Extra Rinse Speed
Temp.
Abaya Care
Spin
Smart Shirt Synthetics
Quick 15’
Remote
Babycare
Cotton
SelfCleanHygiene
Delicate
Wool
Allergy care
525DRUM
ﻲﻛذصﯾﻣﻗنطﻗ ﺔﯾﻋﺎﻧﺻﺔﺷﻣﻗا ﺔﻘﯾﻗرسﺑﻼ ﻣ دﻌﺑنﻋ مﻛﺣﺗ
لﺎﻔطﻻاسﺑﻼﻣﺑﺔﯾﺎﻧﻌﻟا ﺔﯾﺳﺎﺳﺣﻟﺎﺑﺔﯾﺎﻧﻌﻟافوﺻ نارود مﯾﻘﻌﺗ
ﻊﯾرﺳ لﯾﺳﻏ15ﺔﻘﯾﻗد
ﻲﺗاذفﯾظﻧﺗ
9
EN
2-Product description
2.1 Pic ture of appliance
Front (Fig. 2-1): Rear side (Fig. 2-2):
2.2 Accessories
Check the accessories and literature in accordance with this list (Fig.:2-3):
Note:
-
2-3
1 Detergent /
Softener drawer
2 Work top
3 Programme selector
4 Panel
5 Washer door
6 Service flap
7 Adjustable feet
2-1
Inlet hose-
assembly
5 Blanking
plugs Drain hose
bracket User manual
Noise reduc-
tion pads
2x
2x
7
5
6
3
14
2
1Transportation bolts (T1-T4)
2Backcover
Backcover screws (6EA)
3
4Power cord
5
Water inlet valve6
Drain hose
7
12
456
T1
T2
T3
T4
3

3-1
18
Without Wi-Fi connection, the switched-on appliance automatical
amme or at the end
Stain removal
Delay
Anti-crease
Extra Rinse
Speed
Temp.
Abaya Care
Spin
Smart Shirt Synthetics
Quick 15’
Remote
Babycare
Cotton
Self CleanHygiene
Delicate
Wool
Allergy care
525 DRUM
15
9
432 1
56

9

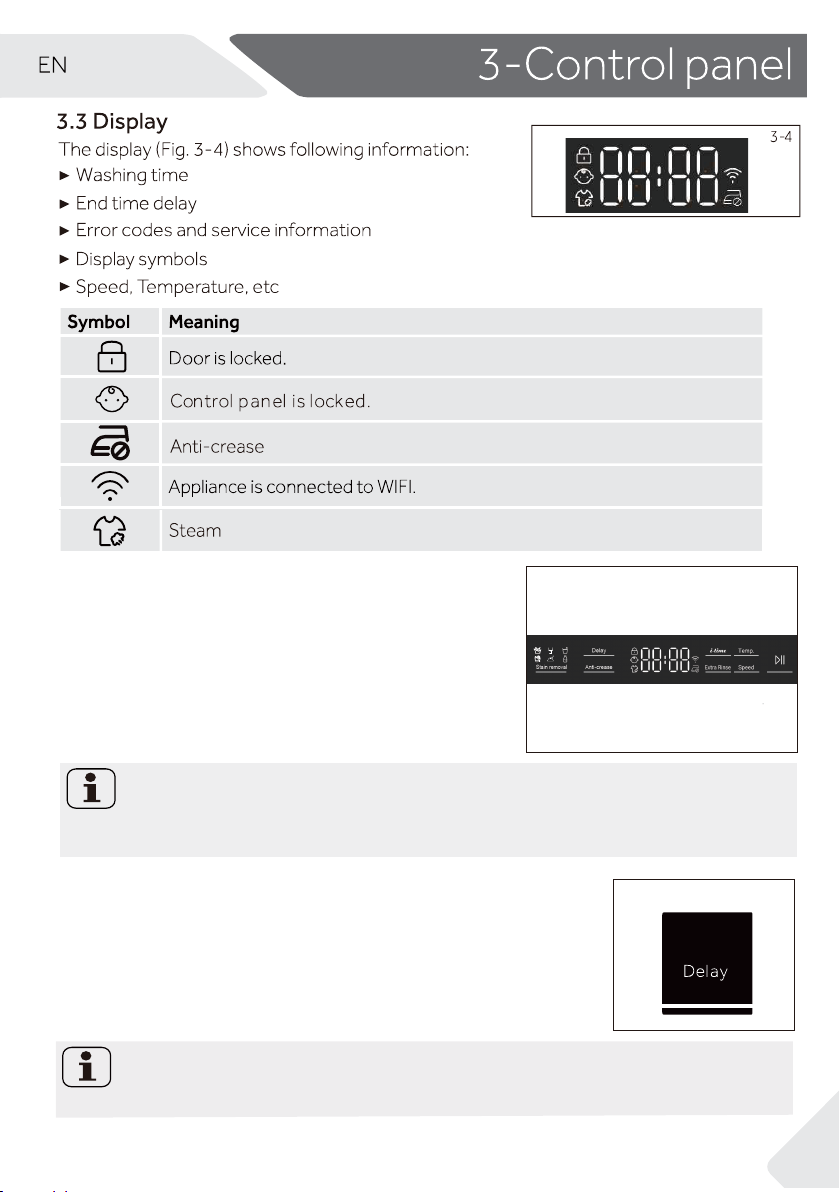

3.4 Function buttons
polanoitiddaelbane)5-3.giF(snottubnoitcnufehT -
tions in the selected programme before the program-
me starts. The related indicators are displayed.
%\VZLWFKLQJRƩWKHDSSOLDQFHRUVHWWLQJXSDQHZSUR
gramme, all options are disabled.
If a button has multiple options, the desired option can
be selected by pressing the button sequentially.
3.4.1-Function button “Delay“
Note: Factory settings
7RJHWWKHEHVWUHVXOWVLQHDFKSURJUDPPH+DLHUKDVZHOOGHƪQHGVSHFLƪFGHIDXOW
settings. If there is no special requirement, default settings are recommended.
Note: Liquid detergent
If using liquid detergent, it is not recommended to activate the end time delay.
3-5
3-6
Press amme rgorpehttratsot)7-3.giF(nottubsiht
with a delay.
means end of programme
24h(End time will longer than original programme time),For exam-
cycle will be in 6 ho-
and 30
min
utes. Press “Start/Pause” button to activate
me delay. It is not applicable to programme Spin,
the ti-
Refresh.
End time delay could be increased in steps of 30 minutes from 0.5-
ple display 6:30
urs
0

3-Control panel EN
10
water will not be heated.
ƪJXUH
Wine
Wine
Soil

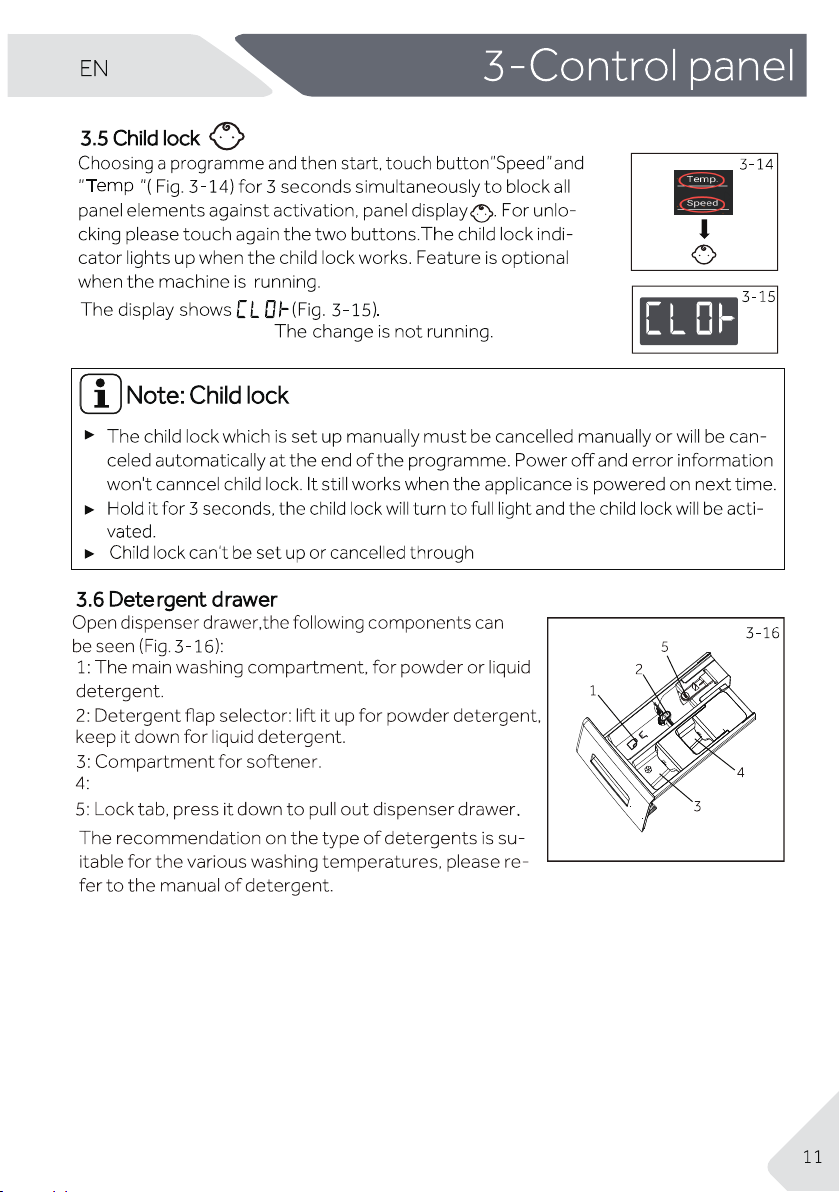

If a button is touched
under child lock status.
Compartment for disinfectant.
APP
T

Max. load Temperature Preset
spin
speed
in rpm
Function
in kg in °C 1)
Preset
Anti-crease Extra Rinse Delay Stain removal
Programme selectable
range 1 2
Fabrics type
Smart 9 * to 60
40 Lightly soiled mixed-laundry
of cotton and synthetic
Cotton / Synthetic
1000
1000
1000
Shirt
9* to 90
* to 90
60
60
•
1000
Allergy care
* to 40
40 •
Cotton / Synthetic
Delicate
Babycare
* to 30
30 •
Delicate laundry and
silk
600
Cotton/Synthetics
/
/
/
/
1000
•
* to 60
* to 90
/
/
•
Quick 15’ 2
*•
Cotton / Synthetic
Machine-Washable
fabric made of wool
or with wool content
1000
* to 40
•800
Synthetics
30
Synthetic or mixed
fabric
•
• • •
•• •
•
•
•
••
••
•
•
• •
•
•
••
90
•1000
/
/•
/
/
/
/
/
Cotton / Synthetic
2.5
2.25
1
/
4.5
4.5
/ / /
1000
2.5
*/•
Spin 9/
/
/
all fabrics
1000 ///
/
/
/
/
/
/
/
/
/
9
/
/
/
/
/
Cotton
/
•
i-time
•
•
• • • •
•
•
•
•/
/
•
•
•
/
•
HW90
Cotton * to 90
30 •
//
9
Cotton
•
/ / /
/
•
•
Wool
//
Abaya care
Remote
Hygiene
Self Clean
* to 40
•
Detergent
detergent
App.
function on the
The design and specifications are subject to change without noti
12

The appliance is equipped with a loading recognition. At low loading, energy, water and
washing time will be reduced automatically in some programmes. The display shows
Test program:”Cotton+60℃+1400rpm+Max.i-time setting”

6-Daily use EN
14

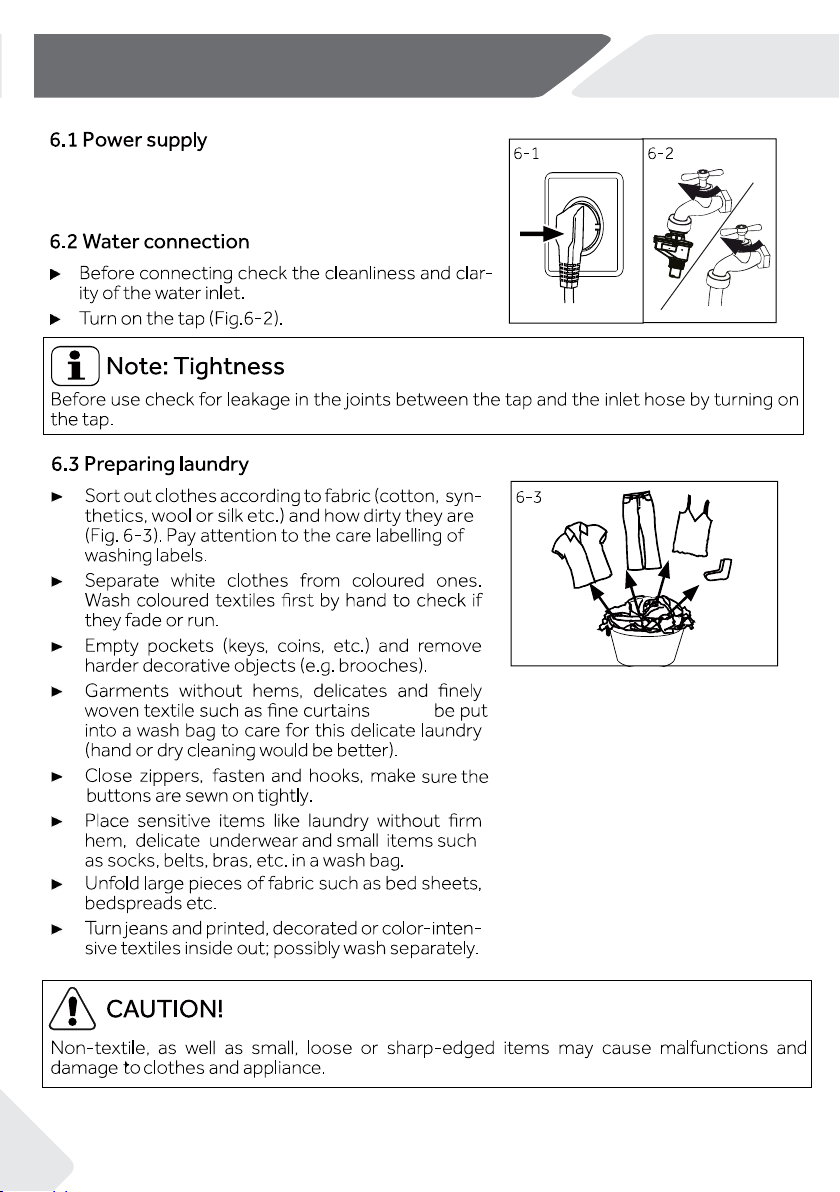

Connect the washing machine to a power supply(230V~
/60Hz;Fig.6-1). Please refer also to section INSTALLA-
TION (see P29).
should

15

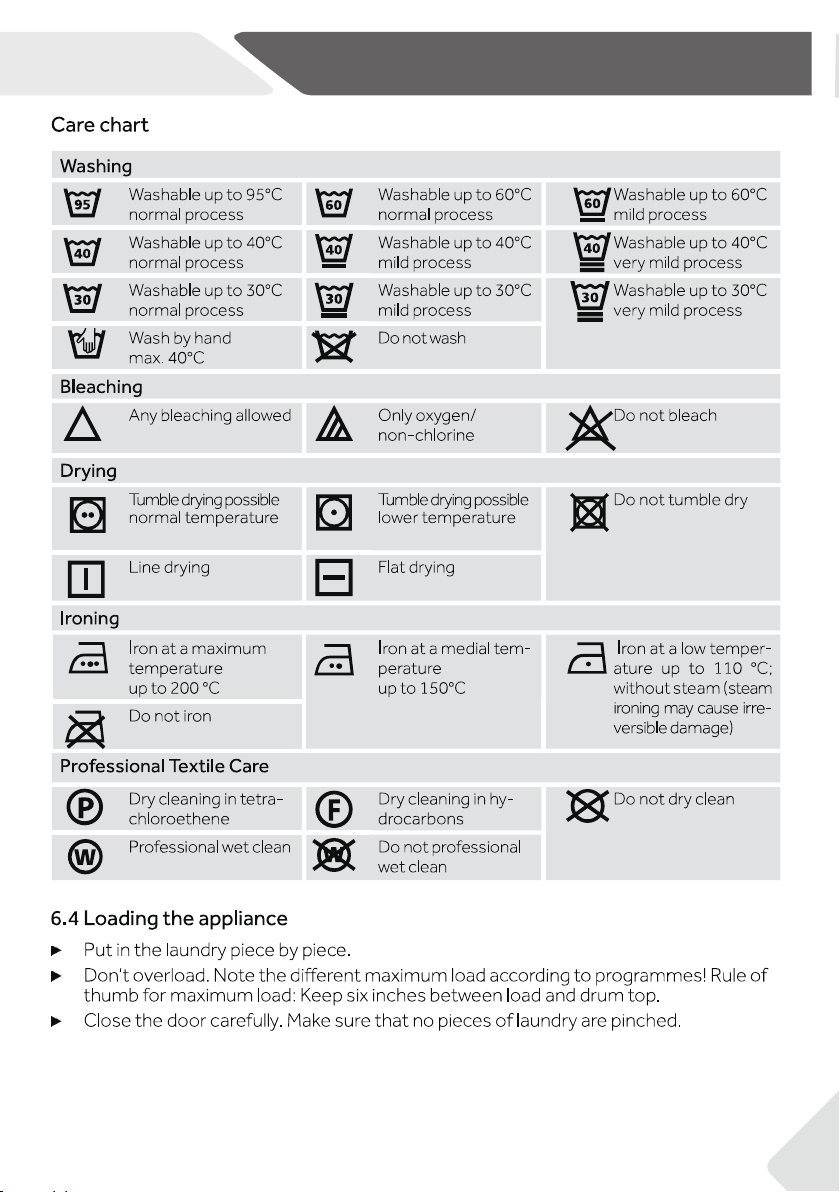

EN 6-Daily use

16
6-Daily use EN

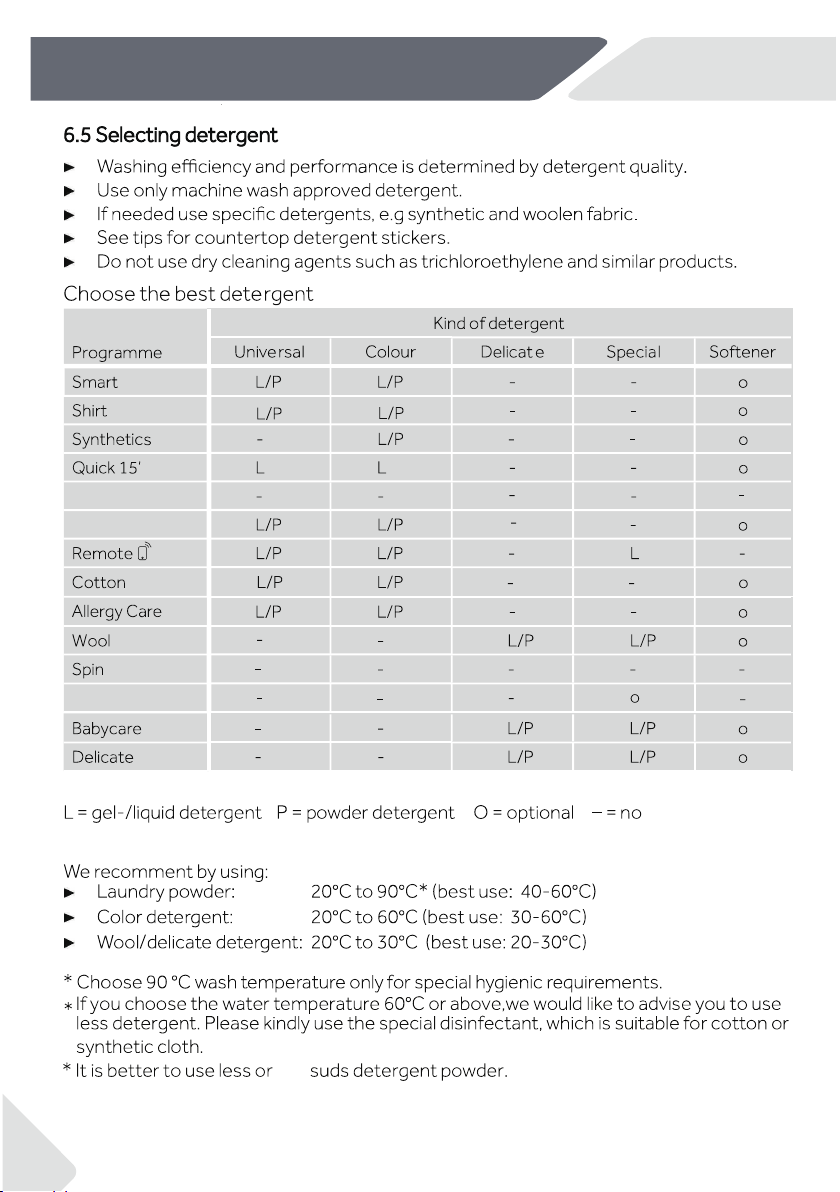

If using liquid detergent, it is not recommended to activate the end time delay,
Abaya Care
Hygiene
Self Clean
not

EN 6-Daily use
17
▶
▶
▶
▶
▶
▶
▶
Cotton ①

EN
18

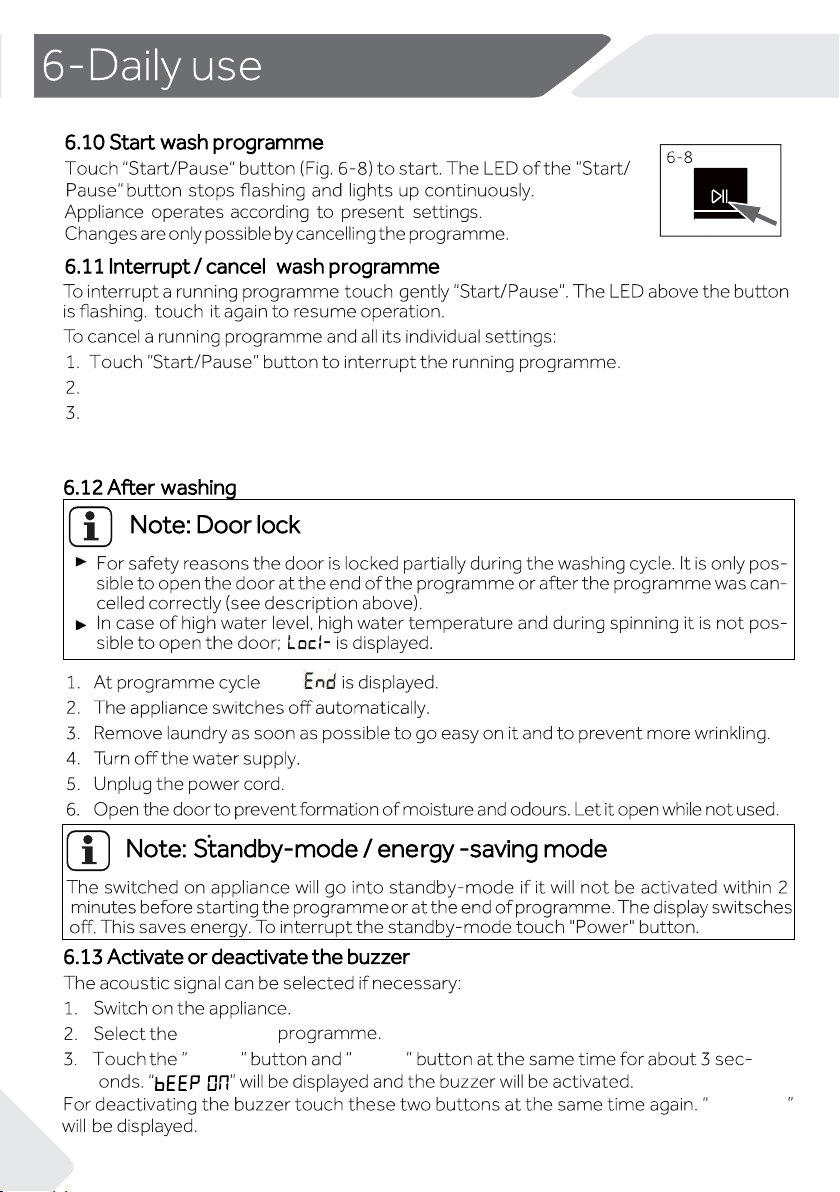

Turn the knob directly to select a new program and start it.
When the water level is lower than the water level set by the new program, water will
enter.
and
bEEP OFF
Self Clean
Delay i-time

19
Scan the instruction page QR code with your mobile phone to download and install Haier
Smart APP client.
5HJLVWUDWLRQLVUHTXLUHGRQO\WKHƪUVWWLPH\RXXVHWKH$33IRUIXUWKHUXVH\RXRQO\
have to enter the user name and passward to use the APP when suFFHVVIXOO\UHJL
stered.
Download and Install Haier Smart APP
&RQQHFWWRWKHKRPH:L)LRSHQWKH+DLHU6PDUW$33UHJLVWHUDQDFFRXQWDQGORJLQ
SUHVVDQGKROGWKHSRZHUEXWWRQXQWLO&DSSHDUVRQWKHZDVKLQJPDFKLQHLQWHUIDFHFOLFN
WKHV\PEROLQWKHXSSHUULJKWFRUQHUVHOHFWWKH:L)LPRGXOHFRUUHVSRQGLQJWRWKHZD
VKLQJPDFKLQHWKHZDVKLQJPDFKLQHDXWRPDWLFDOO\DVVRFLDWHVZLWKWKHPRELOHSKRQHWR
FRPSOHWHWKHELQGLQJWKHQUHFRQQHFWWKHSKRQHWR\RXUKRPH:L)L)LQDOO\VHOHFWWKH5H
mote program to operate remotely.
Registration and Login
)XQFWLRQRI$33
(TXLSPHQWFRQWURO6HOHFWSURJUDPPHPRGHVHWSURJUDPPHSDUDPHWHUVVWDUWSURJUDPPHPRGH
SDXVHVKXWGRZQHWF
6WDWXV9LHZ9LHZWKHUXQQLQJVWDWXVRIWKHGHYLFHLQUHDOWLPH.
,QIRUPDWLRQUHFHSWLRQ5HFHLYLQJYDULRXVSURPSWVVXFKDVIDXOWDODUPHWF
7KH$33IXQFWLRQZLOOEHXSGDWHGFRQWLQXRXVO\ZLWKWKHXSJUDGHRIWKHYHUVLRQ
ZKLFKLVVXEMHFWWRWKHDFWXDOIXQFWLRQRIWKHFRUUHVSRQGLQJYHrsion.
App Instructions
$33,QVWUXFWLRQV

EN
20
▶
▶
▶
▶
▶
▶
