4Safety Precautions
Only use detergent intended for water-wash of textiles. Never
use dry cleaning agents.
The machine's door lock must under no circumstances be
bypassed.
If the machine develops a fault, this must be reported to the
person in charge as soon as possible. This is important both
for your safety and that of others.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without
supervision.
Children of less than 3 years should be kept away unless
continuously supervised.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must
be disconnected.
In accordance with the wiring rules: mount a multi-pole switch
prior to the machine to facilitate installation and service
operations.
The appliance can be used in public areas.

5
Safety Precautions
The machine is only intended for water-wash use.
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as
the result of condensation, the machine should be placed in room temperature for 24
hours before being used for the first time.
CAUTION
Caution
Read the instructions before using the machine
Symbols

6
Note
Weight calibration (only Wascator FOM71 CLS)
If the value in the display shows more than ±0.1 kg, reset scale to zero.
Level calibration
Check and calibrate if a longer test serie is to commence.
Note
Some of the display texts and functions may not appear on your
machine version.

7

  
 

1
Procedure for use
Procedure for use
This machine is controlled by a microprocessor-based program control
unit. There are many advantages to this equipment, including:
• timing,levelsandtemperaturesarecontrolledwithgreatprecisionand
flexibility
• detailedinformationonwashprograms,machinestatusandoperations,
wash times and temperatures can be accessed in plain language on the
large display screen
• itispossiblefortheusertocreatenewwashprograms,andtoadapt
programs precisely on the basis of experience and to suit various types
of textile, degrees of soiling etc.
• averyhighlevelofmachinesafetythroughcontinuousmonitoringand
built-in safety interlocks
• theprogramcontrolunithasareaderfor”memorycards”.Theseare
cards the size of a credit card which contain a memory chip.
Memory cards allow the user to:
- transfer wash programs between a PC and the machine, or from one
machine to another
- run programs straight from a memory card
• greatexibilityduringprogramoperation:
- rapid advance both forwards and backwards in the program
- change temperatures, program module lengths and extraction
speeds directly, during program operation
- start a different program at any time during program operation.
1
4221, 3651

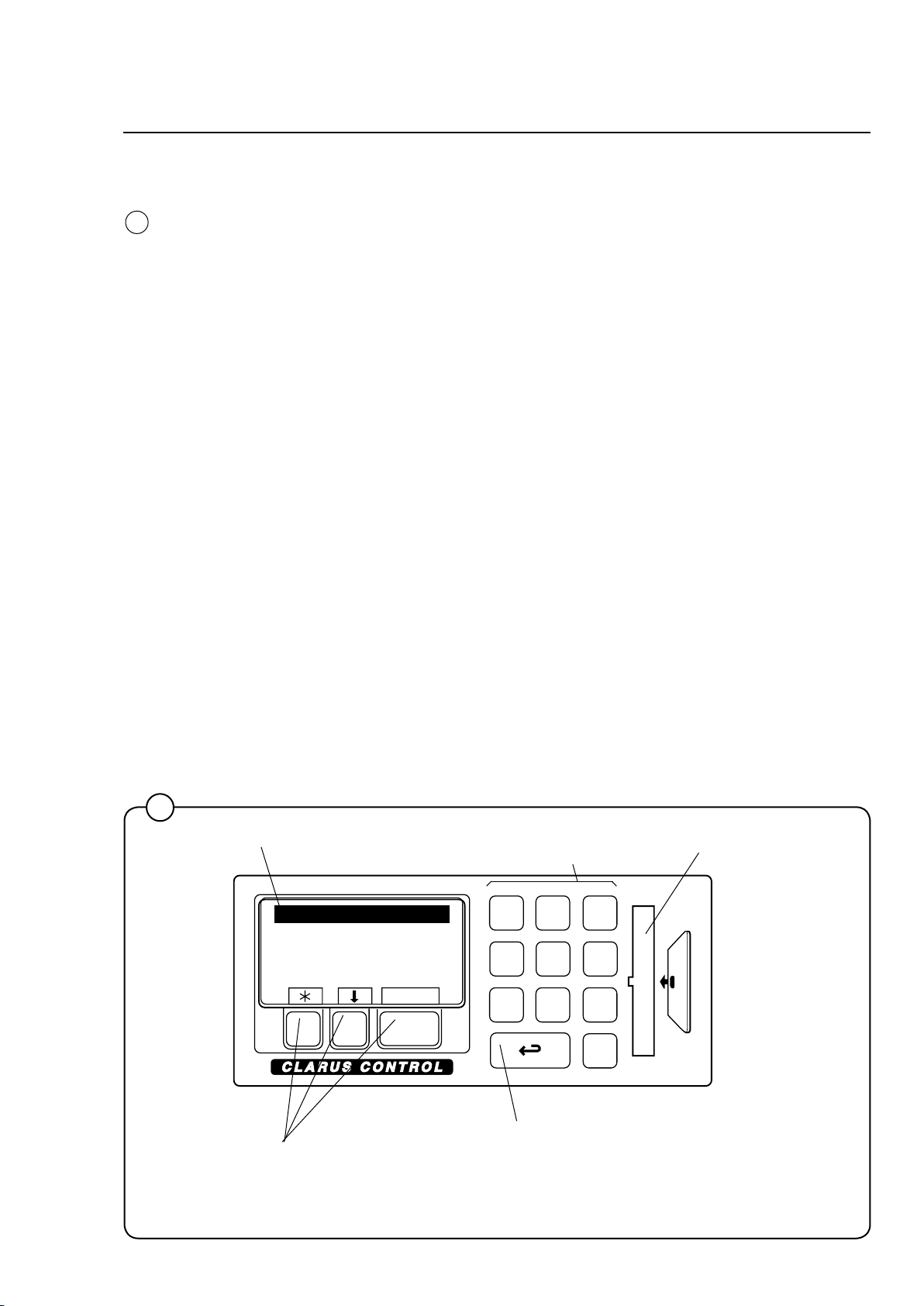

The ”Move back” key
By pressing this key repeatedly you can move
backwards through the menus you have navigated
through. This will always bring you back to the menu
illustrated here.
The functions of these keys change, depen-
ding on which menu or part of a menu you
are using. Their current functions at any time
are shown on the display immediately above
each key.
Numeric keyboard Card reader for ”memory cards”
Display screen
SELECT
RUN A WASH PROGRAM
OPTIONS MENU
MAKE YOUR CHOICE WITH
cOR bAND PRESS SELECT
WEIGHT, KG: 000,0

8
Preparations
• Sorttheload,payingattentiontothetextile
care labels on the items. Empty all pockets
and do up zip fasteners.
• Openthemachinedoor,checkthatthedrum
is empty, load the items into the machine and
close the door.
Detergent supply

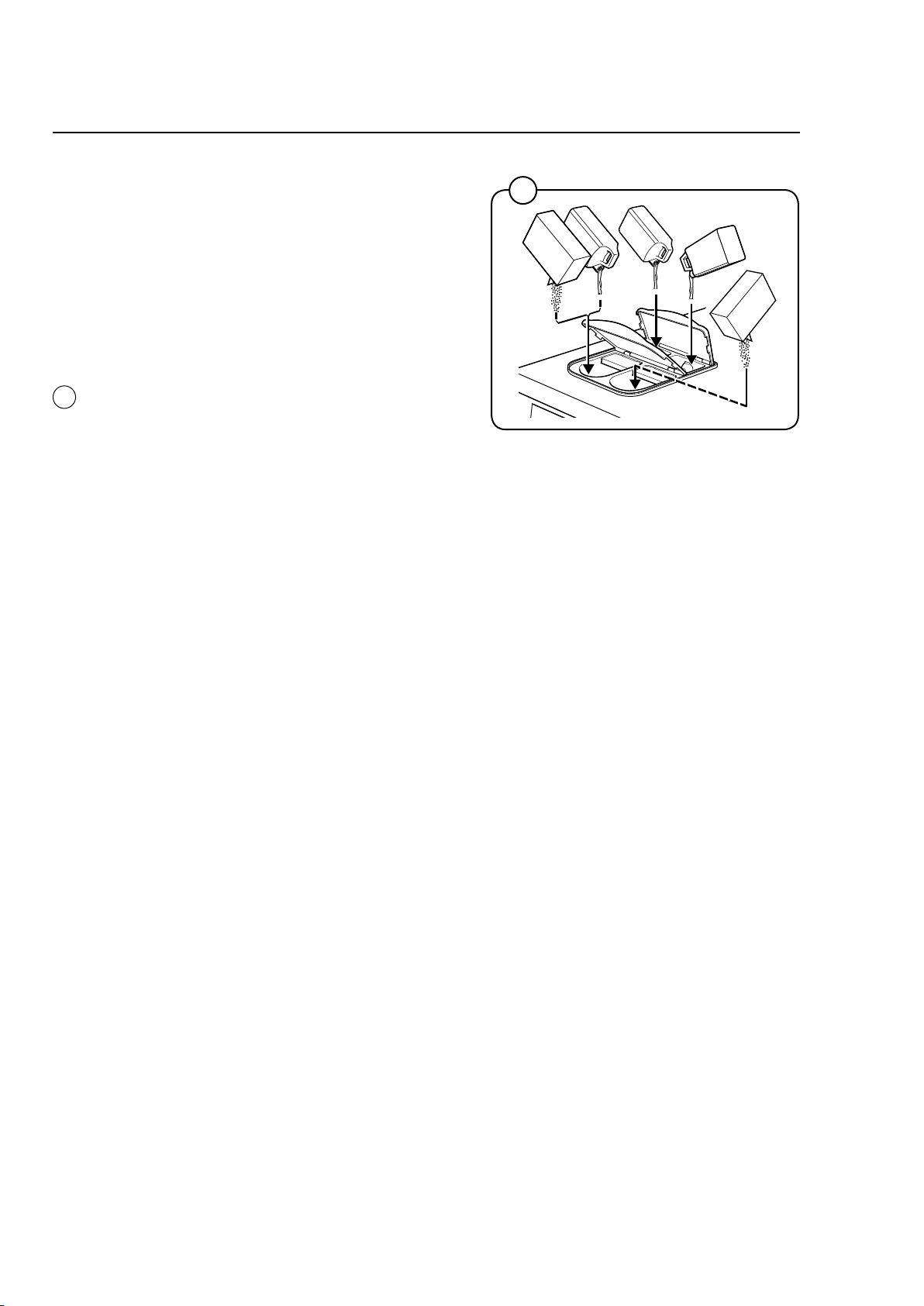

Compartment 1 – pre wash, powder or liquid
detergent
Compartment 2 – main wash, powder detergent
Compartment 3 – softener
(Note! When using weight control softener
can not be used (compartment 3 will be used
for dosing water in all baths).
Compartment 4 – main wash, liquid detergent
2
5343
Procedure for use
2

9
Procedure for use
The ”Move back” function
Each press of the ”Move back” key moves you
back one menu, in reverse order. By pressing this
key repeatedly you can return to this menu at any
time:
If this menu is not currently
displayed:
Press arepeatedly.
If ”OPTIONS MENU” is
highlighted:
Press c.
When ”RUN A WASH
PROGRAM” is highlighted:
Press SELECT.

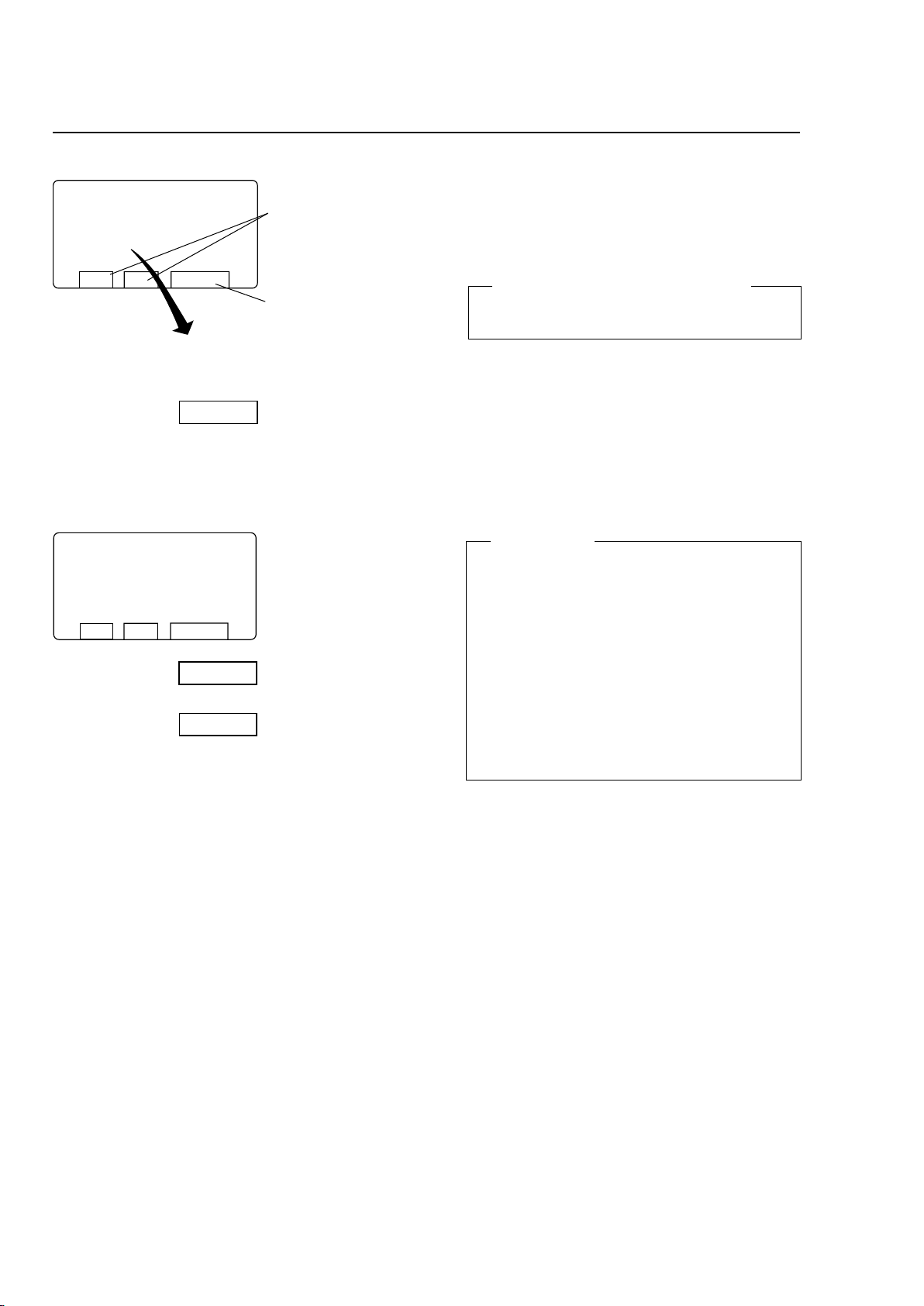

To start the wash program
3580
The ”Move back” key
If you find you are in the
wrong place, or if you want
to undo earlier key presses:
Press the ”Move back” key
one or more times.
3627
Two ways of starting a program
By entering the actual program number
Enter the actual program number if you know it,
then press SELECT.
By starting from the program library
(see section ”To start a wash program from the
program library)
If you are unsure about the programs available,
you can select a program from the program
library, where the programs are listed with their
descriptions.
SELECT
RUN A WASH PROGRAM
OPTIONS MENU
MAKE YOUR CHOICE WITH
cOR bAND PRESS SELECT
WEIGHT, KG: 000,0
3651
SELECT
RUN A WASH PROGRAM
OPTIONS MENU
MAKE YOUR CHOICE WITH
cOR bAND PRESS SELECT
WEIGHT, KG: 000,0
RUN A WASH PROGRAM
OPTIONS MENU
SELECT
RUN A WASH PROGRAM
OPTIONS MENU

10 Procedure for use
If you have entered the wrong number
Enter the correct number to overstrike the earlier
one.
3581
If you have a memory card
in the program control unit,
and the program you selec-
ted is both on the memory
card and in the PCU, you will
be asked ”FROM CLS OR
SMC?”.
Press CLS if you want to
take the program from the
PCU.
Press SMC if you want to
take the program from the
memory card.
In some of the text shown on
the display, Clarus Control
is referred to as CLS and the
memory card is referred to
as SMC.
Memory cards
A memory card is a plastic card, the size of a credit
card, with an electronic memory chip inside it. This
card is capable of storing 10 to 15 wash programs
of normal size. If the programs are mostly small
ones, more of them can be stored, whereas larger
programs will reduce the number which can be
held by the card. Memory cards of this type can be
used to:
• transferwashprogramsfromonemachineto
another
• runwashprogramsstraightfromthecard
• transferwashprogramsfromaPCtoamemory
card and from a memory card to a PC.
4031

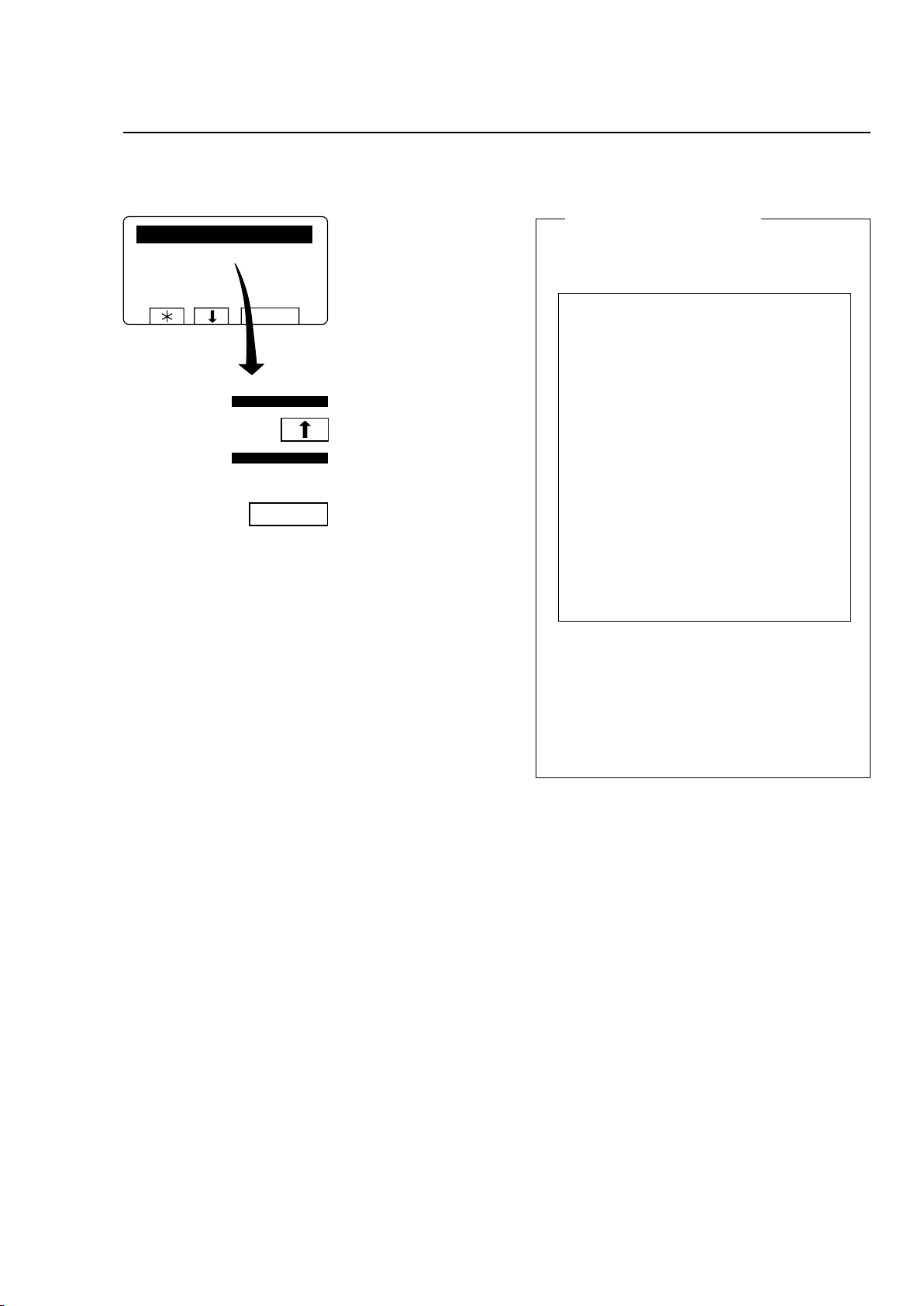

Here you can select programs from
the program libraries. See the section
entitled ”To start a wash program
from the program library”.
Displayed here will be the number of
the most frequently used program.
Press this key if you want to select
this program.

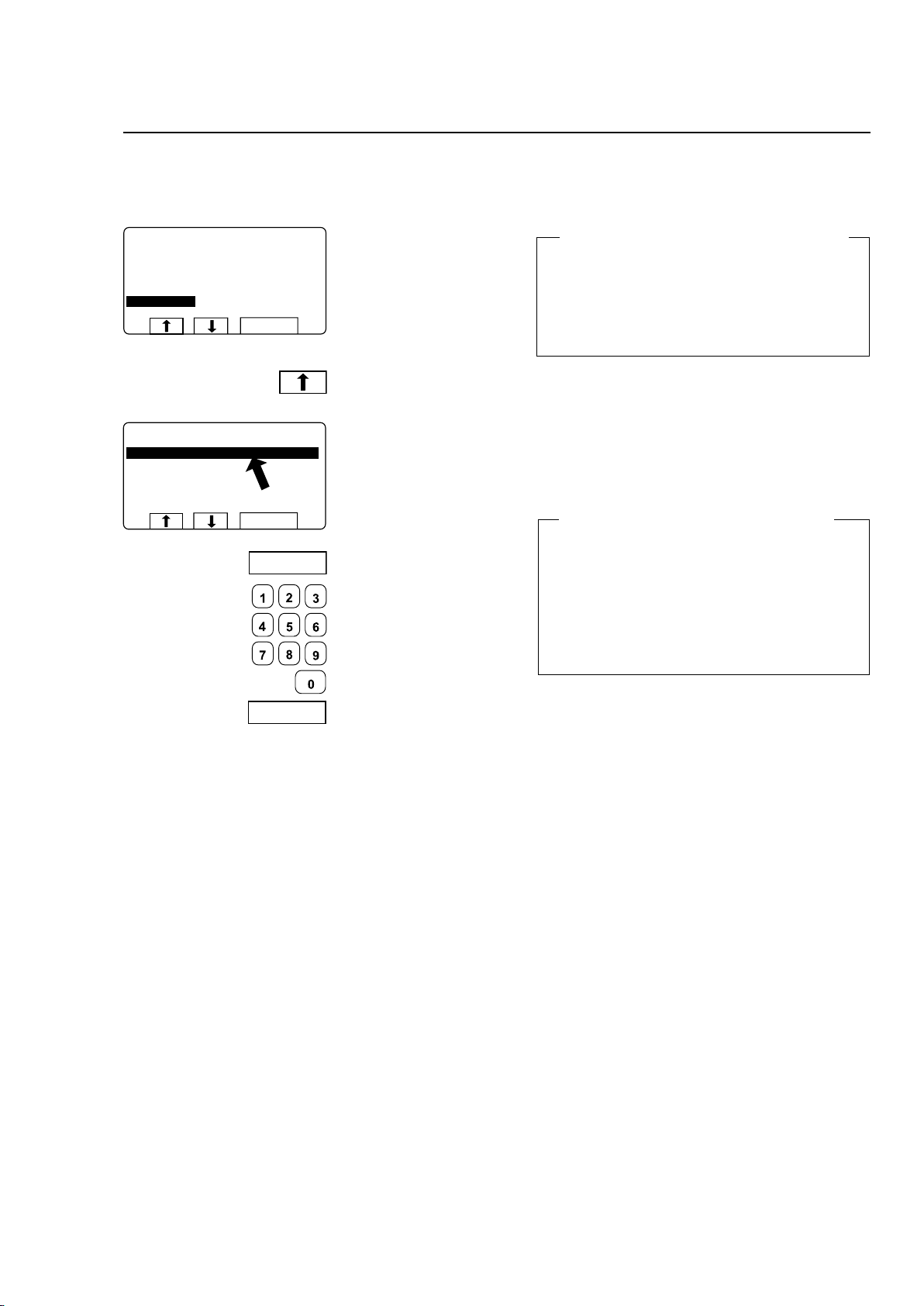

Use the numeric keys to
enter the program number
Press SELECT.
RUN A WASH PROGRAM
ENTER A PROGRAM NUMBER:
SELECT FROM LIBRARY
SELECT
991
for example:991
CLS SMC 991
RUN A WASH PROGRAM
ENTER A PROGRAM NUMBER:
FROM CLS OR SMC?
991
CLS SMC SELECT
CLS
SMC

11
Procedure for use
Program name

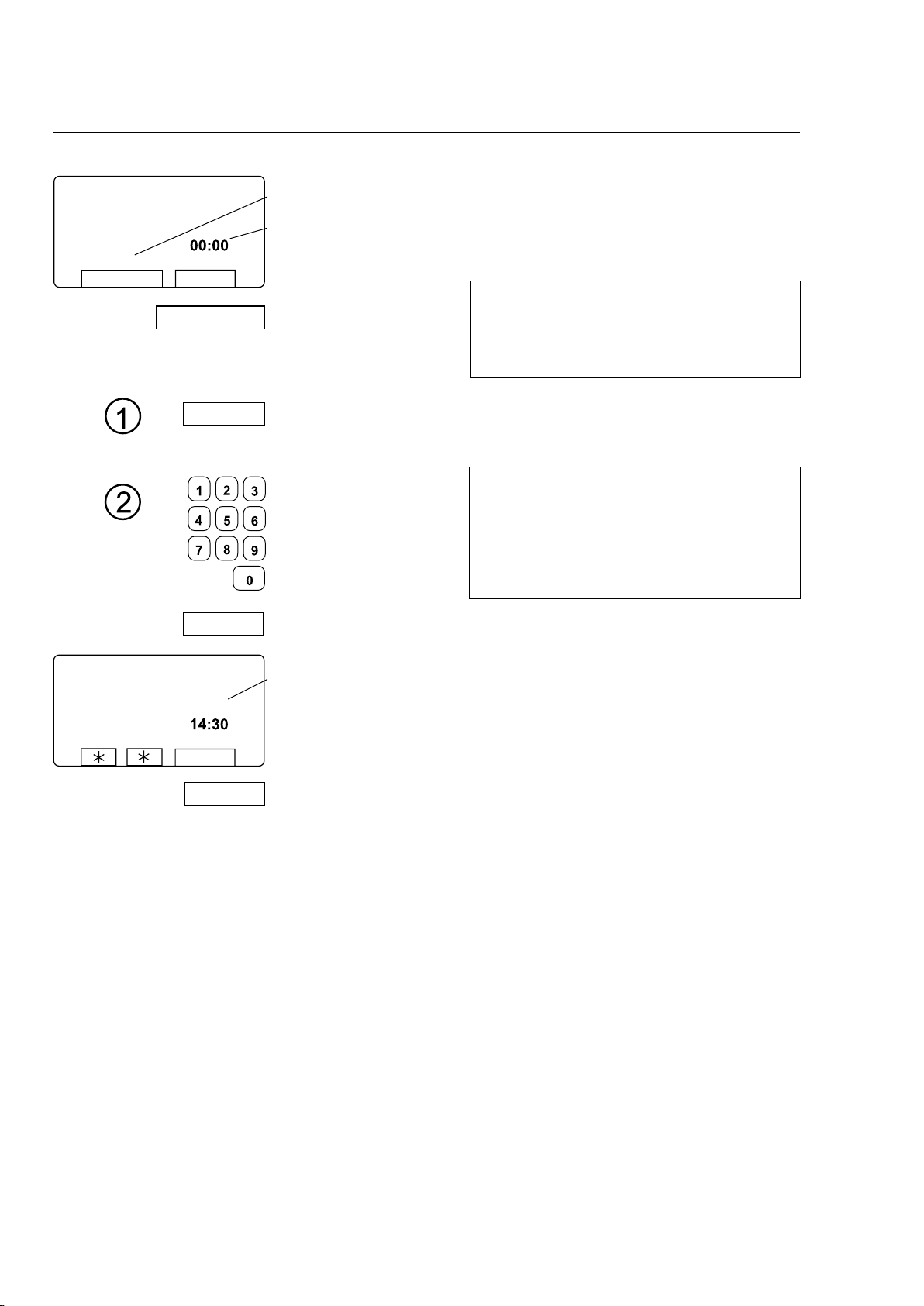

Delayed start time (hrs:mins)
2 Delayed start
Use the numeric keys
to enter a time (max. 99
hrs). This parameter ap-
pears on the right of the
display.
Press START.
3582
Delayed start
Delayed start means that the machine will not
start the wash program until the time entered has
elapsed.
This function allows you, for example, to load the
machine in the evening, but delay the start of the
wash until early the next morning, to end in time for
the next shift.
Time left before the machine is to start
Choose 1 or 2:
1 To start the program now:
Press START.
Pressing ”Text” displays more information
The text displayed is a description of the wash
program selected. This text description is inserted
when a new wash program is created. This proce-
dure is described fully in the programming manual.
If you want to cancel the
delayed start:
Press EXIT
If you want to see the
description of the program:
Press TEXT.
During a wash program:
Press ato
make the machine pause
during the wash program.
3627
Two ways of pausing during a wash program
There are two ways of pausing during a wash pro-
gram:
1. By pressing a.
2. As an additional function.
RUN A WASH PROGRAM
ENTER A PROGRAM NUMBER:
NORMAL 95°C
START
991
TEXT START
TEXT
START
EXIT
DELAY START
ENTER A PROGRAM NUMBER:
NORMAL 95°C
991
EXIT

12 Procedure for use
To change parameters in the current program
step
See section ”To change parameters in the cur-
rent program step”.
Certain program step parameters can be altered
during the course of the program. In the example
(left), the length of the program step and the heating
temperature can be altered.
3583
The following information is
displayed during the wash
program:
Current program step
Time left for this program step
Set temperature
Actual temperature
Remaining program time
Drum speed
To terminate a program before it has finished
• SelectRAPIDADVANCEandpressSELECT.
Advance to ”END OF PROGRAM” and press
SELECT.
• Waituntil”THEDOORISOPEN”appearsonthe
display.
• Nowthedoorcanbeopened.
Press SELECT.
If required:
Select a function using the
cursor keys.
Additional functions during the program
Rapid advance (see section ”Rapid advance”)
Rapid advance through the program to the program
step required. Rapid advance can be used to move
both forwards and backwards through the program.
Show weight (see section ”Show weight”)
The actual load weight is shown in large digits on the
display (weight display mode). (On machines with
weighing equipment only.)
No water reduction (see section ”No water
reduction”)
Machines with weighing equipment installed adjust
the water level automatically according to the load
weight. This function lets you switch off water level
reduction during the current program.
Manual functions (see section ”Manual functions”)
The following functions can be controlled manually
during the course of the program:
- all water valves, drain and pumps
(where applicable).
- limit highest extraction speed.
- motor on/off after end of wash program.
- flush detergent.
Pause (see section ”Pause”)
The machine stops. The drain valve remains clo-
sed.
Another way to pause the program: Press a.
Text (see section ”Text”)
Display description of wash program (if available).
Select new wash program (see section
”Select new wash program”)
You can switch to using a different wash program
at any stage during the wash. Once this function
has been selected, the current step (for example,
rinse) of the earlier program will be allowed to
finish and then the new program will start (from
the beginning).
Auto restarts (see section ”Auto restarts”)
Here you enter the number of times you wish the
wash program to restart automatically.
Change °F/°C (see section ”Change °F/°C”)
991 NORMAL 95°C
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEC
SET TEMPERATURE: 85 C
ACTUAL TEMPERATURE: 21 C
REMAINING TIME: 70 MIN
DRUM SPEED: 1000 RPM
RAPID ADVANCE
SHOW WEIGHT
SELECT
RAPID ADVANCE
SHOW WEIGHT
NO WATER REDUCTION
MANUAL FUNCTIONS
PAUSE
TEXT
SELECT NEW WASH PROGRAM
AUTO RESTARTS
CHANGE °F/°C
SELECT

13
Procedure for use
To start a wash program from the program library
If this menu is not currently
displayed:
Press arepeatedly.
If ”OPTIONS MENU” is
highlighted:
Press c.
When ”RUN A WASH
PROGRAM” is highlighted:
Press SELECT.
3580
SELECT
RUN A WASH PROGRAM
OPTIONS MENU
MAKE YOUR CHOICE WITH
cOR bAND PRESS SELECT
WEIGHT, KG: 000,0
RUN A WASH PROGRAM
OPTIONS MENU
SELECT
RUN A WASH PROGRAM
OPTIONS MENU
What is the program library?
The program library lists all wash programs, both
user and standard programs, showing their pro-
gram numbers and a description, for example:
1 MY OWN 40 °C
2 MY OWN 60 °C
3 MY OWN 90 °C
991 Start-up program
992 Level check
993 Weight check
994 Temperature check
995 Low extraction 500 rpm
1 minute
996 Low extraction 500 rpm
5 minutes
997 Extraction 775 rpm 2 minutes
(15s 550)
998 Extraction 950 rpm 4 minutes
(15s 550 + 15s 775)
999 High extraction 1100 rpm
5 minutes (15 + 15 + 20s 950)
Each time a new program is stored in the machine
program memory, its number and description will
be inserted automatically into the program library.
The program library may be used for starting a
wash program, but is also used in programming,
when a wash program needs to be modified or if
a new program is to be created on the basis of an
existing one.

14 Procedure for use
Program description
The following programs are fixed programmes in memory.
Prgr.no. Name Contents/Application
991 Start-up program If the machine has been idle more
than two hours, this program
should be run before any other
program is run.
992 Level check Check with the ruler inside the
drum
Program fills machine with water to
a reference level at 160 mm, main-
tains this level 20 seconds and
goes into a paus state with alarm.
Press PAUS and the machine will
be emptied. This process is repea-
ted five times. After that, the pro-
gram fills machine with water to the
following levels one after the other:
100 mm, 130 mm, 160 mm and
200 mm. Each level is maintained
40 seconds before emptying.
993 Weight check Program fills the machine with
water to 18 kg, wait 30 seconds,
rotates 60 seconds and fills to 26
kg (+8) and waits 30 seconds. Then
drain.
994 Temperature check Program fills machine with water to
130 mm level and warms it in five
steps: 25°C for 2 minutes, 40°C
for 2 minutes, 60°C for 2 minutes,
80°C for 2 minutes and 90°C for
2 minutes. The machine is emp-
tied, filled twice with cold water to
a high level 200 mm and finishes
with a two minute spin cycle 1000
rpm. The buzzer sounds at the end
of the program.
995 Low extraction 500 rpm
1 minute.
996 Low extraction 500 rpm
5 minutes.
997 Extraction 775 rpm
2 minutes (15s 550)
998 Extraction 950 rpm
4 minutes (15s 550 + 15s 775)
999 High extraction 1100 rpm
5 minutes (15+15+20s 950)

15
Procedure for use
4031
RUN A WASH PROGRAM
ENTER A PROGRAM NUMBER:
SELECT FROM LIBRARY
991
CLS SMC OK
CLS
SMC
To select a program from the
PCU program library:
Press CLS.
If there is a memory card
in the PCU and you wish to
select a program on that:
Press SMC.
Select library via menu
You can also select the program library via the
option ”OPTIONS MENU”. Then select ”WASH
PROGRAM LIBRARY”.
3590
Press bthe required
number of times...
...to highlight the wash
program required.
Press SELECT.
3591A
LIBRARY
PR. NO NAME
991 Start-up program
992 Level check
993 Weight check
994 Temperature check
995 Low extraction 500 rpm
1 minute
991 Start-up program
992 Level check
993 Weight check
994 Temperature check
995 Low extraction 500 rpm
1 minute
996 Low extraction 500 rpm
5 minutes
997 Extraction 775 rpm 2 minutes
(15s 550)
998 Extraction 950 rpm 4 minutes
(15s 550 + 15s 775)
999 High extraction 1100 rpm
5 minutes (15 + 15 + 20s 950
SELECT
SELECT
MENU
MAKE A CHOISE:
WASH PROGRAM LIBRARY
PROGRAMMING MODE
SETTINGS 1
MEMORY CARD
SERVICEMODE
STATISTICS
SELECT
WASH PROGRAM LIBRARY
PROGRAMMING MODE
SETTINGS 1
MEMORY CARD
SERVICEMODE
STATISTICS
MANUAL MODE
SETTINGS 2
EXIT

16 Procedure for use
Press START.
Delayed start
Delayed start means that the machine will not
start the wash program until the time entered has
elapsed.
This function allows you, for example, to load the
machine in the evening, but delay the start of the
wash until early the next morning, to end in time for
the next shift.
Time (in hours and minutes) left
before the machine is to start.
2 Delayed start
Use the numeric keys
to enter a time (max. 99
hrs). This parameter ap-
pears on the right of the
display.
Choose 1 or 2:
1 To start the program now:
Press START.
If you want to see the des-
cription of the program:
Press TEXT
Pressing ”Text” displays more information
The text displayed is a description of the wash
program selected. This text description is inserted
when a new wash program is created. This proce-
dure is described fully in the programming manual.
OIf you want to cancel the
delayed start:
Press EXIT.
Program name
Delayed start time (hrs:mins)
3582
RUN A WASH PROGRAM
ENTER A PROGRAM NUMBER:
NORMAL 95°C
START
991
TEXT START
TEXT
START
EXIT
DELAY START
ENTER A PROGRAM NUMBER:
NORMAL 95°C
991
EXIT

17
Procedure for use
Press cone or more
times...
...to highlight the line re-
quired.
3584
To change parameters in the current program step
Use the numeric keys to
enter the new parameter .
Press SELECT.
If you have entered the wrong parameter
Continue pressing numeric keys to overstrike the
incorrect parameter.
Note: always use the same number of digits as
used on the display to overstrike the incorrect
parameter.
Example:
To change the time for the program step to 30 se-
conds, enter 030 to overstrike the earlier parameter.
Press SELECT.
You can alter the following program steps:
Prewash, Main wash, Rinse, Drain, Soak
Length of program step (max. 9998 seconds),
heating temperature (max. 97°C).
Extraction
Length of program step (max. 3599 seconds),
extraction speed.
991 NORMAL 95°C
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEC
SET TEMPERATURE: 85 C
ACTUAL TEMPERATURE: 21 C
REMAINING TIME: 70 MIN
DRUM SPEED: 1000 RPM
RAPID ADVANCE
SHOW WEIGHT
SELECT
SELECT
SELECT
991 NORMAL 95°C
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEC
SET TEMPERATURE: 85 C
ACTUAL TEMPERATURE: 21 C
REMAINING TIME: 70 MIN
DRUM SPEED: 1000 RPM
RAPIDADVANDE
SHOW WEIGHT
SELECT

18 Procedure for use
Check that ”RAPID AD-
VANCE” is highlighted.
If it is not highlighted:
Press cor bone or
more times to highlight
”RAPID ADVANCE”.
Press SELECT.
Rapid advance To terminate a program before it has finished
• SelectRAPIDADVANCEandpressSELECT.
Advance to ”END OF PROGRAM” and press
SELECT.
• Waituntil”THEDOORISUNLOCKED”appears
on the display.
• Nowthedoorcanbeopened.
3583
991 NORMAL 95°C
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEC
SET TEMPERATURE: 85 C
ACTUAL TEMPERATURE: 21 C
REMAINING TIME: 70 MIN
DRUM SPEED: 1000 RPM
RAPID ADVANCE
SHOW WEIGHT
SELECT
RAPID ADVANCE
SHOW WEIGHT
NO WATER REDUCTION
MANUAL FUNCTIONS
PAUSE
TEXT
SELECT NEW WASH PROGRAM
AUTO RESTARTS
CHANGE °F/°C
SELECT
3586
Automatic return to normal display
If no keys are pressed within 20 seconds, the
display will revert automatically to its previous ap-
pearance.
Rapid advance works in both directions
Rapid advance works in both directions, using b
and c.
Using rapid advance to move forwards allows you
to skip one or more program steps. Using rapid ad-
vance backwards allows you to repeat one or more
program steps.
Press SELECT.
Press bor cone or
more times to highlight the
program step you wish to
advance to.
SELECT
MAIN WASH 1
DRAIN 1
RINSE 1
DRAIN 2
EXTRACT 1
RINSE 2
DRAIN 3
EXTRACT 2
RINSE 3
DRAIN 4
EXTRACT 3
END OF PROGRAM
SELECT
991 NORMAL 95°C
RAPIDADVANCE
MAIN WASH 1
DRAIN 1
RINSE 1
DRAIN 2
EXTRACT 1

19
Procedure for use
Show weight
The actual weight is shown in large digits on the display
(weight display mode).
If the weighing equipment is not connected, the error
message “FUNCTION NOT ALLOWED” will appear.
Press cor bone or
more times to highlight
”SHOW WEIGHT”.
Press SELECT.
4775
Return to normal display
The display will return to normal at the end of the ”time
for weight display” set as a parameter in Settings 1.
The manufacturer’s default parameter is 20 seconds.
Show weight
For machines with weighing equipment installed only!
Weight display mode:
The actual net weight is
shown in large digits on
the display.
To end weight display sooner
Press aor use the numeric keys to enter a new
program number.
3583
991 NORMAL 95°C
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEC
SET TEMPERATURE: 85 C
ACTUAL TEMPERATURE: 21 C
REMAINING TIME: 70 MIN
DRUM SPEED: 1000 RPM
SHOW WEIGHT
SELECT
SHOW WEIGHT
SELECT
CLARUS CONTROL
WEIGHT, KG:
007,0

20 Procedure for use
No water reduction
Press or one
or more times to
highlight ”NO WATER
REDUCTION”.
Press SELECT.
No water reduction
The wash load is weighed during the program and the
water level is adjusted automatically according to its
weight. If the load is not a full one, the water level will
be reduced according to a water level reduction table.
You can switch off water level reduction at any stage of
a program.
Note that if you select ”NO WATER REDUCTION”, this
applies only to the program currently running. The next
time a program is started, water level reduction will oc-
cur automatically again.
For machines with weighing equipment installed only!
3583
991 NORMAL 95°C
PROGRAM STEP: MAIN WASH 1
STEP TIME: 720 SEC
SET TEMPERATURE: 85 C
ACTUAL TEMPERATURE: 21 C
REMAINING TIME: 70 MIN
DRUM SPEED: 1000 RPM
NO WATER REDUCTION
SELECT
NO WATER REDUCTION
SELECT
This function is not
valid for this machine.
When selecting this
function the text NOT
ALLOWED FUNCTION
will be shown on the
display.
