© ELECTROLUX HOME PRODUCTS
Consumer Service - EMEA
Quality & Continuous Improvement - Technical Support
SERVICE MANUAL
DISHWASHERS
FOR INTERNAL AND PARTNERS USE ONLY
For internal and partners use only.
EN
Publication number
599 83 22 - 09
Edition: 08/2019 - Rev. 0
Dishwashers with electronic control system
SERVICE MODE
• EDW 1600 • EDW 1850
• EDW 1950 • EDW 2200
• EDW 3510 • EDW 4010

Introduction & Purpose
Technical Support – RA Chapter 1
CONTENTS:
Introduction & Purpose Chapter 1
User Interface – Introduction Chapter 2
EDW 1600 Chapter 3.1
EDW 1850 Chapter 3.2
EDW 1950 Chapter 3.3
EDW 2200 Chapter 3.4
EDW 3510 Chapter 3.5
EDW 4010 Chapter 3.6
Purpose:
To describe all the Service Mode functions for the User Interfaces included
on this Service Manual
Abbreviations, Acronyms and Definitions
RTA Remaining time adaptation
MCF Machine Configuration File
NTC
PB100
DIVA2
MCB
ADO
Negative Temperature Coefficient resistor
New platform for dual BLDC machines (Global hydraulic)
Platform with single BLDC control in separate unit (MCB)
Motor Control Board (DIVA2)
Auto Door Opener
Document Revisions
Revision Date Description Author
V0.0 08/2019 Document creation Rui Almeida
Electrical appliances must be serviced only
by qualified Service Engineers.
Always use proper safety equipment.
Always remove the plug from the power
socket before touching internal components.

User interface – Introduction
Technical Support – RA Chapter 2
User Interface – Modes and Function description
Reset
“Reset” is a special kind of User Operation to stop or deselect a
running program. In Dorothea range, when this function is
performed, the appliance will be in Startup mode with ECO program
and its default option selected.
Reset can be performed in any state except the Startup mode.
Reset is done by pressing the reset key combination for at least 2
seconds or press the specific button dedicated to this function by
the custom software.
The Reset key combination or specific Reset key is clearly indicated
on the control panel as ‘Reset’ or ‘Cancel’.
User Mode
The full function User Mode includes:
•Water Hardness Setting
•Rinse Aid Level Setting
•End of Cycle Buzzer Setting
•Display on Floor Display Colour Setting
•ADO Setting
According to hardware configuration of the dishwasher and
marketing requirement, User Mode in individual models can be a
subset of above functions.
The User Mode functions are not described in this Service Manual
since they are available on the User Manual.
Service Mode
The full function Service Mode includes:
•Fault Memory Reading
•Actuator Test
•LEDTest
•Functional Test cycle
•Enable/disable Extra Rinse
•Enable/disable Pulse Wash
•LCD brightness setting
•LCD contrast setting
According to hardware configuration of the dishwasher and
marketing requirement, Service Mode in individual models can be a
subset of above functions.
All the Service Mode functions are described on this user Service
Manual.

User interface – Introduction
Technical Support – RA Chapter 2
Service Mode – Function description
Alarm Reading and Actuator Test
After accessed Service mode to get the saved alarms and test
actuators.
Details of alarm code displaying are in later Alarm Code section.
LED Test / Delete Alarm Memory
To test the LEDS and erase alarm codes from memory.
Functional Test Cycle
Run a test cycle. It runs as a normal wash cycle. It can be cancelled
or run to its end.
Enable/disable Extra Rinse
An additional cold rinse phase can be added to the cycles to
improve wash performance. In factory (default) settings, this is
disabled.
Use this function to enable or disable the Extra Rinse.
Enable/disable Pulse Wash
Pulse Wash can be disabled from the cycles to improve wash
performance. In factory (default) settings, this is enabled.
Use this function to disable or enable Pulse Wash.

EDW1600
Technical Support – RA Chapter 3

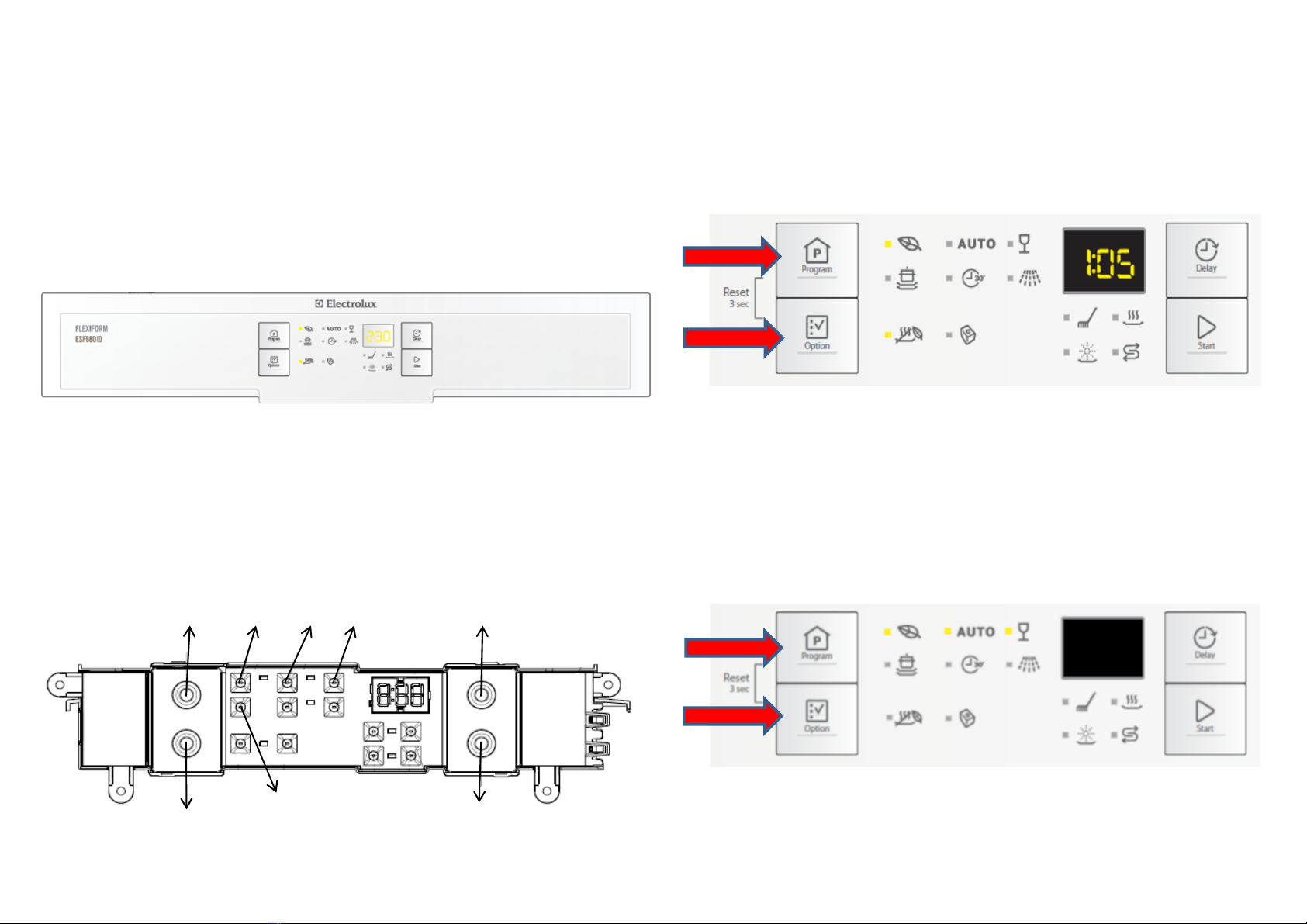

EDW 1600
Styling Overview
Location of LEDs and Push Buttons
Reset
Press buttons S1+S2 simultaneously for at least 2 seconds to
perform Reset function.
Access Service Mode
The Service Mode can only be accessed after the Reset function
has been carried out and the appliance is switched off.
Press and hold button S1+S2 simultaneously while turn the
appliance on, keep holding the buttons for 4 seconds.
L1, L2 and L3 blink to indicate that Service mode is accessed.
S1
S2
S3
S4
L1 L2 L3
L4

EDW1600
Technical Support – RA Chapter 3

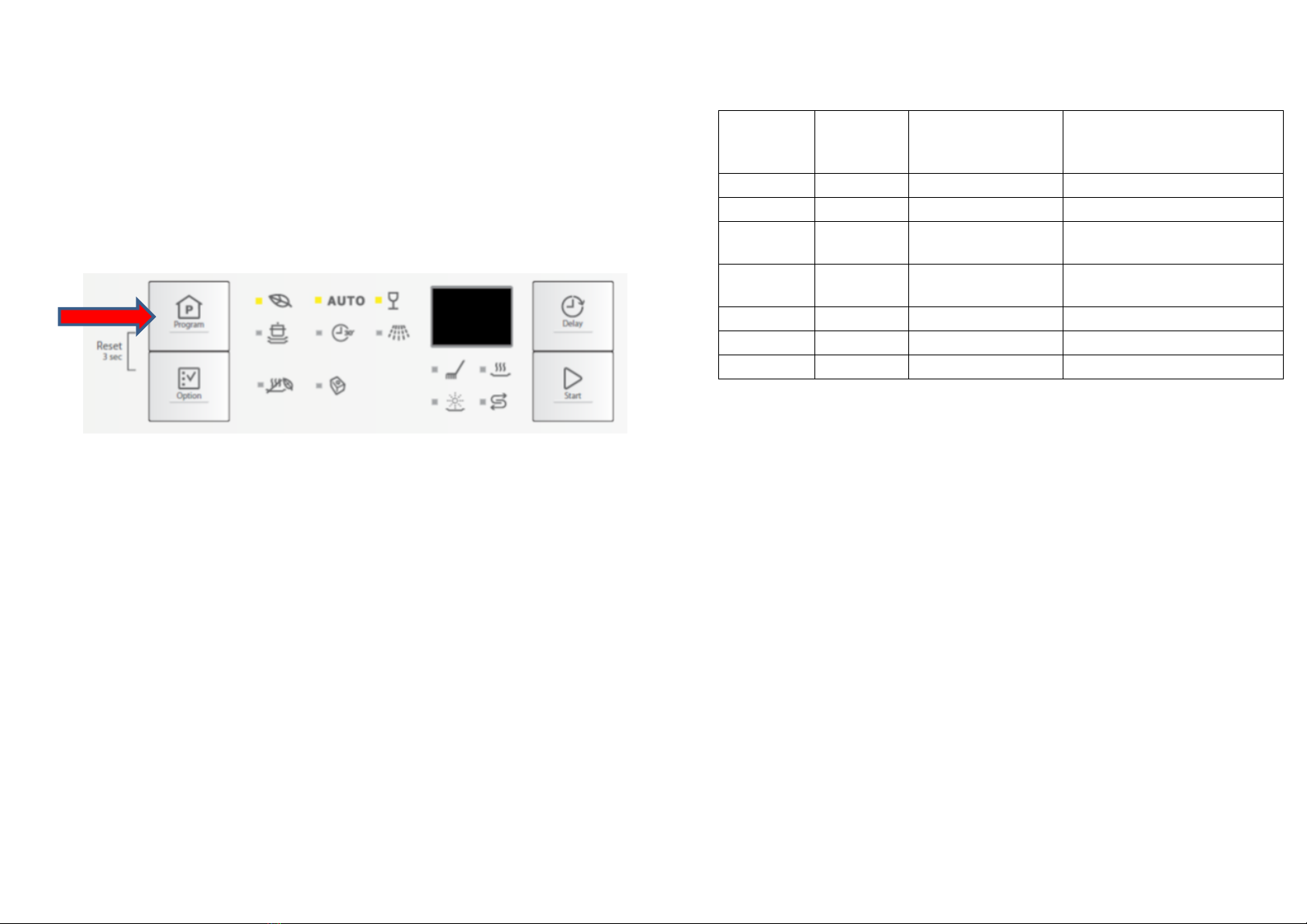

Alarm Reading and Actuator Test
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1 to show the first alarm code.
L1 blinks to indicate the machine is in Alarm Reading.
The first alarm code saved is shown in the display. Please
see later Alarm Codes section.
2. Press button S1 again to show the second alarm code.
3. Press button S1 once more to show the third alarm code.
4. Press button S1 the fourth time to move to Actuator Test. Press
button S1 repeatedly will sequentially turn on one actuator at a
time.
L1 is turned off. L2 blinks to indicate the machine is in
Actuator Test.
The actuator number is shown in the display, see the
following table for details.
Number of
S Pressed
Actuator
Number in
Display
Actuator Comment
4 4 Regeneration Valve
5 5 Drain Pump
6 6 Inlet Valve
Off hen ater level
reached
7 7 Heater
On only if ater level
reached
8 8 Wash Pump
9 9 Dispenser
10 10 Auto door opening
5. Press button S1 when actuator number 10 is activated, the
machine will cycle back to Alarm reading and show the first
alarm code saved.
6. Switching off the appliance will exit Service mode.

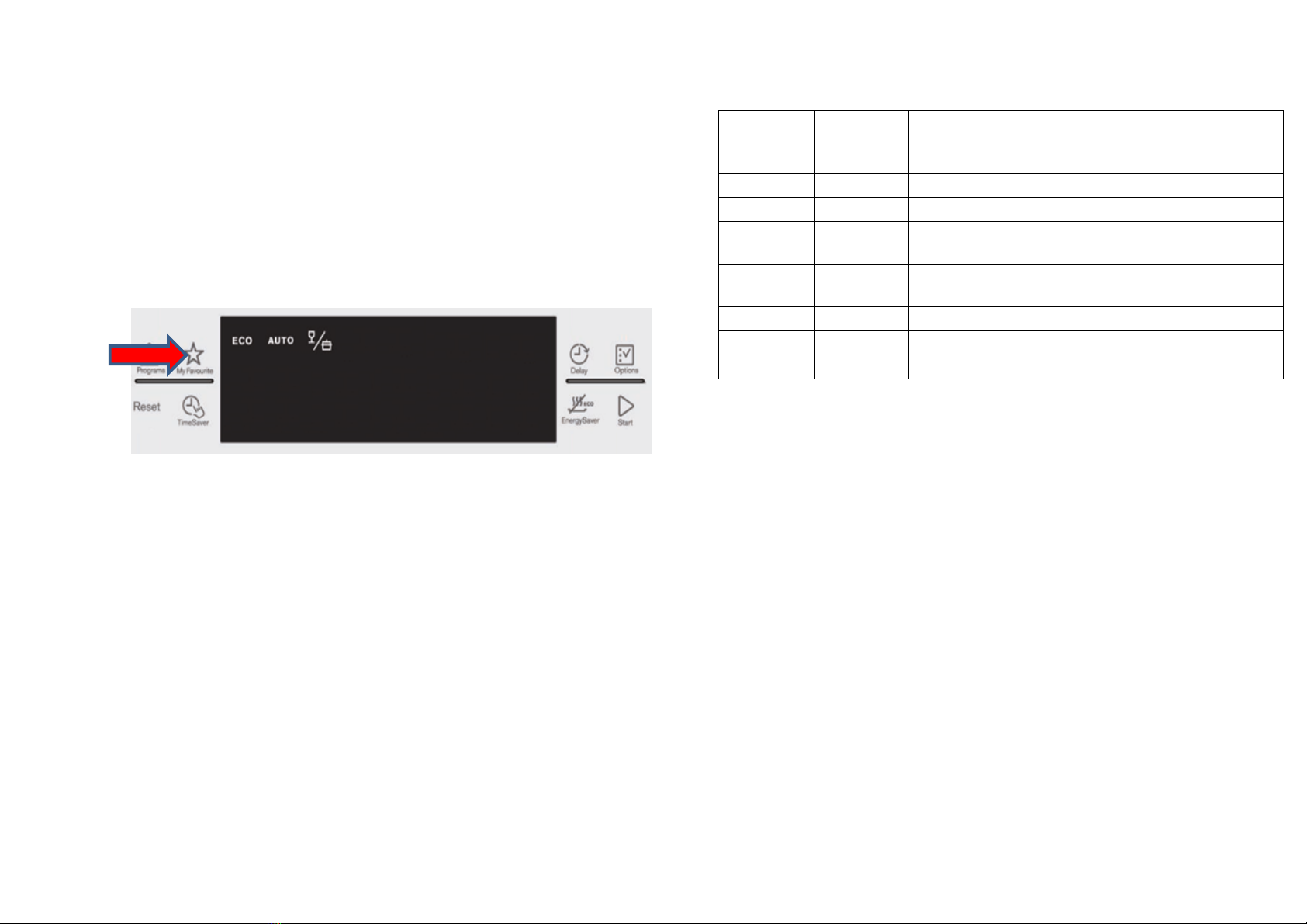

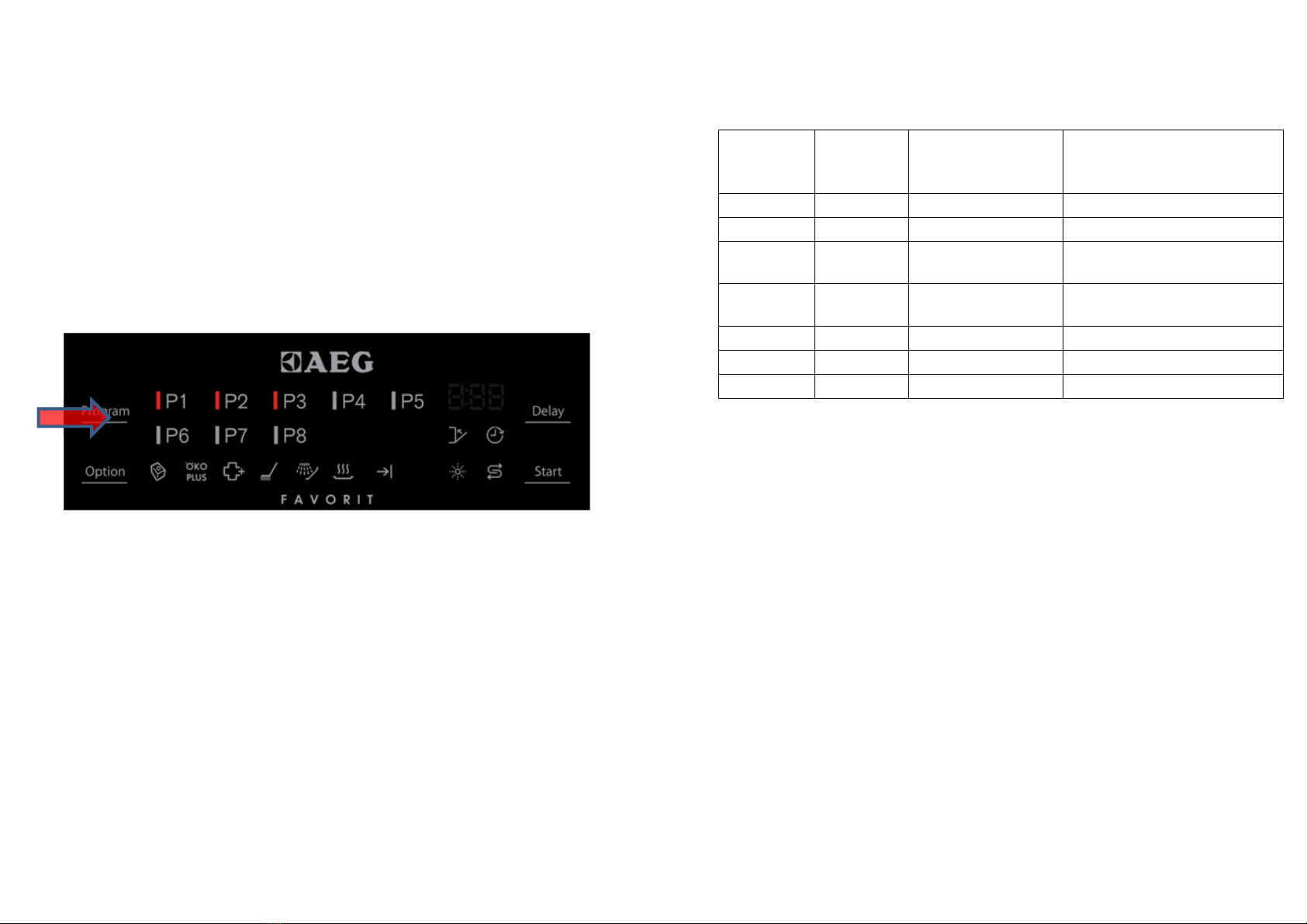

LED Test / Delete Alarm Memory
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2 to start this function.
All used LEDS and display (show “8:88”) blinks 5 second on
1 second off.
If a buzzer is equipped, it beeps for 5 seconds.
The alarm codes saved in memory are erased.
2. Switching off the appliance will exit Service mode.

EDW1600
Technical Support – RA Chapter 3
Functional Test Cycle
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S3 to start the test cycle. The cycle will not start if
door is opened.
L3 blinks for the duration of the test cycle.
Display shows the remaining time of test cycle.
The test cycle runs as a normal wash cycle. It can be
cancelled or run to its end.
Enable/disable Extra Rinse
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1+S2 to enter this function.
L1 blinks indicating it is in Extra Rinse setting mode.
Display show the current setting of Extra Rinse. “0E” for
disabled, “1E” for enabled.
2. Press button S1 to change the setting.
3. Switching off the appliance will exit Service mode.
Enable/disable Pulse Wash
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2+S3 to enter this function.
L2 blinks indicating it is in Pulse Wash setting mode.
Display show the current setting of Pulse Wash. “0P” for
disabled, “1P” for enabled
2. Press button S2 to change the setting
3. Switching off the appliance will exit Service mode.

EDW1850
Technical Support – RA Chapter 3
EDW 1850
Styling Overview
Location of LEDs and Push Buttons
Reset
Press buttons S3+S4 simultaneously for at least 2 seconds to
perform Reset function.
Access Service Mode
The Service Mode can only be accessed after the Reset function
has been carried out and the appliance is switched off.
Press and hold button S1+S2 simultaneously while turn the
appliance on, keep holding the buttons for 4 seconds.
S1
S3
S2
S4
L4

EDW1850
Technical Support – RA Chapter 3
L1, L2 and L3 blink to indicate that Service mode is accessed.
Alarm Reading and Actuator Test
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1 to show the first alarm code.
L1 blinks to indicate the machine is in Alarm Reading.
The first alarm code saved is shown in the display.
Please see later Alarm Codes section.
2. Press button S1 again to show the second alarm code.
3. Press button S1 once more to show the third alarm code.
4. Press button S1 the fourth time to move to Actuator Test. Press
button S1 repeatedly will sequentially turn on one actuator at a
time.
L1 is turned off. L2 blinks to indicate the machine is in
Actuator Test.
The actuator number is shown in the display, see the
following table for details.
Number of
S Pressed
Actuator
Number in
Display
Actuator Comment
4 4 Regeneration Valve
5 5 Drain Pump
6 6 Inlet Valve
Off hen ater
level
reached
7 7 Heater
On only if ater level
reached
8 8 Wash Pump
9 9 Dispenser
10 10 Auto door opening
5. Press button S1 when actuator number 10 is activated, the
machine will cycle back to Alarm reading and show the first
alarm code saved.
6. Switching off the appliance will exit Service mode.
LED Test / Delete Alarm Memory
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2 to start this function.
All used LEDS and display (show “8:88”) blinks 5 second on
1 second off.
If a buzzer is equipped, it beeps for 5 seconds.
The alarm codes saved in memory are erased.
2. Switching off the appliance will exit Service mode.

EDW1850
Technical Support – RA Chapter 3
Functional Test Cycle
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S3 to start the test cycle. The cycle will not start if
door is opened.
L3 blinks for the duration of the test cycle.
Display shows the remaining time of test cycle.
The test cycle runs as a normal wash cycle. It can be
cancelled or run to its end.
Enable/disable Extra Rinse
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1+S2 to enter this function.
L1 blinks indicating it is in Extra Rinse setting mode.
Display show the current setting of Extra Rinse. “0E” for
disabled, “1E” for enabled.
2. Press button S1 to change the setting.
3. Switching off the appliance will exit Service mode.
Enable/disable Pulse Wash
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2+S3 to enter this function.
L2 blinks indicating it is in Pulse Wash setting mode.
Display show the current setting of Pulse Wash. “0P” for
disabled, “1P” for enabled
2. Press button S2 to change the setting
3. Switching off the appliance will exit Service mode.

EDW1950
Technical Support – RA Chapter 3
EDW 1950
Styling Overview
Location of LEDs,
Location of LEDs and Push Buttons
Reset
Press buttons S3+S4 simultaneously for at least 2 seconds to
perform Reset function.
Access Service Mode
The Service Mode can only be accessed after the Reset function
has been carried out and the appliance is switched off.
EDW1950 is a touch key model. After Reset and off/on, press
button S1+S2 simultaneously for at least 4 seconds to access
Service Mode.
L1, L2 and L3 blink to indicate that Service mode is accessed.
S1
S3
S2
S4
L1
L2
L3
L4

EDW1950
Technical Support – RA Chapter 3
Alarm Reading and Actuator Test
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1 to show the first alarm code.
L1 blinks to indicate the machine is in Alarm Reading.
The first alarm code saved is shown in the display.
Please see later Alarm Codes section.
2. Press button S1 again to show the second alarm code.
3. Press button S1 once more to show the third alarm code.
4. Press button S1 the fourth time to move to Actuator Test. Press
button S1 repeatedly will sequentially turn on one actuator at a
time.
L1 is turned off. L2 blinks to indicate the machine is in
Actuator Test.
The actuator number is shown in the display, see the
following table for details.
Num er of
S1 Pressed
Actuator
Num er in
Display
Actuator Comment
4 4 Regeneration Valve
5 5 Drain Pump
6 6 Inlet Valve
Off hen ater
level
reached
7 7 Heater
On only if ater level
reached
8 8 Wash Pump
9 9 Dispenser
10 10 Auto door opening
5. Press button S1 when actuator number 10 is activated, the
machine will cycle back to Alarm reading and show the first
alarm code saved.
6. Switching off the appliance will exit Service mode.
LED Test / Delete Alarm Memory
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2 to start this function.
All used LEDS and display (show “8:88”) blinks 5 second on
1 second off.
If a buzzer is equipped, it beeps for 5 seconds.
The alarm codes saved in memory are erased.
2. Switching off the appliance will exit Service mode.

EDW1950
Technical Support – RA Chapter 3
Functional Test Cycle
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S3 to start the test cycle. The cycle will not start if
door is opened.
L3 blinks for the duration of the test cycle.
Display shows the remaining time of test cycle.
The test cycle runs as a normal wash cycle. It can be
cancelled or run to its end.
Enable/disable Extra Rinse
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S1+S2 to enter this function.
L1 blinks indicating it is in Extra Rinse setting mode.
Display show the current setting of Extra Rinse. “0E” for
disabled, “1E” for enabled.
2. Press button S1 to change the setting.
3. Switching off the appliance will exit Service mode.
Enable/disable Pulse Wash
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2+S3 to enter this function.
L2 blinks indicating it is in Pulse Wash setting mode.
Display show the current setting of Pulse Wash. “0P” for
disabled, “1P” for enabled
2. Press button S2 to change the setting
3. Switching off the appliance will exit Service mode.

EDW2200
Technical Support – RA Chapter 3

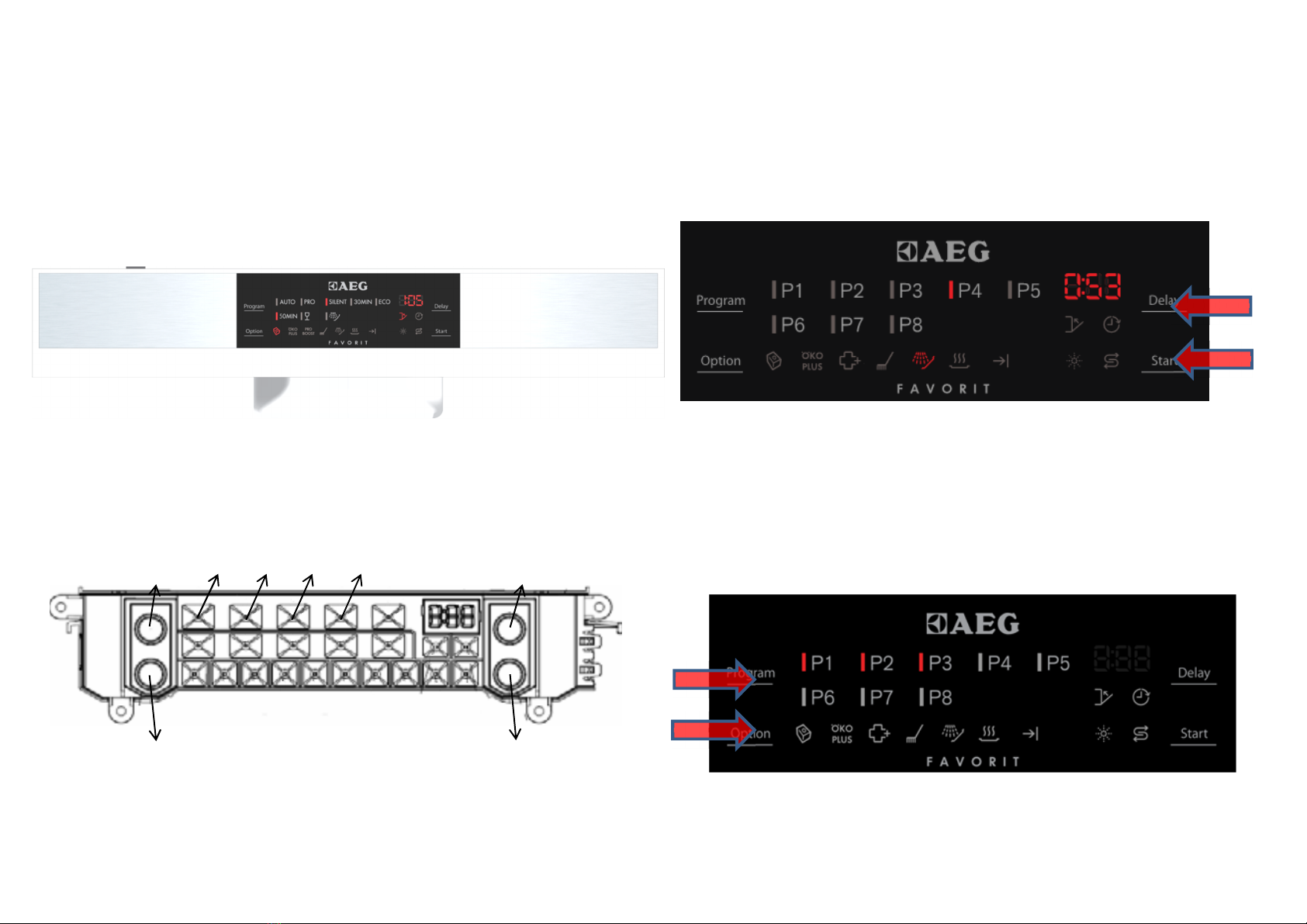

EDW 2200
Styling Overview
Location of LEDs and Push Buttons
Reset
Press the S3 which is dedicated to this function.
Access Service Mode
The Service Mode can only be accessed after the Reset function
has been carried out and the appliance is switched off.
EDW2200 is a touch key model. After Reset an off/on, press button
S2+S4 simultaneously for at least 4 seconds to access Service
Mode.
L1, L2 and L3 blink to indicate that Service mode is accessed.
S8
S1
S2
S5
S6
S3 S4 S7
L4

EDW2200
Technical Support – RA Chapter 3
Alarm Reading and Actuator Test
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2 to show the first alarm code.
L1 blinks to indicate the machine is in Alarm Reading.
The first alarm code saved is shown in the display.
Please see later Alarm Codes section.
2. Press button S2 again to show the second alarm code.
3. Press button S2 once more to show the third alarm code.
4. Press button S2 the fourth time to move to Actuator Test. Press
button S2 repeatedly will sequentially turn on one actuator at a
time.
L1 is turned off. L2 blinks to indicate the machine is in
Actuator Test.
The actuator number is shown in the display, see the
following table for details.
Number of
S Pressed
Actuator
Number in
Display
Actuator Comment
4 4 Regeneration Valve
5 5 Drain Pump
6 6 Inlet Valve
ff when water level
reached
7 7 Heater
n only
if water level
reached
8 8 Wash Pump
9 9 Dispenser
10 10 Auto door opening
5. Press button S2 when actuator number 10 is activated, the
machine will cycle back to Alarm reading and show the first
alarm code saved.
6. Switching off the appliance will exit Service mode.
LED Test / Delete Alarm Memory
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S4 to start this function.
All used LEDS and display (show “8:88”) blinks 5 second on
1 second off.
If a buzzer is equipped, it beeps for 5 seconds.
The alarm codes saved in memory are erased.
2. Switching off the appliance will exit Service mode.

EDW2200
Technical Support – RA Chapter 3
Functional Test Cycle
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S5 to start the test cycle. The cycle will not start if
door is opened.
L3 blinks for the duration of the test cycle.
Display shows the remaining time of test cycle.
The test cycle runs as a normal wash cycle. It can be
cancelled or run to its end.
Enable/disable Extra Rinse
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S2+S4 to enter this function.
L1 blinks indicating it is in Extra Rinse setting mode.
Display show the current setting of Extra Rinse. “0E” for
disabled, “1E” for enabled.
2. Press button S2 to change the setting.
3. Switching off the appliance will exit Service mode.
Enable/disable Pulse Wash
After accessed Service mode (L1, L2 and L3 blinking):
1. Press button S4+S5 to enter this function.
L2 blinks indicating it is in Pulse Wash setting mode.
Display show the current setting of Pulse Wash. “0P” for
disabled, “1P” for enabled
2. Press button S4 to change the setting
3. Switching off the appliance will exit Service mode.

EDW3510
Technical Support – RA Chapter 3.5
EDW 3510
Styling Overview
Location of LEDs and Push Buttons
Reset
Press the Program Key for at least 2 seconds, and then follow the
instructions on the screen to perform Reset function.
Access Service Mode
EDW3510 is a touch key model. After Reset an off/on, press button
S5+S7 simultaneously for at least 4 seconds to access Service
Mode.
After accessing Service mode, using the navigation buttons to
select the desired service function shown in screen and using “OK”
button to enter the selected function, then follow the instruction in
the screen to perform the functions.
Follow the instruction in the screen or switching off the appliance to
save the new setting and exit Service mode.
S1
S3
S2
S5
S6
S4
S7
S8

EDW4010
Technical Support – RA Chapter 3

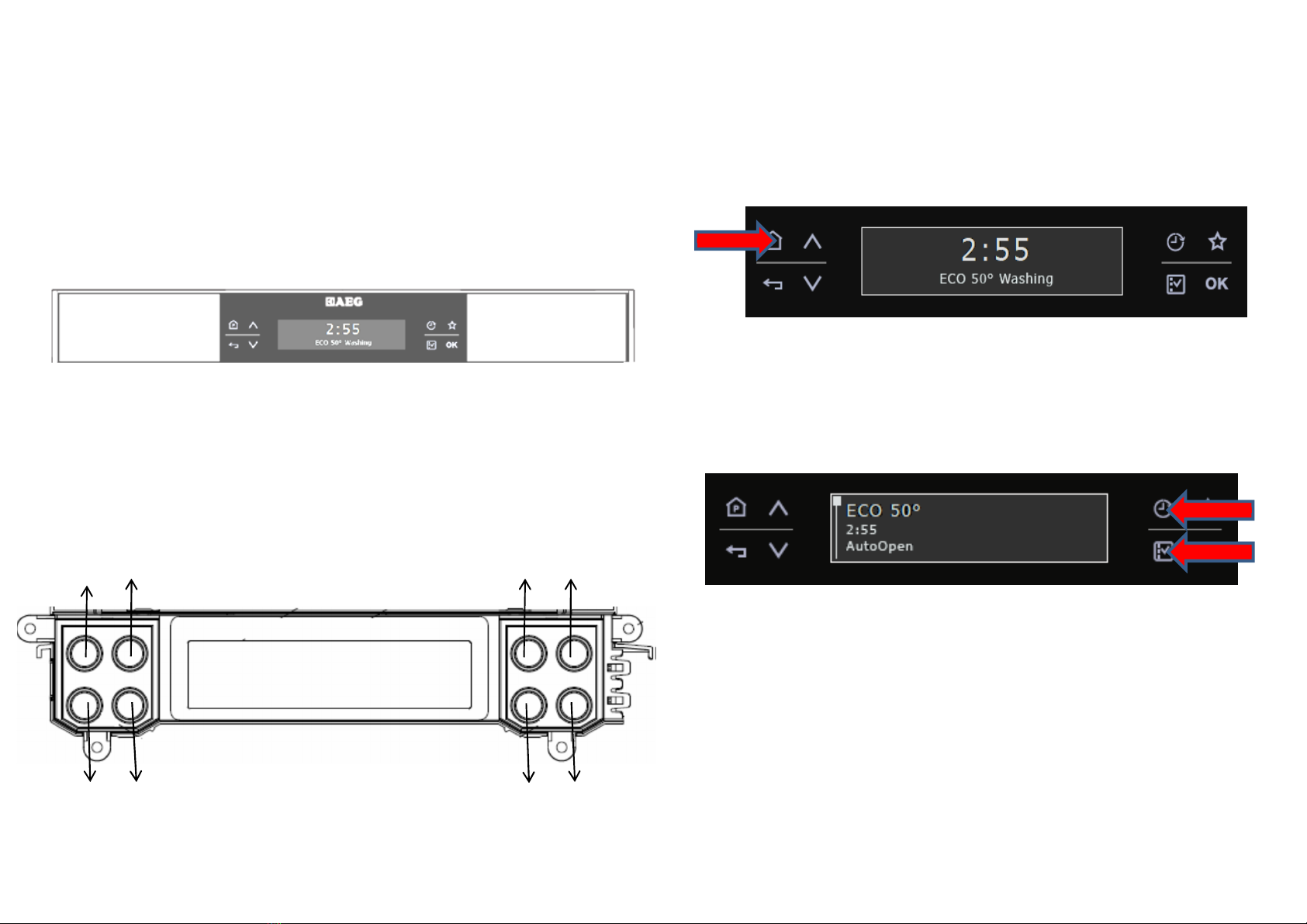

EDW 4010
Styling Overview
Location of LEDs and Push Buttons
Reset
Press the Program Key for at least 2 seconds, and then follow the
instructions on the screen to perform Reset function.
Access Service Mode
EDW4010 is a touch key model. After Reset an off/on, press button
S5+S7 simultaneously for at least 4 seconds to access Service
Mode.
After accessing Service mode, using the navigation buttons to
select the desired service function shown in screen and using “OK”
button to enter the selected function, then follow the instruction in
the screen to perform the functions.
Follow the instruction in the screen or switching off the appliance to
save the new setting and exit Service mode.
S1
S3
S2
S5
S6
S4
S7
S8
