Electrolux ESI 63020 User manual

user manual
ESI 63020
dishwasher
117991 56/0en 22-01-2007 12:24 Pagina 1

We were thinking of you
when we made this product
117991 56/0en 22-01-2007 12:24 Pagina 2

welcome to the world of Electrolux electrolux 3
Thank you for choosing a first class product from Electrolux, which
hopefully will provide you with lots of pleasure in the future. The
Electrolux ambition is to offer a wide variety of quality products
that make your life more comfortable. You find some examples on
the cover in this manual. Please take a few minutes to study this
manual so that you can take advantage of the benefits of your new
machine. e promise that it will provide a superior User
Experience delivering Ease-of-Mind. Good luck!
elcome to the world of Electrolux
117991 56/0
117991 56/0en 22-01-2007 12:24 Pagina 3

Safety information 5
Product description 7
Control panel 8
First use 11
Daily use 15
ashing programmes 26
Care and cleaning 27
Something not working 29
Technical data 32
Hints for test institutes 34
Installation 35
Environment concerns 39
Guarantee/Customer Service 40
Contents
The following symbols are used in this manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
4electrolux contents
117991 56/0en 22-01-2007 12:24 Pagina 4

safety information electrolux 5
In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mista es and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and
safety features. Save these
instructions and ma e sure that
they remain with the appliance if it
is moved or sold, so that everyone
using it through its life will be
properly informed on appliance use
and safety.
Correct use
●This dishwasher is only intended
for washing household utensils
suitable for machine washing.
●Do not put any solvents in the
dishwasher. This could cause an
explosion.
●Knives and other items with sharp
points must be loaded in the
cutlery basket with their points
down or placed in a horizontal
position in the upper basket.
●Only use products (detergent, salt
and rinse aid) suitable for
dishwashers.
●Avoid opening the door whilst the
appliance is in operation, hot
steam may escape.
●Do not take any dishes out of the
dishwasher before the end of the
dishwashing cycle.
Safety information
●After use, isolate the appliance
from the power supply and turn off
the water supply.
●This product should be serviced
only by an authorised service
engineer, and only genuine spare
parts should be used.
●Under no circumstances should
you attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons will cause
injury or serious malfunctioning.
Contact your local Service Force
Centre. Always insist on genuine
spare parts.
General safety
●Dishwasher detergents can cause
chemical burns to eyes, mouth and
throat. Could endanger life!
Comply with the safety instructions
of the dishwasher detergent
manufacturer.
●The water in your dishwasher is
not for drinking. Detergent
residues may still be present in
your machine.
●Ensure that the door of the
dishwasher is always closed when
it is not being loaded or unloaded.
In this way you will avoid anybody
tripping over the open door and
hurting themselves.
●Do not sit or stand on the open
door.
Child safety
●This appliance is designed to be
operated by adults. Don’t allow
children to use the dishwasher
unsupervised.
117991 56/0en 22-01-2007 12:24 Pagina 5

6electrolux safety information
For electrical and water connection
carefully follow the instructions
given in specific paragraphs.
●Keep all packaging well away from
children. There is risk of
suffocation.
●Keep all detergents in a safe place
out of children’s reach.
●Keep children well away from the
dishwasher when the door is open.
Installation
●Check your dishwasher for any
transport damage. Never connect
a damaged machine. If your
dishwasher is damaged contact
your supplier.
●All packaging must be removed
before use.
●Any electrical and plumbing work
required to install this appliance
must be carried out by a qualified
and competent person.
●For safety reasons it is dangerous
to alter the specifications or
attempt to modify this product in
any way.
●Never use the dishwasher if the
electrical supply cable and water
hoses are damaged; or if the
control panel, work top or plinth
area are damaged such that the
inside of the appliance is freely
accessible. Contact your local
Service Force centre, in order to
avoid hazard.
●All sides of the dishwasher must
never be drilled to prevent damage
to hydraulic and electric
components.
117991 56/0en 22-01-2007 12:24 Pagina 6

product description electrolux 7
Product description
Upper basket
ater hardness dial
Salt container
Detergent dispenser
Rinse aid dispenser
Rating plate
Filters
Lower spray arm
Upper spray arm
1
2
3
4
5
6
7
8
9
117991 56/0en 22-01-2007 12:24 Pagina 7

8electrolux control panel
Control panel
Programme mar er
On/Off indicator light
Programme nob
Start/cancel button
Delay start button
Indicator lights
1
2
3
4
5
6
117991 56/0en 22-01-2007 12:24 Pagina 8

control panel electrolux 9
The salt and rinse aid indicator
lights are never illuminated while a
washing programme is running
even if filling with salt and/or rinse
aid is necessary.
The salt indicator light on the
control panel can remain
illuminated for 2-6 hours after the
salt has been replenished,
assuming the dishwasher remains
switched on. If you are using salts
that ta e longer to dissolve then
this can ta e longer. The function
of the machine is not affected.
Wash
Indicator lights
Dry
Illuminates when the washing and rinsing
phases are running.
Illuminates when the drying phase is running.
End of programme Illuminates when a washing programme has
ended. It also has added functions of visual
signalling as:
- the setting of the water softener,
- intervention of an alarm due to the
malfunction of the machine.
Salt Illuminates when the special salt has run out.
Rinse aid Illuminates when the rinse aid has run out.
117991 56/0en 22-01-2007 12:24 Pagina 9

10 electrolux control panel
Programme nob and On/Off
indicator light
●The selection of a washing
programme occurs by turning the
programme knob clockwise or
anticlockwise, until the programme
marker, placed on the knob,
corresponds with the desired
washing programme indicated on
the control panel.
The On/Off indicator light
illuminates (position ON)
●To switch off the appliance turn the
programme knob until the
programme marker corresponds
with the On/Off indicator light.
The On/Off indicator light turns off
(position OFF).
ith the programme knob it is also
possible to set the level of the water
softener.
117991 56/0en 22-01-2007 12:24 Pagina 10

first use electrolux 11
Before using your dishwasher for the
first time:
●Ensure that the electrical and
water connections comply with the
installation instructions
●Remove all packaging from inside
the appliance
●Set the water softener
●Pour 1 litre of water inside the salt
container and then fill with
dishwasher salt
●Fill the rinse aid dispenser
When using combi detergents
tablets («3 in 1», «4 in 1», «5 in 1»,
etc...) follow the instructions given
in "Use of detergent".
First use
Set the water softener
The dishwasher is equipped with a
water softener designed to remove
minerals and salts from the water
supply, which would have a
detrimental or adverse effect on the
operation of the appliance.
The higher the content of these
minerals and salts, the harder your
water is.
ater hardness is measured in
equivalent scales, German degrees
(°dH), French degrees (°TH) and
mmol/l (millimol per litre - international
unit for the hardness of water).
The softener should be adjusted
according to the hardness of the
water in your area. Your local ater
Authority can advise you on the
hardness of the water in your area.
*no salt is necessary
Water hardness
°dH °TH mmol/l manually electronically
Adjusting the water
hardness setting Use of salt
51 - 70 91 - 125 9.0 - 12.5 2 level 10 yes
43 - 50 76 - 90 7.6 - 8.9 2 level 9 yes
37 - 42 65 - 75 6.5 - 7.5 2 level 8 yes
29 - 36 51 - 64 5.1 - 6.4 2 level 7 yes
23 - 28 40 - 50 4.0 - 5.0 2 level 6 yes
19 - 22 33 - 39 3.3 - 3.9 2 level 5 yes
15 - 18 26 - 32 2.6 - 3.2 1 level 4 yes
11 - 14 19 - 25 1.9 - 2.5 1 level 3 yes
4 - 10 7 - 18 0.7 - 1.8 1 level 2 yes
< 4 < 7 < 0.7 1 level 1 no *
117991 56/0en 22-01-2007 12:24 Pagina 11

12 electrolux first use
The water softener must be set in
both ways: manually, using the water
hardness dial and electronically, using
the programme knob and the
start/cancel button.
Setting manually
The dishwasher is factory set at
position 2.
1. Open the dishwasher door.
2. Remove the lower basket from the
dishwasher.
3. Turn the water hardness dial to
position 1 or 2 (see table).
4. Replace the lower basket.
Setting electronically
The dishwasher is factory set at
level 5.
1. The dishwasher must be switched
off.
Keep the start/cancel button
pressed and turn the programme
knob clockwise until the
programme marker corresponds
with the first washing programme.
2. Release the start/cancel button,
the On/Off and start/cancel
indicator lights start to flash
indicating that you have activated
the water softener setting function.
3. At the same time, the end of
programme indicator light starts to
flash.
The current level is indicated by
the number of flashes of the
indicator light end of programme
and a pause of about 3 seconds.
Examples:
5 flashes, pause, 5 flashes, pause,
etc... = level 5
6 flashes, pause, 6 flashes, pause,
etc... = level 6
4. To change the level, press the
start/cancel button. Each time the
button is pressed the level
changes.
Examples:
if the current level is 5, by pressing
start/cancel button once, level 6 is
selected.
if the current level is 10, by
pressing start/cancel button once,
level 1 is selected.
5. To memorise the operation, switch
off the dishwasher by returning the
programme knob to the Off
position.
117991 56/0en 22-01-2007 12:24 Pagina 12

first use electrolux 13
Filling with dishwasher salt
Only use salt specifically designed for
use in dishwashers.
All other types of salt not specifically
designed for use in a dishwasher,
especially table salt, will damage the
water softener.
Only fill with salt just before starting
one of the complete washing
programmes.
This will prevent any grains of salt or
salty water, which may have been
spilt, remaining on the bottom of the
machine for any period of time, which
may cause corrosion.
To fill:
1. Open the door, remove the lower
basket and unscrew the cap of the
salt container by turning it
anticlockwise.
2. Pour 1 litre of water inside the
container (this is necessary only
before filling with salt for the
first time).
3. Using the funnel provided, pour in
the salt until the container is full.
4. Replace the cap making sure that
there is no trace of salt on the
screw thread or on the gasket.
5. Replace the cap tightly turning it
clockwise until it stops with a click.
Do not worry if water overflows from
the unit when filling with salt, this is
quite normal.
117991 56/0en 22-01-2007 12:24 Pagina 13

14 electrolux first use
Filling with rinse aid
Rinse aid ensures thorough rinsing,
and spot and streak free drying.
Rinse aid is automatically added
during the last rinse.
1. Open the container by pressing
the release button (A).
2. Add the rinse aid in the container.
The maximum level for filling is
indicated by "max".
The dispenser holds about 110 ml of
rinse aid, which is sufficient for
between 16 and 40 dishwashing
cycles, depending upon the dosage
setting.
According to the finish and drying
results obtained, adjust the dose of
rinse aid by means of the 6 position
selector (position 1 minimum dosage,
position 6 maximum dosage).
The dose is factory set in position 4.
Increase the dose if there are drops of
water or lime spots on the dishes after
washing.
Reduce it if there are sticky whitish
streaks on the dishes or a bluish film
on glassware or knife blades.
3. Ensure that the lid is closed after
every refill.
Clean up any rinse aid spilt during
filling with an absorbent cloth to
avoid excess foaming during the
next wash.
Only use branded rinse aid for
dishwashers.
Never fill the rinse aid dispenser
with any other substances (e.g.
dishwasher cleaning agent, liquid
detergent). This would damage the
appliance.
117991 56/0en 22-01-2007 12:24 Pagina 14

daily use electrolux 15
●Check if it’s necessary to refill with
dishwasher salt or rinse aid
●Load cutlery and dishes into the
dishwasher.
●Fill with dishwasher detergent .
●Select a wash programme suitable
for the cutlery and dishes.
●Start the wash programme.
Loading cutlery and dishes
Sponges, household cloths and any
object that can absorb water may not
be washed in the dishwasher.
●Before loading the dishes, you
should:
- Remove all left over food and
debris.
- Soften remnants of burnt food in
pans
●hen loading the dishes and
cutlery, please note:
- Dishes and cutlery must not
impede the rotation of the spray
arms .
- Load hollow items such as cups,
glasses, pans, etc. with the
opening downwards so that water
cannot collect in the container or
a deep base.
- Dishes and items of cutlery must
not lie inside one another, or
cover each other.
- To avoid damage to glasses, they
must not touch.
Daily use
- Lay small objects in the cutlery
basket.
●Plastic items and pans with non
stick coatings have a tendency to
retain water drops; these items will
not dry as well as porcelain and
steel items.
●Light items (plastic bowls etc.)
must be loaded in the upper
basket and arranged so they do
not move.
117991 56/0en 22-01-2007 12:24 Pagina 15

16 electrolux daily use
For washing in the dishwasher the following cutlery and dishes
are not suitable: - Cutlery with wooden, horn, china or mother-of-
pearls handles.
- Plastic items that are not heat resistant.
- Older cutlery with glued parts that are not
temperature resistant.
- Bonded cutlery items or dishes.
- Pewter or copper items.
- Lead crystal glass.
- Steel items prone to rusting.
- ooden platters.
- Items made from synthetics fibres.
are of limited suitability: - Only wash stoneware in the dishwasher if it is
specially marked as being dishwasher-safe by the
manufacturer.
- Glazed patterns may fade if machine washed
frequently.
- Silver and aluminium parts have a tendency to
discolour during washing: Residues, e.g. egg
white, egg yolk and mustard often cause
discolouring and staining on silver. Therefore
always clean left-overs from silver immediately, if
it is not to be washed straight after use.
117991 56/0en 22-01-2007 12:24 Pagina 16

daily use electrolux 17
Open the door and slide out the
baskets to load the dishes.
The lower bas et

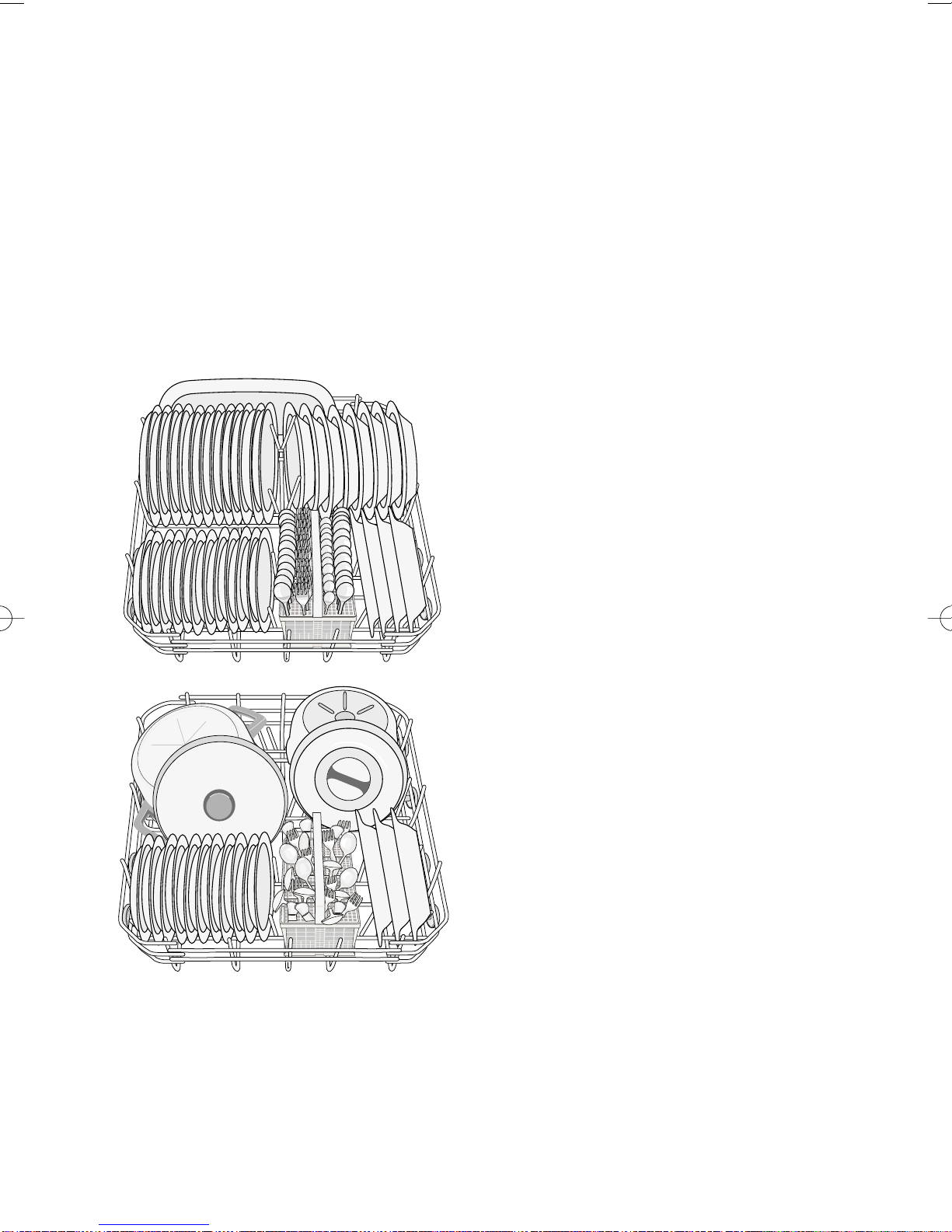

The lower basket is designed to take
saucepans, lids, plates, salad bowls,
cutlery etc.
Serving dishes and large lids should
be arranged around the edge of the
basket, ensuring that the spray arms
can turn freely.
117991 56/0en 22-01-2007 12:24 Pagina 17

18 electrolux daily use
If the handles protrude from the
bottom of the basket, obstructing the
lower spray arm, load the cutlery with
the handles facing upwards.
Mix spoons with other cutlery to
prevent them from sticking together.
For best results we recommend you
to use the cutlery grid provided (if the
size and dimensions of the cutlery
allow it).
The cutlery bas et
Long bladed nives stored in an
upright position are a potential
hazard.
Long and/or sharp items of cutlery
such as carving nives must be
positioned horizontally in the upper
bas et.
Ta e care when loading or
unloading sharp items such as
nives.
Forks and spoons should be placed in
the removable cutlery basket with the
handles facing downwards and the
knives with their handles facing
upwards.
117991 56/0en 22-01-2007 12:24 Pagina 18

daily use electrolux 19
The upper bas et
The upper basket is designed for
plates (dessert plates, saucers, dinner
plates of up to 24 cm in diameter),
salad bowls, cups and glasses.
Arrange items on and underneath the
cup racks so that water can reach all
surfaces.
Glasses with long stems can be
placed upside down in the cup racks.
For taller items, the cup racks can be
folded upwards.
Before closing the door, ensure that
the spray arms can rotate freely.
117991 56/0en 22-01-2007 12:24 Pagina 19

20 electrolux daily use
Adjusting the height of the upper bas et
If washing very large plates you can load them in the lower basket after moving
the upper basket to the higher position.
When the bas et is in the higher
position you will not be able to use
the cup rac s.
After loading your machine always
close the door, as an open door can
be a hazard.
To move to the higher position
proceed as follows:
1. Move the front runner stops (A) of
the upper basket outwards and
slide the basket out.
2. Refit the basket in the higher
position and replace the stops (A)
in their original position.
Maximum height of the dishes in:
the upper
bas et
20 cm 31 cm
the lower
bas et
ith upper basket raised
24 cm 27 cm
ith upper basket lowered
117991 56/0en 22-01-2007 12:24 Pagina 20
