Electrolux FAVORIT 88014 I User manual

FAVORIT 88014 I
User manual Dishwasher

Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfectly
and most efficiently. To refer to this manual any time you need to, we recommend
you to keep it in a safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
Contents
Operating instructions 3
Safety information 3
Correct use 3
General safety 3
Child safety 3
Installation 4
Product description 4
Control panel 5
Cancel button 6
Programme selection buttons 6
NIGHT CYCLE button 6
Delay start button 6
Digital display 6
Function buttons 7
Setting mode 7
Use of the appliance 7
Setting the water softener 7
Manual adjustment 8
Electronic adjustment 8
Use of dishwasher salt 9
Use of rinse aid 9
Adjusting the rinse aid dosage 10
Loading cutlery and dishes 11
Helpful hints and tips 11
Lower basket 11
Cutlery basket 12
Upper basket 13
Adjustment of the height of the upper
basket 13
Use of detergent 14
Multitab function 15
Washing programmes 16
Setting and starting a washing programme
18
Cancelling a washing programme 18
Interrupting a washing programme 18
Setting and starting a washing programme
with delay start 19
Cancelling a delay start 19
End of the washing programme 19
Standby mode 19
Removing the load 19
Care and cleaning 20
Cleaning the filters 20
External cleaning 21
Frost precautions 21
What to do if… 21
Technical data 23
Installation instructions 23
Installation 23
Attaching the appliance to the adjacent
units 24
Adjusting the level of the appliance 24
Water connection 24
Water inlet hose 24
Water drain hose 25
Electrical connection 26
Environment concerns 26
Subject to change without notice
2Contents

Operating instructions
Safety information
For your safety and correct operation of the appliance, read this manual carefully before
installation and use. Always keep these instructions with the appliance even if you move
or sell it. Users must fully know the operation and safety features of the appliance.
Correct use
• The appliance is designed exclusively for domestic use.
• Only use the appliance to clean household utensils that are applicable for dishwashers.
• Do not put solvents in the appliance. Risk of explosion.
• Put the knives and all items with sharp points in the cutlery basket with their points
down. If not, put in a horizontal position in the upper basket.
• Use only branded products for dishwashers (detergent, salt, rinse aid).
• If you open the door while the appliance is in operation, hot steam can escape. Risk of
skin burns.
• Do not remove dishes from the dishwasher before the end of the washing programme.
• When the washing programme is completed, disconnect the mains plug from the mains
socket and close the water tap.
• Only an authorised service engineer can repair this appliance. Use only original spare
parts.
• Do not do repairs yourself to prevent injury and damage to the appliance. Always contact
your local Service Force Centre.
General safety
• Persons (including children) with reduced physical sensory, mental capabilities or lack
of experience and knowledge must not use the appliance. They must have supervision
or instruction for the operation of the appliance by a person responsible for their safety.
• Obey the safety instructions from the manufacturer of the dishwasher detergent to
prevent burns to eyes, mouth and throat.
• Do not drink the water from the dishwasher. Detergent residues can stay in your appli-
ance.
• Always close the door when you do not use the appliance to prevent injury and not to
stumble over the open door.
• Do not sit or stand on the open door.
Child safety
• Only adults can use this appliance. Children must get supervision to make sure that they
do not play with the appliance.
• Keep all the packaging away from children. There is a risk of suffocation.
• Keep all detergents in a safe area. Do not let children touch the detergents.
• Keep children away from the appliance when the door is open.
Safety information 3

Installation
• Make sure that the appliance is not damaged because of transport. Do not connect a
damaged appliance. If necessary, contact the supplier.
• Remove all packaging before first use.
• A qualified and competent person must do the electrical installation.
• A qualified and competent person must do the plumbing installation.
• Do not change the specifications or modify this product. Risk of injury and damage to
the appliance.
• Do not use the appliance:
– if the mains cable or water hoses are damaged,
– if the control panel, worktop or plinth area are damaged, that you can get access to
the inner side of the appliance.
Contact your local Service Force Centre.
• Do not drill into the sides of the appliance to prevent damage to hydraulic and electrical
components.
WARNING!
Carefully obey the instructions for electrical and water connections.
Product description
1Upper basket
2Water hardness dial
3Salt container
4Detergent dispenser
5Rinse aid dispenser
4Product description

6Rating plate
7Filters
8Lower spray arm
9Upper spray arm
Control panel
7
9
10
8
1On/off button
2Cancel button (RESET)
3Programme selection buttons
4Night cycle button (NIGHT CYCLE)
5Multitab button (MULTITAB)
6Delay start button
7Digital display
8Function buttons
9Indicator lights
10 Programme indicator lights
Control panel 5

Indicator lights
Multitab The indicator light shows the activation/deacti-
vation of the multitab function. Refer to 'Mul-
titab function'.
Salt
1)
The salt indicator light comes on when it is nec-
essary to fill the salt container. Refer to 'Use of
dishwasher salt'.
After you fill the container, the salt indicator
light can continue to stay on for some hours.
This does not have an unwanted effect on the
operation of the appliance.
Rinse aid
1)
The rinse aid indicator light comes on when it is
necessary to fill the rinse aid. Refer to 'Use of
rinse aid'.
1) When the salt and/or rinse aid containers are empty, the related indicator lights do not come on while a washing
programme operates.
Cancel button
With this button you can cancel a washing programme or a delay start. Refer to 'Setting
and starting a washing programme'.
Programme selection buttons
With these buttons you can select the washing programme. Press one of the buttons until
the indicator light of the necessary programme comes on. Refer to 'Washing programmes'
chapter for more data about the washing programmes.
NIGHT CYCLE button
Night Cycle is a silent washing programme that will not disturb you, even when you sleep.
You can set it:
•atnight
• or in times with a more economical power rate.
During the Night Cycle the pump runs at a very low speed to reach a noise level reduction
of 25% compared to the declaration programme. As a consequence, it has a very long
running time.
Delay start button
Use the delay start button to delay the start of the washing programme with an interval
between 1 and 19 hours. Refer to the chapter 'Setting and starting a washing programme'.
Digital display
The display shows:
• the set level of the water softener.
• Remaining time to the end of the programme.
• Activation/deactivation of the rinse aid dispenser (only with multitab function on).
• End of the washing programme. The display shows a zero.
• Number of hours in delay start.
•Faultcodes.
6Control panel

Function buttons
Use the function buttons for these operations:
• To set the water softener. Refer to the chapter 'Setting the water softener'.
• To deactivate/activate the rinse aid dispenser, when multitab function is active. Refer to
the chapter 'Multitab function'.
Setting mode
When you press the on/off button and all programme indicator lights come on, the appli-
ance is in setting mode.
The appliance must be in setting mode for these operations:
– To set a washing programme.
– To set the water softener level.
– To deactivate/activate the rinse aid dispenser.
When you press the on/off button and only one programme indicator light comes on, cancel
the programme to go back to the setting mode. Refer to the chapter 'Setting and starting
a washing programme'.
Use of the appliance
Refer to the following instructions for each step of procedure:
1. Make a check if the water softener level is correct for the water hardness in your area.
If necessary set the water softener.
2. Fill the salt container with dishwasher salt.
3. Fill the rinse aid dispenser with rinse aid.
4. Load cutlery and dishes into the dishwasher.
5. Set the correct washing programme for the type of load and soil.
6. Fill the detergent dispenser with the correct quantity of detergent.
7. Start the washing programme.
If you use combi detergent tablets ('3 in 1', '4 in 1', '5 in 1', etc.), refer to the chapter 'Multitab
function'.
Setting the water softener
The water softener removes minerals and salts from the water supply. Minerals and salts
can have bad effect on the operation of the appliance.
Water hardness is measured in equivalent scales:
• German degrees (dH°).
• French degrees (°TH).
• mmol/l (millimol per litre - international unit for the hardness of water).
•Clarke.
Adjust the water softener to the water hardness in your area. If necessary, contact your
local water authority.
Use of the appliance 7

Water hardness Water hardness setting
°dH °TH mmol/l Clarke manually electronically
51 - 70 91 - 125 9,1 - 12,5 64 - 88 210
43 - 50 76 - 90 7,6 - 9,0 53 - 63 2 9
37 - 42 65 - 75 6,5 - 7,5 46 - 52 2 8
29 - 36 51 - 64 5,1 - 6,4 36 - 45 2 7
23 - 28 40 - 50 4,0 - 5,0 28 - 35 2 6
19 - 22 33 - 39 3,3 - 3,9 23 - 27 2 5
15 - 18 26 - 32 2,6 - 3,2 18 - 22 1 4
11 - 14 19 - 25 1,9 - 2,5 13 - 17 1 3
4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2
< 4 < 7 < 0,7 < 5 1
1)
1
1)
1) No use of salt required.
You must set the water softener manually and electronically.
Manual adjustment
The appliance is set at the factory at position 2.
1. Open the door.
2. Remove the lower basket.
3. Turn the water hardness dial to position 1
or 2 (refer to the chart).
4. Install the lower basket.
5. Close the door.
Electronic adjustment
The water softener is set at the factory at level 5.
1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Press and hold function buttons B and C until the indicator lights of function buttons
A, B and C start to flash.
4. Release function buttons B and C.
5. Press function button A.
– The indicator lights for function buttons B and C go off.
– The indicator light for function button A continues to flash.
– The digital display shows the current level.
Example: digital display shows = level 5.
8Setting the water softener

6. Press the function button A one time to increase the water softener level by one step.
7. Press the on/off button to save the operation.
Use of dishwasher salt
CAUTION!
Only use dishwashers salt. Types of salt that are not applicable for dishwashers cause dam-
age to the water softener.
CAUTION!
Grains of salt and salty water on the bottom of the appliance can cause corrosion. Fill the
appliance with salt before you start a washing programme to prevent corrosion.
Do these steps to fill the salt container:
1. Turn the cap anticlockwise to open the salt container.
2. Fill the salt container with 1 litre of water (only the first operation).
3. Use the funnel to fill the salt container
with salt.
4. Remove the salt around the opening of
the salt container.
5. Turn the cap clockwise to close the salt
container.
It is normal that water overflows from the salt
container when you fill it with salt.
Use of rinse aid
CAUTION!
Only use branded rinse aid for dishwashers.
Do not fill the rinse aid dispenser with other products (e.g. dishwasher cleaning agent, liquid
detergent). This can cause damage to the appliance.
Rinse aid makes it possible to dry the dishes without streaks and stains.
Rinse aid is automatically added during the last rinsing phase.
Do these steps to fill the rinse aid dispenser:
Use of dishwasher salt 9

1. Press the release button (A) to open the
rinse aid dispenser.
2. Fill the rinse aid dispenser with rinse aid.
The mark 'max.' shows the maximum level.
3. Remove the spilled rinse aid with an ab-
sorbent cloth to prevent too much foam
during the subsequent washing pro-
gramme.
4. Close the rinse aid dispenser.
Adjusting the rinse aid dosage
The rinse aid is set at the factory at position 4.
You can set the rinse aid dosage between position 1 (lowest dosage) and position 6 (highest
dosage).
Turn the rinse aid dial to increase or decrease the
dosage.
– Increase the dosage if there are water droplets
or limescale on the dishes.
– Decrease the dosage if there are streaks, whitish
stains or bluish layers on the dishes.
10 Use of rinse aid

Loading cutlery and dishes
Helpful hints and tips
CAUTION!
Only use the appliance for household utensils that are applicable for dishwashers.
Do not use the appliance to clean objects that can absorb water (sponges, household cloths,
etc.).
• Before you load cutlery and dishes, do these steps:
– Remove all food remainings and debris.
– Make burnt, remaining food in pans soft.
• While you load cutlery and dishes, do these steps:
– Load hollow items (e.g. cups, glasses and pans) with the opening down.
– Make sure that water does not collect in the container or in a deep base.
– Make sure that cutlery and dishes do not lie inside one another.
– Make sure that cutlery and dishes do not cover other cutlery and dishes.
– Make sure that glasses do not touch other glasses.
– Put small objects in the cutlery basket.
• Plastic items and pans with non-stick coatings can keep water droplets. Plastic items do
not dry as well as porcelain and steel items.
• Put light items in the upper basket. Make sure that the items do not move.
CAUTION!
Make sure that the spray arms can move freely before you start a washing programme.
WARNING!
Always close the door after you load or unload the appliance. An open door can be dan-
gerous.

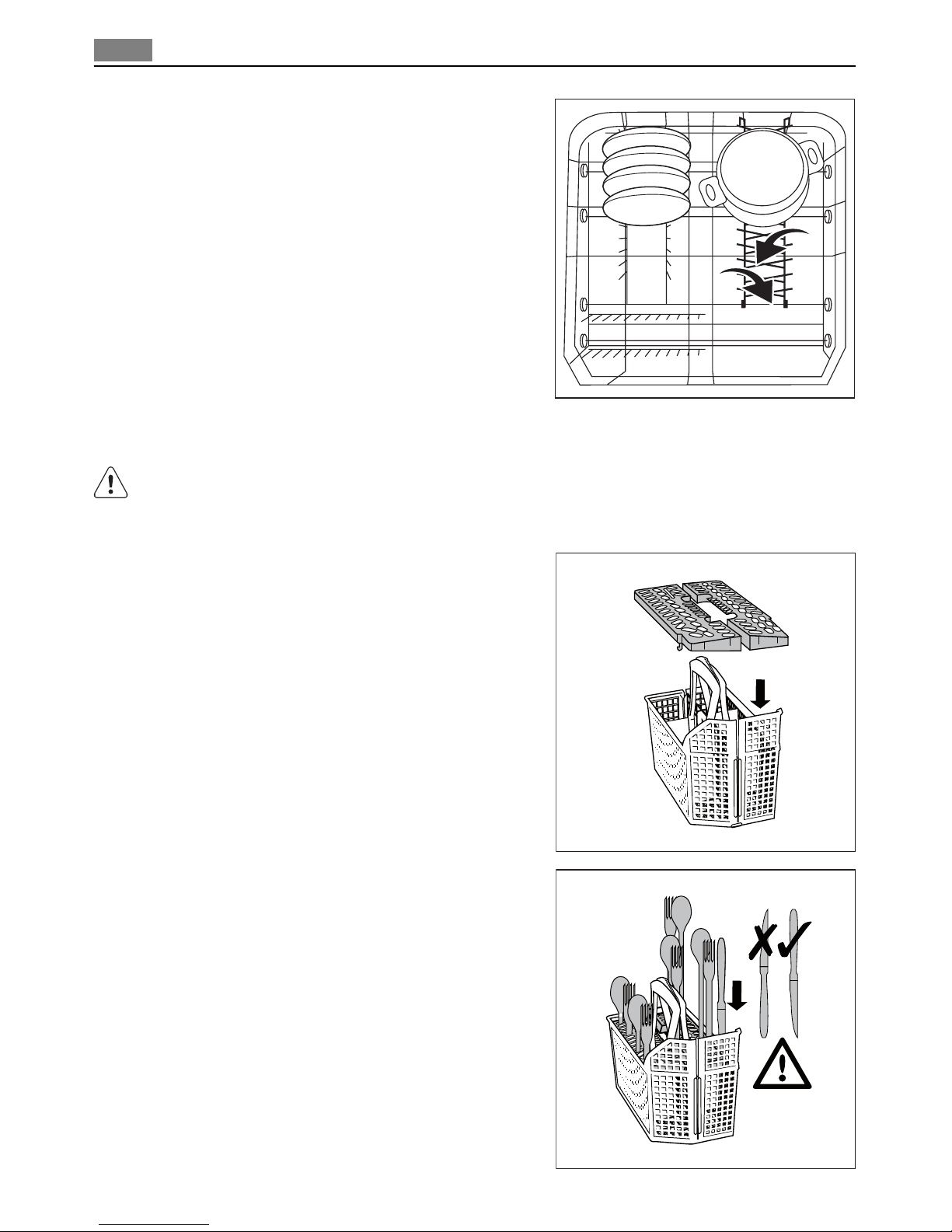

Lower basket
Put large and heavily soiled dishes and pans in the
lower basket.
Loading cutlery and dishes 11

The rows of prongs in the lower basket can be flat
to load large dishes, pots, pans and bowls.
Cutlery basket
WARNING!
Do not put long-bladed knives in a vertical position. Arrange long and sharp cutlery hori-
zontally in the upper basket. Be careful with sharp items.
Use the cutlery grids.
• Put the grids on the cutlery basket.
• For larger items use only one of the cutlery grids.
• Put forks and spoons with the handles down.
• Put knives with the handles up. If the points
of the knives come out from the bottom of
the basket, there is a blockage of the lower
spray arm. Put knives with the handles down.
• Mix spoons with other cutlery to prevent
them to bond together.
12 Loading cutlery and dishes

Upper basket
The upper basket is for saucers, salad bowls, cups,
glasses, pots and lids. Arrange the items to let wa-
ter touch all surfaces.
• For longer items fold the cup racks up.
• Put glasses with long stems in the cup racks
with the stems up.

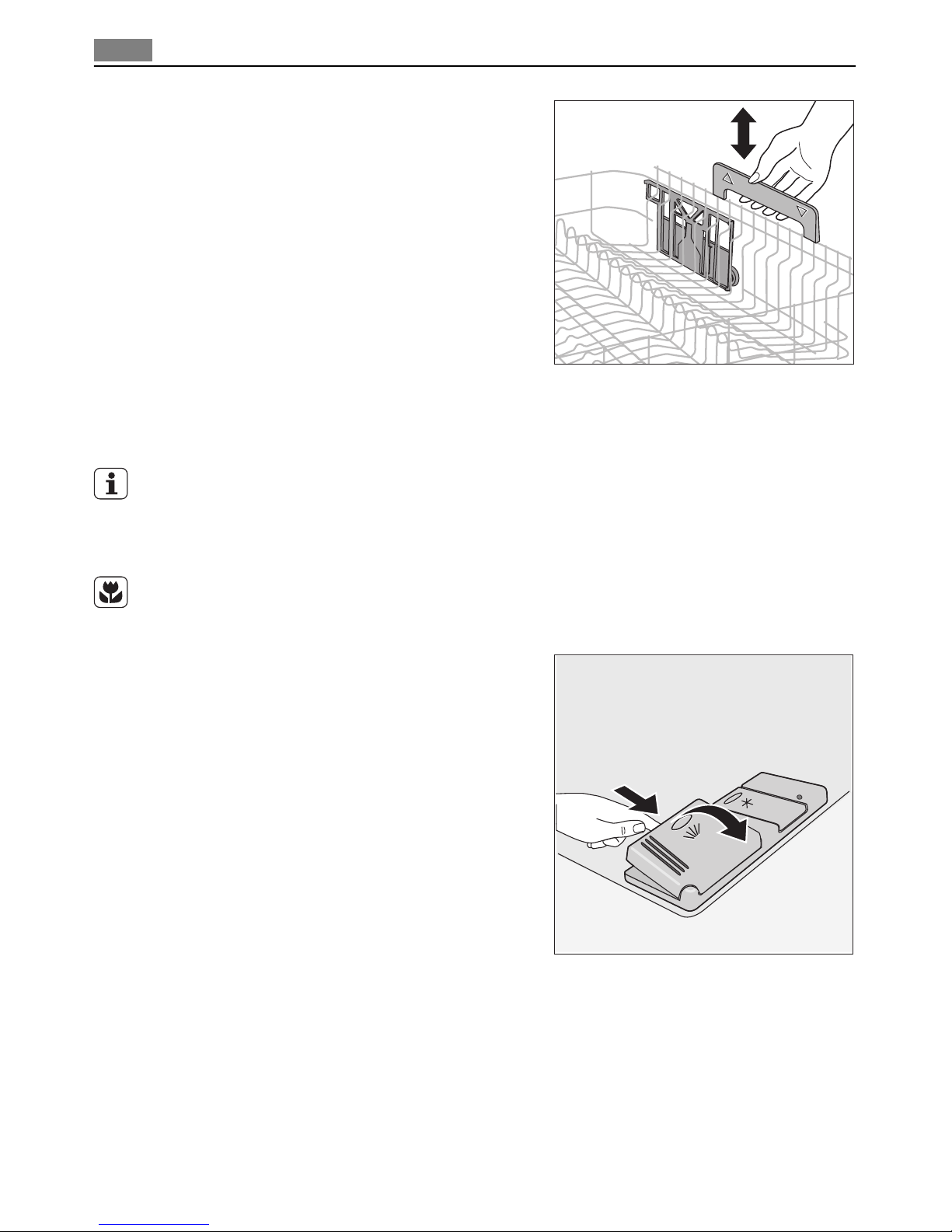

Adjustment of the height of the upper basket
You can put the upper basket in two positions to increase load flexibility.
Maximum height of the dishes in:
the upper basket the lower basket
Upper position 22 cm 30 cm
Lower position 24 cm 29 cm
Do these steps to move to the upper basket to the lower/upper position:
Loading cutlery and dishes 13

1. Pull out the upper basket until it stops.
2. Hold the upper basket by the handle, lift it
as far as possible and lower it vertically.
The upper basket latches into the lower or
the upper position.
Use of detergent
Only use detergents (powder, liquid or tablet) that are applicable for dishwashers.
Follow the data on the packaging:
• Dosage recommended by the manufacturer.
• Storage recommendations.
Do not use more than the correct quantity of detergent to save an environment.
Do these steps to fill the detergent dispenser:
1. Open the lid of the detergent dispenser.
2. Fill the detergent dispenser (A) with de-
tergent. The marking shows the dosage:
20 = approximately 20 g of detergent
30 = approximately 30 g of detergent.
14 Use of detergent

3. If you use a washing programme with pre-
wash phase, put more detergent in the
prewash detergent compartment (B).
4. If you use detergent tablets, put the de-
tergent tablet in the detergent dispenser
(A).
5. Close the lid of the detergent dispenser.
Press the lid until it locks into position.
Different brands of detergent dissolve in different times. Some detergent tablets do not
have the best cleaning results during short washing programmes. Use long washing pro-
grammes when you use detergent tablets to fully remove the detergent.
Multitab function
The multitab function is for combi detergent tablets.
These tablets contain agents such as detergent, rinse aid and dishwasher salt. Some types
of tablets can contain other agents.
Do a check if these tablets are applicable for the local water hardness. Refer to the in-
structions from the manufacturer.
When you set the multitab function, it stays on until you deactivate it.
The multitab function stops automatically the flow of rinse aid and salt. The rinse aid
indicator light and salt indicator light are deactivated.
The programme duration can increase if you use the multitab function.
Activate or deactivate the multitab function before the start of a washing programme.
You cannot activate or deactivate the multitab function when the programme operates.
Cancel the washing programme, then set the programme again.
A
B
Multitab function 15

To activate the multitab function:
• Press the multitab button. The multitab indicator light comes on.
To deactivate the multitab function:
• Press the multitab button. The multitab indicator light goes off.
Do these steps if the drying results are not satisfactory:
1. Fill the rinse aid dispenser with rinse aid.
2. Activate the rinse aid dispenser.
3. Set the rinse aid dosage to position 2.
• You can only activate or deactivate the rinse aid dispenser when the multitab function
is activated.
To activate/deactivate the rinse aid dispenser:
1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Press and hold function buttons B and C.
– The indicator lights for function buttons A, B, and C start to flash.
4. Release function buttons B and C.
5. Press function button B.
– The indicator lights for function buttons A and C go off.
– The indicator light for function button B continues to flash.
– The digital display shows the setting.
Rinse aid dispenser deactivated
Rinse aid dispenser activated
6. Press function button B again.
– The digital display shows the new setting.
7. Switch off the appliance to save the operation.
To use normal detergent again:
1. Deactivate the multitab function.
2. Fill the salt container and rinse aid dispenser.
3. Adjust the water hardness setting to the highest level.
4. Do a washing programme without dishes.
5. Adjust the water softener to the water hardness in your area.
6. Adjust the rinse aid dosage.
Washing programmes
Washing programmes
Programme Degree of soil Type of load Programme description
AUTO 45-70°
1)
Any Crockery, cutlery,
pots and pans
Prewash
Main wash up to 45°C or 70°C
1 or 2 intermediate rinses
Final rinse
Drying
16 Washing programmes

Programme Degree of soil Type of load Programme description
INTENSIV CARE 70° Heavy soil Crockery, cutlery,
pots and pans
Prewash
Main wash up to 70°C
1 intermediate rinse
Final rinse
Drying
30 MIN 60°
2)
Normal or light
soil
Crockery and cutlery Main wash up to 60°C
Final rinse
ECO 50°
3)
Normal soil Crockery and cutlery Prewash
Main wash up to 50°C
1 intermediate rinse
Final rinse
Drying
Normal or light
soil
Delicate crockery and
glassware
Main wash up to 45°C
1 intermediate rinse
Final rinse
Drying
Any Partial load (to be
completed later in the
day).
1 cold rinse (to prevent food
scraps to bond).
Detergent is not necessary with
this programme.
NIGHT CYCLE Normal soil Crockery and cutlery Prewash
Main wash up to 55°C
1 intermediate rinse
Final rinse
Drying
1) During the Auto programme, the soil level of the dishes is given by how cloudy the water is. The programme
duration and consumptions can change. This depends if the appliance is fully or not and on the level of soil on
the dishes. The appliance adjusts automatically the temperature of the water during the main wash.
2) This is the perfect daily programme to clean a not fully load. Ideal for a family of 4 persons who only want to
load breakfast and dinner crockery and cutlery.
3) Test programme for test institutes. Please refer to separate leaflet supplied, for test data.
Consumption values
Programme Duration (in minutes)
1)
Energy (in kWh) Water (in litres)
AUTO 45-70° -1,1 - 1,7 12 - 23
INTENSIV CARE 70° -1,5 - 1,7 16 - 18
30 MIN 60° -0,9 9
ECO 50° -1,0 - 1,1 12 - 13
-0,8 - 0,9 14 - 15
-0,1 4
NIGHT CYCLE -1,2 - 1,3 13 - 14
1) The digital display shows the programme duration.
Washing programmes 17

The pressure and temperature of the water, the variations of power supply and the quantity
of dishes can change these values.
Setting and starting a washing programme
Set the washing programme with the door ajar. The washing programme only starts after
you close the door. Until then it is possible to modify the settings.
Do these steps to set and start a washing programme:
1. Switch on the appliance.
2. Make sure that the appliance is in setting mode.
3. Select a washing programme. Refer to the chapter 'Washing programmes'.
– The related programme indicator light comes on.
– All other programme indicator lights go off.
– The digital display shows in flashing the programme duration.
If necessary, set the Night Cycle programme. Press the Night Cycle button, the related
indicator light comes on.
4. Close the door. The washing programme starts automatically.
You can select the washing programme and delay start also with the door closed. When
you press a programme button you have only 3 seconds to select a different washing
programme or a delay start. After these 3 seconds, the selected programme starts auto-
matically.
When the washing programme operates, you cannot change the programme. Cancel the
washing programme.
WARNING!
Only interrupt or cancel a washing programme if necessary.
CAUTION!
Open the door carefully. Hot steam can come free.
Cancelling a washing programme
1. Press and hold the cancel button until all programme indicator lights come on.
2. Release the cancel button.
At this time you can do these steps:
1. Switch off the appliance.
2. Set a new washing programme .
Fill the detergent dispenser with detergent before you set a new washing programme.
Interrupting a washing programme
Open the door.
• The programme stops.
Close the door.
• The programme continues from the point of interruption.
18 Setting and starting a washing programme

Setting and starting a washing programme with delay start
1. Press the on/off button.
2. Set a washing programme.
3. Press the delay start button until the display shows on flashing the necessary delay
start of the washing programme.
– The related indicator light comes on.
4. Close the door.
– The number on the display comes on with fixed light.
– The countdown of the delay start starts.
– The countdown of the delay start decreases with steps of 1 hour.
– When the countdown is completed, the washing programme starts automatically.
Do not open the door during the countdown to prevent interruption of the countdown.
When you close the door again, the countdown continues from the point of interruption.
Cancelling a delay start
1. Press and hold the cancel button until all programme indicator lights come on.
2. Release the cancel button. When you cancel a delay start, you also cancel the washing
programme.
3. Set a new washing programme.
End of the washing programme
Switch off the appliance in these conditions:
• The appliance stops automatically.
• The audible signals for the end of the programme operate.
• The display shows 0.
• The indicator light of the ended programme stays on.
1. Press the on/off button.
2. Open the door.
3. For better drying results, keep the door ajar for some minutes before you remove the
dishes.
Let the dishes cool down before you remove them from the appliance. Hot dishes are easily
damaged.
Standby mode
If you do not switch off the appliance at the end of the washing programme, the appliance
automatically goes into standby mode. The standby mode decreases energy consumption.
Three minutes after the end of the programme, all indicator lights go off and the digital
display shows one horizontal bar.
Press one of the buttons (not the on/off button), to go back to end-of-programme mode.
Removing the load
• First remove items from the lower basket, then from the upper basket.
• There can be water on the sides and door of the appliance. Stainless steel becomes cool
more quickly than the dishes.
Setting and starting a washing programme 19

Care and cleaning
WARNING!
Switch the appliance off before you clean the filters.
Cleaning the filters
CAUTION!
Do not use the appliance without the filters. Make sure that the installation of the filters
is correct. Incorrect installation will cause unsatisfactory washing results and damage to
the appliance.
If necessary, clean the filters. Dirty filters decrease the washing results.
The dishwasher has three filters:
1. coarse filter (A)
2. microfilter (B)
3. flat filter (C)
Do these steps to clean the filters:
1. Open the door.
2. Remove the lower basket.
3. To unlock the filter system, turn the han-
dle on the microfilter (B) approximately
1/4 anticlockwise.
4. Remove the filter system.
5. Hold the coarse filter (A) by the handle
with the hole.
6. Remove the coarse filter (A) from the
microfilter (B).
A
B
C
20 Care and cleaning
