Electrolux ESI6180X User manual

©Copyright 2003 ELECTROLUX HOME PRODUCTS PTY LTD Technical Services
ELECTROLUX HOME PRODUCTS PTY LTD
ABN 51 004 762 341
ELECTROLUX
ELECTRONIC
DISHWASHERS
MODELS:
ESI6180X
PNC 911 896 071
ESI6180U
PNC 911 896 072
RELEASE DATE:- 10/02
Issue: 1
Technical Publication Nº DW107 Book WD 6 Date: 08/03
SECTION PAGE Nº
OUTER PANEL & LINER ASSEMBLY 2 - 3
ELECTRICAL ASSEMBLY 4 - 5
WATER CIRCUIT ASSEMBLY 6 - 7
WATER SOFTENER ASSEMBLY 8 - 9
DOOR PANEL ASSEMBLY 10 - 11
BASKET ASSEMBLY 12 - 13
PROGRAMME CHART 14
WIRING DIAGRAM 15
CIRCUIT DIAGRAM 16
COMPONENT TESTING (SERVICE) 17
REGENERATION CYCLE 17 – 18
SAFETY FEATURES – CONTROLS/ALARMS 18 – 20
OPTIONS FOR IMPROVING WASH PERFORMANCE 21
COMPONENT DIAGNOSTICS TEST 21 – 23
FUNCTION DIAGNOSTICS CYCLE 23 – 24
TEST CYCLE (ABBREVIATED WASH PROGRAMME) 25 – 26
TABLE OF ALARM CODES 27
GENERAL DATA 28
WEB SITE ADDRESS: www.partnship.com.au

Page 2DW 107

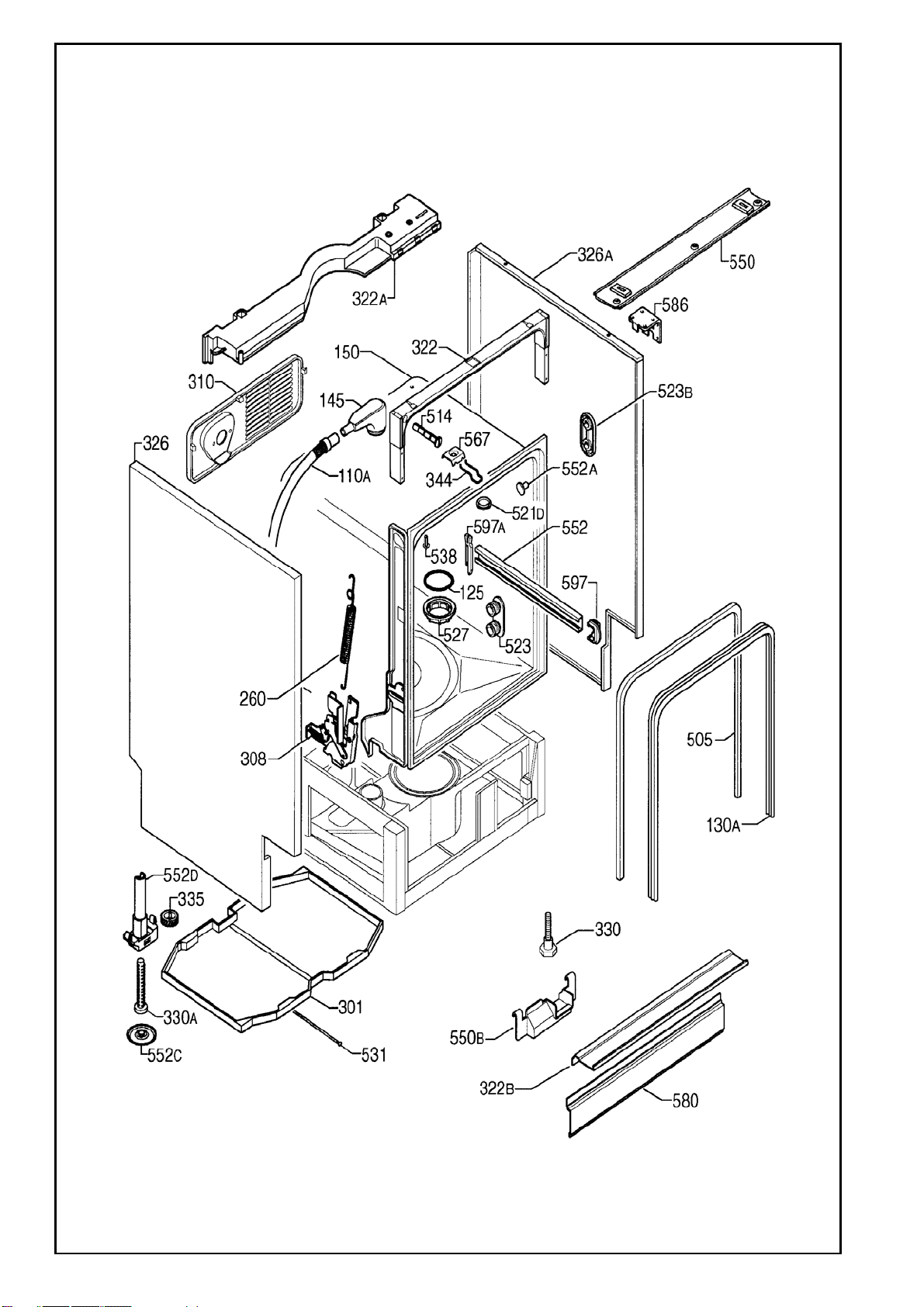

MODELS: ESI6180X EX. VIEW DRAWING 3927
ESI6180U OUTER PANEL & LINER
ASSEMBLY

Page 3 DW 107
ITEM PART Nº DESCRIPTION Ex. 3927 QTY
110A 1525390-00/9 Tube, Manifold to Base 1
125 50249145-00/9 "O" Ring, Ferrule, Manifold 1
130A 1524445-01/0 Sealing Sleeve, Outer 1
145 1523599-01/5 Manifold, Drying 1
150 N.P.N. Liner Assembly 1
260 1524312-00/4 Spring, Hinge 2
301 1523673-01/8 Tray, Drip 1
308 50251714-00/7 Hinge Kit, Door (LH/RH. ) 2
310 1526379-00/1 Flap, Support, Solenoid 1
322 1525280-16/8 Crossbar, Front, Upper 1
322A 1523519-15/3 Crossbar, Back, Upper, 1
322B 1523512-04/2 Crossbar, Front, Bottom 1
326 1526790-00/9 Panel, Side, LH. (White) 1
326A 1526790-10/8 Panel, Side, RH. (White) 1
330 1522017019 Foot 2
330A 1523477-01/4 Leg, Central 1
335 1523261-00/4 Gear Wheel 1
344 1522344-05/8 Latch 1
505 1522337-02/9 Trimming, Tub/Cabinet 1
514 1522520-03/8 Socket, Adjustable 1
521D 1526576-00/2 Cover, Latch Hole 1
523 1522029-12/1 Bracket and Roller Assembly (Grey) 4
523B 1521220-03/6 Bracket, Re-Enforcement, Roller 4
527 1523520-10/2 Ferrule (Grey) 1
531 1523262-11/9 Screw Adjusting, Central Foot 1
538 1522335-01/5 Piece, Distance, Crosspiece, Rear 1
550 50252394-00/7 Guard, Front, Top 1
550B 1522345-03/0 Protection, Wiring 1
552 1520512-05/2 Rail, Basket, Upper 2
552A 1525272-21/5 Guidance, Inner Door (Grey) 2
552C 1523242-00/4 Pad, Slide, Leg 1
552D 1523777-01/7 Guide Rail, Central Foot 1
567 1523236-02/2 Clamp, Door Latch (Plaque) 1
580 1523513-04/0 Panel, Front, Bottom 1
586 1523160-13/1 Bracket, Fixing (Top) 2
597 1520479-10/4 Cap, Rail End (Grey) 2
597A 1525376-20/6 Stop, Rail End (Grey) 2

Page 4DW 107

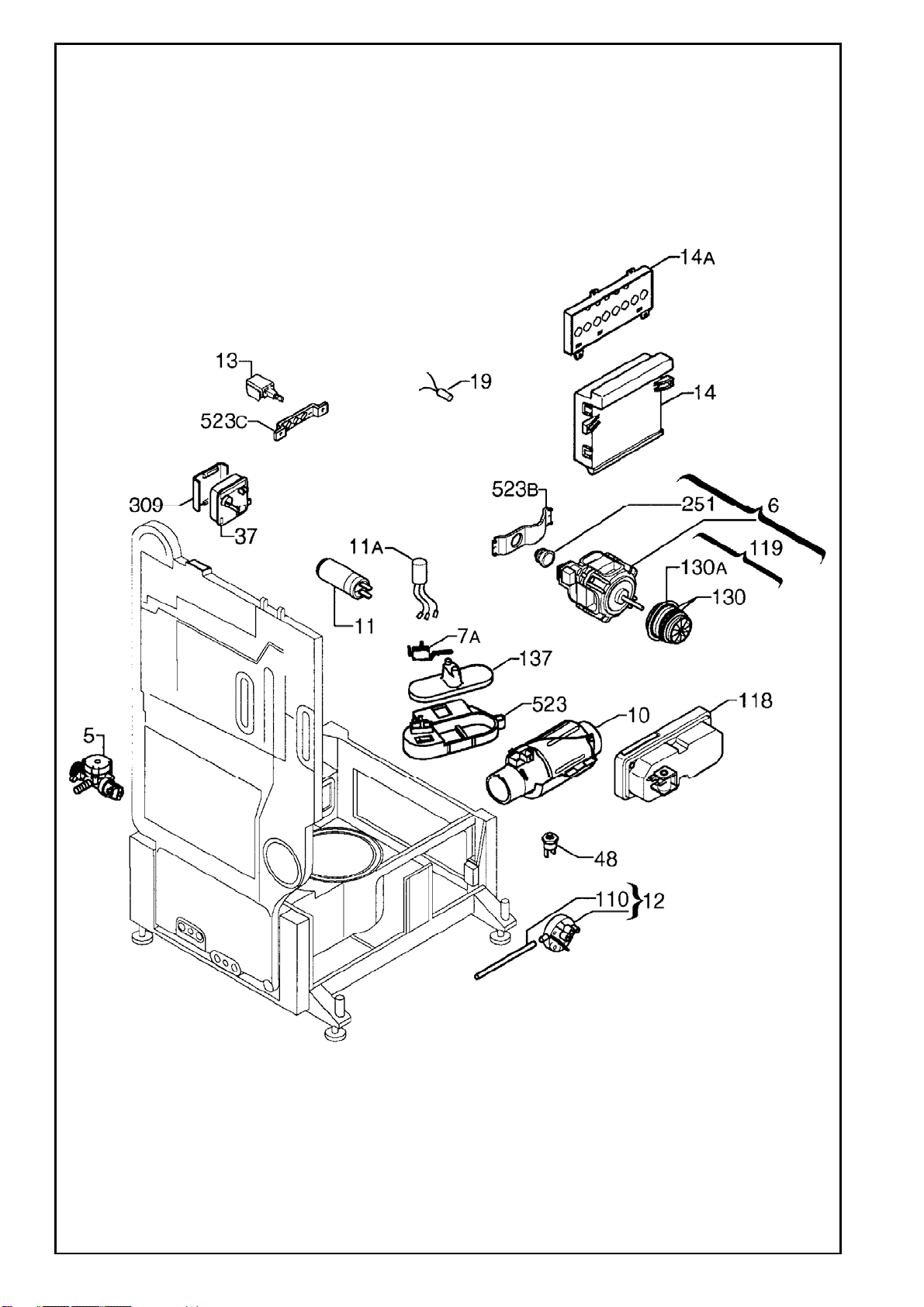

MODELS: ESI6180X EX. VIEW DRAWING 3926
ESI6180U ELECTRICAL ASSEMBLY

Page 5 DW 107
ITEM PART Nº DESCRIPTION Ex. 3926 QTY
005 1520233-00/6 Valve, Anti-Overflow 1
006 50267491-00/4 Pump Assy. Kit (Inc. Items 130, 130A and 251) 1
007A 1520393115 Switch, Micro, Anti-Overflow 1
010 1115773-00/2 Element, Heater (230V - 2100W) 1
011 1522966-10/8 Capacitor (4 μF) 1
011A 1521029-10/6 Capacitor, Anti-Interference 1
012 1529790-70/9 Switch, Pressure (Inc. Item 110) 1
013 1524481-01/5 Switch, Push Button (1 Button) 1
014 1525801-20/3 Power Board 1
014A 1524368-20/4 Electronic Control Board (Display) 1
019 50226589-00/5 Lamp, Indicator 1
037 1521594000 Box, Junction 1
048 50261253-00/4 Sensor, Temperature, Element 1
110 0055 250 455 Tube, Pressure Switch 1
118 1525531-30/5 Dispenser, Detergent (Grey) 1
119 50267511-00/9 Impellors Assembly (Inc. Items 130 & 130A) 1
130 1520292002 Gasket, Pump, Front, 50/39 mm. Dia. 1
130A 1520292101 Gasket, Pump, Front, 63/09 mm. Dia. 1
137 1520170-03/4 Float 1
251 1522489-02/8 Buffer, Back, Motor 1
309 1522164001 Cover, Box, Junction 1
523 1520169051 Housing, Float 1
523B 1523700-00/1 Bracket, Support, Motor 1
523C 1520645019 Bracket, Support, Push Button 1
N.I. 1523902-00/3 Wiring, Anti-Interference 1
N.I. 1525447-05/6 Harness 1
N.I. 1525448-00/5 Harness, Wiring, Bottom 1

Page 6DW 107

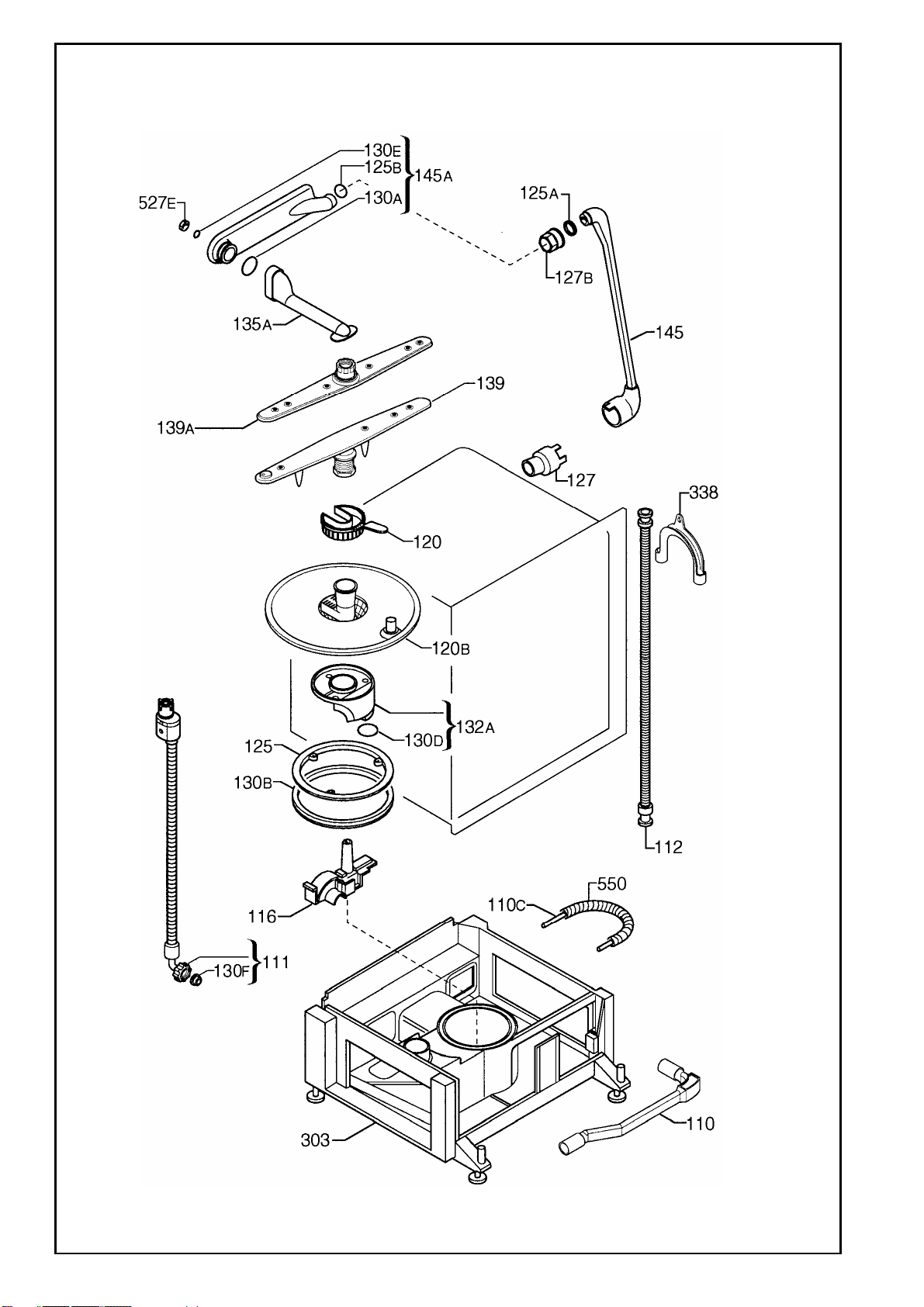

MODELS: ESI6180X EX. VIEW DRAWING 3890
ESI6180U WATER CIRCUIT ASSEMBLY

Page 7 DW 107
ITEM PART Nº DESCRIPTION Ex. 3890 QTY
110 1529849-31/5 Hose, Connecting, Stand 1
110C 1520464-31/2 Tube, Water Balance 1
111 1522221-12/4 Hose, Inlet, Safety (1500 mm) 1
112 0571 400 142 Hose, Drain 1
116 1522410-20/6 Scroll, Wash 1
120 1524505-10/2 Filter, Drain Pump (Grey) 1
120B 1525490-12/2 Filter, Column (Grey) 1
125 1522342-02/9 Retainer, Sump 1
125A 50248856-00/2 "O"-Ring, Manifold, Outer 1
125B 50227938-00/3 "O"-Ring, Manifold, Inner 1
127 1524422-03/5 Connector, Water Sump to Heater 1
127B 1523118-10/5 Connector, Manifold, (Grey) 1
130A 1523119-01/2 Seal, Channel, Drainage 1
130B 1522414-02/6 Gasket, Sump 1
130D 1520772003 Gasket, Column 1
130E 1522802-00/6 Sealing Strip 1
130F 1240151009 Gasket, Hose 1
132A 1529841-80/9 Column and Gasket Assembly 1
135A 1524902-40/8 Channel, Drainage (Grey) 1
139 1524786-30/6 Arm, Bottom Spray (Grey) 1
139A 1524744-10/7 Arm, Upper Spray (Grey) 1
145 1524421-02/9 Manifold, Heater Element 1
145A 1529844-40/7 Manifold Assy., Horizontal (Grey) 1
303 N.P.N. Stand Assembly 1
338 N.P.N. NOT USED IN THIS MODEL 0
527E 50239993-00/4 Nut, Water Distributor 1
550 1524982-00/4 Tube, Protection, Water Balance Tube 1

Page 8DW 107
MODELS: ESI6180X EX. VIEW DRAWING 3924
ESI6180U WATER SOFTENER ASSEMBLY

Page 9 DW 107
ITEM PART Nº DESCRIPTION Ex. 3924 QTY
005A 1529746-70/1 Valve, Electric 2
016 1523184-00/8 Sensor, Salt 1
110 1529902-10/6 Hose, Valve 1
110A 1529902-20/5 Hose 1
110E 1520465103 Tube, Regeneration Tank Drain (250 mm) 1
117 1524624-20/0 Softener, Water (Inc. Items 5A, 110, 110A, 110E, 130C & 514) 1
127A 1522340-03/1 Connector, Outlet Valve 1
130 1525274-00/5 Seal, Decalcifier 1
130A 1522338-00/1 Gasket, Regen. Tank 1
130C 50659231-00/0 Seal, Round 1
137 1522447-00/0 Float 1
138 1522418-03/5 Membrane, Outlet Valve 1
514 2239010050 Bushing 1
521 1520251-60/2 Bung, Decalcifier, (Grey) 1
523 1522346-02/0 Support, Float 1
527 1520250-10/9 Ferrule, Decalcifier, (Grey) 1
527A 1524050-40/6 Ferrule, Active Dry (Grey) 1
589 1520328-40/0 Funnel, (Grey) 1
600 1523692-02/6 Sponge 1

Page 10 DW 107

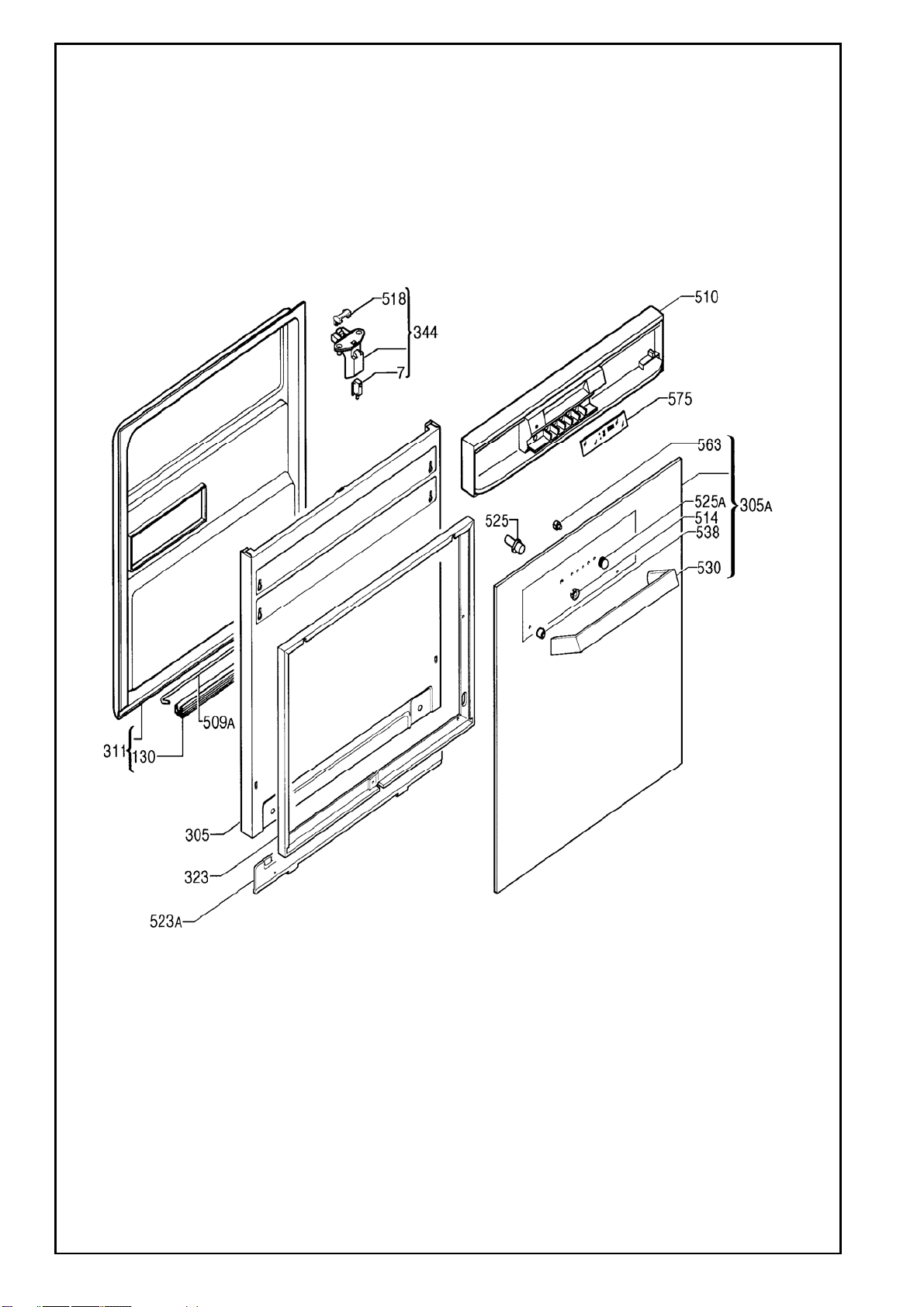

MODELS: ESI6180X EX. VIEW DRAWING 3928
ESI6180U DOOR PANEL ASSEMBLY

Page 11 DW 107
ESI6180
ITEM PART Nº DESCRIPTION Ex. 3928 X U
007 50253835-00/8 Switch, Micro, Door 1 1
130 1520425008 Gasket, Door Bottom, 1 1
305 1524571-15/3 Panel, Door (Black) 1 1
305A 1524849-80/7 Glass Assy., Door (Inc. Items 514, 525A, 530, 538 & 563) 1
1524849-70/8 Glass Assy., Door (Inc. Items 514, 525A, 530, 538 & 563) 1
311 50267909-00/5 Panel Assy., Door, Inner (Inc. Items 130 & 509A) 1 1
323 1523622-01/5 Frame, Door (Black) 1 1
344 50272150-00/9 Latch Kit, Bridging Plug (Inc. Items 007 & 518) 1 1
509A 1520419-14/2 Tie, Hinge 1 1
510 1524908-02/5 Panel, Control (Black) 1 1
514 1525612-00/6 Bush, Push Button 5 5
518 1526414-00/6 Plug, Bridging 1 1
523A 1523620-06/8 Bracket, Blind Panel, Bottom 1 1
525 1521536-23/3 Button, Push (Black) 1 1
525A 3565025-03/2 Button, Push, Programmer (Black) 5 5
530 355405201/3 Handle, Door (Black)(3500 mm) 1 1
538 3543015-10/5 Buffer, Door Handle 2 2
563 3550039-02/2 Pin, Push Button Programmer 1 1
575 1523833-80/2 Plate, Indicating 1 1
N.I. 1523774-00/6 Guard, Base 1 1
N.I. 1525723-42/3 Plate, Operating 1 1

Page 12 DW 107
MODELS: ESI6180X EX. VIEW DRAWING 3925
ESI6180U BASKET ASSEMBLY

Page 13 DW 107
ITEM PART Nº DESCRIPTION Ex. 3925 QTY
143 1522655-20/6 Adjustment, Height. L/H. (Grey) 1
1522655-30/5 Adjustment, Height. R/H. (Grey) 1
319 1529791-53/3 Basket Assy., Bottom (Grey)(Inc. Items 523A, 523C & 581B) 1
319A 1525575-41/9 Basket, Upper (Grey) 1
320 1525019-10/3 Grate, Cutlery Basket (Grey) 1
342 1525593-00/8 Basket Assy., Cutlery (Grey)(Inc. Item 320) 1
342B 1524377-10/6 Basket (Knife)(Grey) 1
523A 50269757-00/6 Roller Assembly, Lower Basket (Grey) 4
523C 50269765-00/9 Wheel Kit, Lower Basket (R/H)(Grey) 2
50269766-00/7 Wheel Kit, Lower Basket (L/H)(Grey) 2
581B 1523142-10/5 Partition, Adjustable (Grey) 1

Page 14 DW 107
MODELS: ESI6180X PROGRAMME CHART
ESI6180U EX. 3929
IMPORTANT SAFETY NOTICE
This diagram has been prepared for use by electrically qualified service technicians. The
manufacturer cannot be held responsible for the interpretation of its service publications nor for
any injury or damage that may occur in connection with their use.

Page 15 DW 107
MODELS: ESI6180X WIRING DIAGRAM
ESI6180U EX 3930
IMPORTANT SAFETY NOTICE
This diagram has been prepared for use by electrically qualified service technicians. The
manufacturer cannot be held responsible for the interpretation of its service publications nor for
any injury or damage that may occur in connection with their use.

Page 16 DW 107

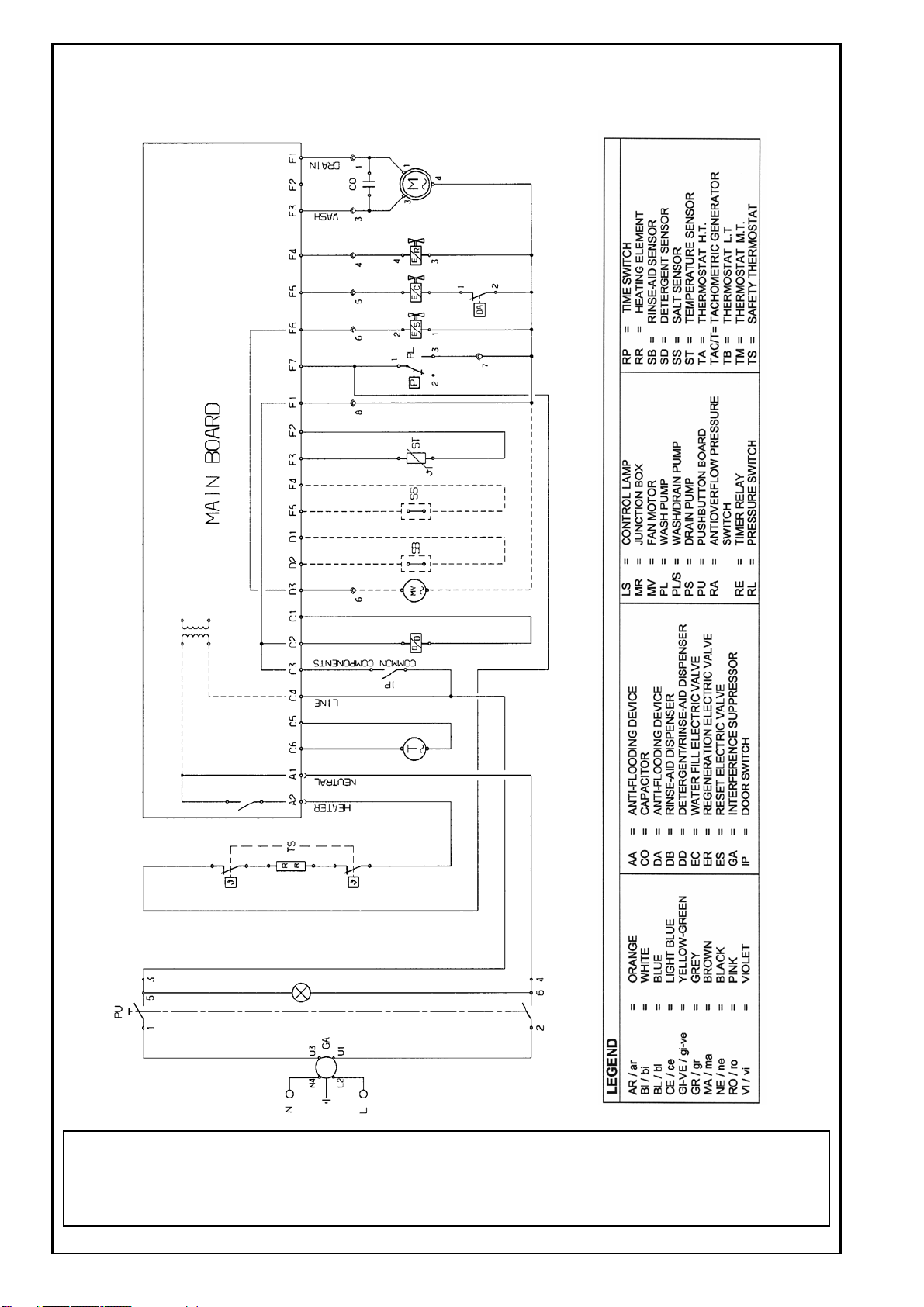

MODELS: ESI6180X CIRCUIT DIAGRAM
ESI6180U EX. 3931
IMPORTANT SAFETY NOTICE
This diagram has been prepared for use by electrically qualified service technicians. The
manufacturer cannot be held responsible for the interpretation of its service publications nor for
any injury or damage that may occur in connection with their use.

Page 17 DW 107
COMPONENT TESTING
In order to facilitate testing of the components, a Test Procedure has been created showing the contacts
to which the probes of the tester should be connected and the reading for each component.
To gain access to the electronic control board and the harness connectors, dismantle the door.
•Remove the harness connectors from the control board, connect the probes of the tester to the points
indicated in the table and compare the actual reading with the theoretical value.
•If preferred components that are easily accessible can be tested directly on the component. (Wiring
connections are excluded)
COMPONENTS CONTACTS CORRECT VALUE NOTES
POWER CABLE & * L - C4* 0Ω
ON/OFF SWITCH * N - A1 0ΩWith ON/OFF key pressed
INTEGRATED DISPENSER C1 - C2 1500 Ω ± 8% OK
HEATING ELEMENT
(+ SAFETY THERMOSTAT) C3 - A2 25 Ω ± 8% Connected in series (2100 W)
DOOR MICROSWITCH C3 - C4 0ΩWith door CLOSED
TACHYMETRIC SENSOR C5 - C6 135 Ω ± 8% OK
INFINITY With Rinse-Aid
RINSE-AID SENSOR D1 - D2 0ΩWithout Rinse-Aid
INFINITY With Salt
SALT SENSOR E4 - E5 0ΩWithout Salt
6.030 Ω ± 8% (at 20 ºC)
TEMPERATURE SENSOR E2 - E3 1.010 Ω ± 8% (at 65 ºC)
700 Ω ± 8% (if the RESET solenoid is
interrupted)
RESET SOLENOID E1 - D3 610 Ω ± 8% OK
DRAIN MOTOR E1 - F1 70 Ω ± 8% OK
WASHING MOTOR E1 - F3 50 Ω ± 8% OK
REGENERATION SOLENOID E1 - F4 5.100 Ω ± 8% OK
FILL SOLENOID
(+ ANTI-FLOODING device) E1 - F5 3.800 Ω ± 8% Connected in series
INFINITY EMPTY position (1-2)
PRESSURE SWITCH E1 – F7 0ΩFULL position (1-3)
NOTE: - *Measurement points L - N refer to the pins on the plug on the service cord.
REGENERATION CYCLE
The level of regeneration can be selected electronically with 10 regeneration levels.
«DISPLAY» WASHING CYCLE FILL
PHASE HARDNESS OF WATER
LEVEL AUTONOMY REGEN. N°PPM (Parts per million)
[L . 0]No regeneration -0 – 80
[L . 1]8 cycles at 9th cycle 40 81 – 140
[L . 2]6 cycles at 7th cycle 30 141 – 200
[L . 3]4 cycles at 5th cycle 20 201 – 300
* [L . 4]3 cycles at 4th cycle 15 301 – 400
[L . 5]2 cycles at 3rd cycle 10 401 – 500
[L . 6]1 cycle at 2nd cycle 5501 – 600
[L . 7]601 – 700
[L . 8]701 – 800
[L . 9]
0 cycles Every cycle 1
801 – 900
* L.4 Standard factory setting

Page 18 DW 107
REGENERATION CYCLE
Each time the regeneration procedure is performed, the chambers are drained completely (about 230ml
of water)
•Cycle counting for "special" regeneration is performed by the electronic control system and is
based on the number of fill phases rather than on the actual number of cycles; this makes the
process independent of the number and type of programmes performed.
•Calculation of the number of cycles is based on a programme with 5 fill phases.
•Modification of the level of regeneration automatically results in regeneration being carried out in
the subsequent cycle, irrespective of the number of fill phases performed previously.
•With the new board, regeneration is always performed in the first cycle irrespective of the level of
regeneration selected. (Level [L .O] – no regeneration).
•If level [ 0 ] is selected, regeneration does not take place and the Salt LED remains off.
SELECTING REGENERATION LEVEL
With the Dishwasher switched On
1. Press and hold down Sw1 & Sw4 simultaneously.
After about 5sec the Display indicates [L. 4] (L flashing).
2. To modify the level of regeneration, press Sw4 repeatedly within 5sec.
The Display [L..] indicates the corresponding regeneration level in sequence every time the key is
pressed.
All remaining keys are disabled
Five seconds after pressing Sw4 for the last time, the selected regeneration level is stored in memory
and the dishwasher returns to the previous condition (Programme Selection mode).
SAFETY FEATURES - CONTROLS - ALARMS
Dishwashers fitted with electronic control systems feature a series of safety devices designed to
protect the appliance whether it is switched on or off.
SYSTEM DEFINITION
The electronic control provides that, if one of the following safety features should intervene, a Time-
Out immediately interrupts the washing cycle
The user is warned of the abnormal situation by a visual signal on the display panel (in the form of a
code) and by the buzzer.
SAFETY FEATURE ALARM Automatic Cycle
Reset
Interruption
of Cycle
NTC sensor short-circuited AL1 NO YES
NTC sensor: open circuit AL2 NO YES
Heating Time-out AL3 NO YES
Anti-flooding * AL4 YES YES
Water fill Time-out AL5 NO YES
Pressure switch “EMPTY” Time-out * AL5 YES YES
Water drain Time-out AL6 NO YES
Motor inoperative Time-out AL7 NO YES
Motor Triac short-circuited AL8 NO YES
* Automatic Cycle Reset

Page 19 DW 107
ALARM CONDITION
In the event of an ALARM condition
•Dishwasher operation stopped.
•The three Digits in the Display window indicate the corresponding ALARM CODE [ A L ].
•All the Leds switch off.
•All the keys Sw1 - Sw5, are disabled including the Cancel function.
Example of Alarm:- Heating Time-out: The Display shows [A L 3] (A and L flashing).
•If alarm [A L 5] is generated, the "TAP" LED also flashes.
To cancel the Alarm condition:- Switch the appliance off by pressing key Sw0.
When Sw0 is again pressed to switch the appliance on, two different conditions may be presented,
depending on the Alarm code displayed.
a) Automatic cycle reset "YES" Alarms [*AL4] – [*AL5]:
The washing cycle is cancelled:- the appliance returns to Programme Selection mode.
The programme restarts from the beginning when the appliance is re-started.
b) Automatic cycle reset "NO" Alarms [AL1]- [AL2]- [AL3]- [AL5]- [AL6]- [AL7]- [AL8]:
The washing cycle is suspended:- The current programme phase is stored in memory.
When the appliance is switched back on, the programme resumes from the point at which it was
interrupted.
If the fault persists when the cycle is resumed, the appliance returns to Alarm mode.
NB:- The electronic control system always memorises the last Alarm condition generated, which
can be shown on the Display using the Components Diagnostics Test. (Page 21 to 23)
DESCRIPTION OF THE CONTROLS
NOTE:- Refer to the table of Alarms on Page 27 for possible causes.
NTC TEMPERATURE SENSOR - ALARMS [A L 1] & [A L 2]
This alarm is operative after the initial water fill phase of the cycle until the end of the final wash
phase.
•The impedance of the NTC sensor is monitored constantly.
NTC SENSOR SHORT-CIRCUITED - ALARM [A L 1]
If the impedance is too low (equivalent to a temperature of 90°C or more), based on the conversion
by the electronic control system of the impedance into temperature, the ALARM intervenes.
OPEN NTC SENSOR - ALARM [A L 2]
If the impedance is too high (temperature -10°C), based on the conversion by the electronic control
system of the impedance into temperature, the ALARM intervenes.
HEATING TIME-OUT - ALARM [A L 3] The maximum heating time for the water is 45 minutes;
if the correct temperature is not reached within this time, an alarm condition is generated.
ANTI-FLOODING SYSTEM - ALARM [A L 4]
This control is operative during the washing phase only, and not in the water fills phase, in which
case it is connected to the subsequent safety device (Refer Water Fill Timeout below).
•A float-actioned mechanical sensor positioned on the bottom of the appliance trips a micro-switch
which is connected in series to the fill solenoid, thus disconnecting the solenoid.
•The electronic control board detects intervention of the sensor, which actions the drain pump for 1
minute, after which an alarm condition is generated.
•The sensor also intervenes when the appliance is switched off, however, activation takes place
onl
y
when the a
pp
liance is switched on.

Page 20 DW 107
WATER FILL TIME-OUT - ALARM [A L 5]
This is a TIME-OUT, which is operative only during the water fill phases.
•The control system disconnects the water fill solenoid.
•The maximum time open for the fill solenoid is 4min for the entire fill phase. If this time limit is
exceeded, an alarm condition is generated.
•The count for the time starts at the moment the fill solenoid opens, and ends when the pressure
switch signal stabilises on "Full".
PRESSURE SWITCH SIGNALS EMPTY - ALARM [A L 5]
This control procedure is in operation only during the washing phases, i.e. after the water fill phase has
been completed.
•Once the pressure switch contact has closed in the “Full” (1-3) position, it must remain on “Full”
until the subsequent drain phase.
•If the pressure switch signals “Empty” (1-2), all the power loads are switched off, and the fill
solenoid is activated for a period equivalent to the period that the pressure switch contact is open.
•During the regeneration phase, the solenoid valve is not energised if the pressure switch resets on
"Empty".
•The maximum duration for which the pressure switch signals "Empty" during the washing phase is
90 seconds; if this period is exceeded, an alarm condition is generated.
WATER DRAIN TIME-OUT - ALARM [A L 6]
This control procedure is operative in all the drain phases and checks the status of the pressure switch in
order to ensure that the cycle is performed correctly.
•In all the final drain phases, and before passing to the subsequent fill phase, the pressure switch
contact must switch to "Empty". (1-2).
•If the contact is closed on "Full" (1-3), the drain phase is repeated
•At the end of the second drain phase, if the pressure switch contact remains closed on "Full" (1-3),
an alarm condition is generated.
WASHING MOTOR JAMMED ALARM [A L 7]
This control system is operative during the entire washing cycle.
•Jamming of the motor is detected by the tachimetric sensor; this also makes it possible to check for a
faulty tachimetric sensor using the following procedure:
•When the motor is switched on, it must reach a speed of 2000rpm within 5 seconds; if this does not
occur, an alarm condition is generated.
To check that the Tachimetric sensor functions correctly:
Check that the voltage across the terminals of the sensor is higher than 7 Volt AC.
MOTOR TRIAC SHORT-CIRCUITED - ALARM [A L 8]
This control system is operative during the entire washing cycle.
•The electronic control system checks whether the motor is correctly powered and detects the reason
for a malfunction.
•If the microprocessor identifies a signal from the tachimetric sensor indicating that the motor is in
operation when it should be switched off, an alarm condition is generated.
