Electrolux EWDW6505G S Instruction Manual

LEIDW6105GB0.eps CEWDW6505GB0.eps DEIDW6105GB0.eps UEIDW6105GB0.eps
MEIDW6305GB0.eps FEWDW6505GB0.eps REWDW6505GB0.eps
Product No. EWDW6505GB0 EWDW6505GS0 EWDW6505GW0
Series 24" Built-in 24" Built-in 24" Built-in
Color black stainless white
Owner's Guide 154671101 154671101 154671101
Service Data Sheet 154676601 154676601 154676601
Energy Guide 154678401 154678401 154678401
Installation Instructions 154671001 154671001 154671001
Market North America North America North America
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995509477
08/01/22
(EN/SERVICE/ECL)
821
24-INCH BUILT-IN
DISHWASHER
Model No.
EWDW6505G
Copyright ©2008 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995509477 EWDW6505G
01/08 2
CONTROL PANEL

EWDW6505G Publication No: 5995509477
# Functional Parts 3 01/08
* Non-Illustrated Parts
CONTROL PANEL
Model Index: AEWDW6505G (EWDW6505GB0)
BEWDW6505G (EWDW6505GS0)
CEWDW6505G (EWDW6505GW0)
POS. NO PART NO. DESCRIPTION
1 # 7154611403 A - - Control Panel Assembly, complete, black, w/controls
1 # 7154611406 - B - Control Panel Assembly, complete, stainless, w/controls
1 # 7154611401 - - C Control Panel Assembly, complete, white, w/controls
* # 7154654201 A B C Harness, wiring, main, control/door
* 7154678401 A B C Label, energy guide

Publication No: 5995509477 EWDW6505G
01/08 4

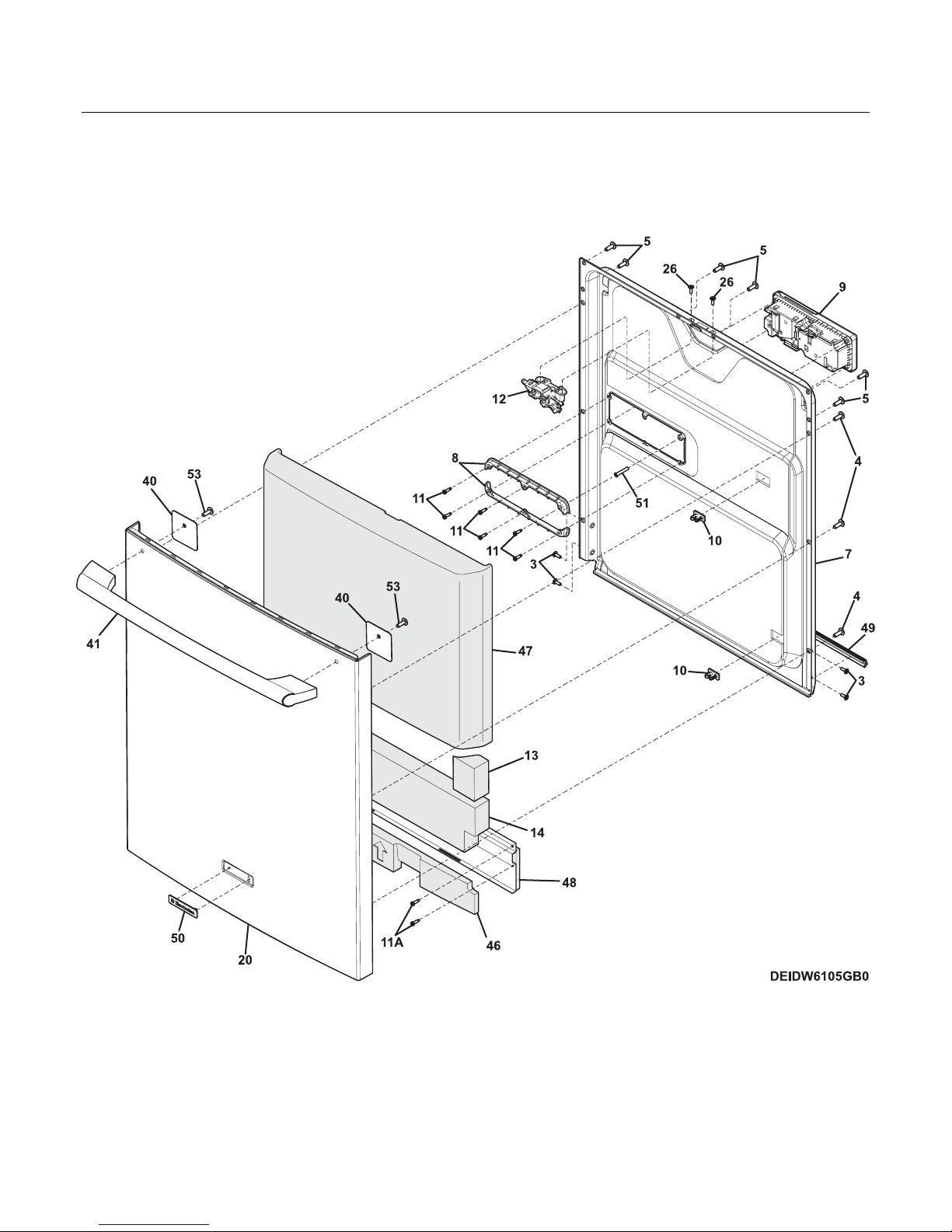

DOOR

EWDW6505G Publication No: 5995509477
# Functional Parts 5 01/08
* Non-Illustrated Parts
DOOR
Model Index: AEWDW6505G (EWDW6505GB0)
BEWDW6505G (EWDW6505GS0)
CEWDW6505G (EWDW6505GW0)
POS. NO PART NO. DESCRIPTION
3 7154518201 A B C Screw, 6 lobe recess, #10-32, (4)
4 7154603801 A B C Screw, low profile, truss, (6)
5 7154603701 A B C Screw, PH, #10-16 hi-lo, (6), 6 lobe
7 7154509701 A B C Liner Assembly, door, inner, w/mastic
8 7154670901 A B C Bracket, dispenser mtg., (2)
9 7154574405 A B C Dispenser, det/rinse aid, w/reed switch
10 7154633501 A B C Clip, wiring harness
11 7154625702 A B C Screw, FT PH 6 lobe, #8-18
11A 7154518301 A B C Screw, 6 lobe recess, #8-18
12 7154671401 A B C Latch Assembly, door, w/shield
13 7154670701 A B C Foam, door, sides, (2)
14 7154623401 A B C Foam, door
20 7154616603 A - - Door, outer, black
20 7154603501 - B - Door, outer, stainless
20 7154616601 - - C Door, outer, white
26 7154519101 A B C Screw, Phlps Hd, #10-16 hi lo, (4)
40 7154603401 A B C Plate, handle support, (2)
41 7241761014 A - - Handle, door, black
41 7241761013 - B - Handle, door, stainless
41 7241761015 - - C Handle, door, white
46 7154690501 A B C Support, door, bottom
47 7154672001 A B C Moisture Barrier, assembly, door, w/data sheet
48 7154670301 A B C Reinforcement, assembly, door
49 7154610601 A B C Gasket, door bottom
50 7154658703 A - - Nameplate, Electrolux, black
50 7154658705 - B - Nameplate, Electrolux, stainless
50 7154658701 - - C Nameplate, Electrolux, white
51 7154320301 A B C Clamp, drip loop, wire
53 7154633601 A B C Screw, handle mtg., (2)

Publication No: 5995509477 EWDW6505G
01/08 6
UPPER FRAME / TUB

EWDW6505G Publication No: 5995509477
# Functional Parts 7 01/08
* Non-Illustrated Parts
UPPER FRAME / TUB
Model Index: AEWDW6505G (EWDW6505GB0)
BEWDW6505G (EWDW6505GS0)
CEWDW6505G (EWDW6505GW0)
POS. NO PART NO. DESCRIPTION
1 7154500701 A B C Brace, frame, top
2 7154511401 A B C Strike, door latch
3 7154513401 A B C Gasket, tub
4 7154657901 A B C Clip, cabinet mtg., top mount, (2)
4* 7154657201 A B C Screw, cabinet clip, (2)
5 7154510702 A B C Roller Assembly, tub, (4), w/gasket
6 7154572801 A B C Screw, tub roller, (8)
7 7154510601 A B C Plate, retainer, outer, (2), tub roller
8 # 7154688501 A B C Vent Assembly, upper
8* 7154691601 A B C Cover, connector, vent assy
9 7154622601 A B C Bezel, vent assy, upper
10 7154633501 A B C Clip, wiring harness
11 7154518301 A B C Screw, 6 lobe recess, #8-18
11A 7154200701 A B C Screw, #10-32 x 3/8
12 7154612901 A B C Leg and Hinge Assembly, left hand, front
12A 7154613001 A B C Leg and Hinge Assembly, right hand, front
13 7154654401 A B C Bracket, cabinet clip, LH
13A 7154654501 A B C Bracket, cabinet clip, RH
14 7154502901 A B C Trim, corner, LH
14A 7154502001 A B C Trim, corner, RH
15 7154656801 A B C Cover, hinge arm, LH
15A 7154656901 A B C Cover, hinge arm, RH
17 7154671501 A B C Bushing, hinge arm cable, (2)
22 75300809968 A B C Washer
23 7154654601 A B C Clip, cabinet mtg., LH
23A 7154654701 A B C Clip, cabinet mtg., RH
25 7154506702 A B C Float, tub flood
26 7154506902 A B C Nut, float switch
27 7154677201 A B C Gasket, float switch
28 # 7154507001 A B C Switch, float
29 7154517001 A B C Actuator, float switch
30 7154506601 A B C Bracket, float switch
31 7154657101 A B C Shield, float bracket
32 7154506801 A B C Washer, float switch
50 7154690101 A B C Clamp, wiring
73 7154518401 A B C Screw, 6 lobe recess, #8-32
* # 7154627701 A B C Harness, wiring, float switch
* 7154662101 A B C Cabinet Seal Kit
* 7154623602 A B C Insulation, blanket
* 7154679701 A B C Clip, insulation, (2)

Publication No: 5995509477 EWDW6505G
01/08 8

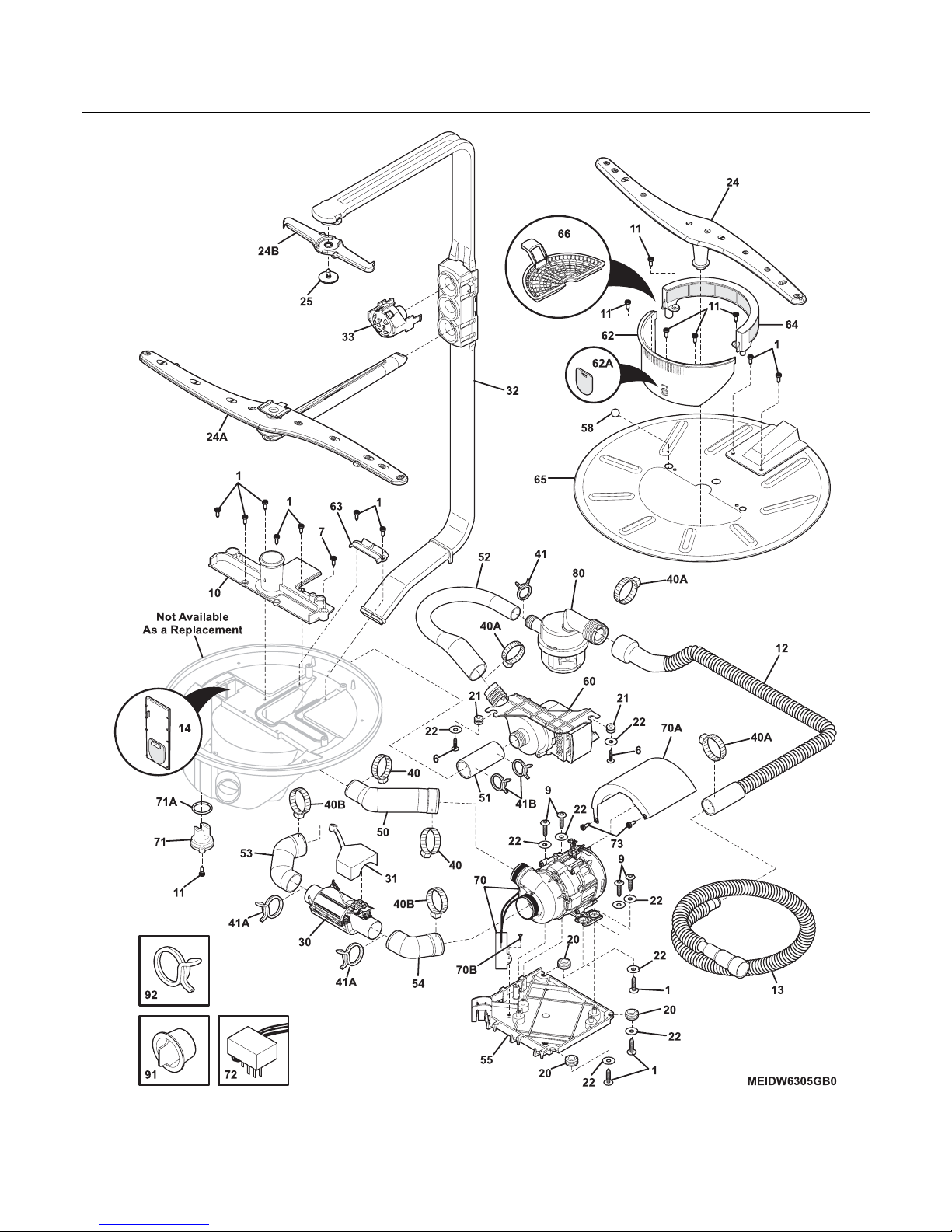

MOTOR & PUMP

EWDW6505G Publication No: 5995509477
# Functional Parts 9 01/08
* Non-Illustrated Parts
MOTOR & PUMP
Model Index: AEWDW6505G (EWDW6505GB0)
BEWDW6505G (EWDW6505GS0)
CEWDW6505G (EWDW6505GW0)
POS. NO PART NO. DESCRIPTION
1 7154518001 A B C Screw, pan head, #10-16 x .8"
6 7154518301 A B C Screw, 6 lobe recess, #8-18
7 7154673501 A B C Screw, 6 lobe recess, #10 hi lo
9 7154625701 A B C Screw, #8-18 hi lo
10 7154602001 A B C Support, lower spray arm
11 75303316032 A B C Screw, truss ss, 8 .625, (7)
12 7154654801 A B C Hose, drain, Intermediate
13 7154654901 A B C Hose, drain, main
14 7154511801 A B C Check valve, assembly, drain, w/flapper
20 7154678602 A B C Grommet, vibration, (3)
21 7154672502 A B C Grommet, vibration, (2)
22 75300809968 A B C Washer
24 7154610001 A B C Spray arm, assembly, lower
24A 7154508201 A B C Spray arm, assembly, middle, w/manifold
24B 7154649502 A B C Spray arm, assembly, upper
25 7154650102 A B C Pin, spray arm, upper
30 # 7154503701 A B C Heater, inline, water, 1200W
31 7154622901 A B C Cover, inline heater
32 7154515602 A B C Tubing Assembly, delivery, w/check valve
33 7154616502 A B C Nozzle Assembly, Mid Level
40 7154106801 A B C Clamp, hose, 1.29" open, worm gear, (2)
40A 7154380601 A B C Clamp, hose, 1.5" open, worm gear, (5)
40B 7154672601 A B C Clamp, hose, 1.75" open, worm gear, (2)
41 7154348401 A B C Clamp, hose, red, push spring, (3)
41A 7154611101 A B C Clamp, SPRING, red, (2)
41B 7154691501 A B C Clamp, SPRING, (2)
50 7154679602 A B C Hose, sump to, motor, circulation
51 7154491202 A B C Hose, sump to, drain pump
52 7154622402 A B C Hose, drain pump, to drain valve
53 7154653201 A B C Hose, sump to, inline heater
54 7154653301 A B C Hose, inline heater, to motor
55 7154677101 A B C Plate, motor mounting
58 7154512401 A B C Check ball
60 7154618701 A B C Pump Assembly, drain, w/bracket
62 7154600702 A B C Filter Assembly, vertical, w/flapper
62A 7154511601 A B C Flapper, drain check
63 7154513501 A B C Cover, delivery tube
64 7154604502 A B C Filter Assembly, fine soil, pressurized
65 7154624901 A B C Filter Assembly, coarse soil, w/chimney
66 7154514302 A B C Trap, glass
70 # 7154614001 A B C Motor & Pump Assy, circulation, w/capacitor
70A 7154656401 A B C Shield, motor, circulation
70B 7154614401 A B C Screw, capacitor mtg.
71 # 7154473901 A B C Sensor, turbidity
71*# 7154627001 A B C Harness, wiring, turbidity
71A 7154376001 A B C O-ring, turbidity
72 # 7154655901 A B C Sensor, leak detector
73 7154518401 A B C Screw, 6 lobe recess, #8-32
80 # 7154622001 A B C Drain Valve, assembly, stepper
91 7154676701 A B C Plug, drain hose
92 7154348502 A B C Clamp, red, hose

Publication No: 5995509477 EWDW6505G
01/08 10
LOWER FRAME

EWDW6505G Publication No: 5995509477
# Functional Parts 11 01/08
* Non-Illustrated Parts
LOWER FRAME
Model Index: AEWDW6505G (EWDW6505GB0)
BEWDW6505G (EWDW6505GS0)
CEWDW6505G (EWDW6505GW0)
POS. NO PART NO. DESCRIPTION
1 7154514801 A B C Spring, door hinge, (2)
2 7154502601 A B C Base, frame mounting
3 # 7154513601 A B C Valve Assembly, water
3* 7154689201 A B C Deflector, valve
4 # 7154515001 A B C Control Assembly
5 7154624701 A B C Bracket, control housing
6 7154294701 A B C Screw, #7 plas .375, (6), disp. assy.
7 7154673501 A B C Screw, 6 lobe recess, #10 hi lo
8 7154658003 A - - Kickplate, black, w/label
8 7154658005 - B - Kickplate, stainless, w/label
8 7154658001 - - C Kickplate, white, w/label
9 7154679303 A - - Toe Plate, adjustable, black, w/damper
9 7154679305 - B - Toe Plate, adjustable, stainless, w/damper
9 7154679301 - - C Toe Plate, adjustable, white, w/damper
10 7154371304 A - - Screw, phillips head, black
10 7154371307 - B - Screw, phillips head, silver mist
10 7154371301 - - C Screw, phillips head, white
11 7154518301 A B C Screw, 6 lobe recess, #8-18
12 7154501301 A B C Frame, diagonal, leg, (2)
13 7154658101 A B C Tray, base, w/label
14 7154610301 A B C Tape, connection, (2), base to tub
15 7154571101 A B C Leg, leveling, (4)
16 7154515401 A B C Plate, mounting, (4), leveling leg
17 7154516501 A B C Bracket Assembly, pulley, (2)
18 7154658601 A B C Cable, hinge pulley, (2)
19 7154514901 A B C Plate, adjustment, (2), door spring
20 7154658201 A B C Cover, junction box, w/label
21 7154517501 A B C Box, junction
22 7154610701 A B C Grommet, electrical
23 7154671801 A B C Connector, ground, 1 female, to 2 male
24 # 7154657501 A B C Light Assembly, cleaning
30 7154617901 A B C Duct Assembly, side drying, w/gasket
31 7154618301 A B C Cover, drying inlet
32 7154625001 A B C Tubing, water inlet
33 75303318539 A B C Clamp, tubing, (2)
40 # 7154617601 A B C Duct Assembly, lower drying, w/motor
41 7154617801 A B C Gasket, drying duct, lower
42 # 7154619101 A B C Motor, drying
50 7154670401 A B C Adaptor Plate, assembly, w/foam
51 7154518001 A B C Screw, pan head, #10-16 x .8"
60 7154622701 A B C Cover, valve service
90 7154679801 A B C Plug, water valve
91 7154690001 A B C Clip, wiring
* # 7154654001 A B C Harness, wiring, base, LH side
* # 7154688401 A B C Harness, wiring, RH side, base
* 7154672301 A B C Screw, 6 tri lobe, #10 PH, (2)

Publication No: 5995509477 EWDW6505G
01/08 12
RACKS

EWDW6505G Publication No: 5995509477
# Functional Parts 13 01/08
* Non-Illustrated Parts
RACKS
Model Index: AEWDW6505G (EWDW6505GB0)
BEWDW6505G (EWDW6505GS0)
CEWDW6505G (EWDW6505GW0)
POS. NO PART NO. DESCRIPTION
1 7154625401 A B C Rack Assembly, lower
2 7154632401 A B C Basket, silverware, main, center
2A 7154632601 A B C Basket, silverware, side, rear
2B 7154632701 A B C Basket, silverware, side, front
2C 7154653001 A B C Holder, silverware, flexible
3 7154625301 A B C Rack Assembly, upper
4 7154510902 A B C Clip, guide rail, rear, (2)
5 7154510805 A B C Cap, guide rail, front, (2)
6 7154510401 A B C Guide Rail, upper rack, (2)
7 7154671301 A B C Roller Assembly, lower rack, front, (2)
7A 7154689501 A B C Roller Assembly, lower rack, rear, (2)
8 7154610501 A B C Bracket, spray arm, middle, mounting
9 7154613402 A B C Clip, manifold mtg, back
10 7154581203 A B C Basket Assy, knife holder
10A 7154581303 A B C Holder, snap in
10B 7154632101 A B C Tray, utility
10C 7154652001 A B C Lid, utility tray
11 7154629002 A B C Shelf, cup, upper rack, (2)
11A 7154629102 A B C Clip, cup shelf, upper rack, (2)
12 7154629302 A B C Fence, fold down, LH center, upper rack
12A 7154654302 A B C Fence, fold down, RH center, upper rack
12B 7154652102 A B C Fence, fold down, upper rack
13 7154629402 A B C Clip, fold down fence, upper rack, (4)
13A 7154652202 A B C Clip, fence, upper rack
14 7154630902 A B C Fence, fold down, lower rack, (2), single
14A 7154631102 A B C Fence, fold down, lower rack, (2)
15 7154428403 A B C Bracket, fence, lower rack, (18)
16 7154631401 A B C Lid, main basket, side, (2)
16A 7154632501 A B C Lid, main basket, LH center
16B 7154651701 A B C Lid, main basket, RH center
16C 7154649001 A B C Lid, basket, knife
16D 7154651801 A B C Lid, basket, chopsticks
16E 7154634901 A B C Lid, basket, RH side
17 7154629503 A B C Handle, front, upper rack, Electrolux
17A 7154629601 A B C Handle, back, upper rack
18 7154629701 A B C Screw, handle, upper rack, (4)
19 7154673701 A B C Plate Assembly, adjustment mech, RH outer, upper rack
19A 7154673601 A B C Plate Assembly, adjustment mech, LH outer, upper rack
20 7154655101 A B C Actuator Pad, assembly, upper rack, (2), mechanical adj
21 7154630101 A B C Plate, adjustment mtg., inner, (2), upper rack
22 7154630301 A B C Housing, adjustment mech, upper rack, (2)
24 7154655201 A B C Clamp, actuator, upper rack, (2), adjustment mech
25 7154630201 A B C Spring, adjustment mech, upper rack, (2)
26 7154673501 A B C Screw, 6 lobe recess, #10 hi lo
27 7154528803 A B C Clip, cup, (2)
28 7154631503 A B C Handle, lower rack, front
29 7154631601 A B C Handle, lower rack, back
30 7154632301 A B C Clip, holder, champagne, (2)
31 7154632201 A B C Holder, champagne glass, (2)
