Flight Type Dishwashers
brochure Flight type 09/03 ING 24-01-2005 10:54 Pagina 1

2
General features
• Electrolux, the leading choice for catering
equipment, introduces its new line of flight type
dishwashers.
• Compact, ergonomic design and cost saving,
combined with perfect washing results, make the
Electrolux flight type dishwasher the best choice
for large canteens, in-flight catering, hospitals,
hotels and marine installations.
• Electrolux appliances have been designed using
a modular approach, allowing them to be
tailored to individual requirements.
brochure Flight type 09/03 ING 24-01-2005 10:54 Pagina 2

3
• All the new machines have well designed
functions making them easier to work with and
creating a pleasant working environment.
• The working environment in the dishwashing
area is improved with low temperatures, low
noise levels and reduced humidity.
• The new flight type dishwashers feature a
double skinned structure with thermal and
acoustic insulation (less than 70dB).
• Electrolux new generation of flight type
dishwashers has been engineered with tried and
tested technology.
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 3

Electrolux flight type dishwashers have
been carefully designed to offer long term
reliability, even in the most arduous
conditions.
Reliability:
• the panels and the inspection doors
have a double skin structure in order to
reduce noise and heat dispersion
• in order to completely avoid any
detergent corrosive action, the tank is
made of AISI 316 stainless steel
• all the main elements are made in AISI 304
stainless steel:
- baring structure
- feet
- internal and external panels
- inspection doors
- washing and rinsing arms
- filter plates and filter boxes
- screws
- side support for dishes
• all electric components, wash and rinse
pumps are tested to guarantee a long
lasting operation of the dishwasher
• Stainless steel washing pumps are
standard on version “A”, optional on “B” &
“C”. As standard, all the units are
equipped with low voltage (24 volt)
control panel to guarantee high safety
standards and long lasting reliability
4
Reliability
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 4

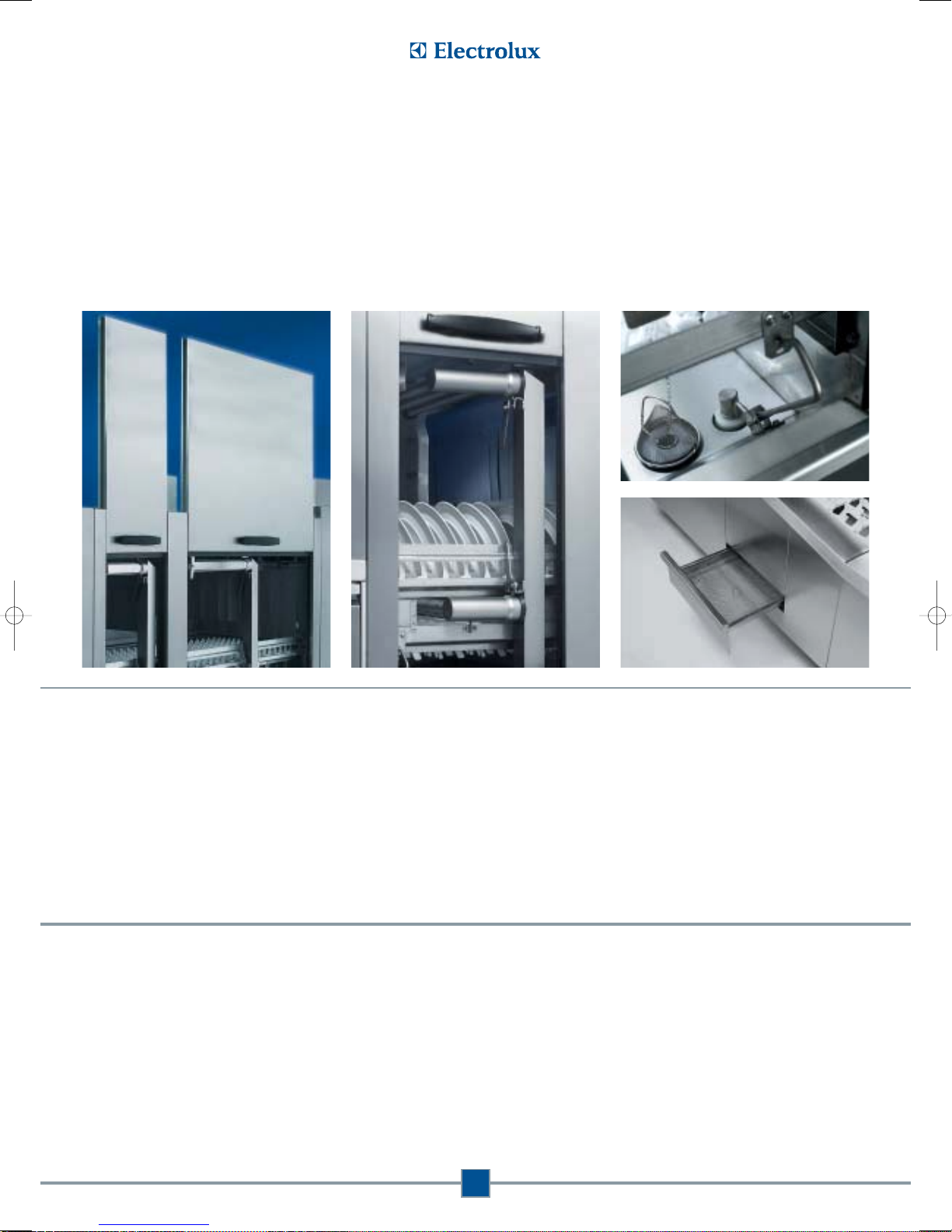

Electrolux flight type dishwashers have
been designed to be extremely accessible
and easy to use.
Accessibility:
• easier maintenance, thanks to the
accessibility from the front and sides of
the machine
• all the main working components are
placed on the front of the machine
• adjustments of the tension of the conveyor
belt can be made from the loading side
• the fingers in the conveyor are easily
replaceable
• electrical and water service connections
can be made from above or below
• the electric control box is clearly
organized and centrally located
• the ESD (Energy Saving Device) and
condenser unit are accessible via the
hinged top
5
Accessibility
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 5

6

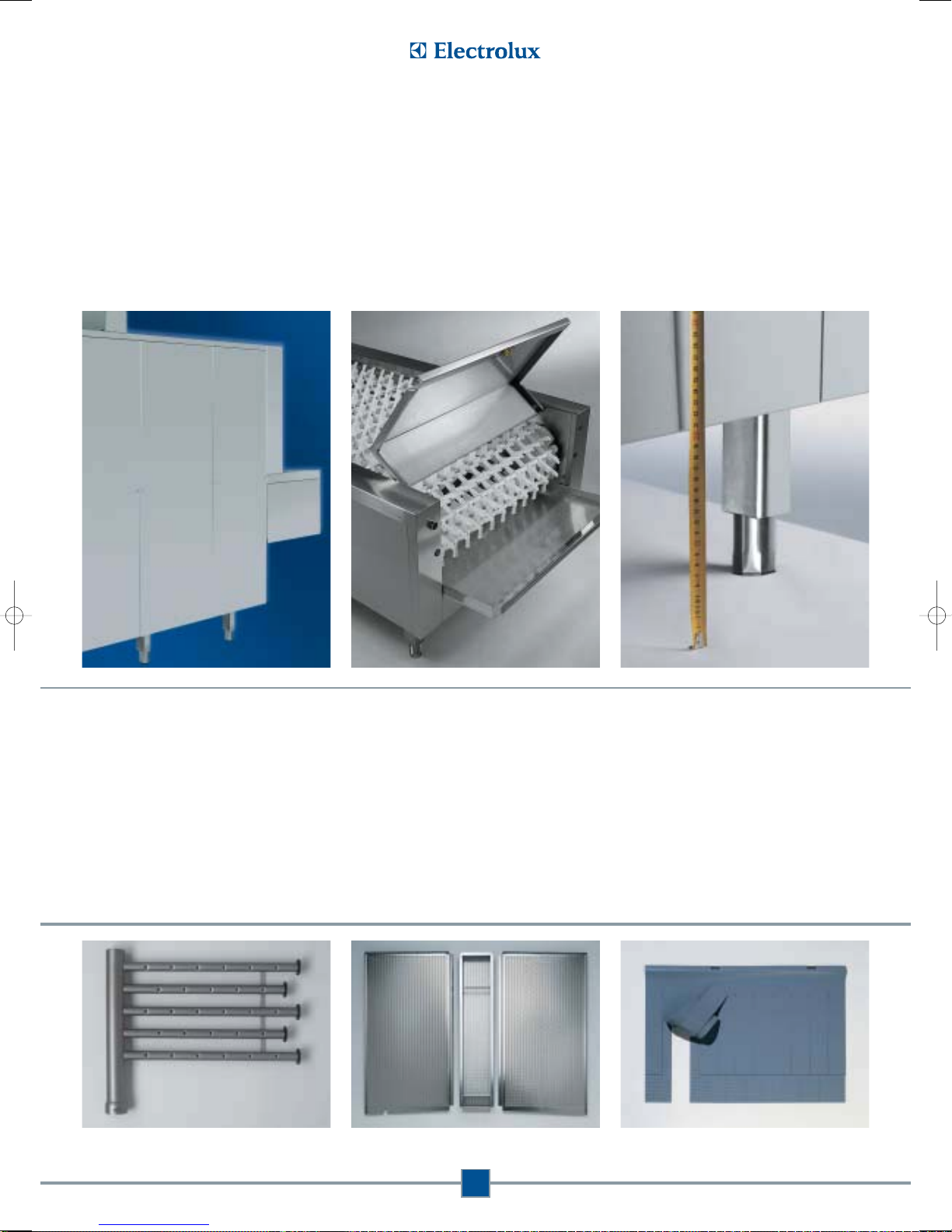

Cleanability
The flight type dishwasher has been
specifically engineered to be easily
cleanable both internally and externally.
Internal cleanability:
• final wash & rinse area behind one large
balanced inspection door to allow an easy
access to the washing area
• drying zone with inspection door for
cleaning and removal of fallen items
• washing chamber without internal pipes
• internal screws in the wash chamber do
not project past the nuts
• the loading end is easily accessible for
cleaning and emptying of the large scrap box
• washing arms in stainless steel, easily
removable for daily control and cleaning
• double tank filters (flat and box) are
easily removable
• tank with round corners to make easy
periodical cleaning, avoiding the stagnation
of food remains
• sloping base to convey the dirty water
towards the drain
• optional cleaning ramp available in
loading sections above 700 mm in length
External cleanability:
• smooth external surfaces
• 200 mm height feet enable ease of
cleaning under the machine
• loading area without feet
• the back is completely closed so that the
machine can be placed against the wall
• IPX 5 water protection
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 6

7
Total control
The electronic control panel has been
designed not only to control the
dishwasher, but also to provide the
operator and engineer a host of useful
information that can improve the
efficiency and washing performance.
The new digital control panel with HACCP
integration and fault diagnosis system
is used to read the temperature of all
washing, rinsing and drying sections.
•if a fault occurs it will be indicated on
the control panel
• as an option it is possible to measure
the consumption of water and energy
• in the “Washing mode” pumps and drier
stop after one minute if no dishes are loaded
in the conveyor and start automatically
when dishes enter into the machine
• on request an integrated printer can be
installed on the machine, in order to print
out all the data about the washing
processes, displayed on the window
Power on
Low speed
DIN 50110 Window 2x16 digits Up/ down
Start
Info StopPower off High speed
Washing mode
The following information can be selected
and displayed in the window:
• washing efficiency • current alarms
• temperatures-actual and set values
• flow/speed/electrical power-actual
values (if measuring devices are installed)
• statistics-today’s washing • current
alarms-today’s washing
Stand by mode
The following information can be selected
and displayed in the window:
• temperatures: actual and set values
• flow limit settings • statistics-today’s
washing • alarms-today’s washing • time
left to service • HACCP protocol • print
protocol • clear protocol
Setup mode
In the setup mode the following fields can
be set: For the user • date and time
• choice of 12 languages • For the technician
with access code • temperatures can be
altered • timer • HACCP protocols (how
to print) • Water flows (option) • contact
time (between water and items)
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 7

8
1024
The product range
Optional wideGeneral purpose
880
WTF2 2 tank (standard pre-wash)
4500 mm length
3600 plates/hour
WTF2H 2 tank (heavy duty pre-wash)
4800 mm length
3600 plates/hour
WTF3 3 tank (standard pre-wash)
5800 mm length
5000 plates/hour
WTF3H 3 tank (heavy duty pre-wash)
6100 mm length
5000 plates/hour
WTF4H 4 tank (heavy duty pre-wash)
7400 mm length
7200 plates/hour
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 8

9
Version “A” Version “A”
• All models include a 1100 mm long
drying tunnel that incorporates an
inspection door to collect items that may
fall onto the belt
• The standard range is ideal for washing
items measuring up to 600 x 400 mm
wheareas the wide and high version can
wash 744 x 550 mm items
• The wide’n’high versions can take 3
plates instead of 2 for the standard version,
so the capacity is increased by 50%
• Version "A" incorporates an eco-scrap
arm that uses water from the ESD device
to immediately start to “soften” & “wet”
items immediately as they enter the
machine to wash items that have not
been pre-scrapped or when the machine is
used mainly on the fast speed
• Version “A” also incorporates as standard
high performance stainless steel wash
pumps to provide a stronger washing
action usually required to wash a lot of
gastronorm containers or when the
machine is used during heavy conditions

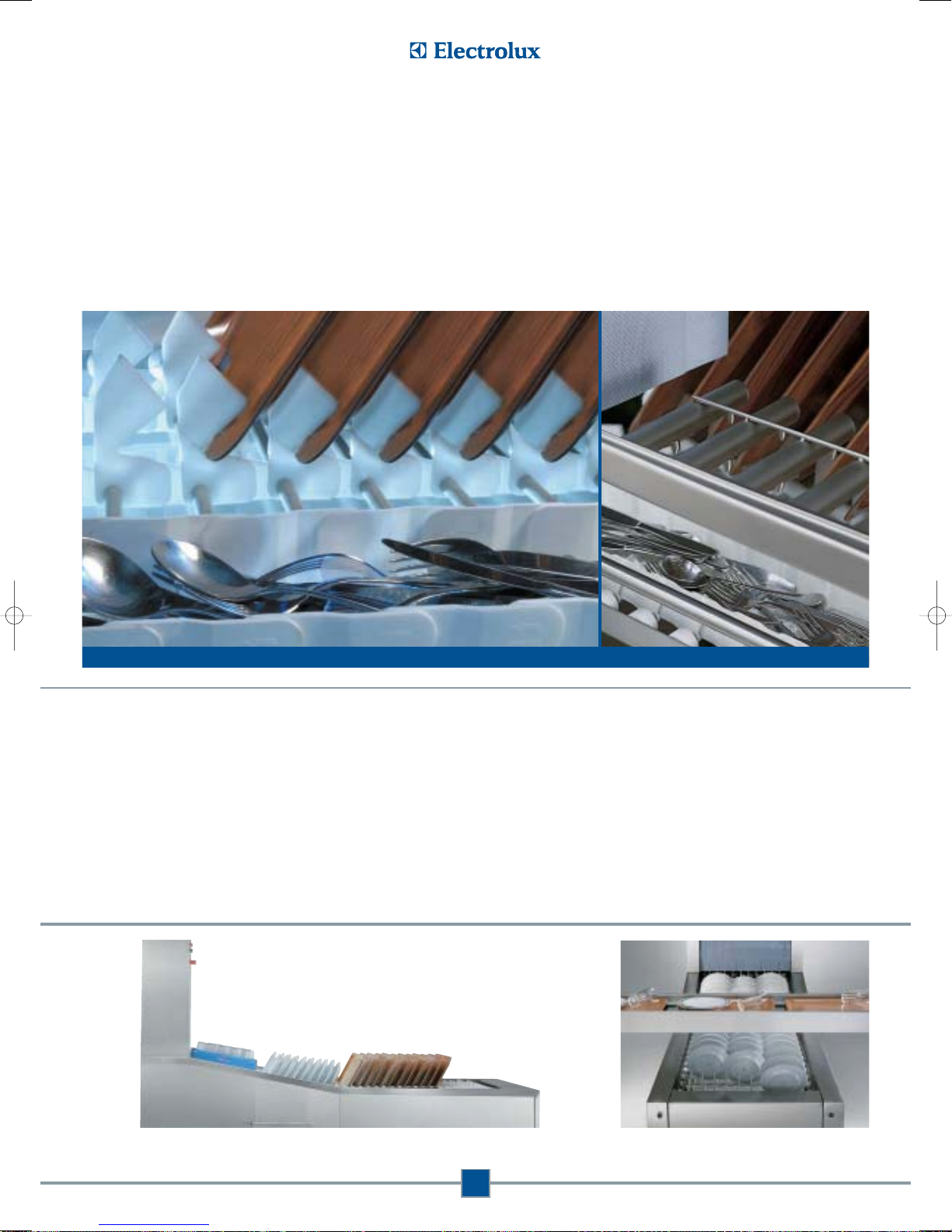

• All Flight type dishwashers are supplied
with a multipurpose belt.
The product range consists of 5 different sized
models available in 3 specificational levels to
provide the customer a wide range of machines
that can be even further personalized.
Version “A” – suitable for installations where
incoming water temperature is below 15 °C and
where usage is going to be particularly heavy
and incorporates energy saving device to reduce
power requirements by 20/30 kW/h.
No ventilation hood is required.
Version “B” – and suitable for installations
where incoming water temperature is below 15 °C
but where usage is going to be normal. No ventilation
hood required.
Version “C” – suitable for installations where
incoming water temperature is 55 °C. Ventilation
hood is required.
Version “A” Version “B” Version “C”
Drying Tunnel Drying Tunnel Drying Tunnel
Energy Saving Device Energy Saving Device
Heavy Duty Pump in stainless steel
Eco pre-scrap arm in prewash tank
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 9

10

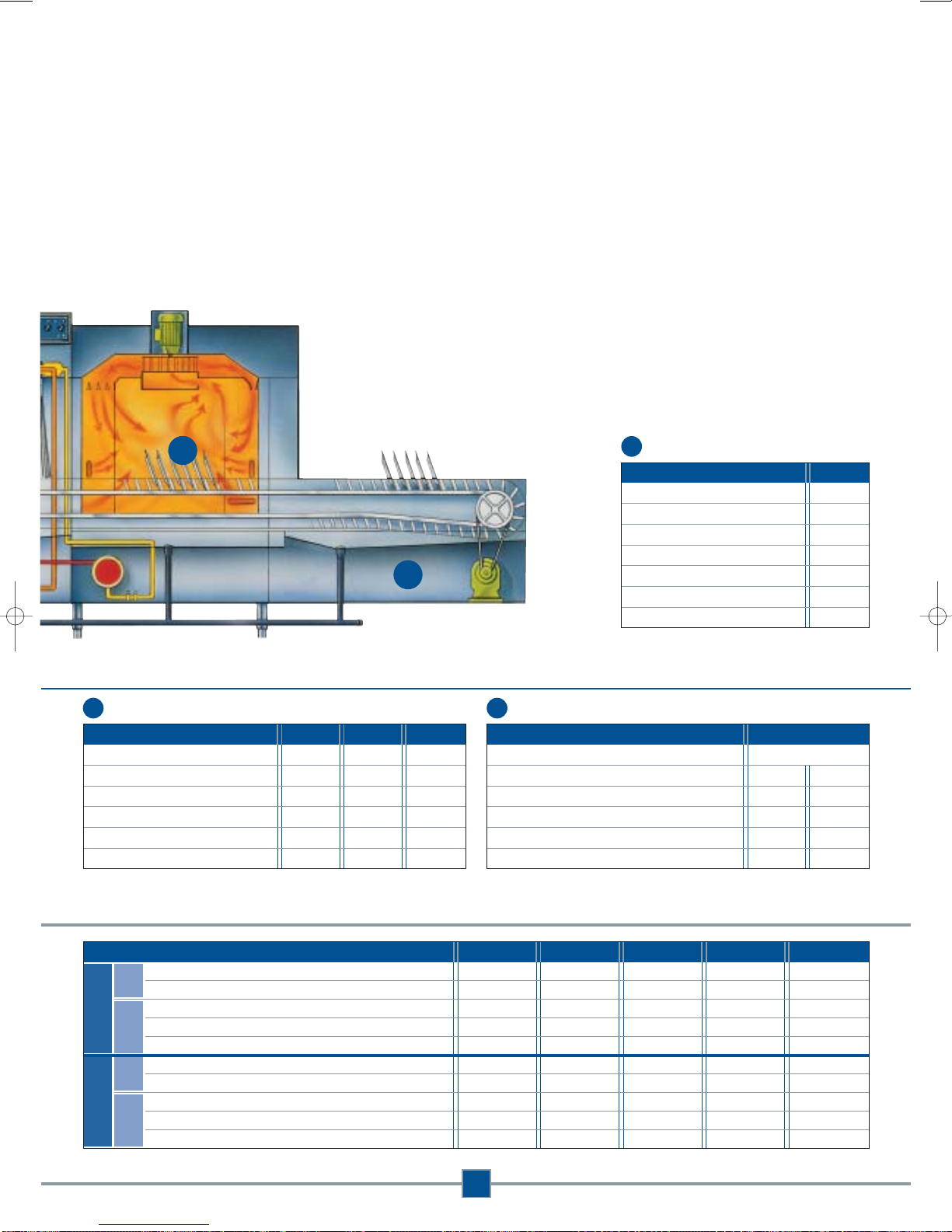

1 Loading section All models + versions
1
2 3 5
6
2 Pre wash
3 Wash with detergent
Options: heavy duty stainless steel pump 4.1 kW available for the standard pre-wash and wash tanks
Options: Lateral strainer and "Cross-over" loading section L = 2900 mm
Technical data
Optional lengths
Standard length
1200 mm
700 mm
1500 mm
1800 mm
2400 mm
3000 mm
4000 mm
Tank capacity l
WTF3WTF3WTF2HWTF2 WTF4H
Temperature °C
Pump power versions “B” and “C”
Pump power versions “A”
Heavy duty
107
30 - 50
2,7
4
Heavy duty
107
30 - 50
2,7
4
71
30 - 50
0,88
0,88
Heavy duty
107
30 - 50
2,7
4
71
30 - 50
0,88
0,88
Tank capacity l
Heating element kW
Temperature °C
Pump power versions “B” and “C”
Pump power versions “A”
4 Wash with detergent
Tank capacity l
WTF4H
Heating element kW
Temperature °C
Pump power versions “B” and “C”
Pump power versions “A”
Heavy duty
119
12
55 - 65
2,7
4
WTF3HWTF3 WTF4H
Heavy
duty
113
15
55 - 65
2,7
Heavy
duty
119
15
55 - 65
2,7
119
15
55 - 65
2,7
444
WTF2H
Heavy
duty
125
15
55 - 65
2,7
4
WTF2
125
15
55 - 65
2,7
4
brochure Flight type09/03 ING/1 14-02-2005 14:35 Pagina 10

11
7
8
Options: Doubledryingtunnelforplasticitemsthatrequireslongdryingtime
8 Unloading section
4 Power Rinse without detergent
Tank capacity l
WTF3HWTF3 WTF4H
Heating element kW
Temperature °C
Pump power versions “B” and “C”
Pump power versions “A”
Heavy duty
125
15
65 - 75
2,7
Heavy duty
125
15
65 - 75
2,7
125
15
65 - 75
2,7
444
7 Drying section
Module length mm
All models and versions
Temperature °C
Air circulating m3/h
Fan motor kW
Heating elements kW
1100
40 - 60
2400
0,55
Standard
9
WTF4
WTF3
WTF2
Special length
1100 mm
700 mm
1500 mm
1800 mm
2400 mm
3000 mm
4000 mm
Electric kW - Duo Rinse 47
61
4,9
66
85
53
61
7,5 7,5 10,2 10,2 12,8
61 79 79 94
53 71 71 86
85 111 111 130
66 91 91 110
6,8 7,8 9,7 12,5
61 79 79 94
49 65 67 82
Electric kW - Twin Rinse
Electric kW
Steam kg/h - Duo Rinse
Steam kg/h - Twin Rinse
Electric kW - Duo Rinse
Electric kW - Twin Rinse
Electric kW
WTF2 WTF2H WTF3 WTF3H WTF4H
72 72 97 97 116Steam kg/h - Duo Rinse
85 85 111 111 130Steam kg/h - Twin Rinse
Wide models Standard models
Electric
models
Steam
models
Electric
models
Steam
models
Total power Electric and Steam models
brochure Flight type09/03 ING/1 14-02-2005 14:35 Pagina 11

12
Energy savings
Electrolux energy saving system, as
standard on versions “A” & “B”, cuts
heating costs by half and saves
between 20 to 30 kW/h:
•The energy saving device reduces the
electric consumption by pre-heating the
incoming cold water using the steam from
the dishwasher and part of the used
rinsing water, without increasing the
heating elements in the boiler
• During the dishwashing process, the
machine is taking in cold water via the
condenser and at the same time the
exhaust fan is extracting the steam,
generated in the rinsing and washing
zones, forcing it to pass through the
aluminium lamellas of the condensing
unit. The steam condenses on the cold fins
and the heat is transferred to the cold
incoming water. The water temperature is
increased from ~ 10 °C to ~ 50 °C, that
means an initial energy saving by heating
up the incoming water of ~ 40 °C.
Incoming cold water 10°C
Air temperature 25 °C
Steam 68°C
Used water 68°C from DUO
Fresh water 54°C to booster
Used water 40°C from ESD
to pre-wash tank
Fresh water from CU 35°C
to pre-wash tank
• The extra price of an “A” or “B” version
compared to a “C” version will normally
be repayed within one year of use, taking
in consideration energy savings and the
fact that a ventilation hood is not
required
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 12

Tanks 2
420
500
20 - 25
75 - 85
100
320
30 30 30 30 30
320 350 350 450
100 100 100 100
75 - 85 75 - 85 75 - 85 75 - 85
22 - 25 22 - 30 22 - 30 22 - 30
500 800 800 800
420 450 450 550
2334
Total water Consumption l/h
Air emission m3/h
Air temperature °C
Air humidity %
Air humidity without ESD %
*Final Rinse consumption l/h
Energy savings ESD twin rinse
*maximum values when m/c working all the time
13
WTF2 WTF2H Heavy duty WTF3 WTF3H Heavy duty WTF4H Heavy duty
Thanks to the condensing unit, the
outgoing air from the machine will be
cooled down to ~ 25 °C and have a
humidity of 75-80%, so no additional
hood is needed over the machine.
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 13

Temperature °C
Temperature °C
14
Rinsing system
Electrolux offers 2 final rinse methods:
• The Duo rinse system, standard on all
models, which guarantees an excellent
rinsing performance and also saves rinsing
water, rinse aid and energy by using the
same water twice
• The twin high temperature system, as an
optional alternative for customers who
require a higher level of sanitization or
those who need to wash large boxes
6Final Rinse
Duo Rinse Standard Wide
Water consumption l/h
Boiler heating elements kW
Boiler capacity l
Options: demi-water or reverse-osmosis system to optimize the rinsing result for glasses and cutlery
65651^ramp
85852^ramp
420 - 550320 - 450
2218
1616
Temperature °C
Twin high temperature Standard Wide
Water consumption l/h
Boiler heating elements kW
Boiler capacity l
8585Both ramps
800600
3030
1616
Standard Duo Rinse Twin High Temperature Duo Rinse
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 14

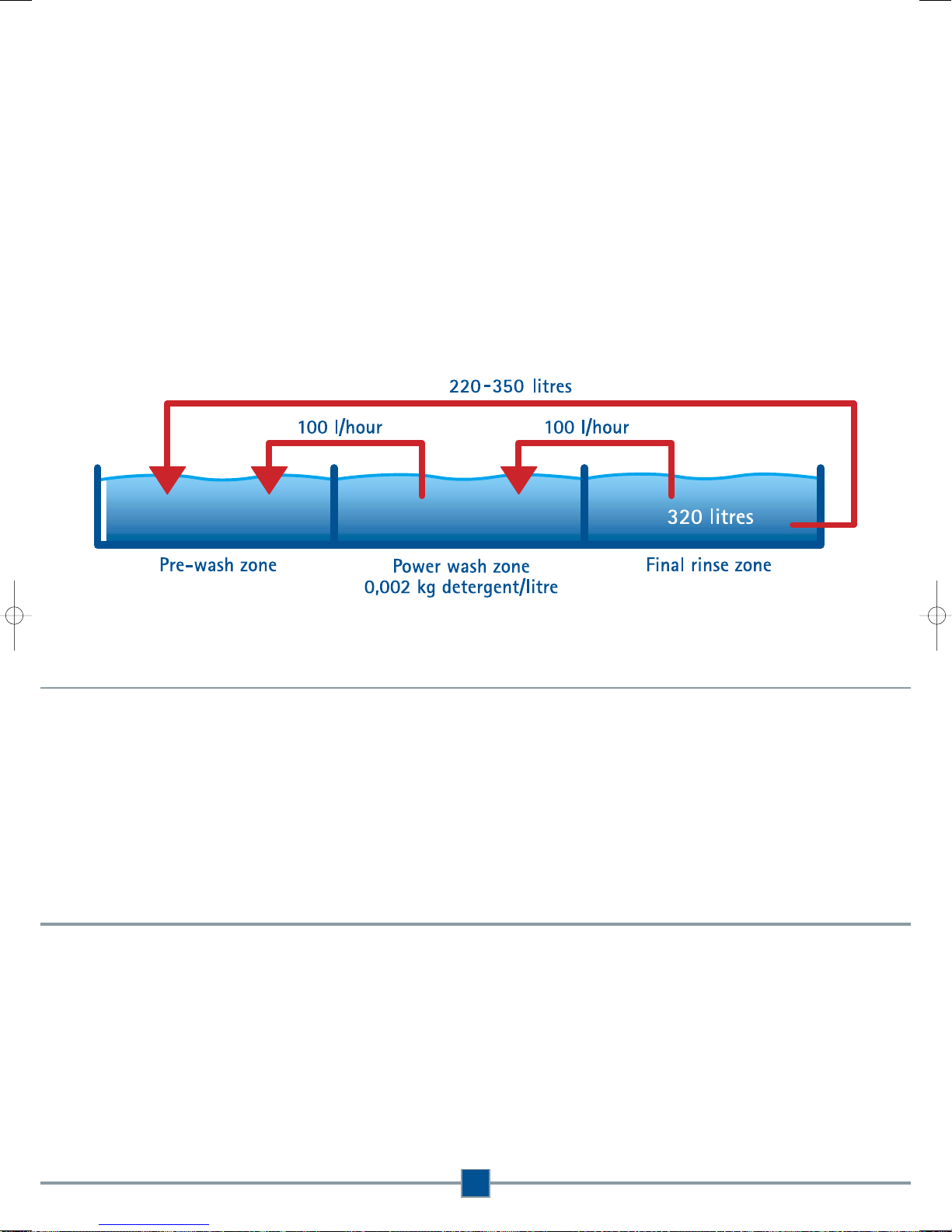

Detergent savings
Detergent saving system:
When the dishwasher is running at full
capacity, the water in the tanks is
continuously replaced by a flow of water,
coming from the final rinse zone and, at
the same time, the equivalent amount of
water is drained off via the drain-pipe in
the pre-wash tank. Electrolux FT
dishwasher has been designed to control
this flow system in order to keep the right
rate of detergent in the washing water
longer than the traditional machines.
• In traditional flight type dishwasher all
the water from the final rinse runs over to
the pre-wash via the wash tank. As the
washing water is replaced at the rate of
300-400 litres per hour, new detergent
must be added to maintain the required
concentration
• The equivalent flow in the new Electrolux
flight type dishwashers is only 100 litres
per hour. This means saving approx. 0,5 kg
detergent per hour! The savings, making a
calculation, based on working 7 hours/day
for 300 days, considering that the right
concentration of detergent is 2 grams per
litre, are more than 1 ton of detergent per
year (1479 kg/year with a traditional
machine vs 420 kg/year with the
Electrolux FT dishwasher)
15
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 15

16
Conveyor for small items and cutleryMultipurpose conveyorBlue stick for baskets
Electrolux offers a wide range of options
to tailor the flight type dishwasher
exactly to meet the customers individual
requirements.
• this flexibility has allowed us to satisfy
the needs of large canteens, in-flight
catering establishments, hospitals , hotels
and marine installations
• several types of conveyor belts to wash
different types of trays, racks or boxes are
available
Multipurpose conveyor, (standard and wide
version). Capacity each metre: 32- 48
large plates or 16 trays or 2 dishwashing
racks, distance between fingers 60 mm.
Accessories. Shafts in blue plastic for
easier handling of dishwashing racks.
Conveyor for small items (in-flight
kitchen). For FT dishwasher (standard and
wide version) with manual loading and
unloading of small items, distance
between fingers 60 mm.
Combined conveyor for small items (in-flight
kitchen) and cutlery. For FT dishwasher (wide
version) with manual loading and unloading
of small items.
Cutlery can be automatic loaded and
unloaded as an option, distance between
fingers 60 mm.
Tailor made
customer solutions
Conveyor for serving trays with
insulated lids - standard and wide
version (Temprite, Aladin...).
Capacity each metre:
10 trays or lids, 20-30 large plates or 2
dishwashing racks, distance between
fingers 100 mm.
Conveyor for insulated trays
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 16

17
The conveyor can be inclined up to 4
degrees in order to get the best drying
result. The standard washing arms can be
replaced with side washing arms.
The standard wash pumps on versions “B”
& “C” can be replaced with heavy duty
stainless steel pumps. Loading and
unloading modules can be extended up to
4 metres, and also made for cross over
systems.
The machine can be integrated with waste
management systems such as, waste
Electrolux can offer solutions for washing
a variety of items, such as plastic boxes,
large pots and pans and GN containers.
The machine can be equipped with
specific modules in order to guarantee the
final washing performance.
The washing and rinsing modules can be
combined with neutral sections, to avoid
water splashing between the different
tanks. A divo-jet system can be inserted
between wash tanks to direct concentrated
detergent onto heavily soiled items.
disposal units, de-watering units, vacuum
systems.
Conveyor for larger itemsConveyor for trays and cutlery
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 17

18
Combined Flight Type Dishwasher
• The Combined Flight Type WT730 TCW
dishwasher has a
completely automated system that will
take care of both trays and cutlery, thus
eliminating the need for extra workers.
Not only will costs be dramatically cut,
but operational workflow will also be
improved
• The WT730 TCW dishwasher offers the
possibility to process up to 1500 trays/h
• The WT730 TCW dishwasher is made of
a special conveyor belt with two different
tracks – one for trays and one for cutlery.
The trays and cutlery will be fully
automatically loaded from a cord
conveyor
• Both trays and cutlery are collected at
the unloading stage by: a lowerator for
the trays and a trolley with stainless steel
rack for the cutlery
As an option, it is possible to set up the
machines so it collects trays from the
unloading station to two lowerators,
which will give the operator more time to
change the full lowerator.
Conveyor for trays and cutlery (with automatic loading and unloading)
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 18

19

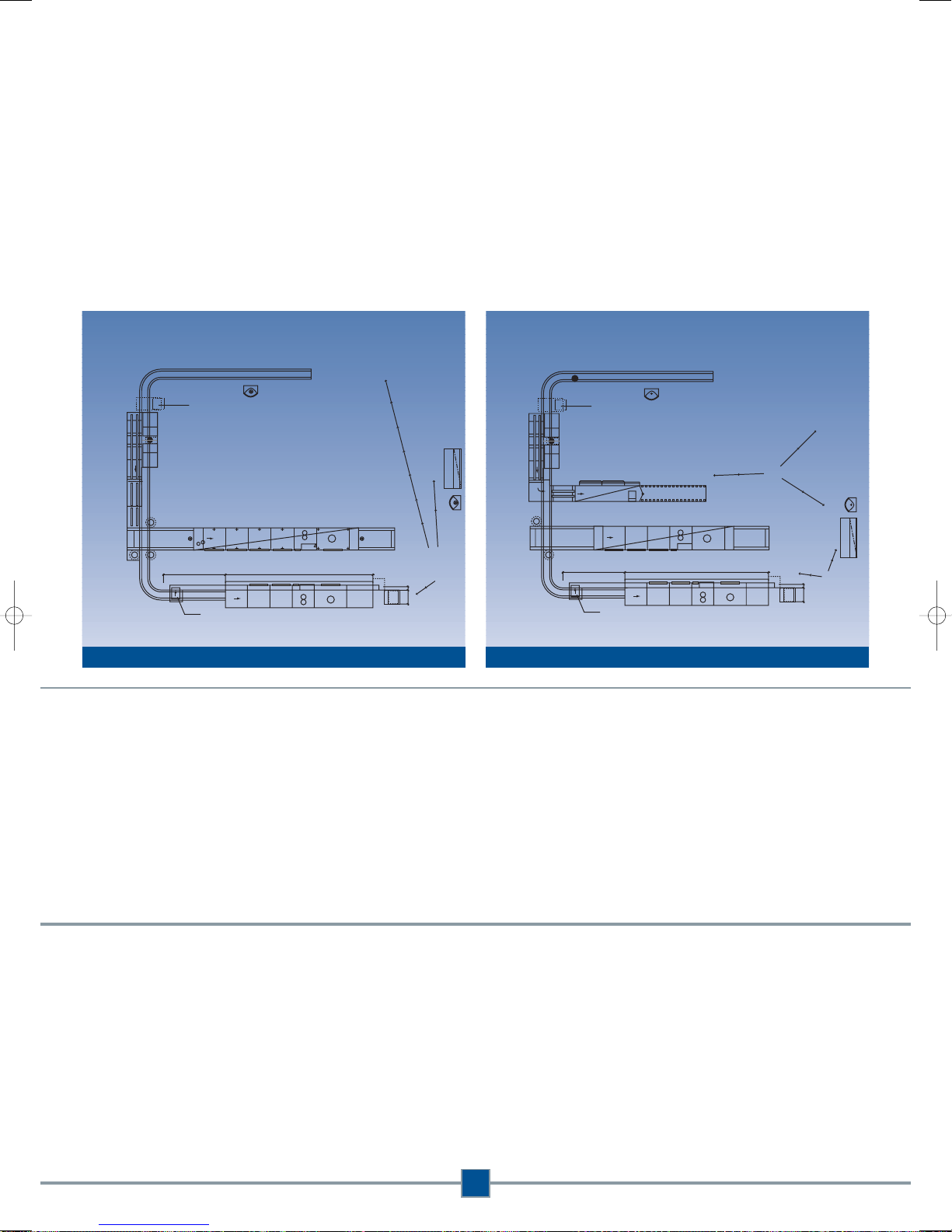

Layout
Example of dishwashing layout for 1200
guests/hour kitchen:
• racks with glasses, cups, etc, from the
sorting table on a chain conveyor to a
rack type dishwasher WT 150 HD
• flight type dishwasher with cross over
functions for plates, bowls, etc.
• device for automatic removing of
cutlery from the trays
• combined tray and cutlery dishwasher
(TCW) with automatic loading of trays and
cutlery
• automatic unloading of trays in tray
lowerators and of cutlery in a cutlery
trolley
Dishwashing layout with cross-over
function
To optimise the function in large
dishwashing systems a cross-over loading
section increase the overall efficiency,
especially when more than one large
dishwasher is used. The cross over loading
section is only 700 mm high, and the
conveyor with the dirty trays & dishes will
cross over the loading section at a height
of 1050 – 1150 mm. The operator can take
the dishes direct from the tray and stack
it on the conveyor of the dishwasher.
+ 1200
+ 1200
2500 6000
CUTLERY
SORTING
515 200
+ 800
FOOD LEFT-OVERS
FOOD LEFT-OVERS ADDITIONAL PERSON
IF NEEDED
FLIGHT-TYPE DISHWASHER
RACK DISHWASHER
CUTLERY PICKING
DEVICE
COMBINEDTRAY AND CUTLERY WASHER
NAPKIN
BLOWER
+900+900
+900
NAPKIN
BLOWER
+ 1200
+ 1200
+ 800
CUTLERY
SORTING
FOOD LEFT-OVERS
ADDITIONAL PERSON
IF NEEDED
ADDITIONAL PERSON
IF NEEDED
2500 6000
515 200
CUTLERY PICKING
DEVICE
COMBINEDTRAY AND CUTLERY WASHER
Example of dishwashing layout for 900
guests/hour kitchen:
• flight type dishwasher with cross over
function for plates, bowls, etc.
• for racks with glasses, cups, etc. coming
from the sorting table on a chain conveyor
• device for automatic removing of
cutlery from the trays
• combined tray and cutlery dishwasher
(TCW) with automatic loading of trays and
cutlery
• automatic unloading of trays in tray
lowerators and of cutlery in a cutlery
trolley
900 guests /hour 1200 guests /hour
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 19

EFT43EN The Company reserves the right to change specifications without notice.
www.electrolux-professional.com
brochure Flight type 09/03 ING 24-01-2005 10:55 Pagina 20
