Electrolux EDC 506 E User manual

TUMBLE DRYER
SECADORA
INSTRUCTION BOOKLET
MANUAL DE USO
EDC 506 E
125 995 670
E
GB

2
Dear customer,
Please read these operating instructions carefully and pay particular attention to the safety notes indicated in
the first pages.
We recommend that you keep this instruction booklet for future reference and pass it on to any future owners.
Transport damages
After unpacking the machine please check it is not damaged. If in doubt, do not start it but contact your local
Service Centre.
The symbols you will see on some paragraphs of this booklet have the following meaning:
The warning triangle emphasize information that is particularly important for your safety or correct
functioning of the appliance.
The information marked with this symbol provides additional instructions and practical tips on the use of
the appliance.
Tips and information about economical and ecological use of the machine are marked with this symbol.
Our contribution to the protection of the
environment: we use recycled paper.

3
ENGLISH
Contents
Important safety information..........4-5
Disposal............................................................5
Tips for environmental protection 5
Your new tumble dryer ..........................6
Description of the appliance..............6
Installation ......................................................7
Positioning ............................................................7
Electrical connection ............................................7
Stacking kit............................................................7
Connecting a drain hose ......................................7
Use........................................................................8
The control panel ..............................................8-9
Programme chart ................................................10
Operating sequence............................................11
Useful hints ........................................................12

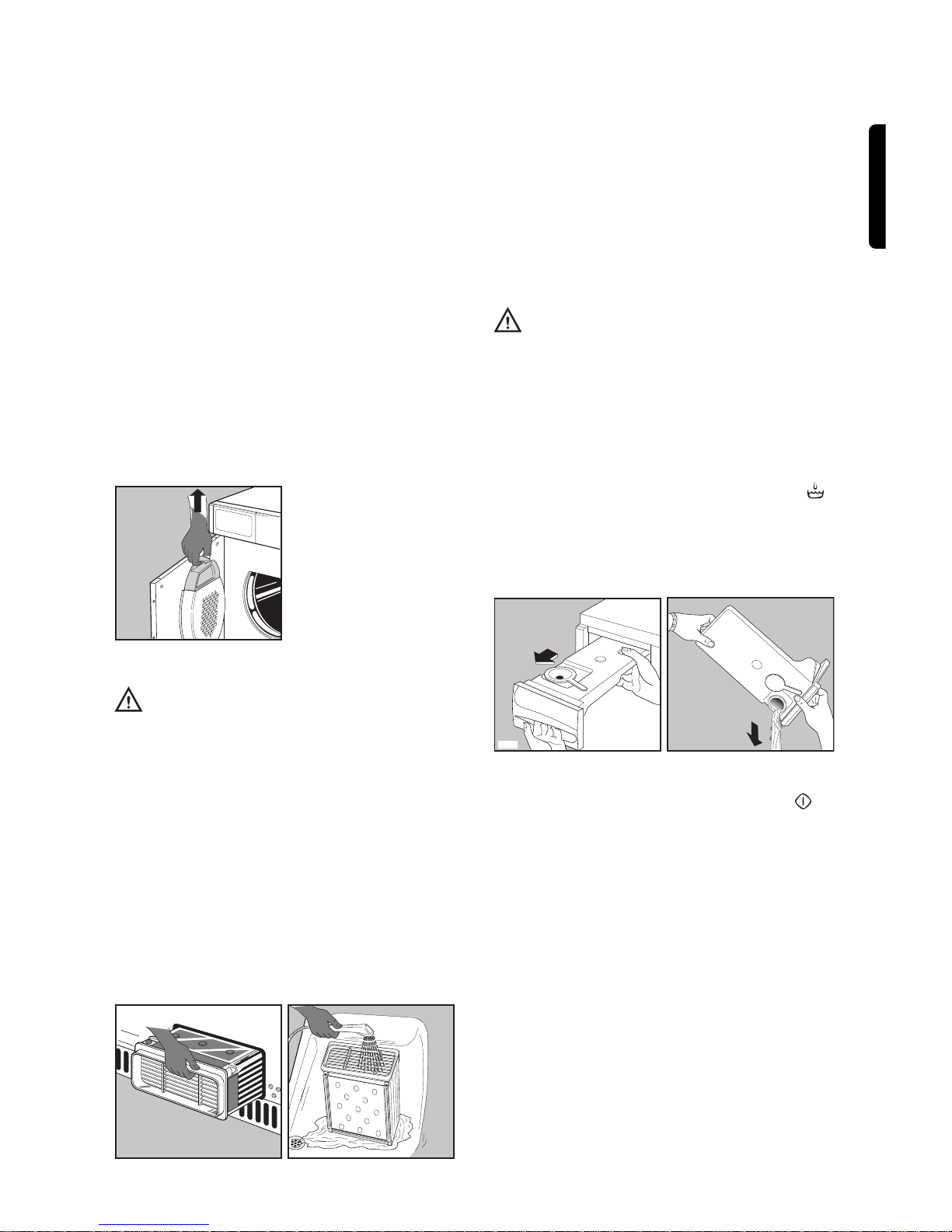

Maintenance and Cleaning................13
External cleaning ................................................13
Cleaning the filter................................................13
Cleaning the condenser unit ..............................13
Emptying the water reservoir ............................13
Something not working?....................14
Technical specifications
DIMENSIONS: Height 85 cm
Width 60 cm
Depth 60 cm
ELECTRICAL CONNECTION: 220/230 V/50 Hz
MAX. POWER ABSORBED: 2600 W
MIN. FUSE RATING: 16 A
DRYING CAPACITY: Cotton, linen 5 kg
Synthetics 2.5 kg
CONSUMPTION: Cotton, linen 3.9 kWh (5 kg store dry)
Cotton, linen 3.1 kWh (5 kg iron dry)
This appliance complies with the following E.E.C. Directives:
- 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
- 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

4
Important safety information
Installation
• Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
• Care must be taken to ensure that the appliance
does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor,
please adjust the feet in order to allow air to
circulate freely.
Use
• This appliance is designed for domestic use only. If
the machine is used for any other purposes or is
not used correctly, the manufacturer accepts no
responsibility for any damage that might occur.
• Always unplug the appliance after use.
• Clothes which are dripping wet should not be
placed in the dryer.
•Danger of explosion: Never tumble dry items that
have been in contact with inflammable solvents
(petrol, methylated spirits, dry cleaning fluid and
the like). As these substances are volatile, they
could cause an explosion. Tumble dry only items
washed with water.
• Please make sure that no gas lighters have
accidentally been left in pockets of garments to be
loaded into appliance.
• Do not dry canvas shoes or sports shoes, as they
could get stuck between the door and the drum,
thus blocking this latter.
• Leave the door slightly ajar when the appliance is
not being used. This will allow the seal to be
preserved.
• Clean fluff filter after using tumble dryer. To prevent
fire risks, do not use the appliance if the fluff filter is
damaged or without filter.
General safety
• It is dangerous to alter the specifications or attempt
to modify this product in any way.
• Under no circumstances should you attempt to
repair the machine yourself. Repairs carried out by
inexperienced persons may cause injury or serious
malfunctioning. Contact your local Electrolux
Service Centre. Always insist on genuine Electrolux
spare parts.
These warnings have been provided in the interest of safety. You MUST read them carefully before installing or
using the appliance.

5
ENGLISH
Child safety
• Children are often not aware of how dangerous
electrical appliances can be. When the machine is
working, children should be carefully supervised
and not be allowed to play with the appliance.
• The packaging components (e.g. plastic film,
polystyrene) can be dangerous to children - danger
of suffocation! Keep them out of children’s reach.
• Make sure that children or pets do not climb into
the drum.
• When the appliance is to be scrapped, cut off the
electrical supply cable and destroy the plug with
the remaining cable. Disable the door catch in
order to prevent children from becoming trapped
inside while playing.
To save energy and to help protect the environment,
we recommend that you follow these hints:
• Try to load the maximum capacity of the machine
as small loads are uneconomical.
• Always load well spun laundry. The higher the spin
speed, the lower the electricity consumption and
the shorter the drying times.
• Do not over-dry laundry, this avoids creasing and
saves energy.
Select the drying programme according to the type
of laundry and the required degree of dryness.
• To utilize the maximum load, laundry which is to be
dried ready to put away (store dry) can be dried
together with items to be ironed. To do this, select
the programme for iron-dry, remove the iron-dry
items at the end of the programme and then finish-
dry the rest of the load.
• Clean the filter and condenser unit regularly to
avoid excessive drying times and high electricity
consumption.
• Ventilate the room well. The room temperature
should not exceed +35°C during drying.
Tips for environmental protection
• Packaging materials
The materials marked with the symbol are
recyclable.
This means that they can be recycled by disposing of
them properly in appropriate collection containers.
• Machine
Use authorised disposal sites for your old appliance.
Help to keep your country tidy!
Disposal

6
Your new tumble dryer
Description of the appliance
This tumble dryer will give your wash that soft, relaxed feel whatever the weather.
Extremely high quality standards both during development and manufacturing guarantee a long service life for
your appliance.
Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and
short drying times.
1 Control panel
2 Water reservoir
3 Programme chart
4 Fluff filter
5 Rating plate
6 Condenser unit
7 Adjustable feet
56
7
1
4
2
EDC505 E
3

7
ENGLISH
Installation
Positioning
It is recommended that, for your convenience, the
machine is positioned close to your washing
machine.
The tumble dryer must be installed in a clean place,
where dirt does not build up.
Air must be able to circulate freely all round the
appliance. Do not obstruct the front ventilation grille
or the air intake grilles at the back of the machine.
To keep vibration and noise to a minimum when the
dryer is in use, it should be placed on a firm, level
surface.
Once in its permanent operating position, check that
the dryer is absolutely level with the aid of a spirit
level. If it is not, raise or lower the feet until it is.
The feet must never be removed.
Do not restrict the floor clearance through deep-
pile carpets, strips of wood or similar. This might
cause heat build-up which would interfere with
the operation of the appliance.
Important
The hot air emitted by the tumble dryer can reach
temperatures of up to 60°C. The appliance must
therefore not be installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room
temperature must not exceed 35°C, as it may affect
the performance of the appliance.
Electrical connection
This machine is designed to operate on a 220-230 V,
single-phase, 50 Hz supply.
Check that your domestic electrical installation can
take the maximum load required (2.6 kW), also
taking into account any other appliances in use.
Connect the machine to an earthed socket, in
accordance with current wiring regulations.
The manufacturer declines any
responsibility for damage or injury through
failure to comply with the above safety
precaution.

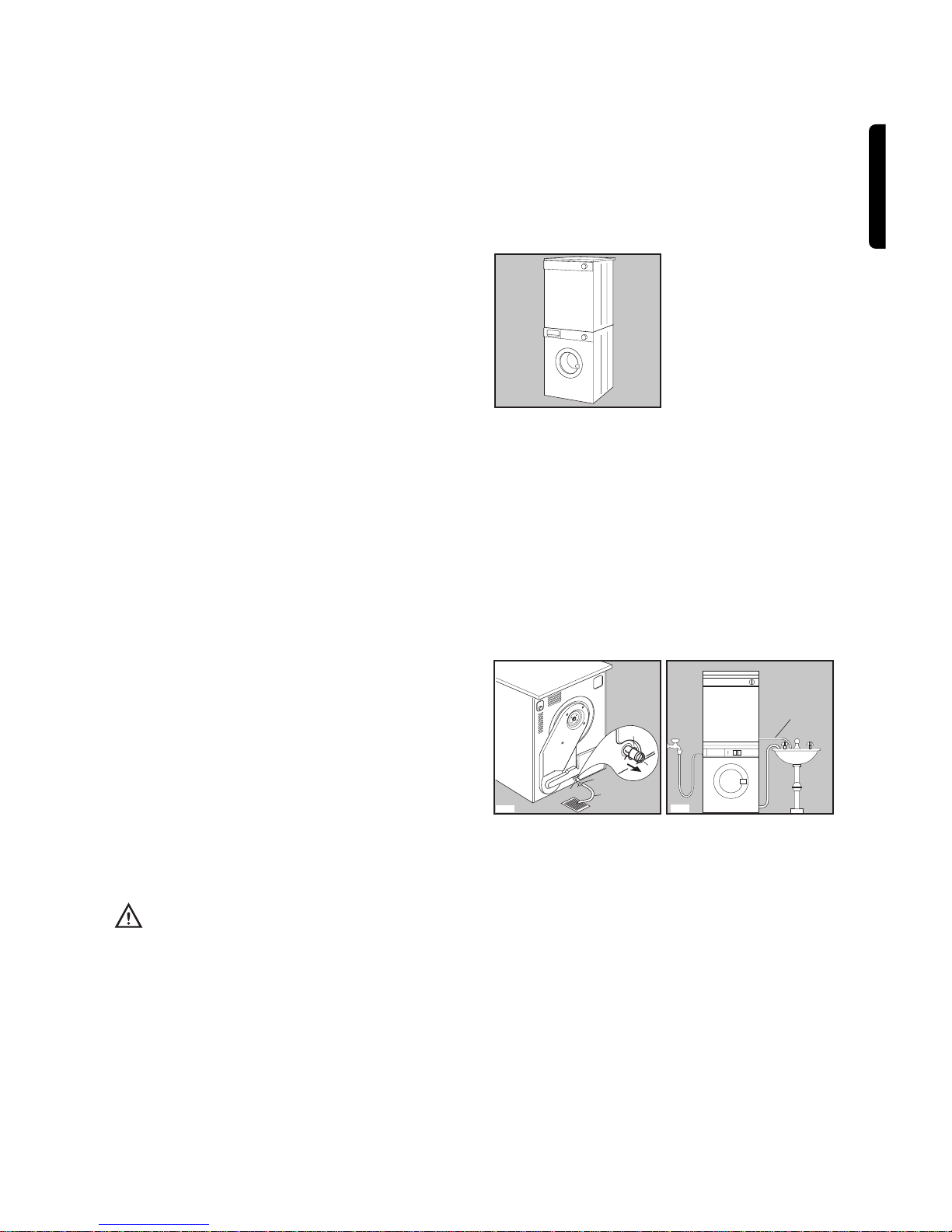

Stacking kit
A special stacking kit is available through your
dealer, to enable the mounting of the dryer on top of
your washing machine.
Connecting a drain hose
If there is a sink or drain near the appliance, the
condensed water can be discharged directly through
a hose that is available on the market.
In order to connect the hose to the appliance
proceed as follows:
• Remove the clamp (A);
• Pull out the plug (B);
• Insert the drain hose (C);
• Fasten the hose (C) to the appliance using the
clamp (A).
If the appliance is stacked on the washing machine,
the condensed water can be discharged through the
hose as shown in figure, but take into account that
the hose must be pointed downwards.
P1046
C
P1043
A
B
A
BC
P1044

8
Use
The control panel
1 Door opening button
To open door, press this button. Should the door be
opened while the appliance is working, the tumble
dryer will stop functioning.
2 Low temperature button
Press this button to reduce drying temperature.
This option should be used only when drying
synthetics with a time controlled programme.
3 Buzzer OFF button
During the anti-crease phase, the buzzer will sound.
Press this button to switch the sound off.
Important: If the water container is full, the buzzer
will sound even if this button has been depressed.
4 Start button
After selecting the programme or drying time depress
this button to start the appliance.
Should the door be opened while appliance is
drying, the START button has to be depressed
again after closing the door to allow the
programme to continue.
This button must be depressed also after a power
failure and after having re-inserted the water
container, if it has been emptied during the drying
programme.
5 “Drying” light
This light indicates that the machine is performing
the drying programme.
6 “Cooling” light
This light will illuminate when the cooling phase is in
operation.
A cooling phase of 9 minutes is performed at the end
of the drying programme before the anti-crease
phase.
7 “End of programme” light
This light flashes (alternately to light) at the end
of the programme (after the cooling phase) and
continues to flash during the anti-crease phase to
remind you that filter needs cleaning and water
container must be emptied. It goes out when you
open the door or turn the programme selector dial to
“0”.
8 “Water container full” light
This light flashes when the container is full.
EDC 506 E
10987654321

9
ENGLISH
9 Programme and time selector
dial
It allows you to select an automatic drying
(graduation in letters) or a time controlled drying
(graduation in minutes).
Automatic drying (electronic programmes)
The appliance operates in these programmes by
means of dampness sensors. All you have to do is to
set the selector dial to the programme required (A,
B, C or D), according to the type of laundry and the
degree of drying required (see programme table).
Time controlled drying
You can select a time up to 90 mins. to finish off
drying, if necessary, or to use your tumble dryer
independently of the electronic control system.
When selecting a short drying time, remember that
during the last 9 mins. of operation, the heat is cut off
in order to carry out a cooling phase.
To cancel a programme in operation, turn the
selector dial to “0”.
When drying is completed, switch off the appliance
by turning the dial to “0” before opening the door.
10 Mains-on light
This light lights up by selecting the programme or
time and goes out by turning the selector dial to “0”
or by opening the door.

10
Programme chart
Automatic drying (electronic programmes)
(*) According to CEI 1121 Standards.
Type of laundry Degree of drying
required Max-load (1) kg Programme
Cotton & linen
Synthetics
extra dry
store dry
iron dry
store dry
5
5
5
2.5
A
B (*)
C (*)
D (*)
Degree of drying
required Spin speed Max-load (1)
kg Drying time
Degree of drying
required Spin speed Max-load (1)
kg Drying time
Store dry
Iron dry
Store dry Short spin at 650 r.p.m. 2.5
1
0.5
45-60 min.
30-45 min.
20 min.
800-1000 r.p.m.
1000-1200 r.p.m.
800- 1000 r.p.m.
1000-1200 r.p.m.
3.5
2.0
3.5
2.0
3.5
2.0
3.5
2.0
75-90 min.
60-75 min.
60-75 min.
45-60 min.
60-75 min.
45-60 min.
45-60 min.
30-45 min.
Time controlled drying
Cotton and linen
Synthetics: depress pushbutton
(1) Never overfill the drum (do not load large quilts, for example).
Drying times vary according to:
• The type of laundry
• The size of the load
• The degree of spinning prior to drying.
Fresh & Cool
This position on programme selector dial can be used to freshen the laundry (e.g. to remove a persistent odour
of moth-balls).
Load
It is often difficult to estimate the weight of items to be dried. We therefore recommend that you adopt the
following guidelines:
•cotton, linen: drum full but not too tightly packed;
•synthetics: drum no more than half full;
•delicate fabrics: drum no more than one third full.

11
ENGLISH
Operating sequence
Before using your tumble dryer for the first time, we
recommend to place a few damp cloths inside the
appliance and dry for 20 minutes.
There may be dust inside a brand new tumble dryer.
Drying
1. Connect the appliance.
2. Open the door by pressing the relevant button.
3. Load the items one at a time, shaking them out
loosely.
4. Close the door. Please check the laundry does
not get caught between the door and filter.
5. Select the drying programme or time: the mains-
ON light comes on.
6. If required, press the low temperature button
and/or the buzzer OFF button .
7. Press the Start button : light comes on and
drying starts.
The drum turns alternately in both directions
during drying.
All drying programmes end with a 9 minute
cooling phase (the light is on and the buzzer
sounds).
You may remove the laundry after this phase.
8. If the laundry is not removed at the end of the
cycle, the dryer performs an anti-creasing phase
(duration: 30 minutes maximum).
The buzzer sounds every 10 seconds (if the
button has not been pressed).
Lights and flash alternately.
If you do not remove the laundry, the dryer will stop
automatically at the end of the anti-creasing phase.
Lights and flash alternately and the mains-
ON light stays on.
Turn the programme selector dial to “0”, all the
lights go out.
9. Remove the laundry.
After each use
• Switch the appliance off by turning the programme
selector dial to “0”. The mains-ON light goes out.
• Clean the filter and empty the water reservoir (see
page 13).
Important!
If the drying programme has to be stopped before it
reaches the end, we recommend that you turn the
programme selector dial to position (cooling) and
wait until the end of this phase before removing the
laundry. This will avoid a build-up of heat inside the
appliance.
Modifying the programme
To change a programme which is running, first cancel
it by turning the programme selector dial to “0”. Select
the new programme and press the Start button .

12
Useful hints
• Try to load to the maximum capacity of the
machine as small loads are uneconomical.
For information, here is a list of the average
weights of some common laundry items.
Sheet 700 - 1000 g
Tablecloth 400 - 500 g
Kitchen towel 70 - 120 g
Table napkin 50 - 100 g
Towelling hand towel 150 - 250 g
Bathrobe 1000 - 1500 g
Man’s shirt 200 - 300 g
Pillowcase 100 - 200 g
Man’s pyjamas 400 - 500 g
Ladies’ nightdress 200 - 250 g
• Never tumble dry the following:
Particularly delicate items such as net curtains,
woollen, silk, fabrics with metal trim, nylon tights,
bulky materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather quilts and any
items containing rubber foam or materials similar to
rubber foam.
• Always follow the instructions on garment labels:
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry
• Close pillowcases and covers with fasteners to
prevent small laundry items getting tangled inside
them. Close press studs, zips and hooks and tie
belts and apron strings.
• Sort laundry according to type and degree of
drying required.
• Do not over-dry laundry, this avoids creasing and
saves energy.
• Avoid drying dark clothes with light coloured fluffy
items such as towels as they could attract the fluff.
• The laundry must be thoroughly spun before
tumble drying.
•Easy-care items, too, e.g. shirts, should be briefly
pre-spun before drying (depending on crease
resistance approx. 30 seconds or using the special
brief spin programme of your washing machine).
• Knitted textiles (knitted underwear) may shrink a
little during drying. Please do not overdry items of
this type. It is advisable to allow for shrinkage
when choosing the size of new purchases.
• You can also put starched items into your dryer.
However, to achieve the desired starched effect,
choose the programme “iron dry”. To remove any
starch residues, wipe out the internal drum after
drying with a moist cloth and then rub it dry.
• To avoid a static charge when drying is completed,
use either a fabric softener when you are washing
the laundry or a fabric conditioner specifically for
tumble dryers.
• Remove the laundry when the dryer has finished
drying.
• If individual items are still damp after drying, set a
brief post-drying time, but at least 20 minutes.
This will be necessary particularly for multilayered
items (e.g. collars, pockets, etc.).

13
ENGLISH
Maintenance and Cleaning
You must disconnect the appliance from the
electricity supply, before you can carry out any
cleaning or maintenance work.
External cleaning
Use only soap and water and then dry thoroughly.
From time to time, apply a little wax furniture cream
with a soft cloth.
Important: do not use methylated spirit, diluents or
similar products.
Cleaning the filter
The tumble dryer cannot operate efficiently with a
clogged filter. The filter collects all the fluff which
forms during drying and it is therefore essential to
remove and clean this filter after each drying
programme using a damp cloth.
Pull the filter upwards in order to remove it.
Important: Remove the fluff around the filter too.
Do not use the appliance without filter.
You should not be alarmed by the amount of fluff
which collects on the filter; this is due to normal
wearing of the fabrics dried and not to incorrect
operation of your machine. Rubbing of the fibres
during normal wear and washing forms fluff. If
laundry is dried on a line, this fluff simply flies away,
whereas inside the tumble dryer it collects together
and swells considerably as a result of the drying
action.
Cleaning the condenser unit
Clean the air condenser periodically, 3 or 4 times a
year depending on how frequently the dryer is used.
Pull out the condenser, holding it at the top, and
remove all fluff. Clean it with a brush and rinse it
under the shower if necessary.
P0639
P0636
P1026
Also clean the outside, removing all fluff.
Clean the rubber seal round the porthole door and
the seal of the condenser in the inner door with a
damp cloth.
Important! Do not use pointed objects or utensils to
clean the spaces between the plates, as this could
damage the condenser and make it permeable.
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside
the machine and is collected in a reservoir.
The reservoir must be emptied after each drying
cycle to ensure efficient operation when the machine
is next used.
If this is not done a safety device trips: pilot light
on the control panel comes on and the programme
stops, leaving the laundry damp. The buzzer will
sound for 1 minute.
The reservoir can be emptied even in the middle of a
programme.
The reservoir must be re-inserted correctly.
After inserting the reservoir the START-button
has to be depressed again to allow the programme
to continue.
Handy tip: The condensed water may be used in a
steam iron or to top up a battery, etc. In this case it
must be filtered (e.g. through a coffee filter).
P0827
C0033

14
Something not working?
If, after the above checks, there is still a fault, call
your local Electrolux Service Centre.
Please make sure you give the model and serial
number of the appliance.
This information can be found on the rating plate.
Before contacting your local Electrolux Service Centre, please make the following checks:
Problem Possible cause
• The dryer does not work: • The door is open.
• The plug is not fitted into the wall socket.
• There is no electricity supply from the wall socket.
• The selector dial is not set correctly.
• The water container is full.
• The start button has not been depressed.
• The dryer does not dry properly: • The filter is clogged.
• The water reservoir is full.
• The condenser is clogged.
• Insufficient drying time.
• The selected cycle is not suitable for the laundry.
• The laundry has not been spun properly.
• The low temperature function has been
selected.
• Excessive laundry load.
• The dryer is not correctly installed.
