Electrolux ECN 30104 W User manual

ECN 30104 W
ECN 40104 W
ECN 50104 W
User manual EN

2electrolux EN
We were thinking of you
when we made this product

electrolux 3
EN
Disposal
By ensuring this product is disposed of correctly, you will help
prevent potential damaging consequences for the environment
and human health.
The symbol on the product indicates that this product may not be
treated as household waste, but must be taken instead to a
suitable collection point for the recycling of electrical and
electronic equipment. For more detailed information about
recycling of this product, please contact your local city office,
your household waste disposal service or the shop where you
purchased the appliance.
Contenu
Safety Information . . . . . . . . . . . . . . .4
Product Description . . . . . . . . . . . . .4
Control panel . . . . . . . . . . . . . . . . . .4
Display . . . . . . . . . . . . . . . . . . . . . . .5
Installation . . . . . . . . . . . . . . . . . . . .5
Electrical connection . . . . . . . . . . . . .5
First use . . . . . . . . . . . . . . . . . . . . . .5
Switch on-off . . . . . . . . . . . . . . . . . .5
Daily use . . . . . . . . . . . . . . . . . . . . .6
Care and Cleaning . . . . . . . . . . . . . .6
Helpful hints and tips . . . . . . . . . . . . .7
What to do if... . . . . . . . . . . . . . . . . .8
Service or repair . . . . . . . . . . . . . . . .9
Technical Data . . . . . . . . . . . . . . . . .9
Guarantee/Customer Service . . . . .10
European Guarantee . . . . . . . . . . . .11
Electrolux. Thinking of you.
Share more of our thinking at www.electrolux.com

4electrolux EN
Safety Information
Before installing and using the appliance
read this user's instruction book carefully.
It contains safety precautions, hints,
information and ideas. If the freezer is
used in compliance with the instructions
written, it will operate properly and
provide you with greatest satisfaction.
These warnings are provided in the
interest of safety. You must read them
carefully before installing or using the
appliance.
Use the freezer only for storing frozen
food, freezing fresh food and making
ice cubes.
Do not eat ice cubes or ice lollies
immediately after taking them out of
the freezer, since they may cause frost
burns.
Do not allow children to play or hide
inside the freezer, since they may
become trapped inside and suffocate.
Do not store glass containers with
liguids in the freezer, since they may
burst.
Ensure that the freezer is not resting
on the power supply cable.
Before servicing or cleaning, always
unplug the appliance or disconnect
the power supply.
Do not use other electrical appliances
(such as ice cream makers) inside the
appliance.
Your appliance contains an
environmentally friendly natural gas,
isobuthane (R600a). Caution is
required however, since isobuthane is
flammable. Therefore it is essential to
ensure that the refrigerant pipelines
are not damaged.
It is most important that this instruction
book should be retained with the
appliance for future reference.

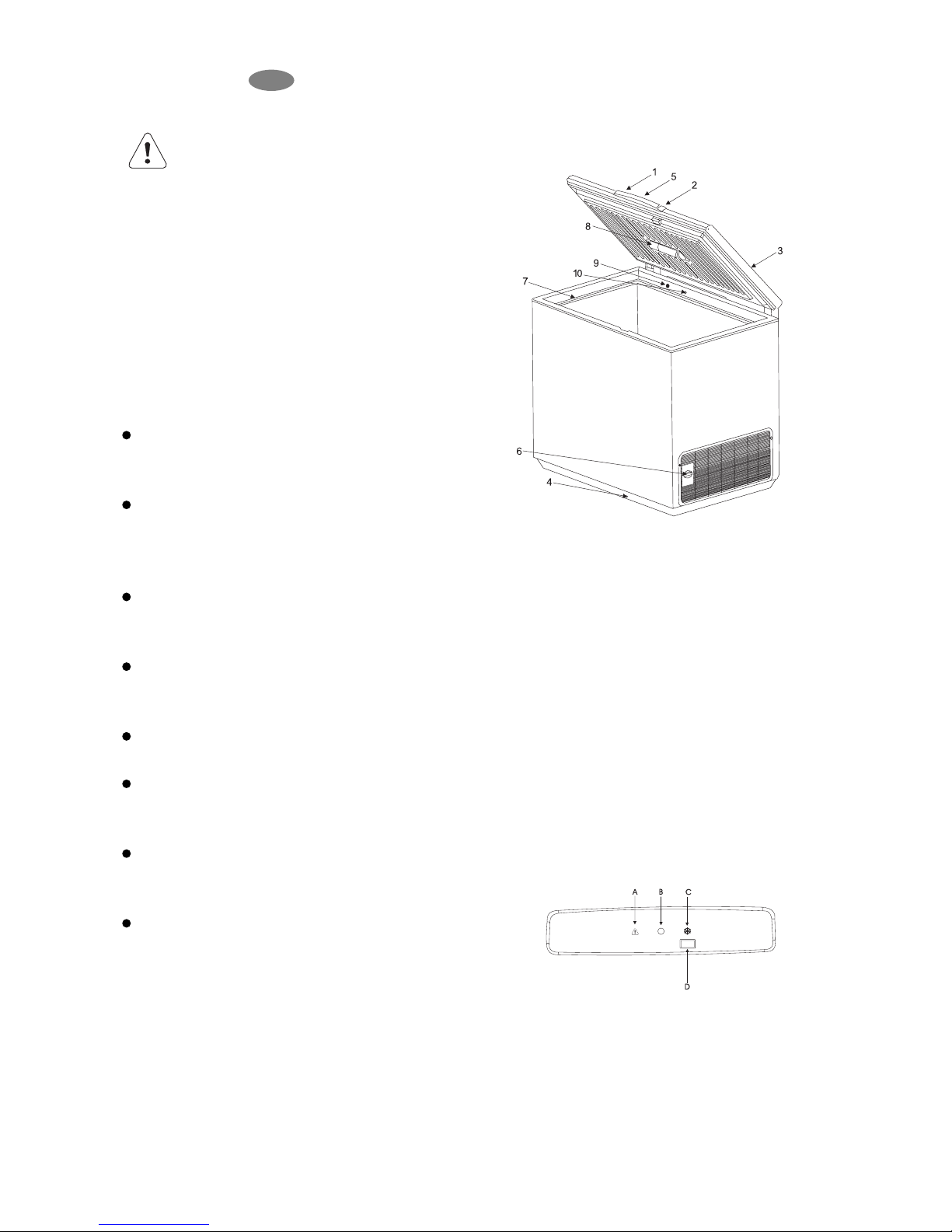

Product Description
1. Lid handle
2. Security lock
3. Seal
4. Defrost water drain
5. Control panel
6. Thermostat knob: temperature
adjustment
7. Upper edge
8. Light
9. Valve: easy re-opening of lid
10. Low-frost system: reduces ice-build-
up in the chest freezer by up to 80
percent
Control panel
A. Red light: Illuminates when the freezer
temperature is not sufficiently low.
B. Green light: Illuminates when the
appliance is on.
C. Yellow light: Illuminates when the
Super Freeze function is activated.

electrolux 5
EN
Installation
Wait at least 2 hours before
connecting the freezer to the power
supply to ensure the refrigerant circuit
is fully efficient.
Install the freezer in a dry, well
ventilated room. Avoid locations near a
source of heat or in direct sunlight.
The room temperature should
correspond to the climatic
classification for which the freezer was
designed, see chapter "Technical
data".
Place the freezer horizontally on a firm
surface, resting on all four feet.
For optimum operation and in order to
avoid damage when the lid is opened,
leave a space of at least 5 cm from the
rear wall and 5 cm at the sides.
Before connecting the freezer to the
power supply, ensure that the voltage
corresponds to that indicated in
chapter "Technical data" under
"Voltage".
Danger!
Ensure that the freezer is not resting
on the power supply cable.
Do not remove the power supply cable
by pulling on its lead, particularly when
the freezer is being pulled out of its
niche.
The power supply cable may only be
replaced by a qualified service
personel.
Ensure that the power plug is not
squashed or damaged by the back of
the freezer.
There must be adequate ventilation
around the appliance.
Any electrical work required to install
this appliance should be carried out by
a qualified electrician.
Electrical connection
The appliance is supplied with a 13amp
plug fitted. In the event of having to
change the fuse in the plugsupplied, a
13amp ASTA approved (BS1362) fuse
must be used. Should the plug need to
be replaced for any reason. The wires in
the power supply cable are coloured in
accordance with the following code:
Green and Yellow - Earth: must be
connected to the terminal marked with
the letter "E" or by the earth symbol or
coloured green and yellow.
Blue - Neutral: must be connected to
the terminal "N" or coloured black.
Brown - Live: must be connected to
the terminal marked "L" or coloured
red.
Upon completion there must be no cut,
or stray strands of wire present and the
cord clamp must be secure over the
outer sheath.
Warning! This appliance must be
earthed.
First use
Before first use, the freezer should be
cleaned inside, see chapter "Care and
cleaning".
Plug in the appliance.
The green light will come on.
D. Super Freeze button:
Activates/deactivates the Super
Freeze function for large quantities for
fresh food and switches off the
beeping alarm.

6electrolux EN
The red light will also switch on and
the alarm will beep, since the
temperature inside the freezer is not
yet sufficiently low for food storage.
Press button (D) to switch the alarm
off. The red light will normally switch
off after several hours.
Only place food inside the freezer
once the red light has switched off.
Switch on-off
Switch on the freezer
Turn the thermostat knob to a postion
between and .
Switch off the freezer
Turn the thermostat knob to the Off
position.
Daily use
Temperature adjustment
To adjust the temperature of the freezer,
proceed as follows:
Turn the thermostat knob clockwise
towards for a colder storage
temperature.
Turn the thermotat knob counter-
clockwise towards for a less cold
storage temperature.
Super Freeze function
If more than 3-4 kg of fresh food is to be
frozen, the freezer needs to be pre-
cooled.
At least 24 hours before placing fresh
food in the freezer, press button (D).
The yellow light comes on.
Place the food in the freezer. After 52
hours this function will automatically
switch off and the freezer will return to
normal storage temperature. This
function can be de-activated any time
by pressing button (D) again.
Alarm
If the freezer temperature is not
sufficiently low, the alarm will beep and
the red light will come on.
Press button (D) to switch the sound
off. The red light remains on as long as
the temperature in the freezer is
higher than the thermostat setting.
The alarm can be due to:
Insertion of a large amount of fresh
food.
Opening the lid too long.
A defect in the system, see chapter
"What to do if...".
Storage baskets
Hang the baskets on the upper edge
(X) or place the stackable baskets
inside the freezer (Y).
Turn and fix the handles for these two
positions, as shown in the drawings.
Spare baskets can be obtained from your
local Service Force Centre or from the
Electrolux website (depending on
country). The illustrations on this page
show how many baskets can be placed in
the various freezer models.

electrolux 7
EN
Security lock
Push the key in the lock while turning.
Spare keys can be obtained from your
local Service Force Centre.
Important! Keep the keys out of reach of
children. Before disposing of an old
freezer remove the keys.
Opening and closing the lid
As the lid is fitted with a tightly closing
seal, it will not re-open easily
immediatedly after closing.
Wait a few minutes before re-opening
the lid. A valve will allow the lid to be
re-opened easily. Never pull the
handle violently.
Care and Cleaning
Defrosting the freezer
Disconnect the appliance from the
power supply.
Remove all loose accessories and the
vented floor, as shown on the
illustration.
Use a damp cloth to clean your
freezer. Use hot water and a mild, non-
aromatic detergent.
Clean the loose accessories and the
vented floor, before replacing them
again.
Important! Never use strong detergents,
scouring powder or aromatic detergents
to clean your freezer.
Cleaning
The best time to clean your freezer is
after defrosting.
Disconnect the appliance from the
power supply and remove all loose
accessories.
Use a damp cloth to clean your
freezer. Use hot water and a mild, non-
aromatic detergent.

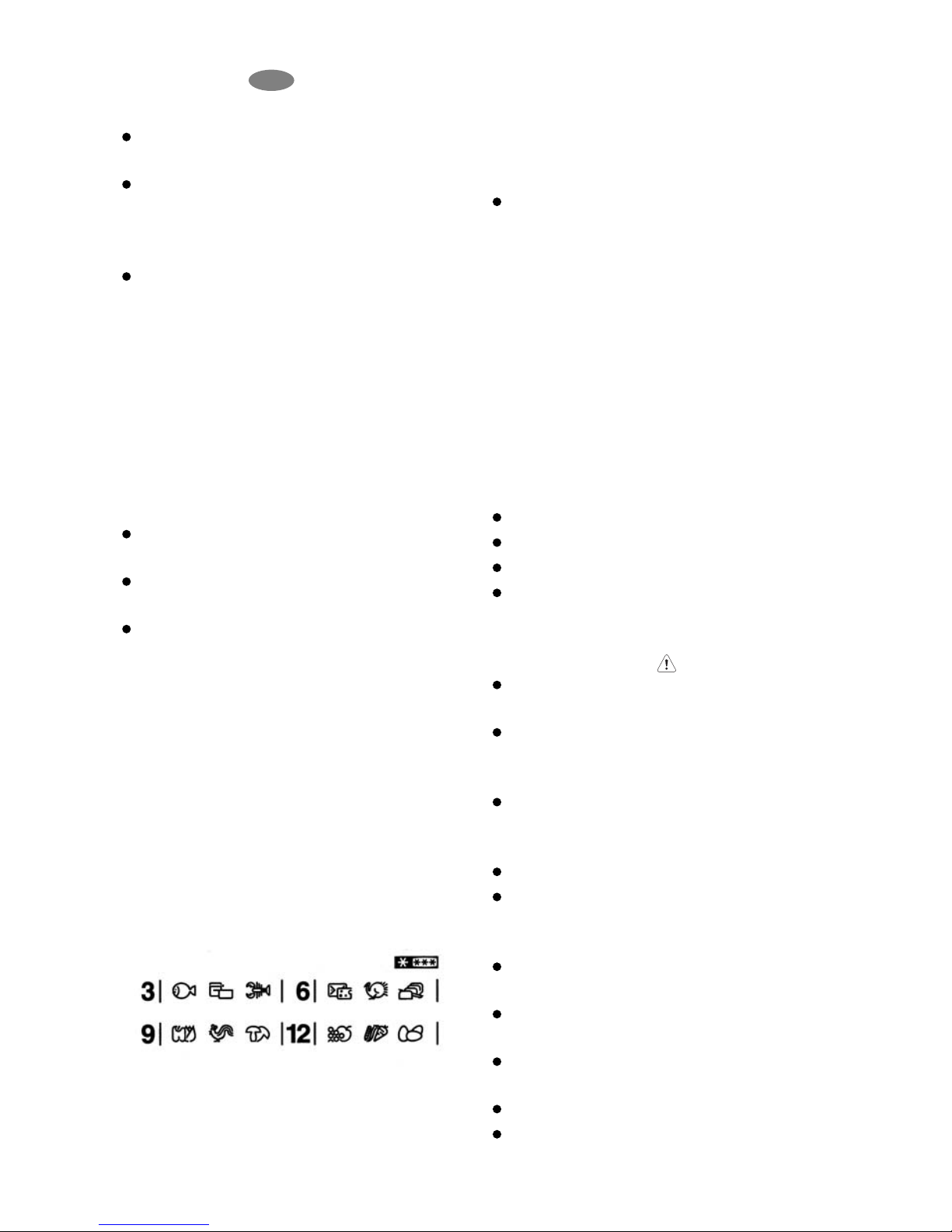

Helpful hints and tips
Freezing food
Before freezing, fresh food must be
packed in airtight and moisture-proof
packaging to prevent it from drying
out.
Only use fresh food of the best quality.
Always leave hot food to cool to room
termperature before placing in the
freezer.
Divide food into small portions before
freezing; this ensures that freezing is
more rapid, and that you only need to
defrost the amount needed for
immediate consumption.
Clean the loose accessories, before
replacing them again.
Important! Never use strong detergents,
scouring powder or aromatic detergents
to clean your freezer.
When not in use
Disconnect the appliance from the
power supply.
Remove all food from the freezer.
Clean the freezer as described above.
Leave the lid slightly open.
Changing the light bulb
Disconnect the appliance from the
power supply.
Unscrew the bulb, and replace it with
a new bulb (max. 15W).
Plug in the appliance.

8electrolux EN
Mark the freezer packaging with the
date of freezing.
Place fresh food for freezing close to
the cold sides of the freezer, making
sure that it is not in contact with the
frozen food already in the freezer.
Frozen food can be stored anywhere
inside the freezer, but should be kept
at least 5 mm below the upper edge.
If freezing is too slow, the quality of the
food being frozen deteriorates. The
amount of fresh food (expressed in kg)
that can be frozen in 24 hours is
indicated in the chapter "Technical data"
under "Freezing capacity".
Food storage
For fresh frozen food, please refer to
the storage period table underneath.
For purchased frozen food, never
exceed the expiry date.
When you buy frozen food, make sure
that it has been stored at the correct
temperature. Do not buy products
which have wet or damaged
packaging. Place purchased products
in your freezer as quickly as possible.
We recommend using an insulated
bag to bring such products home with
you.
Important! Remember that fully or
partially defrosted food must not be re-
frozen. However, dishes which have
been cooked using defrosted food may
be frozen.
In the case of a power failure or
breakdown
Do not open the lid.
Important! If the power has been off for
longer that the value shown in the
chapter "Technical data" under "Hold-
over time", the defrosted food must be
consumed quickly or cooked
immediately and then refrozen (after
cooling).
What to do if...
Try the solutions suggested here first to
avoid the cost of an unnecessary service
call.
Your freezer will not operate
Is the power supply cord unplugged?
Has a household fuse blown?
Is there a power failure?
Is the temperature control set to the
Off position?
The alarm remains audible and/or the
red light/symbol ( ) is on
Is the lid not closed completely? See
underneath.
Is the temperature control set
correctly for the surrounding
conditions?
Is the freezer too close to a source of
heat?
The inside light does not work
Is the power supply cord unplugged?
Is the light bulb loose in the socket or
burned out?
The motor seems to run too much
Is the lid not closed completely? See
underneath.
Is the room termperature hotter than
normal?
Has a large amount of fresh food just
been added to the freezer?
Is the lid opened often?
Is the temperature control set
correctly for the surrounding
conditions?

electrolux 9
EN
Climatic classification Ambient temperature limits
SN from +10°C to +32°C
N from +16°C to +32°C
ST from +18°C to +38°C
T from +18°C to +43°C
This appliance complies with the following EC Directives:
73/23/EEC of 19. 02. 1973 Low-Voltage Directive
89/336/EEC of 03. 05. 1989 (including Amendment Directive 92/31/EEC - EMC
Directive)
Is the lid seal damaged or deformed?
Is there enough air circulation space
around the freezer?
Is the Super Freeze function activated
accidentally?
Termperature is too warm
Has a large amount of food just been
added to the freezer?
Is the lid opened often?
Is the temperature control set
correctly for the surrounding
conditions?
The lid will not close completely
Is there excessive frost or a package
preventing the lid from closing?
Model BNI 325 BNI425 BNI525
ECN30104W ECN40105W ECN50104W
Volume (gross) Liter 304 404 500
Volume (net) Liter 300 400 495
Height Cm 87,6 87,6 87,6
Width Cm 105 132,5 160
Depth Cm 66,5 66,5 66,5
Weight Kg 49 56 66
Energy consumption/24h kWh/24h 0,957 1,452 1,338
Freezing capacity kg/24h 17 19 20
Hold-over time Hours 32 31 31
Rated power Watt 87 82 125
Voltage Volts 230 230- 230
Climatic class SN-T SN-T SN-T
Are food packages blocking the lid?
Is the lid seal dirty or sticky?
Does the freezer wobble or seem
unstable?
The lid is difficult to open
Is the lid seal dirty or sticky?
Is the valve blocked?
If you still need help, please contact your
local Sercive Force Centre.
Service or repair
In cases of breakdown or faults, your
freezer must be serviced by an authorized
Electrolux Service Centre.
Important! Under no circumstances
should you attempt to repair the appliance
yourself
Technical Data

10 electrolux
Standard guarantee conditions
We, Electrolux, undertake that if within
12 months of the date of the purchase
this Electrolux appliance or any part there
of is proved to be defective by reason
only of faulty workmanship or materials,
we will, at our option repair or replace the
same FREE OF CHARGE for labour,
materials or carriage on condition that:
The appliance has been correctly
installed and used only on the
electricity supply stated on the rating
plate.
The appliance has been used for
normal domestic purposes only, and
in accordance with the manufacturer’s
instructions.
The appliance has not been serviced,
maintained, repaired, taken apart or
tampered with by any person not
authorised by us.
Electrolux Service Force Centre must
undertake all service work under this
guarantee
Any appliance or defective part
replaced shall become the Company’s
property.
This guarantee is in addition to your
statutory and other legal rights.
Exclusions
Damage or calls resulting from
transportation, improper use or
neglect, the replacement of any light
bulbs or removable parts of glass or
plastic.
Costs incurred for calls to put right an
appliance which is improperly installed
or calls to appliances outside the
United Kingdom.
Appliances found to be in use within a
commercial environment, plus those
which are subject to rental
agreements.
Products of Electrolux manufacturer
that are not marketed by Electrolux
Service and Spare Parts
In the event of your appliance requiring
service, or if you wish to purchase spare
parts, please contact your local Service
Force Centre by telephoning
0870 5 929 929
Your telephone call will be automatically
routed to the Service Force Centre
covering your postcode area.
For the address of your local Service
Force Centre and further information
about Service Force, please visit the
website at
www.serviceforce.co.uk
Before calling out an engineer, please
ensure you have read the details under
the heading “Something not working”
When you contact the Service Force
Centre you will need to give the following
details:
1. Your name, address and postcode.
2. Your telephone number.
3. Clear concise details of the fault.
4. The model and Serial number of the
appliance (found on the rating plate).
5. The purchase date.
Please note a valid purchase receipt or
guarantee documentation is required for
in guarantee service calls.
Customer Care
For general enquiries concerning your
Electrolux appliance, or for further
information on Electrolux products
Guarantee/Customer Service
EN

electrolux 11
please contact our Customer Care
Department by letter or telephone at the
address below or visit our website at
www.electrolux.co.uk
Customer Care Department
Electrolux Major Appliances
Addington Way
Luton
Bedfordshire, LU4 9QQ
Tel: [phone] (*)
(*) Calls may be recorded for training
purposes
This appliance is guaranteed by
Electrolux in each of the countries listed
at the back of this user manual, for the
period specified in the appliance
guarantee or otherwise by law. If you
move from one of these countries to
another of the countries listed below the
appliance guarantee will move with you
subject to the following qualifications:-
The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced by
production of a valid purchase
document issued by the seller of the
appliance.
The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in your
new country of residence for this
particular model or range of
appliances.
European Guarantee
The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.
The appliance is installed and used in
accordance with instructions issued
by Electrolux and is only used within
the home, i.e. is not used for
commercial purposes.
The appliance is installed in
accordance with all relevant
regulations in force within your new
country of residence.
The provisions of this European
Guarantee do not affect any of the rights
granted to you by law.
www.electrolux.com
EN

12 electrolux
Albania [phone] Rr. Pjeter Bogdani Nr. 7 Tirane
Belgique/België/
Belgien [phone] Bergensesteenweg 719, 1502 Lembeek
Česká republika [phone] Budějovická 3, Praha 4, 140 21
Danmark [phone] Sjćllandsgade 2, 7000 Fredericia
Deutschland [phone] Muggenhofer Str. 135, 90429 Nürnberg
Eesti [phone] Pärnu mut. 153, 11624 Tallinn
Espańa [phone] Carretera M-300, Km. 29,900
Alcalá de Henares Madrid
France www.electrolux.fr
Great Britain [phone] Addington Way, Luton, Bedfordshire
LU4 9QQ
Hellas [phone] Limnou Str., 54627 Thessaloniki
Hrvatska [phone] Slavonska avenija 3, 10000 Zagreb
Ireland [phone] Long Mile Road Dublin 12
Italia [phone] C.so Lino Zanussi, 26 - 33080 Porcia (PN)
Latvija [phone] Kr. Barona iela 130/2, LV-1012, Riga
Lietuva [phone] Ozo 10A LT 08200 Vilnius
Luxembourg [phone] Rue de Bitbourg, 7, L-1273 Hamm
Magyarország [phone] H-1142 Budapest XIV,
Erzsébet királyné útja 87
Nederland [phone] Vennootsweg 1, 2404 CG -
Alphen aan den Rijn
Norge [phone] Risløkkvn. 2 , 0508 Oslo
Österreich [phone] Herziggasse 9, 1230 Wien
Polska [phone] ul. Kolejowa 5/7, Warsaw
Portugal [phone] Quinta da Fonte - Edificio Gonçalves Zarco -
Q 35
2774 - 518 Paço de Arcos
Romania [phone] Str. Garii Progresului 2, S4, 040671 RO
Schweiz/Suisse/
Svizzera [phone] Industriestrasse 10, CH-5506 Mägenwil
Slovenija [phone] Gerbičeva ulica 98 1000 Ljubljana
Slovensko [phone] Electrolux Slovakia s.r.o., Electrolux Domáce
spotrebiče SK, Seberíniho 1, 821 03 Bratislava
Suomi www.electrolux.fi
Sverige [phone] Electrolux Service, S:t Göransgatan 143,
S-105 45 Stockholm
Türkiye [phone] Tarlabaşı caddesi no : 35 Taksim
Istanbul
 [phone] 129090 ,  , 16,
 „“
EN

electrolux 13

14 electrolux
820 418 638 - 26042007

www.electrolux.com
www.electrolux.en
820 418 638 - 26042007
