WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
www.electrolux.com2

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household
and similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food
storage compartments of the appliance, unless they
are of the type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
ENGLISH 3

•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate
around the appliance.
• Wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns,
electrical shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains
isobutane (R600a), a natural gas with
www.electrolux.com4

a high level of environmental
compatibility. This gas is flammable.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION

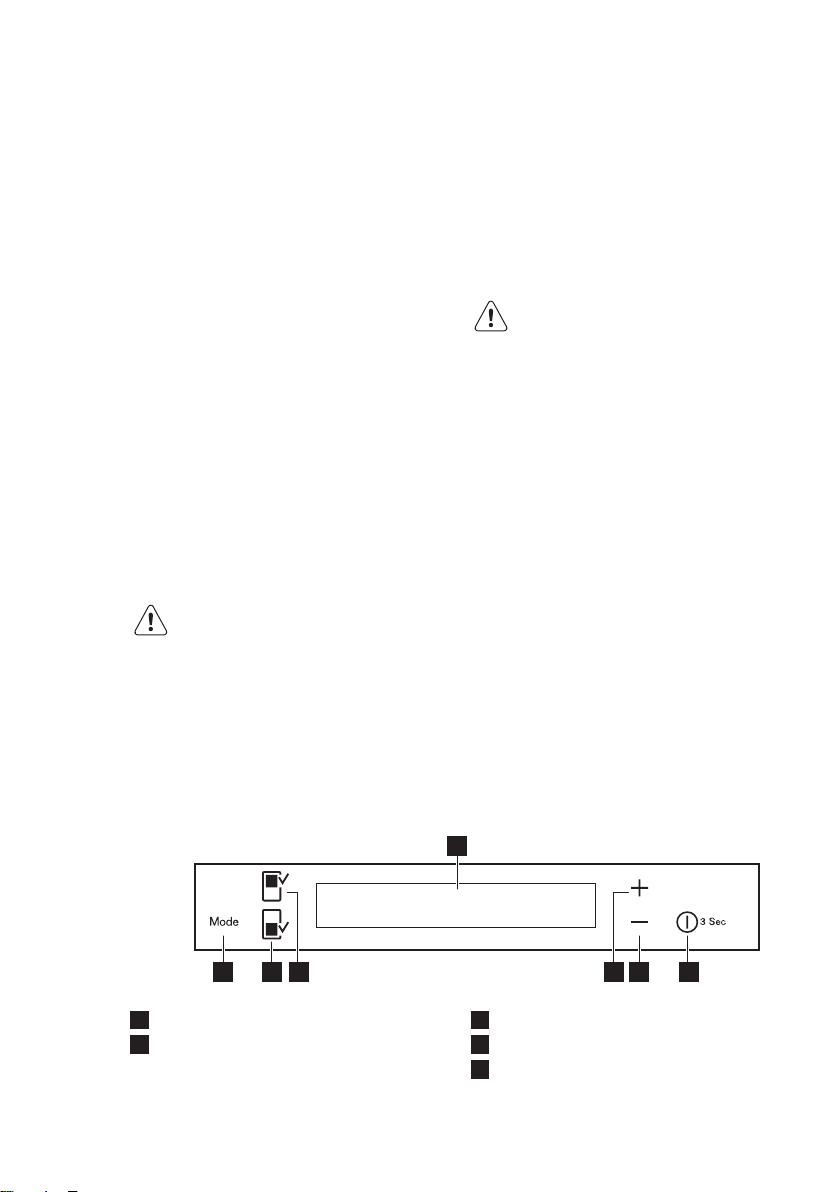

3.1 Control panel
1
234567
1Display
2DrinksChill /
ON/OFF
3Temperature colder button
4Temperature warmer button
5Fridge compartment button
ENGLISH 5

6Freezer compartment button 7Mode
It is possible to change predefined sound
of buttons to a loud one by pressing
together Mode and temperature colder
buttons for a few seconds. Change is
reversible.
3.2 Display
A DCB E F G H I
K J
A) Fridge temperature indicator
B) Fridge OFF indicator
C) Holiday mode
D) Fridge Eco mode
E) Shopping mode
F) Alarm indicator
G) Freezer Eco mode
H) FastFreeze mode
I) Freezer temperature indicator
J) DrinksChill mode
K) FreeStore mode
After selection of the fridge
or freezer compartment the
animation starts
After selection of the
temperature the animation
flashes for a few minutes.
3.3 Switching on
1. Connect the mains plug to the power
socket.
2. Press the appliance ON/OFF if the
display is off. The temperature
indicators show the set default
temperature.
The alarm buzzer could
operate after few seconds.
To reset the alarm refer to
"High temperature alarm".
To select a different set temperature
refer to "Temperature regulation".
If "DEMO" appears on the display, refer
to "Troubleshooting" .
3.4 Switching off
Press ON/OFF for 3 seconds.
The display switches off.
To disconnect the appliance from the
power, disconnect the mains plug from
the power socket.
3.5 Switching on the fridge
To switch on the fridge press the fridge
compartment button.
The fridge OFF indicator goes off.
To select a different set
temperature refer to
"Temperature regulation".
3.6 Switching off the fridge
To switch off the fridge press the fridge
compartment button for few seconds.
The fridge OFF indicator is shown.
3.7 Temperature regulation
Set the temperature of the appliance by
pressing the temperature regulators.
Default set temperature:
• +4°C for the fridge
• -18°C for the freezer
The temperature indicators show the set
temperature.
www.electrolux.com6

The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.8 Holiday mode
This function allows you to keep the
refrigerator closed and empty during a
long holiday period without the formation
of a bad smell.
The fridge compartment
must be empty with Holiday
mode on.
1. To switch on the function press Mode
until the corresponding icon appears.
The Holiday indicator goes on.
The fridge temperature indicator shows
the set temperature.
2. To switch off the function press Mode
in order to select an other function or
press Mode until you can see none of
the special icons.
The Holiday indicator goes off.
The function switches off by
selecting a different fridge
set temperature.
3.9 Shopping mode
If you need to insert a large amount of
warm food, for example after doing the
grocery shopping, we suggest activating
the Shopping to chill the products more
rapidly and to avoid warming the other
food which is already in the refrigerator.
The Shopping shuts off automatically
after approximately 6 hours.
1. To switch on the function press Mode
until the corresponding icon appears.
The Shopping indicator goes on.
2. To switch off the function press Mode
in order to select an other function or
press Mode until you can see none of
the special icons.
The Shopping indicator goes off.
The function switches off by
selecting a different fridge
set temperature.
3.10 Eco mode
For optimal food storage select the Eco
mode.
1. Select the fridge/freezer
compartment
2. To switch on the function press Mode
until the corresponding icon appears.
The temperature indicator shows the set
temperature for the:
• fridge: +4°C
• freezer: -18°C
3. To switch off the function before its
automatic end repeat the procedure
until the Eco indicator goes off.
The function switches off
by selecting a different
set temperature.
3.11 FreeStore mode
1. Press Mode until the corresponding
icon appears.
The FreeStore indicator flashes.
2. Press Mode to select another
function or nothing.
The activation of the
FreeStore function increases
energy consumption.
If the function is activated
automatically the FreeStore
indicator is not shown (refer
to "Daily use").
3.12 DrinksChill mode
The DrinksChill mode is to be used to set
an acoustic alarm at the preferred time,
useful for example when a recipe
requires to cool down a mixture for a
certain period of time, or when a
reminder is needed in order not to forget
the bottles placed in the freezer for fast
cooling.
1. To switch on the function press ON/
OFF .
The DrinksChill indicator appears.
The timer shows the set value (30 min).
2. Press the temperature colder button
and temperature warmer button to
change the timer set value from 1 to
90 (min).
The timer indicator is shown (min).
ENGLISH 7

At the end of the countdown the
DrinksChill indicator flashes and an
audible alarm sounds
3. Remove any drinks contained in the
freezer compartment.
4. Press ON/OFF to switch off the
sound and terminate the function.
It is possible to
deactivate the function at
any time during the
countdown by pressing
ON/OFF. The DrinksChill
indicator goes off.
It is possible to change
the time during the
countdown and at the
end by pressing the
temperature colder
button and the
temperature warmer
button.
3.13 FastFreeze mode
This function stops automatically after 52
hours.
To switch on the function:
1. Select the freezer compartment.
2. Press Mode until the corresponding
icon appears.
The FastFreeze indicator is shown.
3. To switch off the function before its
automatic end, repeat the procedure
The function switches off
by selecting a different
freezer set temperature.
3.14 High temperature alarm
An increase in the temperature in the
freezer compartment (for example due to
an earlier power failure or opening of the
door) is indicated by:
• flashing the alarm and freezer
temperature indicators;
• sounding of buzzer.
To reset the alarm press any button.
The buzzer switches off.
The freezer temperature indicator shows
the highest temperature reached for a
few seconds. Then show again the set
temperature.
The alarm indicator continues to flash
until the normal conditions are restored.
When the alarm has
returned the alarm indicator
goes off.
3.15 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door
open alarm conditions are indicated by:
• flashing Alarm light
• acoustic buzzer
When normal conditions are restored
(door closed), the alarm will stop.
During the alarm, the buzzer can be
switched off by pressing alarm button.
4. FIRST USE
4.1 Cleaning the interior
Before using the appliance for the first
time, the interior and all internal
accessories should be washed with
lukewarm water and some neutral soap
to remove the typical smell of a brand-
new product, then dried thoroughly.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
www.electrolux.com8

5. DAILY USE
WARNING!
Refer to Safety chapters.
5.1 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.

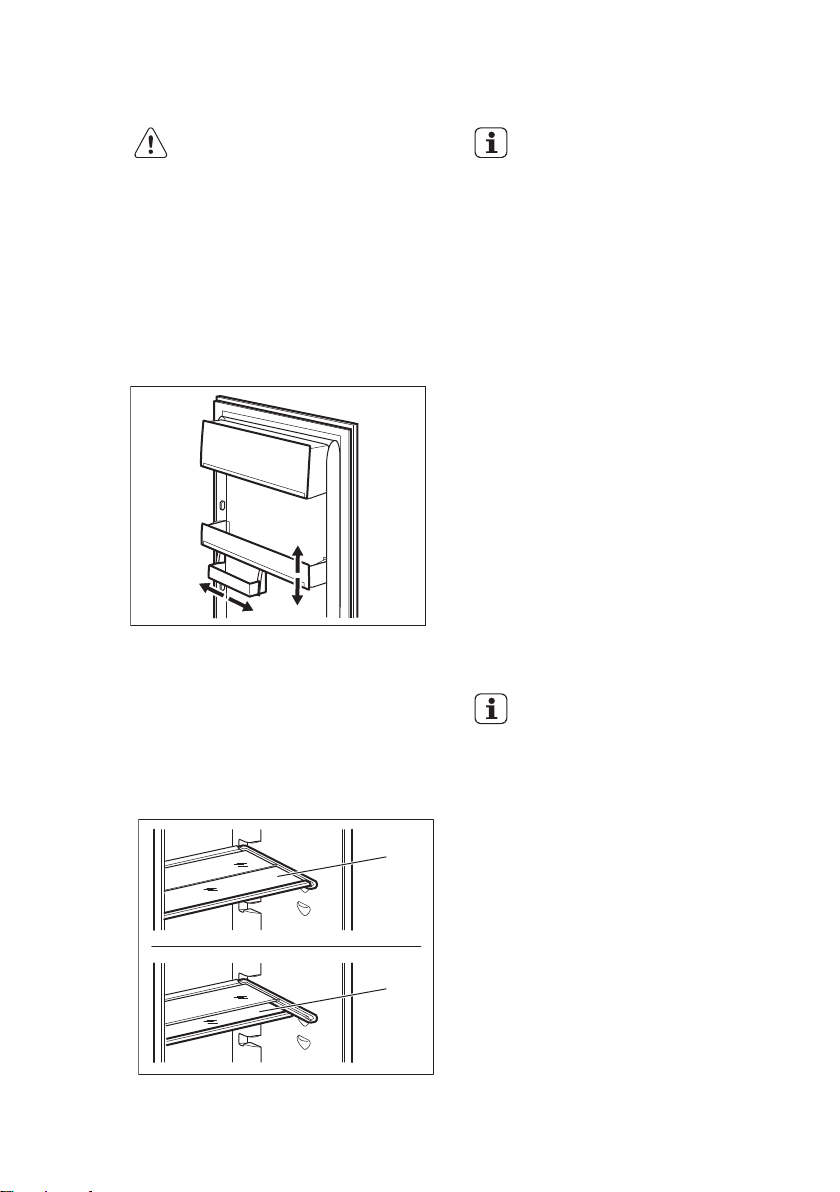

1. Gradually pull the shelf in the
direction of the arrows until it comes
free.
2. Reposition as required.
5.2 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
For better use of space, the front half-
shelves (A) can be placed under the rear
ones. (B)
A
B
Do not move the glass shelf
above the vegetable drawer
and the bottle shelf to
ensure correct air circulation.
5.3 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the
FastFreeze function and place the food
to be frozen in the freezer compartment.
To freeze fresh food activate the
FastFreeze function at least 24 hours
before placing the food to be frozen in
the freezer compartment.
The maximum amount of food that can
be frozen in 24 hours is specified on the
rating plate, a label located on the
inside of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FastFreeze Function").
In this condition, the
refrigerator compartment
temperature might drop
below 0°C. If this occurs
reset the temperature
regulator to a warmer
setting.
5.4 Storage of frozen food
When first starting-up or after a period
out of use, before putting the products in
the compartment let the appliance run at
least 2 hours on the higher settings.
ENGLISH 9

In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
in the technical
characteristics chart under
"rising time", the defrosted
food must be consumed
quickly or cooked
immediately and then re-
frozen (after cooling).
5.5 Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
5.6 Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes.
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water
2. Put the ice trays in the freezer
compartment.
5.7 Cold accumulators
The freezer contains at least one cold
accumulator which increases storage
time in the event of a power cut or
breakdown.
5.8 Humidity control
The glass shelf incorporates a device
with slits (adjustable by means of a
sliding lever), which makes it possible to
regulate the humidity in the vegetable
drawer(s).
When the ventilation slots are closed:
the natural moisture content of the food
in the fruit and vegetable compartments
is preserved for longer.
When the ventilation slots are opened:
more air circulation results in a lower air
moisture content in the fruit and
vegetable compartments.
5.9 FreeStore
The refrigerator compartment is
equipped with a device that allows for
rapid cooling of foods and more uniform
temperature in the compartment.
This device activates by itself when
needed, for example for a quick
temperature recovering after door
opening or when the ambient
temperature is high.
It is possible to switch on the device
manually when needed (refer to
"FreeStore mode").
The FreeStore device stops
when the door is open and
restarts immediately after
the door closing.
www.electrolux.com10

5.10 Temperature indicator
For proper storage of food the
refrigerator is equipped with the
temperature indicator. The symbol on the
side wall of the appliance indicates the
coldest area in the refrigerator.

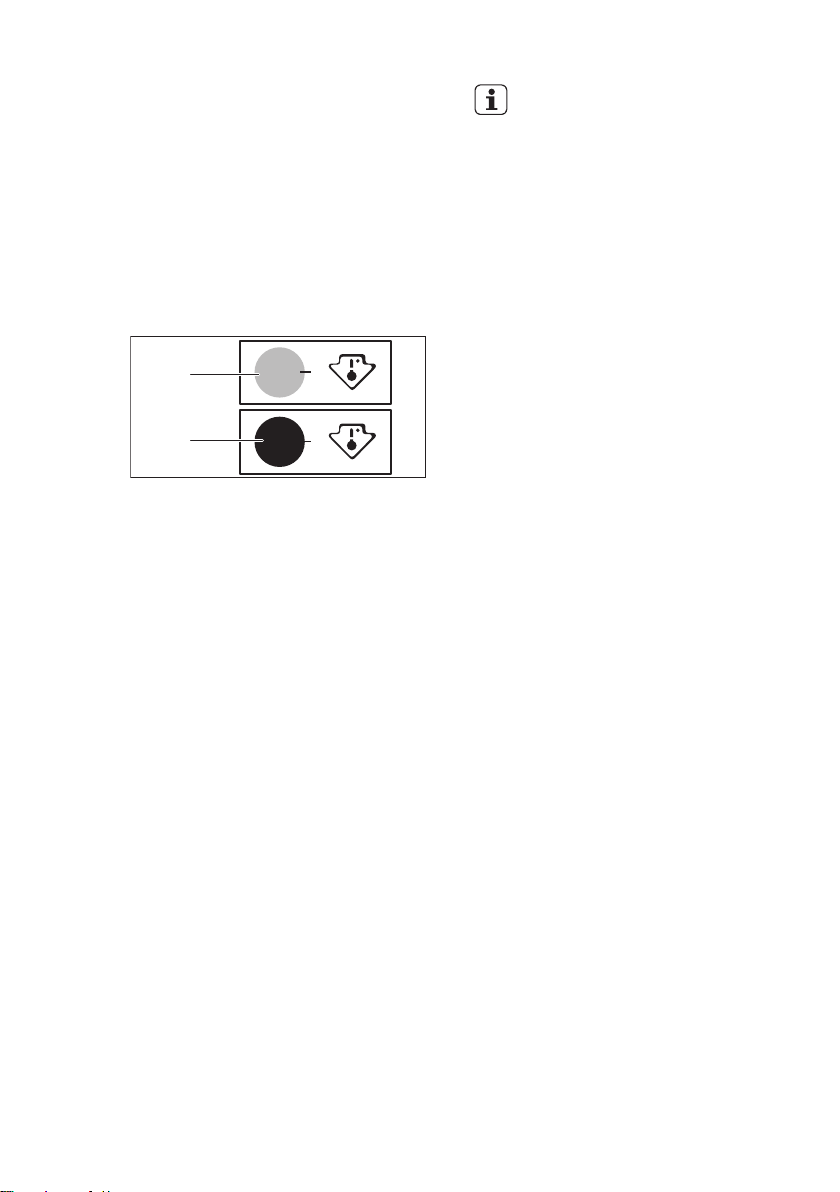

If OK is displayed (A), put fresh food into
area indicated by symbol, if not (B),
adjust the temperature controller to a
colder setting and wait 12 hours before
checking the temperature indicator
again.
OK
OK
A
B
After putting fresh food into
the appliance or after
opening the door repeatedly
or for a long period, it is
normal for the indicator not
to show OK; wait at least 12
hours before readjusting the
temperature controller.
6. HINTS AND TIPS
6.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
• A faint click noise from the
temperature regulator when the
compressor switches on or off.
6.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If foreseen, do not remove the cold
accumulators from the freezer basket.
6.3 Hints for fresh food
refrigeration
To obtain the best performance:
• do not store warm food or evaporating
liquids in the refrigerator
• do cover or wrap the food, particularly
if it has a strong flavour
• position food so that air can circulate
freely around it
6.4 Hints for refrigeration
Useful hints:
• Meat (all types) : wrap in polythene
bags and place on the glass shelf
above the vegetable drawer.
• For safety, store in this way only one
or two days at the most.
• Cooked foods, cold dishes, etc. :
these should be covered and may be
placed on any shelf.
• Fruit and vegetables: these should be
thoroughly cleaned and placed in the
special drawer(s) provided.
• Butter and cheese: these should be
placed in special airtight containers or
wrapped in aluminium foil or
polythene bags to exclude as much
air as possible.
• Bottles: these need a cap and should
be stored on the door bottle shelf, or
(if equipped) on the bottle rack.
ENGLISH 11

• Bananas, potatoes, onions and garlic,
if not packed, must not be kept in the
refrigerator.
6.5 Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
• the maximum quantity of food which
can be frozen in 24 hours is shown on
the rating plate;
• the freezing process takes 24 hours
no further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to
enable you to keep tab of the storage
time.
6.6 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave
it open longer than absolutely
necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
7. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
7.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any
maintenance operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not
suitable for washing in a
dishwasher.
7.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
www.electrolux.com12

CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories
with lukewarm water and some
neutral soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser
and the compressor at the back of
the appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
7.3 Defrosting of the
refrigerator
Frost is automatically eliminated from the
evaporator of the refrigerator
compartment every time the motor
compressor stops, during normal use.
The defrost water drains out through a
trough into a special container at the
back of the appliance, over the motor
compressor, where it evaporates.

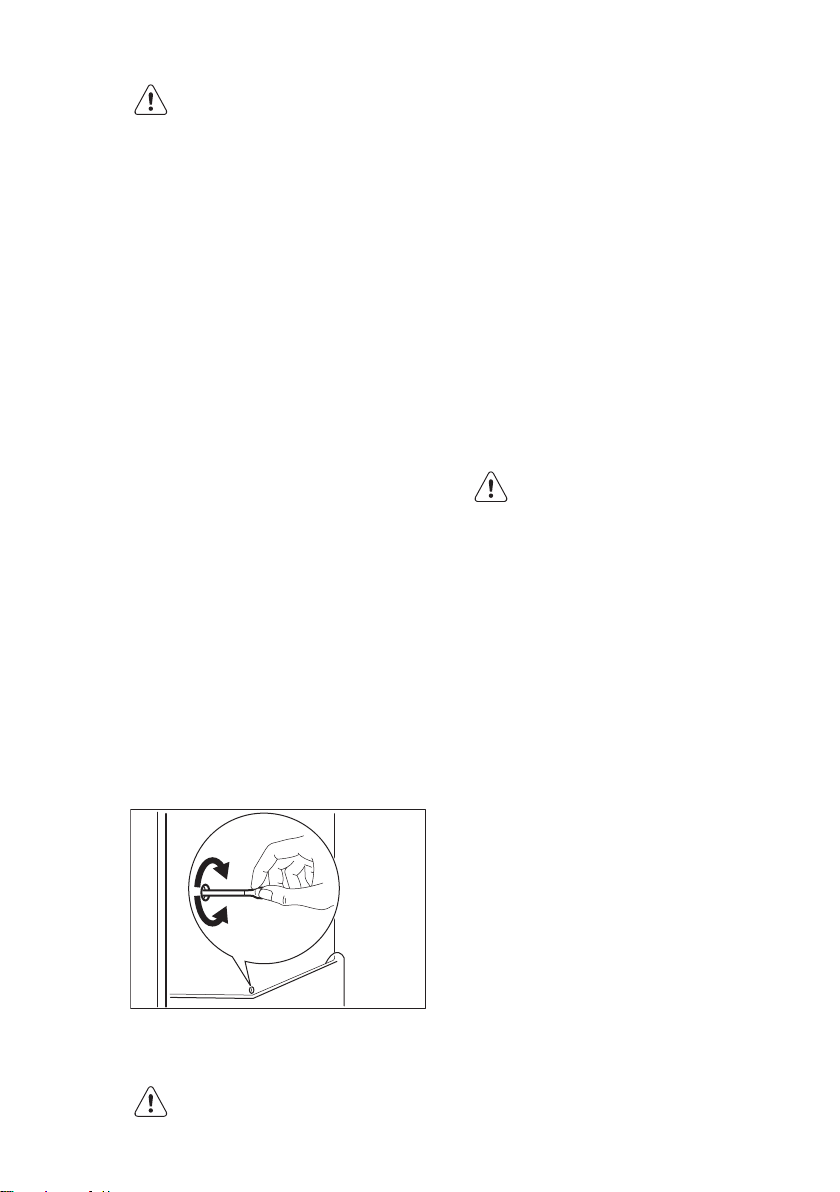

It is important to periodically clean the
defrost water drain hole in the middle of
the refrigerator compartment channel to
prevent the water overflowing and
dripping onto the food inside.
7.4 Defrosting the freezer
The freezer compartment is frost free.
This means that there is no build up of
frost when it is in operation, neither on
the internal walls nor on the foods.
The absence of frost is due to the
continuous circulation of cold air inside
the compartment, driven by an
automatically controlled fan.
7.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Leave the door/doors open to
prevent unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent
the food inside from spoiling
in case of a power failure.
8. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
ENGLISH 13

8.1 What to do if...
Problem Possible cause Solution
The appliance does not
operate.
The appliance is switch‐
ed off.
Switch on the appliance.
The mains plug is not
connected to the mains
socket correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock‐
et. Contact a qualified elec‐
trician.
The appliance is noisy. The appliance is not sup‐
ported properly.
Check if the appliance
stands stable.
Audible or visual alarm is
on.
The cabinet has been re‐
cently switched on or the
temperature is still too
high.
Refer to "Door open alarm"or
"High temperature alarm".
The temperature in the
appliance is too high.
Refer to "Door open alarm"or
"High temperature alarm".
The door is left open. Close the door.
The temperature in the
appliance is too high.
Contact a qualified electri‐
cian or contact the nearest
Authorised Service Centre.
A square symbol is shown
instead of numbers on the
Temperature Display.
Temperature sensor
problem.
Contact the nearest Author‐
ised Service Centre (the
cooling system will continue
to keep food products cold,
but temperature adjustment
will not be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author‐
ised Service Centre.
The compressor operates
continually.
Temperature is set incor‐
rectly.
Refer to "Operation".
Many food products were
put in at the same time.
Wait some hours and then
check the temperature
again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
www.electrolux.com14

Problem Possible cause Solution
The door is not closed
correctly.
Refer to "Closing the door".
The FastFreeze is
switched on.
Refer to "FastFreeze mode".
The Shopping is switch‐
ed on.
Refer to "Shopping mode".
The compressor does not
start immediately after
pressing the FastFreeze,
or after changing the tem‐
perature.
This is normal, no error
has occurred.
The compressor starts after
a period of time.
The compressor does not
start immediately after
pressing the Shopping, or
after changing the temper‐
ature.
This is normal, no error
has occurred.
The compressor starts after
a period of time.
Water flows inside the re‐
frigerator.
The water outlet is clog‐
ged.
Clean the water outlet.
Food products prevent
that water flows into the
water collector.
Make sure that food prod‐
ucts do not touch the rear
plate.
Temperature cannot be
set.
The FastFreeze or Shop‐
ping mode is switched
on.
Switch off FastFreeze or
Shopping manually, or wait
until the function resets auto‐
matically to set the tempera‐
ture. Refer to "FastFreeze or
Shopping mode".
DEMO appears on the dis‐
play.
The appliance is in dem‐
onstration mode.
Keep the Mode pressed for
approximately 10 seconds
until a long sound is heard
and display shuts off for a
short time.
The temperature in the ap‐
pliance is too low/too high.
The temperature regula‐
tor is not set correctly.
Set a higher/lower tempera‐
ture.
The door is not closed
correctly.
Refer to "Closing the door".
The food products' tem‐
perature is too high.
Let the food products tem‐
perature decrease to room
temperature before storage.
Many food products are
stored at the same time.
Store less food products at
the same time.
ENGLISH 15

Problem Possible cause Solution
The door has been
opened often.
Open the door only if neces‐
sary.
There is no cold air circu‐
lation in the appliance.
Make sure that there is cold
air circulation in the appli‐
ance.
If the advice does not lead to
the desired result, contact
the nearest Authorised
Service Centre.
8.2 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
8.3 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer
to "Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
9. INSTALLATION
9.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only
be guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
9.2 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
www.electrolux.com16

• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
9.3 Ventilation requirements
The airflow behind the appliance must be
sufficient.
5 cm min.
200 cm2
min.
200 cm2
CAUTION!
Refer to the assembly
instructions for the
installation.
9.4 Door reversibility
1. Loosen and remove the upper pin
and the spacer.
2. Remove the upper door.
3. Loosen the middle hinge.
4. Remove the door.
5. Remove the lower spacer.
6. Loosen the lower pin with a key.
7. Tighten the lower pin on the opposite
side.
8. Install the lower spacer.
9. Install the door.
10. Tighten the spacer and the upper pin.
ENGLISH 17

Do a final check to make
sure that:
• All screws are tightened.
• The magnetic seal
adheres to the cabinet.
• The door opens and
closes correctly.
If the ambient temperature is
cold (i.e. in Winter), the
gasket may not fit perfectly
to the cabinet. In that case,
wait for the natural fitting of
the gasket.
In case you do not want to
carry out the above
mentioned operations,
contact the nearest
Authorised Service Centre.
The Authorised Service
specialist will carry out the
reversibility of the doors at
your cost.

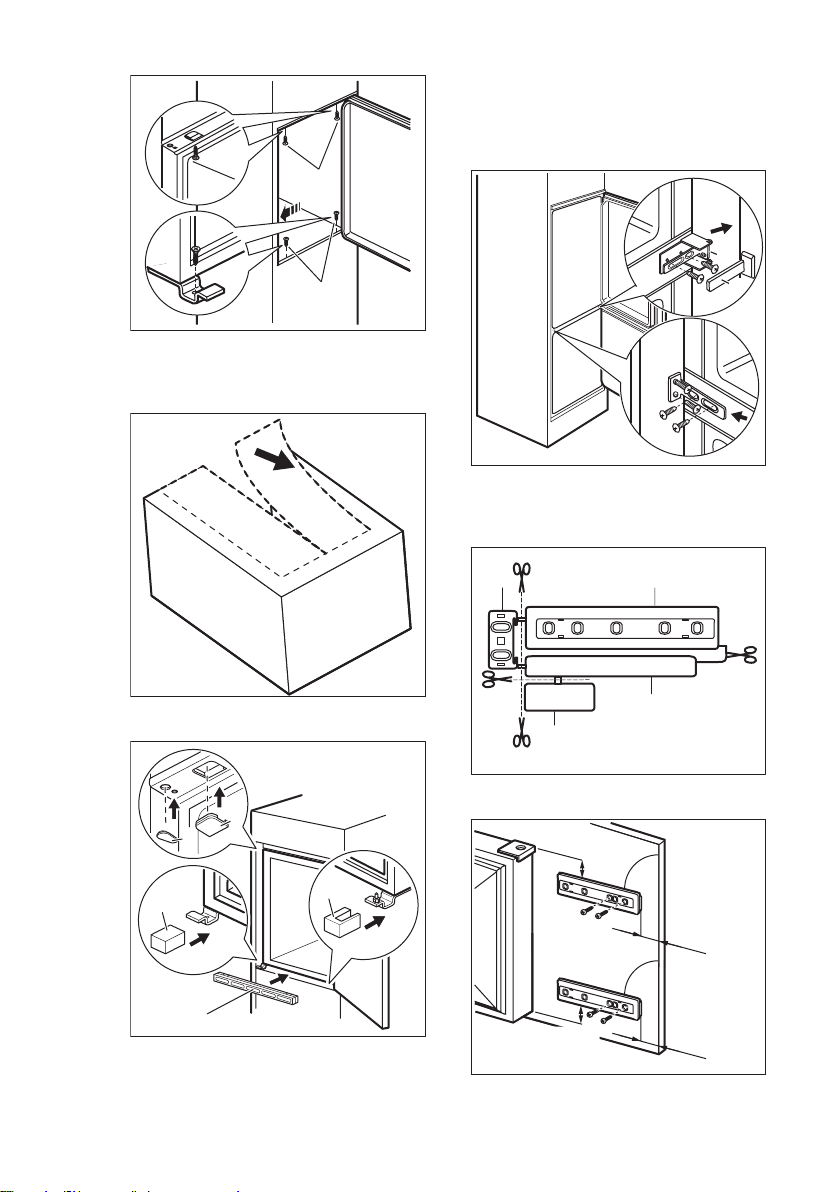

9.5 Installing the appliance
CAUTION!
Make sure that the mains
cable can move freely.
1. If necessary cut the adhesive sealing
strip and then apply it to the
appliance as shown in figure.
x
x
2. Install the appliance in the niche.
3. Push the appliance in the direction of
the arrows (1) until the upper gap
cover stops against the kitchen
furniture.
1
2
4. Push the appliance in the direction of
the arrows (2) against the cupboard
on the opposite side of the hinge.
5. Adjust the appliance in the niche.
Make sure that the distance between
the appliance and the cupboard front-
edge is 44 mm.
The lower hinge cover (in the
accessories bag) makes sure that the
distance between the appliance and
the kitchen furniture is correct.
Make sure that the clearance
between the appliance and the
cupboard is 4 mm.
6. Open the door. Put the lower hinge
cover in position.
4 mm
44 mm
7. Attach the appliance to the niche with
4 screws.
www.electrolux.com18

I
I
8. Remove the correct part from the
hinge cover (E). Make sure to
remove the part DX, in the case of
right hinge, SX in opposite case.
9. Attach the covers (C, D) to the lugs
and the hinge holes.
E
E
B
D
C
10. Install the vent grille (B).
11. Attach the hinge covers (E) to the
hinge.
12. Connect the appliance laterally to the
kitchen furniture sidewall.
13. Loosen the screws of the part (G)
and move the part (G) till the furniture
sidewall.
G
H
14. Tighten the screws.
15. Attach the part (H) to the part (G).
16. Disconnect the parts (Ha), (Hb), (Hc)
and (Hd).
Hb Ha
Hc
Hd
17. Install the part (Ha) on the inner side
of the kitchen furniture.
ca. 50 mm
ca. 50 mm
21 mm
90°
90°
21 mm
18. Push the part (Hc) on the part (Ha).
ENGLISH 19

Ha
Hc
19. Open the appliance door and the
kitchen furniture door at an angle of
90°.
20. Insert the small square (Hb) into
guide (Ha).
21. Put together the appliance door and
the furniture door and mark the
holes.
Ha
Hb
8 mm
22. Remove the brackets and mark a
distance of 8 mm from the outer edge
of the door where the nail must be
fitted (K).
Ha
K
8 mm
23. Place the small square on the guide
again and fix it with the screws
supplied.
24. Align the kitchen furniture door and
the appliance door by adjusting the
part (Hb).
Hb
25. Press the part (Hd) on the part (Hb).
Hb
Hd
Do a final check to make sure that:
• All screws are tightened.
• The sealing strip is attached tightly to
the cabinet.
• The door opens and closes correctly.
www.electrolux.com20
