Electrolux ENP7TD75S User manual

ENP7TD75S
EN Fridge Freezer User Manual 2
IS Ískápur-Frystir Notendaleiðbeiningar 32

CONTENTS
1. SAFETY INFORMATION....................................................................................3
2. SAFETY INSTRUCTIONS..................................................................................5
3. INSTALLATION.................................................................................................. 7
4. CONTROL PANEL........................................................................................... 10
5. DAILY USE....................................................................................................... 14
6. HINTS AND TIPS............................................................................................. 20
7. CARE AND CLEANING....................................................................................23
8. TROUBLESHOOTING......................................................................................25
9. NOISES............................................................................................................ 30
10. TECHNICAL DATA.........................................................................................30
11. INFORMATION FOR TEST INSTITUTES......................................................30
12. ENVIRONMENTAL CONCERNS................................................................... 31
www.electrolux.com2

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
ENGLISH 3

•Children aged from 3 to 8 years are allowed to load
and unload the appliance provided that they have
been properly instructed.
•This appliance may be used by persons with very
extensive and complex disabilities provided that they
have been properly instructed.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance and mobile devices with
the dedicated app.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is for storing food and baverages only.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact
with food and accessible drainage systems;
–store raw meat and fish in suitable containers in the
refrigerator, so that it is not in contact with or drip
onto other food.
•WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
www.electrolux.com4

•WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•When the appliance is empty for long period, switch it
off, defrost, clean, dry and leave the door open to
prevent mould from developing within the appliance.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens, or hobs,
unless otherwise specified in the
installation instructions.
• Do not expose the appliance to the
rain.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
• The appliance contains a bag of
desiccant. This is not a toy. This is not
ENGLISH 5

food. Please dispose of it
immediately.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
WARNING!
Do not use multi-plug
adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas
with a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
• Do not change the specification of this
appliance.
• Any use of the built-in product as free-
standing is strictly prohibited.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create
pressure on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not share your Wi-Fi password.
• Do not remove or touch items from
the freezer compartment if your hands
are wet or damp.
• Do not freeze again food that has
been thawed.
• Follow the storage instructions on the
packaging of frozen food.
• Wrap the food in any food contact
material before putting it in the freezer
compartment.
• Do not allow food to come in contact
with the inner walls of the appliance
compartments.
2.4 Internal lighting
WARNING!
Risk of electric shock.
• This product contains one or more
light sources of energy efficiency
class F.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
such as temperature, vibration,
humidity, or are intended to signal
www.electrolux.com6

information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets.
Please note that some of these spare
parts are only available to
professional repairers, and that not all
spare parts are relevant for all
models.
• Door gaskets will be available for 10
years after the model has been
discontinued.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
WARNING!
Refer to installation
instruction document to
install your appliance.
WARNING!
Fix the appliance in
accordance with installation
instruction document to
avoid a risk of instability of
the appliance.
ENGLISH 7

3.1 Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions ¹
H1 mm 1884
W1 mm 696
D1 mm 549
¹ the height, width and depth of the
appliance without the handle
Space required in use ²
H2 (A+B) mm 1923
W2 mm 696
D2 mm 561
A mm 1894
B mm 29
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air
Overall space required in use ³
H3 (A+B) mm 1923
W3 mm 696
D3 mm 1229
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air, plus the space necessary
to allow door opening to the minimum
angle permitting removal of all internal
equipment
www.electrolux.com8

3.2 Location
To ensure appliance's best functionality,
you should not install the appliance in a
place with direct sunlight. Do not install
the appliance close to radiators or
cookers, ovens, or hobs, unless
otherwise specified in the installation
instructions.
Make sure that air can circulate freely
around the back of the cabinet.
This appliance should be installed in a
dry, well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 10°C
to 43°C.
The correct operation of the
appliance can only be
guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
It must be possible to
disconnect the appliance
from the mains power
supply. The plug must
therefore be easily
accessible after installation.
3.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
3.4 Ventilation requirements
The airflow behind the appliance must be
sufficient.
min. 200 cm²
min.
200 cm²
min.
30 mm
min.
30 mm
CAUTION!
Refer to the installation
instructions for the
installation.
3.5 Door reversibility
Please refer to the separate document
with instructions on installation and door
reversal.
CAUTION!
At every stage of reversing
the door protect the floor
from scratching with a
durable material.
ENGLISH 9

4. CONTROL PANEL
1 3 6
10 91214 13 11
4 52 7 8
1ECOMETER indicator
2Extra Cool button / indicator
3Fridge compartment indicator
4Alarm indicator
5Door open alarm indicator
6Freezer compartment indicator
7Extra Freeze button / indicator
8Filter Reset alarm button / indicator
9Connectivity button / indicator
10 Freezer temperature button /
indicator
11 Air filter change indicator
12 Fridge temperature button / indicator
13 Fan button / indicator
14 ECO button
4.1 Switching on
Connect the mains plug to the power
socket.
To select a different set temperature,
refer to "Temperature regulation".
If appears on the display, refer
to "Troubleshooting".
4.2 Switching off
1. Press and hold the fridge
temperature button and freezer
temperature button simultaneously
for 5 seconds
The display shows blinking .
2. Once the appliance is switched off,
the display reads .
3. Disconnect the mains plug from the
power socket.
4.3 Temperature regulation
The temperature range may vary
between -15°C and -24°C for freezer and
between 2°C and 8°C for fridge.
Press the temperature buttons to set the
temperature of the appliance.
The recommended set temperature is:
• +4°C for the fridge
• -18°C for the freezer
You may set the recommended
temperature manually with temperature
buttons or by switching on the ECO
function. Refer to "ECO function" for
more information
The temperature indicators show the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure, the
appliance goes back to the
set temperature.
4.4 Switching off the fridge
It is possible to switch off only the fridge
compartment leaving the freezer
compartment on.
1. Press and hold the fridge
temperature button for 5 seconds.
The display shows blinking .
2. Once the fridge compartment is
switched off, the display reads .
4.5 Switching on the fridge
To switch on the fridge:
1. Press and hold the fridge
temperature button for 5 seconds.
The display shows blinking .
www.electrolux.com10

2. The fridge compartment is switched
on and the previous set temperature
is restored.
To adjust the temperature,
refer to "Temperature
regulation".
4.6 ECO function
The ECO function sets the optimal
temperature to ensure food preservation
while minimizing energy consumption.
1. To activate the function press the
ECO button.
The fridge temperature is set to +4°C
and the freezer temperature to -18°C.
2. To deactivate the function, press the
ECO button again or select a
different set temperature (refer to
"Temperature regulation").
After deactivating the ECO function, the
fridge temperature is set to +2°C and the
freezer temperature to -20°C.
Activation of the ECO
deactivates Extra Cool and
Extra Freeze functions.
The ECOMETER indicator
shows the appliance's
current energy consumption.
Three fully lit bars indicate
the most energy-efficient
setup.
4.7 Extra Cool function
With the Extra Cool function, you may
rapidly cool large amounts of warm food,
for example after doing grocery
shopping, without warming food already
stored in the fridge compartment.
To activate the function, press the Extra
Cool button.
The Extra Cool indicator lights up. When
the Extra Cool function is on, the fan may
work automatically.
This function stops automatically after
approximately 6 hours. Once the function
is off, the Extra Cool indicator goes out.
Press the Extra Cool button to deactivate
the Extra Cool function before it
automatically ends.
To set a different fridge
temperature, switch off the
Extra Cool function and refer
to "Temperature regulation".
4.8 Extra Freeze function
Extra Freeze function is used to pre-
freeze and fast freeze in sequence in the
freezer compartment. This function
accelerates the freezing of fresh food
and, at the same time, protects
foodstuffs already stored from
undesirable warming.
To freeze fresh food,
activate the Extra Freeze
function at least 24 hours
before placing the food to
complete pre-freezing.
To activate this function, press the Extra
Freeze button.
The Extra Freeze indicator lights up. The
Extra Freeze function stops automatically
after a maximum of 52 hours.
Press the Extra Freeze button to
deactivate the Extra Freeze function
before it automatically ends.
4.9 Fan function
The fridge compartment is equipped with
a device that allows rapid cooling of food
and ensures high uniformity of
temperature in the compartment.
This device activates automatically when
needed or manually.
To switch on the function, press the Fan
button. The Fan indicator lights up.
To switch off the function, press again
the Fan button. The Fan indicator goes
out.
If the function is activated
automatically, the Fan
indicator will not light up.
The activation of the Fan
function may increase the
noise and energy
consumption.
The fan operates only when the door is
closed.
ENGLISH 11

4.10 High temperature alarm
When the temperature in the freezer
compartment increases (for example due
to an earlier power failure), the alarm
indicator flashes, the freezer temperature
indicator shows H° and blinks and the
sound is on.
To deactivate the alarm, press any
button.
The alarm indicator and sound go off.
The freezer temperature indicator shows
H° for 5 seconds before indicating the
freezer temperature again.
The alarm restarts one hour
after deactivation until the
normal conditions are
restored.
If you do not press any
button, the sound switches
off automatically after
around one hour to avoid
disturbing.
4.11 Door open alarm
If the fridge door is left open for
approximately 5 minutes or if the freezer
door is left open for approximately 80
seconds, the sound is on and the door
open alarm indicator turns on. The
internal fridge light may also start
flashing.
The alarm stops after closing the door.
Press any button to switch off the sound
and flashing of the internal fridge light.
If you do not press any
button, the sound switches
off automatically after
around one hour to avoid
disturbing.
4.12 Air filter change indicator
When the air filter has expired and
requires replacement, the Air filter
change indicator and the Filter Reset
alarm indicator turn on.
Refer to "Installing and replacing the
CleanAir+ filter" section in "Care and
cleaning" chapter for the replacement
instructions.
After the filter replacement, press the
Filter Reset alarm button to turn off the
alarm.
4.13 Wi-Fi connectivity setup
This functionality allows you to connect
your appliance to Wi-Fi network and to
link it to your mobile device. With this
functionality you can receive
notifications, control and monitor your
appliance from your mobile device.
To connect the appliance you need:
• Wireless network with the Internet
connection,
• Mobile device connected to your
wireless network.
Frequency/Proto‐
col
Wi-Fi: 2.4 GHz /
802.11 bgn
Power Wi-Fi 2.4 GHz:
<20 dBm
Encryption WPA-PSK, WPA2-
PSK, WPA3-Per‐
sonal
Installing the mobile application
Take the following steps to connect the
appliance to Wi-Fi:
1. Make sure that the appliance is
plugged into a power socket and
turned on.
2. Make sure that your mobile device is
connected to the same wireless
network you want to add your
appliance to.
3. Download the dedicated application
on your mobile device from Google
Play (Android) or App Store (iOS)
and install the application on your
mobile device.
4. Open the app and register to create
an account.
Configuring the appliance wireless
connection
Follow the instructions in the app to
complete the onboarding process:
1. Press and hold the Connectivity
button on your appliance for 3
seconds until you hear a beep. This
will start the Wi-Fi system.
www.electrolux.com12

2. After few seconds appears on
the display and the Connectivity
indicator starts blinking slowly.
3. Continue to follow the instructions in
the app to complete the onboarding
process.
4. While the process is ongoing, the
display may temporarily show .
After the successful onboarding, the
Connectivity indicator stops flashing and
becomes solid. Display shows the set
temperatures.
Disabling the appliance wireless
connection
You can temporarily disable the Wi-Fi
connection by pressing and holding the
Connectivity button for 3 seconds. The
Connectivity indicator switches off and
the appliance beeps once.
Once the Wi-Fi connection is disabled, to
automatically re-establish the connection
press and hold the Connectivity button
for 3 seconds.
After reset, the Connectivity
indicator may be off. Wait a
few seconds until it turns on.
Resetting the appliance wireless
connection
Before you reset the Wi-Fi configuration,
make sure that the Connectivity indicator
is visible on the display. It means that the
function is switched on. If the function is
switched off, the attempt to reset the
connection will turn the function on.
You can reset the Wi-Fi configuration by
pressing and holding the Connectivity
button for 10 seconds. The appliance will
beep to confirm the successful reset.
To re-establish the connection, repeat all
the steps described in section “Disabling
the appliance wireless connection"
section.
4.14 Setting mode
The Setting mode allows you to:
• Enable or disable the ECOMETER
indicator
• Enable or disable the button sounds
• Change the temperature units from °C
to °F
• Reset the appliance to factory settings
Activating the Setting mode
To activate the Setting mode:
1. Press and hold the ECO button for
approximately 3 seconds. When the
Setting mode is being activated, the
display shows a blinking .
2. Once the Setting mode is switched
on, the display shows .
To deactivate the Setting mode, press
and hold the ECO button for
approximately 3 seconds.
The Setting mode deactivates
automatically if you do not interact with
the control panel for 60 seconds.
Navigating the Setting mode
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap the fridge temperature button (on
the left) to change the parameter.
Tap the freezer temperature button
(on the right) to change the
parameter value.
Display Default parame‐
ters
ECOMETER indi‐
cator
Button sounds
Temperature units
Factory settings
ECOMETER indicator
In order to switch the ECOMETER on or
off:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly. The indicator will
show respectively for the enabled
or for the disabled ECOMETER
indicator.
ENGLISH 13

3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
Button sounds
You can enable or disable the button
sounds in the Setting mode. To enable or
disable the sounds:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see .
Tap to switch the sounds either
on or off. The indicator will change to
for the enabled or for the
disabled sounds.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
Temperature units
Using the Setting mode, you can change
the temperature unit displayed on the
control panel from Celsius to Fahrenheit.
To change the temperature unit:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see
and . Tap the indicator showing
the unit to select between for
Celsius and for Fahrenheit.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
Factory settings
This function restores each setting to the
factory default settings. To restore the
factory default settings:
1. Activate the Setting mode (refer to
"Activating the Setting mode").
The display shows .
2. Tap repeatedly until you see
and . Tap repeatedly until you
see .
turns into blinking and then
into solid , which indicates that
factory settings are restored.
3. Press and hold the ECO button for
approximately 3 seconds to exit the
Setting mode.
5. DAILY USE
5.1 Positioning the door
shelves
To permit storage of food packages of
various sizes, the door shelves can be
placed at different heights.
1. Gradually pull the shelf up until it
comes free.
2. Reposition as required.
www.electrolux.com14

This model is equipped with a variable
storage box which can be moved
sideways.

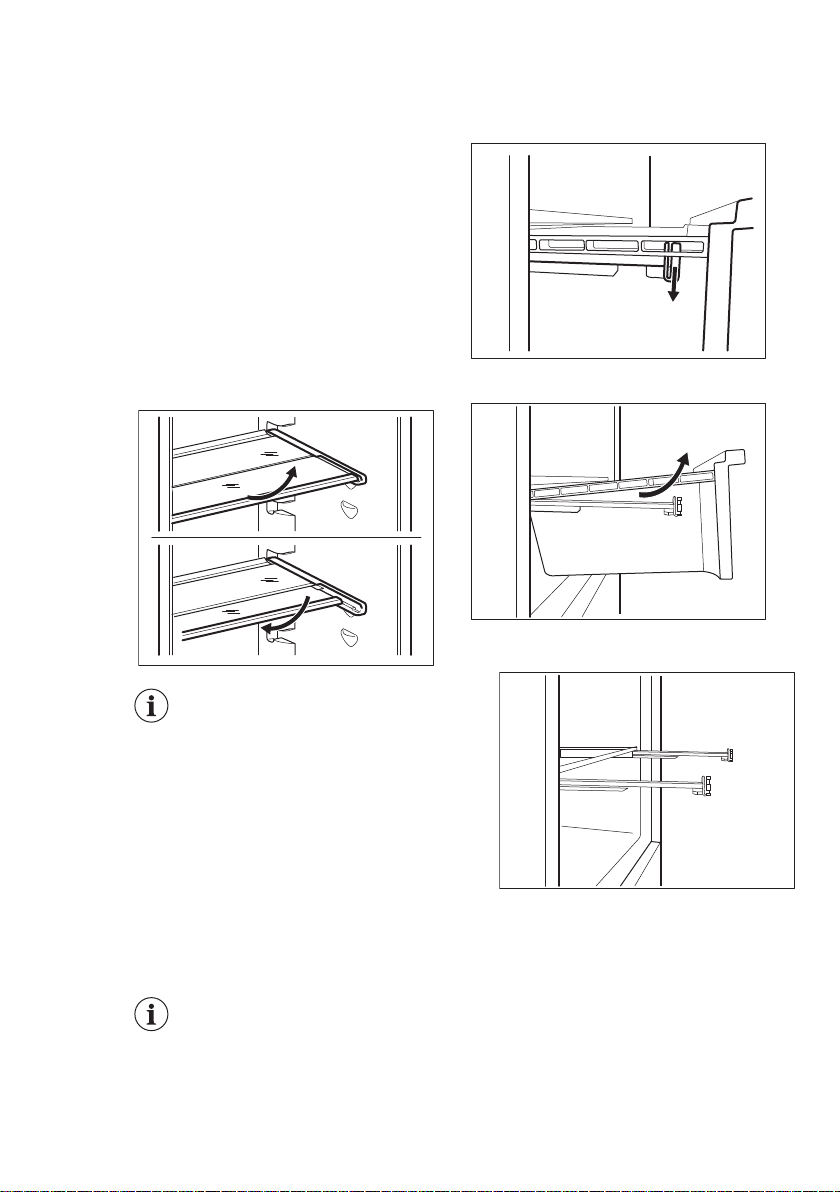

5.2 Movable shelves
The walls of the refrigerator are equipped
with a series of runners so that the
shelves can be positioned as desired.
This appliance is also equipped with a
shelf consisting of two parts. The front
half of the shelf can be placed under the
second half to make better use of space.
To fold the shelf:
1. Take out the front half gently.
2. Slide it into the lower rail and under
the second half.
1
2
Do not move the glass shelf
above the vegetable drawer
to ensure correct air
circulation.
5.3 GreenZone drawer
There is a pull-out drawer in the bottom
part of the refrigerator compartment.
The glass shelf of the GreenZone is fitted
with a device that regulates its sealing
and provides for optimal humidity inside
the drawer.

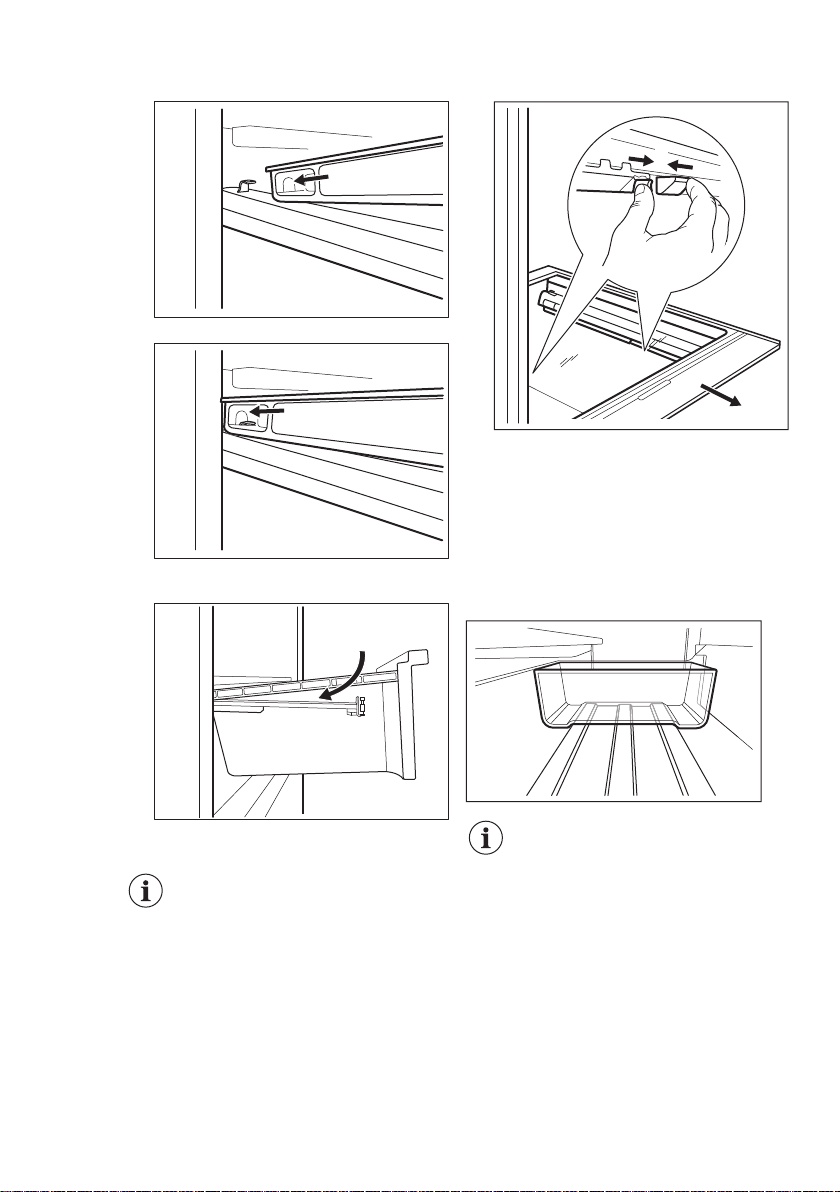

5.4 Removing GreenZone
It is recommended to empty
the drawer before removing
it from the refrigerator.
To remove the drawer:
1. Pull out the drawer from the
refrigerator extending the rails fully.
2. Push the rails cap and lift up the front
of the drawer.
3. Pull the drawer out while lifting it up
and detach it from the rails.
To reassemble:
1. Pull out the rails completely.
ENGLISH 15

2. Place the rear part of the drawer on
the rails.
3. Keep the front of the drawer lifted up
while pushing the drawer in.
4. Press the front part of the drawer
downwards.
Pull out the drawer again
and check if it is placed
correctly on both rear and
front hooks.
To remove the glass cover of the
GreenZone drawer:
1. Unlock lateral gripping from both
sides simultaneously.
2
x2
1
2. Pull the glass shelf support towards
yourself.
5.5 ExtraZone drawer
There is a pull-out drawer above the
GreenZone drawer.
The ExtraZone drawer is additionally
fitted with a small container with a lid.
The ExtraZone drawer has
grooves providing recesses
for nesting the container.
Put the container horizontal
to the drawer's grooves to
keep it in a stable position.
The container moves sideways and you
can use it to divide the drawer if needed.
www.electrolux.com16

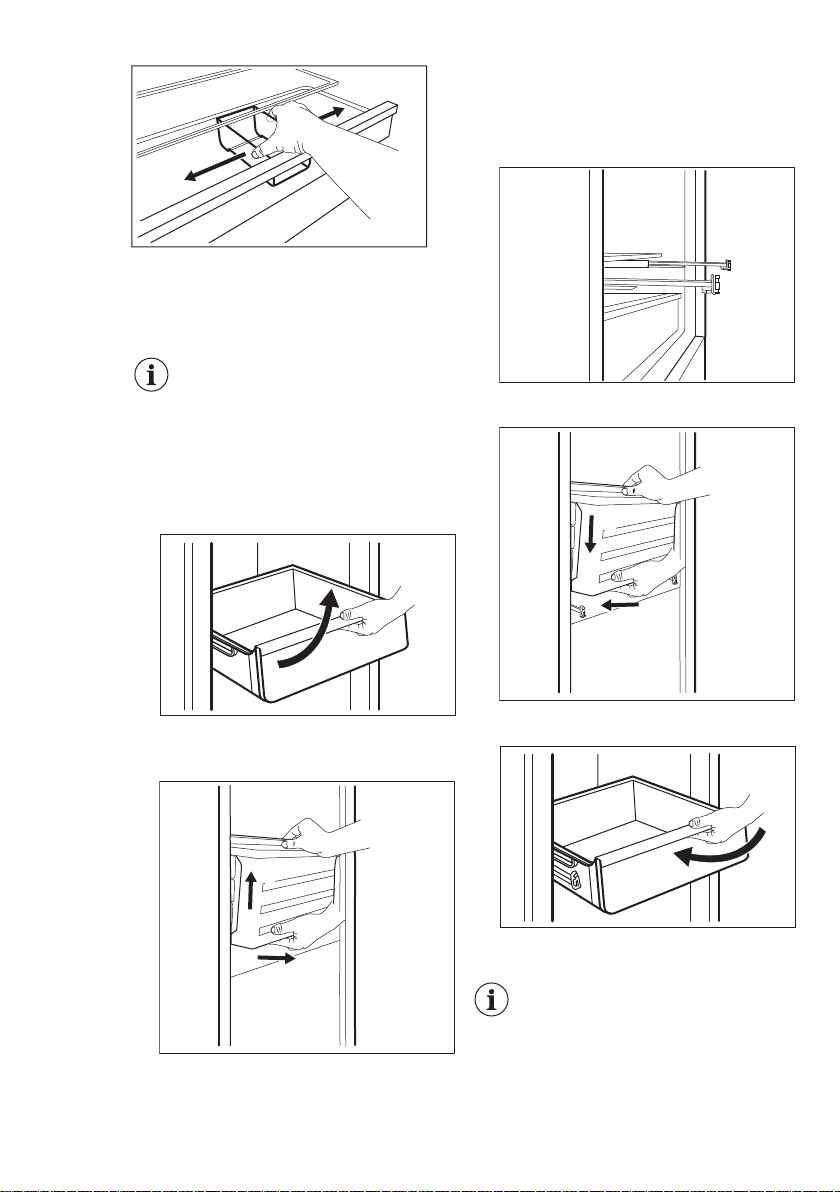

5.6 Removing ExtraZone
There is a pull-out drawer above the
GreenZone drawer.
It is recommended to empty
the drawer before removing
it from the fridge.
To remove the drawer:
1. Pull out the drawer from the fridge
extending the rails fully.
2. Push the rails cap and lift up the front
of the drawer.
3. Pull the drawer out while lifting it up
and detach it from the rails.
2
1
4. Push the rails inside the cabinet to
avoid damage to the appliance when
closing the door.
To reassemble:
1. Pull out the rails completely.
2. Place the rear part of the drawer on
the rails.
1
2
3. Keep the front of the drawer lifted up
while pushing the drawer in.
4. Press the front part of the drawer
downwards.
Pull out the drawer again
and check if it is placed
correctly on both rear and
front hooks.
To remove the glass shelf:
ENGLISH 17

1. Unlock lateral gripping from both
sides simultaneously.
2
x2
1
2. Pull the glass shelf support towards
yourself.
2
1
5.7 Humidity control
The glass shelf of the GreenZone drawer
features a device that regulates its
sealing and provides for optimal humidity
inside the drawer.
Do not place any food
products on the humidity
control device.
To remove the humidity control device:
1. Open the drawer below the glass
shelf and pull out the cover.
2. If you need to replace the device's
white membrane, grab the device in
the middle and separate the
membrane from the cover by pulling
the cover.
www.electrolux.com18

3. Assemble a new membrane into the
cover by pressing the edge of the
membrane into the cover.
4. Reassemble the humidity control
back on the drawer.
Depending on the quantity
and condition of fruit and
vegetables stored in the
GreenZone drawer,
condensation may occur.
In such a case, remove the
condensation using a soft
cloth.
5.8 Temperature indicator
For proper storage of food the
refrigerator is equipped with the
temperature indicator. The symbol on the
side wall of the appliance indicates the
coldest area in the refrigerator.
If OK is displayed (A), put fresh food into
area indicated by symbol, if not (B), wait
at least 12 hours and check if it is OK
(A).
If it is still not OK (B), adjust the setting
control to a colder setting.
OK
OK
A
B
5.9 Fan
The refrigerator compartment is
equipped with a device that allows rapid
cooling of foods and keeps a more
uniform temperature in the compartment.
This device activates automatically when
needed.
It is also possible to switch on the device
manually when needed (refer to "Fan
function").
The fan operates only when
the door is closed.
Do not remove the cover of
the fan.
5.10 CleanAir+ filter
In the appliance, there is a CleanAir+
carbon filter.
The filter purifies the air from unwanted
odours in the fridge compartment,
improving the storage quality.
On delivery, the filter and its plastic
housing are in a plastic bag with the
other accessories (refer to "Installing and
replacing the CleanAir+ filter" section in
"Care and cleaning" chapter for the
installation).
ENGLISH 19

5.11 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen
and deep-frozen food for a long time.
To freeze fresh food activate the Extra
Freeze function at least 24 hours before
placing the food to be frozen in the
freezer compartment.
Store the fresh food evenly distributed in
the first compartment or drawer from the
top.
The maximum amount of food that can
be frozen without adding other fresh food
during 24 hours is specified on the rating
plate (a label located inside the
appliance).
When the freezing process is complete,
the appliance automatically returns to the
previous temperature setting (see "Extra
Freeze function").
For more information refer to "Hints for
freezing".
5.12 Storage of frozen food
When activating an appliance for the first
time or after a period out of use, before
putting the products in the compartment
let the appliance run at least 3 hours with
the Extra Freeze function switched on.
The freezer drawers ensure that it is
quick and easy to find the food package
you want.
Keep the food no closer than 15 mm
from the door.
CAUTION!
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for
longer than the value shown
on rating plate under "rising
time", the defrosted food
must be consumed quickly
or cooked immediately then
cooled and then re-frozen.
Refer to "High temperature
alarm".
5.13 Thawing
Deep-frozen or frozen food, prior to
being consumed, can be thawed in the
refrigerator or inside a plastic bag under
cold water.
This operation depends on the time
available and on the type of food. Small
pieces may even be cooked still frozen.
5.14 Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes.
Do not use metallic
instruments to remove the
trays from the freezer.
1. Fill these trays with water.
2. Put the ice trays in the freezer
compartment.
6. HINTS AND TIPS
6.1 Hints for energy saving
• Freezer: The internal configuration of
the appliance is the one that ensures
the most efficient use of energy.
• Fridge: Most efficient use of energy is
ensured in the configuration with the
drawers in the bottom part of the
appliance and shelves evenly
distributed. Position of the door bins
does not affect energy consumption.
• Do not open the door frequently or
leave it open longer than necessary.
• Freezer: The colder the temperature
setting, the higher the energy
consumption.
• Fridge: Do not set too high
temperature to save energy unless it
is required by the characteristics of
the food.
• If the ambient temperature is high and
the temperature control is set to low
temperature and the appliance is fully
loaded, the compressor may run
continuously, causing frost or ice
formation on the evaporator. In this
case, set the temperature control
www.electrolux.com20
