Electrolux EUG 23800 User manual

UUsseerrMMaannuuaall
EUG 23800
Freezer

electrolux 3
Welcome to the world of Electrolux
You’ve chosen a first class product from Electrolux, which hopefully will provide
you with lots of pleasure in the future. Electrolux ambition is to offer a wide variety
of quality products that would make your life even more comfortable. You can look
at some examples on the cover in this manual. But now it’s time to study this
manual and start using and enjoying the benefits from your new machine. We
promise that it’ll make your life a little easier. Good luck!

4electrolux
The following symbols are used in this manual:
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
General information and tips
Environmental information
The symbol on the product or on its packaging indicates that this product
may not be treated as household waste. Instead it shall be handed over to the
applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. For more
detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased
the product.

electrolux 5
CONTENTS
Safety IInformation 6
Use 99
Cleaning the interior 9
Control panel 9
Operation 11
Freezing fresh food 11
Door open acoustic alarm 11
Storage of frozen food 12
Cold accumulators 12
Thawing 12
Ice cube production 12
Hints 13
Hints for freezing 13
Hints for storage of frozen food 13
Maintenance 114
Periodic cleaning 14
Defrosting 14
Technical information 15
Customer sservice aand sspare pparts 115
Installation 15
Location 15
Electrical connection 16
Instructions for totally built-in
appliances 17

6electrolux
SAFETY
INFORMATION
It iismmost iimportant tthat tthis
instruction bbook sshould bberretained
with tthe aappliance ffor ffuture rreference.
Should tthe aappliance bbessold oor
transferred ttoaanother oowner, oor
should yyou mmove hhouse aand lleave tthe
appliance, aalways eensure tthat tthe
book iisssupplied wwith tthe aappliance iin
order tthat tthe nnew oowner ccan bbe
acquainted wwith tthe ffunctioning ooftthe
appliance aand tthe rrelevant wwarnings.
If tthis aappliance ffeaturing mmagnetic
door sseals iisttorreplace aanoolder
appliance hhaving aasspring llock ((latch)
on tthe ddoor oorllid, bbessure ttommake
that sspring llock uunusable bbefore yyou
discard tthe oold aappliance. TThis wwill
prevent iitffrom bbecoming aaddeath-ttrap
for aacchild.
These wwarnings aare pprovided iintthe
interest oofssafety. YYou mmust rread tthem
carefully bbefore iinstalling ooruusing tthe
appliance.
General Safety
• This appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible
for their safety.
Children should be supervised to
ensure that they do not play with
the appliance.
• It is dangerous to alter the
specifications or modify this
product in any way.
• Before any cleaning or
maintenance work is carried out,
be sure to switch off and unplug
the appliance.
• This appliance is heavy. Care
should be taken when moving it
• Ice lollies can cause frost burns if
consumed straight from the
appliance.
• Take uutmost ccare wwhen hhandling
your aappliance ssoaasnnot ttoccause
any ddamages ttotthe ccooling uunit
with cconsequent ppossible ffluid
leakages.
• The aappliance mmust nnot bbellocated
close ttorradiators oorggas ccookers.
• Avoid pprolonged eexposure ooftthe
appliance ttoddirect ssunlight.
• There mmust bbeaadequate vventilation
round tthe bback ooftthe aappliance
and aany ddamage ttotthe rrefrigerant
circuit mmust bbeaavoided.
• For ffreezers oonly ((except bbuilt-iin
models): aaniideal llocation iistthe
cellar oorbbasement.
• Do nnot uuse oother eelectrical
appliances ((such aasiice ccream
makers) iinside oofrrefrigerating
appliances.
Service/Repair
• Any electrical work required to
install this appliance should be
carried out by a qualified electrician
or competent person

electrolux 7
• This product should be serviced by
an authorized Service Centre, and
only genuine spare parts should be
used.
• Under no circumstances should
you attempt to repair the appliance
yourself. Repairs carried out by
inexperienced persons may cause
injury or more serious
malfunctioning. Refer to your local
Service Centre, and always insist
on genuine spare parts.
• This appliance contains
hydrocarbons in its cooling unit;
maintenance and recharging must
therefore only be carried out by
authorized technicians.
Use
• The domestic refrigerators and
freezers are designed to be used
specifically for the storage of edible
foodstuffs only.
• Best performance is obtained with
ambient temperature between
+18°C and +43°C (class T); +18°C
and +38°C (class ST); +16°C and
+32°C (class N); +10°C and +32°C
(class SN). The class of your
appliance is shown on its rating
plate.
Warning: when the ambient
temperature is not included within
the range indicated for the class of
this appliance, the following
instructions must be observed:
when the ambient temperature
drops below the minimum level, the
storage temperature in the freezer
compartment cannot be
guaranteed; therefore it is advisable
to use the food stored as soon as
possible.
• Frozen food must not be re-frozen
once it has been thawed out.
• Manufacturers’ storage
recommendations should be strictly
adhered to. Refer to relevant
instructions.
• The inner lining of the appliance
consists of channels through which
the refrigerant passes. If these
should be punctured this would
damage the appliance beyond
repair and cause food loss. DO
NOT USE SHARP INSTRUMENTS
to scrape off frost or ice. Frost may
be removed by using the scraper
provided. Under no circumstances
should solid ice be forced off the
liner. Solid ice should be allowed to
thaw when defrosting the
appliance.
• Do not place carbonated or fizzy
drinks in the freezer as it creates
pressure on the container, which
may cause it to explode, resulting
in damage to the appliance.
Installation
• During normal operation, the
condenser and compressor at the
back of the appliance heat up
considerably. For safety reasons,
minimum ventilation must be as
shown in the instructions.
Attention: kkeep vventilation oopenings
clear oofoobstruction.
• Care must be taken to ensure that
the appliance does not stand on
the electrical supply cable.

8electrolux
Important: if the supply cord is
damaged, it must be replaced by a
special cord or assembly availa-ble
from the manufacturer or its service
agent.
• If the appliance is transported
horizontally, it is possible that the
oil contained in the compressor
flows in the refrigerant circuit. It is
advisable to wait at least two hours
before connecting the appliance to
allow the oil to flow back in the
compressor.
• There are working parts in this
product which heat up. Always
ensure that there is adequate
ventilation as a failure to do this will
result in component failure and
possible food loss. See installation
instructions.
• Parts which heat up should not be
exposed. Wherever possible the
back of the product should be
against a wall.
Environment
Protection
This aappliance ddoes nnot ccontain
gasses wwhich ccould ddamage tthe
ozone llayer, iineeither iits rrefrigerant
circuit ooriinsulation mmaterials. TThe
appliance sshall nnot bbeddiscarded
together wwith tthe uurban rrefuse aand
rubbish. AAvoid ddamaging tthe ccooling
unit, eespecially aattthe rrear nnear tthe
heat eexchanger. IInformation oonyyour
local ddisposal ssites mmay bbeoobtained
from mmunicipal aauthorities. TThe
materials uused oontthis aappliance
marked bbytthe ssymbol aare
recyclable.

electrolux 9
USE
Cleaning the interior
Before using the appliance for the first
time, wash the interior and all internal
accessories with luke-warm water and
some neutral soap so as to remove
the typical smell of a brand-new
product, then dry thoroughly.
Do nnot uuse ddetergents oor
abrasive ppowders, aastthese wwill
damage tthe ffinish.

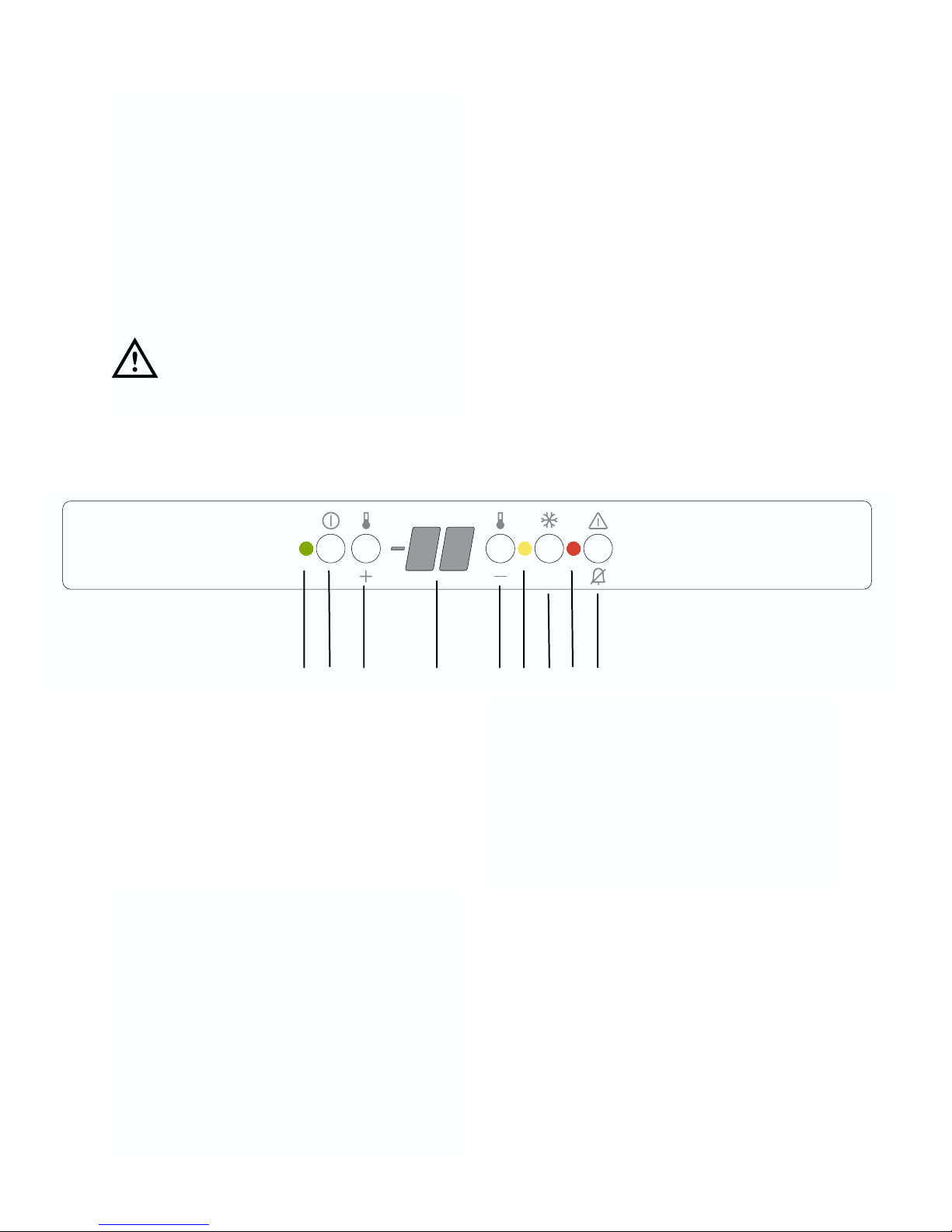

Control Panel
A. Light ON/OFF
B. Button ON/OFF
ON: Press the button (B). The pilot
light (A) switches on.
OFF: Keep press the button (B) until
the pilot light (A) and the
temperature indicator switched
off.
C - E. Temperature
setting buttons
The temperature can be adjusted
between -15°C and -24°C.
By pressing the button (C or E), the
current temperature setting flashes on
the indicator. It is possible to modify
the setting temperature only with
flashed indicator.
D
ACEG
BFHI
ACTION
FREEZE
A On/OFF light
B Freezer button ON/OFF
C Temperature setting button
(warmest)
D Temperature indicator
E Temperature setting button
(coldest)
F Super frost light
G Super frost button
H Alarm reset light
I Alarm reset button

10 electrolux
To set a warmer temperature, press
button (C). To set a colder
temperature, press button (E). The
indicator display the newly selected
temperature for a few seconds and
then shows again the inside
compartment temperature.
The newly selected-temperature must
be reached after 24 hours.
Attention!
During the stability period by the first
starting the temperature displayed can
not correspond to the setting
temperature. During this time it is
possible that the temperature
displayed is lower than the setting
temperature.
D. Temperature indicator
During normal functioning the indicator
shows the temperature inside the
freezer.
Attention!
Difference between the temperature
displayed and temperature setting is
normal. Especially when:
- a new setting has recently been
selected
- the door has been left open for a
long time
- warm food has been placed in the
compartment
F. Super frost pilot light
G. Super frost button
To freeze fresh foods, the “Super frost”
function must be activated. Press the
super frost button (G).The relevant pilot
light (F) switches on
The function can be deactivated at any
time, by pressing the button (G),
otherwise it automatically switches off.
With deactivated function the pilot light
(F) switches off.
H. Alarm reset light
I. Alarm reset button
In the event of an abnormal
temperature rise inside the freezer (e.g.
power cut) the warning light (H) will
start to flash and a buzzer will sound.
After the temperature has returned to
normal, the warning light (H) will
continue to flash, although the buzzer
has stopped.
When the alarm button (I) is pressed,
the warmest temperature reached in
the compartment flashes on the
indicator (D).
If the power has been off for a long
time, frozen food should be consumed
as quickly as possible, or cooked and
then re-frozen.

electrolux 11
Operation
Insert the plug in the power socket.
Press the button ON/OFF (B). The
freezer is switched on.
The freezer is pre-set to run at -18°C.
this temperature will be reached in a
few hours.
As soon as the appliance is switched
on the temperature indicator (D)
shows the current temperature inside
the freezer, the alarm reset light (H)
flashes and a buzzer sounds. Press
the alarm reset button (I). The buzzer
stops and the alarm light (H) continues
to flash until the setting temperature is
reached.
Freezing fresh food
The freezer compartment is suitable
for long term storage of commercially
frozen food, and for freezing fresh
food.
The maximum quantity of foods to
freeze in 24 hours is shown on the serial
number plate.
The freezing process takes 24 hours.
During this period do not put other
foods in the freezer.
This function stops automatically after
54 hours.
To freeze fresh food, press the Super
Frost button (G).
Place the food to be frozen in the
upper compartment. The maximum
quantity of food which can be frozen
in 24 hrs. is shown on the rating plate;
Warning!
When the “Super Frost” function is to
be used:
Door open acoustic
alarm
An acoustic alarm will sound when the
door is left open for more than 1
minute.
The door open alarm conditions are
indicated by:
- flashing symbol (1);
- red display illumination;
- beeping sound.
Press the button (C) to stop the
acoustic alarm.
When normal conditions are restored
(door closed):
- the acoustic alarm will stop.
about 6 hrs
before
about 24 hrs
before
not needed
not needed
Introducing small quantities
of fresh food (about 5 kg)
Introducing the maximum
quantity of food (see rating plate)
Introducing frozen food
Introducing small quantities of
fresh food daily 2 kg maximum

12 electrolux
Storage of frozen food
When first starting-up or after a period
out of use, before putting the products
in the compartment let the appliance
run at least 24 hours on the fast freeze
setting.
To obtain the best performance from
this appliance, you should:
if large quantities of food are to be
stored, remove all drawers and
baskets from appliance and place
food on cooling shelves.
Pay careful attention not to exceed
load limit stated on the side of the
upper section (where applicable).
Important
If tthere iisaappower ffailure wwhen ffood iis
in tthe ffreezer, ddonnot oopen tthe ddoor oof
the ffreezer ccompartment. TThe ffrozen
food wwill nnot bbeaaffected iiftthe ppower
cut iisoofsshort dduration ((up tto66-88
hours) aand tthe ffreezer ccompartment iis
full, ootherwise, iitiisrrecommended tthat
the ffood sshould bbeuused wwithin aasshort
time ((attemperature iincrease ooftthe
frozen ffood sshortens iits ssafe sstorage
period).
Cold accumulators
The freezer contains two cold
accumulators which increas storage
times in the event of a power cut or
breakdown. They are located in the
upper compartment.
Thawing
Deep-frozen or frozen food, prior to
being used, can be thawed in the
refrigerator compartment or at room
temperature, depending on the time
available for this operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
Ice-cube production
This appliance is equipped with one or
more trays for the production of ice-
cubes. Fill these trays with water, then
put them in the freezer compartment.
Do nnot uuse mmetallic iinstruments tto
remove tthe ttrays ffrom tthe ffreezer.

electrolux 13
HINTS
Hints for freezing
To help you make the most of the
freezing process, here are some
important hints:
• the maximum quantity of food
which can be frozen in 24 hrs. is
shown on the rating plate;
• the freezing process takes 24
hours. No further food to be frozen
should be added during this
period;
• only freeze top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and
completely frozen and to make it
possible subsequently to thaw only
the quantity required;
• wrap up the food in aluminium foil
or polythene and make sure that
the packages are airtight;
• do not allow fresh, unfrozen food
to touch food which is already
frozen, thus avoiding a rise in
temperature of the latter;
• lean foods store better and longer
than fatty ones; salt reduces the
storage life of food;
•ice cubes, if consumed
immediately after removal from the
freezer compartment, can possibly
cause the skin to be freeze burnt;
• it is advisable to show the freezing-
in date on each individual pack to
enable you to keep tab of the
storage time;
• do nnot pput ccarbonated lliquids ((fizzy
drinks, eetc.) iintthe ffreezer
compartment aastthey mmay bburst.
Hints for storage of
frozen food
To obtain the best performance from
this appliance, you should:
• make sure that the commercially
frozen foodstuffs were adequately
stored by the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to
the freezer in the shortest possible
time;
• not open the door frequently or
leave it open longer than absolutely
necessary.
• Once defrosted, food deteriorates
rapidly and cannot be refrozen.
• Do not exceed the storage period
indicated by the food manufacturer.

14 electrolux
Defrosting
The freezer compartment of this
model, on the other hand, is a "no
frost" type. This means that there is no
buildup of frost when it is in operation,
neither on the internal walls nor on the
foods.
The absence of frost is due to the
continuous circulation of cold air inside
the compartment, driven by an
automatically controlled fan.
MAINTENANCE
Unplug tthe aappliance bbefore
carrying oout aany mmaintenance
operation.
Warning
This aappliance ccontains
hydrocarbons iiniits ccooling uunit;
maintenance aand rrecharging
must ttherefore oonly bbeccarried
out bbyaauthorized ttechnicians.
Periodic cleaning
Many pproprietary kkitchen ssurface
cleaners ccontain cchemicals tthat ccan
attack/damage tthe pplastics uused iin
this aappliance. FFor tthis rreason iitiis
recommended tthat tthe oouter ccasing oof
this aappliance iisoonly ccleaned wwith
warm wwater wwith aallittle wwashing-uup
liquid aadded.
Clean the inside with warm water and
bicarbonate of soda.
Rinse and dry thoroughly.
Clean the condenser (black grill) and
the compressor at the back of the
appliance with a brush or a vacuum
cleaner. This operation will improve the
performance of the appliance and
save electricity consumption.

electrolux 15
INSTALLATION
Location
The appliance should be installed well
away from sources of heat such as
radiators, boilers, direct sunlight etc.
Attention
It must be possible to disconnect the
appliance from the mains power
supply; the plug must therefore be
easily accessible after installation.
CUSTOMER SERVICE
AND SPARE PARTS
If the appliance is not functioning
properly, check that:
• the plug is firmly in the wall socket
and the mains power switch is on;
• there is an electricity supply (find
out by plugging in another
appliance);
• the temperature is set correctly.
• If there are water drops on the
bottom of the cabinet, check that
the defrost water drain opening is
not obstructed (see “Defrosting”
section).
TECHNICAL INFORMATION
The technical infomation are situated in the rating plate on the internal left side of
the appliance.
• If your appliance is still not working
properly after making the above
checks, contact the nearest service
centre.
To oobtain ffast sservice, iitiiseessential
that wwhen yyou aapply ffor iityyou sspecify
the mmodel aand sserial nnumber oofyyour
appliance wwhich ccan bbeffound oontthe
guarantee ccertificate ooroontthe rrating
plate llocated iinside tthe aappliance, oon
the bbottom lleft-hhand sside.

16 electrolux
Electrical connection
Before plugging in, ensure that the
voltage and frequency shown on the
serial number plate correspond to your
domestic power supply. Voltage can
vary by ±6% of the rated voltage.
For operation with different voltages, a
suitably sized auto-transformer must
be used.
The aappliance mmust bbeeearthed.
The power supply cable plug is
provided with a contact for this
purpose.
If the domestic power supply socket is
not earthed, connect the appliance to
a separate earth in compliance with
current regulations, consulting a
specialist technician.
The MManufacturer ddeclines aall
responsibility iiftthe aabove ssafety
precautions aare nnot oobserved.
This appliance complies with
the following E.E.C. Directives:
•87/308 EEEC of 2/6/87 relative to
radio interference suppression.
•73/23 EEEC of 19.2.73 (Low Voltage
Directive) and subsequent
modifications;
•89/336 EEEC of 3.5.89
(Electromagnetic Compatibility
Directive) and subsequent
modifications.

electrolux 17
50 mm
min.
200 cm
2
200 cm
2
min.
D567
PR01
540
50
3
21
Instructions for
totally built-in
appliances
Dimensions ooftthe rrecess
Height (1) 1780 mm
Depth (2) 550 mm
Width (3) 560 mm
For safety reasons, minimum
ventilation must be as shown in Fig.
Attention: kkeep vventilation oopenings
clear oofoobstruction.
Furthermore, it is necessary that the
niche is provid with a conduct of
ventilation having the following
dimensions:
depth 50 mm
width 540 mm

2223 383-92-00 10012008
wwwwww..eelleeccttrroolluuxx..ccoomm
www.electrolux.co.kr
