1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Keep all packaging away from children.
1.2 General Safety
•This appliance is intended to be used in household and
similar applications such as:
–Farm houses; staff kitchen areas in shops, offices
and other working environments
–By clients in hotels, motels, bed and breakfast and
other residential type environments
•Keep ventilation openings, in the appliance enclosure or
in the built-in structure, clear of obstruction.
•Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
•Do not damage the refrigerant circuit.
•Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the
type recommended by the manufacturer.
•Do not use water spray and steam to clean the
appliance.
ENGLISH 3

•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure the air can circulate around
the appliance.
• Wait at least 4 hours before connecting
the appliance to the power supply. This
is to allow the oil to flow back in the
compressor.
• Do not install the appliance close to
radiators or cookers, oven or hobs.
• The rear of the appliance must stand
against the wall.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too colds, such
as the construction appendices,
garages or wine cellars.
• When you move the appliance, lift it by
the front edge to avoid scratching the
floor.
2.2 Electrical connection
WARNING!
Risk of fire and electrical
shock.
• The appliance must be earthed.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not, contact
an electrician.
• Always use a correctly installed
shockproof socket.
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Service or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electrical
shock or fire.
• Do not change the specification of this
appliance.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• Be careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level
of environmental compatibility. This gas
is flammable.
www.electrolux.com4

• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the plastic
parts of the appliance.
• Do not put soft drinks in the freezer
compartment. This will create pressure
on the drink container.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
• Do not remove or touch items from the
freezer compartment if your hands are
wet or damp.
• Do not freeze again food that has been
thawed.
• Obey the storage instructions on the
packaging of frozen food.
2.4 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the appliance.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
• The insulation foam contains flammable
gas. Contact your municipal authority
for information on how to discard the
appliance correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. OPERATION

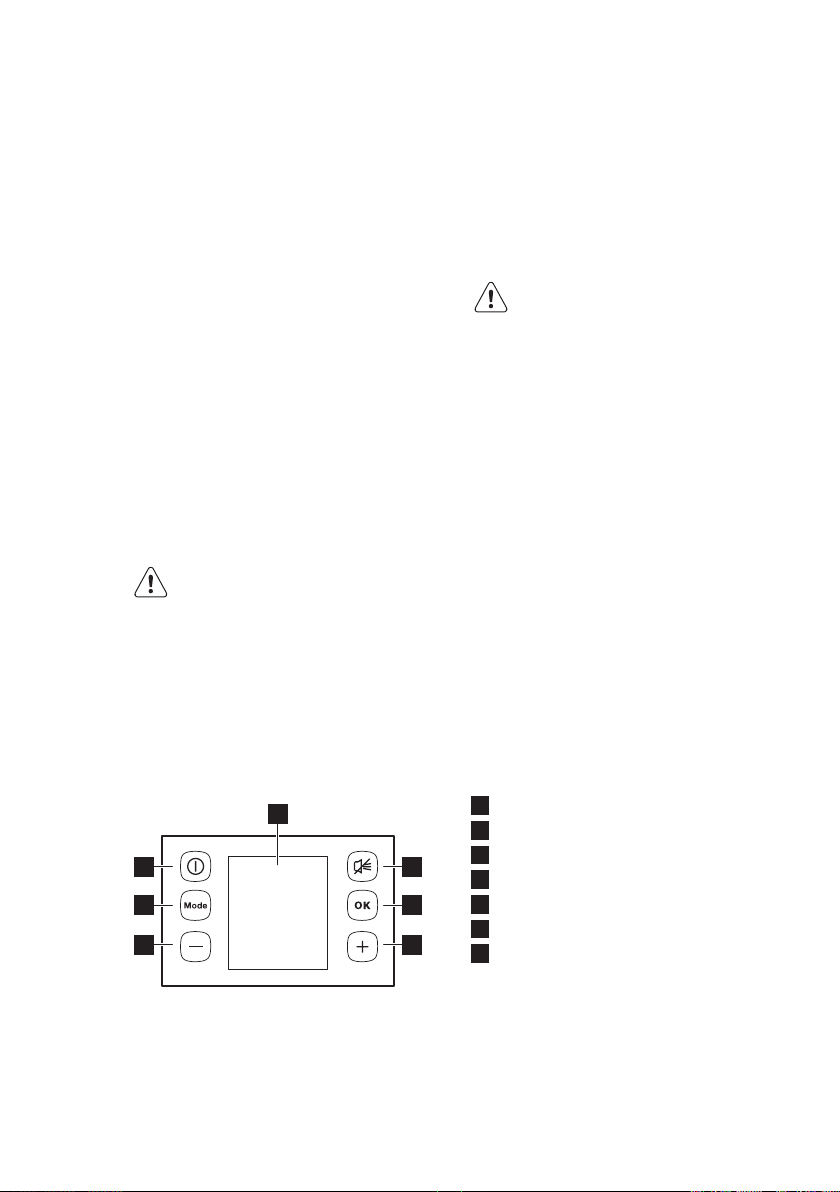

3.1 Control panel
2
3
4
7
6
5
1
1Display
2Alarm reset button
3OK button
4Temperature warmer button
5Temperature colder button
6Mode button
7ON/OFF button
It is possible to change the button sound
volume by pressing Mode and the
temperature colder buttons together for a
few seconds. Change is reversible.
ENGLISH 5

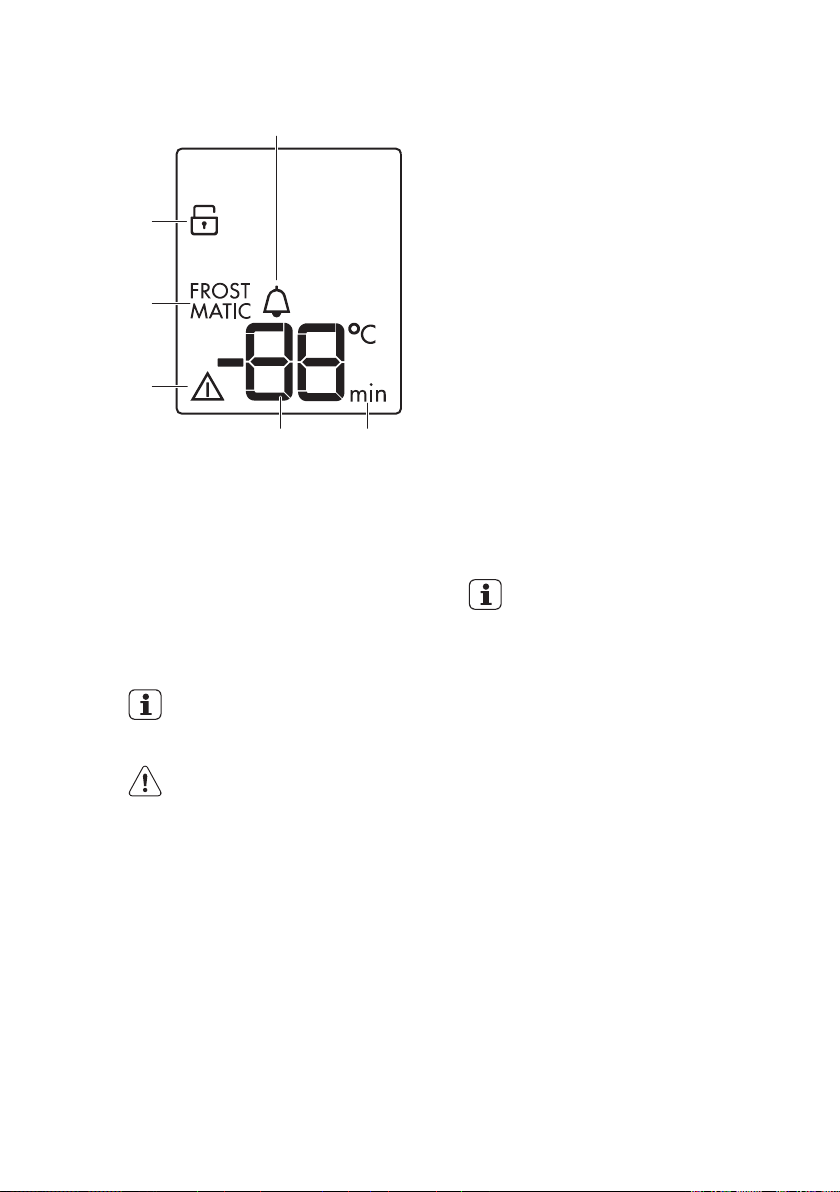

3.2 Display
A
BC
D
E
F
A) MinuteMinder function
B) Timer
C) Temperature indicator
D) Alarm indicator
E) FROSTMATIC function
F) ChildLock function
3.3 Switching on
1. Connect the mains plug to the power
socket.
2. If the display is off, press ON/OFF.
If DEMO appears on the display, the
appliance is in demonstration mode.
Refer to "What to do if...".
The temperature indicators show the set
default temperature.
To select a different set
temperature refer to
"Temperature regulation".
CAUTION!
If the door remains open for
some minutes, the light will
turn off automatically. The
light is reset by closing and
opening the door itself.
3.4 Switching off
1. Press ON/OFF for a few seconds.
The display switches off.
2. Disconnect the mains plug from the
power socket.
3.5 Temperature regulation
The set temperature of the freezer may be
adjusted by pressing the temperature
button.
Default temperature:
• -18°C for the freezer
The temperature indicator shows the set
temperature.
The set temperature will be
reached within 24 hours.
After a power failure the set
temperature remains stored.
3.6 MinuteMinder function
The MinuteMinder function is to be used
to set an acoustic alarm at the preferred
time, useful for example when a recipe
requires to cool down food products for a
certain length of time.
It is also useful when a reminder is needed
in order not to forget the bottles placed in
the freezer for fast cooling.
1. Press Mode until the corresponding
icon appears.
The MinuteMinder indicator flashes.
The Timer shows the set value (30
minutes) for a few seconds.
2. Press the Temperature colder or
Temperature warmer button to
change the Timer set value from 1 to
90 minutes.
3. Press OK to confirm.
The MinuteMinder indicator is shown.
The Timer starts to flash (min).
www.electrolux.com6

It is possible to change the time at any
time during the countdown and at the end
by pressing the Temperature colder
button and the Temperature warmer
button.
At the end of the countdown, the
MinuteMinder indicator flashes and an
audible alarm sounds. Press OK to switch
off the sound and terminate the function.
It is possible to deactivate the function at
any time during the countdown by
repeating the function steps, until the
indicator turns off.
3.7 ChildLock function
Activate the ChildLock function to lock the
buttons from unintentional operation.
1. Press Mode until the corresponding
icon appears.
The ChildLock indicator flashes.
2. Press OK to confirm.
The ChildLock indicator is shown.
To deactivate the ChildLock function,
repeat the procedure until the ChildLock
indicator goes off.
3.8 FROSTMATIC function
The FROSTMATIC function accelerates
the freezing of fresh food and, at the same
time, protects foodstuffs already stored
from undesirable warming.
1. Press Mode until the corresponding
icon appears.
The FROSTMATIC indicator flashes.
2. Press OK to confirm.
The FROSTMATIC indicator is shown.
The FROSTMATIC function
shuts off automatically after
52 hours.
To switch off the function
before its automatic end,
repeat the steps until the
FROSTMATIC indicator goes
off.
The function switches off by
selecting a different freezer
set temperature.
3.9 High temperature alarm
Temperature increase in the freezer
compartment (for example due to an
earlier power failure or door is open) is
indicated by:
• flashing the alarm and freezer
temperature indicators;
• sounding of buzzer.
Press any button.
The buzzer switches off.
The freezer temperature indicator shows
the highest temperature reached for a few
seconds. Then show again the set
temperature.
The alarm indicator continue to flash until
the normal conditions are restored.
3.10 Door open alarm
An acoustic alarm will sound if the door is
left open for a few minutes. The door open
alarm conditions are indicated by:
• a flashing Alarm indicator;
• an acoustic buzzer.
When normal conditions are restored
(door closed), the alarm will stop. The
buzzer can also be switched off by
pressing any button.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Storage of frozen food
When first starting-up or after a period out
of use, let the appliance run at least 2
ENGLISH 7

hours before putting products in the
freezer compartment.
The freezer baskets ensure that it is quick
and easy to find the food packages you
want. If large quantities of food are to be
stored, remove all drawers except for the
bottom basket which secures good air
circulation.
The two plastic frames supporting the
large drawers also need to be removed.
To optimise storage area, move glass
shelf from the fourth position to the one
just above the bottom basket.
It is possible to place food that protrudes
15 mm from the door on all shelves
except the top one.
In the event of accidental
defrosting, for example due
to a power failure, if the
power has been off for longer
that the value shown in the
technical characteristics chart
under "rising time", the
defrosted food must be
consumed quickly or cooked
immediately and then re-
frozen (after cooling).
4.2 Cold accumulators
The freezer contains at least one cold
accumulator which increases storage time
in the event of a power cut or breakdown.
4.3 Freezing fresh food
The freezer compartment is suitable for
freezing fresh food and storing frozen and
deep-frozen food for a long time.
To freeze small amount of fresh foods it is
not necessary to change the present
setting.
To freeze fresh food activate the
FROSTMATIC function at least 24 hours
before placing the food to be frozen in the
freezer compartment.
Place the fresh food to be frozen in all
compartments except the lowest one.
The maximum amount of food that can be
frozen in 24 hours is specified on the
rating plate, a label located on the inside
of the appliance.
The freezing process lasts 24 hours:
during this period do not add other food
to be frozen.
When the freezing process is completed,
return to the required temperature (see
"FROSTMATIC Function").
4.4 Thawing
Deep-frozen or frozen food, prior to being
used, can be thawed in the refrigerator
compartment or at room temperature,
depending on the time available for this
operation.
Small pieces may even be cooked still
frozen, directly from the freezer: in this
case, cooking will take longer.
4.5 Removal of freezing baskets
and glass shelves from the
freezer
The freezing baskets have a limit stop to
prevent their accidental removal or falling
out. At the time of its removal from the
freezer, pull the basket towards yourself
and, upon reaching the end point, remove
the basket by tilting its front upwards.
2
1
At the time of putting it back, slightly lift
the front of the basket to insert it into the
freezer. Once you are over the end points,
push the baskets back in their position.
The appliance is equipped with shelf stops
to secure the shelves.
The shelves must be lifted up (1) on each
side and then pulled outwards (2).
www.electrolux.com8

1
1
2
Some freezing baskets are equipped with
expander rollers placed within a plastic
frame.
To remove the plastic frame press the
shelf stops placed underneath the frame
and pull the frame gently out of the
cabinet.
2
2
1
4.6 Cleaning the interior
1. Before using the appliance for the first
time, wash the interior and all internal
accessories with lukewarm water and
neutral soap so as to remove the
typical smell of a brand-new product,
then dry thoroughly.
2. Check that the drain hose at the rear
of the cabinet discharges into the drip
tray.
CAUTION!
Do not use detergents or
abrasive powders, as these
will damage the finish.
5. HINTS AND TIPS
5.1 Normal operating sounds
The following sounds are normal during
operation:
• A faint gurgling and bubbling sound
from coils sound when refrigerant is
pumped.
• A whirring and pulsating sound from
the compressor when refrigerant is
pumped.
• A sudden cracking noise from inside
appliance caused by thermic dilatation
(a natural and not dangerous physical
phenomenon).
ENGLISH 9

• A faint click noise from the temperature
regulator when the compressor
switches on or off.
5.2 Hints for energy saving
• Do not open the door frequently or
leave it open longer than absolutely
necessary.
• If foreseen, do not remove the cold
accumulators from the freezer basket.
5.3 Hints for freezing
To help you make the most of the freezing
process, here are some important hints:
• the maximum quantity of food which
can be frozen in 24 hrs. is shown on
the rating plate;
• the freezing process takes 24 hours.
No further food to be frozen should be
added during this period;
• freeze only top quality, fresh and
thoroughly cleaned, foodstuffs;
• prepare food in small portions to
enable it to be rapidly and completely
frozen and to make it possible
subsequently to thaw only the quantity
required;
• wrap up the food in aluminium foil or
polythene and make sure that the
packages are airtight;
• do not allow fresh, unfrozen food to
touch food which is already frozen,
thus avoiding a rise in temperature of
the latter;
• lean foods store better and longer than
fatty ones; salt reduces the storage life
of food;
• water ices, if consumed immediately
after removal from the freezer
compartment, can possibly cause the
skin to be freeze burnt;
• it is advisable to show the freezing in
date on each individual pack to enable
you to keep tab of the storage time.
5.4 Hints for storage of frozen
food
To obtain the best performance from this
appliance, you should:
• make sure that the commercially frozen
foodstuffs were adequately stored by
the retailer;
• be sure that frozen foodstuffs are
transferred from the foodstore to the
freezer in the shortest possible time;
• not open the door frequently or leave it
open longer than absolutely necessary;
• once defrosted, food deteriorates
rapidly and cannot be refrozen;
• do not exceed the storage period
indicated by the food manufacturer.
6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General warnings
CAUTION!
Unplug the appliance before
carrying out any maintenance
operation.
This appliance contains
hydrocarbons in its cooling
unit; maintenance and
recharging must therefore
only be carried out by
authorized technicians.
The accessories and parts of
the appliance are not suitable
for washing in a dishwasher.
6.2 Periodic cleaning
CAUTION!
Do not pull, move or damage
any pipes and/or cables
inside the cabinet.
CAUTION!
Take care of not to damage
the cooling system.
www.electrolux.com10

CAUTION!
When moving the cabinet, lift
it by the front edge to avoid
scratching the floor.
The equipment has to be cleaned
regularly:
1. Clean the inside and accessories with
lukewarm water and some neutral
soap.
2. Regularly check the door seals and
wipe clean to ensure they are clean
and free from debris.
3. Rinse and dry thoroughly.
4. If accessible, clean the condenser and
the compressor at the back of the
appliance with a brush.
This operation will improve the
performance of the appliance and
save electricity consumption.
6.3 Cleaning the ventilation grille
Make sure the door is open.
The ventilation grille can be removed for
washing.
1. Loosen the edge of the grille by pulling
it according to the figure.
2. Pull the grille straight out to completely
remove it.
3. Vacuum clean under the cabinet.
6.4 Defrosting the freezer
The freezer compartment is frost free. This
means that there is no build up of frost
when it is in operation, neither on the
internal walls nor on the foods.
The absence of frost is due to the
continuous circulation of cold air inside the
compartment, driven by an automatically
controlled fan.
6.5 Periods of non-operation
When the appliance is not in use for long
periods, take the following precautions:
1. Disconnect the appliance from
electricity supply.
2. Remove all food.
3. Clean the appliance and all
accessories.
4. Leave the door/doors open to prevent
unpleasant smells.
WARNING!
If the cabinet will be kept on,
ask somebody to check it
once in a while to prevent the
food inside from spoiling in
case of a power failure.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Solution
The appliance does not op-
erate.
The appliance is switched
off.
Switch on the appliance.
ENGLISH 11

Problem Possible cause Solution
The mains plug is not
connected to the mains
socket correctly.
Connect the mains plug to
the mains socket correctly.
There is no voltage in the
mains socket.
Connect a different electrical
appliance to the mains sock-
et. Contact a qualified electri-
cian.
The appliance is noisy. The appliance is not sup-
ported properly.
Check if the appliance stands
stable.
Audible or visual alarm is
on.
The cabinet has been re-
cently switched on or the
temperature is still too
high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The temperature in the
appliance is too high.
Refer to "Door Open Alarm"or
"High Temperature Alarm".
The door is left open. Close the door.
The temperature in the
appliance is too high.
Contact a qualified electrician
or contact the nearest Au-
thorized Service Centre.
A rectangular symbol is
shown instead of numbers
on the Temperature Dis-
play.
Temperature sensor prob-
lem.
Contact the nearest Author-
ized Service Centre (the cool-
ing system will continue to
keep food products cold, but
temperature adjustment will
not be possible).
The lamp does not work. The lamp is in stand-by. Close and open the door.
The lamp does not work. The lamp is defective. Contact the nearest Author-
ized Service Centre.
The compressor operates
continually.
Temperature is set incor-
rectly.
Refer to "Operation" chapter.
Many food products were
put in at the same time.
Wait some hours and then
check the temperature again.
The room temperature is
too high.
Refer to climate class chart
on the rating plate.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
The door is not closed
correctly.
Refer to "Closing the door".
The FROSTMATIC func-
tion is switched on.
Refer to "FROSTMATIC func-
tion".
www.electrolux.com12

Problem Possible cause Solution
There is too much frost and
ice.
The door is not closed
correctly or the gasket is
deformed/dirty.
Refer to "Closing the door".
The compressor does not
start immediately after
pressing the FROSTMATIC,
or after changing the tem-
perature.
This is normal, no error
has occurred.
The compressor starts after a
period of time.
Water flows on the floor. The melting water outlet is
not connected to the
evaporative tray above the
compressor.
Attach the melting water out-
let to the evaporative tray.
Temperature cannot be set. The FROSTMATIC func-
tion is switched on.
Switch off FROSTMATIC
manually, or wait until the
function resets automatically
to set the temperature. Refer
to "FROSTMATIC function".
DEMO appears on the dis-
play.
The appliance is in dem-
onstration mode.
Keep the Mode pressed for
approximately 10 seconds
until a long sound is heard
and display shuts off for a
short time.
Door is misaligned or inter-
feres with ventilation grill.
The appliance is not level-
led.
Refer to "Levelling".
The temperature in the ap-
pliance is too low/too high.
The temperature regulator
is not set correctly.
Set a higher/lower tempera-
ture.
Food products placed in
the appliance were too
warm.
Allow food products to cool
to room temperature before
storing.
The door has been
opened often.
Open the door only if neces-
sary.
The FROSTMATIC func-
tion is switched on.
Refer to "FROSTMATIC func-
tion".
There is no cold air circu-
lation in the appliance.
Make sure that there is cold
air circulation in the appli-
ance.
If the advice does not lead to
the desired result, call the
nearest Authorized Service
Centre.
7.2 Closing the door
1. Clean the door gaskets.
2. If necessary, adjust the door. Refer to
"Installation".
3. If necessary, replace the defective
door gaskets. Contact the Authorised
Service Centre.
ENGLISH 13

7.3 Replacing the lamp
The appliance is equipped with a longlife
LED interior light.
Only service is allowed to replace the
lighting device. Contact your Authorised
Service Centre.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Positioning
This appliance can be installed in a dry,
well ventilated indoor where the ambient
temperature corresponds to the climate
class indicated on the rating plate of the
appliance:
Climate
class
Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C
Some functional problems
might occur for some types
of models when operating
outside of that range. The
correct operation can only be
guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Service Centre

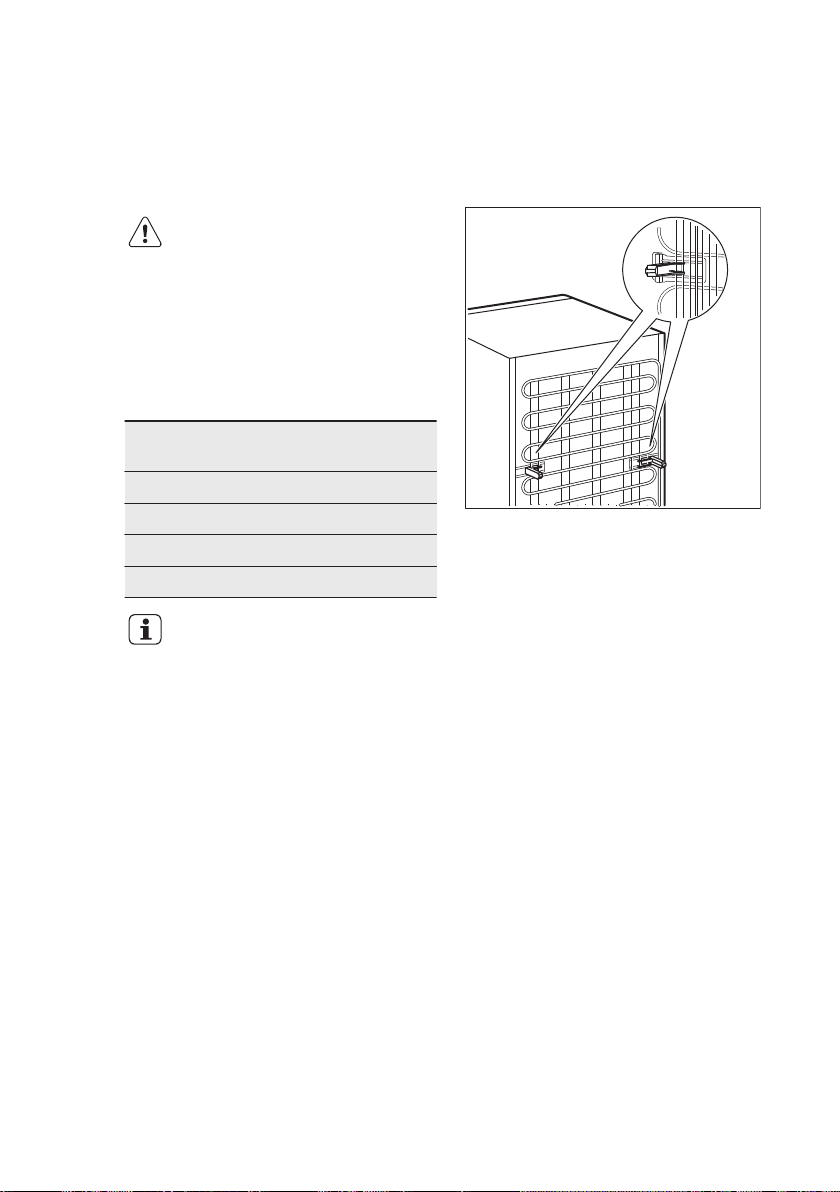

8.2 Rear spacers
Install the spacers, provided within the
accessory bag, on the brackets of the
condenser (black grill) at the back of the
appliance, as shown in the figure.
8.3 Location
To ensure best performance, if the
appliance is positioned below an
overhanging wall unit, the minimum
distance between the top of the cabinet
and the wall unit must be at least 40 mm.
Ideally, however, the appliance should not
be positioned below overhanging wall
units.

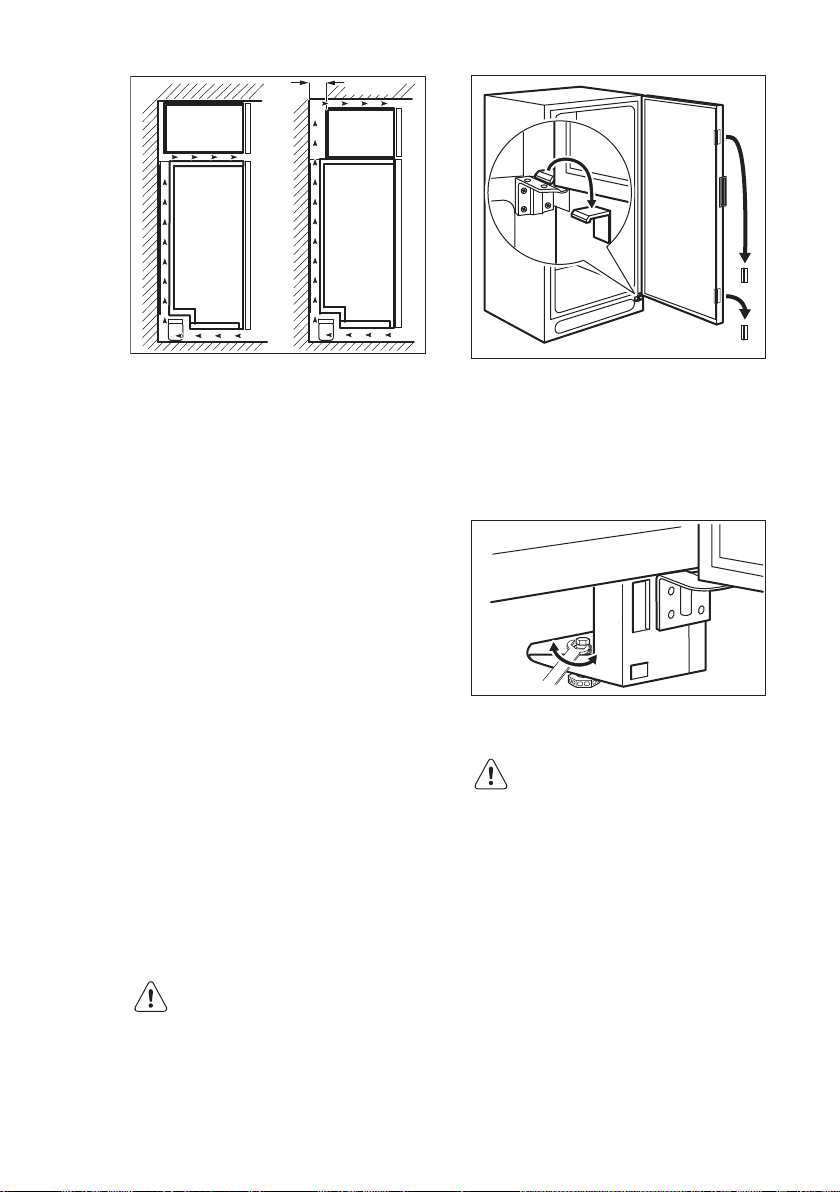

The ventilation space can be:
• directly above the appliance
• behind and above the top cupboard.
In this case, the space behind the top
cupboard must be at least 50 mm
deep.
www.electrolux.com14

50 mm
8.4 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the E.E.C.
Directives.
8.5 Removing the transport
support
Your appliance is equipped with transport
support to secure the door during
transportation.
1. Open the door.
2. Remove the transport support from
the door sides.
3. Remove the transport support from
the lower hinge (some models).
CAUTION!
Some models are fitted with a
silencing pad under the
cabinet. Do not remove this
pad.
2
3
8.6 Levelling
When placing the appliance ensure that it
stands level. If necessary adjust the feet
using the adjustment spanner supplied.
Door alignment is dependent on proper
levelling.
8.7 Door reversibility
WARNING!
Before carrying out any
operations, remove the plug
from the power socket.
ENGLISH 15

CAUTION!
To carry out the following
operations, we suggest that
this be made with another
person that will keep a firm
hold on the doors of the
appliance during the
operations.
1. Remove the ventilation grille. Remove
the upper filling and install it on the
opposite side of the grille.
2. Remove the pedal hole cover and
install the cover provided in the
accessory bag on the opposite side.
3. Lay down the appliance back side
down on a wooden support.
4. Unscrew the hinge (1).
5. Remove the cover (2) and install the
hinge on the opposite side. Install the
cover on the opposite side.
1
2
6. Unscrew the cable holder (1). Remove
the cable from its position (2).
7. Unscrew the lower hinge (3) and pull
the cable out from the door (4).
Unscrew and move the pedal (5) to
the opposite side.
24
1
3
5

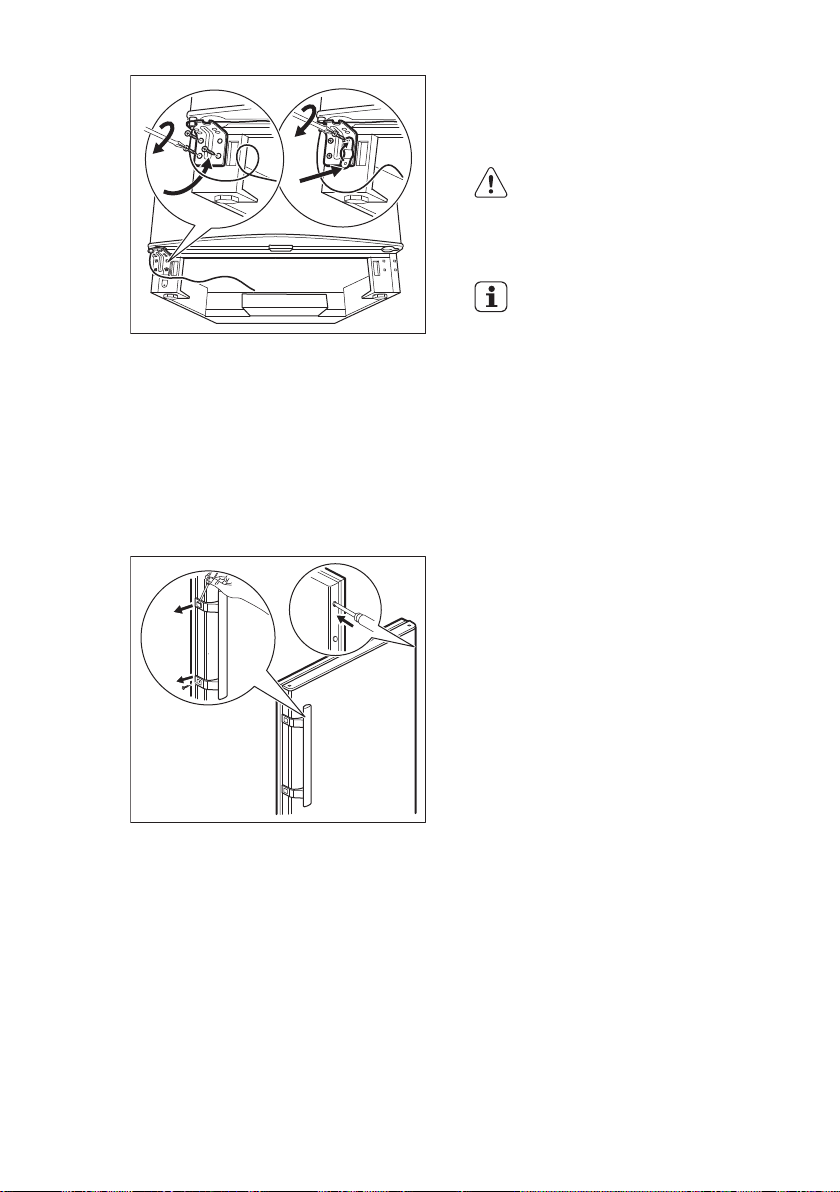

8. Unscrew the cover (1, 2), remove the
cable from its position (3).
21
3
9. Push the cable with bushing into
position on the other side (1) and
screw on the cover (2, 3).
2
3
1
10. Screw on the lower hinge (1, 2), screw
on the cable holder (3, 4).
www.electrolux.com16

3
1
4
2
11. Remove the covers on the handles
carefully with a small screwdriver.
12. Unscrew the handle.
13. On the opposite side remove the hole
covers by driving a 3-4 mm drift or drill
into them.
14. Install the handle.
15. Install the covers on the handle.
16. Install the hole covers provided within
the accessory bag.
17. Raise the appliance and install the
ventilation grill.
18. Put the cabinet in position.
CAUTION!
Reposition, level the
appliance, wait for at least
four hours and then connect
it to the power socket.
Do a final check to make sure
that:
• All screws are tightened.
• The magnetic seal
adheres to the cabinet.
• The door opens and
closes correctly.
If the ambient temperature is
cold (i.e. in Winter), the
gasket may not fit perfectly to
the cabinet. In that case, wait
for the natural fitting of the
gasket.
In case you do not want to
carry out the above
mentioned operations,
contact the nearest
Authorised Service Centre.
The Authorised Service
specialist will carry out the
reversibility of the doors at
your cost.
9. NOISES
There are some sounds during normal running (compressor, refrigerant circulation).
ENGLISH 17

BRRR!
HISSS!
CLICK!
BLUBB!
CRACK!
SSSRRR!
OK
CLICK! CLICK!
SSSRRR! SSSRRR!
BRRR! BRRR!
HISSS! HISSS!
BLUBB! BLUBB! CRACK!CRACK!
www.electrolux.com18

10. TECHNICAL INFORMATION
10.1 Technical data
Height mm 1600/1800
Width mm 660
Depth mm 705
Rising time Hours 16
Voltage Volts 230 - 240
Frequency Hz 50
The technical information are situated in
the rating plate, on the external or internal
side of the appliance and in the energy
label.
11.
CH
GUARANTEE
Customer Service Centres
Point of Service
Industriestrasse 10
5506 Mägenwil
Le Trési 6
1028 Préverenges
Via Violino 11
6928 Manno
Morgenstrasse 131
3018 Bern
Zürcherstrasse 204E
9000 St. Gallen
Seetalstrasse 11
6020 Emmenbrücke
St. Jakob-Turm Birsstrasse 320B
4052 Basel
Comercialstrasse 19
7000 Chur
Spare parts service Industriestrasse 10,
5506 Mägenwil, Tel. [phone]
Specialist advice/Sale Badenerstrasse
587, 8048 Zürich, Tel. [phone]
Warranty For each product we provide a
two-year guarantee from the date of
purchase or delivery to the consumer (with
a guarantee certificate, invoice or sales
receipt serving as proof). The guarantee
covers the costs of materials, labour and
travel. The guarantee will lapse if the
operating instructions and conditions of
use are not adhered to, if the product is
incorrectly installed, or in the event of
damage caused by external influences,
force majeure, intervention by third parties
or the use of non-genuine components.
ENGLISH 19

12. ENVIRONMENT CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
For Switzerland:
Where should you take your
old equipment?
Anywhere that sells new
equipment or hand it in to
official SENS collection points
or official SENS recycling
firms.
The list of official SENS
collection points can be
found at www.erecycling.ch
www.electrolux.com20
