Electrolux DC6-8HP m User manual

Installation manual
Drying Cabinet
DC6-8HP_m
Original instructions
427001226/GB, IE
2023.09.25

Contents
Contents
1 Safety Precautions ..............................................................................................................................5
1.1 General safety information..........................................................................................................5
1.2 Symbols....................................................................................................................................5
2 Technical data.....................................................................................................................................6
2.1 Dimensions drawing...................................................................................................................6
2.2 Technical data ...........................................................................................................................7
3 Delivery ..............................................................................................................................................8
3.1 Placement.................................................................................................................................8
3.2 Ventilating the room ...................................................................................................................8
4 Assembly instructions, cabinet part.......................................................................................................9
5 Dehumidifier unit ...............................................................................................................................24
5.1 Unpacking...............................................................................................................................24
5.2 Installation kit for dehumidifier unit.............................................................................................24
5.3 Setup......................................................................................................................................24
6 Attachment to the wall........................................................................................................................28
7 Electrical connection..........................................................................................................................29
7.1 Network Functions ...................................................................................................................29
7.2 Connecting to ELS Vision .........................................................................................................30
7.3 Connecting to an external payment system................................................................................31
7.4 Restore factory settings............................................................................................................31
8 Connection to floor drain ....................................................................................................................32
9 Move the condensation connection to the right side .............................................................................33
10 Language setting...............................................................................................................................34
11 Function check..................................................................................................................................35
12 Disposal information ..........................................................................................................................36
12.1 Disposal of appliance at end of life ............................................................................................36
12.2 Disposal of packing..................................................................................................................36
The manufacturer reserves the right to make changes to design and component specifications.

Installation manual 5
1 Safety Precautions
WARNING. This appliance is intended only for drying textiles washed in water.
DO NOT MODIFY THIS APPLIANCE.
Servicing shall be carried out only by authorized personnel.
Only authorized spare parts shall be used.
When performing service or replacing parts, the power must be disconnected.
A-weighted emission sound pressure level at workstations: <70 dB
Additional requirements for the following countries: AT, BE, BG, HR, CY, CZ, DK, EE, FI,
FR, DE, GR, HU, IS, IE, IT, LV, LT, LU, MT, NL, NO, PL, PT, RO, SK, SI, ES, SE, CH, TR,
UK:
• This appliance can be used in public areas.
• This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not play with the appli-
ance. Cleaning and user maintenance shall not be made by children without
supervision.
Additional requirements for other countries:
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised to ensure that they
do not play with the appliance.
1.1 General safety information
Do not hose down the machine with water.
In order to prevent damage to the electronics (and other parts) that may occur as the result of condensation, the ma-
chine should be placed in room temperature for 24 hours before being used for the first time.
1.2 Symbols
Caution
Caution, hot surface
Read the instructions before using the machine.
Be careful. The drying cabinet is top heavy and can tip over easily.

6Installation manual
2 Technical data
2.1 Dimensions drawing
E
FD
C
A
K
G
1
B
2
J
HI
fig.W01354
A B C D E F G H I J K
mm 1195 645 2061 424 1080 90 2079 436 452 809 850
1 Control panel
2 Condensation nipple ⌀18 mm. 3 m hose included.

Installation manual 7
2.2 Technical data
Capacity: kg of laundry 6 - 8
Drainage capacity: g/min* 50
Electrical connection: 400V 3N AC 50 Hz
Traditional threaded fuse: A 10 slow-blow
Automatic fuse: A 10
Power: kW 2.3
Hanging length: meters 18
Weight: kg 189
Sound pressure level: A-weighted emission sound pressure level
dB (A)
<55
Average heat emission per drying cycle used
to assess ventilation need**:
kW 1.7
* 6 kg dry weight cotton, 50% residual moisture.
** For assistance with dimensioning necessary ventilation needs, contact authorized ventilation technician. For suffi-
cient ventilation all sources introducing heat need to be taken into account plus all other parameters effecting the
ventilation need. Climate zone, building parameters, room size, etc.
Connections
Connection, condensation Plastic hose dim ⌀18 mm. 3 m hose included.
Heat pump
Type of refrigerant R407C
Amount of refrigerant kg 0.925
Fluorinated greenhouse gases
This product contains fluorinated greenhouse gases.
GWP: 1774
CO2equivalent: 1.641 t
Leak test: 28 bar
Hermetically sealed.
Energy consumption and drying times
Drying of centrifuged laundry **)
Programs: Normal drying
Energy consumption: kWh / kg of laundry 0.35
Energy dried water: kWh / liter 0.70
Drying time ***): minutes 60
**) The values may vary depending on:
• speed during spin cycle
• temperature, humidity in the room
• air circulation in the room (supply air, exhaust air)
• settings in the parameter list regarding moisture sensor and time for the SUN program
The values relate to a 6 kg (dry weight) load of cotton with 50% residual moisture.
***) The drying cabinet reconditions 5 minutes after the textiles have dried

8Installation manual
3 Delivery
The cabinet is delivered unassembled as two transport units, an upper part the contains the dehumidifier unit and a
lower part of the cabinet.
1400
1852
1220
180 kg
1
5
3
6
4
2
fig.W01355
1 Wood packaging
2 Packaging, upper part
3 Packaging, package 1
4 Packaging, package 2
5Shoe rack
6 Hangers, installed
3.1 Placement
The drying cabinet intended for placement indoors in dry place.
Place the bottom plate in the final position of the drying cabinet.
The drying cabinet should be positioned so that there is plenty of room for working, both for the user and service
personnel.
3.2 Ventilating the room
When the machine is in operation, the room temperature increases. Due to this, the room must have sufficient
ventilation.
All sources introducing heat into the same room requires to be considered when dimensioning the ventilation. Heat
sources could for example be: more tumble dryers, drying cabinets, washers, ironers, radiators, etc. The combination
of several sources for heat introduction leads to an increased need for ventilation flow. Other factors may also influ-
ence the needed ventilation flow, such as climate zone, building parameters, room size, etc. For assistance with di-
mensioning necessary ventilation needs, contact authorized ventilation technician.

Installation manual 9
4 Assembly instructions, cabinet part
Figure number Heading
2 Assembly pieces
3 Installation kit, cabinet part
4 Recommended tools
5Placement and leveling of the bottom plate
6 Installation of rear piece

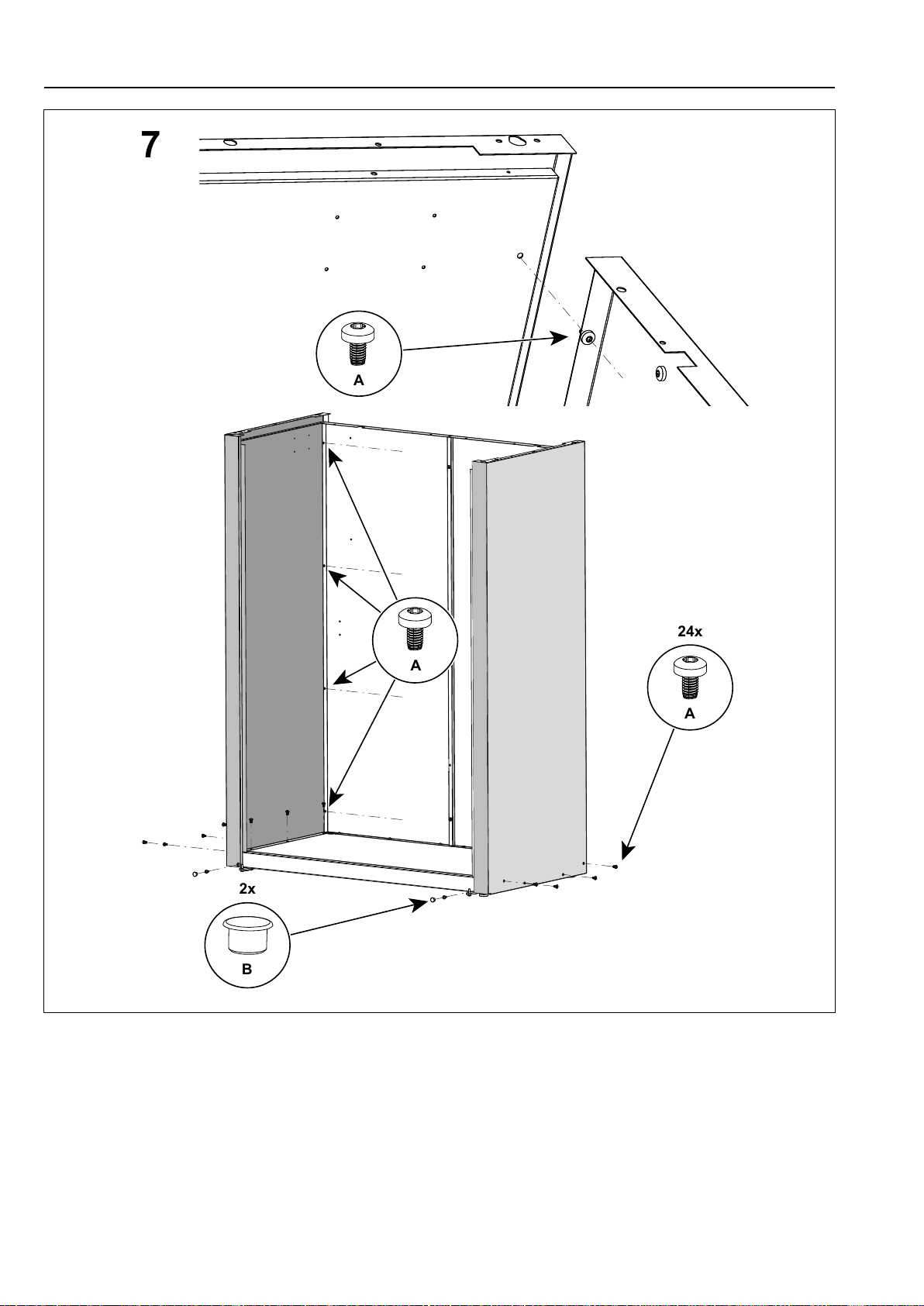

7Installation of side plates

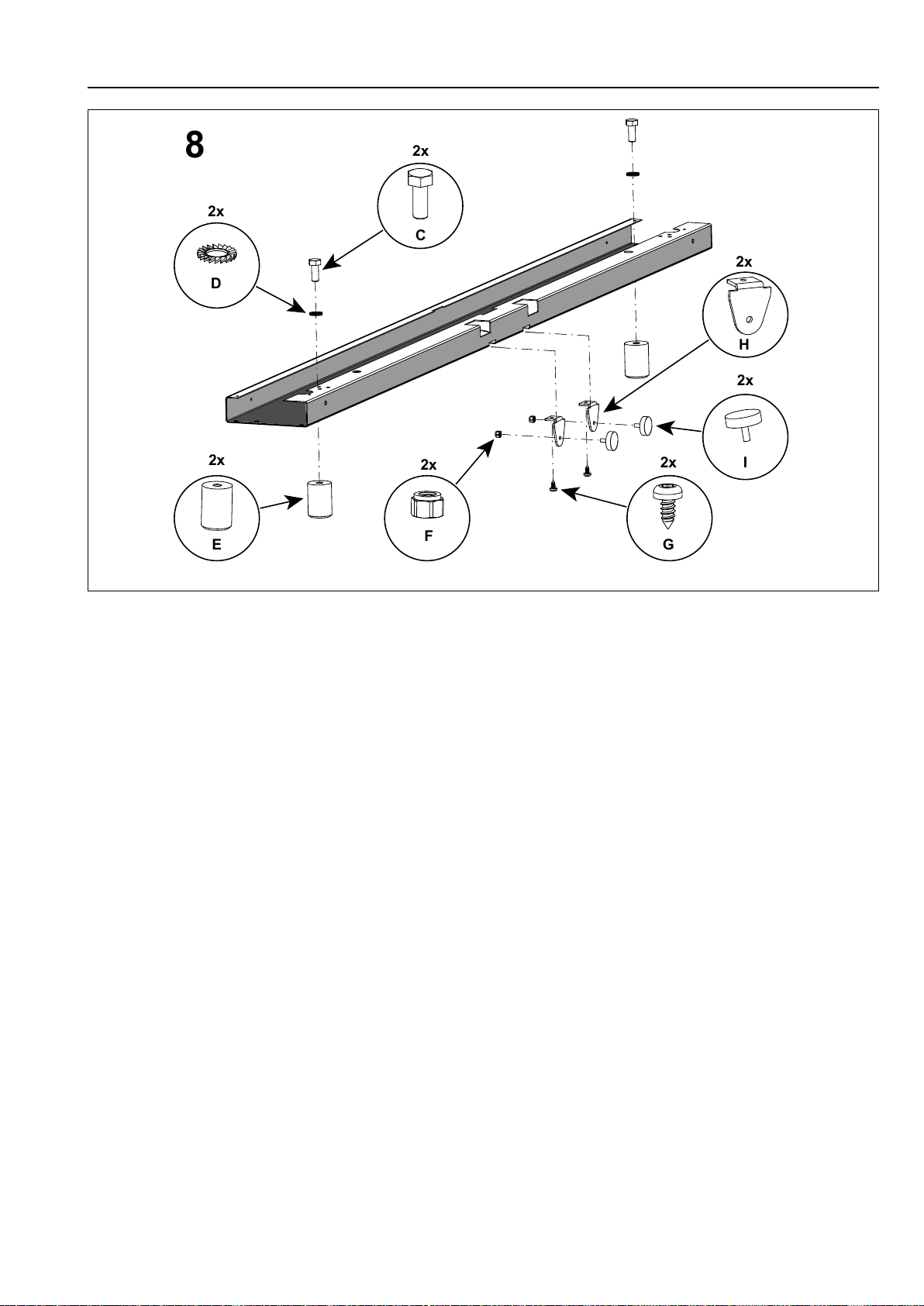

8 Assembly of front beam (over the doors)
9 Installation of front and rear beam
10 Installation of air duct
11 Installation of flat drying frame
12 Installation of lock for extendable hangers
13 Installation of lower bracket for hangers
14 Installation of left door
15 Installation of right door
16 Door adjustment
17 Installation of hangers and shoe rack

10 Installation manual
2
1
5
3
6
4
II
I
fig.W01356

Installation manual 11
3
Y 2x 57000297
X 2x 67001135
W 2x 67001934
V 2x 67001791
T 1x 67001933
S 4x 67001556
R 4x 67001544
Q 1x 67001932
P 2x 67000502
O 1x 67001567
N 4x 67001931
M 1x 67000690
L 1x
K 1x
J 2x
I 3x
H 2x
G 49x
F 3x
E 2x
D 3x
C 11x
B 2x
A 47x
67001330
67000074
67001245
67001130
67001131
67001907
67001930
67000073
67001825
57000441
67001576
67001929
fig.W01357A

12 Installation manual
4
1
5
234
fig.W01358
1 Socket Torx T20, T25, T30, Allen 4.0
2 13 mm
3 10 mm
4 7 mm
5 0.5x3
5
fig.W01359

Installation manual 13
6
A
9x
fig.W01360

14 Installation manual
7
A
B
A
A
24x
2x
fig.W01361

Installation manual 15
8
C
2x
E
2x
D
2x
F
2x
G
2x I
2x
H
2x
fig.W01362

16 Installation manual
9
A
6X
G
14X
fig.W01363

Installation manual 17
10
G
5x
G
5x
fig.W01364A

18 Installation manual
A
4x
J
2x
F
1x
I
1x
11
fig.W01365A

Installation manual 19
12
G
4x
fig.W01366A
13
C
3x
K
1x
L
1x
D
1x
Y
2x
fig.W01367

20 Installation manual
14
N
2x
S
4x
O
1x
G
16x
fig.W01368
