1. SAFETY PRECAUTIONS
Read the manual carefully before operation.
Keep the manual for further reference.
This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be
made by children without supervision.
If something abnormal occurs (e.g. unpleasant smells of
burning), disconnect the unit from the power supply and
contact an authorised service centre. If the abnormality
remains, the air conditioner may be damaged or even
cause electric shock or fire.
Before cleaning or maintenance, switch off the unit and
disconnect the unit from the power supply. If the unit is
connected to a fuse box, remove the fuse.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.
Do not use an unspecified mains cord to prevent electric
shock or fire.
The unit must be installed according to national regulations
for electrical safety. Incorrect wiring can lead to over heat
or fire in the cable, the plug or the electrical outlet.
Do not switch on and off the unit frequently.
If the voltage is too high, electrical elements will be
damaged easily, If the voltage too low, the compressor will
vibrate fiercely and damage the cooling system or the
compressor. Electrical components cannot be operated.
Make sure that the unit is properly grounded to prevent
electric shock.

3 www.electrolux.com
Do not attempt to repair the unit yourself to prevent electric
shock or fire. Have the unit repaired by an authorised
service centre.
Keep combustible materials at least 1 m from the unit to
prevent fire or explosion.
Install the outdoor unit firmly to prevent personal injury.
Do not stand on the outdoor unit. Do not place heavy
things on the outdoor unit.
Do not block the air inlet or the air outlet.
Do not splash water on the unit to prevent electric shock.
Do not operate the unit with wet hands to prevent electric
shock.
Do not insert your hands or objects into the air inlet or the
air outlet.
Do not expose animals or plants directly to the air flow.
Do not expose yourself to cold air directly for a long time.
Do not use the unit for any other purpose, such as
preserving food or drying clothes.
Select the most appropriate temperature to save electric
energy.
Do not keep windows and doors open for a long time
during operation.
To change the airflow direction, use remote control to
adjust the horizontal and vertical airflow direction.

ENGLISH 4
Do not dispose this product as unsorted municipal waste.
Collection of such waste separately for special treatment is
necessary.
Correct Disposal of this product
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent
possible harm to the environment or human health from
uncontrolled waste disposal, recycle it responsibly to promote
the sustainable reuse of material resources. To return your
used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can
take this product for environmental safe recycling.
You can also get this manual through your local distributor
or by visiting our website.
Please find the Electrolux web addresses to your local country from below table.
Country Website address Country Website address
Albania www.electrolux.al Netherlands www.electrolux.nl
Austria www.electrolux.at Norway www.electrolux.no
Belgium www.electrolux.be Poland www.electrolux.pl
Bulgaria www.electrolux.bg Portugal www.electrolux.pt
Croatia www.electrolux.hr Romania www.electrolux.ro
Czech Republik www.electrolux.cz Serbia www.electrolux.rs
Denmark www.electrolux.dk Slovakia www.electrolux.sk
Finland www.electrolux.fi Slovenia www.electrolux.sl
France www.electrolux.fr Spain www.electrolux.es
Germany www.electrolux.de Sweden www.electrolux.se
Greece www.electrolux.gr Switzerland www.electrolux.ch
Hungary www.electrolux.hu Turkey www.electrolux.com.tr
Italy www.electrolux.it UK & Ireland www.electrolux.co.uk
Luxembourg www.electrolux.lu
Please visit www.electrolux.com for more information.

5 www.electrolux.com
2. DESCRIPTION
3. REMOTE CONTROL
The remote control can be used for
different models. Depending on the
model, some functions on the remote
control might not be available.
CAUTION

Do not drop or throw the remote
control.

Do not pour liquid onto the remote
control.

Do not expose the remote control
to direct sunlight.
Do not place the remote control in
areas where it is very hot.
Indoor unit
Air inlet (indoor unit)
Air outlet (indoor unit)
Outdoor unit
Air inlet (outdoor unit)
Air outlet (outdoor unit)
Mains cord
Remote control
Front panel
Filter
Horizontal louvre
Wall pipe
Binding tape
Connection pipe
Drain hose
Drain connector

ENGLISH 6
Explanation of buttons
No. Button Explanation
ON/OFF Press the button to switch on the unit. Press the button again
to switch off the unit.
MODE Press the button to set the operation mode: AUTO, COOL,
DRY, HEAT and FAN. Default setting: AUTO.
In the AUTO mode, the initial value is 24 °C.
FAN Press the button to set the fan speed: AUTO, LOW, MEDIUM
and HIGH. Default setting: AUTO. In the DRY mode, only
LOW can be set.
UP ^ Press the button to increase the temperature. Each press will
increase the setting temperature 1 °C increments. Release
the button to set the temperature and send the order, then
the setting temperature will be displayed constantly.
Temperature range: 17-30 °C.
In FAN mode, the temperature cannot be set.
DOWN v Press the button to increase the temperature. Each press will
increase the setting temperature 1 °C increments. Release
the button to set the temperature and send the order, then
the setting temperature will be displayed constantly.
Temperature range: 17-30 °C.
In FAN mode, the temperature cannot be set.
LED Press the button to switch the display of the indoor unit on or
off. Default setting: OFF.
TURBO In COOL or HEAT mode, press the button to enable or
disable the turbo function. If the turbo function is enabled, the
turbo symbol will be shown. Default setting: OFF.
If the turbo function is enabled, the unit will operate at turbo
speed to cool or heat rapidly so that the ambient temperature
approaches the set temperature as soon as possible.
If the operation mode or the fan speed is changed, the turbo
function will be canceled.
TIMER ON Press this button to initiate the auto-on time sequence. Each
press will increase the auto-timed setting in 30 minutes
increments. When the setting time displays 10, each press
will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-on
time to 0.0.

7 www.electrolux.com
TIMER OFF Press this button to initiate the auto-off time sequence. Each
press will increase the auto-timed setting in 30 minutes
increments. When the setting time displays 10, each press
will increase the auto-timed setting 60 minutes increments.
To cancel the auto-timed program, simply adjust the auto-off
time to 0.0.
DIRECT Used to change the louver movement and set the desired
up/down air flow direction. The louver changes 6° in angle
for each press.
SWING Used to stop or start horizontal louver auto swing feature.
FRESH Press this button to enable or disable the clean air function. If
the clean air function is enabled the clean air symble on the
indoor unit display will be shown.
This air conditioner is equipped with ionizer or Plasma Dust
Collector(Depending on specific configuration of the model).
With the anions generated by Ionizer, the air circulation of the
air conditioner fills the room with refreshing, natural and
healthy air. The Plasma Dust Collector generates a high
voltage ionization zone, through which the air is converted to
plasma. Inside the air most of the dust, smoke, and pollen
particles are captured by the electrostatic filter.
SLEEP Press the button to enable or disable the SLEEP function,
during AUTO, COOL or HEAT mode
If you enable SLEEP function under COOL mode, the air
conditioner will automatically increase setting temperature
1°C per hour for the first 2 hours, then hold steadily for
thenext 5 hours, after that it will switch off. This mode saves
you energy and brings you comfort at night.
If you enable SLEEP function under HEAT mode, the air
conditioner will automatically decrease setting temperature
1°C per hour for the first 2 hours, then hold steadily for
thenext 5 hours, after that it will switch off. This mode saves
you energy and brings you comfort at night.
SELF-
CLEAN
Press the button to enable or disable the SELF-CLEAN
function, during AUTO (cooling), COOL or DRY mode.
The unit will operate as following sequence : FAN ONLY
mode at Low fan speed--Heating operation with LOW fan
speed(applicable to cooling & heating modles only) --FAN
ONLY operation--Stop Operation---Turn off.
This function is only available under COOL(AUTO COOL,
FORCED COOL) and DRY mode.

ENGLISH 8
Before select the function, it is recommended to run the air
conditioner under Cooling operation for about half an hour.
Once the Self Clean function is activated, all TIMER setting
will be cancelled.
During Self Clean operation, when press the SELF CLEAN
button on the remote controller again will stop the
operation and turn off the unit automatically.
FOLLOW
ME
Push this button to initiate the Follow Me feature, the remote
display is actual temperature at its location. The remote
control will send this signal to the air conditioner every 3
minutes interval until press the Follow Me button again. The
air conditioner will cancel the Follow Me feature
automatically if it does not receive the signal during any 7
minutes interval.
SHORTCUT Used to restore the current settings or resume previous
settings.
Push this button when remote controller is on, the system
will automatically revert back to the previous settings
including operating mode, setting temperature, fan speed
level and sleep feature(if activated). And transmit the signals
to the unit.
If push this button when remote controller is off, the system
will only resume the previous settings and will not transmit
the signals to the unit. And the sleep feature is disable.
If pushing more than 2 seconds, the system will
automatically restore the current operation settings including
operating mode, setting temperature, fan speed level and
sleep feature(if activated ).
3.1. General operation
1. Disconnect the unit from the power
supply.
2. Press the ON/OFF button to start
the unit.
3. Press the MODE button to set the
operation mode.
4. Press the UP and DOWN buttons
to set the temperature. (Note: It is
unnecessary to set the
temperature in FAN mode.)
5. Press the FAN button to set the
fan speed.
6. Press the DIRECT and SWING
buttons to set the swing.
3.2. Optional operation
1. Press the SLEEP button to enable
or disable the sleep mode.
2. Press the TIMER ON and TIMER
OFF buttons to enable or disable
the timer function.
3. Press the LED button to turn on or
to turn off the display of the indoor
unit.
4. Press the TURBO button to enable
or disable the turbo function.
3.3. Special functions
AUTO mode
The unit automatically sets the
operation mode

9 www.electrolux.com
3.4. Replacing the batteries
The remote control operates with two
1.5V AAA batteries.
1. Open the battery compartment.
2. Remove the old batteries.
3. Insert the new batteries. Make sure
that the positive (+) and negative (-)
markings on the batteries match the
positive (+) and negative (-)
markings on the battery
compartment.
4. Close the battery compartment.
CAUTION

Always use new batteries of the same
type. Do not use old batteries or
different batteries types.

Remove the batteries when the
remote control will not be used for a
long time.
NOTE:

Operate the remote control within its
transmitting and receiving range.
 Operate the remote control at least
1 m away from your TV set or stereo
sound set.
 Aim the remote control at the receiver
of the main unit to improve the
receiving sensitivity of the main unit.
 If the remote control transmits a
signal, the transmitting symbol will
blink. The bell will ring if the main unit
receives the signal.
 If the remote control does not operate
normally, remove the batteries and
insert them again 30 seconds later.
If the remote control still does not
operate normally, replace the
batteries.
3.5. Emergency operation
Units are equipped with a switch to run
emergency operation mode. It can be
accessed by opening the front panel.
This switch is used for manual operation
in case the remote controller fails to
work or maintenance necessary.
1. Open and lift the front panel up to an
angle until it remains fixed with a
clicking sound. For some models,
please use suspension bars to prop
up the panel.
2. One press of the manual control
switch will lead to the forced AUTO
operation. If press the switch twice
within five seconds, the unit will
operate under forced COOL operation.
To turn off the unit, press the switch
again.
3. Close the panel firmly to its original
position
NOTE

The unit must be turned off before
operating the manual control button. If
the unit is operational, continue
pressing the manual control button
until the unit is off.
 To restore the remote controller
operation, use the remote controller
directly.

ENGLISH 10
4. CLEANING AND MAINTENANCE
WARNING

Before cleaning and maintenance,
disconnect the unit from the power
supply.

Do not immerse the unit in water or
other liquids. If the unit is immersed in
water or other liquids, do not remove
the unit with your hands. Immediately
disconnect the unit from the power
supply. If the unit is immersed in
water or other liquids, do not use the
unit again.
 Do not splash water on the unit to
prevent electric shock.
CAUTION

Do not use aggressive liquids (e.g.
thinner or gasoline) to clean the unit.
Clean the unit using a soft, dry cloth
or a cloth slightly moistened with
water or cleaner.
4.1. Cleaning the front panel
1. Remove the front panel.
2. Clean the front panel using a cloth
slightly moistened with water.
3. Install the front panel.
4.2. Cleaning the air filter
The air filter must be cleaned every
3 months.
Air freshening filter
WARNING
 Do not touch the fin of the indoor unit
to prevent personal injury.
CAUTION

Do not use water above 45 °C to
clean the air filter to prevent
deformation or discoloration.

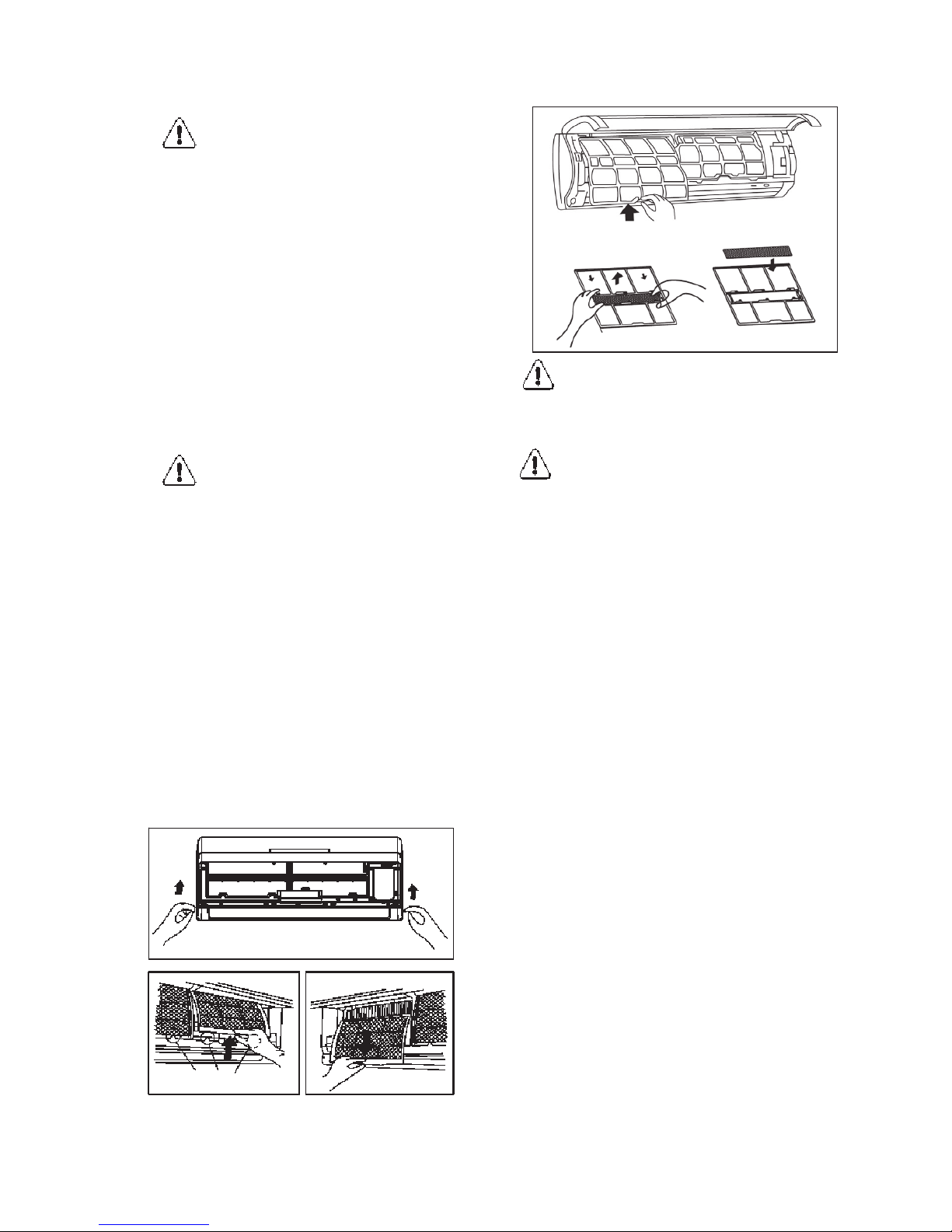

1. Open the front panel.
2. Remove the air filter.
3. Remove dust from the air filter using
a vacuum cleaner.
4. If the air filter is dirty, clean the air
filter with warm water and a mild
detergent. Allow the air filter to dry
naturally in a cool, dark place.
5. Install the air filter.
6. Close the front panel.
4.3. Check before use

Make sure that nothing obstructs the
air inlet or the air outlet.
 Make sure that the installation stand
of the outdoor unit is not damaged. If
the installation stand is damaged,
consult a qualified technician.
 Make sure that the batteries are
inserted into the remote control.
4.4. Maintenance after use

Disconnect the unit from the power
supply.
 Clean the filters and the housings of the
indoor unit and the outdoor unit.
 Remove any obstructions from the
outdoor unit.
Filter Handle

11 www.electrolux.com
5. TROUBLESHOOTIN
CAUTION

The unit is not user-serviceable. Do
not attempt to repair the unit yourself
to prevent electric shock or fire. Have
the unit repaired by an authorised
service centre. The following checks
can save you time and money before
consulting an authorised service
centre.
Problem Solution
The unit does not operate. The unit does not operate if it is switched on
immediately after switching off the unit. After
switching off the unit, wait for approximately 3
minutes before switching on the unit.
Odours are emitted. Some odours may be emitted from the indoor
unit as the result of room smells (furniture,
tobacco, etc.) which have been taken into the
unit. If the odours persist, contact an
authorised service centre.
Water-flowing noise. The water-flowing noise is the refrigerant
flowing inside the unit.
Mist is emitted in COOL mode. During cooling operation, mist may be emitted
from the indoor unit due to high room
temperature and humidity. The mist will
disappear if the room temperature and
humidity decrease.
Cracking noise.
The cracking noise is the sound of friction
caused by expansion and/or contraction of the
front panel or other parts due to the change in
temperature.
The unit cannot be started. Is the unit disconnected from the power
supply?
Is the mains plug loose?
Is the circuit protection device tripped off?
Is the voltage higher or lower? (tested by
professionals)
Is the timer function used correctly?
The cooling/heating effect is poor. Is the temperature set correctly?
Is the air inlet or the air outlet blocked?
Is the air filter dirty?
Is the window or the door open?
Is a low fan speed set?
Are there heat sources in the room?

ENGLISH 12
The remote control does not
work. Is there any magnetic or electrical
interference near the unit? If yes, remove
and reinsert the batteries.
Is the remote control within its transmitting
and receiving range without any
obstructions? If necessary, replace the
batteries.
Is the remote control damaged?
Water leakage in indoor unit. The room humidity is high.
Condensing water overflows.
The drain hose is loose.
Water leakage in outdoor unit. In COOL mode, water condensate is
generated around the pipes and connection
joints.
In HEAT mode, the water on the heat
exchanger drips out.
In defrost mode, the thaw water flows out.
Noise from indoor unit. The noise emitted when the fan or
compressor relay is switched on or off.
If the defrost mode is started or stopped, you
will hear the sound of refrigerant flowing in
the reverse direction.
The indoor unit cannot blow air. In HEAT mode, when the temperature of the
indoor heat exchanger is low, the airflow is
stopped within a few minutes in order to
prevent cold air.
In HEAT mode, when the outdoor
temperature is low or the outdoor humidity is
high, frost will be formed on the outdoor heat
exchanger. The unit will defrost automatically
and the indoor unit will stop blowing air for 4-
10 minutes.
In defrost mode, water or vapour may be
emitted.
Moisture on air outlet. If the unit operates at high humidity for a long
time, moisture will be generated on the grill
of the air outlet.
If one of the following code
appears on the display area :
E0,E1,E2,E3...or P0,P1,P2,P3...
Stop the air conditioner immediately,
disconnect the power and then connect it in
again. If the problem still exists, disconnect
the power and contact the nearest customer
service center.
There is harsh sound during
operation. Immediately stop operation, disconnect the unit from the power supply and contact an
authorised service centre.
Strong odours are emitted during Immediately stop operation, disconnect the

13 www.electrolux.com
operation. unit from the power supply and contact an
authorised service centre.
Water is leaking from the indoor
unit.
Immediately stop operation, disconnect the
unit from the power supply and contact an
authorised service centre.
The air switch or protection switch
often interrupts power supply.
Immediately stop operation, disconnect the
unit from the power supply and contact an
authorised service centre.
Water or other liquid is splashed
into the unit.
Immediately stop operation, disconnect the
unit from the power supply and contact an
authorised service centre.
Mains cord and mains plug are
overheated.
Immediately stop operation, disconnect the
unit from the power supply and contact an
authorised service centre.
6. OPERATION TIPS
6.1. Cooling operation
Air conditioners absorb heat from indoor
and transmit the heat to the outdoor unit
in order to decrease the room
temperature. The cooling capacity will
increase or decrease according to the
outdoor temperature.
Anti-freezing function
COOL mode and in a low ambient
temperature, frost will be formed on the
heat exchanger of the indoor unit. If the
temperature of the heat exchanger
decreases below zero, the compressor
will stop operation to protect the unit.
6.2. Heating operation
Air conditioners absorb heat from
outdoor and transmit the heat to the
indoor unit in order to increase the room
temperature. The heating capacity will
increase or decrease according to the
outdoor temperature.
Defrosting
If the outdoor temperature is low and
the outdoor humidity is high, frost will
form on the outdoor unit during
extended operation. The heating
capacity will decrease. The unit may
stop operation during defrosting.
During defrosting, the fan motors of
the indoor unit and outdoor unit will
stop operation.
During defrosting, the indoor indicator
flashes and the outdoor unit may emit
vapour. This is normal operation to
remove frost from the heat exchanger
of the outdoor unit.
After defrosting, the heating operation
will resume automatically.
6.3. Refrigerant Leakage
Detection
With this new technology, the dipsplay
area will appear EC and the indication
lamps continue flashing when the
outdoorunit detects refrigerant leakage.

ENGLISH 14
6.4. Anti-cold air function
In HEAT mode, the indoor fan will not
operate in order to prevent cold air from
blowing out if the indoor heat exchanger
does not reach a certain temperature in
one of the following situations:
when the heating operation starts;
when the defrosting operation is
finished;
when heating at low temperature.
6.5. Gentle breeze
The indoor unit may blow gentle breeze
and the horizontal louvre rotates to
acertain position in one of the following
situations:
In HEAT mode, the compressor does
not start operation after switching on
the unit.
In HEAT mode, the temperature
reaches the set value and the
compressor has stopped operation for
1 minute.
6.6. Opetaring temperature
range
The operating temperature range for
cooling-only units is 0-50 ˚C. The
operating temperature range for heat-
pump units is -15-(+30)˚C.
Indoor side (°C) Outdoor side (°C)
Max. cooling 32 50
Min. cooling 17 0
Max. heating 30 30
Min. heating 0-15
6.7. Tip for energy saving
Do not overcool or overheat. Setting
the temperature at a moderate level
helps energy saving.
Cover windows with a blind or a
curtain. Blocking sunlight and air from
outdoor is favorable for cooling.
Clean air filters every two weeks.
Clogged air filters lead to inefficient
operation and energy waste.
6.8. Tip for relative humidity
If the unit is operated in an area with
a relative humidity of more than 80%
for a long time, condensate may drip
from the indoor unit.
7. INSTALLATION
7.1. Installation notes
Not following the instructions can
cause personal injury and/or property
damage.
Not following the instructions can
cause the unit to fail.
Let the unit be installed by an
authorised service centre.
Let the unit be installed in compliance
with local and governmental
regulations.
Let the unit be installed according to
the instructions from this manual.
First contact an authorised service
centre before relocating an already
installed unit
Disconnect power before working on
the unit.
The mains plug must remain
accessible after installation.
Keep sufficient distance between the
interconnection cable and the
refrigerant circuit because the circuit
operating temperature is high.
The pipes connecting the indoor and
outdoor unit are not included in the
unit.

15 www.electrolux.com
The outdoor unit is powered by the
indoor unit.
This air conditioner uses R410A
refrigerant
7.2. Installation site
Do not install the unit in areas with:
- strong heat sources;
- vapours or flammable gasses;
- contamination with oil particles;
- high frequency electromagnetic
equipment (e.g. welding equipment or
medical devices);
- high salinity (e.g. close to coastal
areas);
- sulphuric gas (e.g hot water springs);
- poor air quality.
Indoor unit
Maintain the minimum installation
distances specified in this document.
Do not block the air inlet or the air
outlet.
Do not use the unit in places with
extremely high humidity.
Install the indoor unit out of reach of
children.
The wall must be strong enough to
support the weight and vibration of
the unit.
Install the indoor unit at least 230 cm
above the floor surface.
Leave sufficient space for cleaning
and maintenance.
The air filter should remain accessible.
Leave at least 1 m distance between
the unit and other electrical
appliances.
Install the indoor unit in a place where
the condensate water can be seaily
drained.
Install at a location protected from
direct sunlight.
Outdoor unit
Maintain the minimum installation
distances specified in this document.
Do not block the air inlet or the air
outlet.
Install the outdoor unit out of reach of
children.
Install the outdoor unit where there is
sufficient ventilation.
Install the outdoor unit where
produced noise and airflow will not
disturb neighbors or animals.
Install the outdoor unit in a dry place.
Install the outdoor unit in a place not
exposed to direct sunlight or strong
wind.
Install the unit in a place that supports
the weight and vibration of the unit.
The height difference between the
indoor unit and the outdoor unit must
be less than 5 m.
The length of the connecting pipes
must be less than 10 m.
Leave sufficient space for cleaning.
The outdoor unit is powered by the
indoor unit.
Safety precautions for electrical
appliances
Use a dedicated mains circuit.
The unit must be properly grounded.
Install a Residual-current device
(RCD) to protect against personal
injury in case of leakage currents.
Use an all pole disconnection switch
with a contact separation of at least 3
mm in all poles in fixed wiring. For
models with a mains plug, make sure
that the mains plug is within reach
after installation.
The installation must comply with
local electrical safety regulations and
with other relevant local regulations
The unit must be installed in
accordance with national wiring
regulations.
Do not subject the mains cable to
force.

ENGLISH 16
The distance between the unit and
heat sources is at least 1.5 m.
Use an circuit breaker. The air switch
must have functions for magnetic
tripping.
and heat tripping to prevent short
circuit and overload. The suitable
capacity is specified in the following
table.
Cooling Capacity (BTU) Circuit Breaker
9,000 16A
12,000-18,000 20A
24,000 25A
NOTE
Make sure that the live wire, the
neutral wire and the ground wire in
the mains socket are properly
connected.
Inadequate or incorrect electrical
connections can cause electric shock
or fire.
Grounding requirements
The unit is a type I electrical
appliance. Make sure that the unit is
properly grounded.
The yellow-green wire is the ground
wire that cannot be used for other
purposes. Improper grounding can
cause electric shock.
The ground resistance must comply
with local regulations.
The mains supply must have reliable
ground terminal. Do not connect the
ground wire to water pipes, gas pipes,
contamination pipes or other possible
unsafe places.
Fuses must comply with the
prescribed model and rating printed
on the fuse cover or circuit board.

17 www.electrolux.com

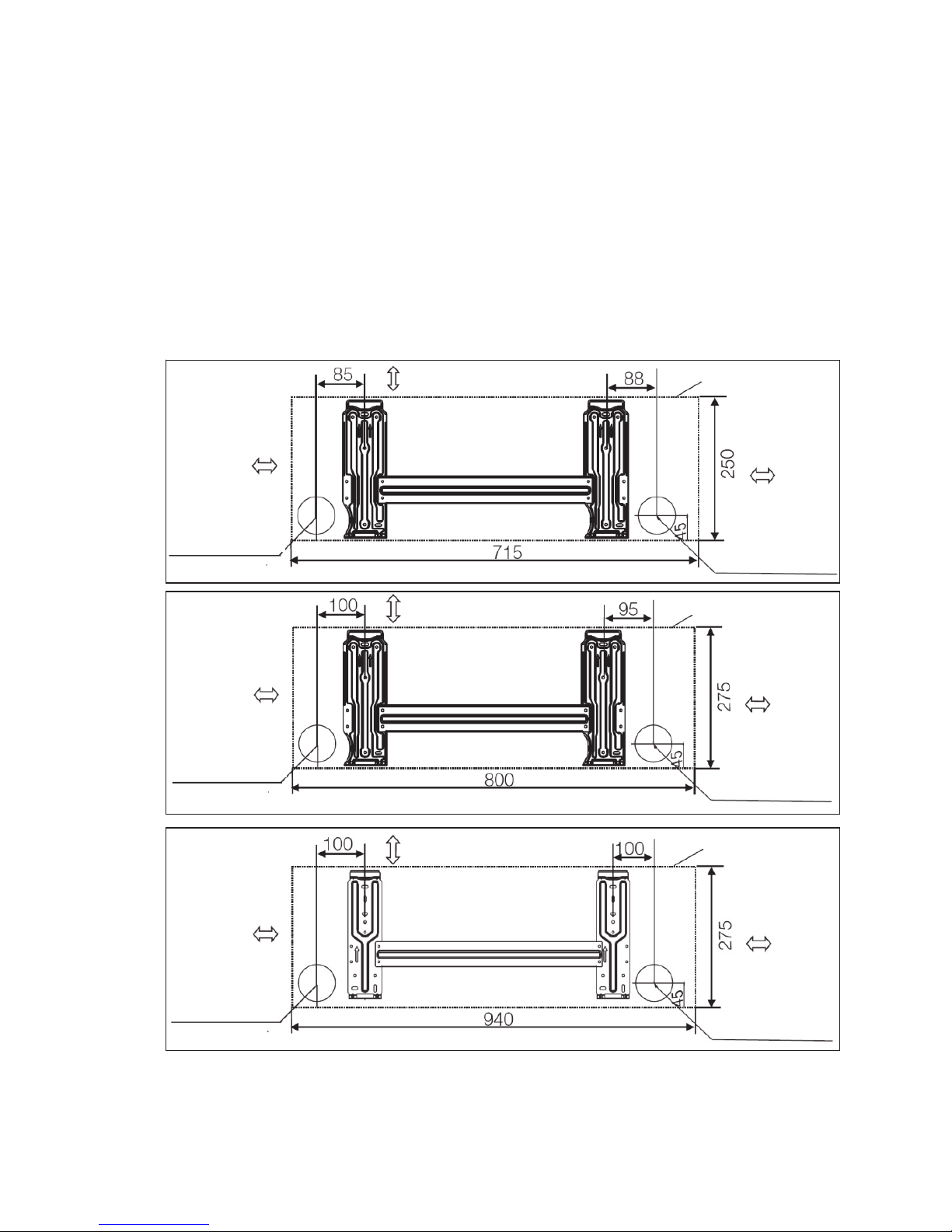

7.3. Installation drawing
The dimensions required for proper
installation of the unit include the
minimum permissible distances to
adjacent parts.
* Recommended distance for
maximum airflow is 15 cm.

ENGLISH 18
7.4. Indoor unit
Installing the mounting plate
Fit the installation plate horizontally
on structural parts of the wall with
spaces around the installation plate.
If the wall is made of brick, concrete
or the like, drill five or eight 5mm
diameter holes in the wall. Insert Clip
anchor for appropriate mounting
screws.
Fit the installation plate on the wall
with five or eightSelf-tapping Screw
ST3.9x25.
NOTE:
Mount the Installation Plate and drill
holes in the wall according to the wall
structure and corresponding mounting
points on the installation plate.
The installation plate provided
with the machine differ from appliance
to appliance.
Dimensions are in mm unless
otherwise stated.
150mm or more to ceiling
120mm or
more to wall 120mm or
more to wall
Indoor unit outline
18000Btu/h models
Left rear side
refrigerant pipe
hole Ø 65 Right rear side
refrigerant pipe
hole Ø 65
12000Btu/h models
120mm or
more to wall 120mm or
more to wall
Left rear side
refrigerant pipe
hole Ø 65 Right rear side
refrigerant pipe
hole Ø 65
150mm or more to ceilin
g
Indoor unit outline
150mm or more to ceiling
120mm or
more to wall
Left rear side
refrigerant pipe
hole Ø 65
9000Btu/h models
120mm or
more to wall
Indoor unit outline
Right rear side
refrigerant pipe
hole Ø 65

19 www.electrolux.com
Drill piping hole
1. Slant the piping hole (Ø 65 mm) on
the wall slightly downward to the
outdoor side.
2. Insert the piping-hole sleeve into the
hole to prevent damage to the
connection piping and wiring.
Installing the drain hose
1. Connect the drain hose to the outlet
pipe of the indoor unit. Bind the joint
with rubber belt.
2. Put the drain hose into the insulating
tube.
3. Wrap the insulating tube with wide
rubber belt to prevent the insulating
tube from shifting. Slant the drain
hose slightly downward for smooth
drainage of the condensate water.
NOTE

The insulating tube must be
connected reliably with the sleeve
outside the outlet pipe. The drain
must be slanted downward slightly
without distortion, bulge or fluctuation.
Do not put the outlet of the drain hose
in water to prevent the drain hose
from freezing.
Wiring connection of indoor unit
Terminal block of indoor unit
CAUTION
 Check the wiring to make sure that
there is no short circuit. Incorrect
wiring can cause malfunction.
 Ensure the colour of wires of outdoor
unit and the terminal Nos. are the
same to the indoor’s respectively.
 The indoor power cord (purchared on
local) type is H05VV-F or H05V2V2-F,
the outdoor power cord and
interconnected cord type is H07RN-F.
150mm or more to ceilin
g
Right rear side
refrigerant pipe
hole Ø 65
120mm or
more to wall
Installation plate
24000Btu/h models
120mm or
more to wall
Indoor unit outline
Left rear side
refrigerant pipe
hole Ø 65
Front Panel Electronic
box cover
Wall
Indoor
Outdoor
5-7 mm
To outdoor unit
W
2(N)
S
1(L)
