Electrolux EHG 6835 User manual

Gas Hob
Варочные панели
Kuhala
EHG 6415
EHG 6835
EHG 6833
EHG 6815
LT
LV UAKZ
RU EE
operating instructions
Pуководство по эксплуатации
Upute za uporabu
EN HR

2electrolux

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class product from Electrolux, which hopefully
will provide you with lots of pleasure in the future.
The Electrolux ambition is to offer a wide variety of quality products that make
your life more comfortable.
You find some examples on the cover in this manual. Please take a few minutes
to study this manual so that you can take advantage of the benefits of your new
machine.
We promise that it will provide a superior User Experience delivering Ease-of-
Mind.
Good luck!

4electrolux
Important Safety Information ............................................................................. 5
Operation .......................................................................................................... 7
Using the hob correctly ..................................................................................... 8
Cleaning and Maintenance ................................................................................ 9
Guarantee ....................................................................................................... 20
For the User
For the Installer
Technical data ................................................................................................. 11
Installation ....................................................................................................... 13
Adaptation to different types of gas ................................................................. 15
Electrical Connection ....................................................................................... 16
Building In ....................................................................................................... 17
Possibilities for insertion .................................................................................. 19
Contents
The following symbols will be found in the text to guide you throughout the
Instructions:
Safety Instructions
Step by step instructions for an operation
Hints and Tips
Environmental information
)
Guide to Use the instructions
This appliance complies with the following E.E.C. Directives:
•2006/95 (Low Voltage Directive);
•89/336 (Electromagnetical Compatibility Directive);
•93/68 (General Directives) and subsequent modifications.
It is very important that this instruction book should be kept safely for future
consultation. If the appliance should be sold or given to another person,
please ensure that the booklet goes together with it, so that the new owner
can know of the functions of the machine and also be aware of the warnings.
These instructions are only for the countries stated by the symbol printed on
the front cover of this instruction book.

electrolux 5
Installation
zThe work of installation must be
carried out by competent and qualified
installers according to the regulations
in force.
• Any modifications to the domestic
electrical mains which may be
necessary for the installation of the
appliance should be carried out only
by competent personnel.
During Operation
• This appliance has been designed for
non professional purpose in private
houses only. It is meant to cook edible
foodstuff only and must not be used
for any other purposes.
• It is dangerous to alter the specification
in any way.
• For hygiene and safety reasons, this
appliance should be kept clean at all
times. A build-up of fats or other
foodstuff could result in a fire.
• Under no circumstances should you
attempt to repair the appliance
yourself. Repairs carried out by
unexperienced persons may cause
injury or serious malfunctioning. Refer
to your local Service Centre. Always
insist on genuine spare parts.
• Ensure that all control knobs are in the
OFF position when not in use.
• Should you connect any electrical tool
to a plug near this cooking appliance,
ensure that electric cables are not in
English
This warnings has been given for the safety of you and others. We therefore
ask you to carefully read the procedures of installing and using this cooker.
Important safety information
contact with it and keep them far
enough from the heated parts of this
appliance.
• If the appliance is out of order,
disconnect it from the electric supply.
People Safety
• This appliance has been designed to
be operated by adults and children
under supervision. Young children
must not be allowed to tamper with the
controls or play near or with the oven.
• This appliance is not intended for use
by children or other persons whose
physical, sensory or mental capabilities
or lack of experience and knowledge
prevents them from using the
appliance safely without supervision or
instruction by a responsible person to
ensure that they can use the appliance
safely.
• Accessible parts of this appliance may
become hot when it is in use. Children
should be kept away until it has
cooled.
About Installation, Cleaning and
Manteinance
zIt is mandatory that all operations
required for the installation are carried
out by a qualified or competent
person, in accordance with existing
rules and regulations.
• Disconnect the appliance from the
electrical supply, before carrying out
any cleaning or manteinance work.
• Ensure a good ventilation around the

6electrolux
appliance. A poor air supply could
cause lack of oxygen.
• Ensure that the gas supply complies
with the gas type stated on the
identification label, placed near the gas
supply pipe.
• This appliance is not connected to a
combustion products evacuation
device. It must be installed and
connected in accordance with current
installation regulations. Particular
attention shall be given to the relevant
requirements regarding ventilation.
•The use of a gas cooking
appliance results in the production
of heat and moisture in the room in
which it is installed. Ensure that
the kitchen is well ventilated: keep
natural ventilation holes open or
install a mechanical ventilation
device (mechanical extractor
hood).
•Prolonged intensive use of the
appliance may call for additional
ventilation, for example opening of
a window, or more effective
ventilation, for example increasing
the level of mechanical ventilation
where present.
• Once you removed all packaging from
the appliance, ensure that it is not
damaged and the electric cable is in
perfect conditions. Otherwise, contact
your dealer before proceeding with the
installation.
•The manufacturer disclaims any
responsability should all the safety
measures not be carried out.
Service
• Under no circumstances should you
attempt to repair the appliance
yourself. Repairs carried out by
unexperienced persons may cause
injury or serious malfunctioning. Refer
to your local Service Centre. Always
insist on genuine spare parts.
Environmental Information
zAfter installation, please dispose of
the packaging with due regard to
safety and the environment.
• When disposing of an old appliance,
make it unusable, by cutting off the
cable.
The symbol on the product or
on its packaging indicates that this
product may not be treated as household
waste. Instead it shall be handed over to
the applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where you purchased the product.

electrolux 7
Operation
Hob burner control knobs
The symbols on the knobs mean:
= no gas supply
= maximum gas supply
= minimum gas supply
For easier lighting, proceed before
putting a pan on the pan support.
Lighting the burners
To light a burner, turn the relevant
knob anticlockwise to maximum
position ( ) and push down the knob
to ignite.
After lighting the flame, keep the
knob pushed down for about 5
seconds. This will allow the
"thermocouple" to be heated and the
safety device to be switched off,
otherwise the gas supply would be
interrupted. Then, check the flame is
regular and adjust it as required.
If you cannot light the flame even
after several attempts, check the "cap"
and “crown” are in the correct position.
In the absence of electricity, ignition
can occur without the electrical device;
in this case approach the burner with a
flame, push the relevant knob down and
turn it anti-clockwise until it reaches the
"maximum" position.
To switch off burners
To put the flame out, turn the knob to
the symbol ( ).
)
Take care when frying food in
hot oil or fat, as the overheated
splashes could easily ignite.
When switching on the mains, after
installation or a power cut, it is quite
normal for the spark generator to be
activated automatically.
)

8electrolux
Using the hob correctly
Practical hints
The burners
To ensure maximum burner
efficiency, you should only use pots and
pans with a flat bottom fitting the size of
the burner used.
Triple Crown Burner
diameter 18-26 cm
Rapid Burner
diameter 18-26 cm
Front Semi-rapid Burner
diameter 12-18 cm
Rear Semi-rapid Burner
diameter 12-22 cm
Auxiliary Burner
diameter 8-18 cm
• For easier lighting, proceed before
putting a pan on the pan support.
• Use only pans or pots with flat bottom.
•Take care when frying food in hot
oil or fat, as the overheated
splashes could easily ignite.
• If you use a saucepan which is smaller
than the recommended size, the flame
will spread beyond the bottom of the
vessel, causing the handle to overheat.
• Prolonged cooking with
potstones, earthenware pans or
cast-iron plates is inadvisable.
Also, do not use aluminium foil to
protect the top during use.
•Make sure pots do not protrude over
the edges of the cooktop and that they
are centrally positioned on the rings in
order to obtain lower gas
consumption.
• Do not place unstable or deformed
pots on the rings: they could tip over or
spill their contents, causing accidents.
• Pots must not enter the control zone.
• If the control knobs become difficult to
turn, please contact your local Service
Force Centre.
• As soon as a liquid starts boiling, turn
down the flame so that it will barely
keep the liquid simmering.

electrolux 9
Cleaning and Mainteinance
Disconnect the appliance from
the electrical supply, before
carrying out any cleaning or
manteinance work.
The hob is best cleaned whilst
it is still warm, as spillage can
be removed more easily than if
it is left to cool.
This appliance cannot be
cleaned with steam or with a
steam cleaning machine.
The burners
zThe burner caps and crowns can be
removed for cleaning.
zWash the burners taps and crowns
using hot soapy water, and remove
marks with a mild paste cleaner. A
well moistened soap impregnated
steel wool pad can be used with
caution, if the marks are particularly
difficult to remove.
zAfter cleaning, be sure to wipe dry
with a soft cloth.
zFrequently wash the "caps" and the
"crowns" with hot soapy water,
carefully taking away any built-up of
food.
The pan supports
zAfter cleaning, make sure that the
pan supports are correctly
positioned.
zTo make burners work properly,
ensure that pan supports are placed
in a way that the arms are centred
upon the burner as shown in the
picture.
zPay attention when replacing the
pan supports in order to avoid
damaging the hob top.
NO
YES

10 electrolux
Hobs with cast iron pan sup-
ports: after cleaning, place
the pan supports back on
their position.
The Hob Top
zRegularly wipe over the hob top
using a soft cloth well wrung out in
warm water to which a little wasing
up liquid has been added. Avoid the
use of the following:
- household detergent and bleaches;
- impregnated pads unsuitable for
non-stick saucepans;
- steel wool pads;
- bath/sink stain removers.
zShould the hob top become heavily
soiled, the following products are
recommended:
- For stainless steel hobs use a
proprietary stainless steel cleaner.
- For other hobs use Hob Brite or Bar
Keepers Friend.
zDo not leave acid or alkaline
substances (e.g. vinegar, salt,
lemon juice, etc.) on the cooktop.
The Ignition electrode
The electric ignition is obtained
through a ceramic electrode with a
metal electrode (Fig - C). Keep these
components very clean, to avoid difficult
lighting, and check that the burner
crown holes (Fig - B) are not obstructed.

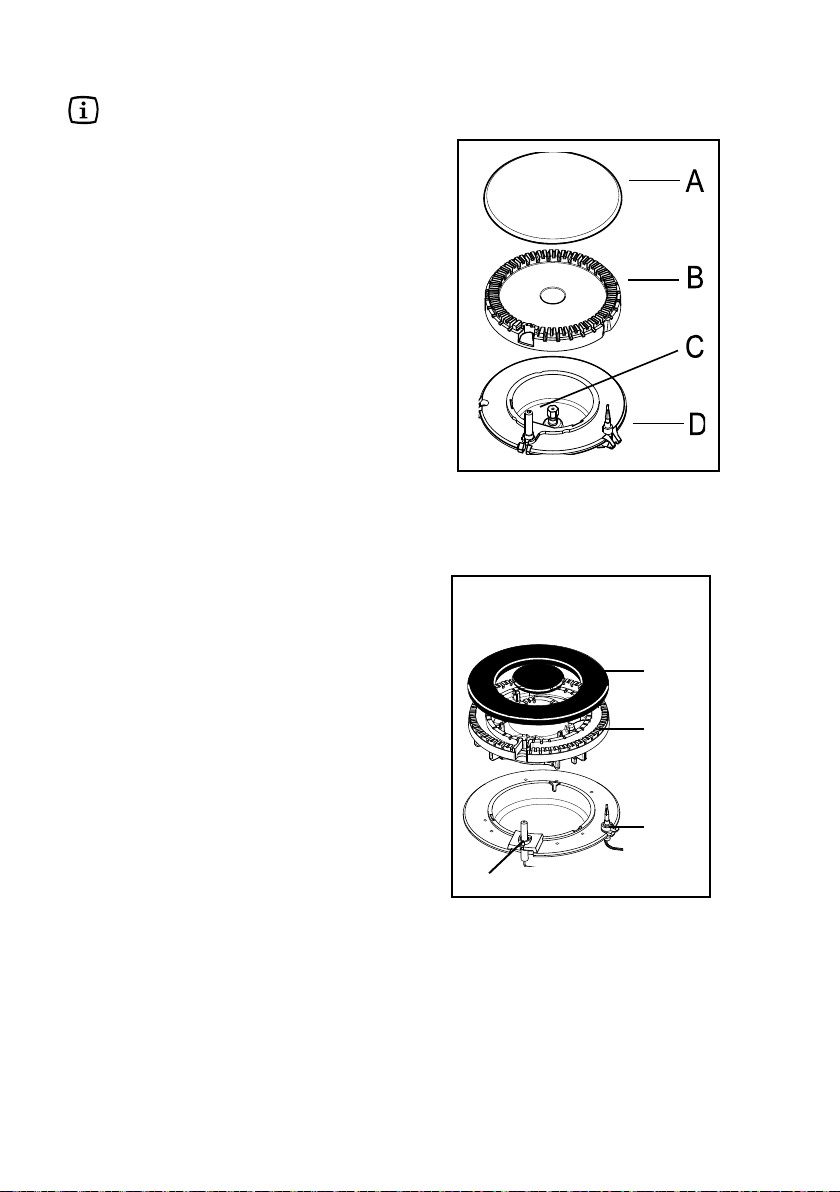

A- Burner cap
B- Burner crown
C- Ignition candle
D- Thermocouple
A
B
D
C
Triple Crown Burner
(EHG 6833- 6835-6815)

electrolux 11
Technical data
Burner gas power (natural gas 20 mbar)
Triple crown burner (EHG 6833 - 6835 -6815) 4,0kW
Rapid burner (EHG 6415) 3,0 kW
Semi-rapid burner 2,0 kW
Auxiliary burner 1,0 kW
Category II2H3B/P
Gas supply natural gas G20 (2H) 20 mbar
Gas connection G 1/2"
Electric supply 230 V ~ 50 Hz
Appliance class 3
Hob dimensions
Width 594 mm
Depth 510 mm
Cut out dimensions
Width 560 mm
Depth 480 mm
By-pass diameters
Burner Ø By-pass in 1/100 mm.
Auxiliary 28
Semi-rapid 32
Rapid
(EHG 6415) 42
Triple crown
(EHG 6833-6835-6815) 56

12 electrolux
Gas burners
NORMAL REDUCED NORMAL
POWER POWER POWER
BURNER NATURAL GAS LPG
G20 (2H) - 20 mbar (Butane/Propane) 30 mbar
kW kW g/h
inj. m3/h inj. G30 G31
100/mm 100/mm
Auxiliary
burner 1,0 0,33 70 0,095 50 73 71
Semi-rapid
burner 2,0 0,45 96 0,190 71 145 143
Rapid 3,0
burner (nat. gas) 0,75 119 0,285 86 204 200
(EHG 6415) 2,8
( LPG )
Triplecrown
burner 4,0 1,2 146 0,381 98 291 286
(EHG 6833-6835-
6815)
Gas burners G20 13 mbar - only Russia
NORMAL REDUCED NORMAL
POWER POWER POWER
BURNER NATURAL GAS
G20 - 13 mbar
kW kW inj. m3/h
100/mm
Auxiliary
burner 0,9 0,33 80 0,095
Semi-rapid
burner 1,4 0,45 105 0,148
Rapid burner
(EHG 6415) 1,9 0,75 120 0,20
Triple crown
burner 3,0 1,2 147 0,317
(EHG 6833-6835-
6815)

electrolux 13
zThe following instructions about
installation and maintenance must
be carried out by qualified
personnel in compliance with the
regulation in force.
zThe appliance must be electrically
disconnected before all
interventions. If any electric supply
to the appliance is required to
carry out the work, ensure all the
necessary precautions are
followed.
zThe side walls of the unit in which
the hob is going to be installed,
must not exceed the height of the
working top.
zAvoid installing the appliance in
the proximity of inflammable
materials (e.g. curtains, tea towels
etc.).
THE MANUFACTURER WILL NOT
ACCEPT LIABILITY, SHOULD ANY
OF THE OTHER SAFETY
INSTRUCTIONS INCORPORATED IN
THIS BOOKLET OR THE
REGULATION IN FORCE BE
IGNORED.
Installation
Choose fixed connections or use a
flexible pipe instainless steel in
compliance with the regulation in force.
If using flexible metallic pipes, be careful
they do not come in contact with mobi-
le parts or they are not squeezed. Use
the same attention when the hob is
combinated with an oven.
Gas connection

14 electrolux
IMPORTANT - To ensure a correct
operation, a savingof energy and the
long life of the appliance, the voltage
pressure of the appliance must
correspond to the recommended values.
The adjustable connection is fixed to the
comprehensive ramp by means of a
threaded nut G 1/2". Interpose the
sealing between the components as
shown in Fig. 5. Screw the parts without
forcing, adjust the connection in the
required direction and tighten everything.
Connection using flexible
nonmetal pipes
When the connection can be easily
inspected in its full extent, there is the
chance to use a flexible pipe according
to the rules in force. The flexible pipe
must be tightly fixed using clamps
according to the rules in force.
Liquid gas: use the rubber pipe holder
«D». Always insert the gasket «B». Then
proceed with the gas connection. The
flexible pipe should be made ready for
use in such a way that:
- nowhere it can reach overtemperature,
other than room temperature, higher
than 30°C; if the flexible pipe, to reach
the cock, must run behind the range,
it must be installed as shown in picture;
- it is no longer than 1500 mm;
- it shows no throttles;
- it is not subject to traction or torsion;
- it doesn't get in touch with cutting
edges or corners;
-it can be easily inspected in order to
check its condition.
The control of preservation of the flexible

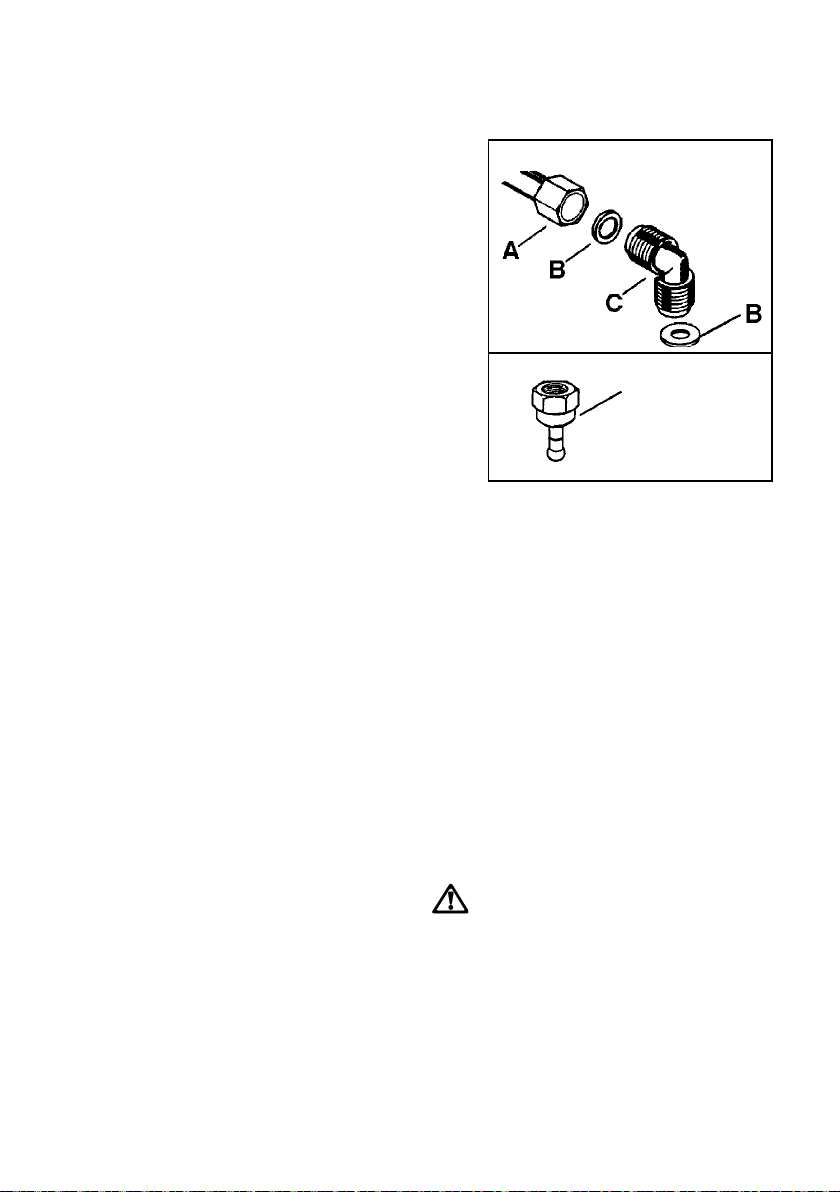

A) Ramp with ending nut
B) Seal
C) Adjustable connection
D) Rubber pipe holder for liquid gas
D
Natural gas
Liquid gas
pipe consistsin checking that:
- it doesn't show cracks, cuts, marks
of burnings bothon the end parts and
on its full extent;
- the material is not hardened, but
shows its normal elasticity;
- the fastening clamps are not rusted;
- expiry term is not due.
If one or more abnormalities are seen,
do not repair the pipe, but replace it.
IMPORTANT
Once installation is complete,
check the perfectseal of every
pipe fitting, using a soapy
solution, never a flame.

electrolux 15
Adaptation to different types of gas
A. Injectors replacement
• Remove the pan supports.
• Remove the burner's caps and
crowns.
• With a socket spanner 7 unscrew
and remove the injectors (Fig. 1), and
replace them with the ones required
for the type of gas in use (see table
2).
• Reassemble the parts, following the
same procedure backwards.
• Replace the rating label (placed near
the gas supply pipe) with the relevant
one for the new type of gas supply.
You can find this label in the package
of the injectors supplied with the
appliance.
Should the feeding gas pressure be
different or variable compared with the
required pressure, an appropriate
pressure adjuster must be fitted on the
gas supply pipe, in compliance with the
rules in force.
B. Adjustment of minimum
level
To adjust the minimum level of the
burners, proceed as follows:
• Light the burner.
• Turn the knob on the minimum
position.
• Remove the knob.
• With a thin screwdriver, adjust the
by-pass screw positioned in the
centre of the gas tap control shaft
(see Fig. 2). If changing from natural
gas 20/13 mbar to liquid gas,
completely tighten the adjustment
screw in. If changing from liquid gas
to natural gas 20 mbar, undo the by-
pass screw about 1/4 of a turn. If
changing from natural gas 20 mbar
to natural gas 13 mbar undo the by-
pass screw about 1/4 of a turn. If
changing from liquid gas to natural
)
)
gas 13 mbar, undo the by-pass
screw about 3/4 of a turn.
• Finally check the flame does not go
out when quickly turning the knob
from the maximum position to the
minimum position.
This procedure can easily be carried
out, anyhow the hob has been
positioned or built in the working top.
Minimum adjustment screw
Fig. 1
Fig. 2

16 electrolux
The appliance is designed to be
connected to 230 V monophase
electricity supply.
The connection must be carried out
in compliance with the laws and
regulations in force.
Before the appliance is connected:
1) check that the main fuse and the
domestic installation can support the
load (see the rating label);
2) check that the power supply is
properly earthed in compliance with the
current rules;
3) check the socket or the double
pole switch used for the electrical
connection can be easily reached with
the appliance built in the forniture unit.
The appliance is supplied with a
connection cable. This has to be
provided with a proper plug, able to
support the load marked on the
identification plate. To connect the plug
to the cable, follow the recommendation
given in Fig. 3a. The plug has to be fitted
in a proper socket.
If connecting the appliance directly
to the electric system, it is necessary
that you install a double pole switch
between the appliance and the
electricity supply, with a minimum gap
of 3 mm. between the switch contacts
and of a type suitable for the required
load in compliance with the current
rules.
The connection cable has to be
placed in order that, in each part, it
cannot reach a temperature 50°C
higher than room temperature.
The brown coloured phase cable
(fitted in the terminal block contact
marked with "L") must always be
connected to the network phase.
Electrical Connection
Remplacement of the voltage
cable
The connection of the voltage cable
to the appliance's terminal block is of
type "Y". This means that its
replacement requires the specific
equipment of a technician. In this case,
only cable type H05V2V2-F T90 must
be used. The cable section must be
suitable to the voltage and the working
temperature. The yellow/green earth
wire must be approximately 2 cm.
longer than the phase wires (Fig. 3-a).
To open the terminal block and reach
the terminals, proceed as follows:
zinsert the point of a screwdriver into
the visible protrunding part of the
terminal block;
zexert a light pressure and lift (Fig. 3-b)
Fig. 3-b
Earth
(yellow/green))
Neutral
Fig. 3-a

electrolux 17
Building In

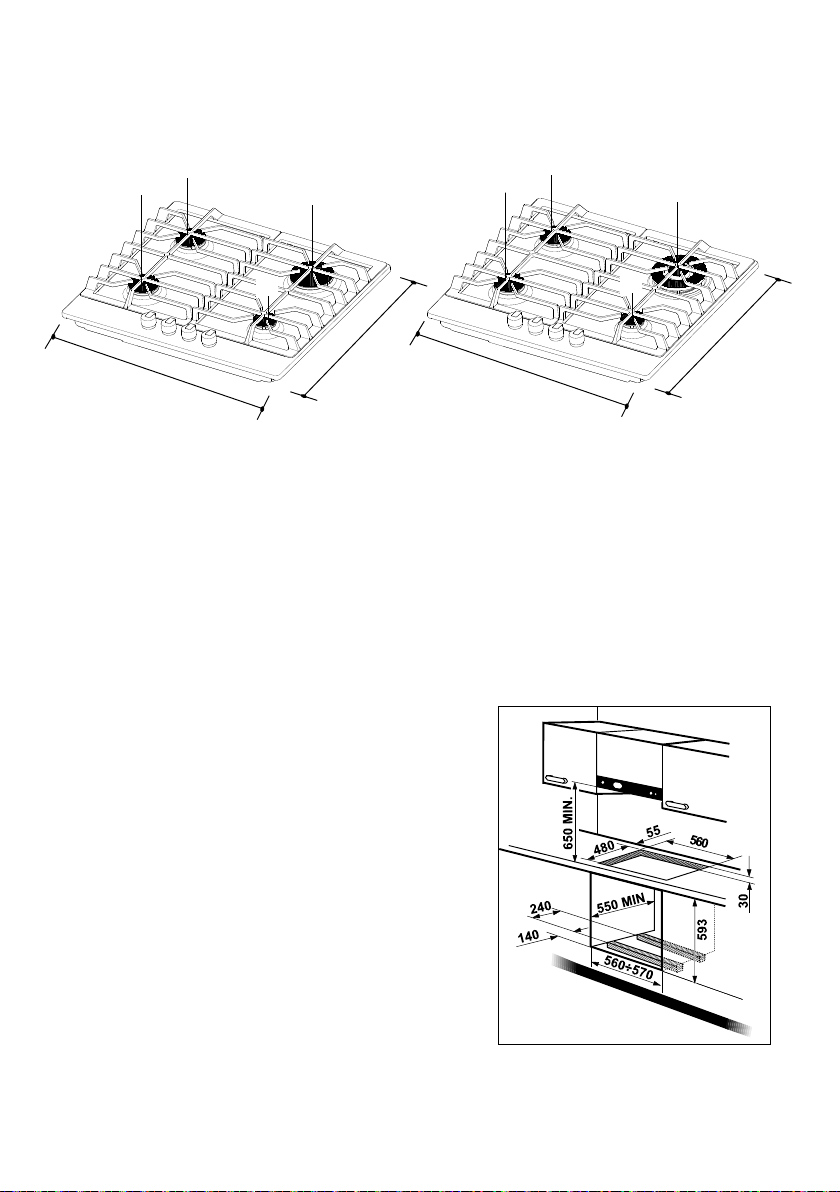

These hobs can be inserted in a
built-in kitchen unit whose depth is
between 550 and 600 mm. The hobs
dimensions are shown in Fig. 4.
The edge of the cut out must have a
minimum distance from the rear wall of
55 mm.
If there are side walls, or sides of the
furniture unit near the hob, the cut out
edges must have a minimum distance of
150 mm.
Hanging forniture units or hoods
must be placed at 650 mm. minimum
from the hob.
Fitting the hob to the worktop
Carry out the building in of the hob
as follows:

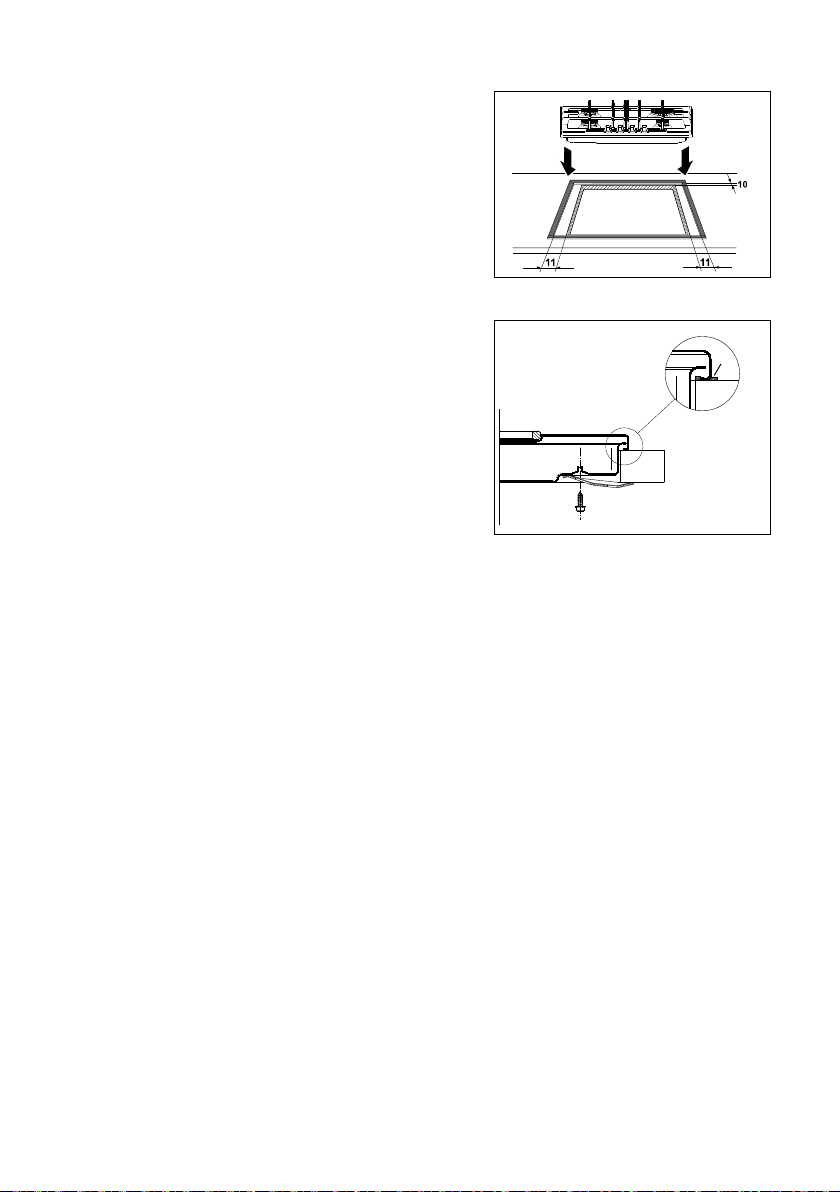

1. Place the seals supplied with the hob
on the front edge of the cut out.
Then, place them at 11 mm from the
side edges and at 10 mm from the
rear edge, as shown in the diagram,
A= Auxiliary burner
SR= Semi-rapid burner
R= Rapid burner
TC= Triple Crown burner
Fig. 5
Dimensions are given in
millimeters
R
SR
A
SR
510
594
TC
SR
A
SR
510
594
EHG 6415 EHG 6833-6835-6815
Fig. 4

18 electrolux
Fig. 6
Fig.7
a
a) seal
taking care that the seals meet
without overlapping.
2. Place the hob in the cut out, taking
care that it is centred.
3. Fix the hob with the relevant fixing
clamps, supplied with the injectors
kit (see diagram). When the screws
have been tightened, the excess seal
can be removed.
The edge of the hob forms a double
seal which prevents the ingress of
liquids.

electrolux 19
Possibilities for insertion
Kitchen unit with door
Proper arrangements must be taken
in designing the forniture unit, in order to
avoid any contact with the bottom of the
hob which can be heated when it is
operated. The recommended solution is
shown in Fig. 8. The panel fitted under
the hob should be easily removable to
allow an easy access if a technical assis-
tance intervention is needed.
Kitchen unit with oven
The hob recess dimensions must
comply the indication given in Figs. 9
and 10 and must be provided with
brackets to allow a continuous supply of
air. The hob's electric connection and
the oven's one must be carried out
separately, both for safety reasons and
to allow the oven to be easily taken off
the unit.

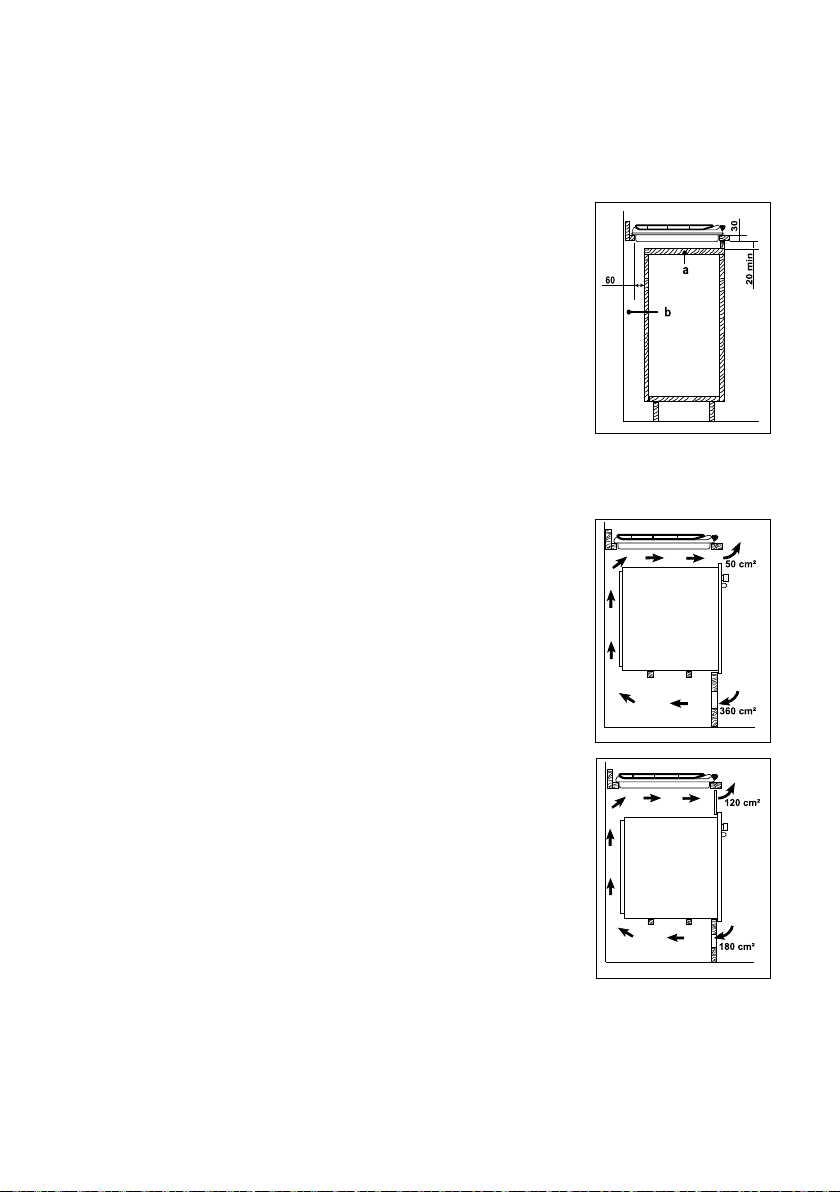

a) Removable panel
b) Space for connections
Fig. 8
Fig. 9
Fig. 10

20 electrolux
This appliance is guaranteed by Electrolux in each of the countries listed at the back
of this user manual, for the period specified in the appliance guarantee or otherwise by
law. If you move from one of these countries to another of the countries listed below the
appliance guarantee will move with you subject to the following qualifications:
• The appliance guarantee starts from the date you first purchased the appliance
which will be evidenced by production of a valid purchase document issued by the
seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour
and parts as exists in your new country of residence for this particular model or
range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and
cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by
Electrolux and is only used within the home, i.e. is not used for commercial
purposes.
• The appliance is installed in accordance with all relevant regulations in force within
your new country of residence.
The provisions of this European Guarantee do not affect any of the rights granted to you
by law.
European guarantee
