1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes
injuries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
•Do not let children play with the appliance.
•Keep all packaging away from children.
•Keep children and pets away from the appliance when it
operates or when it cools down. Accessible parts are
hot.
•If the appliance has a child safety device, we
recommend you activate it.
•Cleaning and user maintenance shall not be made by
children without supervision.
•Children of less than 3 years should be kept away
unless continuously supervised.
1.2 General Safety
•The appliance and its accessible parts become hot
during use. Do not touch the heating elements.
•Do not operate the appliance by means of an external
timer or separate remote-control system.
•Unattended cooking on a hob with fat or oil can be
dangerous and may result in fire.
•Never try to extinguish a fire with water, but switch off
the appliance and then cover flame e.g. with a lid or a
fire blanket.
•Do not store items on the cooking surfaces.
ENGLISH 3

•Metallic objects such as knives, forks, spoons and lids
should not be placed on the hob surface since they can
get hot.
•Do not use a steam cleaner to clean the appliance.
•After use, switch off the hob element by its control and
do not rely on the pan detector.
•If the glass ceramic surface/ glass surface is cracked,
switch off the appliance to avoid the possibility of
electric shock
•If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Obey the installation instruction
supplied with the appliance.
• Keep the minimum distance from the
other appliances and units.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Seal the cut surfaces with a sealant to
prevent moisture to cause swelling.
• Protect the bottom of the appliance
from steam and moisture.
• Do not install the appliance adjacent to
a door or under a window. This
prevents hot cookware to fall from the
appliance when the door or the
window is opened.
• If the appliance is installed above
drawers make sure that the space,
between the bottom of the appliance
and the upper drawer, is sufficient for
air circulation.
• The bottom of the appliance can get
hot. Make sure to install a non-
combustile separation panel under the
appliance to prevent access to the
bottom.
• Make sure that the ventilation space of
2 mm, between the worktop and the
front of the below unit, is free. The
warranty does not cover damages
caused by the lack of an adequate
ventilation space.
2.2 Electrical Connection
WARNING!
Risk of fire and electrical
shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Before carrying out any operation make
sure that the appliance is disconnected
from the power supply.
• Make sure that the electrical
information on the rating plate agrees
with the power supply. If not contact
an electrician.
• Make sure the appliance is installed
correctly. Loose and incorrect
electricity mains cable or plug (if
applicable) can make the terminal
become too hot.
• Use the correct electricity mains cable.
• Do not let the electricity mains cable
tangle.
• Make sure that a shock protection is
installed.
• Use the strain relief clamp on the cable.
www.electrolux.com4

• Make sure the mains cable or plug (if
applicable) does not touch the hot
appliance or hot cookware, when you
connect the appliance to the near
sockets
• Do not use multi-plug adapters and
extension cables.
• Make sure not to cause damage to the
mains plug (if applicable) or to the
mains cable. Contact an Authorised
Service Centre or an electrician to
change a damaged mains cable.
• The shock protection of live and
insulated parts must be fastened in
such a way that it cannot be removed
without tools.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you
disconnect the appliance from the
mains at all poles. The isolation device
must have a contact opening width of
minimum 3 mm.
2.3 Use
WARNING!
Risk of injury, burns and
electrical shock.
• Remove all the packaging, labelling
and protective film (if applicable) before
first use.
• Use this appliance in a household
environment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay
unattended during operation.
• Set the cooking zone to “off” after each
use.
• Do not rely on the pan detector.
• Do not put cutlery or saucepan lids on
the cooking zones. They can become
hot.
• Do not operate the appliance with wet
hands or when it has contact with
water.
• Do not use the appliance as a work
surface or as a storage surface.
• If the surface of the appliance is
cracked, disconnect immediately the
appliance from the power supply. This
to prevent an electrical shock.
• Users with a pacemaker must keep a
distance of minimum 30 cm from the
induction cooking zones when the
appliance is in operation.
• When you place food into hot oil, it
may splash.
WARNING!
Risk of fire and explosion
• Fats and oil when heated can release
flammable vapours. Keep flames or
heated objects away from fats and oils
when you cook with them.
• The vapours that very hot oil releases
can cause spontaneous combustion.
• Used oil, that can contain food
remnants, can cause fire at a lower
temperature than oil used for the first
time.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
WARNING!
Risk of damage to the
appliance.
• Do not keep hot cookware on the
control panel.
• Do not let cookware to boil dry.
• Be careful not to let objects or
cookware fall on the appliance. The
surface can be damaged.
• Do not activate the cooking zones with
empty cookware or without cookware.
• Do not put aluminium foil on the
appliance.
• Cookware made of cast iron,
aluminium or with a damaged bottom
can cause scratches on the glass /
glass ceramic. Always lift these objects
up when you have to move them on
the cooking surface.
ENGLISH 5

• This appliance is for cooking purposes
only. It must not be used for other
purposes, for example room heating.
2.4 Care and cleaning
• Clean regularly the appliance to
prevent the deterioration of the surface
material.
• Deactivate the appliance and let it cool
down before you clean it.
• Disconnect the appliance from the
electrical supply before maintenance.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal
objects.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for
information on how to discard the
appliance correctly.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
3. PRODUCT DESCRIPTION
3.1 Cooking surface layout
2 11
11
1Induction cooking zone
2Control panel
3.2 Control panel layout
6
48
10
1
2
3
4
57
9
www.electrolux.com6

Use the sensor fields to operate the appliance. The displays, indicators and sounds tell
which functions operate.
Sensor
field Function Comment
1ON / OFF To activate and deactivate the hob.
2Connect Function To activate and deactivate the function.
3STOP+GO To activate and deactivate the function.
4Cook Assist To activate the function.
5Power Boost To activate and deactivate the function.
6- Display To show the functions that operate.
7- Control bar To set a heat setting.
8
Minute Minder / Auto-
matic Counter / Power-
off timer
To set the function and to lock / unlock
the control panel.
9 / - To set the setting.
10 - To confirm the setting.
3.3 Display
0:48
D
E
A B
C
A) Cooking zones
B) Power-off timer
C) Minute Minder indicator
D) Lock function
E) STOP+GO function
The cooking zone in the display Description
The cooking zone operates. Above: heat
setting, below: the timer.
Keep Warm / STOP+GO function oper-
ates.
ENGLISH 7

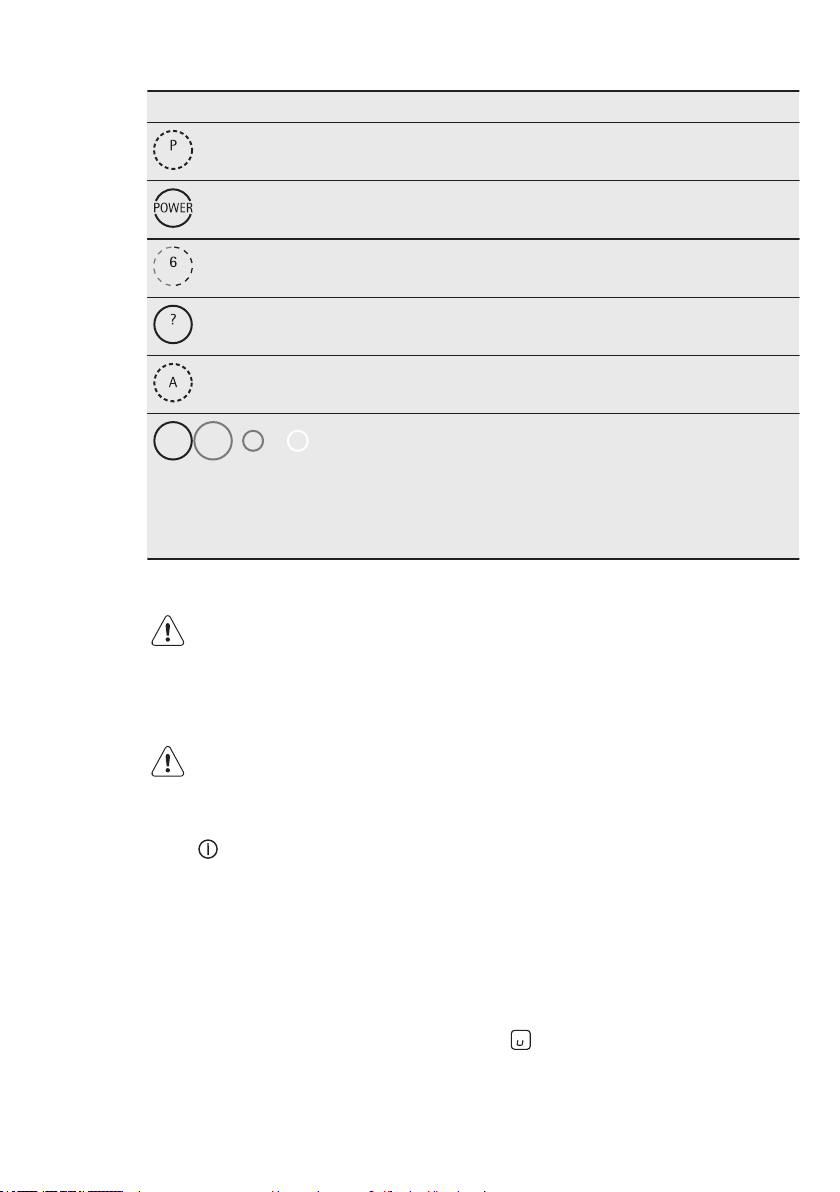

The cooking zone in the display Description
Power Boost operates.
Power Boost operates.
Zone in adjustment.
There is no cookware on the cooking
zone.
Automatic Heat Up function operates.
OptiHeat Control. The cooking zone is off.
The dimension and colours show the re-
sidual heat:
• Big red - still cooking
• Big bright red - keep warm
• Small bright red - still hot
• Small white - the cooking zone is cold
3.4 Residual heat
WARNING!
There is a risk of burns from
residual heat.
The induction cooking zones make the
heat necessary for cooking process
directly in the bottom of the cookware.
The glass ceramic is heated by the heat of
the cookware.
4. DAILY USE
WARNING!
Refer to Safety chapters.
4.1 Activating and deactivating
Touch for 1 second to activate or
deactivate the hob.
4.2 Automatic Switch Off
The function deactivates the hob
automatically if:
• All cooking zones are deactivated.
• You do not set the heat setting after
you activate the hob.
• You spill something or put something
on the control panel for more than 10
seconds (a pan, a cloth, etc.). An
acoustic signal sounds and the hob
deactivates. Remove the object or
clean the control panel.
• The hob gets too hot (e.g. when, a
saucepan boils dry). Let the cooking
zone cool down before you use the
hob again.
• You use incorrect cookware. The
symbol ? comes on and the cooking
zone deactivates automatically after 2
minutes.
• You do not deactivate a cooking zone
or change the heat setting. After some
time, the hob deactivates. See below.
The relation between heat setting and
times of the function:
•, 1 — 3 — 6 hours
•4 — 7 — 5 hours
•8 — 9 — 4 hours
•10 — 14 — 1.5 hours
www.electrolux.com8

4.3 Selecting language
To change the language, start the hob
with and then touch . Set the
language menu with arrows. Touch to
confirm. The display shows the list of
languages. Touch or to set the
language. Touch to confirm.
4.4 The heat setting
To set or change the heat setting:
Touch the control bar at the correct heat
setting or move your finger along the
control bar until you reach the correct heat
setting.
4.5 Using the cooking zones
Put the cookware on the cross / square
which is on the surface that you cook.
Cover the cross / square fully. Induction
cooking zones adapt to the dimension of
the bottom of the cookware automatically.
You can cook with the large cookware on
two cooking zones at the same time.
4.6 Connect Function
Use this function with the
Infinite Plancha1 accessory.
This function connects two left side
cooking zones under the accessory and
they operate as one.
First set the heat setting for one of the left
side cooking zones.
To activate the function: touch . To
set or change the heat setting touch one
of the left control sensors.
To deactivate the function: touch .
The cooking zones operate independently.
4.7 Automatic Heat Up
If you activate this function you can get a
necessary heat setting in a shorter time.
The function sets the highest heat setting
for some time and then decreases to the
correct heat setting.
To activate the function the
cooking zone must be cold.
To activate the function for a cooking
zone: touch . Immediately touch the
correct heat setting. A comes on.
To deactivate the function: change the
heat setting.
4.8 Power Boost
This function makes more power available
to the induction cooking zones. The
function can be activated for the induction
cooking zone only for a limited period of
time. After this time the induction cooking
zone automatically sets back to the
highest heat setting.
Refer to “Technical
information” chapter.
To activate the function for a cooking
zone: touch . P in the ring comes on.
As the zone gets more hot, the colour of
the ring changes.
To deactivate the function: change the
heat setting.
4.9 Timer
There are 3 functions: Automatic Counter,
Power-off timer and Minute Minder.
Automatic Counter
You can use this function to monitor how
long the cooking zone operates. The
1 The accessory is not supplied with the appliance. For more information, please contact
your local supplier.
ENGLISH 9

function starts automatically and comes
on below heat setting in the cooking zone
on the display.
To reset the function: touch to get
the Automatic Counter . Then set the
cooking zone from the list with arrows and
touch to confirm.
Power-off timer
You can use this function to set how long
the cooking zone operates for only this
one time.
To activate the function: touch two
times to get the Power-off timer . Then
set the cooking zone from the list with
arrows and touch to confirm. Set the
time with arrows and touch to
confirm. When the time comes to an end,
the sound operates and the cooking zone
deactivates.
To stop the sound: touch .
Minute Minder
To activate the function: touch three
times to get the Minute Minder . Set the
time with arrows. The function indicator
comes on. When the time comes to an
end, the sound operates.
To stop the sound: touch .
The function has no effect on
the operation of the cooking
zones.
4.10 STOP+GO
This function sets all cooking zones that
operate to the lowest heat setting.
When the function operates, you cannot
change the heat setting.
The function does not stop the timer
functions.
To activate the function: touch .
comes on.
To deactivate the function: touch .
The previous heat setting comes on.
4.11 Lock
You can lock the control panel while
cooking zones operate. It prevents an
accidental change of the heat setting.
Set the heat setting first.
To activate the function: touch again
and again until you see the Lock function
display. Touch to confirm. comes
on. The Timer stays on.
To deactivate the function: touch .
The previous heat setting comes on.
When you deactivate the
hob, you also deactivate this
function.
4.12 The Child Safety Device
This function prevents an accidental
operation of the hob.
To activate the function: deactivate the
hob with . When the hob is shutting
down touch . The display shows a
message, that the function operates.
To deactivate the function: activate the
hob with . Touch and then .
To override the function for only one
cooking time: activate the hob with .
Touch and at the same time. Set
the heat setting in 10 seconds. You
can operate the hob. When you deactivate
the hob with the function operates
again.
4.13 Deactivation and activation
of the sounds
Activate the hob. Touch and then set
the sound menu with arrows. Touch
to confirm . Set the option with the
arrows. Touch to confirm.
When the function operates you can hear
the sounds only when:
• you touch
• Minute Minder comes down
• Power-off timer comes down
www.electrolux.com10

• you put something on the control
panel.
4.14 Power management
function
• Cooking zones are grouped according
to the location and number of the
phases in the hob (see illustration).
• Each phase has a maximum electricity
loading of 3700 W.
• The function divides the power
between cooking zones connected to
the same phase.
• The function activates when the total
electricity loading of the cooking zones
connected to a single phase exceeds
3700 W.
• The function decreases the power to
the other cooking zones connected to
the same phase.
• The heat setting display of the reduced
zones changes between two levels.
5. HINTS AND TIPS
WARNING!
Refer to Safety chapters.
5.1 Cookware
For induction cooking zones
a strong electro-magnetic
field creates the heat in the
cookware very quickly.
Use the induction cooking
zones with correct cookware.
Cookware material
•correct: cast iron, steel, enamelled
steel, stainless steel, the bottom made
of multi-layer (with correct mark from a
manufacturer).
•not correct: aluminium, copper,
brass, glass, ceramic, porcelain.
Cookware is correct for an induction
hob if:
• some water boils very quickly on a
zone set to the highest heat setting.
• a magnet pulls on to the bottom of the
cookware.
The bottom of the cookware
must be as thick and flat as
possible.
Cookware dimensions
Induction cooking zones adapt to the
dimension of the bottom of the cookware
automatically to some limit.
The cooking zone efficiency is related to
the diameter of the cookware. The
cookware with a smaller diameter than the
minimum receives only a part of the power
generated by the cooking zone.
Refer to “Technical
information” chapter.
5.2 The noises during operation
If you can hear:
• crack noise: cookware is made of
different materials (sandwich
construction).
• whistle sound: you use one or more
cooking zones with high power levels
and the cookware is made of different
materials (sandwich construction).
• humming: you use high power levels.
• clicking: electric switching occurs.
• hissing, buzzing: the fan operates.
The noises are normal and do not
refer to hob malfunction.
5.3 Energy saving
• If it is possible, always put the lids on
the cookware.
• Put cookware on a cooking zone
before you start it.
ENGLISH 11

• Use the residual heat to keep the food
warm or to melt it.
5.4 Öko Timer (Eco Timer)
To save energy, the heater of the cooking
zone deactivates before the count down
timer sounds. The difference in the
operation time depends on the heat
setting level and the length of the cooking
operation.
5.5 Examples of cooking
applications
The relation between the heat setting and
the cooking zone consumption of power is
not linear. When you increase the heat
setting it is not proportional to the increase
of the cooking zone consumption of
power. It means that the cooking zone
with the medium heat setting uses less
than a half of its power.
The data in the table is for
guidance only.
Heat setting Use to: Time
(min) Hints
1 Keep cooked food warm. as nec-
essary Put a lid on the cookware.
1 - 3 Hollandaise sauce, melt: but-
ter, chocolate, gelatine. 5 - 25 Mix from time to time.
1 - 3 Solidify: fluffy omelettes,
baked eggs. 10 - 40 Cook with a lid on.
3 - 5 Simmer rice and milkbased
dishes, heating up ready-
cooked meals.
25 - 50 Add the minimum twice as
much liquid as rice, mix milk
dishes part procedure
through.
5 - 7 Steam vegetables, fish, meat. 20 - 45 Add some tablespoons of liq-
uid.
7 - 9 Steam potatoes. 20 - 60 Use max. ¼ l water for 750 g
of potatoes.
7 - 9 Cook larger quantities of food,
stews and soups. 60 - 150 Up to 3 l liquid plus ingredi- ents.
9 - 12 Gentle fry: escalope, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts.
as nec-
essary Turn halfway through.
12 - 13 Heavy fry, hash browns, loin
steaks, steaks. 5 - 15 Turn halfway through.
14 Boil water, cook pasta, sear meat (goulash, pot roast), deep-fry chips.
Boil large quantities of water. Power function is activated.
www.electrolux.com12

6. CARE AND CLEANING
WARNING!
Refer to Safety chapters.
6.1 General information
• Clean the hob after each use.
• Always use cookware with clean
bottom.
• Scratches or dark stains on the surface
have no effect on how the hob
operates.
• Use a special scraper for the glass.
• Use a special cleaner applicable for the
surface of the hob.
6.2 Cleaning of the hob
•Remove immediately: melted plastic,
plastic foil, and food with sugar. If not,
the dirt can cause damage to the hob.
Put the special scraper on the glass
surface at an acute angle and move
the blade on the surface.
•Remove when the hob is
sufficiently cool: limescale rings,
water rings, fat stains, shiny metallic
discoloration. Clean the hob with a
moist cloth and some detergent. After
cleaning, rub the hob dry with a soft
cloth.
• The surface of the hob has horizontal
grooves. Clean the hob with a moist
cloth and some detergent with smooth
movement from left to right. After
cleaning, rub the hob dry with a soft
cloth from left to right.
7. TROUBLESHOOTING
WARNING!
Refer to Safety chapters.
7.1 What to do if...
Problem Possible cause Remedy
You cannot activate or op-
erate the hob. The hob is not connected to an electrical supply or it
is connected incorrectly.
Check if the hob is correctly
connected to the electrical
supply. Refer to the con-
nection diagram.
The fuse is released. Make sure that the fuse is
the cause of the malfunc-
tion. If the fuse releases
again and again, contact a
qualified electrician.
Activate the hob again and
set the heat setting in less
than 10 seconds.
You touched 2 or more
sensor fields at the same
time.
Touch only one sensor field.
STOP+GO function oper-
ates. Refer to "Daily use" chapter.
ENGLISH 13

Problem Possible cause Remedy
There is water or fat stains
on the control panel. Clean the control panel.
An acoustic signal sounds
and the hob deactivates.
An acoustic signal sounds
when the hob is deactiva-
ted.
You put something on one
or more sensor fields. Remove the object from the sensor fields.
The hob deactivates. You put something on the
sensor field .
Remove the object from the
sensor field.
Residual heat indicator
does not change colours. The zone is not hot be- cause it operated only for a
short time.
If the zone operated suffi-
ciently long to be hot,
speak to an Authorised
Service Centre.
Automatic Heat Up function
does not operate. The zone is hot. Let the zone become suffi- ciently cool.
The highest heat setting is
set. The highest heat setting has the same power as the
function.
The heat setting changes
between two levels. Power management func- tion is activated. Refer to "Daily use" chapter.
The sensor fields become
hot. The cookware is too large or you put it too near to the
controls.
Put large cookware on the
rear zones if possible.
The backlight is on, but the
contrast of the display is
bad.
The hot cookware is on the
display. Remove the object and let the hob become sufficiently
cool. If the contrast is not
clear, speak to an Author-
ised Service Centre.
There is no signal when you
touch the panel sensor
fields.
The signals are deactivated. Activate the signals.
Refer to "Daily use" chapter.
II and text come on. Automatic Switch Off oper-
ates. Deactivate the hob and ac- tivate it again.
comes on. The Child Safety Device or
the Lock function operates. Refer to "Daily use" chapter.
? comes on. There is no cookware on
the zone. Put cookware on the zone.
The cookware is incorrect. Use the correct cookware.
Refer to “Hints and tips”
chapter.
www.electrolux.com14

Problem Possible cause Remedy
The diameter of the bottom
of the cookware is too small
for the zone.
Use cookware with correct
dimensions.
Refer to “Technical informa-
tion” chapter.
The cookware does not
cover the cross / square. Cover the cross / square fully.
E and a number come on. There is an error in the hob. Disconnect the hob from
the electrical supply for
some time. Disconnect the
fuse from the electrical sys-
tem of the house. Connect
it again. If E comes on
again, speak to an Author-
ised Service Centre.
E4 comes on. There is an error in the hob
because a cookware boils
dry. Automatic Switch Off
and the overheating protec-
tion for the zones operate.
Deactivate the hob. Re-
move the hot cookware. Af-
ter approximately 30 sec-
onds, activate the zone
again. If the cookware was
the problem, the error mes-
sage goes out. Residual
heat indicator can stay on.
Let the cookware become
sufficiently cool. Check if
your cookware is compati-
ble with the hob.
Refer to “Hints and tips”
chapter.
7.2 If you cannot find a
solution...
If you cannot find a solution to the
problem yourself, contact your dealer or
an Authorised Service Centre. Give the
data from the rating plate. Give also three
digit letter code for the glass ceramic (it is
in the corner of the glass surface) and an
error message that comes on. Make sure,
you operated the hob correctly. If not the
servicing by a service technician or dealer
will not be free of charge, also during the
warranty period. The instructions about
the Service Centre and conditions of
guarantee are in the guarantee booklet.
8. INSTALLATION
WARNING!
Refer to Safety chapters.
8.1 Before the installation
Before you install the hob, write down the
information bellow from the rating plate.
The rating plate is on the bottom of the
hob.
Serial number ...........................
8.2 Built-in hobs
Only use the built-in hobs after you
assemble the hob into correct built-in units
and work surfaces that align to the
standards.
ENGLISH 15

8.3 Connection cable
• The hob is supplied with a connection
cable.
• Replace the damaged mains cable with
a special cable (type H05BB-F Tmax
90°C; or higher). Speak to your local
Service Centre.
8.4 Assembly
min.
50mm
min.
500mm
min.
2mm
< 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min
30 mm
min. 500 mm
> 20 mm
min. 2 mm
A
B
A
12 mm
28 mm
38 mm
B
57 mm
41 mm
31 mm
min. 500 mm
www.electrolux.com16

R 5mm
min.
55mm
490+1mm 750+1mm
min.
38 mm
min.
2 mm
min.
12 mm
min.
2 mm
8.5 Protection box
If you use a protection box (an additional
accessory), the front airflow space of 2
mm and the protective floor directly below
the hob are not necessary. The protection
box accessory may not be available in
some countries. Please contact your local
supplier.
You can not use the
protection box if you install
the hob above an oven.
9. TECHNICAL INFORMATION
9.1 Rating plate
Modell EHO8840FOG PNC 949 596 149 00
Typ 58 GBD C3 AU 220 - 240 V 50 - 60 Hz
ENGLISH 17

Induction 7.4 kW Made in Germany
Ser.Nr. ................. 7.4 kW
ELECTROLUX
9.2 Cooking zones specification
Cooking zone Nominal pow-
er (maximum
heat setting)
[W]
Power func-
tion [W] Power func- tion maximum
duration [min]
Cookware di-
ameter [mm]
Left front 2300 3200 10 125 - 210
Left rear 2300 3200 10 125 - 210
Right front 2300 3200 10 125 - 210
Right rear 2300 3200 10 125 - 210
The power of the cooking zones can be
different in some small range from the
data in the table. It changes with the
material and dimensions of the cookware.
For optimal cooking results use cookware
not larger than the diameter in the table.
10. ENVIRONMENTAL CONCERNS
Recycle the materials with the symbol .
Put the packaging in applicable containers
to recycle it. Help protect the environment
and human health and to recycle waste of
electrical and electronic appliances. Do
not dispose appliances marked with the
symbol with the household waste.
Return the product to your local recycling
facility or contact your municipal office.
www.electrolux.com18

TABLE DES MATIÈRES
1. CONSIGNES DE SÉCURITÉ.............................................................................. 20
2. INSTRUCTIONS DE SÉCURITÉ......................................................................... 21
3. DESCRIPTION DE L'APPAREIL......................................................................... 24
4. UTILISATION QUOTIDIENNE............................................................................. 26
5. CONSEILS.........................................................................................................29
6. ENTRETIEN ET NETTOYAGE............................................................................ 31
7. EN CAS D'ANOMALIE DE FONCTIONNEMENT................................................ 32
8. INSTALLATION..................................................................................................34
9. CARACTÉRISTIQUES TECHNIQUES.................................................................36
NOUS PENSONS À VOUS
Merci d'avoir choisi ce produit Electrolux. Avec ce produit, vous bénéficiez de
dizaines d'années d'expérience professionnelle et d'innovation. Ingénieux et
élégant, il a été conçu sur mesure pour vous. Grâce à cet appareil, vous savez que
chaque utilisation vous apportera satisfaction.
Bienvenue chez Electrolux.
Visitez notre site Internet pour :
Obtenir des conseils d'utilisation, des brochures, de l'aide, des informations :
www.electrolux.com
Enregistrez votre produit pour obtenir un meilleur service :
www.registerelectrolux.com
Acheter des accessoires, consommables et pièces de rechange d'origine pour
votre appareil :
www.electrolux.com/shop
SERVICE APRÈS-VENTE
Utilisez toujours des pièces d'origine.
Avant de contacter le service, assurez-vous de disposer des informations
suivantes : Modèle, PNC, numéro de série.
Vous trouverez ces informations sur la plaque signalétique.
Avertissement/Consignes de sécurité
Informations générales et conseils
Informations en matière de protection de l'environnement
Sous réserve de modifications.
FRANÇAIS 19

1. CONSIGNES DE SÉCURITÉ
Avant d'installer et d'utiliser cet appareil, lisez
soigneusement les instructions fournies. Le fabricant ne
peut être tenu pour responsable des dommages et
blessures liés à une mauvaise installation ou utilisation.
Conservez toujours cette notice avec votre appareil pour
vous y référer ultérieurement.
1.1 Sécurité des enfants et des personnes
vulnérables
•Cet appareil peut être utilisé par des enfants de plus de
8 ans, ainsi que des personnes dont les capacités
physiques, sensorielles et mentales sont réduites ou
dont les connaissances et l'expérience sont
insuffisantes, à condition d'être surveillés ou d'avoir
reçu des instructions concernant l'utilisation sécurisée
de l'appareil et de comprendre les risques encourus.
•Ne laissez pas les enfants jouer avec l'appareil.
•Ne laissez pas les emballages à la portée des enfants.
•Tenez les enfants et les animaux éloignés de l'appareil
lorsqu'il est en cours de fonctionnement ou lorsqu'il
refroidit. Les parties accessibles sont chaudes.
•Si l'appareil est équipé d'un dispositif de sécurité
enfants, nous vous recommandons de l'activer.
•Les enfants ne doivent pas nettoyer ni entreprendre une
opération de maintenance sur l'appareil sans
surveillance.
•Les enfants de moins de 3 ans, sans surveillance,
doivent être tenus à l'écart de l'appareil.
1.2 Sécurité générale
•L'appareil et ses parties accessibles deviennent chauds
pendant son fonctionnement. Ne touchez pas les
résistances.
•Ne faites pas fonctionner l'appareil avec un minuteur
externe ou un système de commande à distance.
www.electrolux.com20
