Electrolux FM 7803 K-AN User manual

FM 7803 K-AN
Ceramic glass induction hob
Installation and Operating Instructions

2
Dear Customer,
Please read these user instructions carefully and keep them to refer to
later.
Please pass the user instructions on to any future owner of the appli-
ance.
The following symbols are used in the text:
1Safety instructions
Warning! Notes that concern your personal safety.
Important! Notes that show how to avoid damage to the appliance.
3Useful tips and hints
2Environmental information

3
Contents
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Description of the Appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Cooking surface layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Touch Control sensor fields . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Residual heat indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Operating the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching the appliance on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Selecting the heat setting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Switching the STOP+GO function on and off. . . . . . . . . . . . . . . . . . . . . . . . . 10
Automatic warm up function and Power function . . . . . . . . . . . . . . . . . . . . 10
Using the automatic warm-up function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Switching the power function on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using the child safety device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Using the timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Safety cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Tips on cooking and frying. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Cookware for induction cooking zones. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Tips on energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Examples of cooking applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
What to do if … . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Installing more than one Frontline hob . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rating Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Warranty conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Service and Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

4
Operating Instructions
1Safety instructions
3Please comply with these instructions. If you do not, any damage re-
sulting is not covered by the warranty.
5This appliance conforms with the following EU Directives:
–73/23/EEC dated 19.02.1973 Low Voltage Directive
–89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending
Directive 92/31/EEC
–93/68/EEC dated 22.07.1993 CE Marking Directive
Correct use
•This appliance should be used only for normal domestic cooking and
frying of food.
•The appliance must not be used as a work surface or as a storage sur-
face.
•Additions or modifications to the appliance are not permitted.
•Do not place or store flammable liquids, highly inflammable materials
or fusible objects (e.g. plastic film, plastic, aluminium) on or near the
appliance.
Child safety
•Small children must be kept away from the appliance.
•Only let older children work on the appliance under supervision.
General safety
•The appliance may only be installed and connected by trained, regis-
tered service engineers.
•Built-in appliances may only be used after they have built in to suita-
ble built-in units and work surfaces that meet standards.
•In the event of faults with the appliance or damage to the glass ce-
ramic (cracks, scratches or splits), the appliance must be switched off
and disconnected from the electrical supply to prevent the possibility
of an electric shock..
•Repairs to the appliance must only be carried out by trained regis-
tered service engineers.

5
Safety during use
•Remove stickers and film from the glass ceramic.
•There is the risk of burns from the appliance if used carelessly.
•Cables from electrical appliances must not touch the hot surface of
the appliance or hot cookware.
•Overheated fat and oil can ignite quickly. When cooking with fat or
oil (e.g. frying chips) do not leave the appliance unattended.
•Switch the cooking zones off after each use.
•Users with implanted pacemakers should keep their upper body at
least 30 cm from induction cooking zones that are switched on.
•Risk of burns! Do not place objects made of metal, such as knives,
forks, spoons and saucepan lids on the cooking surface, as they can
get hot.
Safety when cleaning
•For cleaning, the appliance must be switched off and cooled down.
•For safety reasons, the cleaning of the appliance with steam jet or
high-pressure cleaning equipment is not permitted.
How to avoid damage to the appliance
•The ceramic glass can be damaged by objects falling onto it.
•The edge of the ceramic glass can be damaged by being knocked by
the cookware.
•Cookware made of cast iron, cast aluminium or with damaged bot-
toms can scratch the ceramic glass if pushed across the surface.
•Objects that melt and things that boil over can burn onto the ceramic
glass and should be removed straightaway.
•Do not use the cooking zones with empty cookware or without cook-
ware.
•The ventilation gap of 5mm between the worktop and front of the
unit underneath it must not be covered.

6
Description of the Appliance

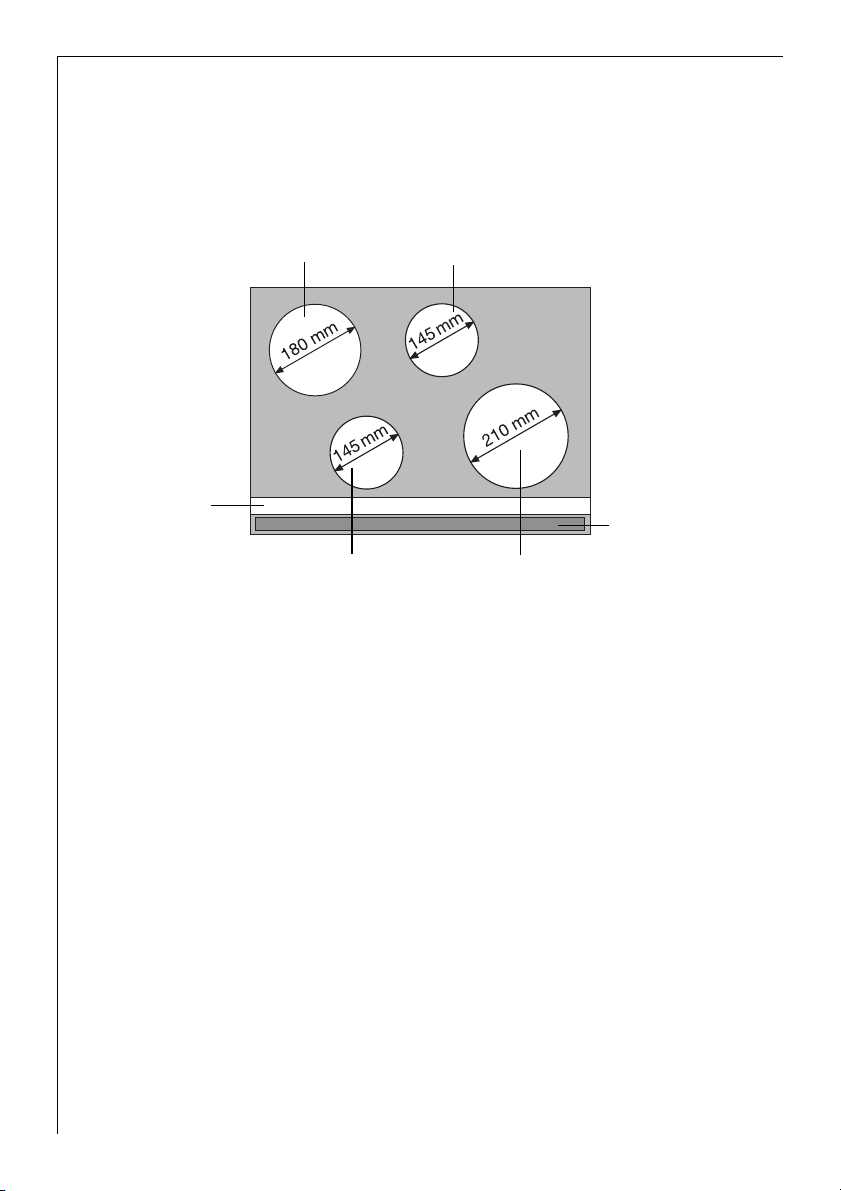

Cooking surface layout
1850 W induction cooking zone
with 2500 W Power function
Induction cooking zone 1400W
with power function 1800W
Induction cooking zone 1400W
with power function 1800W
Induction cooking zone 2300W
with power function 3200W
Frontline strip
Control panel

7

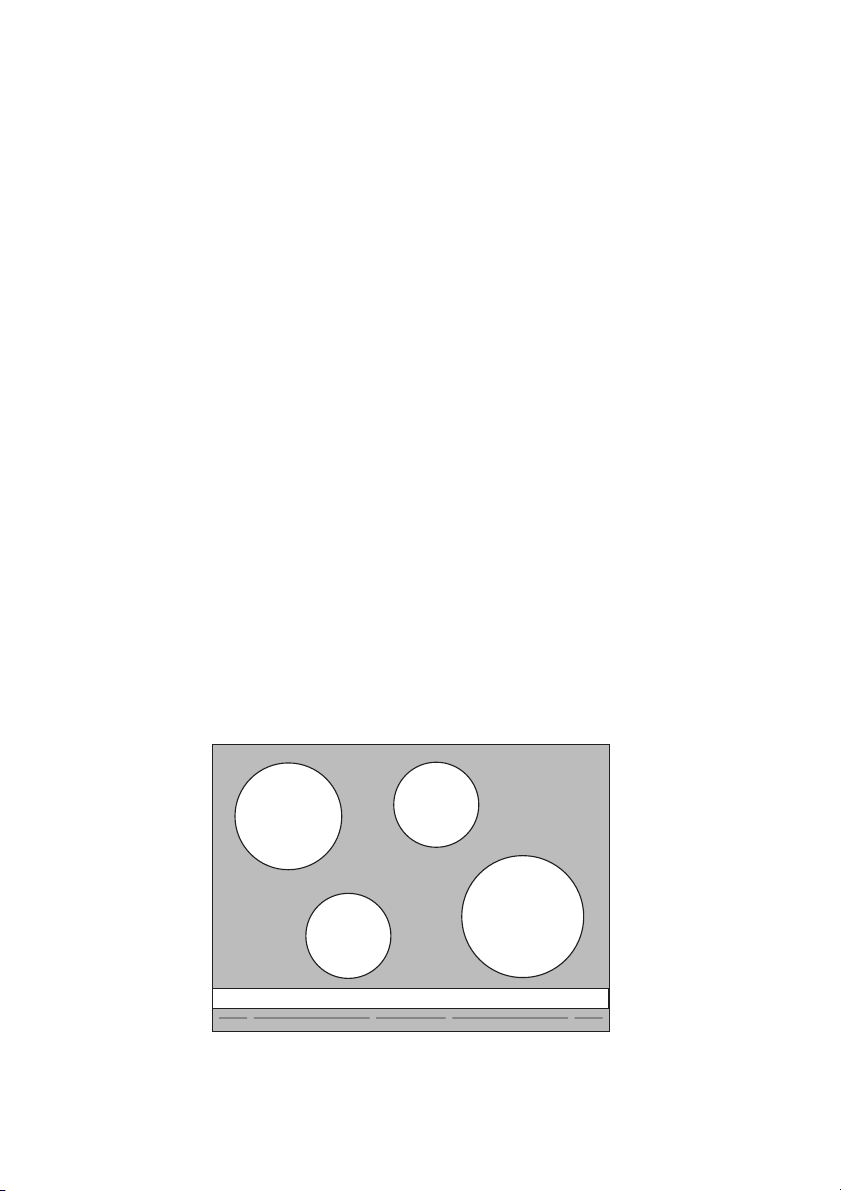

Control panel layout
Left-hand side
Right-hand side
STOP+GO pilot
light
Heat setting
indicator
Warm up pilot
light
Timer indicator Heat setting
indicator
STOP+GO
Heat setting
selection
Timer
selection
Automatic warm up
function/Power function
Timer Automatic warm up
function/Power
function
Heat setting
selection
Warm up pilot
light
Heat setting
indicator
Warm up pilot
light
Timer indicator
Heat setting
indicator
On/Off
pilot light
Heat setting
selection
Timer
selection
Automatic warm up
function/Power function
Automatic warm up
function/Power function
Timer
Heat setting
selection
On/Off
Warm up pilot
light

8
Touch Control sensor fields
The appliance is operated using Touch Control sensor fields. Functions
are controlled by touching sensor fields and confirmed by displays and
acoustic signals.
Touch the sensor fields from above, without covering other sensor
fields.
Displays
Sensor field Function
On / Off Switches appliance on and off
Increase settings To increase heat settings
Reduce settings To reduce heat settings
Timer Timer selection
Increase settings To increase Timer time
Reduce settings To reduce Timer time
Stop+Go To switch the Keep Warm setting
on/off
Power Switching the power function on
and off
Display Description
¾Cooking zone is switched off
uKeep warm setting Keep warm setting/STOP+GO
function is set
¿- ÇHeat settings Heat setting is set
2- 6Heating setting plus
decimal point
Intermediate heat setting is set
eFault Malfunction has occurred
hResidual heat Cooking zone is still hot
lChild safety device Child safety device is engaged
pPower Power function is switched on
_Safety cut-out Safety cut-out has been activated

9
Residual heat indicator
1Warning! Risk of burns from residual heat. After being switched off,
the cooking zones need some time to cool down. Look at the residual
heat indicator h.
3Residual heat can be used for melting and keeping food warm.
Operating the appliance
3Use the induction cooking zones with suitable cookware.
Switching the appliance on and off
3After switching on, within approx. 10 seconds a heat setting or a func-
tion must be set, otherwise the appliance automatically switches itself
off.
3Das Ausschalten funktioniert auch durch gleichzeitiges Berühren von
und . Dies gilt für alle Einzelfunktionen, zum Beispiel „Timer auss-
chalten“.
Selecting the heat setting
Control panel Display Pilot light
Switch on Touch for 2 seconds ¾/ hlights up
Switch off Touch for 1 second h/ none goes out
Control panel Indicator
To increase Touch uto Ç
To decrease Touch Çto ¾
To switch off Touch and at the same time ¾

10
Switching the STOP+GO function on and off
The STOP+GO function simultaneously switches all cooking zones that
are switched on to the keep warm setting and then back to the heat
setting that was previously set. This function can be used to briefly in-
terrupt and then continue the cooking process e.g. to take a telephone
call.
3Timer functions are not stopped by STOP+GO.
3STOP+GO locks the whole control panel except the sensor field .
Automatic warm up function and Power function
The sensor field controls the Power function and the Automatic
warm up function. Both functions make more power available to the
cooking zone for a short time.
Control panel Display
To switch
on
Touch STOP+GO u
To switch
off
Touch STOP+GO heat setting that was previ-
ously set (not automatic
warm up function)
Function Condition Result
Automatic warm up
function
A heat setting from 1
to 8is set
Appliance heats on
heat setting 9until
the requested heat
setting is reached
Power function Heat setting 0or 9is
set
Appliance heats for
a maximum of 10
minutes on heat set-
ting p.

11
Using the automatic warm-up function
All cooking zones are equipped with an automatic warm-up function.
The automatic warm-up function sets the cooking zone to the highest
setting for a certain period of time and then automatically switches
back to the cooking setting that was originally set.
3If during the automatic warm up a higher heat setting is selected, e.g.
from Áto Ã, the automatic warm up is adjusted.
The length of time that the automatic warm up function operates de-
pends on the heat setting selected.
Automatic warm up
function
Sensor field Power indicator
To switch on Touch for 1 second
with heat setting 1to
8
Lights up for the
length of the auto-
matic warm up
To switch off Touch for 1 second Goes out
Heat
setting
Length of the
automatic warm up
[min:sec]
Intermedi-
ate
heat
setting
Length of the
automatic warm up
[min:sec]
v0:10
10:10
20:10 2. 1:20
33:10 3. 4:20
45:50 4. 8:10
510:10 5. 10:30
62:00 6. 2:00
72:30
82:50
9---

12
Switching the power function on and off
The power function makes more power available to the induction
cooking zones, e.g. to bring a large quantity of water to the boil quick-
ly.
The power function is activated for 10 minutes. After that the induc-
tion cooking zone automatically switches back to heat setting 9.
Power Management
The cooking zones have a maximum
power available to them.
If this power range is exceeded by
switching on the power function,
Power Management reduces the
heat setting of another cooking
zone.
The display for this cooking zone al-
ternates for two minutes between
the set heat setting and the maxi-
mum possible heat setting. Thereaf-
ter the actual heat setting is
displayed.
Example:
3If the power function has ended, the cooking zones automatically
switch back to the heat setting set previously.
Control panel Power indicator/
Display
To switch on Touch with heat set-
ting 0or 9
p, lights up
To switch off Touch 9, goes out
Touch 9, goes out
Last
cooking zone
switched on
Other cooking zone
set
heat setting
set
heat set-
ting
display actual
heat setting
p97 alternating with 9 7

13
Using the child safety device
The child safety device prevents unintentional use of the appliance.
3The child safety device can only be switched on and off, if the appli-
ance is switched on, but no cooking zone has a heat setting set.
Activating the child safety device
3If you want to use a locked cooking zone (indicator l), an acoustic sig-
nal sounds.
Deactivating the child safety device
Step Control panel Indicator/Signal
1. Switch on the appliance
(Do not set a heat setting)
¾
2. Touch l
Appliance switches off. The child safety device is switched on.
Step Control panel Indicator/Signal
1. Switch on the appliance l
2. Touch 0lights up
Appliance switches off. The child safety device is switched off.

14
Using the timer
All cooking zones can use each use one of the two timer functions at
the same time.
3If a heat setting is set on this cooking zone in addition to a countdown
timer, the cooking zone is switched off after the time set has elapsed.
Selecting a cooking zone
Function Pre-condition Outcome after
time has elapsed
Safety cut-out When a heat setting is
set
Acoustic signal
0lights up
Cooking zone
switches off
Countdown timer When cooking zones are
not used
Acoustic signal
0lights up
Step Control panel Indicator
1. Touch left 1x Pilot light for the back
left cooking zone flash-
es
2. Touch left 1x Pilot light for the front
left cooking zone flash-
es
Step Control panel Indicator
1. Touch right 1x Pilot light for the back
right cooking zone
flashes
2. Touch right 1x Pilot light for the front
right cooking zone
flashes

15
Setting the time
3If other timer functions are set, after a few seconds the shortest re-
maining time of the right or left timer is displayed. The corresponding
pilot light flashes.
Switching off the timer function
Changing the time
Step Control panel Indicator
1. Select a cooking
zone
Pilot light for the selected cooking
zone flashes
2. Touch or 0to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.
Step Control panel Indicator
1. Select a cooking
zone
Pilot light of the selected cooking
zone flashes more quickly
Remaining time is displayed
2. Touch The remaining time counts down to 0.
The pilot light goes out.
The Timer function for the selected cooking zone is switched off.
Step Control panel Indicator
1. Selecting a cook-
ing zone
Pilot light of the selected cooking
zone flashes more quickly
Remaining time is displayed
2. Touch or 01 to 99 minutes
After a few seconds the pilot light flashes more slowly.
The time is set.
The time counts down.

16
Displaying the time remaining for a cooking zone
Switching off the acoustic signal
Step Control panel field Display
1. Select cooking
zone
Pilot light of the cooking zone select-
ed flashes faster
The time remaining is displayed
After a few seconds the pilot light flashes more slowly.
Step Control panel field Acoustic signal
1. Touch Acoustic signal to acknowledge.
Acoustic signal stops.

17
Safety cut-out
Cooking surface
•If after switching on the cooking surface, a heat setting is not set for
a cooking zone within approx. 10 seconds, the cooking surface auto-
matically switches itself off.
•If one or more sensor fields are covered for longer than approx. 10
seconds, e.g. by a pan placed upon it, a signal sounds and the cooking
surface switches off automatically.
•If all cooking zones are switched off, the cooking surface automati-
cally switches itself off after approx. 10 seconds.
Control panel
3Moisture (e.g. a wet cloth) or liquid boiling over onto the control panel
immediately switches all cooking zones off.
Induction cooking zones
•In the case of overheating (e.g. when a saucepan boils dry) the cook-
ing zone automatically switches itself off. _is displayed. Before be-
ing used again the cooking zone must be set to 0and allowed to
cool.
•If cookware that is not suitable is used, flights up in the display and
after 2 minutes the display for the cooking zone switches itself off.
•If one of the cooking zones is not switched off after a certain time, or
if the heat setting is not modified, the relevant cooking zone switches
off automatically.
Heat setting Switches off after
V, 1 - 2 6 hours
3 - 4 5 hours
54 hours
6 - 9 1.5 hours

18
Tips on cooking and frying
3Information about acrylamides
According to the latest scientific research, intensive browning of food,
especially in products containing starch, may present a health risk due
to acrylamide. Therefore we recommend cooking at low temperatures
and not browning foods too much.
Cookware for induction cooking zones
3Cookware for induction cooking zones is labelled as suitable by the
manufacturer.
Test of suitability
Cookware is suitable for induction, if …
•... a little water is heated on an induction cooking zone set to heat
setting 9 within a few seconds.
•... a magnet sticks to the bottom of the cookware.
3Certain cookware can make noises when being used on induction cook-
ing zones. These noises are not a fault in the appliance and do not af-
fect operation in any way.
Pan size
Induction cooking zones adapt automatically to the size of the cook-
ware bottom up to a certain limit. However the magnetic part of the
cookware bottom must have a minimum diameter depending upon the
size of the cooking zone.
3The cookware must be placed centrally on the cooking zone.
Tips on energy saving
2Place cookware on the cooking zone before it is switched on.
2If possible, always place a lid on the cookware.
Cookware made of suitable
Steel, enamelled steel yes
Cast iron yes
Stainless steel if appropriately labelled by the manufacturer
Aluminium, copper, brass ---
Glass, ceramic, porcelain ---

19
Examples of cooking applications
The information given in the following table is for guidance only.
The power function is suitable for heating large quantities of liquid.
Heat
set-
ting
Cooking
process suitable for Cook time Tips/Hints
0Off position
V
Keeping
food
warm
Keeping cooked foods
warm as required Cover
1-2
Melting
Hollandaise sauce,
melting butter, chocolate,
gelatine
5-25 mins. Stir occasionally
Solidify-
ing
Fluffy omelettes, baked
eggs 10-40 mins. Cook with lid on
2-3 Simmer-
ing
Simmering rice and milk-
based dishes
Heating up ready-cooked
meals
25-50 mins.
Add at least twice as
much liquid as rice, stir
milk dishes part way
through cooking
3-4 Steaming
Braising
Steaming vegetables, fish
Braising meat 20-45 mins.
With vegetables add
only a little liquid (a
few tablespoons)
4-5 Boiling
Steaming potatoes 20-60 mins.
Use only a little liquid,
e. g.: max. ¼l water
for 750 g of potatoes
Cooking larger quantities
of food, stews and soups
60-150
mins.
Up to 3 l liquid plus in-
gredients
6-7 Gentle
frying
Frying escalope, veal cor-
don bleu, cutlets, rissoles,
sausages, liver, roux, eggs,
pancakes, doughnuts
as required Turn halfway through
cooking
7-8 Heavy
frying
Hash browns, loin steaks,
steaks, Flädle (pancakes
for garnishing soup)
5-15 mins.
per pan
Turn halfway through
cooking
9
Boiling
Searing
Deep fry-
ing
Boiling large quantities of water, cooking pasta, searing meat
(goulash, pot roast), deep frying chips

20
Cleaning and care
1Take care! Risk of burns from residual heat.
Let the appliance cool down.
1Important Sharp objects and abrasive cleaning materials will damage
the appliance. Clean with water and washing up liquid.
1Important Residues from cleaning agents will damage the appliance.
Remove residues with water and washing up liquid.
Cleaning the appliance after each use
1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.
Removing deposits
1. Place the scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.
*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialist shops,
supermarkets, the parts department of your local Service Force Centre or from
www.shop.electrolux.co.uk
3Remove stubborn residues with a cleaner for glass ceramic or stainless
steel.
3Scratches or dark stains on the glass ceramic that cannot be removed
do not however affect the functioning of the appliance.
Remove
Type of dirt imme-
diately
when the appliance has
cooled down using
sugar, food containing sugar yes --- a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes cleaner for glass ce-
ramic or stainless
steel*
fat splashes --- yes
shiny metallic discolorations --- yes
