Electrolux B9820-5 User manual

B9820-5
User manual Built-In Electric Oven

Contents2
Contents
Operating Instructions 3
Safety instructions 3
Description of the Appliance 5
General Overview 5
The electronic oven controls 6
Oven Features 7
Oven accessories 8
Before Using for the first time 9
Setting the language 9
Setting the clock 10
Initial cleaning 11
Using the Oven 12
Menu operation in overview 12
Use of the oven functions 14
Switching the Oven On and Off 15

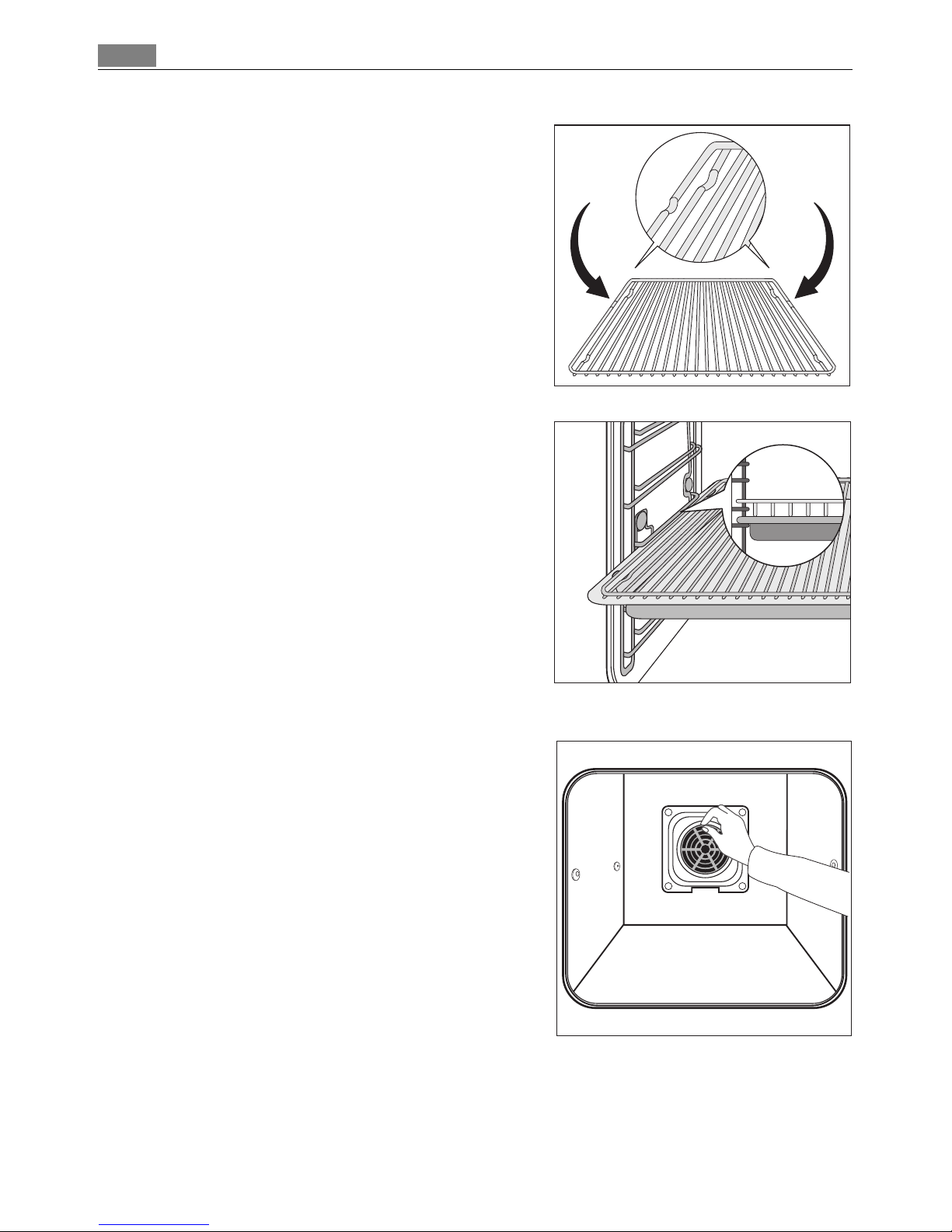

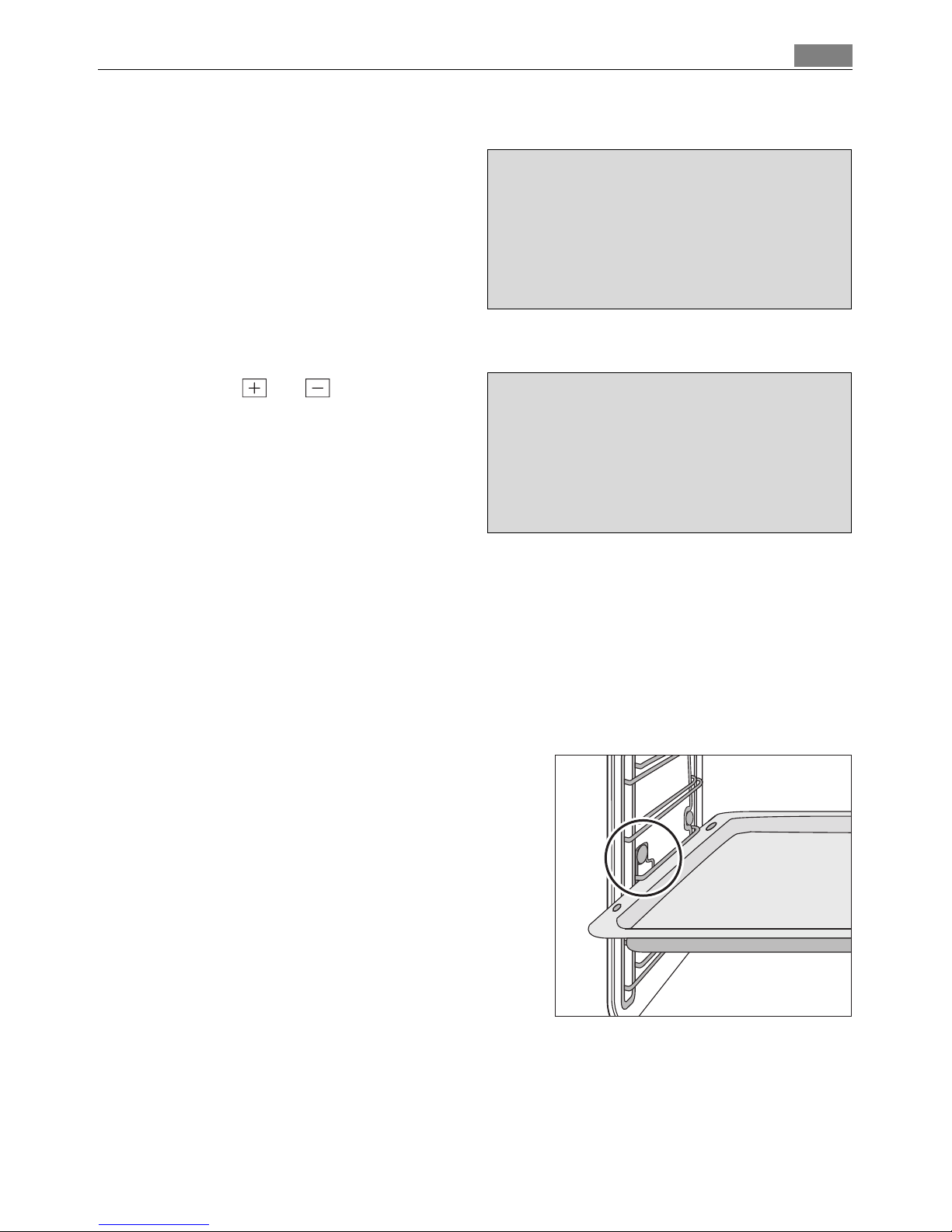

Inserting the Oven Shelf, Baking Tray
and Roasting Pan 17
Inserting/Removing the Fat Filter 18
Steam Cooking Functions 19
Meat Probe 20
Automatic programmes 22
Options 24
Clock Functions 31
Additional functions 36
Cleaning and Care 37
Outside of the appliance 37
Oven interior 37
Accessories 38
Fat Filter 38
STEAM CLEANING 38
Slide-in racks 39
Steam generation system 40
Oven Light 41
Oven door 42
Oven door glass and water collecting
channel 44
What to do if … 48
Disposal 49
Installation Instructions 50
Safety Instructions for the Installer 50
Service 55
Thank you for choosing one of our high-quality products.
To ensure optimal and regular performance of your appliance please read this instruc-
tion manual carefully. It will enable you to navigate all processes perfectly and most ef-
ficiently.
To refer to this manual any time you need to, we recommend you to keep it in a safe
place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on how to
avoid damaging the appliance.
3General information and tips
2Environmental information

3Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or switch off.
•Repairs to the appliance must only be carried out by qualified service engineers.
Considerable danger may result from improper repairs. If repairs become necessary,
please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
•The appliance is fitted with a child safety device.
Safety during Operation
•People (including children) who, because of their physical, sensory or mental capabili-
ties or their inexperience or ignorance are not able to use the device safely, should not
use this device without supervision or instruction by a responsible person.
•This appliance is intended to be used for cooking, roasting and baking food in the
home.
•Be careful if connecting electrical appliances to sockets near this appliance. Electrical
leads should not be allowed to come near the hotplates or to become caught under
the hot oven door.
•Warning: Danger of burns! When in use, the oven interior surfaces become very
hot.
•Warning: When cooking with the Vigorous Steam function, do not under any
circumstances open the oven door. The escaping steam can cause moisture damage
to furniture and cabinets. Avoid any direct contact with escaping steam.
•If you use alcohol in your cooking, a slightly flammable alcohol/air mixture may en-
sue. In this case, be careful when opening the door. Do not handle any sources of heat,
sparks or naked flames when doing so.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, especially in
products containing starch, can constitute a health risk due to acrylamides. Therefore we
recommend cooking at the lowest possible temperatures and not browning foods too
much.

Safety instructions4
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on
the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not be able
to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause damage to or
discolouration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the glass to
break.
•Do not store any flammable materials inside the oven. These could ignite when the
oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven enamel.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not affect the
appliance’s suitability for normal and correct use. They therefore do not constitute a de-
fect in the sense of the warranty law.

5Description of the Appliance
Description of the Appliance
General Overview
Full glass door
Oven displays
and buttons
Door
handle
Water drawer

Description of the Appliance6
The electronic oven controls
Indicators
Menu status bar
In the menu status bar the current position within a menu is shown by a flashing bar.
When the menu status bar can no longer be seen in the display, the oven begins to heat
or the time set begins to count down.
Symbol status bar
Buttons
Symbol Function
RAPID HEAT UP RAPID HEAT UP is in operation.
MEATPROBE MEATPROBE is plugged in.
Button Function
w To select oven functions.
To move up and down in the menu.
m
¸To open the Options menu.
To close the Options menu (press and hold button).
TRUE FAN
150ûc 12.05 00.06
___________________
Symbol status bar Menu status bar Text line
Temperature Time
Meat core temperature
Clock functions
Period of operation
Heat indicator Shelf positions
wm¸¹º»¼-+

7Description of the Appliance

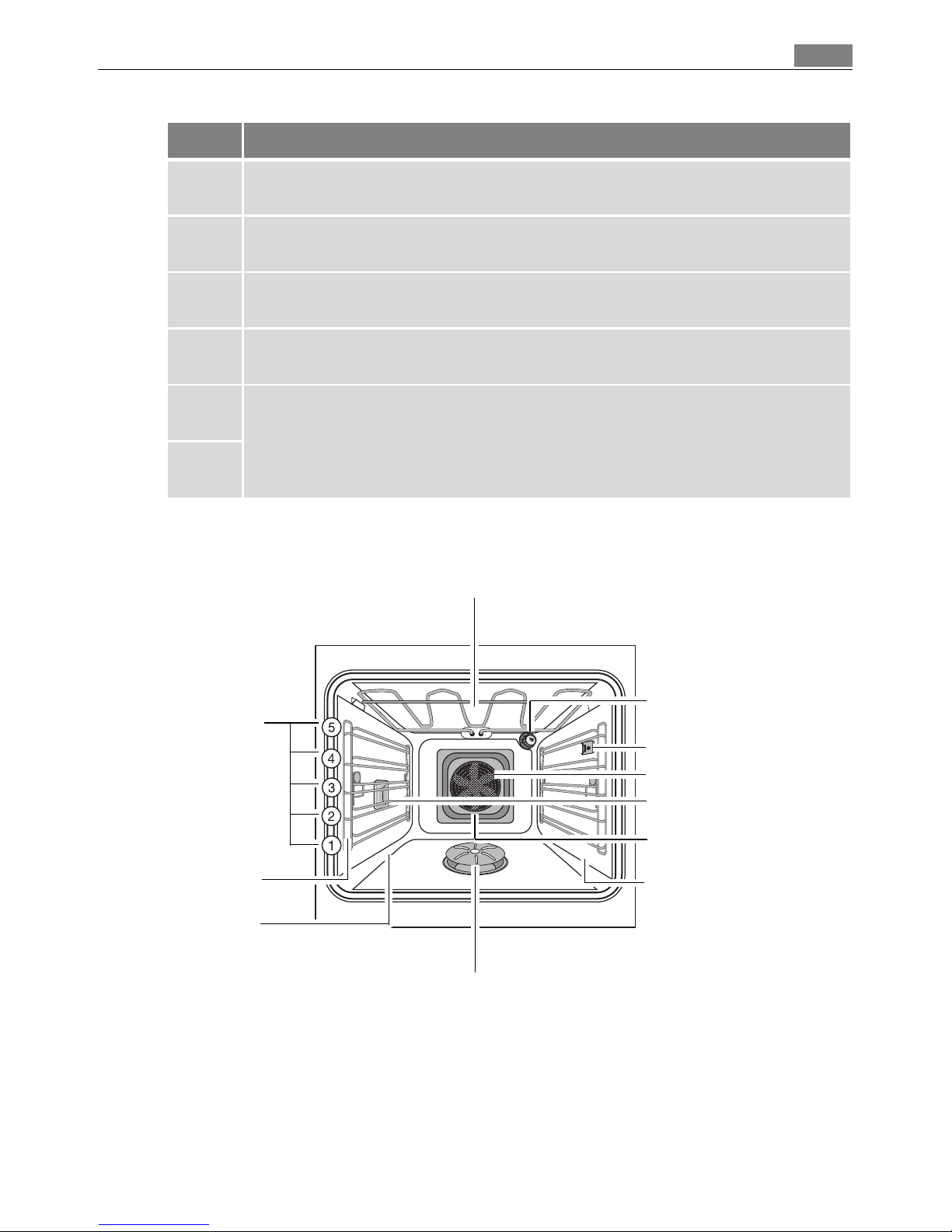

Oven Features
¹To confirm, change to the submenu.
ºTo switch appliance on or off.
»Switch RAPID HEAT UP on or off.
¼To select between oven functions, clock functions and MEATPROBE.
-To set values (e.g. temperature, time, weight or degree of cooking).
+
Button Function
Top heat and heating elements
Oven lighting
Oven shelf runners,
removable
Oven levels
Oven lighting
Rear wall heating
element/Fat filter
Steam generator/
Steam rosette
Fan
Meat probe socket
Oven shelf runners,
removable
Bottom Heat

Description of the Appliance8
Inside of door
You will find the shelf position number on the
inside of the oven door.
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled foods.
Baking tray
For cakes and biscuits
(not suitable for VIGOROUS STEAM cooking).
Roasting Pan
For baking and roasting or as a pan for collect-
ing fat (not suitable for VIGOROUS STEAM
cooking).
Meat probe
For determining exactly how far joints of meat
are cooked (not suitable for VIGOROUS STEAM
cooking).

9Before Using for the first time
Food container set
Unperforated and perforated food container.
Patisserie tray
For rolls, pretzels and biscuits.
Can be used for the steam functions. Discolour-
ation of the surface has no impact on function.
QuickSponge 180
Extremely absorbent sponge for absorbing any
residual water from the steam generator.
Before Using for the first time
Setting the language
1. When the appliance has been connect-
ed to the electrical supply, the
SPRACHE EINSTELLEN - LANGUAGE
MENU is shown in the display.
LANGUAGE MENU
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹º»¼-+

Before Using for the first time10
2. Using the arrow buttons or se-
lect the desired language.
3. Confirm selected language with the OK
button.
From now on the texts in the display
appear in the language set.
Setting the clock
1. TIME OF DAY lights up.
You will see 12.00 in the clock display.
2. Set the current time using the or
buttons.
3. Confirm using the SELECTION but-
ton.
The appliance switches itself off and is
now ready for use.
3If you would like to change one of these base settings at a later date, please refer to the
SETTINGS MENU section.
ENGLISH
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wPmP¸¹º»¼-+
TIME OF DAY
ý ý ý ýþ ýþ ý ý ý
ýý ý ò
888ûcþ þüþ1ü2.0ü0 ý88.8ú8
wm¸¹Pº»¼-+
TIME OF DAY
ý ý ý ýþ ýþ ý ý ý
ýý ý ò
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼-P+P
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
888ûcþ þüþ1ü2.2ü5 ý88.8ú8
wm¸¹º»¼P-+

11Before Using for the first time
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage the oven
surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is illuminated.
2. Remove all oven accessories, and clean them with warm water and washing up liquid.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.

Using the Oven12
Using the Oven
Menu operation in overview
3The display only offers setting options that are possible with the current function after
each operational step.
VIGOROUS STEAM
INTERVAL PLUS
INTERVAL STEAM
TRUE FAN
MOIST FAN COOKING
FAN BAKING
SLOW COOK ONE
CONVENTIONAL
ROTITHERM
DUAL GRILL
SINGLE GRILL
KEEP WARM
DEFROST
BASE HEAT
POULTRY
PORK
RECIPE MENU
MEMORY MENU
CLEANING MENU
SETTINGS MENU
HEAT+HOLD MENU
EXTRA TIME MENU
RAPID HEAT UP MENU
RESIDUAL HEAT MENU
DISPLAY MENU
SOUND MENU
LANGUAGE MENU
FACTORY SETTINGS
Menu
Oven functions
¸
w
m
w
m
w
m
¹
Menu
options
BEEF
VEAL
GAME

13Using the Oven
The Oven Functions menu
•When you switch the appliance on, you find yourself in the Oven Functions menu.
•Select the desired oven function using the arrow buttons or . In the menu sta-
tus bar, the current position within the menu is shown.
Setting an example oven function
1. Switch on the appliance using the ON/
OFF button.
2. Using the arrow buttons or se-
lect the oven function.
A suggested temperature appears in
the temperature display.
The oven starts to heat up.
3. With the or button, the tem-
perature can be raised or lowered.
3When the temperature set is reached,
an audible signal sounds.
The Options menu
•Using the OPTION button, enter the Options menu.
•Select the desired option using the arrow buttons or . In the menu status bar,
the current position within the menu is shown.
•Use the OK button to change to the menu of the selected option.
The sub-menus
•Select the desired setting using the arrow buttons or or change to other sub-
menus using the OK button.
3At the end of every menu there is the menu option BACK.
You use this to go back to the higher menu.
You can cancel a setting procedure by pressing and holding down the OPTION but-
ton.
You will then find yourself back in the Oven functions menu.
–—OVEN FUNCTIONS
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wm¸¹ºP»¼-+
____________________
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
200ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.2ü6 ý00.0ü1
wm¸¹º»¼-P+P

Using the Oven14
Use of the oven functions
The oven has the following functions:
Meat programmes
Oven function Application
VIGOROUS STEAM
Cooking
For fruit, vegetables, fish, potatoes, rice, pasta or special side-
dishes.
INTERVAL PLUS For foods with a high moisture content and for reheating foods.
INTERVAL STEAM For baking and roasting and warming up frozen or chilled
foods.
TRUE FAN For baking on up to three oven levels at the same time.
Set the oven temperatures
20-40 °C lower than when using Conventional.
MOIST FAN
COOKING
For energy-saving baking and cooking of mainly dry bakery
items as well as for baking in tins on one level.
FAN BAKING For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
SLOW COOK For preparing especially tender, succulent roasts.
CONVENTIONAL For baking and roasting on one oven level.
ROTITHERM For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning.
DUAL GRILL For grilling flat food items in large quantities and for toast-
ing.
SINGLE GRILL For grilling flat food items placed in the middle of the grill
and for toasting.
KEEP WARM To keep dishes warm.
DEFROST For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
BASE HEAT For baking cakes with crispy or crusty bases.
Meat programmes
with weight input Application Weight range
POULTRY Chicken, duck, goose 0.9 to 4.7 kg
PORK Roast pork, shoulder of pork 1.0 to 3.0 kg
BEEF Roast beef, pot roast 1.0 to 3.0 kg
VEAL Roast veal 1.0 to 3.0 kg
GAME Vension, rabbit 1.0 to 3.0 kg

15Using the Oven
or
Usage, Tables, Tips and Recipes
You will find practical information on the various oven functions, programmes and au-
tomatic recipes in the accompanying booklet.
Switching the Oven On and Off
Selecting an oven function
1. Switch on the appliance using the ON/OFF button.
2. Using the arrow buttons or se-
lect the desired oven function.
A suggested temperature appears in
the temperature display.
The oven starts to heat up.
Changing the oven temperature
Press the or button to raise or
lower the temperature.
3When the selected temperature is
reached, a signal sounds.
Meat programmes with
meat probe plugged in Degree of cooking Notes
TOP SIDE BEEF TOP SIDE BEEF RARE
-TOP SIDE BEEF MED.
TOP SIDE BEEF WELL
BEEF SCAN BEEF SCAN RARE Roast beef Scandinavi-
an style (no browning)
BEEF SCAN MED.
BEEF SCAN WELL
PORK JOINT - -
VEAL - -
LAMB JOINT - -
GAME - -
BONED POULTRY - -
____________________
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
200ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.2ü6 ý00.0ü1
wm¸¹º»¼-P+P

Using the Oven16
Switching off an oven function
Press the arrow buttons or re-
peatedly until OVEN FUNCTIONS ap-
pears in the display again.
Turning the appliance off completely
Switch appliance off by pressing
the ON/OFF button.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool. When
the oven is switched off, the fan continues to run to cool the appliance down, then
switches itself off automatically.
Heat indicator
Heating Up indicator
When the oven function has been
switched on, the bars that slowly light
up one after the other indicate how far
the oven has heated up.
Rapid Heat Up indicator
When the RAPID HEAT UP function has
been switched on, the bars that flash
one after the other indicate that RAPID
HEAT UP is operating.
–—OVEN FUNCTIONS
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wPmP¸¹º»¼-+
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
280ûcþ þüþ1ü2.2ü5 ý88.8ú9
wm¸¹ºP»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
180ûcþþÝÞÜÜþ1ü2.12 ý00.ü07
wm¸¹º»¼-+
CONVENTIONAL
ý ý ý é ýþ ýþ ý ý ý
ýý ý ý
180ûcþÝÜÜÜþ1ü2.1ü0 ý00.0ü5
wm¸¹º»P¼-+

17Using the Oven
Residual heat indicator
After switching off the oven, the re-
sidual heat in the oven is displayed.
Checking the temperature to the
degree
Press the and buttons at the
same time.
The current oven temperature is dis-
played.
Inserting the Oven Shelf, Baking Tray and Roasting Pan
3Shelf runner safety and anti-tip device
As a shelf runner safety device, all insertable components have a small curved indenta-
tion at the bottom on the right and left-hand edge.
Always insert insertable components so that this indentation is at the back of the oven
interior. This indentation is also important for preventing the insertable components
from tipping.
Inserting the baking tray or roasting pan
Push the baking tray or roasting pan between
the guide bars of the selected oven level.
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
160ûcþÝÞßÜþ1ü3.2ü5 ý88.8ú9
wm¸¹º»¼-+
CONVENTIONAL
ý ý ý ýþ ýþ ý ý ý
ýý ý ý
295ûcþ þüþ1ü3.2ü5 ý00.0ú2
wm¸¹º»¼-P+P

Using the Oven18
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Push the oven shelf between the guide bars of
the selected oven level.
3The high rim around the oven shelf is an addi-
tional device to prevent cookware from slip-
ping.
Inserting the oven shelf and roasting pan
together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the guide bars
of the selected oven level.
Inserting/Removing the Fat Filter
Only use the fat filter when roasting to pro-
tect the rear heating elements from fat splash-
es.
Inserting the fat filter
Hold the fat filter by the grip and insert
the two mounts downwards into the
opening on the rear wall of the oven
(fan opening).
Taking out the fat filter
Hold the fat filter by the grip and un-
hook it.

19Using the Oven
Steam Cooking Functions
1Important: The Steam Cooking functions must always be set in conjunction with the
clock functions DURATION or END (see chapter Clock Functions DURATION /
END ).
1Important: Always use water only.
A buzzing sound is heard when the water has been used up. When more water is added,
the buzzing sound is switched off.
3Because of the automatic steam dispersal period of approx. 5 minutes at the end of the
cooking time and the heating up time of approx. 2 minutes, settings of less than
10 minutes have little effect.
Steam will also escape when the door is opened.
VIGOROUS STEAM
1. The water (650 ml) is not poured directly into
the steam generator, but into the water draw-
er in the control panel.
The water supply lasts for approx. 30 minutes.
2. Switch on the appliance using the ON/OFF
button.
3. Using the arrow buttons or se-
lect the oven function VIGOROUS
STEAM and using the or but-
ton, select the desired temperature.
4. Using the SELECTION button, select
the function DURATION or END
and using the or button, set
the desired cooking time or switch-off
time.
After about 2 minutes, the first steam appears. An audible signal indicates when the
cooking temperature of around 96°C is reached.
Another signal indicates the end of cooking time.
5. Switch off the appliance using the ON/OFF button.
After the oven has cooled down, soak up any remaining water from the steam generator
using a sponge and, if necessary, wipe out with a little vinegar.
Leave the door open to let the oven dry completely.
____________________
VIGOROUS STEAM
ý ý ý ýþ ýþ ý í î
ýý ý ý
296ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+

Using the Oven20
INTERVAL PLUS and INTERVAL STEAM
The continual change from fan to steam takes place automatically, with INTERVAL PLUS
however with a greater percentage of steam.
1. Do not pour water directly into the steam generator, but into the drawer in the control
panel.
2. Switch on the appliance using the ON/OFF button.
3. Using the arrow buttons or ,
select the oven function INTERVAL
PLUS or INTERVAL STEAM and using
the or button, select the de-
sired temperature.
4. Using the SELECTION button, select
the function DURATION or END
and using the or button, set
the desired cooking time or switch-off time.
Then proceed as for VIGOROUS STEAM.
Meat Probe
3When the meat probe is plugged in, the OVEN FUNCTIONS menu offers a choice of suit-
able oven functions and additional programmes for the meat probe.
1Important: Only the meat probe supplied may be used. If replacing, please use only
original replacement parts.
Inserting the meat probe
1. Switch on the appliance using the ON/OFF button.
2. Push the tip of the meat probe into the meat as
fully as possible, so that the tip is in the centre
of the meat.
3. Insert the meat probe plug into the socket on
the side wall of the oven as far as it will go.
____________________
INTERVAL PLUS
ý ý ý ýþ ýþ ý í î
ýý ý ý
110ûcþÝÜÜÜþ1ü2.2ü5 ý00.0ü0
wPm¸¹º»¼-+
