Electrolux EHK10 User manual

EHK10
................................................ .............................................
EN OVEN USER MANUAL

CONTENTS
1. SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
3. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. USING THE ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. ADDITIONAL FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
9. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
10. WHAT TO DO IF… . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
12. GARANTIE, GARANZIA, GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.RegisterElectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
responsible if an incorrect installation and use causes in-
juries and damages. Always keep the instructions with
the appliance for future reference.
1.1 Children and vulnerable people safety
WARNING!
Risk of suffocation, injury or permanent disability.
• This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they are supervised by an adult or a per-
son who is responsible for their safety.
• Do not let children play with the appliance. Children un-
der 3 years must not be left unsupervised in the vicinity
of the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when
it operates or when it cools down. Accessible parts are
hot.
• If the appliance has a child safety device, we recom-
mend that you activate it.
• Cleaning and user maintenance shall not be made by
children without supervision.
1.2 General Safety
• Only a qualified person must install this appliance and
replace the cable.
• Internally the appliance becomes hot when in opera-
tion. Do not touch the heating elements that are in the
appliance. Always use oven gloves to remove or put in
accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.
ENGLISH 3

• Before maintenance cut the power supply.
• Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the glass door since they can scratch
the surface, which may result in shattering of the glass.
• To remove the shelf supports first pull the front of the
shelf support and then the rear end away from the side
walls. Install the shelf supports in the opposite se-
quence.
• If the supply cord is damaged, it must be replaced by
the manufacturer, an authorized Service or similarly
qualified persons in order to avoid a hazard.
• The means for disconnection must be incorporated in
the fixed wiring in accordance with the wiring rules.
• Ensure that the appliance is switched off before replac-
ing the lamp to avoid the possibility of electric shock.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must in-
stall this appliance.
• Remove all the packaging.
• Do not install or use a damaged appli-
ance.
• Obey the installation instruction sup-
plied with the appliance.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Do not pull the appliance by the handle.
• The kitchen cabinet and the recess
must have suitable dimensions.
• Keep the minimum distance from the
other appliances and units.
• Make sure that the appliance is installed
below and adjacent safe structures.
• Parts of the appliance carry current.
Close the appliance with furniture to
prevent touching the dangerous parts.
• The sides of the appliance must stay
adjacent to appliances or to units with
the same height.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• All electrical connections should be
made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the pow-
er supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Contact the Service or an electrician to
change a damaged mains cable.
• Do not let mains cables to come in
touch with the appliance door, specially
when the door is hot.
4www.electrolux.com

• The shock protection of live and insula-
ted parts must be fastened in such a
way that it cannot be removed without
tools.
• Connect the mains plug to the mains
socket only at the end of the installa-
tion. Make sure that there is access to
the mains plug after the installation.
• If the mains socket is loose, do not
connect the mains plug.
• Do not pull the mains cable to discon-
nect the appliance. Always pull the
mains plug.
• Use only correct isolation devices: line
protecting cut-outs, fuses (screw type
fuses removed from the holder), earth
leakage trips and contactors.
• The electrical installation must have an
isolation device which lets you discon-
nect the appliance from the mains at all
poles. The isolation device must have a
contact opening width of minimum 3
mm.
2.2 Use
WARNING!
Risk of injury, burns or electric
shock or explosion.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Make sure that the ventilation openings
are not blocked.
• Do not let the appliance stay unatten-
ded during operation.
• Deactivate the appliance after each
use.
• Be careful when you open the appli-
ance door while the appliance is in op-
eration. Hot air can release.
• Do not operate the appliance with wet
hands or when it has contact with wa-
ter.
• Do not apply pressure on the open
door.
• Do not use the appliance as a work
surface or as a storage surface.
• Always keep the appliance door closed
when the appliance is in operation.
• Open the appliance door carefully. The
use of ingredients with alcohol can
cause a mixture of alcohol and air.
• Do not let sparks or open flames to
come in contact with the appliance
when you open the door.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to
the enamel:
– do not put ovenware or other objects
in the appliance directly on the bottom.
– do not put aluminium foil directly on
the bottom of the appliance.
– do not put water directly into the hot
appliance.
– do not keep moist dishes and food in
the appliance after you finish the cook-
ing.
– be careful when you remove or install
the accessories.
• Discoloration of the enamel has no ef-
fect on the performance of the appli-
ance. It is not a defect in the sense of
the warranty law.
• Use a deep pan for moist cakes. Fruit
juices cause stains that can be perma-
nent.
2.3 Care and Cleaning
WARNING!
Risk of injury, fire or damage to
the appliance.
• Before maintenance, deactivate the ap-
pliance and disconnect the mains plug
from the mains socket.
• Make sure the appliance is cold. There
is the risk that the glass panels can
break.
• Replace immediately the door glass
panels when they are damaged. Con-
tact the Service.
• Be careful when you remove the door
from the appliance. The door is heavy!
• Clean regularly the appliance to prevent
the deterioration of the surface material.
ENGLISH 5

• Remaining fat or food in the appliance
can cause fire.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal ob-
jects.
• If you use an oven spray, obey the safe-
ty instructions on the packaging.
• Do not clean the catalytic enamel (if ap-
plicable) with any kind of detergent.
2.4 Internal light
• The type of light bulb or halogen lamp
used for this appliance, is only for
household appliances. Do not use it for
house lighting.
WARNING!
Risk of electrical shock.
• Before replacing the lamp, disconnect
the appliance from the power supply.
• Only use lamps with the same specifi-
cations.
2.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the ap-
pliance.
3. PRODUCT DESCRIPTION
43 651
12
8
9
10
11
72 2
5
4
3
2
1
1Control panel
2Lamps / symbols of the cooking
zones
3Knob for the oven functions
4Power lamp / symbol
5Knob for the temperature
6Temperature lamp / symbol / indica-
tor
7Knobs for the cooking zones
8Heating element
9Lamp
10 Bottom heat
11 Shelf support, removable
12 Shelf positions
3.1 Accessories
Wire shelf
For cookware, cake tins, roasts.
6www.electrolux.com

Baking tray
For cakes and biscuits.
4. BEFORE FIRST USE
WARNING!
Refer to the Safety chapters.
4.1 Initial Cleaning
• Remove all parts from the appliance.
• Clean the appliance before first use.
Refer to chapter "Care and Clean-
ing".
5. DAILY USE
WARNING!
Refer to the Safety chapters.
To use the appliance, press the control
knob. The control knob comes out.
5.1 Activating and deactivating
the appliance
1. Turn the control knob for the oven
functions to select an oven function.
2. Turn the control knob for the temper-
ature to select a temperature.
3. To deactivate the appliance turn the
control knobs for the oven functions
and temperature to off position.
Knob symbol, indicator or
lamp (depends on the model -
refer to the appliance over-
view):
• The indicator comes on when the oven
heats up.
• The lamp comes on when the appli-
ance operates.
• The symbol shows whether the knob
controls one of the cooking zones, the
oven functions or the temperature.
5.2 Oven Functions
Oven function Application
Light To activate the lamp without a cooking function.
Conventional Cook-
ing
To bake and roast food on one shelf position.
Top Heat To brown bread, cakes and pastries. To finish
cooked dishes.
ENGLISH 7

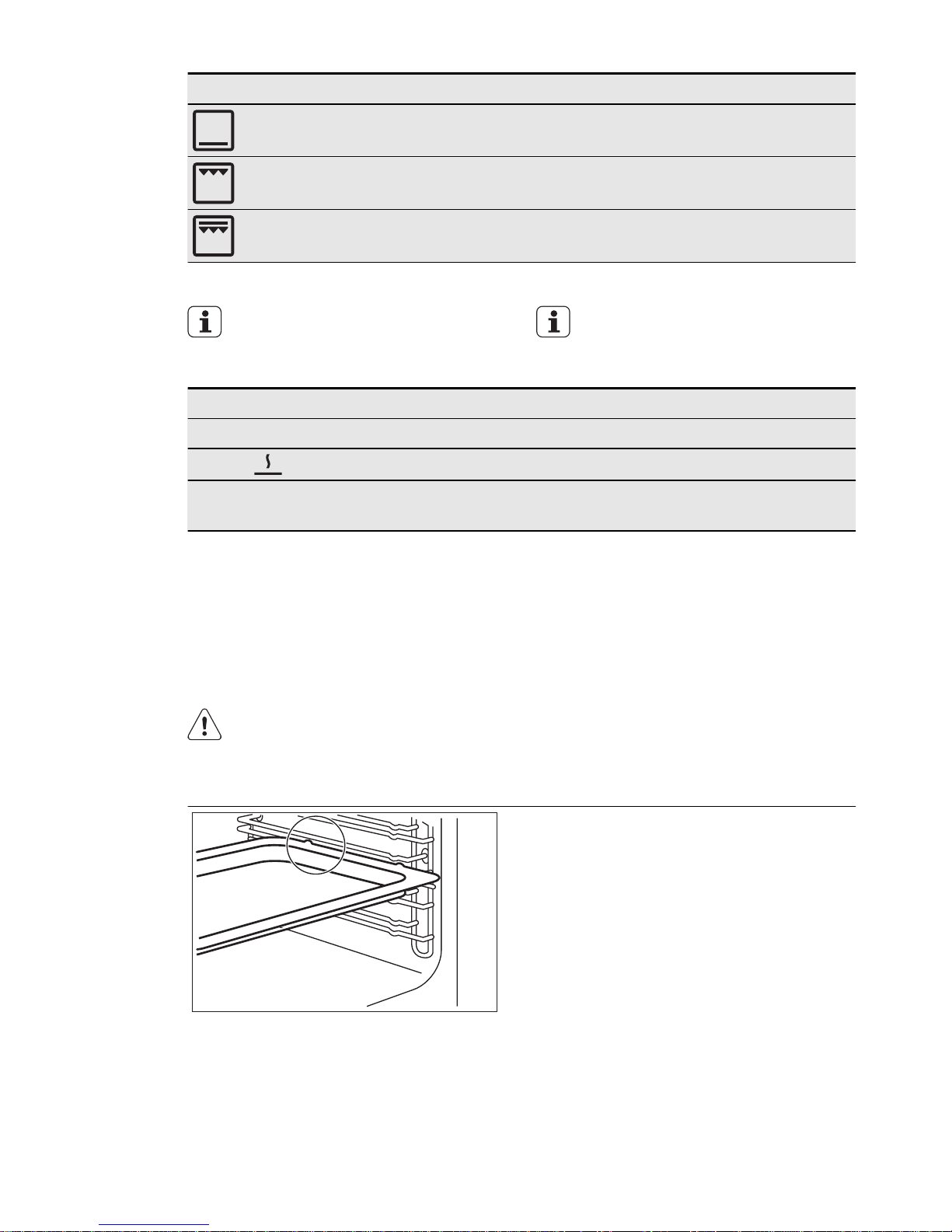

Oven function Application
Bottom Heat To bake cakes with crispy bottom and to preserve
food.
Grilling To grill flat food and to toast bread.
Fast Grilling To grill flat food in large quantities and to toast
bread.
5.3 Cooking zones
You can operate the hob with the
control knobs for the cooking
zones. Refer to the user manual
for hob.
5.4 Hob cooking zones
The cooking zone lamps (refer to
the chapter "Product description")
show which zone you set.
Control knob Function
0Off position
Keep warm setting
1 - 9 Heat settings
(1 = lowest heat setting, 9 = highest heat setting)
Operating the hob:
1. Turn the knob to a necessary heat
setting.
2. To complete the cooking process,
turn the knob to the off position.
6. USING THE ACCESSORIES
WARNING!
Refer to the Safety chapters.
6.1 Inserting the accessories
Baking tray:
Push the baking tray between the guide
bars of the shelf support.
8www.electrolux.com

Wire shelf:
Push the shelf between the guide bars of
the shelf support and make sure that the
feet point down.
Wire shelf and baking tray together:
Push the baking try between the guide
bars of the shelf support and the wire
shelf on the guide bars above.
• All accessories have small indentations
at the top of the right and left side to in-
crease safety. The indentations are also
anti-tip devices.
• The high rim around the shelf is a de-
vice which prevents cookware from
slipping.
7. ADDITIONAL FUNCTIONS
7.1 Cooling fan
When the appliance operates, the cooling
fan activates automatically to keep the
surfaces of the appliance cool. If you de-
activate the appliance, the cooling fan can
continue to operate until the appliance
cools down.
8. HELPFUL HINTS AND TIPS
8.1 Examples of cooking
applications for hob
The data in the table is for guidance only.
Heat set-
ting
Use to: Time
(min)
Hints
1 - 2 Hollandaise sauce, melt:
butter, chocolate, gelatine
5 - 25 Mix occasionally
1 - 2 Solidify: fluffy omelettes,
baked eggs
10 - 40 Cook with a lid on
ENGLISH 9

Heat set-
ting
Use to: Time
(min)
Hints
2 - 3 Simmer rice and milkbased
dishes, heating up ready-
cooked meals
25 - 50 Add at least twice as
much liquid as rice, stir
milk dishes part way
through
3 - 4 Steam vegetables, fish,
meat
20 - 45 Add a few tablespoons of
liquid
4 - 5 Steam potatoes 20 - 60 Use max. 1 / 4 l water for
750 g of potatoes
4 - 5 Cook larger quantities of
food, stews and soups
60 - 150 Up to 3 l liquid plus ingre-
dients
6 - 7 Gentle fry: escalope, veal
cordon bleu, cutlets, ris-
soles, sausages, liver, roux,
eggs, pancakes, doughnuts
as re-
quired
Turn halfway through
7 - 8 Heavy fry, hash browns, loin
steaks, steaks
5 - 15 Turn halfway through
9Boil large quantities of water, cook pasta, sear meat (goulash, pot
roast), deep fry chips
The temperature and baking times
in the tables are guidelines only.
They depend on the recipes, qual-
ity and quantity of the ingredients
used.
8.2 Baking
General instructions
• Your new appliance may bake or roast
differently to the appliance you had be-
fore. Adapt your usual settings (temper-
ature, cooking times) and shelf posi-
tions to the values in the tables.
• With longer baking times, the appliance
can be switched off about 10 minutes
before the end of baking time, to use
the residual heat.
When you use frozen food, the trays
in the appliance can twist during bak-
ing. When the trays get cold again,
the distortion will be gone.
How to use the Baking Tables
• We recommend to use the lower tem-
perature the first time.
• If you cannot find the settings for a spe-
cial recipe, look for the one that is al-
most the same.
• Baking time can be extended by 10 -
15 minutes, if you bake cakes on more
than one level.
• Cakes and pastries at different heights
do not always brown equally at first. If
this occurs, do not change the temper-
ature setting. The differences equalize
during the baking procedure.
• Unless otherwise stated, the values in
the tables assume that the appliance is
cold when the cooking starts.
8.3 Tips on baking
Baking results Possible cause Remedy
The bottom of the cake is
not browned sufficiently.
The shelf position is in-
correct.
Put the cake on a lower
shelf.
The cake sinks and be-
comes soggy, lumpy or
streaky.
The oven temperature is
too high.
The next time you bake,
set a slightly lower oven
temperature.
10 www.electrolux.com

Baking results Possible cause Remedy
The cake sinks and be-
comes soggy, lumpy or
streaky.
The baking time is too
short.
Set a longer baking time.
You cannot decrease
baking times by setting
higher temperatures.
The cake sinks and be-
comes soggy, lumpy or
streaky.
There is too much liquid
in the mixture.
Use less liquid. Be careful
with mixing times, espe-
cially if you use a mixing
machine.
The cake is too dry. The oven temperature is
too low.
The next time you bake,
set a higher oven temper-
ature.
The cake is too dry. The baking time is too
long.
The next time you bake,
set a shorter baking time.
The cake browns uneven-
ly.
The oven temperature is
too high and the baking
time is too short.
Set a lower oven temper-
ature and a longer baking
time.
The cake browns uneven-
ly.
The mixture is unevenly
distributed.
Spread the mixture evenly
on the baking tray.
The cake is not ready in
the baking time given.
The oven temperature is
too low.
The next time you bake,
set a slightly higher oven
temperature.
8.4 Baking on one level:
Baking in tins
Type of baking Oven function Shelf po-
sition
Temperature
(°C) Time (min)
Ring cake or brio-
che
Conventional
Cooking 1160 - 180 50 - 70
Madeira cake / fruit
cakes
Conventional
Cooking 1150 - 170 70 - 90
Fatless sponge
cake / Fatless
sponge cake
Conventional
Cooking 2160 - 180 30 - 45
Flan base - short
pastry
Conventional
Cooking 2190 - 210
1)
10 - 25
Flan base - sponge
mixture
Conventional
Cooking 2170 - 190 20 - 25
Apple pie / Apple
pie (2 tins Ø 20cm,
diagonally off set)
Conventional
Cooking 1180 70 - 90
Savoury flan (e.g,
quiche lorraine)
Conventional
Cooking 1180 - 200 40 - 60
ENGLISH 11

Type of baking Oven function Shelf po-
sition
Temperature
(°C) Time (min)
Cheesecake Conventional
Cooking 1160 - 180 60 - 90
1) Preheat the oven.
Cakes / pastries / breads on baking trays
Type of baking Oven function Shelf po-
sition
Temperature
(°C) Time (min)
Plaited bread /
bread crown
Conventional
Cooking 2170 - 190 40 - 50
Christmas stollen Conventional
Cooking 2160 - 180
1)
50 - 70
Bread (rye
bread):
1.
First part of
baking proc-
ess.
2.
Second part of
baking proc-
ess.
Conventional
Cooking 11. 230
1)
2. 160 - 180
1. 25
2. 30 - 60
Cream puffs /
eclairs
Conventional
Cooking 3190 - 210
1)
20 - 35
Swiss roll Conventional
Cooking 3180 - 200
1)
10 - 20
Cake with crumble
topping (dry)
Conventional
Cooking 3150 - 160 20 - 40
Buttered almond
cake / sugar cakes
Conventional
Cooking 3190 - 210
1)
15 - 30
Fruit flans (made
with yeast dough /
sponge mixture)
2)
Conventional
Cooking 3170 35 - 50
Fruit flans made
with short pastry
Conventional
Cooking 3170 - 190 40 - 60
Yeast cakes with
delicate toppings
(e.g. quark, cream,
custard)
Conventional
Cooking 3160 - 180
1)
20 - 40
Pizza (with a lot of
topping)
2)
Conventional
Cooking 1180 - 200
1)
30 - 50
Pizza (thin crust) Conventional
Cooking 1220 - 250
1)
15 - 25
Unleavened bread Conventional
Cooking 1230 - 250 10 - 15
12 www.electrolux.com

Type of baking Oven function Shelf po-
sition
Temperature
(°C) Time (min)
Tarts (CH) Conventional
Cooking 1210 - 230 35 - 50
1) Preheat the oven.
2) Use a deep pan.
Biscuits
Type of baking Oven function Oven lev-
el
Temperature
(°C) Time (min)
Short pastry bis-
cuits
Conventional
Cooking 3170 - 190 10 - 20
Short bread / Short
bread / Pastry
Stripes
Conventional
Cooking 3160
1)
20 - 30
Biscuits made with
sponge dough
Conventional
Cooking 3170 - 190 20 - 30
Pastries made with
egg white, merin-
gues
Conventional
Cooking 380 - 100 120 - 150
Macaroons Conventional
Cooking 3120 - 130 30 - 60
Biscuits made with
yeast dough
Conventional
Cooking 3170 - 190 20 - 40
Puff pastries Conventional
Cooking 3190 - 210
1)
20 - 30
Rolls Conventional
Cooking 3190 - 210
1)
10 - 25
Small cakes /
Small cakes (20
per tray)
Conventional
Cooking 3170
1)
20 - 30
1) Preheat the oven.
Bakes and gratins table
Dish Oven function Shelf posi-
tion
Temperature
(°C)
Time
(min)
Pasta bake Conventional Cook-
ing 1180 - 200 45 - 60
Lasagne Conventional Cook-
ing 1180 - 200 35 - 50
Vegetables au
gratin
1)
Conventional Cook-
ing 1180 - 200 15 - 30
ENGLISH 13

Dish Oven function Shelf posi-
tion
Temperature
(°C)
Time
(min)
Baguettes
topped with
melted cheese
1)
Conventional Cook-
ing 1200 - 220 15 - 30
Sweet bakes Conventional Cook-
ing 1180 - 200 40 - 60
Fish bakes Conventional Cook-
ing 1180 - 200 40 - 60
Stuffed vege-
tables
Conventional Cook-
ing 1180 - 200 40 - 60
1) Preheat the oven
8.5 Roasting
Roasting dishes
• Use heat-resistant ovenware to roast
(refer to the instructions of the manu-
facturer).
• You can roast large roasting joints di-
rectly in the deep pan (if present) or on
the wire shelf above the deep pan.
• Roast lean meats in the roasting tin with
the lid. This keeps the meat more suc-
culent.
• All types of meat that can be browned
or have crackling can be roasted in the
roasting tin without the lid.
• We recommend that you cook meat
and fish weighing 1 kg and above in the
appliance.
• To prevent the meat juices or fat from
burning onto the pan, put some liquid
into the deep pan.
• If necessary, turn the roast (after 1 / 2 -
2 / 3 of the cooking time).
• Baste large roasts and poultry with their
juices several times during roasting.
This gives better roasting results.
• You can deactivate the appliance ap-
proximately 10 minutes before the end
of the roasting time, and use the residu-
al heat.
8.6 Roasting with Conventional Cooking
Beef
Type of
meat
Quantity Oven func-
tion
Shelf po-
sition
Tempera-
ture (°C)
Time
(min)
Pot roast 1 - 1.5 kg Conventional
Cooking 1200 - 230 105 - 150
Roast beef or
fillet: rare
per cm of
thickness
Conventional
Cooking 1230 - 250
1)
6 - 8
Roast beef or
fillet: medium
per cm of
thickness
Conventional
Cooking 1220 - 230
1)
8 - 10
Roast beef or
fillet: well
done
per cm of
thickness
Conventional
Cooking 1200 - 220
1)
10 - 12
1) Preheat the oven
14 www.electrolux.com

Pork
Type of
meat Quantity Oven func- tion
Shelf po-
sition
Tempera-
ture (°C)
Time
(min)
Shoulder,
neck, ham
joint
1 - 1.5 kg Conventional
Cooking 1210 - 220 90 - 120
Chop, spare
rib 1 - 1.5 kg Conventional Cooking 1180 - 190 60 - 90
Meat loaf 750 g - 1
kg
Conventional
Cooking 1170 - 190 50 - 60
Porkknuckle
(precooked)
750 g - 1
kg
Conventional
Cooking 1200 - 220 90 - 120
Veal
Type of
meat Quantity Oven func- tion
Shelf po-
sition
Tempera-
ture (°C)
Time
(min)
Roast veal 1 kg Conventional
Cooking 1210 - 220 90 - 120
Knuckle of
veal 1.5 - 2 kg Conventional Cooking 1200 - 220 150 - 180
Lamb
Type of
meat Quantity Oven func- tion
Shelf po-
sition
Tempera-
ture (°C)
Time
(min)
Leg of lamb,
roast lamb 1 - 1.5 kg Conventional Cooking 1210 - 220 90 - 120
Saddle of
lamb 1 - 1.5 kg Conventional Cooking 1210 - 220 40 - 60
Game
Type of
meat Quantity Oven func- tion
Shelf po-
sition
Tempera-
ture (°C)
Time
(min)
Saddle of
hare,
leg of hare
up to 1 kg Conventional
Cooking 1220 - 240
1)
30 - 40
Saddle of
venison 1.5 - 2 kg Conventional Cooking 1210 - 220 60 - 90
Haunch of
venison 1.5 - 2 kg Conventional Cooking 1200 - 210 90 - 120
1) Preheat the oven
ENGLISH 15

Poultry
Type of
meat Quantity Oven func- tion
Shelf po-
sition
Tempera-
ture (°C) Time (min)
Poultry
portions
200 - 250 g
each
Conventional
Cooking 1220 - 250 20 - 40
Half chick-
en
400 - 500 g
each
Conventional
Cooking 1220 - 250 35 - 50
Chicken,
poulard 1 - 1.5 kg Conventional Cooking 1220 - 250 50 - 70
Duck 1.5 - 2 kg Conventional
Cooking 1210 - 220 80 - 100
Goose 3.5 - 5 kg Conventional
Cooking 1200 - 210 150 - 180
Turkey 2.5 - 3.5 kg Conventional
Cooking 1200 - 210 120 - 180
Turkey 4 - 6 kg Conventional
Cooking 1180 - 200 180 - 240
Fish
Type of
meat Quantity Oven func- tion
Shelf po-
sition
Tempera-
ture (°C) Time (min)
Whole fish 1 - 1.5 kg Conventional
Cooking 1210 - 220 40 - 70
8.7 Grilling
• Always grill with the maximum tempera-
ture setting.
• Set the shelf in the shelf position as rec-
ommended in the grilling table.
• Always set the pan to collect the fat into
the first shelf position.
• Grill only flat pieces of meat or fish.
• Always preheat the empty oven with
the grill functions for 5 minutes.
CAUTION!
Always grill with the oven door
closed.
Grilling
Food to be
grilled
Shelf posi-
tion
Temperature
(°C)
Time (min)
1st side 2nd side
Roast beef 2210 - 230 30 - 40 30 - 40
Filet of beef 3230 20 - 30 20 - 30
Back of pork 2210 - 230 30 - 40 30 - 40
Back of veal 2210 - 230 30 - 40 30 - 40
Back of lamb 3210 - 230 25 - 35 20 - 25
Whole Fish,
500 - 1000g 3 / 4 210 - 230 15 - 30 15 - 30
16 www.electrolux.com

Fast Grilling
Food to be grilled Shelf posi-
tion
Time (min)
1st side 2nd side
Burgers / Burgers 48 - 10 6 - 8
Pork fillet 410 - 12 6 - 10
Sausages 410 - 12 6 - 8
Fillet steaks, veal steaks 47 - 10 6 - 8
Toast / Toast
1)
51 - 3 1 - 3
Toast with topping 46 - 8 ---
1) Preheat the oven
8.8 Preserving - Bottom Heat
Things to note:
• Use only preserve jars of the same di-
mensions available on the market.
• Do not use jars with twist-off and bayo-
net type lids, or metal tins.
• Use the first shelf from the bottom for
this function.
• Put no more than six one-litre preserve
jars on the baking tray.
• Fill the jars up to the same level and
close with a clamp.
• The jars cannot touch each other.
• Put approximately 1 / 2 litre of water in-
to the baking tray to give sufficient
moisture in the oven.
• When the liquid in the jars starts to sim-
mer (after approx. 35 - 60 minutes with
one-litre jars), stop the oven or de-
crease the temperature to 100 °C (see
the table).
Soft fruit
Preserve Temperature (°C)
Cooking time
until simmering
(min)
Continue to
cook at 100 °C
(min)
Strawberries, blue-
berries, raspber-
ries, ripe goose-
berries
160 - 170 35 - 45 ---
Stone fruit
Preserve Temperature (°C)
Cooking time
until simmering
(min)
Continue to
cook at 100 °C
(min)
Pears, guinces,
plums 160 - 170 35 - 45 10 - 15
Vegetables
Preserve Temperature (°C)
Cooking time
until simmering
(min)
Continue to
cook at 100 °C
(min)
Carrots
1)
160 - 170 50 - 60 5 - 10
Cucumbers 160 - 170 50 - 60 ---
ENGLISH 17

Preserve Temperature (°C)
Cooking time
until simmering
(min)
Continue to
cook at 100 °C
(min)
Mixed pickels 160 - 170 50 - 60 5 - 10
Kohlrabi, peas, as-
paragus 160 - 170 50 - 60 15 - 20
1) Leave standing in oven when switched off
9. CARE AND CLEANING
WARNING!
Refer to the Safety chapters.
Notes on cleaning:
• Clean the front of the appliance with a
soft cloth with warm water and a clean-
ing agent.
• To clean metal surfaces, use a usual
cleaning agent.
• Clean the oven interior after each use.
Then you can remove dirt more easily
and it does not burn on.
• Clean all oven accessories after each
use and let them dry.
• If you have nonstick accessories, do
not clean them using aggressive
agents, sharp-edged objects or a dish-
washer. It can cause a damage to the
nonstick coating.
9.1 Shelf supports
Removing the shelf supports
You can remove the shelf supports to
clean the side walls.
1. Pull the front of the shelf support
away from the side wall.
1
2
2. Pull the rear end of the shelf support
away from the side wall and remove
it.
18 www.electrolux.com

Installing the shelf supports
Install the shelf supports in the opposite
sequence.
9.2 Oven ceiling
You can fold down the heating element
on the oven ceiling to clean the oven ceil-
ing easily.
WARNING!
Deactivate the appliance before
you fold down the heating ele-
ment. Make sure that the appli-
ance is cold. There is a risk of
burns.
Folding down the heating element
1. Remove the shelf supports.
2. Hold the heating element with two
hands at the front.
3. Pull it forwards against the spring
pressure and out along the supports
on the two sides.
4. The heating element folds down.
You can clean the oven ceiling.
Installing the heating element
1. Install the heating element in the op-
posite sequence.
Install the heating element cor-
rectly above the supports on the
inner walls of the appliance.
2. Install the shelf supports.
9.3 Removing / inserting the
door
To clean the door remove it.
A
A
CAUTION!
Be careful when you remove the
door from the appliance. The door
is heavy. There is a risk of injury or
damage to the appliance.
Removing the door
1. Open the door as far as it goes.
2. Press down the clamping levers (A)
on the two door hinges.
45°
3. Close the door until it is at an angle
of approximately 45°.
4. Hold the door with one hand on each
side and pull it away from the appli-
ance at an upwards angle.
Put the door with the outer side
down on a soft and level surface
to prevent scratches.
Inserting the door
To insert the door do the above steps in
the opposite sequence.
ENGLISH 19

9.4 Lamp
WARNING!
Danger of electrocution! Discon-
nect the fuse before you replace
the lamp.
The lamp and the lamp glass cov-
er can be hot.
Before you change the lamp:
• Deactivate the appliance.
• Remove the fuses from the fuse box or
deactivate the circuit breaker.
CAUTION!
Put a cloth on the bottom of the
interior of the appliance. It pre-
vents damage to the lamp glass
cover and the cavity.
Always use the same lamp type.
Replacing the top lamp:
1. Turn the lamp glass cover counter-
clockwise to remove it.
2. Clean the glass cover.
3. Replace the lamp with a halogen, 230
V, 40 W, 300 °C heat resistant oven
lamp.
4. Install the glass cover.
10. WHAT TO DO IF…
WARNING!
Refer to the Safety chapters.
Problem Possible cause Remedy
The cooking zones do
not operate.
Consult the operating instructions for the built-in
cooking surface.
The appliance does not
heat up.
The appliance is not acti-
vated.
Activate the appliance.
Refer to the chapter "Dai-
ly use".
The appliance does not
heat up.
The fuse in the fuse box
is released.
Do a check of the fuse. If
the fuse is released more
than one time, contact a
qualified electrician.
The lamp does not oper-
ate.
The lamp is defective. Replace the lamp.
Steam and condensation
collect on the food and in
the appliance.
You left the dish in the
appliance for too long.
Do not keep the dishes in
the appliance for longer
than 15 - 20 minutes after
the cooking ends.
If you cannot find a solution to the prob-
lem yourself, contact your dealer or the
service centre.
The necessary data for the service centre
is on the rating plate. The rating plate is
on the front frame of the appliance cavity.
We recommend that you write the data here:
Model (Mod.) .........................................
Product number (PNC) .........................................
Serial number (Serie:) .........................................
20 www.electrolux.com
