Electrolux EI27EW35JS User manual

Luxury-Glide®Oven Rack
With a ball bearing system, oven rack is
so smooth it extends effortlessly.
Perfect Convect3®
Our convection technology features a third
convection element for consistently even
results, up to 30% faster cooking times and
even more baking options.
Luxury-Design®Lighting
Our ramp-up designer halogen lighting is
as beautiful as it is functional.
Sure-2-Fit®Capacity
Coordinate an entire meal — our oven
features 3.5 cu. ft. of cooking space with
three adjustable baking racks.
Single Wall Oven
EI27EW35JS
27" ELECTRIC SINGLE WALL OVEN
Configuration
Control Panel Features
IQ-Touch™Electronic Oven Control
Keypad Entry of Time & Temperature
Electronic Clock & Timer
Temperature Display
Automatic Oven (Delay, Cook & Off)
Lockout
Automatic Oven Shutoff – 12 Hour
Programmable for °F or °C
Luxury-Design®Halogen Oven Light Touch Pad
Oven Features
Oven Cavity
Hidden Bake Element
Electric Bake Element – 1450 Watts
Six-Pass Broil Element – 3400 Watts
Convection Element – 2500 Watts
Cobalt Blue Interior
Self-Clean Options with Door Lock
Perfect Convect3®with Variable 2-Speed Fan
Cooking Modes –
Bake, Broil, Convection Bake, Convection Roast,
Convection Broil, Keep Warm, Slow Cook
Baking Options –
Dehydrate, Bread Proof, My Favorite,
Rapid Preheat, Delay Bake, Convection Convert
Luxury-Design®Lighting with Dual 40W Halogen Bulbs
Luxury-Glide®Racks
Conventional Racks
Convection Roasting Rack
Additional Features
Signature Soft-Arc Oven Door and Handle Design
Luxury-Hold™Oven Door
Extra-Large Glass Window
Sabbath Mode (Star-K®Certified)
A.D.A. Compliant*
Accessories
Porcelain Broiler Pan and Insert
3"-high Bottom Trim: S – PN# 903114-9020
Specifications
Color –
Stainless Steel
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including 1" Bottom Trim)
Width
Depth (to Front Door Corner)
(with 90° Door Open)
Power Supply Connection Location
Connected Load (kW Rating) @ 240/208 Volts
Amps@240/208 Volts
Minimum Circuit Required (Amps)
Armored Electrical Cable
Approved for Under-Counter Installation**
Shipping Weight (Approx.)
*When properly installed, this model is A.D.A.-qualified based on the United States Access Board’s
A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A. Standards for
Accessible Design.
**Single Wall Oven is approved to be used beneath Electrolux gas cooktop models EW30GC60I,
EW30GC55G and EW36GC55G; and electric cooktop models EI30EC45K, EI36EC45K, EW30IC60L
AND EW36IC60L.
NOTE: Always consult local and national electric codes. Refer to Product Installation Guide
for detailed installation instructions on the web at electroluxappliances.com.
Specifications subject to change.
Single
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
3.5 Cu. Ft.
Yes
Yes
Yes
Yes
Yes
3
Yes
7
6
Yes
1
2
Yes
Yes
Yes
Yes
Yes
Yes
Included
Optional
S
16-1/2"
20-1/2"
18-1/32"
29"
27"
24-1/2"
45-1/2"
Left Bottom Rear
3.6/2.7
15.0/13.0
20
Included
Yes
168 Lbs.
electroluxappliances.com

Single Wall Oven
EI27EW35JS
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EI27EW35J 02/14 © 2014 Electrolux Home Products, Inc.
27" Electric Single Wall Oven Specifications
•
Product Weight – 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 3.6/2.7kW
•
Amps @ 240/208 Volts =15.0/13.0 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Suggested distance from floor is 31". Minimum required distance is 4-1/2".
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Base must be level and cabinet front must be square.
•
Single Wall Ovens are NOT approved to be used in stackable or
side-by-side installation.
•
Single Wall Ovens are approved to be used alone in under-counter
installation or beneath Electrolux gas cooktop models EW30GC60I,
EW30GC55G and EW36GC55G; and electric cooktop models
EI30EC45K, EI36EC45K, EW30IC60L AND EW36IC60L. (Refer to Gas
or Electric Cooktop Installation Over 30"/27" Electric Single Wall Oven
Specifications pages on web.)
•
Single Wall Ovens are approved to be used in combination with any
Electrolux Warmer Drawer. (Refer to model-specific Warmer Drawer
product page for Combination Installation Specifications.)
•
Single Wall Ovens are approved to be used in combination with any
Electrolux Built-In Microwave Oven. (Refer to model-specific Combination
Installation Specifications pages on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Optional Accessories
•
3"-High Bottom Trim: S – (PN# 903114-9020).
* Critical dimension – MUST be applied
** For cutout height between 27
5
/ 8 " and 28
1
/ 4 ", add one
2"-wide wood shim of appropriate height to each side
of opening under oven side rails. Lifting oven will hide
larger cutout opening at top and oven’s 1"-high bottom
trim will hide shims at bottom.
(Optional 3"-high bottom
trim available for cutout height between 28
1
/ 4 " and 30".)
3"
Electrical
junction
box location
2" min.
11/2"
min.
31"
suggested
distance
41/2"
min.
required
27 1/4"
min.
27 5/8"
max.
Full base
required
to support
150 lbs.
271/8"
min.
4" x 4"
opening
to route
armored
cable
24 7/8"min.
25 1/4"max.
231/2"min.*
(critical
dimension)
2"-wide
wood spacers
(if needed)**
Allow at least
21" clearance
for door depth
when open
245/8"
29"
(includes
1"bottom
trim) Spacer
115/16"
24 1/2"
27"
273/16"
Power
supply
location
(left
bottom
rear)

30" & 27" Electric Single Wall Ovens
Under-Counter Installation Specifications
•
Product Weights – (EW30EW55G, EI30EW35J and EI30EW35K) 200 Lbs. /
(EW27EW55G, EI27EW35J and EI27EW35K) 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 204/208 Volts =
(EW30EW55G) 4.0/3.0 kW / (EW27EW55G) 3.4/2.6 kW /
(EI30EW35J/EI30EW35K) 4.2/3.2 kW /
(EI27EW35J/EI27EW35K) 3.6/2.7 kW
•
Amps @ 240/208 Volts =
(EW30EW55G) 16.7/14.4 kW / (EW27EW55G) 14.2/12.5 kW /
(EI30EW35J/EI30EW35K) 17.5/15.4 kW /
(EI27EW35J/EI27EW35K) 15.0/13.0 kW
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models). Install
over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Electric Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications
Electrolux Single Wall Oven models EW30EW55G, EI30EW35J,
EI30EW35K, EW27EW55G, EI27EW35J and EI27EW35K are approved
to be used beneath Electrolux cooktop models EW36EC55G,
EW30EC55G, EW36IC60L, EW30IC60L, EW36CC55G, EW30CC55G,
EI36EC45K and EI30EC45K.
For detailed Electric Cooktop installation, refer to model-specific product
page and installation guide on web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved electric cooktop models.
•
To route armored cable to junction box, cut minimum 4" x 4" opening
in right cabinet side panel.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Electric Cooktop Installation
Over 30"/27" Electric Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
EC_EW INST EL 05/12 © 2012 Electrolux Home Products, Inc.

30" & 27" Electric Single Wall Ovens
Under-Counter Installation Specifications
•
Product Weights – (EW30EW55G, EI30EW35J and EI30EW35K) 200 Lbs. /
(EW27EW55G, EI27EW35J and EI27EW35K) 150 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts =
(30") 4.0/3.0kW / (27") 3.4/2.6kW
•
Amps @ 240/208 Volts = (30")17.0/14.5 Amps / (27")14.2/12.6 Amps
•
Recommended Circuit Breaker – 20 Amps
•
Always consult local and national electric codes.
•
Minimum 21" clearance for oven door depth when open.
•
Minimum 23-1/2" deep cutout dimension is critical for proper installation,
to ensure that oven’s faceplate will fit flush against cabinet front.
•
Full oven base of solid plywood or similar material required, capable
of supporting 200 Lbs. (30" models) or 150 Lbs. (27" models). Install
over two runners and flush with toe plate.
•
Base must be level and cabinet front must be square.
•
Allow 5" maximum height from oven base to floor, if NO cooktop is
installed directly over wall oven.
Gas Cooktop Installation Over
30"/27" Electric Single Wall Oven Specifications
Electrolux Single Wall Oven models EW30EW55G, EI30EW35J,
EI30EW35K, EW27EW55G, EI27EW35J and EI27EW35K are approved
to be used beneath Electrolux cooktop models EW36GC55G,
EW30GC55G and EW30GC60I.
For detailed Gas Cooktop installation, refer to model-specific
product page and installation guide on web.
•
Side filler panels necessary to isolate oven from adjoining cabinets.
Panel height may need to be modified to accommodate the depth of
approved gas cooktop models.
•
Minimum height opening of 6-1/2" (from top of counter) required in right
cabinet side panel and/or filler panel, to route gas and electric hookups.
•
Allow 4-1/2" maximum height from oven base to floor, if cooktop is
installed directly over wall oven.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
Gas Cooktop Installation
Over 30"/27" Electric Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
GC_EW INST EL 07/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
5"
61/2"
min.
Pressure regulator
Manual shutoff valve
(Must be accessible)
Cabinet sides
and/or filler panel
Flare union
Manifold
pipe
Flexible connector Flare
union
4"
Countertop
18"max.
120V/60Hz
grounded outlet
Cooktop
Gas
Cooktop
Utility
Hookup

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 82 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13.7 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MODD_EW 30INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 82 Lbs.
•
Voltage Rating –120V/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 1.6kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13.7 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 150 Lbs.
•
Minimum 2-1/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•
Product Weight – 65 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MODD_EW_WD 30INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-1/2" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Wall Oven cutout
to floor, 31"suggested.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
Full oven base of solid plywood or similar material required, capable of
supporting 200 Lbs.
•
To adapt oven to fit cutout height between 27-5/8" and 28-1/4", add
one 2"-wide wood shim of appropriate height to each side of opening
under oven side rails. Lifting oven will hide larger cutout opening at
top and oven’s 1"-high bottom trim will hide shims at bottom.
(Standard 1"-High Bottom Trim included.)
•
To adapt oven to fit cutout height between 28-1/4" and 30", optional
3"-High Bottom Trim available.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW 30INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

30" Combination Installation Specifications
•
Always consult local and national electric codes.
(Refer to product-specific electrical specifications on this page.)
•
Minimum 23-5/8" deep cutout dimension is critical for proper
combination installation, to ensure that each built-in product’s faceplate
will fit flush against cabinet front.
•
Bases must be level and cabinet front must be square.
•
Minimum 4-1/2"required distance from bottom of Warmer Drawer cutout
to floor.
•
Respect critical dimensions as noted for proper installation of built-In
products.
•
Minimum 21" clearance needed for Wall Oven door depth when open.
30" Built-In Microwave Specifications
•
Product Weight – 48 Lbs.
•
Voltage Rating –120V/60Hz/15 or 20 Amps
•
Connected Load (kW Rating) @120 Volts = 1.5kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120 Volts =13 Amps
•
Full oven base of solid plywood or similar material required, capable
of supporting 100 Lbs.
•
Minimum 2-7/8" clearance required from bottom of Built-In Microwave
cutout to top edge of Wall Oven’s faceplate, leaving a 2" visible gap
between both product faceplates.
30" Electric Single Wall Oven Specifications
•
Product Weight – 200 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt, 60 Hertz
AC only electrical supply with ground required on separate circuit fused
on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 4.0/3.0kW
•
Amps @ 240/208 Volts =17.0/14.5 Amps
•
To support Wall Oven, two 3"-wide x 3/4"-thick planks must be installed
as a base, capable of supporting 200 Lbs. Do NOT use full base, since
planks are necessary to allow for proper air displacement.
30" Warmer Drawer Specifications
•
Product Weight – 65 Lbs.
•
Voltage Rating –120V/450W/60Hz/15 Amps
•
Connected Load (kW Rating) @120 Volts = 0.45kW
(For use on adequately wired 120V, dedicated circuit having 2-wire
service with a separate ground wire. Appliance must be grounded
for safe operation.)
•
Amps @120V = 3.75 Amps
•
Full base of solid plywood or similar material required, capable of
supporting 100 Lbs.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxappliances.com for detailed instructions.
30" Combination Installation –
Built-In Microwave/Single Wall Oven/Warmer Drawer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
MOSS_EW_WD 30INST EL 07/11 © 2011 Electrolux Major Appliances, NA Printed in the U.S.A.

General Installation Guidelines
For Installation with Side-by-Side Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_SSR EL 02/12 © 2012 Electrolux Home Products, Inc.

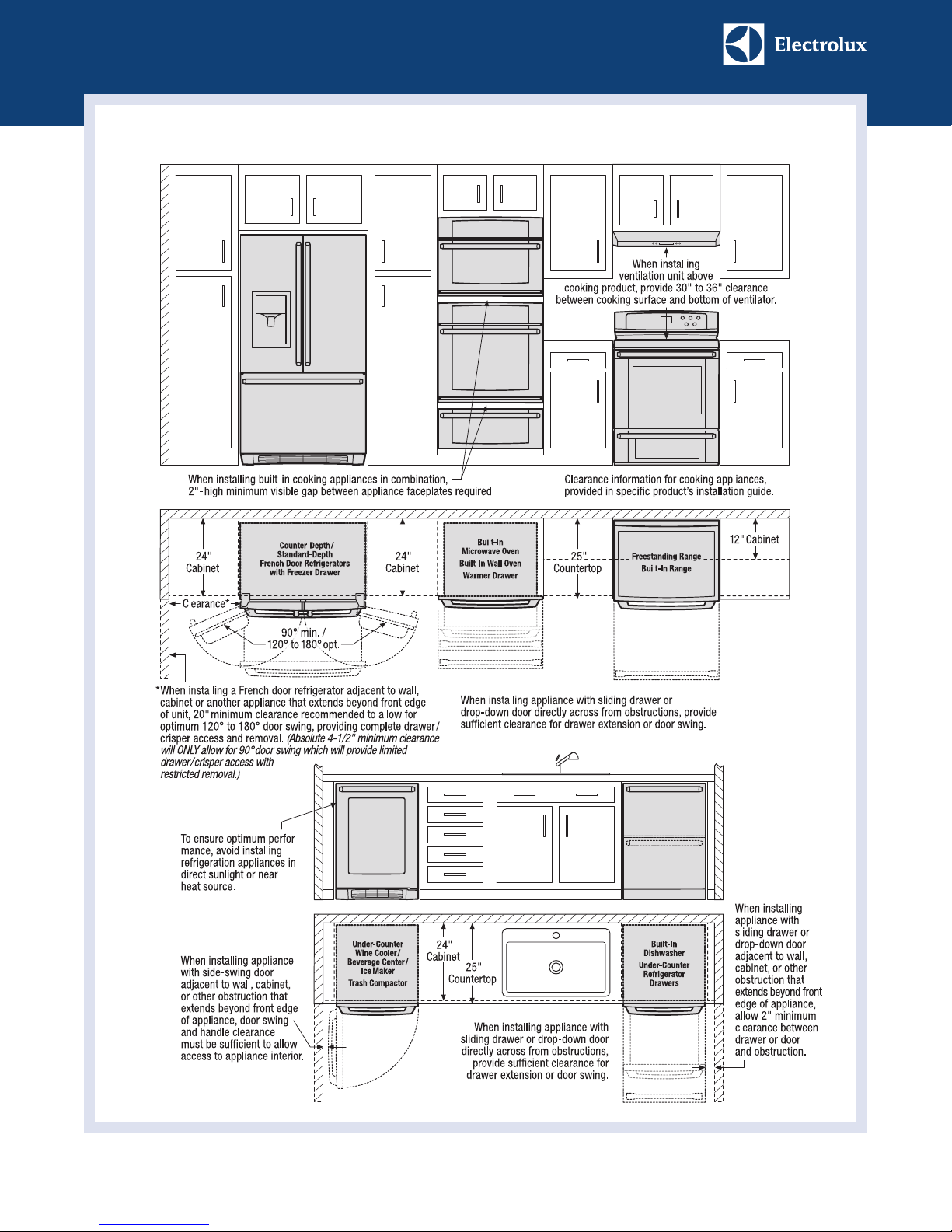

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Top
Front
Front
Top

General Installation Guidelines
For Installation with French Door Refrigerator
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_FDR EL 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Front
Front
Top
Top

General Installation Guidelines
For Installation with All Refrigerator or All Freezer
High standards of quality at Electrolux Home Products, Inc. mean
we are constantly working to improve our products. We reserve the right
to change specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •
electroluxappliances.com
CANADA
•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •
electroluxappliances.ca
INSTGDLNS_ARAF EL 02/12 © 2012 Electrolux Home Products, Inc.
Use these dimensions and clearance instructions for planning purposes only. For detailed installation
instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.
Front
Front
Top
Top
