Safety instructions
5
This appliance conforms with the
following EU Directives:
–73/23/EEC dated 19.02.1973 Low
Voltage Directive
–89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Di-
rective 92/31/EEC
–93/68/EEC dated 22.07.1993 CE
Marking Directive
Electrical safety
•This appliance must be only con-
nected by a registered electrician.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.

6electrolux safety instructions
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance

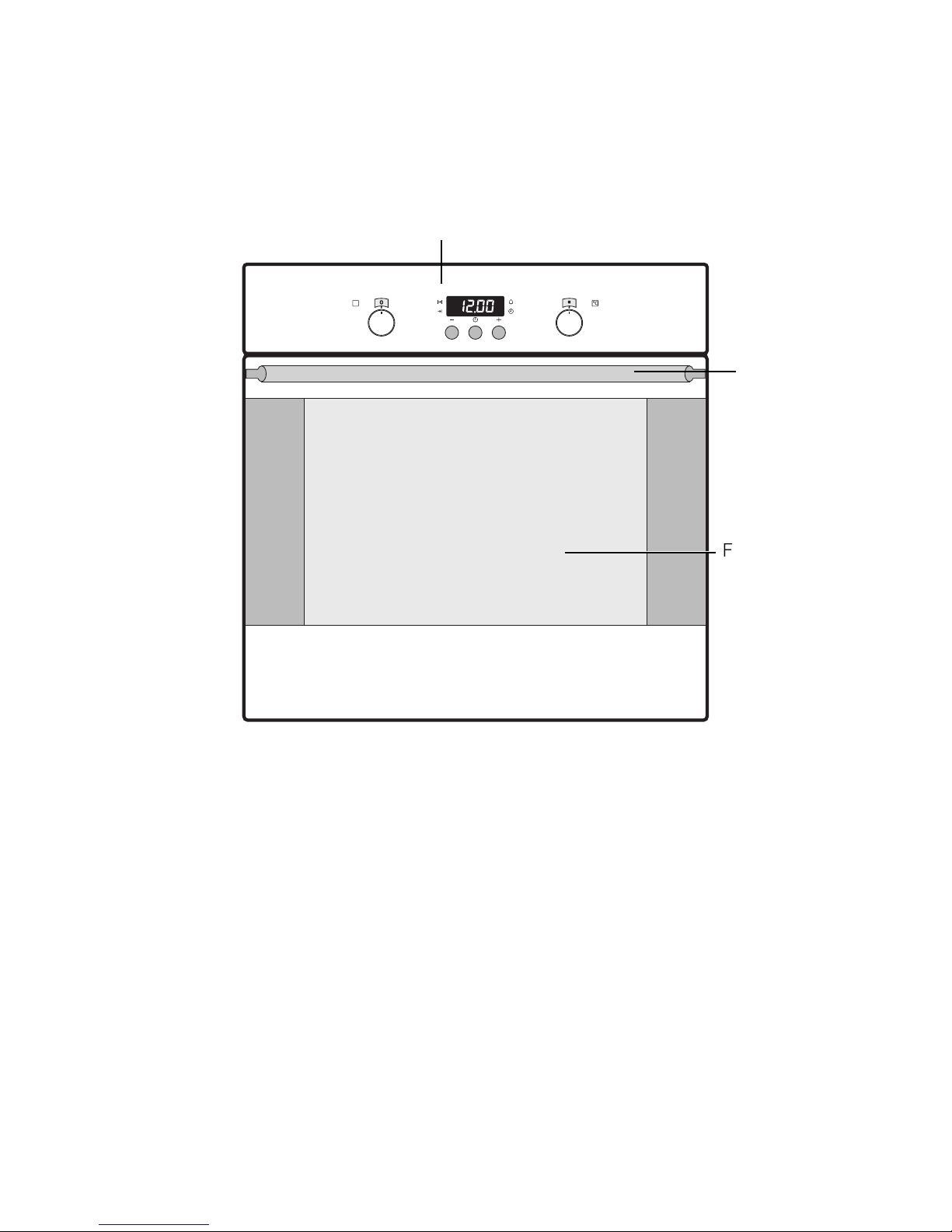

General Overview
Full glass door
Control panel
Door
handle

8electrolux description of the appliance

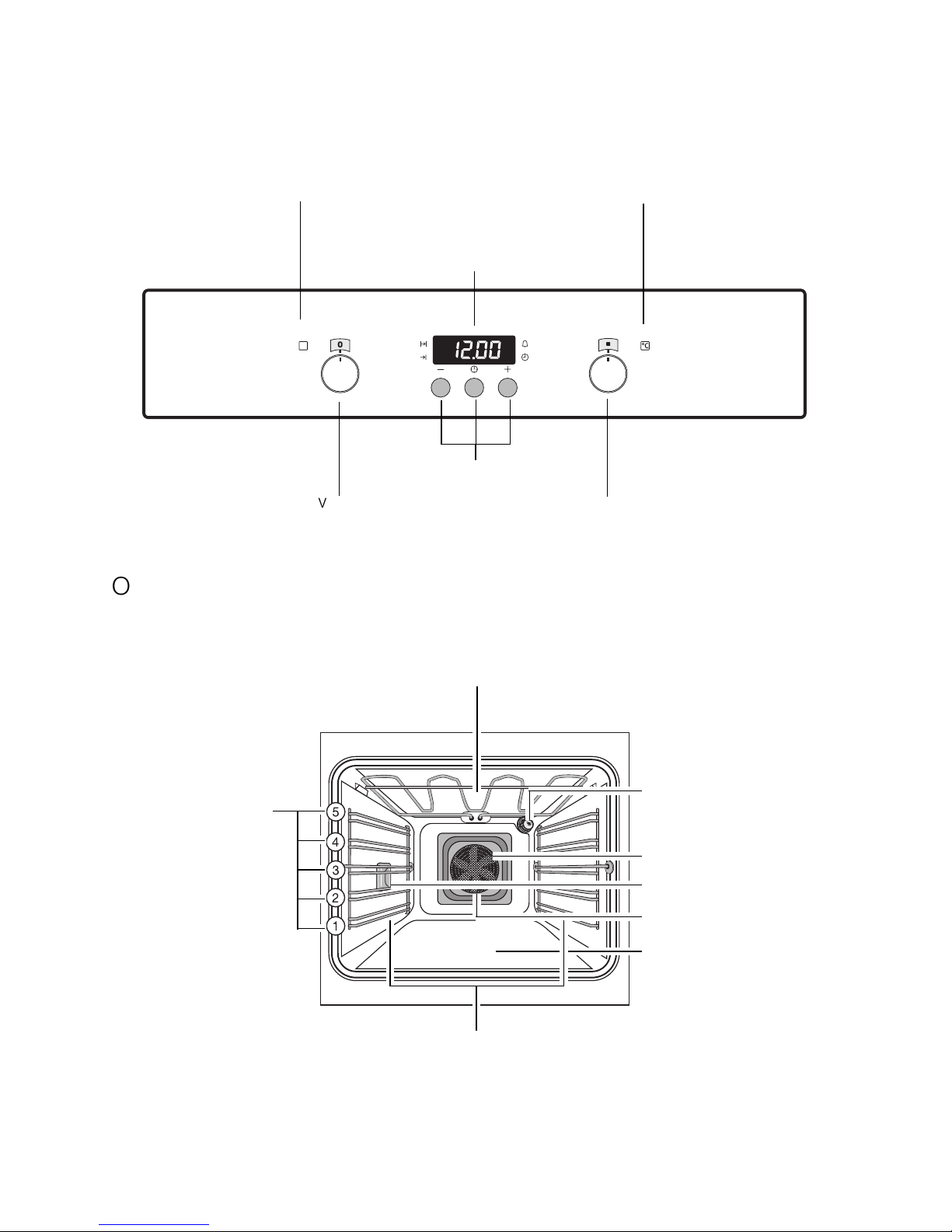

Control Panel
Oven Features
Oven Functions Temperature selector
Clock function buttons
Oven Power Indicator Temperature Pilot Light
Time display
Top heat and heating elements
Oven lighting
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

description of the appliance electrolux 9

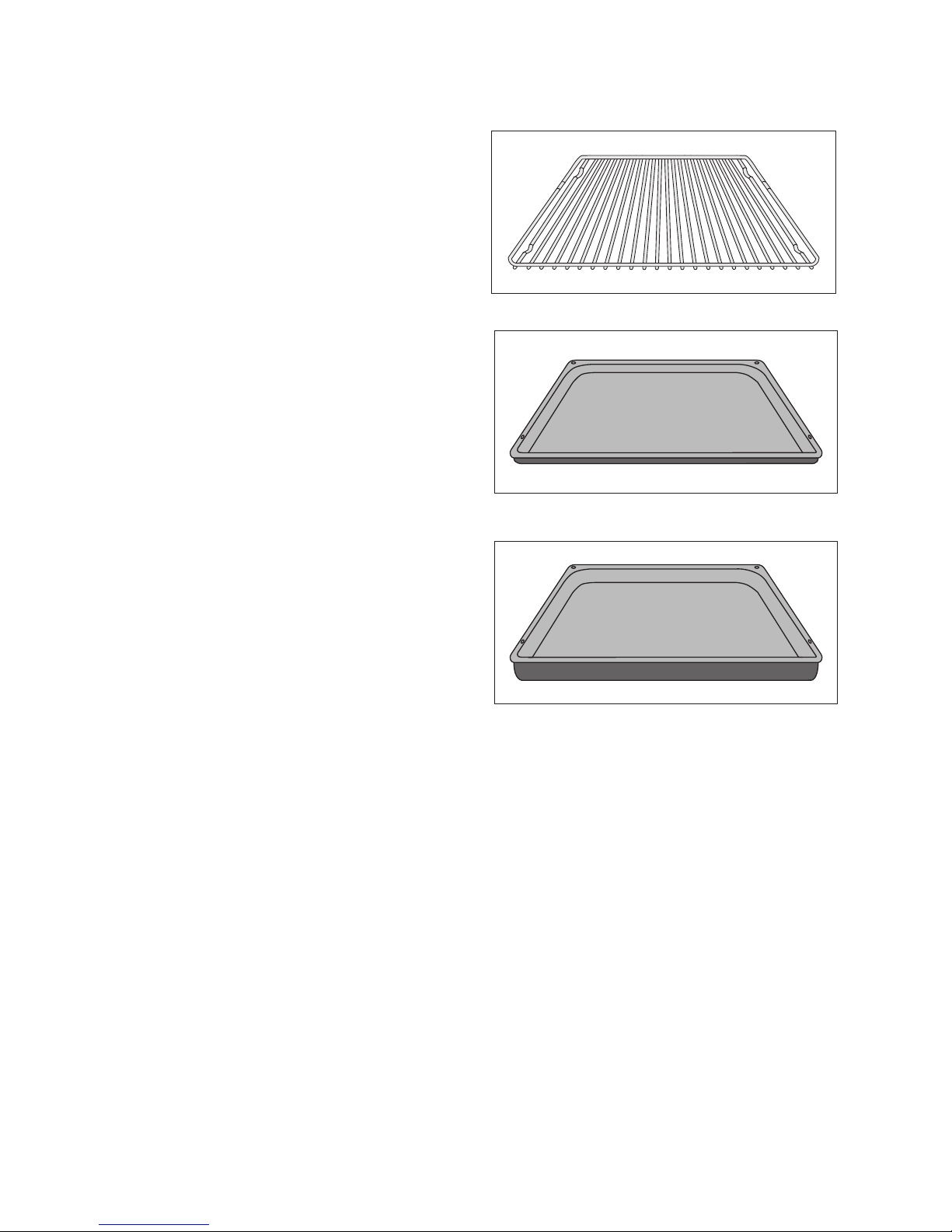

Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.

10 electrolux before using for the first time
Before Using for the first time
Setting and changing the time
The oven only operates when the
time has been set.
When the appliance has been con-
nected to the electrical supply or
when there has been a power cut,
the function indicator Time flash-
es automatically.
1. To change a time that has already
been set, press the Selection but-
ton repeatedly until the function indi-
cator Time flashes.
2. Using the or button, set the cur-
rent time.
After approx. 5 seconds, the flashing
stops and the clock displays the time
set.
The appliance is now ready to use.
The time can only be changed if no
automatic function (Cook time or
End time ) has been set.

using the oven electrolux 11
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.
To clean metal fronts use commer-
cially available cleaning agents.
1. Turn the oven function switch to
oven lighting .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.
Using the Oven
The oven is equipped with retractable
buttons for “Oven functions” and “Tem-
perature selection”. To use, press the
relevant button. The button then sticks
out.

12 electrolux using the oven
Switching the Oven On and Off
1. Turn the oven functions dial to the de-
sired function.
2. Turn the temperature selector to the
desired temperature.
The power indicator is lit as long as the
oven is in operation.
The temperature pilot light is lit as long as
the oven is heating up.
3. To turn the oven off, turn the oven func-
tions dial and the temperature selector
to the Off position.
Cooling fan
The fan switches on automatically in
order to keep the appliance’s surfaces
cool. When the oven is switched off,
the fan continues to run to cool the ap-
pliance down, then switches itself off
automatically.
Temperature Pilot Light
Temperature selector
Oven Power Indicator
Oven Functions

using the oven electrolux 13
Oven Functions
The oven has the following functions:
Oven function Application Heating element/
fan
Light Using this function you can light up
the oven interior, e.g. for cleaning.
---
Convection with
ring heating
element
For baking on up to three oven
levels
at the same time.
Set the oven temperatures 20-40 °C
lower than when using Conventional.
Rear heating element,
fan
Pizza setting For baking on one oven level dishes
that require
more intensive brown-
ing and a crispy base
.
Set the oven temperatures 20-40 °C
lower than when using Conventional.
Bottom heat, rear wall
heating element, fan
Conventional For baking and roasting on one
oven level
.
Top heat, bottomheat
Bottom heat For baking cakes with crispy or
crusty bases
.
Bottom heat
Defrost For defrosting e. g. flans and ga-
teaux, butter, bread, fruit or other
fro-
zen foods
.
Fan
Grill For grilling flat foodstuffs placed in
the
middle of the grill and for
toasting .
Grill
Dual grill For grilling flat foodstuffs in large
quantities
and for toasting .
Grill, top heat
Convection grill-
ing
For roasting larger joints of meat or
poultry on one level.
The function is also suitable for
grati-
nating
and browning .
Grill, top heat, fan

14 electrolux using the oven

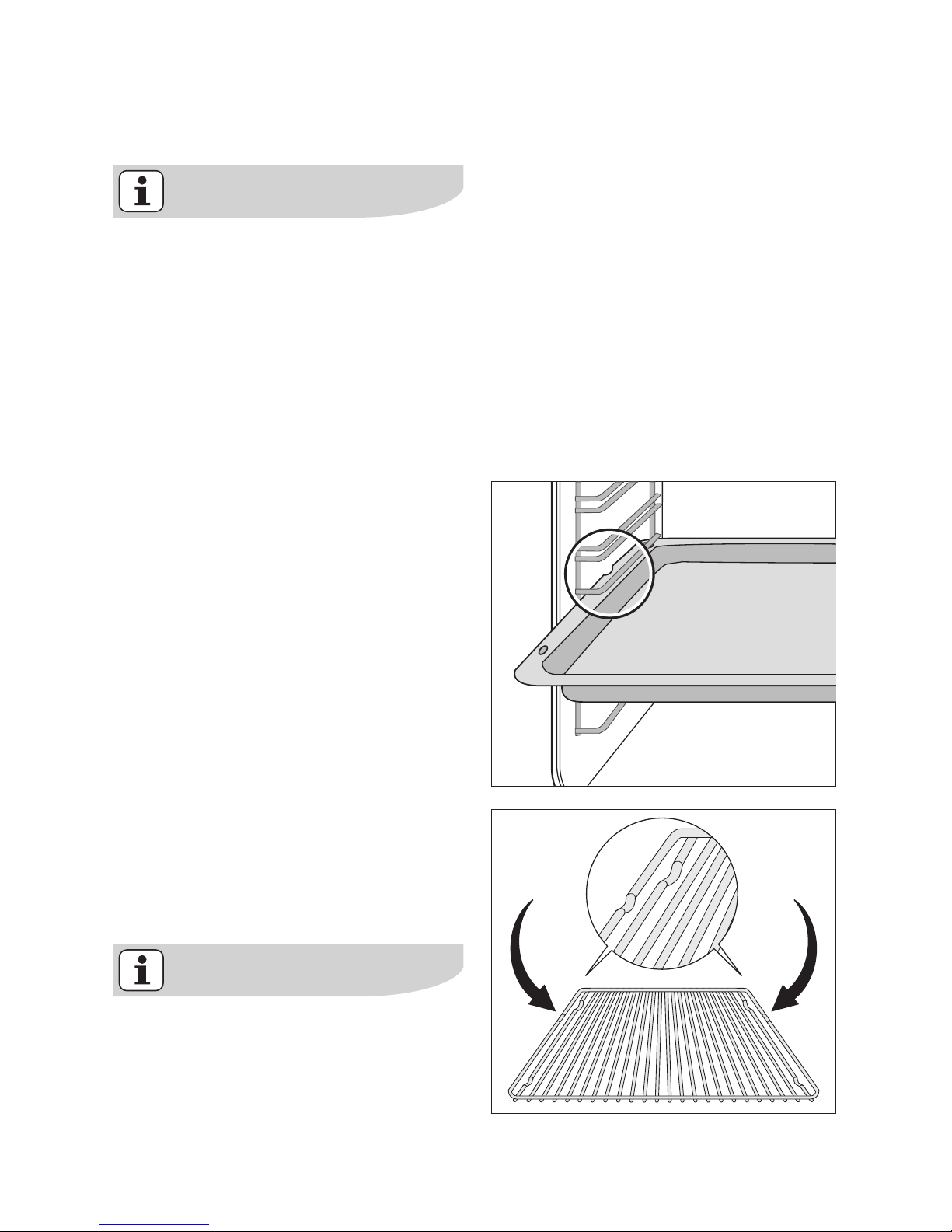

Inserting the Oven Shelf, Baking
Tray and Roasting Pan
Shelf runner safety and anti-tip device
As a shelf runner safety device, all in-
sertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable components
so that this indentation is at the back
of the oven interior. This indentation is
also important for preventing the in-
sertable components from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be-
tween the guide bars of the selected oven
level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.

using the oven electrolux 15
Inserting the oven shelf and roast-
ing pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
Inserting/Removing the Grease Filter
Only use the grease filter when
roasting to protect the rear heating ele-
ments from fat splashes.
Inserting the grease filter
Hold the grease filter by the grip and
insert the two mounts downwards into
the opening on the rear wall of the
oven (fan opening).
Taking out the grease filter
Hold the grease filter by the grip and
unhook it.

16 electrolux using the oven
Clock Functions
Countdown
To set a countdown. A signal sounds af-
ter the time has elapsed.
This function does not affect the func-
tioning of the oven.
Cook time
To set how long the oven is to be in use.
End time
To set when the oven is to switch off
again.
Time
To set, change or check the time
(See also section “Before Using for the
First Time”).
Selector Button Button
Button
Time display Function Indicators
Function Indicators

using the oven electrolux 17

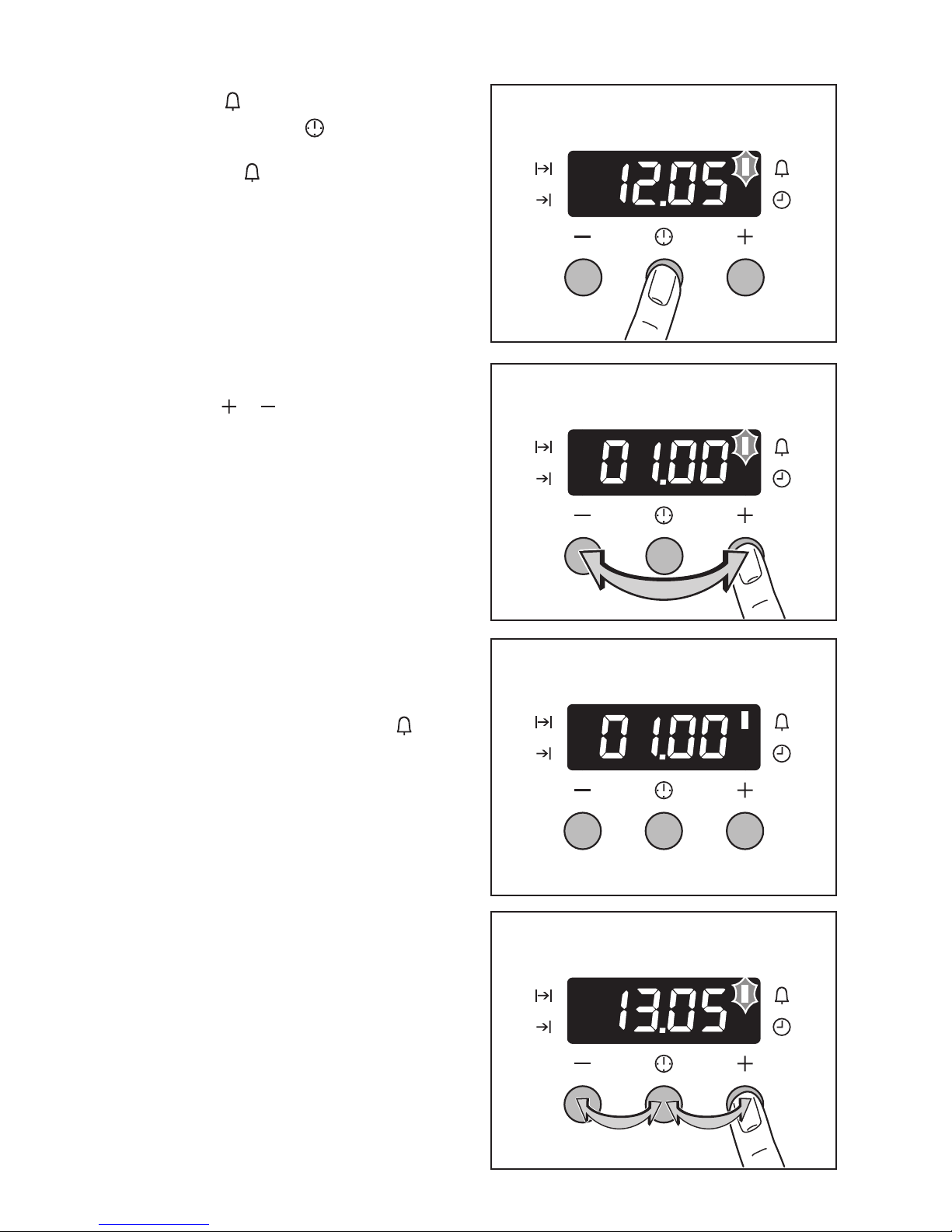

How to use the clock functions
•After a function has been selected,
the corresponding function indicator
flashes for about 5 seconds. During
this period, the desired times can be
set using the or button.
•When the desired time has been set,
the function indicator continues to
flash for approx. 5 seconds. After
that the function indicator is then lit.
The set time begins to run.
•Press any of the buttons to stop the
audible signal.
•The desired oven function and tem-
perature can be selected before or
after the clock functions Cook
time and End time are set.
•When the cooking process is com-
pleted, turn the oven function dial
and the temperature selector back
to the OFF position.
Switching Off the Time Display
By switching off the time display you can
save energy.
Switching off the time display
Press and hold down any two buttons
until the display becomes dark.
Switching on the time display
Hold down any button until the time re-
appears in the display.
The display can only be switched off
if none of the clock functions Cook
time , End time or
Countdown is in use.

18 electrolux using the oven
Countdown
1. Press the Selection button repeat-
edly until the function indicator
Countdown flashes.
2. Using the or button set the desired
Countdown (max. 2 hours
30 minutes).
After approx. 5 seconds the display shows
the time remaining.
The function indicator Countdown lights
up.
When the time has elapsed, the function in-
dicator flashes and an audible signal
sounds for 2 minutes.
The signal can be stopped by pressing any
button.

using the oven electrolux 19
Cook time
1. Press the Selection button repeat-
edly until the function indicator Cook
time flashes.
2. Using the or button set the desired
cooking time.
After approx. 5 seconds the display returns
to showing the current time. The function
indicator Cook time lights up.
When the time has elapsed, the function in-
dicator flashes, an audible signal sounds
for 2 minutes and the oven switches itself
off.
3. The signal and the programme can be
stopped by pressing any button.

20 electrolux using the oven
End time
1. Press the Selection button repeat-
edly until the function indicator End
time flashes.
2. Using the or button set the desired
switch-off time.
After approx. 5 seconds the display returns
to showing the current time.
The function indicator End time lights
up.
When the time has elapsed, the function in-
dicator flashes, an audible signal sounds
for 2 minutes and the oven switches itself
off.
3. The signal and the programme can be
stopped by pressing any button.
