Table of Content
1. INTRODUCTION ................................................................................................................................... 4
2. OVERVIEW............................................................................................................................................. 6
3. CONCETP................................................................................................................................................ 8
4. “VISION VCU” AND TOUCH BOARD FIXING ............................................................................... 8
5. MODULAR CONSTRUCTION........................................................................................................... 10
6. ELECTRICAL CONNECTIONS........................................................................................................ 11
7. MATCHING THE POWER BOARD.................................................................................................. 11
8. CONTROL PANEL............................................................................................................................... 11
9. FUNCTIONS AND USE OF VISION VCU INTERFACE................................................................ 18
10. DEMO MODE ....................................................................................................................................... 20
11. SERVICE MODE (FACTORY TEST)................................................................................................ 20
12. ALARM CODE...................................................................................................................................... 23
13. SIDEKICK............................................................................................................................................. 27
14. REVISIONS:.......................................................................................................................................... 27

Technical Support - BSP 4/27 599 73 44-69 Rev. 00
1. INTRODUCTION
1.1 PURPOSE OF THIS MANUAL
The purpose of this Manual is to provide information of new User Interface board OMEGA.
1.2 WARNINGS
All work with open appliances must be done with the mains supply disconnected.
The intervention on electrical equipment should only be performed by qualified
personnel.
Before working on a device, check the efficiency of the system housing through means of
appropriate equipment. As an example, refer to the indications described / illustrated in
the portal Electrolux Learning Gateway (http://electrolux.edvantage.net).
After intervention, carry out electrical safety tests and check the correct
operation of all safety devices.
In the case of manipulation / replacement of the PCB, use the ESD kit (Code 405 50 63-
95/4) to prevent electrostatic discharge damage the circuit board see SB No. 599 72 08-09

Technical Support - BSP 5/27 599 73 44-69 Rev. 00
1.3 ABBREVIATIONS, ACRONYMS, DEFINITIONS
Abbreviations
Meaning
ABO
Automatically back to OFF_STATE from STAND_BY_STATE
AC
Assisted Cooking
BS
Basic Settings
COT
Current Oven Temperature (= actual temp. in cavity)
Customer Action
Press any key, open the door (if door switch for light), plug in /out food probe
DE
Language = German
DUR
Duration
FC
Food Category
FCT
Food Probe Current Temperature
FPE
Food Probe Extended
FST
Foot Set Temperature
H+H
HEAT+HOLD
KEY_U/D
Key for up/down-selection
LTC
Low Temperature Cooking
MAN
Manuel in Assisted Cooking
MEM
My Programs menu
MM
Minute Minder
MP
Food probe
OFF
Off-State
ON
On-State
OST
Oven Set Temperature
OUI
Oven User Interface
OVF
Oven Function
RTC
Real Time Clock
REC
Recipe
S+G
SET+GO
STB
Stand-By-State
ToD
Time of Day
W
Window
OCT
Oven current temperature
ON_STATE
Oven is running
STAND_BY_STATE
Oven is in standby with standard menu
OFF_STATE
Oven is Off, ToD indication
tbd
to be defined

Technical Support - BSP 6/27 599 73 44-69 Rev. 00
2. OVERVIEW
The VISION VCU interface is a new high end oven user interface for the cooking appliance.
VISION VCU replacing Avantgarde and ENV06 Smart Culisense.
The user interface concept based on todays Vision ENV06
Construction with one PCB, the same for OMEGA and VISION (VCU)

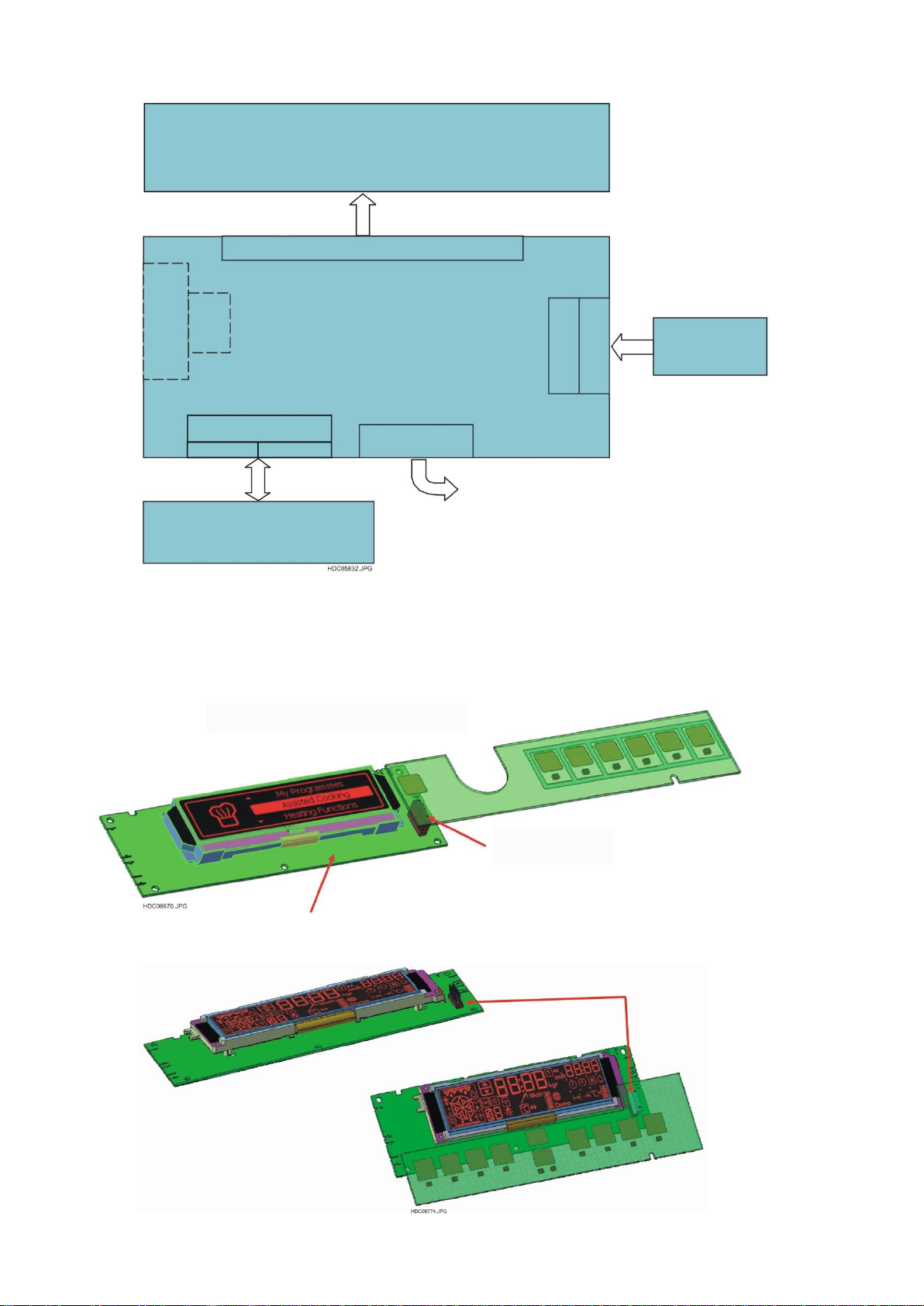

1. CONNECTION PCB
2. VISION (VCU) DISPLAY
ENV06 Smart Culisense
Avantgarde
VCU
Vision Cooking Update

Technical Support - BSP 7/27 599 73 44-69 Rev. 00
2.1 RANGE OF APPLICATION AND SPECIFIC FEATURES
There are several variants of ovens and cookers with Vision VCU interface in various structures, combined
with the power board OVC3000 in different aesthetic and brands with the following features:
•Pyro
•Non-Pyro
•Catalytic
•Meat Probe
•Steam
•Microwave
The main features of the Vision VCU interface are:
Full Dot Matrix Display
LCD Modul
same µC family (Renesas) for all interfaces Omega and Vision VCU
flexibility with different glass designs (new designs can be realized very fast)
supports nonPyro, Pyro appliances
supports Steam functionality
supports MW functionality
supports double oven appliance
support 10 digital Inputs for touch sensor fields
2.2 DIFFERENT VERSIONS
RED VERSION (AEG)

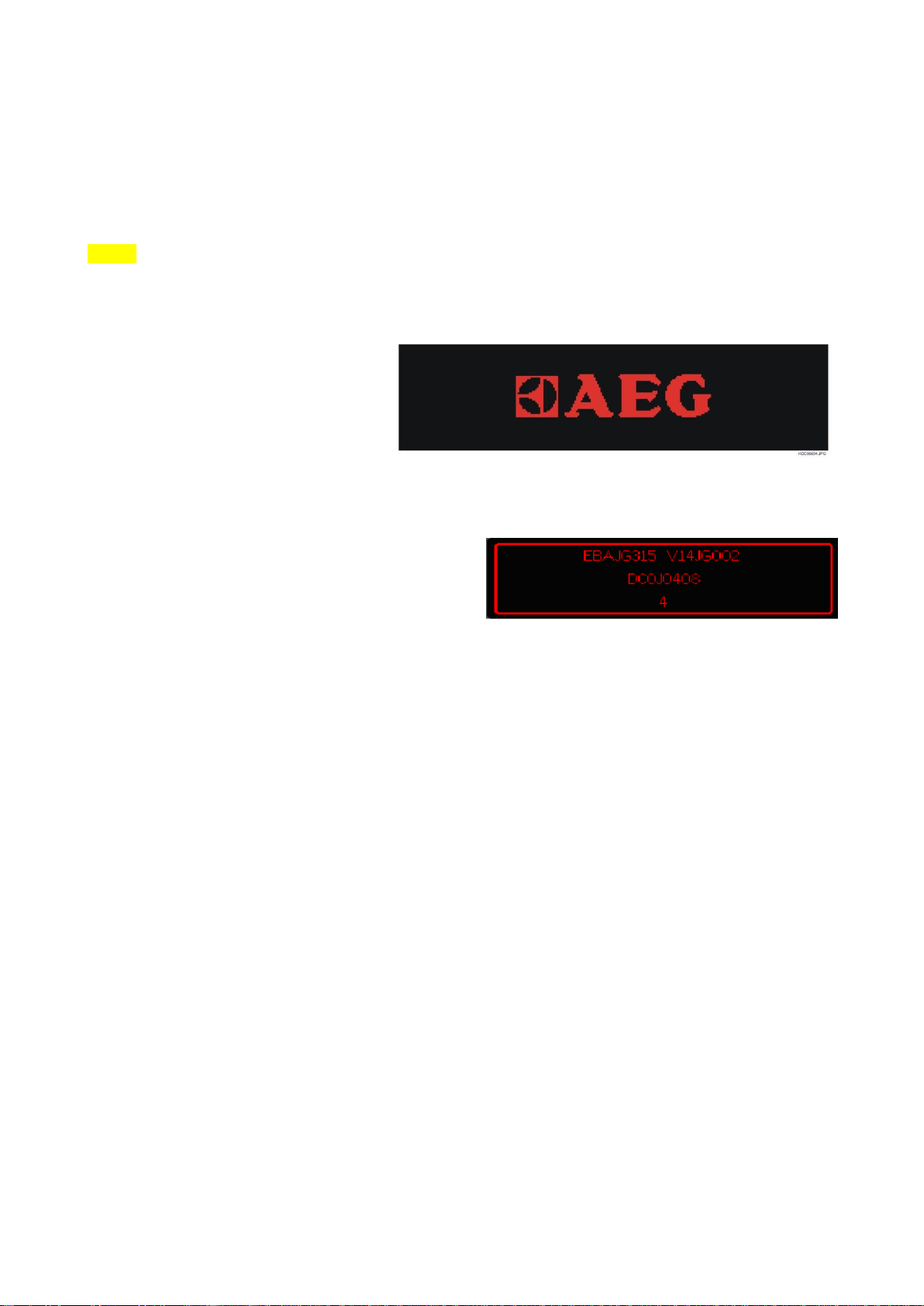

White VERSION (ELECTROLUX)
NOTE: The different Hardware versions of Vision VCU Interface through the various software give rise to
different codes programmed interface adapted to the different types and functions of the oven

Technical Support - BSP 8/27 599 73 44-69 Rev. 00
3. CONCETP
All glass variants should be adapted to this PCB.
same connection PCB <-> glass
same connection PCB <-> LCD module
same position
1. FUTURE DESIGN DISPLAY
2. VISION VCU DISPLAY
3. OMEGA DISPLAY
4. CONNECTION PCB (BASIS PCB)

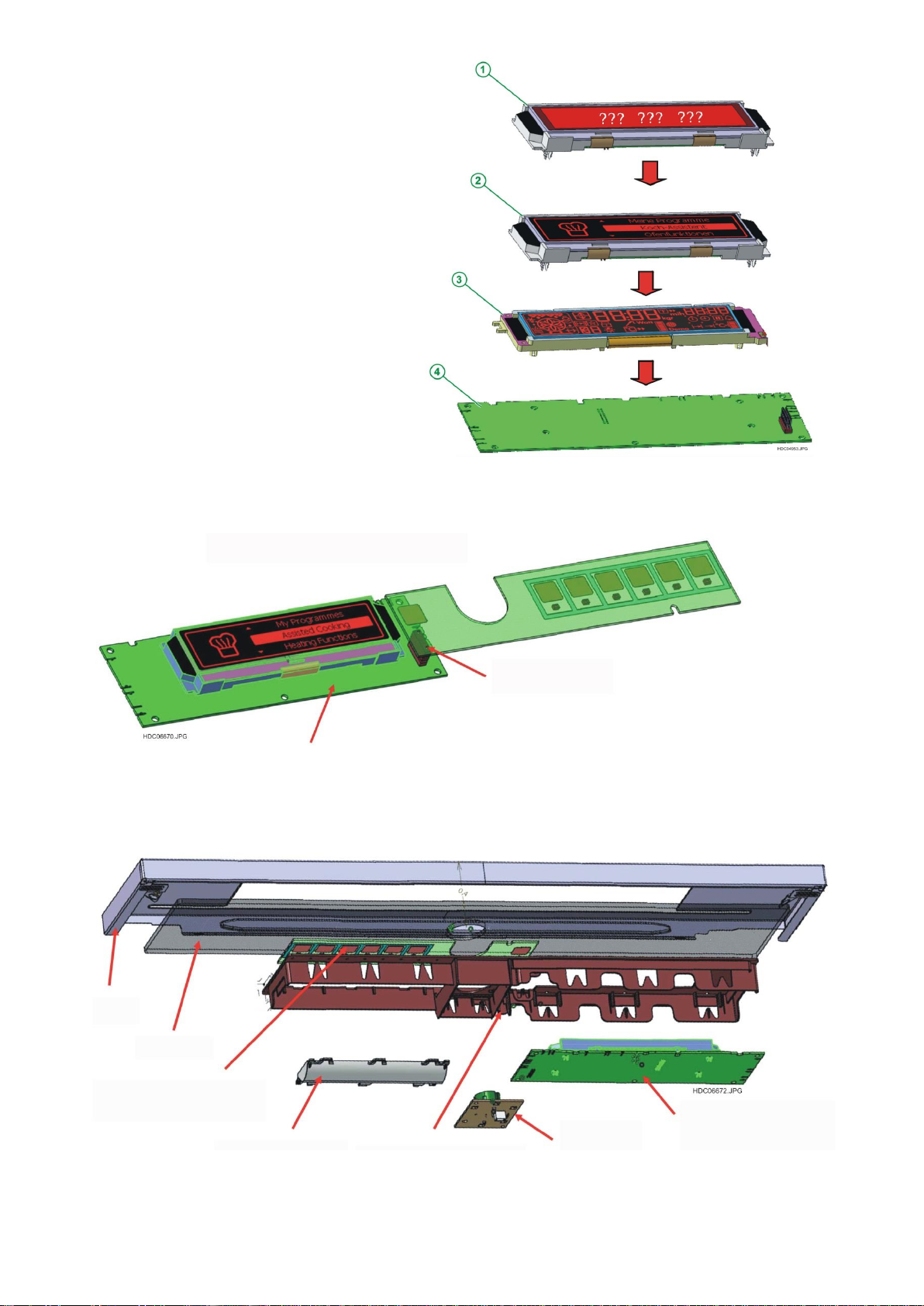

4. “VISION VCU” AND TOUCH BOARD FIXING
The touch-zones-board is connected over the connector only. No additional wiring is needed.
4.1 “VISION VCU” - 7 TOUCH ZONES
Touch-7-zones-board
Attention ! Please be careful, during disassembling and assembling the boards !
NOTE: For the fixing system in the various applications and aesthetic refer to manuals Service relating
(Apollo structure, Sputnik structure etc. ).
Connector
Basic board
User interface
Basic board with display
Panel
Glass
Touch-zones-board
Reflector
Frame support
Shuttle

Technical Support - BSP 9/27 599 73 44-69 Rev. 00
4.2 “VISION VCU” - 10 TOUCH ZONES
Touch-10-zones-board
4.3 CONNECTORS OF BASIS PCB
Glass
Panel
Frame support
(Glued to the glass)
Frame support
User interface
Basic board
User interface
Display
Touch-zones-board
OMEGA
LCD module
serial
VISION (update)
LCD module
parallel
new
???
Programming
connector
Background
debug
ext.Flash
progr.
LCD connector
Basis
PCB
Imput
connector
2xJST
2x8
Imput zones
Imput zones
Digital rotary bit
encoder
illuminated
bar
Communication connector
Service connector
3pin ???
SMART backlight
connector
MACS
communication
SIDEKICK
for Service
Power Board
OVC2000 or OVC3000
xxx = only Vision
xxx = backwanrd compatible
Touch Board (max 10 zones)
or
bit encoder (max 7 zones)
+ SMART backlight
4 Pin Edge
3 Pin Edge

Technical Support - BSP 10/27 599 73 44-69 Rev. 00
4.4 NEEDED CONNECTOR FOR “VISION VCU”
5. MODULAR CONSTRUCTION
The touch-zones-board is connected over the connector only. No additional wiring is needed.
ATTENTION: Please be careful, during disassembling and assembling the boards !
CONNECTOR (TOUCH CNT)
BASIC BOARD
TOUCH ZONES BOARD
CONNECTOR (TOUCH CNT)
BASIC BOARD
TOUCH ZONES BOARD
OMEGA
LCD module
LCD connector serial
Programming
connector
Background
debug
Basis
PCB
Imput connector
1x8
Imput zones
Touch Board
max 10 zones
Communication
connector
4 Pin Edge
3 Pin Edge
Service connector
3pin
MACS
communication
SIDEKICK
for Service
Power Board
OVC2000 or OVC3000

Technical Support - BSP 11/27 599 73 44-69 Rev. 00
6. ELECTRICAL CONNECTIONS
XC01 MACS BUS FOR POWER BOARD
XC02 AUXILIARY MACS BUS
XC03 MACS BUS FOR SIDEKICK (SERVICE)
XI03 DIGITAL ROTARY BIT ENCODER AND IMPUT BLOCK
XL01 TOUCH BOARD BACKLIGHT
XM01 PROGRAMMING FLASH MEMORY
XU01 PROGRAMMING
TOUCH CNT INPUT TOUCH BOARD (15 PIN)
7. MATCHING THE POWER BOARD
The user interface Vision VCU can be combined, depending on the version and specific appliances to the
power board OVC2000 or OVC3000 with FPM board for the food probe.
Also refer to the Service Manual in TDS related to power boards linked to specific models.
8. CONTROL PANEL
Example of control panel with user interface Vision VCU

Technical Support - BSP 12/27 599 73 44-69 Rev. 00

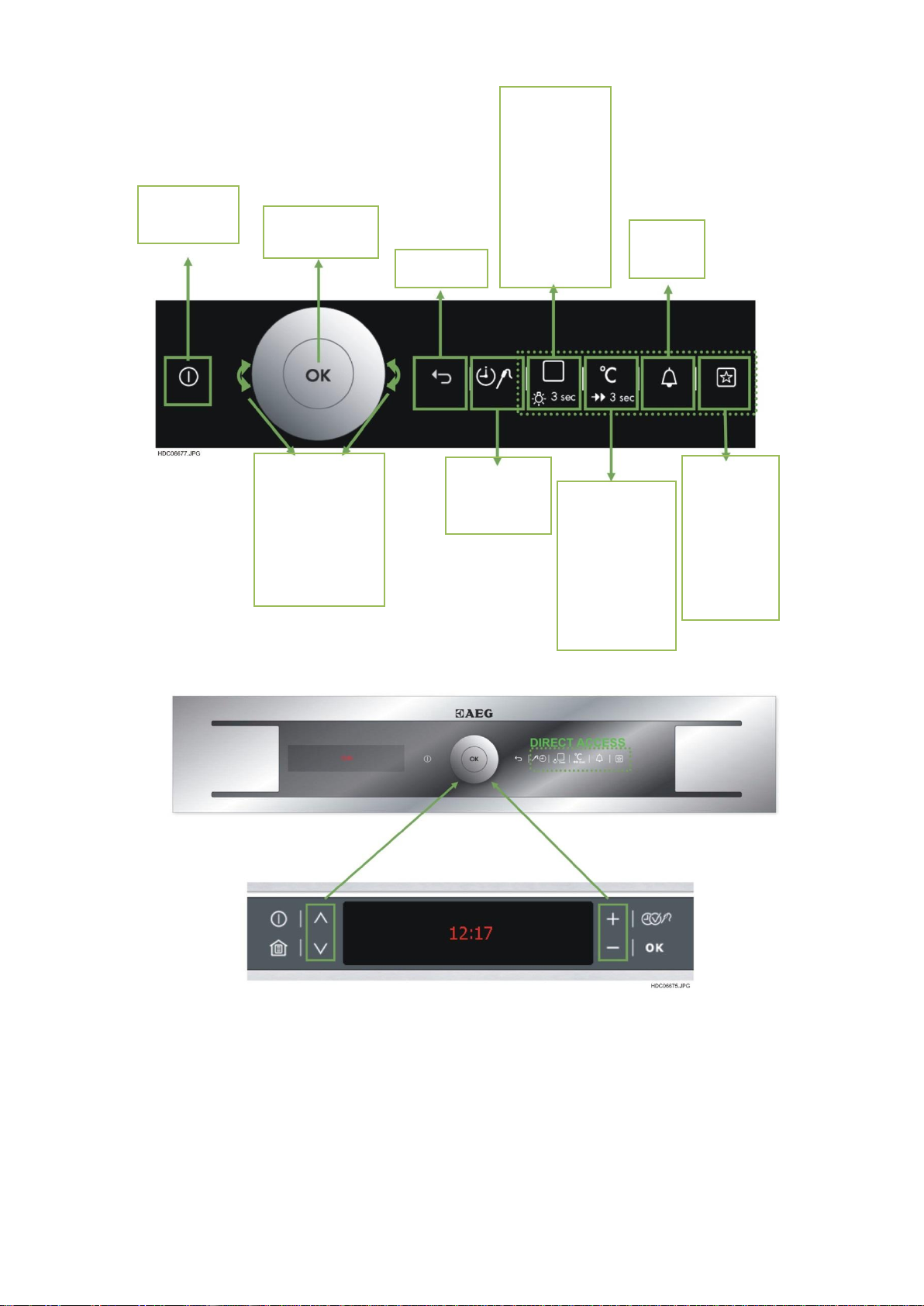

8.1 EXAMPLE OF FUNCTION KEYS
Always
ON / OFF
(MAIN KEY
Confirm setting
(OK)
Home key
Selection OVF
or Assisted
Cooking
longer press
turns light
ON or OFF
(Quick Start
Oven function
/ Light)
Minute
minder
Navigation inside
menus, change
values, direct
access MM in
OFF (UP /
DOWN PLUS /
MINUS)
Today’s
Option menu
(MODE)
Selection
temperature,
press longer
turns Boost ON
or OFF
(Temperature
selection /
Boost)
Direct access
to favorites
(today’s My
Programme)
(Quick Start
Favourite)

Technical Support - BSP 13/27 599 73 44-69 Rev. 00
8.2 DIFFERENT KEY LAYOUT

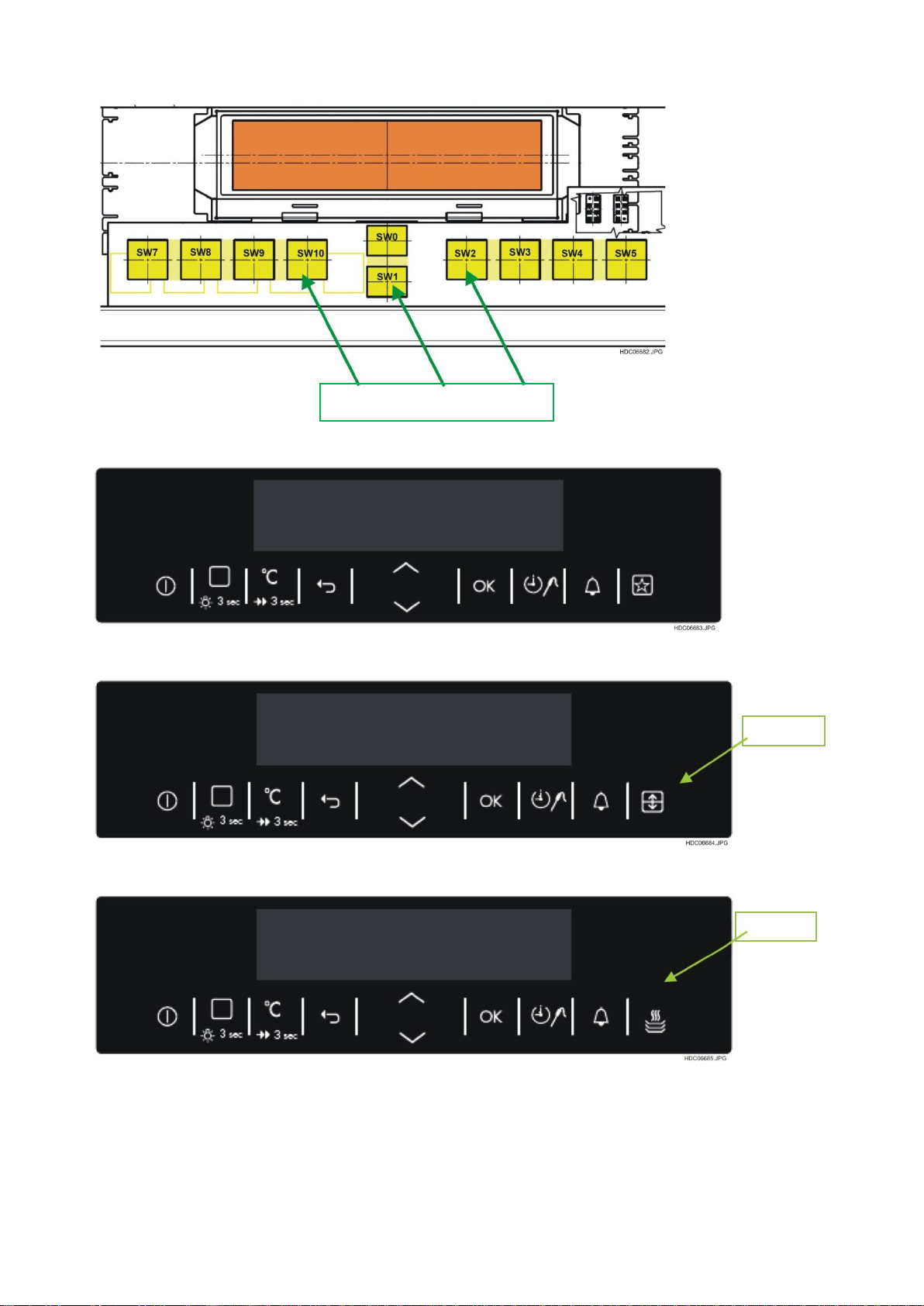

Following key layout includes touch zones positioning. The OVC has 7 and 10 zones key layout. Depending
on which variant the key layout is diversify
8.2.1 7ZONES HORIZONTAL WITH ROTARY
Key layout: 7-Zones Horizontal with rotary
For normal oven, like non pyro, catalytic, or steam:
For double oven:
For Millenium:
ILLUMINATED AREA (6X)
CAVITY
DRAWER

Technical Support - BSP 14/27 599 73 44-69 Rev. 00
8.2.2 10 ZONES
For normal oven, like non pyro, catalytic, or steam:
For double oven:
For Millenium:
ILLUMINATED AREA (10X)
CAVITY
DRAWER

Technical Support - BSP 15/27 599 73 44-69 Rev. 00

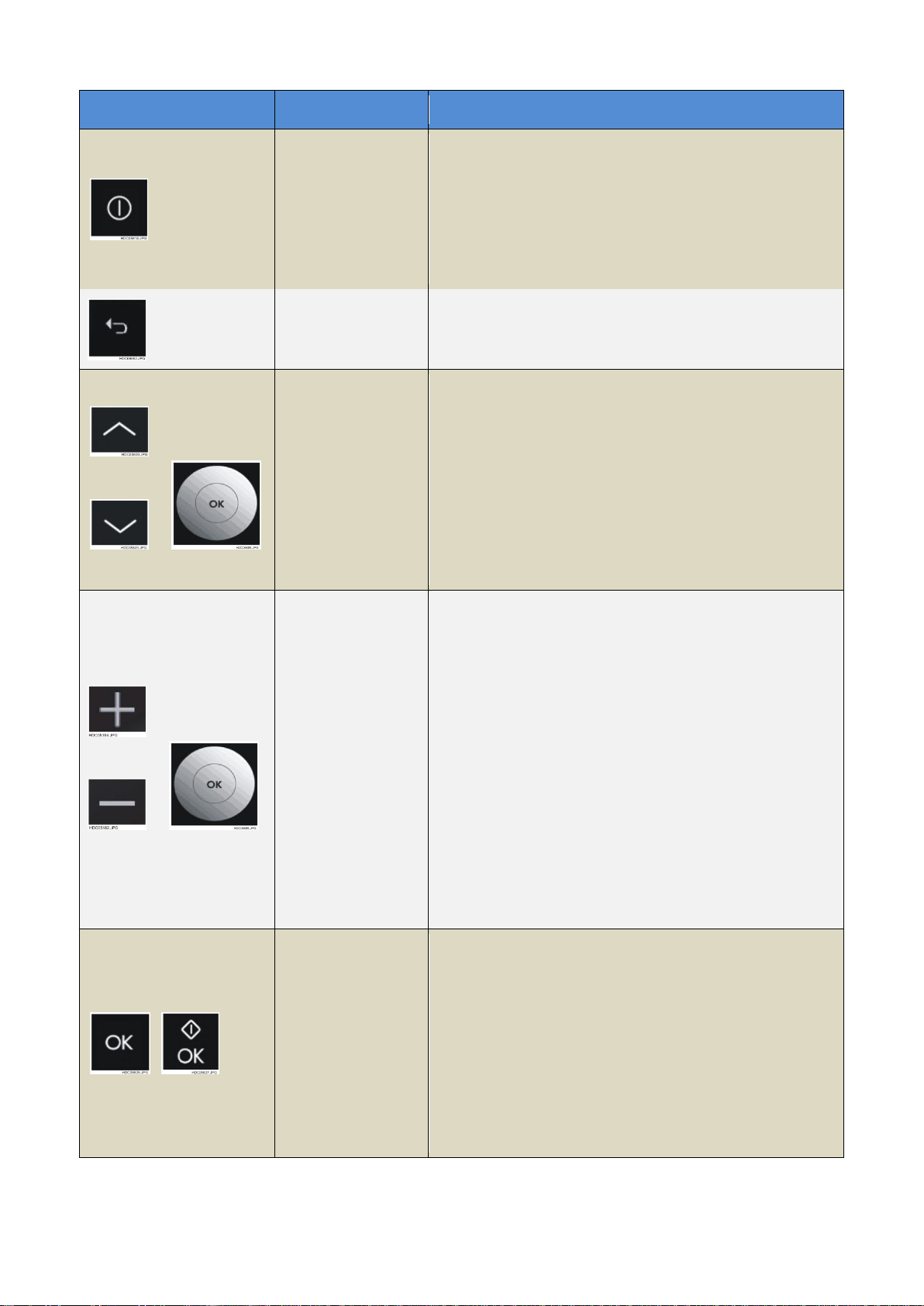

8.3 FUNCTION OF KEYS
KEY SIMBOL
KEY NAME
DESCRIPTION
KEY_MAIN
Main Key
From OFF_STATE to STAND-BY_STATE and
vice-versa.
Always with function ON/OFF.
If multi-key-action this key has master function
(leads always to STAND-BY resp.
OFF_STATE).
KEY_HOME
or
KEY_UP
KEY_DOWN
Scroll buttons
(rotary functionality in 7-zone touch layout)
After selection of oven function, program
selection or temperature, these two keys can be
used for set up or set down the corresponding
function. If the oven is running and no selection
is blinking, then this is also used for set
temperature directly (In micro wave no function).
The KEY_UP and KEY_DOWN also be used for
set timer functions.
or
KEY_PLUS
KEY_MINUS
(rotary functionality in 7-zone touch or UP / DOWN in
10-zone touch)
Adjusting values like oven set temperature, food
set temperature, weight, duration, type of
Pyrolytic Cleaning etc.
Selecting value in basic settings menu (ON/OFF,
YES/NO, levels, language, etc.)
If defining own memory name selecting character
To adjust oven set temperature, weight or type of
Pyrolytic Cleaning the first key press changes
window/indicator (arrow for OST, weight symbol
or text for Pyrolytic Cleaning is flashing), the
second key press changes the value
Single pressing change the information in single
steps, keeping the button pressed for a longer
time increase speed
KEY_OK
Confirm selection
Pressing this button, customer can confirm
settings, e.g. minute minder, or the settings.
In microwave oven this button can be switch on
the microwave with the maximum power and a
time of 30 seconds. Each press on this key add
30seconds to the duration.
Cleaning confermation
Oven does not start before customer press
KEY_OK.

Technical Support - BSP 16/27 599 73 44-69 Rev. 00
KEY_MODE
Time mode selection
Switches the between Time the different time
functions. Set of these values with KEY_UP and
KEY_DOWN. See chapter 9.10 - TIME / MODE
MENU for the correct order.
KEY_OVF
Quick Start Oven function
Activate oven function menu
KEY_TEMP and
KEY_BOOST
Temperature selection and Boost
Pressing to Current oven temp COT (Current
Oven Temperature).With food probe inside,
switch between FST (Food Probe Set
Temperature), COT (Current Oven Temperature)
and FCT (Food Probe Current Temperature).
Pressing this button for more than 3 seconds, the
quick heat turns on. If the customer presses the
button a second time longer than 3 seconds, fast
heat up is deactivated.
KEY_MM
Minute minder selection
Switches to minute minder set state. Set values
with KEY_UP and/or KEY_DOWN. See chapter
minute minder for more details.
KEY_DRAWER
Drawer
Switches on/off the drawer heater
KEY_LIGHT
Light
Turn the light ON / OFF at the whole time.
KEY_FAVOURIT
E
Quick Start
A special oven functions with pre-defined
temperature and a pre- defined time. A new
favourite program can always be saved with a key
press longer than 3 seconds. It is possible to save
max. 20 Programmes.
KEY_ CAVITY
Cavity selection
Pressing this button, switch between upper and
lower cavity.
8.3.1 KEY COMBINATIONS OVERVIEW
FUNCTION
ACTION
KEY COMBINATION
Child safety
Activate / deactivate
KEY_ MODE + KEY_ FAVOURITE
Timer
Set value to zero
KEY_MINUS + KEY_PLUS
Demo mode
Activate / deactivate after switch on / off over
KEY_MAIN.
KEY_ MODE + KEY_ FAVOURITE
Factory test
Activate after start up (Logo).
KEY_OK + KEY_MODE
Function lock
deactivate
Activate in menu
KEY_ MODE then KEY_OK

Technical Support - BSP 17/27 599 73 44-69 Rev. 00
8.4 DISPLAY

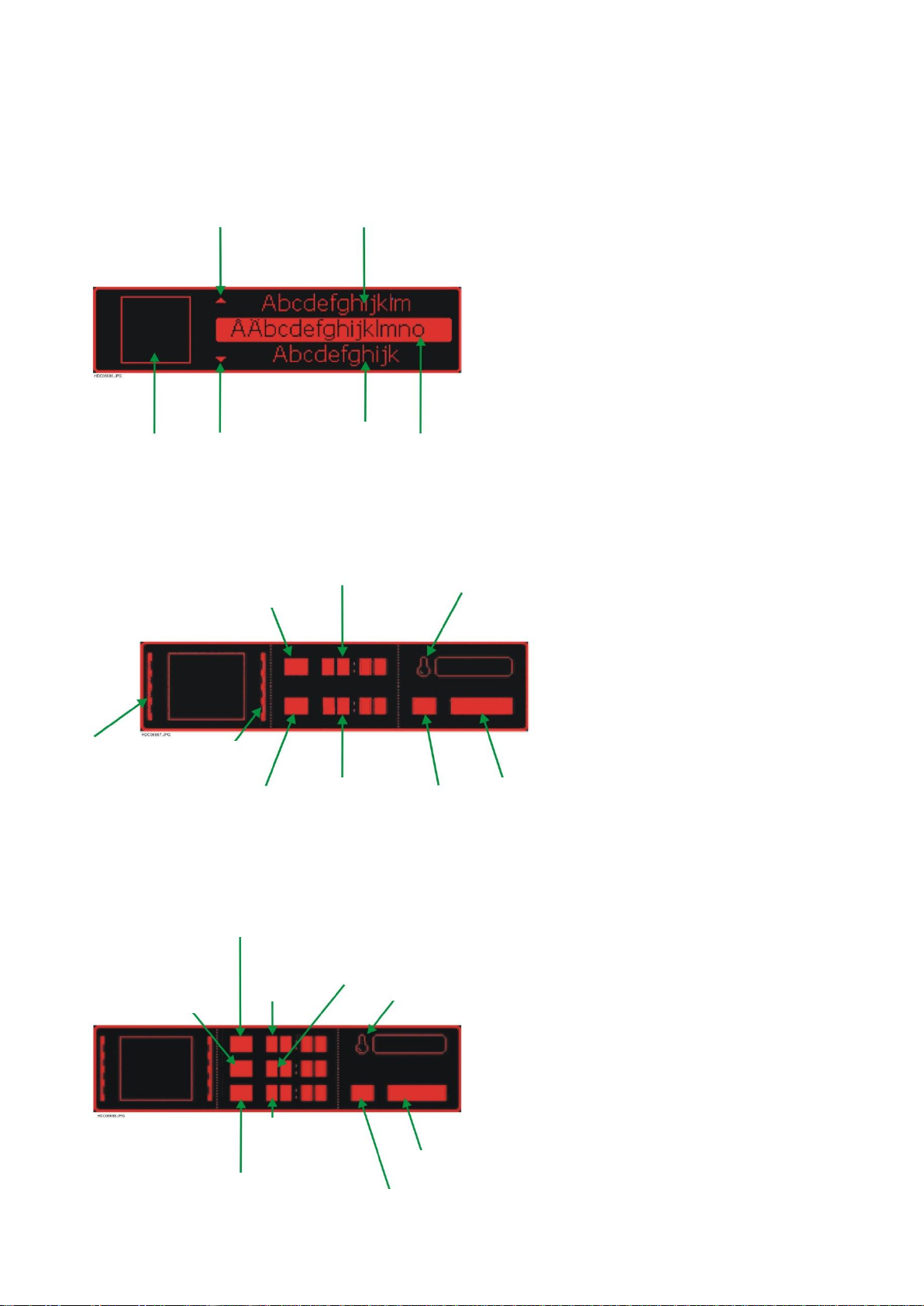

The display has in general three different main views:
8.4.1 VIEW 1-MENU STATE
8.4.2 VIEW 2-ON_STATE (WITH TWO LINES ARRANGEMENT)
8.4.3 VIEW 3-ON_STATE (WITH THREE LINES ARRANGEMENT)
3 LINES TIME SYMBOL 3
3 LINES TIME
DIGIT 3
3 LINES TIME SYMBOL 1
3 LINES
TIME
DIGITS 1
MENU ARROW 1
MENU TEXT 1
MENU TEXT 3
MENU TEXT 2
CAVITY
ICON
MENU
ARROW 2
2 LINES TIME SYMBOL 1
2 LINES TIME DIGIT 1
2 LINES HEAT UP
TRAY
LEVEL 1
TRAY
LEVEL 2
2 LINES TIME
SYMBOL 2
2 LINES
TEMP
DIGITS
2 LINES TIME
DIGIT 2
3 LINES TIME
SYMBOL 2
3 LINES TIME
DIGITS 2
3 LINES TEMP SYMBOL
3 LINES TEMP DIGITS
2 LINES
TEMP
SIMBOL
3 LINES HEAT UP

Technical Support - BSP 18/27 599 73 44-69 Rev. 00
9. FUNCTIONS AND USE OF VISION VCU INTERFACE
9.1 INITIAL OPERATION (START-UP PROCEDURE)
The start-up procedure of the appliance is divided in 2 parts. If a factory test was done the appliance reacts
after plug-in as described for first connection with mains.
9.1.1 FIRST CONNECTION WITH THE MAINS
After the first connection with the mains (resp. after connection with mains after factory test) the following
sequence starts:
1. Displaying manufacturer logo for
7 seconds.
2. For the next 7 seconds displaying software version from
Firmware OUI
Configuration OUI
Firmware PB and
Working hours counter (only value)
The indication is the same like settings menu “basic settings” item “service”.
3. Set language in the same way as in basic settings menu. The selected language will be stored in flash
memory. The user has to do later changes in the menu “basic settings”.
4. The next point is to set the display contrast. This is the same flow as is described in chapter “basic
settings” item “display contrast”. The value will be stored in flash memory. All later changes can be
done in menu “basic settings”
5. After setting the display contrast, set display brightness. This is the same flow as is described in
chapter “basic settings” item “display brightness”. All later changes can be done in menu “basic
settings”
6. Afterward set of ToD, same way as is described in chapter “basic settings” item “set time of day”.
This setting synchronizes the RTC. Then the RTC delivers a ToD value –even a short time after
power failure. All later changer of ToD can be done in menu “basic settings”.
7. Interface in OFF_STATE with ToD indicated resp. also residual heat indication (if activated and
value for available).
9.1.2 ANY FURTHER CONNECTION WITH THE MAINS
Any further connection with the mains affects the following sequence:
1. Displaying manufacturer logo for 7sec…
2. Display software versions and working hours counter.
3. ToD setting –only if a ToD value is not available anymore (from RTC).
4. Interface in OFF_STATE with ToD indicated resp. also residual heat indication (if activated
andvalue for available).
Valid for both connections:
As long as manufacture logo is displayed it is possible to enter the factory test. The workflow of the factory
test is described in chapter Factory Test.

Technical Support - BSP 19/27 599 73 44-69 Rev. 00
9.2 OFF_STATE
When the oven is switched off, the time of day (ToD) is displayed and, in case of residual heat in oven, also
the temperature bar for residual heat indication. Depending of application also with real temperature in °C
(e.g. for steamer applications necessary). ToD can be switched off to set the display completely dark. This
has to be done in basic settings menu.
9.2.1 DAY /NIGHT BRIGHTNESS
The OUI reduces the brightness of ToD indication in OFF_STATE in the timeframe 22:00 until 06:00 o'clock
to level 1. After customer interaction the OUI stays 5seconds in last used brightness (day brightness).
9.2.2 RESIDUAL HEAT DISPLAY
Decreasing bar - same animation and position as heating indication in ON_STATE.
At steamer applications in real degrees without state bar.
Disappears if cavity temperature less than 40°C.
Animation shows a relation between cavity temperature/oven set temperature.
9.2.3 STANDBY-STATE
To reach the standby-state, the appliance must be in the off-state. Afterwards press once more
the on-/off-key . The main menu is displayed.
Off State
Standby-state / Main Menu
This is the starting point for all functions.
If no key is pressed, after 2 minutes, the appliance is changed automatically from standby-state in to off-
state.

Technical Support - BSP 20/27 599 73 44-69 Rev. 00
10. DEMO MODE
The Demo Mode is implemented for demonstrating the functionality of the appliance in show rooms or
shops, on trade fairs etc. without energy consumption behind. The user can find out the complete
functionality of the OUI but for security reason the loads (heating elements) stays off.
10.1 WORKFLOW TO ACTIVATE / DEACTIVATE DEMO MODE
To activate / deactivate the demo mode:
1. From OFF_STATE keep the main switch pressed for at least 5 seconds.
2. The user interface enters STAND_BY for 5sec. and jump back to OFF_STATE. Buzzer sounds
(Tone_1)
3. Then release the main switch and press the combination KEY_MODE + KEY_FAVOURITE
for two seconds .
4. Buzzer sounds (3 x Tone_1) and
• The Demo Mode is active now. Indication of Demo Mode in left upper corner with
Layout_18 and Icon10_1.
• The demo mode is deactivated now. No indication of Icon10_1.
11. SERVICE MODE (FACTORY TEST)
The factory test is implemented to check all electrical components of the appliance at the end of the
production line. This test can only be activated as long as manufacture logo is displayed.
This function can also be used by the Service for troubleshooting.
11.1 SERVICE MODE ACTIVATION
Activation will be done by pressing KEY_HOME + KEY_MODE simultaneous for 2seconds until
the buzzer sounds (Tone_1). After activation of the factory test the display starts with the first activated loads
of main cavity.
11.2 SERVICE MODE DEACTIVATION
Pressing the KEY_MAIN together with another key you can terminate the factory test.
The factory test should be deactivated after 5 minutes without any user interactions
If the factory test was done, the user can deactivate the factory test with the KEY_MAIN . After that the
oven has to be disconnected from the mains.
