Electrolux EOD31000 User manual

user manual
Cooker
EKC6046
EKC6047
EOD31000
Oven
All manuals and user guides at all-guides.com
all-guides.com

We were thinking of you
when we made this product
All manuals and user guides at all-guides.com

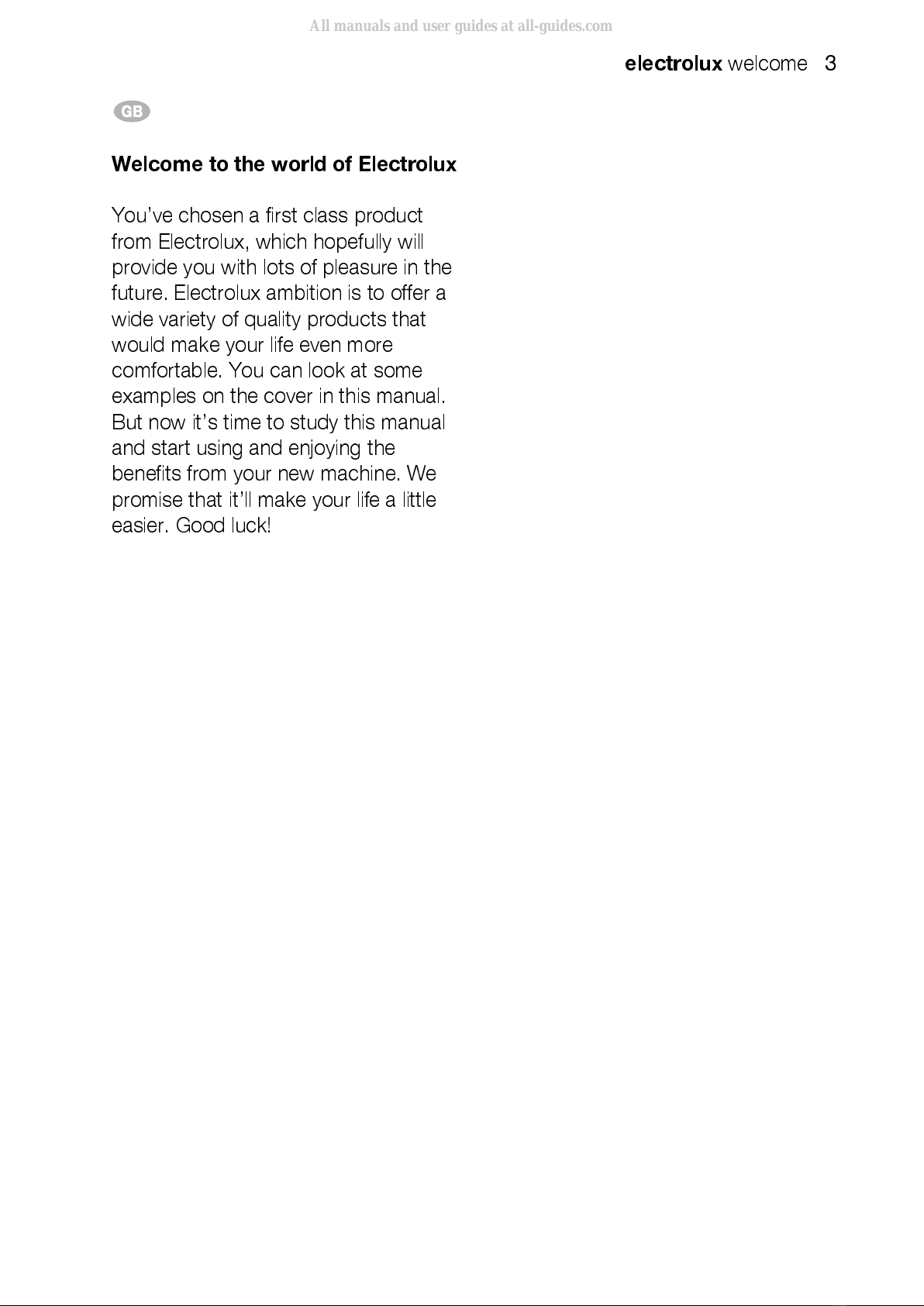

electrolux welcome 3
Welcome to the world of Electrolux
You’ve chosen a first class product
from Electrolux, which hopefully will
provide you with lots of pleasure in the
future. Electrolux ambition is to offer a
wide variety of quality products that
would make your life even more
comfortable. You can look at some
examples on the cover in this manual.
But now it’s time to study this manual
and start using and enjoying the
benefits from your new machine. We
promise that it’ll make your life a little
easier. Good luck!
All manuals and user guides at all-guides.com

4 electrolux contents
Contents
Important safety information 5
Product description 7
Before using the appliance 8
Operation 10
Programme charts 15
Hints and tips 19
What to do if… 21
Care and cleaning 23
Technical data 27
Installation 28
Environment 34
Guarantee / Customer care 35
European guarantee 37
The following symbols are used in
this user manual:
Important information concerning
your personal safety and
information on how to avoid
damaging the appliance.
General information and tips
Environmental information
All manuals and user guides at all-guides.com

electrolux important safety information 5

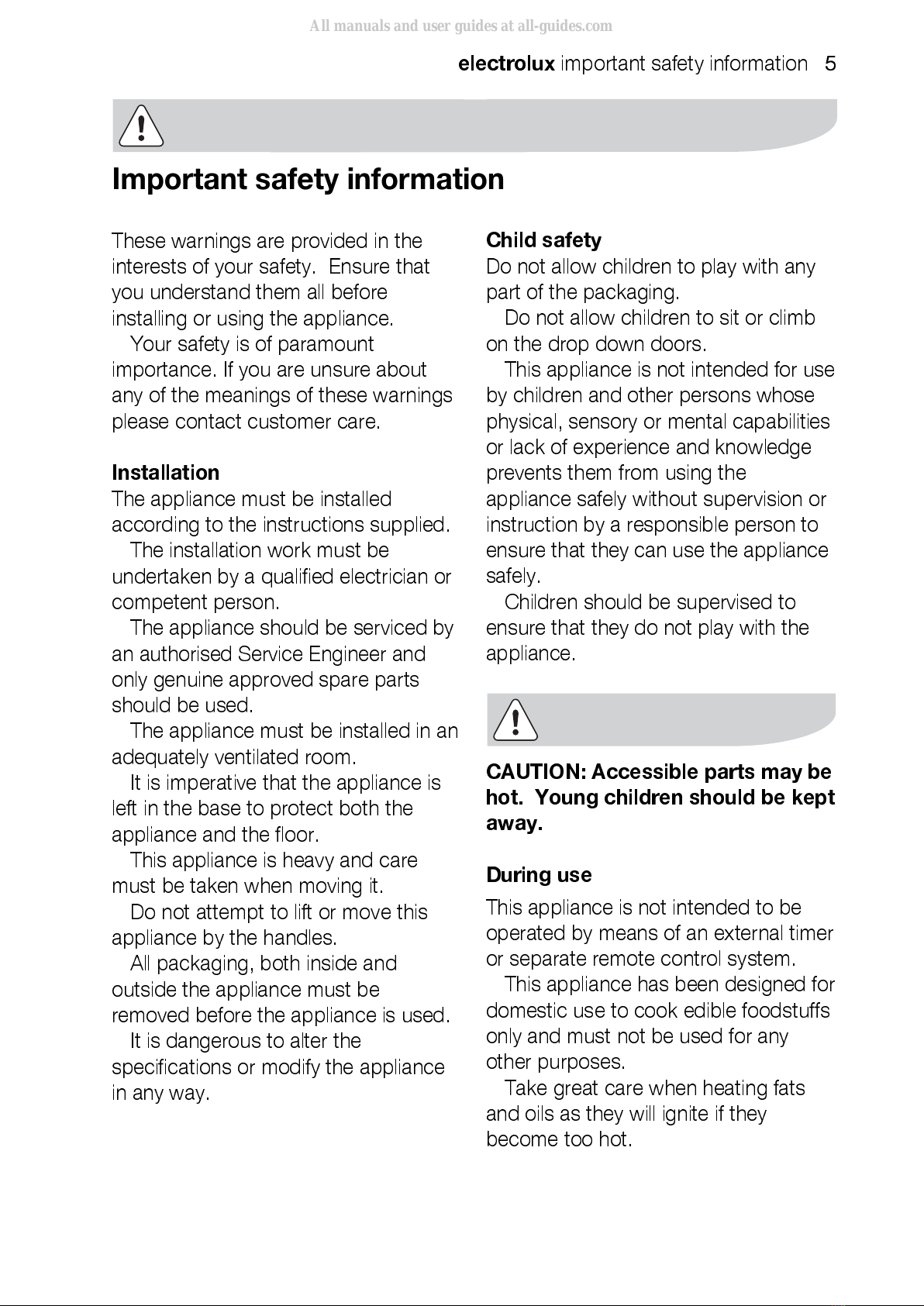

Important safety information
These warnings are provided in the
interests of your safety. Ensure that
you understand them all before
installing or using the appliance.
Your safety is of paramount
importance. If you are unsure about
any of the meanings of these warnings
please contact customer care.
Installation
The appliance must be installed
according to the instructions supplied.
The installation work must be
undertaken by a qualified electrician or
competent person.
The appliance should be serviced by
an authorised Service Engineer and
only genuine approved spare parts
should be used.
The appliance must be installed in an
adequately ventilated room.
It is imperative that the appliance is
left in the base to protect both the
appliance and the floor.
This appliance is heavy and care
must be taken when moving it.
Do not attempt to lift or move this
appliance by the handles.
All packaging, both inside and
outside the appliance must be
removed before the appliance is used.
It is dangerous to alter the
specifications or modify the appliance
in any way.
Child safety
Do not allow children to play with any
part of the packaging.
Do not allow children to sit or climb
on the drop down doors.
This appliance is not intended for use
by children and other persons whose
physical, sensory or mental capabilities
or lack of experience and knowledge
prevents them from using the
appliance safely without supervision or
instruction by a responsible person to
ensure that they can use the appliance
safely.
Children should be supervised to
ensure that they do not play with the
appliance.
CAUTION: Accessible parts may be
hot. Young children should be kept
away.
During use
This appliance is not intended to be
operated by means of an external timer
or separate remote control system.
This appliance has been designed for
domestic use to cook edible foodstuffs
only and must not be used for any
other purposes.
Take great care when heating fats
and oils as they will ignite if they
become too hot.
All manuals and user guides at all-guides.com

6 electrolux important safety information
Never place plastic or any other
material that may melt in or on the oven.
Always support the grill pan when it
is in the withdrawn or partially
withdrawn position.
Always use oven gloves to remove
and place food in the oven.
During use the appliance becomes
hot. Care should be taken to avoid
touching the heating elements inside
the oven.
Ensure that all vents are not
obstructed to ensure ventilation of the
oven cavity.
Never line any part of the appliance
with foil.
Always stand back from the
appliance when opening the oven door
to allow any build up of steam or heat
to release.
Stand clear when opening the drop
down doors. Support the doors using
the handles until fully open.
Never leave the appliance
unattended when the oven door is
open.
Do not place sealed cans or aerosols
inside the oven. They may explode if
they are heated.
Ensure that all control knobs are in
the OFF position when not in use.
Do not stand on the appliance or on
the open oven doors.
Do not hang towels, dishcloths or
clothes from the appliance or its
handles.
Do not use this appliance if it is in
contact with water. Never operate it
with wet hands.
Cleaning and maintenance
For hygiene and safety reasons this
appliance should be kept clean at
all times. A build-up of fat or other
foodstuff could result in a fire
especially in the grill pan.
Do not leave cookware containing
foodstuffs, e.g. fat or oil in the
appliance in case it is inadvertently
switched on.
Always allow the appliance to cool
before switching off at the wall prior to
carrying out any cleaning/maintenance
work.
Only clean this appliance in
accordance with the instructions given
in this book.
Never use steam or high pressure
steam cleaners to clean the appliance.
All manuals and user guides at all-guides.com
all-guides.com

electrolux product description 7
Product description
Control Panel
Top Oven/Grill
Main Oven
Main Oven Function Selector
Main Oven Temperature Indicator Neon
Main Oven Temperature Control
Mechanical minute minder
Top Oven/Grill Function Selector
Top Oven/ Grill Temperature Indicator Neon
Top Oven/Grill Temperature Control
All manuals and user guides at all-guides.com

8 electrolux before using the appliance
Before using the appliance
Rating plate
This is situated on the front frame of
the appliance and can be seen upon
opening the door. Alternatively the
rating plate may also be found on the
back or top of some models (where
applicable).
The appliance must be protected by
a suitably rated fuse or circuit breaker.
The rating of the appliance is given
on the rating plate.
Do not remove the rating plate from
the appliance as this may invalidate the
guarantee.
Preparing to use your appliance
Wipe over the base of the oven(s) with
a soft cloth using hot soapy water.
Wash the furniture before use.
We suggest that you run the oven(s)
and grill for 10 – 15 minutes at
maximum temperature, to burn off any
residue from their surfaces. Accessible
parts may become hotter than in
normal use. Children should be kept
away. During this period an odour may
be emitted, it is therefore advisable to
open a window for ventilation.
The cooling fan for the controls
The cooling fan comes on immediately
when the grill and top oven is switched
on and after a short time when the
main oven is in use. It may run on after
the controls are switched off until the
appliance has cooled.
During the initial period the cooling
fan may turn on and off, this is quite
normal.
Always allow the cooling fan to
cool the appliance down before
switching off at the wall prior to
carrying out any cleaning or
maintenance work.
Control panel indicator neon(s)
The indicator neon will operate when
the grill (where applicable) or oven(s) is
switched on. The indicator neon will
glow. It may turn on and off during use
to show that the setting is being
maintained. If the neon does not
operate as the instructions indicate the
controls have been incorrectly set.
Return all controls to zero and reset
following the instructions for the
required setting.
Condensation and steam
When food is heated it produces steam
similar to a boiling kettle. The vents
allow some of this steam to escape.
However, always stand back from the
appliance when opening the door(s) to
allow any build up of steam or heat to
release.
If the steam comes into contact with
a cool surface on the outside of the
appliance, e.g. a trim, it will condense
and produce water droplets. This is
quite normal and is not caused by a
fault on the appliance.
To prevent discolouration, regularly
wipe away condensation and foodstuff
from surfaces.
All manuals and user guides at all-guides.com

electrolux before using the appliance 9
For your safety wall coverings at the
rear of the appliance should be
securely fixed to the wall.
Cookware
Baking trays, dishes etc., should not be
placed directly against the grid
covering the fan at the back of the
oven.
Do not use baking trays larger than
30cm x 35cm (12” x 14”) as they will
restrict the circulation of heat and may
affect performance.
Grill and oven furniture
The following items of grill and oven
furniture have been supplied with the
appliance. If you require replacements
of any of the items listed below please
contact your local service force centre.
1 grill pan
1 grill pan handle
1 grill pan grid
1 straight shelf
(For grilling and top oven cooking)
2 straight shelves
(For main oven cooking)
All manuals and user guides at all-guides.com

10 electrolux operation
The mechanical minute minder
Your oven is equiped with a
mechanical minute minder.
To set the minute minder turn the
control clockwise to the required time.
Once the end time has been reached
you will hear an acoustic alarm.
Things to note
When setting shorter periods of time
(30 minutes or less) you should set a
longer period to be timed initially.
You should then wind the control
back to the required time.
This will improve the accuracy of
your timer for shorter periods of time.
The longer the set time duration, the
longer the acoustic alarm will sound
All manuals and user guides at all-guides.com

electrolux operation 11

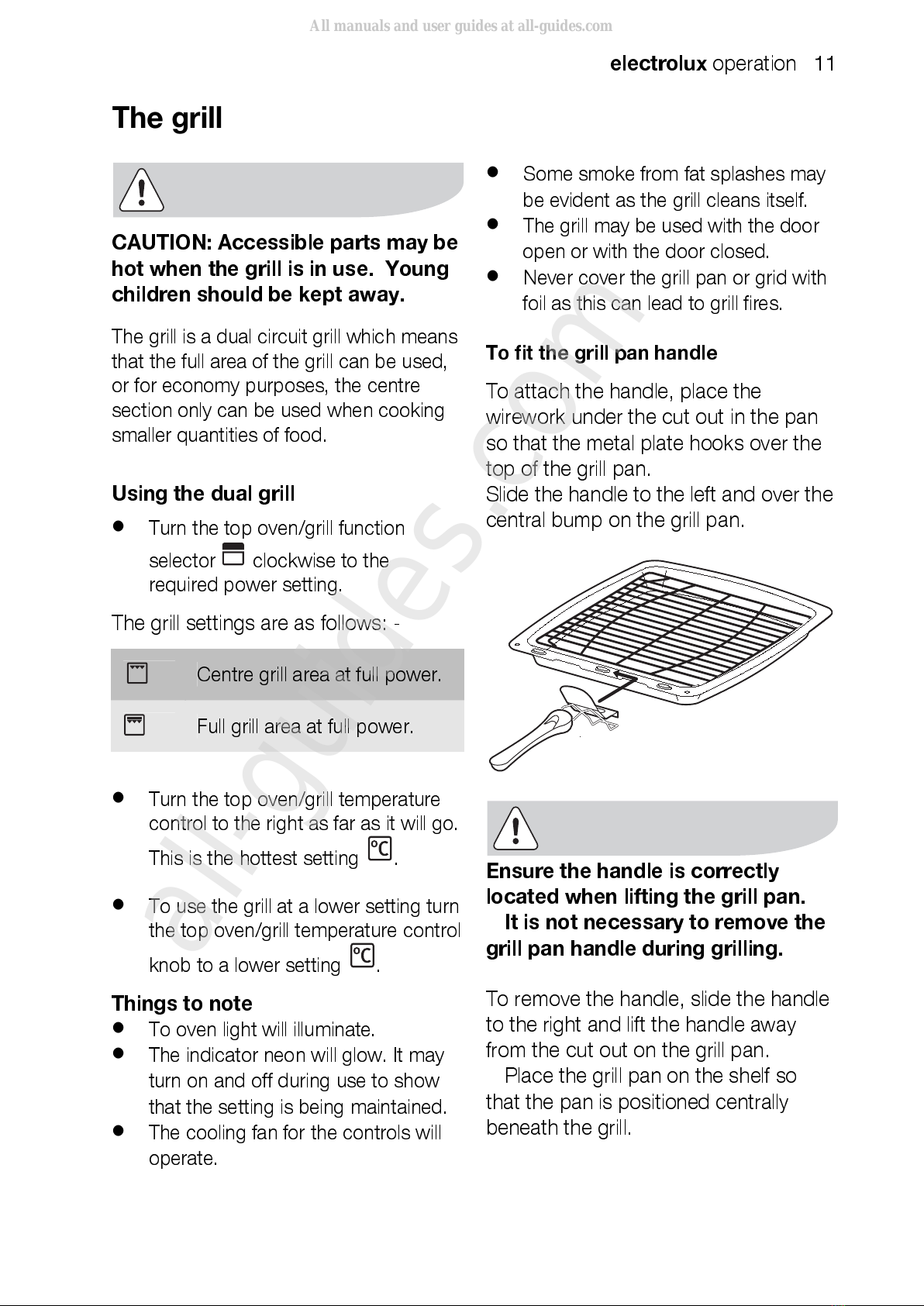

The grill
CAUTION: Accessible parts may be
hot when the grill is in use. Young
children should be kept away.
The grill is a dual circuit grill which means
that the full area of the grill can be used,
or for economy purposes, the centre
section only can be used when cooking
smaller quantities of food.
Using the dual grill
• Turn the top oven/grill function
selector
clockwise to the
required power setting.
The grill settings are as follows: -
Centre grill area at full power.
Full grill area at full power.
• Turn the top oven/grill temperature
control to the right as far as it will go.
This is the hottest setting .
• To use the grill at a lower setting turn
the top oven/grill temperature control
knob to a lower setting .
Things to note
• To oven light will illuminate.
• The indicator neon will glow. It may
turn on and off during use to show
that the setting is being maintained.
• The cooling fan for the controls will
operate.
• Some smoke from fat splashes may
be evident as the grill cleans itself.
• The grill may be used with the door
open or with the door closed.
• Never cover the grill pan or grid with
foil as this can lead to grill fires.
To fit the grill pan handle
To attach the handle, place the
wirework under the cut out in the pan
so that the metal plate hooks over the
top of the grill pan.
Slide the handle to the left and over the
central bump on the grill pan.
Ensure the handle is correctly
located when lifting the grill pan.
It is not necessary to remove the
grill pan handle during grilling.
To remove the handle, slide the handle
to the right and lift the handle away
from the cut out on the grill pan.
Place the grill pan on the shelf so
that the pan is positioned centrally
beneath the grill.
All manuals and user guides at all-guides.com
all-guides.com

12 electrolux operation
The top oven
The top oven is the smaller of the two
ovens. It is heated by elements in the
top and bottom of the oven. It is
designed for cooking smaller quantities
of food. It gives especially good results
if used to cook fruitcakes, sweets and
savoury flans or quiche.
The top oven is ideal for use as a
warming compartment. It can be used
to warm dishes and keep food hot.
Use the lowest setting on the top oven
temperature control.
Using the top oven
• Turn the top oven/grill function
selector to the required setting
.
• Turn the top oven/grill temperature
control to the required setting .
Things to note
• The oven light will illuminate.
• The indicator neon will glow. It
may turn on and off during use to
show that the setting is being
maintained.
• The cooling fan for the controls will
operate.
Do not place dishes, tins and trays
directly on the oven base as it
becomes very hot and damage will
occur.
To fit the top oven shelf
The shelf should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so
that the stops clear the side supports.
Lift shelf clear.
To install a shelf, reverse the above
steps. Each shelf position has an
upper and lower support wire, ensure
the shelf is placed between these two
support wires.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
All manuals and user guides at all-guides.com

electrolux operation 13
The fan oven
The fan oven is particularly suitable for
cooking larger quantities of food.
The advantages of fan oven cooking
are:
Preheating
The fan oven quickly reaches its
temperature, so it is not usually
necessary to preheat the oven.
Without preheating however, you may
need to add an extra 5 – 10 minutes on
the recommended cooking times. For
recipes needing high temperatures, e.g.
bread, pastries, scones, soufflés etc.,
best results are achieved if the oven is
preheated first. For best results when
cooking frozen or cooked chilled ready
meals always preheat the oven first.
Cooking temperatures
Fan oven cooking generally requires
lower temperatures than conventional
cooking. Follow the temperatures
recommended in the cooking chart.
As a guide reduce temperatures by
about 20°C – 25°C for your own
recipes, using a conventional oven.
Batch baking
The fan oven cooks evenly on all shelf
levels, especially useful when batch
baking.
Using the fan oven
• Turn the main oven function
selector to the required setting.
• Turn the main oven temperature
control to the required setting .
Things to note
• The oven light will illuminate.
• The indicator neon will glow. It
may turn on and off during use to
show that the setting is being
maintained.
• The cooling fan for the controls
may operate after a time.
Do not place cookware and
cooking pots with rough bases e.g.
cast iron on the oven door as
damage to the glass may occur.
To fit the main oven shelves
The shelves should be fitted with the
straight rods uppermost on the frame
and the forms towards the back of the
oven.
Back of the oven
Frame
Straight Rods
To remove a shelf slide the shelf
towards you until the shelf stop is
reached. Tilt shelf up at the front so that
the stops clear the side supports. Lift
shelf clear.
To install a shelf, reverse the above
steps. Each shelf position has an upper
and lower support wire, ensure the shelf
is placed between these two support
wires.
All manuals and user guides at all-guides.com

14 electrolux operation

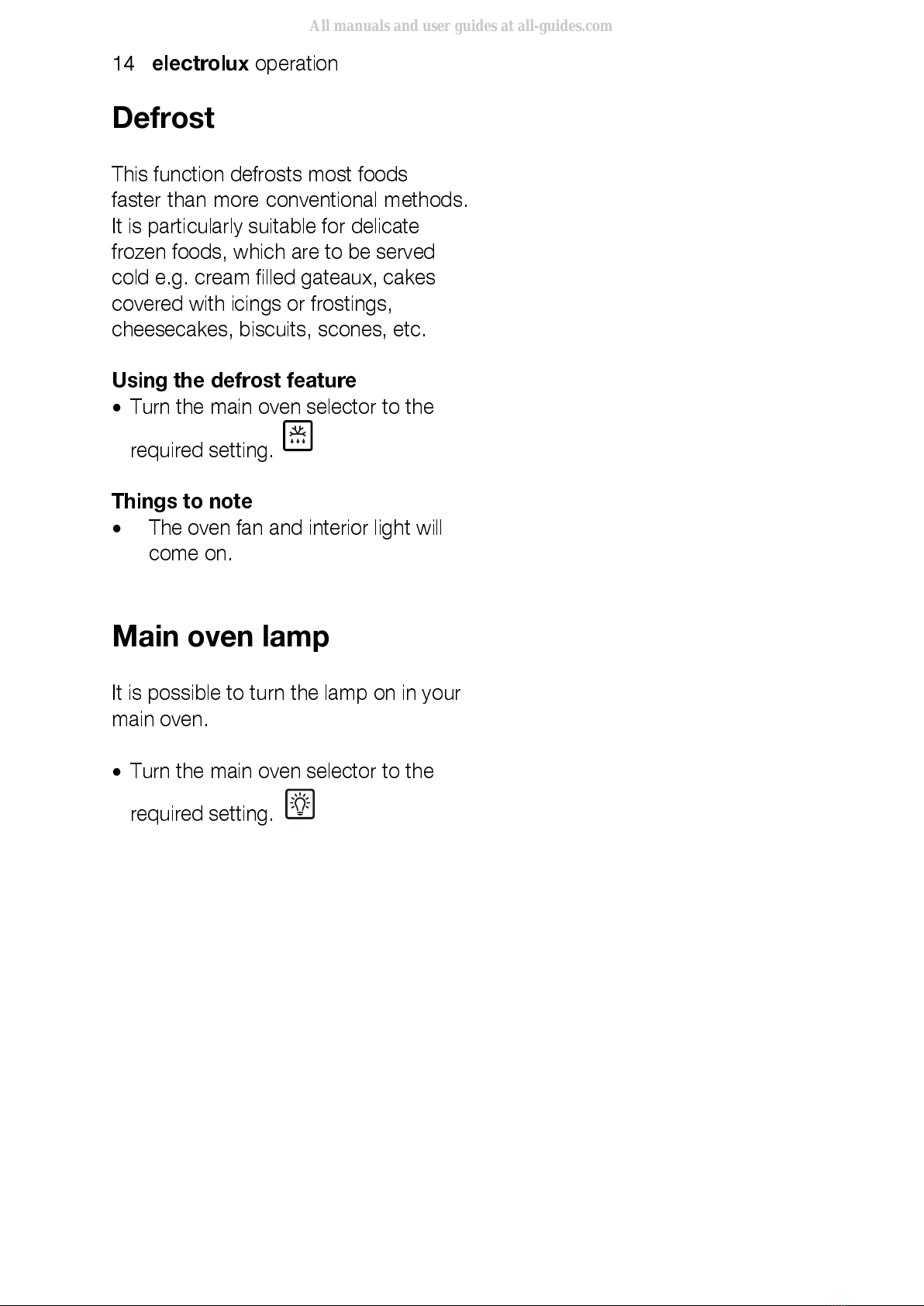

Defrost
This function defrosts most foods
faster than more conventional methods.
It is particularly suitable for delicate
frozen foods, which are to be served
cold e.g. cream filled gateaux, cakes
covered with icings or frostings,
cheesecakes, biscuits, scones, etc.
Using the defrost feature
• Turn the main oven selector to the
required setting.
Things to note
• The oven fan and interior light will
come on.
Main oven lamp
It is possible to turn the lamp on in your
main oven.
• Turn the main oven selector to the
required setting.
All manuals and user guides at all-guides.com

electrolux programme charts 15

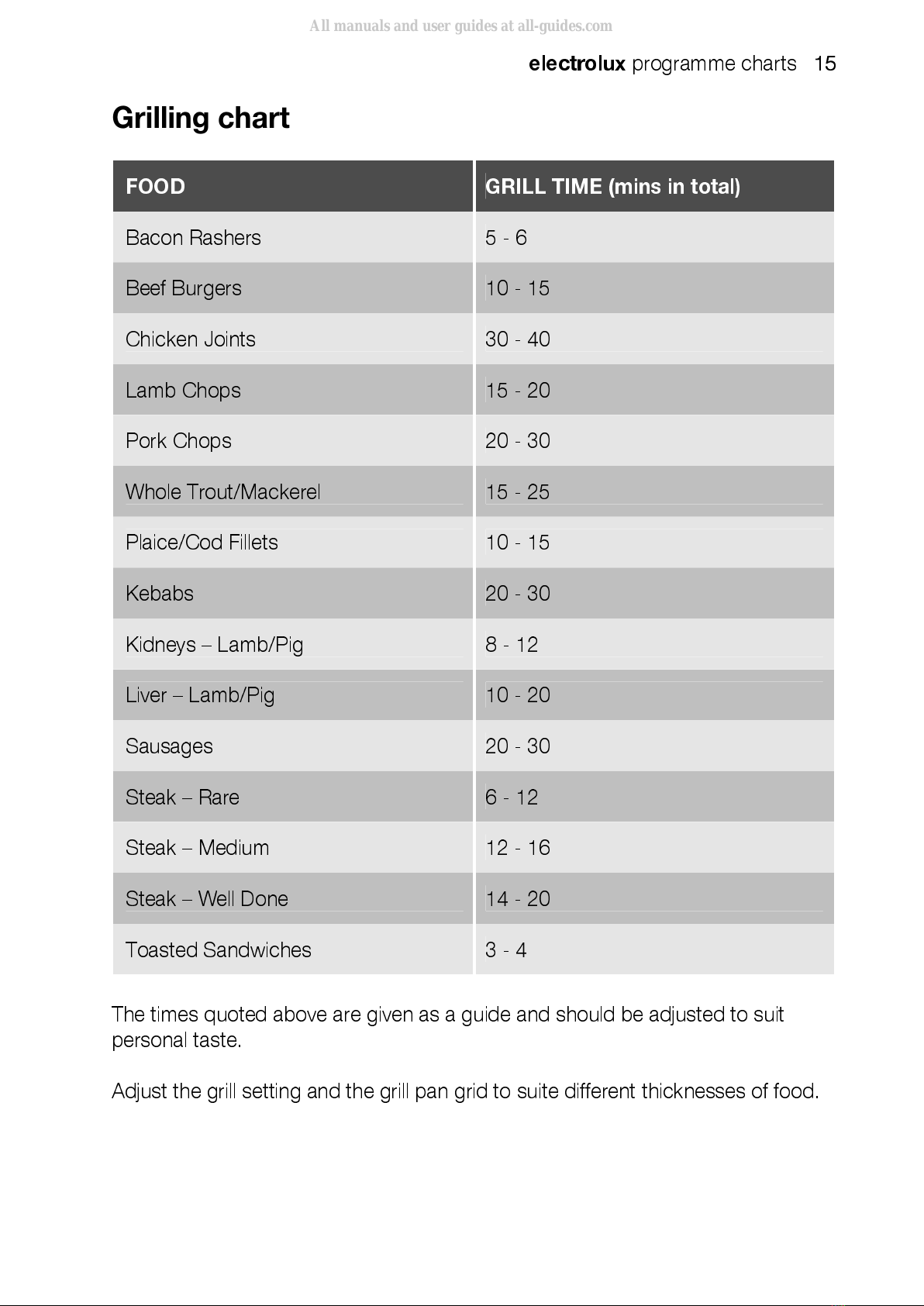

Grilling chart
FOOD GRILL TIME (mins in total)
Bacon Rashers 5 - 6
Beef Burgers 10 - 15
Chicken Joints 30 - 40
Lamb Chops 15 - 20
Pork Chops 20 - 30
Whole Trout/Mackerel 15 - 25
Plaice/Cod Fillets 10 - 15
Kebabs 20 - 30
Kidneys – Lamb/Pig 8 - 12
Liver – Lamb/Pig 10 - 20
Sausages 20 - 30
Steak – Rare 6 - 12
Steak – Medium 12 - 16
Steak – Well Done 14 - 20
Toasted Sandwiches 3 - 4
The times quoted above are given as a guide and should be adjusted to suit
personal taste.
Adjust the grill setting and the grill pan grid to suite different thicknesses of food.
All manuals and user guides at all-guides.com

16 electrolux operation

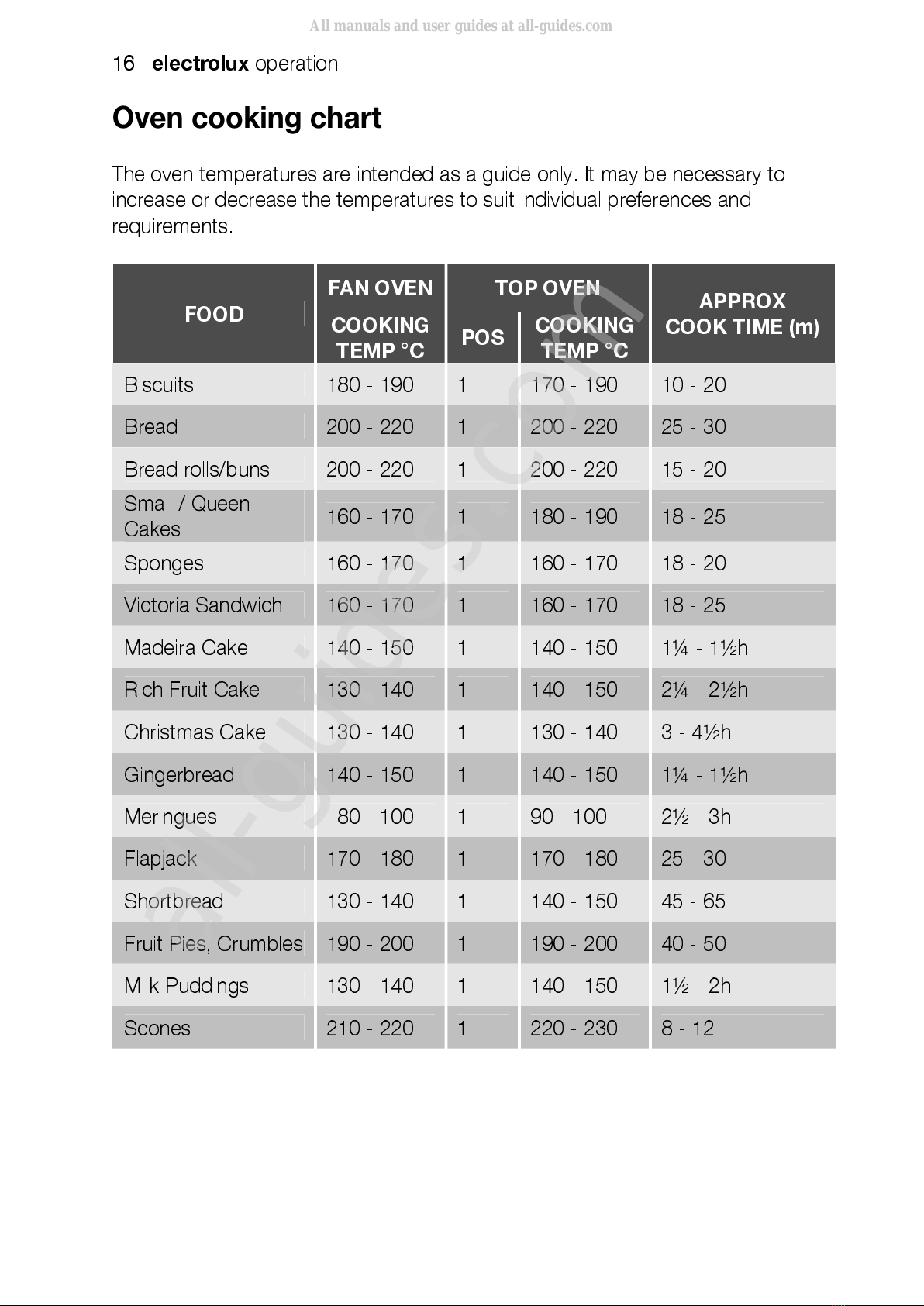

Oven cooking chart
The oven temperatures are intended as a guide only. It may be necessary to
increase or decrease the temperatures to suit individual preferences and
requirements.
FAN OVEN TOP OVEN
FOOD COOKING
TEMP °C POS COOKING TEMP °C
APPROX
COOK TIME (m)
Biscuits 180 - 190 1 170 - 190 10 - 20
Bread 200 - 220 1 200 - 220 25 - 30
Bread rolls/buns 200 - 220 1 200 - 220 15 - 20
Small / Queen
Cakes 160 - 170 1 180 - 190 18 - 25
Sponges 160 - 170 1 160 - 170 18 - 20
Victoria Sandwich 160 - 170 1 160 - 170 18 - 25
Madeira Cake 140 - 150 1 140 - 150 1¼ - 1½h
Rich Fruit Cake 130 - 140 1 140 - 150 2¼ - 2½h
Christmas Cake 130 - 140 1 130 - 140 3 - 4½h
Gingerbread 140 - 150 1 140 - 150 1¼ - 1½h
Meringues 80 - 100 1 90 - 100 2½ - 3h
Flapjack 170 - 180 1 170 - 180 25 - 30
Shortbread 130 - 140 1 140 - 150 45 - 65
Fruit Pies, Crumbles 190 - 200 1 190 - 200 40 - 50
Milk Puddings 130 - 140 1 140 - 150 1½ - 2h
Scones 210 - 220 1 220 - 230 8 - 12
All manuals and user guides at all-guides.com
all-guides.com

electrolux programme charts 17
Oven cooking chart continued
FAN OVEN
TOP OVEN
FOOD COOKING
TEMP °C POS COOKING TEMP °C
APPROX
COOK TIME (m)
Choux Pastry 190 - 200 1 180 - 190 30 - 35
Éclairs / Profiteroles 170 - 180 1 170 - 180 20 - 30
Flaky Pastry 210 - 220 1 210 - 220 25 - 40
Mince Pies 190 - 200 1 190 - 200 15 - 20
Pasta Lasagne etc. 190 - 200 1 170 - 180 40 - 45
Meat Pies 190 - 210 1 190 - 210 25 - 35
Quiche, Tarts, Flans 180 - 210 1 180 - 200 25 - 45
Shepherd’s Pie 190 - 200 1 190 - 200 30 - 40
Soufflés 170 - 180 1 170 - 180 20 - 30
Fish 170 - 190 1 170 - 190 20 - 30
Fish Pie 190 - 200 1 190 - 200 20 - 25
Beef Casserole 140 - 160 1 140 - 160 2½ - 3h
Lamb Casserole 140 - 160 1 140 - 160 2½ - 3h
Convenience Foods Follow manufacturer’s instructions
Baked Potatoes 180 - 190 1 180 - 190 1 - 1½h
Roast Potatoes 180 - 190 1 180 - 190 1 - 1½h
Large Yorkshire
Puddings: 210 - 220 1 200 - 210 25 - 40
Individual Yorkshire
Puddings 200 - 210 1 200 - 210 15 - 25
Note: Shelf positions are counted from the bottom of the oven.
Note: Fan oven shelf positions are not critical but ensure that they are evenly
spaced when more than one is used.
All manuals and user guides at all-guides.com

18 electrolux operation
Roasting chart
MEAT TEMPERATURE COOKING TIME
Beef/ Beef boned 160-180°C 20-35 minutes per ½kg (1lb)
and 20-35 minutes over
Mutton/Lamb 160-180°C 25-35 minutes per ½kg (1lb)
and 25-35 minutes over
Pork/Veal/Ham 160-180°C 30-40 minutes per ½kg (1lb)
and 30-40 minutes over
Chicken 160-180°C 15-20 minutes per ½kg (1lb)
and 20 minutes over
Turkey/Goose 160-180°C 15-20 minutes per ½kg (1lb) up to 3½kg (7lb) then 10 minutes per
½kg (1lb) over 3½kg (7lb)
Duck 160-180°C 25-35 minutes per ½kg (1lb)
and 25-30 minutes over
Pheasant 160-180°C 35-40 minutes per ½kg (1lb)
and 35-40 minutes over
Rabbit 160-180°C 20 minutes per ½kg (1lb)
and 20 minutes over
INTERNAL TEMPERATURES –
Rare: 50-60°C; Medium: 60-70°C; Well done: 70-80°C
The roasting temperatures and times given in the chart should be adequate for
most joints, but slight adjustments may be required to allow for personal
requirements and the shape and texture of the meat. However, lower
temperatures and longer cooking times are recommended for less tender cuts or
larger joints.
Wrap joints in foil if preferred, for extra browning uncover for the last 20 – 30
min. cooking time.
All manuals and user guides at all-guides.com

electrolux hints and tips 19
Hints and tips
Hints and tips when using the grill
• Most foods should be placed on the
grid in the grill pan to allow
maximum circulation of air and to lift
the food out of the fats and juices.
• Adjust the grid and grill pan runner
position to allow for different
thicknesses of food.
• Position the food close to the
element for faster cooking and
further away for gentler cooking.
• Food should be thoroughly dried
before grilling to minimise splashing.
Brush lean meats and fish lightly
with a little oil or melted butter to
keep them moist during cooking.
• Accompaniments such as tomatoes
and mushrooms may be placed
underneath the grid when grilling
meats.
• When toasting bread, use the shelf
in the top position with the grid in
the ‘high’ position.
• Preheat the grill on a full setting for a
few minutes before sealing steaks or
toasting. Adjust the heat setting and
the shelf as necessary during
cooking.
• The food should be turned over
during cooking as required.
• When using the centre section grill,
ensure food is placed centrally on
the grilling grid directly beneath the
grill element.
Hints and tips when using the top
oven
• Arrange the shelves in the required
positions before switching the oven
ON. Shelf positions are counted
from the bottom upwards.
• There should always be at least
2.5cm (1”) between the top of the
food and the element. This gives
best cooking results and allows
room for rise in yeast mixtures,
Yorkshire puddings etc. When
cooking cakes, pastry, scones bread
etc., place the tins or baking trays
centrally on the shelf.
• Ensure that food is placed centrally
on the shelf and there is sufficient
room around the baking tray/dish to
allow for maximum circulation.
• Stand dishes on a suitably sized
baking tray on the shelf to prevent
spillage onto the oven base and to
help reduce cleaning.
• The material and finish of the baking
tray and dishes used affect base
browning. Enamelware, dark, heavy
or non-stick utensils increase base
browning. Shiny aluminium or
polished steel trays reflect the heat
away and give less base browning.
• Because of the smaller cooking
space and lower temperatures,
shorter cooking times are
sometimes required. Be guided by
the recommendations given in the
cooking chart.
All manuals and user guides at all-guides.com

20 electrolux hints and tips
• For economy leave the door open
for the shortest possible time,
particularly when placing food into a
pre-heated oven.
Hints and tips when using fan
cooking
• Arrange the shelves in the required
positions before switching the oven
on. Shelf positions are counted
from the bottom upwards.
6
5
4
3
2
1
• When cooking more than one dish in
the fan oven, place dishes centrally
on different shelves rather than
cluster several dishes on one shelf,
this will allow the heat to circulate
freely for the best cooking results.
• When batch baking one type of
food, e.g. Victoria sandwich cakes,
those of similar size will be cooked in
the same time.
• It is recommended that when baking
larger quantities the shelf positions
should be evenly spaced to suit the
load being cooked. A slight increase
in cooking time may be necessary.
• Do not place baking trays directly on
the oven base as it interferes with
the oven air circulation and can lead
to base burning; use the lower shelf
position.
Hints and tips when defrosting
• Place the frozen food in a single
layer where possible and turn it over
half way through the defrosting
process.
• The actual speed of defrosting is
influenced by room temperature. On
warm days defrosting will be faster
than on cooler days.
• It is preferable to thaw fish, meat
and poultry slowly in the fridge.
However, this process can be
accelerated by using the defrost
function. Small or thin fish fillets,
frozen peeled prawns, cubed or
minced meat, liver, thin chops,
steaks etc., can be thawed in 1 – 2
hours.
• A 1kg/2¼lb oven ready chicken will
be thawed in approximately 5 hours.
Remove the giblets as soon as
possible during the thawing process.
• Joints of meat up to 2kg/4½lb in
weight can be thawed using the
defrost function.
• All joints of meat and poultry must
be thawed thoroughly before
cooking.
• Always cook thoroughly immediately
after thawing.
• Do not leave food at room
temperature once it is defrosted.
Cook raw food immediately or store
cooked food in the fridge, once it
has cooled.
All manuals and user guides at all-guides.com
