Dear Customer
Thank you for choosing one of our high-quality products.
With this appliance you will experience the perfect combination of functional
design and cutting edge technology.
Convince yourself that our appliances are engineered to deliver the best per-
formance and control - indeed we are setting the highest standards of excel-
lence.
In addition to this you find environmental and energy saving aspects as an inte-
gral part of our products.
To ensure optimal and regular performance of your appliance please read this
instruction manual carefully. It will enable you to navigate all processes perfect-
ly and most efficiently.
To refer to this manual any time you need to, we recommend you to keep it in a
safe place. And please pass it to any future owner of the appliance.
We wish you much joy with your new appliance.
The following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

3Contents
Contents
Operating Instructions 5
Safety instructions 5
Description of the Appliance 7
General Overview 7
Control Panel 7
Oven Features 8
Oven accessories 9
Before Using for the first time 10
Setting the Time 10
Initial cleaning 11
Using the Oven 12
The Electronic Oven Control 12
Heat indicator 15
Speedcook 16
Oven Functions 17
Inserting the Combination Shelf, Baking Tray and Roasting Pan 18
Synchronised oven shelf runners 19
Inserting/Removing the Fat Filter 20
Meat probe 20
Additional functions 23
Heat+Hold 30
Other functions 31
Switching off the display 31
Child safety device 31
Button lock 32
Oven automatic cut-out 32
Mechanical Door Lock 33

Contents4
Uses, Tables and Tips 34
Baking 34
Baking table 36
Table for Bakes and Gratins 40
Frozen Ready Meals Table 41
Roasting 41
Roasting table 42
Low temperature cooking 43
Table Low temperature cooking 44
Meat probe Table 44
Grill Sizes 45
Grilling table 45
Defrosting 46
Defrosting table 46
Drying 47
Making Preserves 47
Cleaning and Care 49
Outside of the appliance 49
Oven interior 49
Accessories 49
Fat Filter 49
Oven Shelf Runner 50
Cleaning the Oven Shelf Runner 51
Oven Lighting 51
Oven Ceiling 53
Oven door 54
Oven door glass 56
What to do if … 59
Disposal 60
Installation Instructions 61
Safety information for the installer 61
Guarantee/Customer Service 65
Service 67

5Operating Instructions
Operating Instructions
1Safety instructions
Electrical safety
•This appliance must be only connected by a registered electrician.
•In the event of a fault or damage to the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only be carried out by qualified service engi-
neers. Considerable danger may result from improper repairs. If repairs be-
come necessary, please contact our Customer Services or your dealer.
Child Safety
•Never leave children unsupervised when the appliance is in use.
Safety whilst Using
•People (including children) who, because of their physical, sensory or mental
capabilities or their inexperience or ignorance are not able to use the device
safely, should not use this device without supervision or instruction by a re-
sponsible person.
•This appliance is intended to be used for cooking, roasting and baking food in
the home.
•Take care when connecting electric appliances to sockets nearby. Do not allow
connecting leads to come into contact with or to catch beneath the hot oven
door.
•Warning: Risk of burns! The interior of the oven becomes hot during use.
•Using ingredients containing alcohol in the oven may create an alcohol-air
mixture that is easily ignited. In this case, open the door carefully. Do not have
embers, sparks or naked flames in the vicinity when opening the door.
3Information on acrylamides
According to the latest scientific knowledge, intensive browning of food, espe-
cially in products containing starch, can constitute a health risk due to acryla-
mides. Therefore we recommend cooking at the lowest possible temperatures
and not browning foods too much.

Safety instructions6
How to avoid damage to the appliance
•Do not line the oven with aluminium foil and do not place baking trays, pots,
etc. on the oven floor, as the heat that builds up will damage the oven enamel.
•Fruit juices dripping from the baking tray will leave stains, which you will not
be able to remove. For very moist cakes, use a deep tray.
•Do not put any strain on the oven door when open.
•Never pour water directly into the oven when it is hot. This could cause dam-
age to or discoloration of the enamel.
•Rough handling, especially around the edges of the front panel, can cause the
glass to break.
•Do not store any flammable materials inside the oven. These could ignite
when the oven is switched on.
•Do not store any moist foods inside the oven. This could damage the oven
enamel.
•After switching off the cooling fan, do not keep uncovered dishes in the oven.
Moisture may condense in the oven interior or on the glass doors and may get
into the units.
3Note on enamel coating
Changes in the colour of the oven’s enamel coating as a result of use do not af-
fect the appliance’s suitability for normal and correct use. They therefore do not
constitute a defect in the sense of the warranty law.

7Description of the Appliance
Description of the Appliance
General Overview
Control Panel
Full glass door
Control panel
Door
handle
Oven display
Function buttons
Oven

Description of the Appliance8

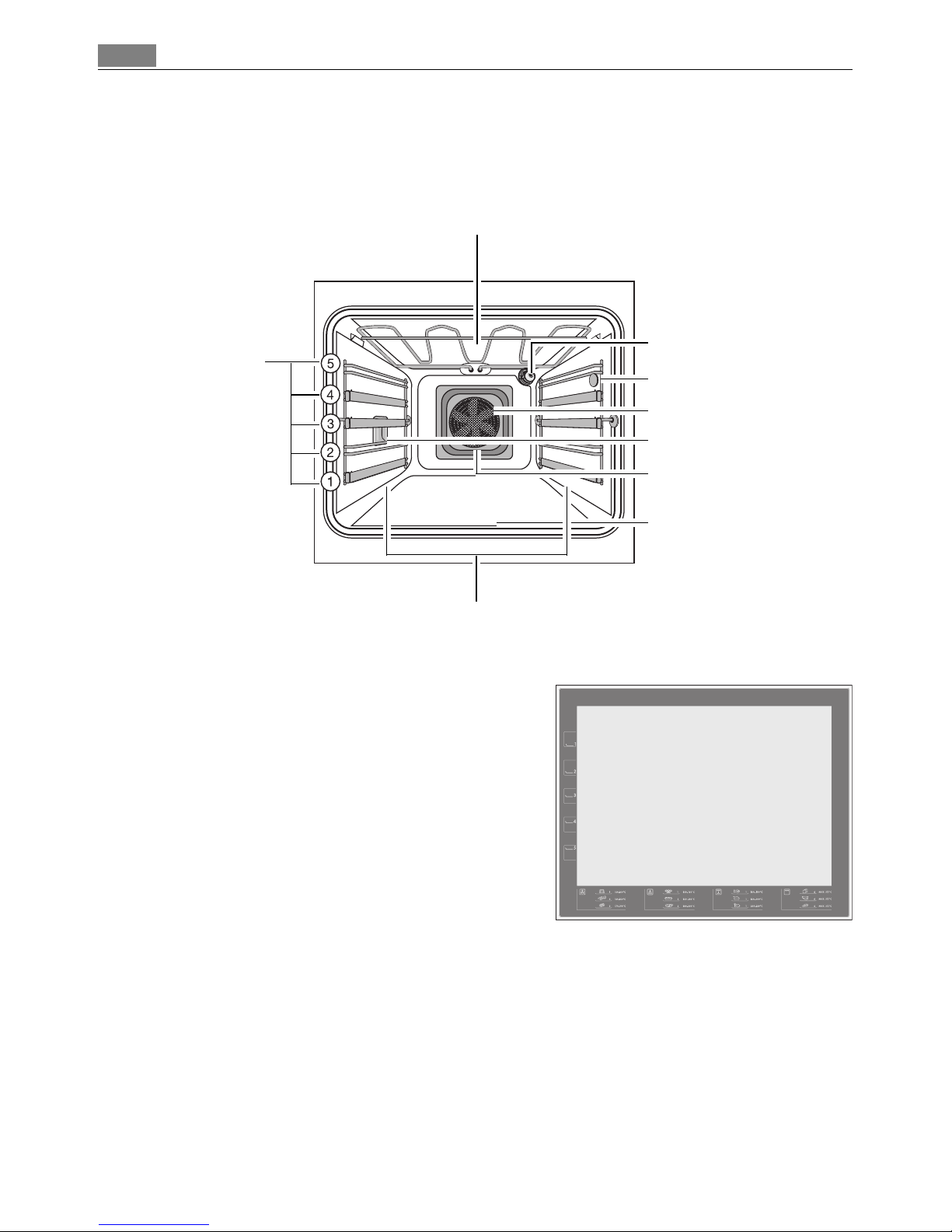

Oven Features
Inside of door
On the inside of the oven door you will find
the numbers of the different oven shelves.
You will also find some brief information
about the oven's functions, recommended
shelves and temperatures for cooking the
most popular dishes.
Top heat and heating elements
Oven lighting
Meat probe socket
Fat Filter
Oven lighting
Fan heating element
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

9Description of the Appliance
Oven accessories
Oven shelf
For cookware, cake tins, roasts and grilled
foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for col-
lecting fat.
Meat probe
For determining exactly how far joints of
meat are cooked.
Synchronised oven shelf runners
Retaining clips with connecting clamp.

Before Using for the first time10
Before Using for the first time
Setting the Time
3The oven only operates when the time has been set.
When the appliance is connected to the
electrical supply or when there has been a
power cut, Time flashes automatically.
Using the or button, set the current
time.
After approx. 5 seconds, the clock stops
flashing and the clock displays the time of
day set.
The appliance is now ready to use.

11Before Using for the first time
Initial cleaning
Clean the oven before using it for the first time.
1Important: Do not use caustic or abrasive cleaning agents! These can damage
the oven surfaces.
3For the metal surfaces, use commercially available cleaning agents.
1. Open the oven door.
The oven light is lit.
2. Remove all oven accessories, and clean them with warm water and a scouring
agent.
3. Wash the oven in the same way, and wipe dry.
4. Wipe the front of the appliance with a damp cloth.

Using the Oven12
Using the Oven
The Electronic Oven Control
3General instructions
•Always switch the appliance on first by pressing the On/Off button.
•When the selected function is lit, the oven begins to heat up or the time set
begins to count down.
•The Operating time display shows how long the oven has been operating. This
display can only be seen if none of the clock functions Countdown , Cook
time or End time are set.
•The oven light is switched on as soon as an oven function is selected.
•When the selected temperature is reached, an audible signal sounds.
•Switch off the oven using the On/Off button.

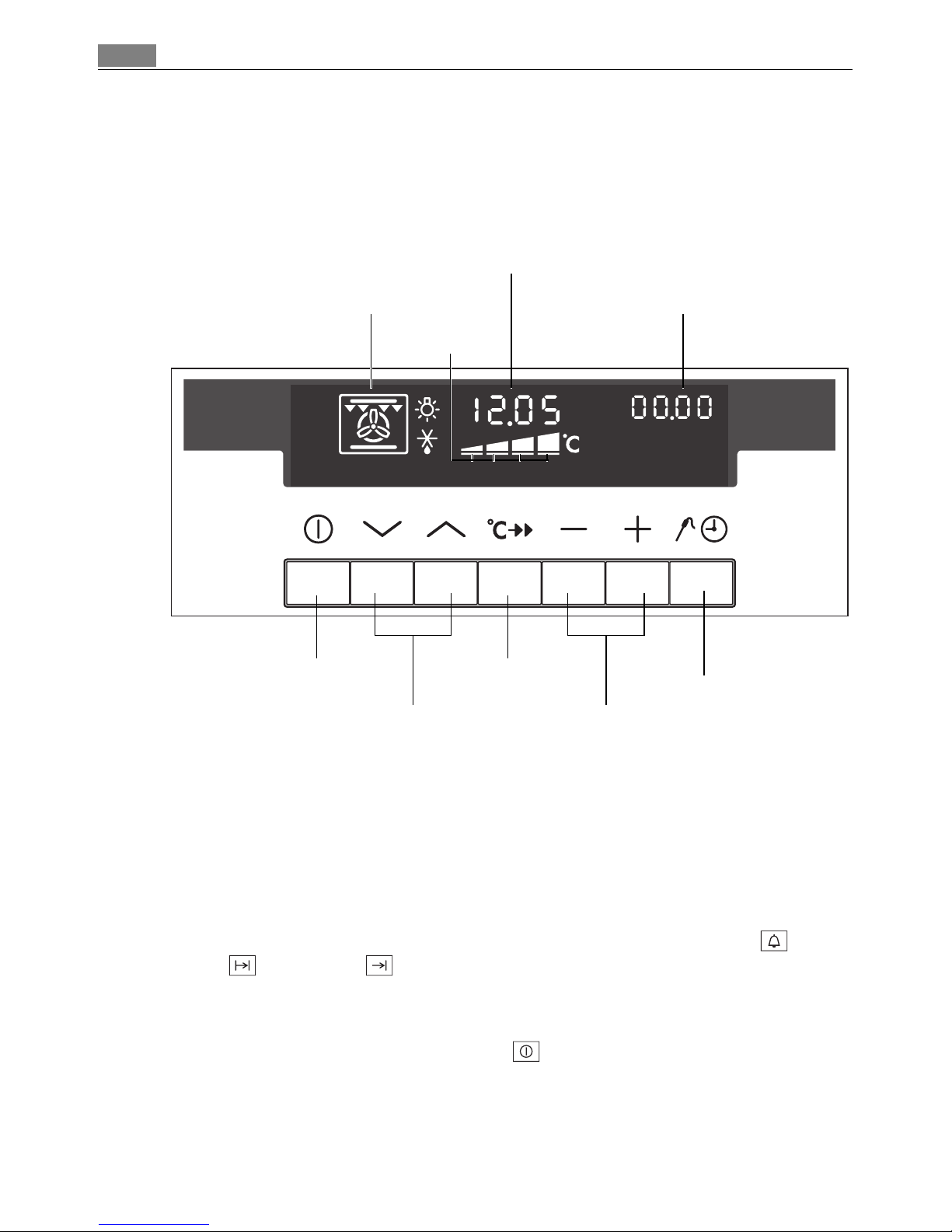

Selection buttons
Temperature/Clock
Oven function selection
Clock functions/Operating timeOven Functions
Clock Functions
Meat Probe
Heat indicator
On/Off
Speedcook

13Using the Oven

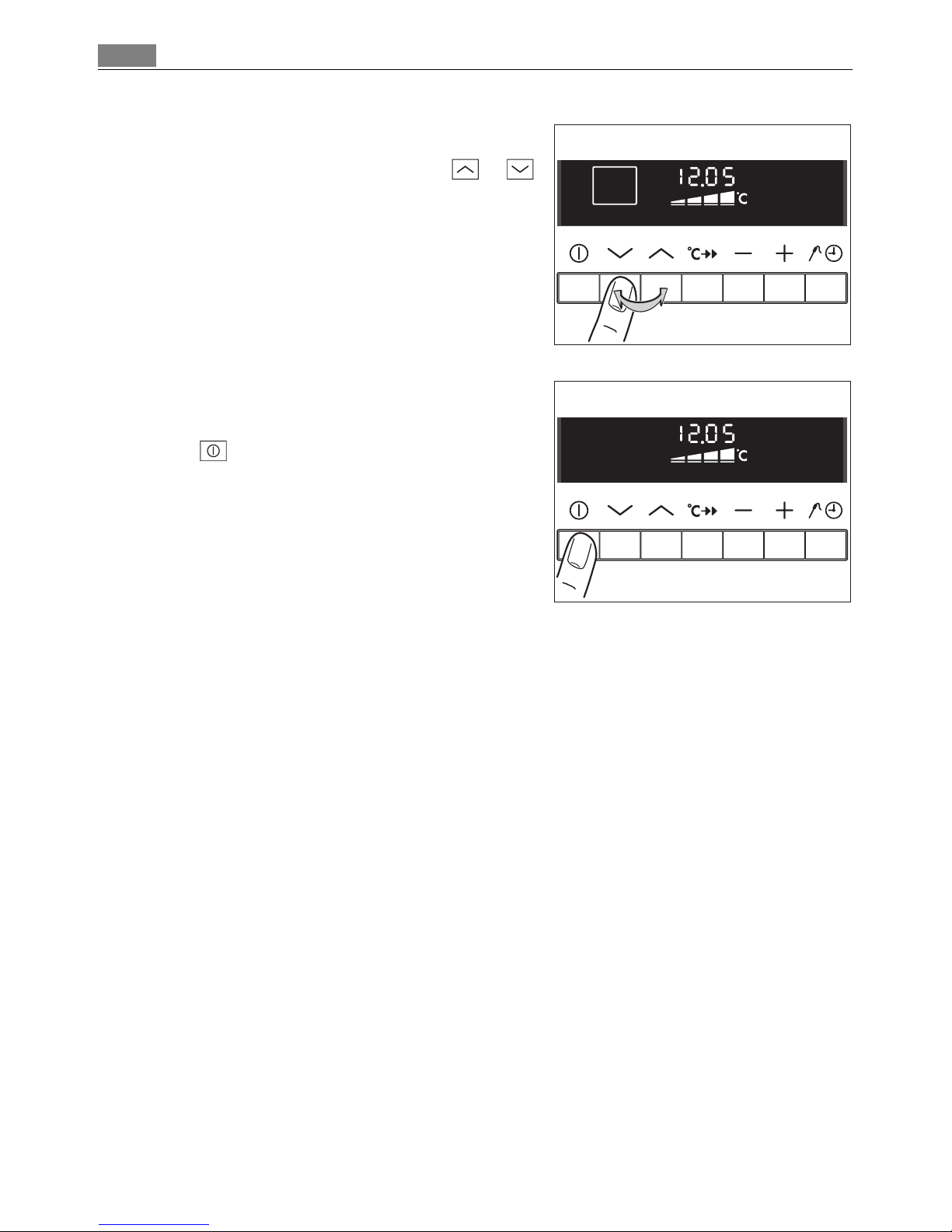

Selecting an oven function
1. Switch on the appliance using the On/Off button.
2. Press the or button repeatedly until
the desired oven function appears.
•A suggested temperature appears in the
temperature display.
•If the suggested temperature is not
changed within approx. 5 seconds, the
oven starts to heat up.
3The oven function can be changed while
the oven is working.
Changing the oven temperature
Press the or button to raise or lower
the temperature.
The setting changes in steps of 5°C.
Checking the temperature
Press the and buttons at the same
time. The current oven temperature ap-
pears in the temperature display.
3The temperature check does not work with
oven functions with suggested tempera-
tures that cannot be adjusted, such as e. g.,
Low temperature cooking.

Using the Oven14
Switching off the oven function
To switch off the oven, press the or
button repeatedly until no oven function is
displayed.
Switching the oven off
Switch off the appliance using the On/
Off button.
3Cooling fan
The fan switches on automatically in order to keep the appliance’s surfaces cool.
When the oven is switched off, the fan continues to run to cool the appliance
down, then switches itself off automatically.

15Using the Oven
3Heat indicator
Indicates warming up
When the oven function has been
switched on the bars that slowly light up
one after the other indicate how far the
oven has heated up.
Speedcook indicator
When the Speedcook function has been
switched on, the bars that flash one after
the other indicate that fast heating is
working.
Residual heat indicator
When the oven function has been
switched off, the bars that are still lit indi-
cate the remaining residual heat in the ov-
en.

Using the Oven16
Speedcook
After an oven function is selected, with the use of the additional function
Speedcook the empty oven can be pre-heated in a relatively short time.
1Important: Do not put the food to be cooked into the oven, until Speedcook is
completed and the oven is operating using the desired function.
1. Set the desired oven function (e. g. Conventional ). If necessary, change the
suggested temperature.
2. Press the Speedcook button.
The bars flashing one after another show that Speedcook is operating.
When the temperature set is reached, the bars of the heat indicator light up. An
audible signal sounds.
The oven now continues heating according to the pre-set oven function and
temperature. You can now place the food in the oven.
3The Speedcook function can be switched on with the oven functions Con-
vection with ring heating element , Pizza setting , Conventional and
Rotitherm .

17Using the Oven
Oven Functions
The oven has the following functions:
Oven function Application
Convection with
ring heating
element
For baking on up to three oven levels at the same time.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Pizza setting For baking on one oven level dishes that require more inten-
sive browning and a crispy base.
Set the oven temperatures 20-40 °C lower than when using
Conventional.
Low temperature
cooking
For preparing especially tender, succulent roasts.
Conventional For baking and roasting on one oven level.
Rotitherm For roasting larger joints of meat or poultry on one level.
The function is also suitable for gratinating and browning.
Dual gril For grilling flat foodstuffs in large quantities and for toast-
ing.
Grill For grilling flat foodstuffs placed in the middle of the grill
and for toasting.
Keep warm To keep dishes warm.
Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or
other frozen foods.
Bottom heat For baking cakes with crispy or crusty bases.

Using the Oven18

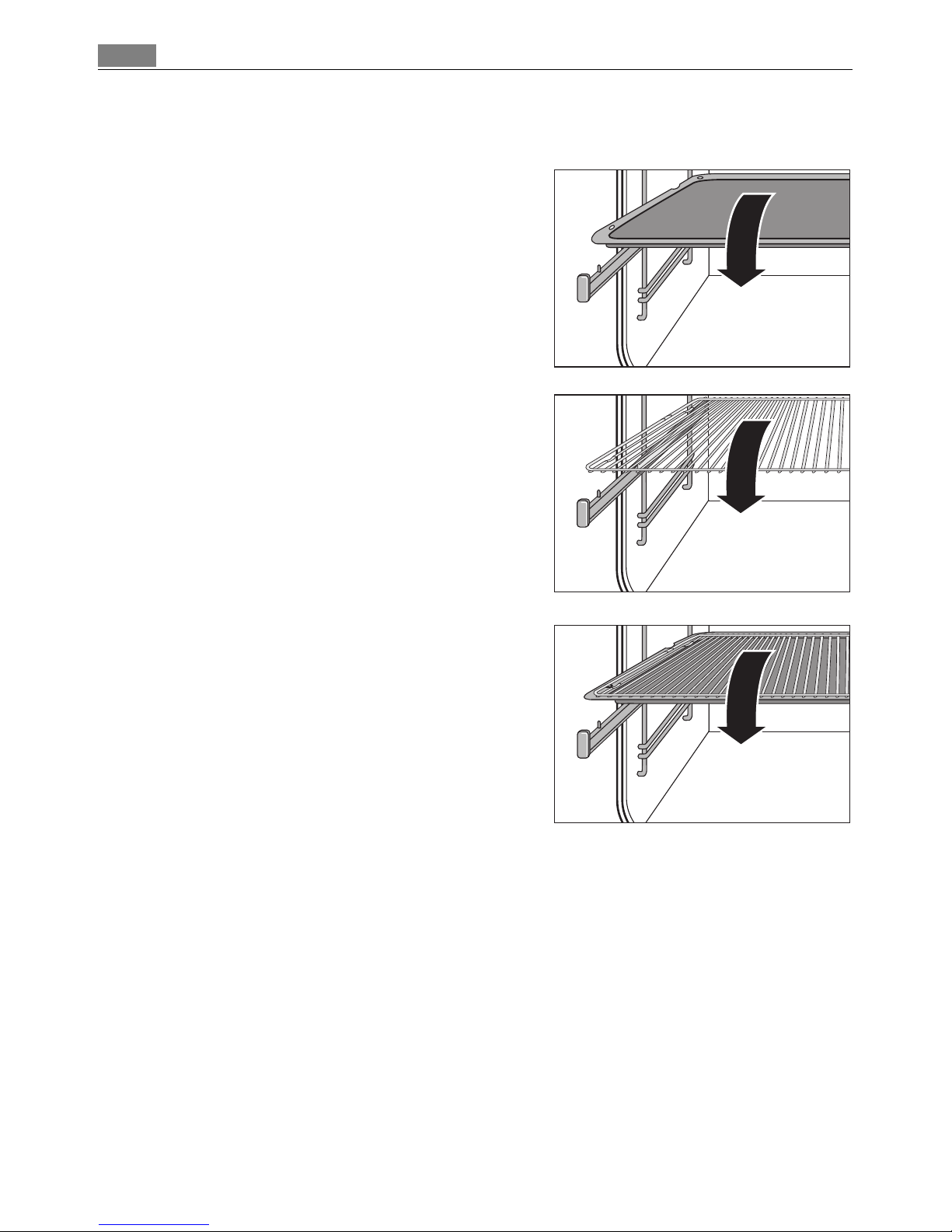

Inserting the Combination Shelf, Baking Tray and Roasting Pan
Inserting the baking tray or roasting
pan
Insert baking tray or or roasting pan on the
telescopic runners of the selected oven lev-
el so that the two holes engage on the
front retaining pins on the telescopic run-
ners.
Inserting the oven shelf:
Insert the oven shelf so that the feet point
downwards.
Insert the oven shelf on the telescopic run-
ners of the selected oven level.
3The high rim around the oven shelf is an
additional device to prevent cookware from
slipping.
Inserting the oven shelf and roasting
pan together:
Lay the oven shelf on the roasting pan.
Insert the oven shelf and the roasting pan
on the telescopic runners of the selected
oven level so that the two holes of the
roasting pan engage on the front retaining
pins on the telescopic runners.
3To make it easier to insert the insertable component when runners are extended
to different extents, lay the insertable component onto the runners at the back,
push it in as far as the stop and then lower it onto the retaining pins at the
front.

19Using the Oven
Synchronised oven shelf runners
3To make it easier to pull out the oven shelf runners, the individual telescopic
bars can be connected using a clamp.

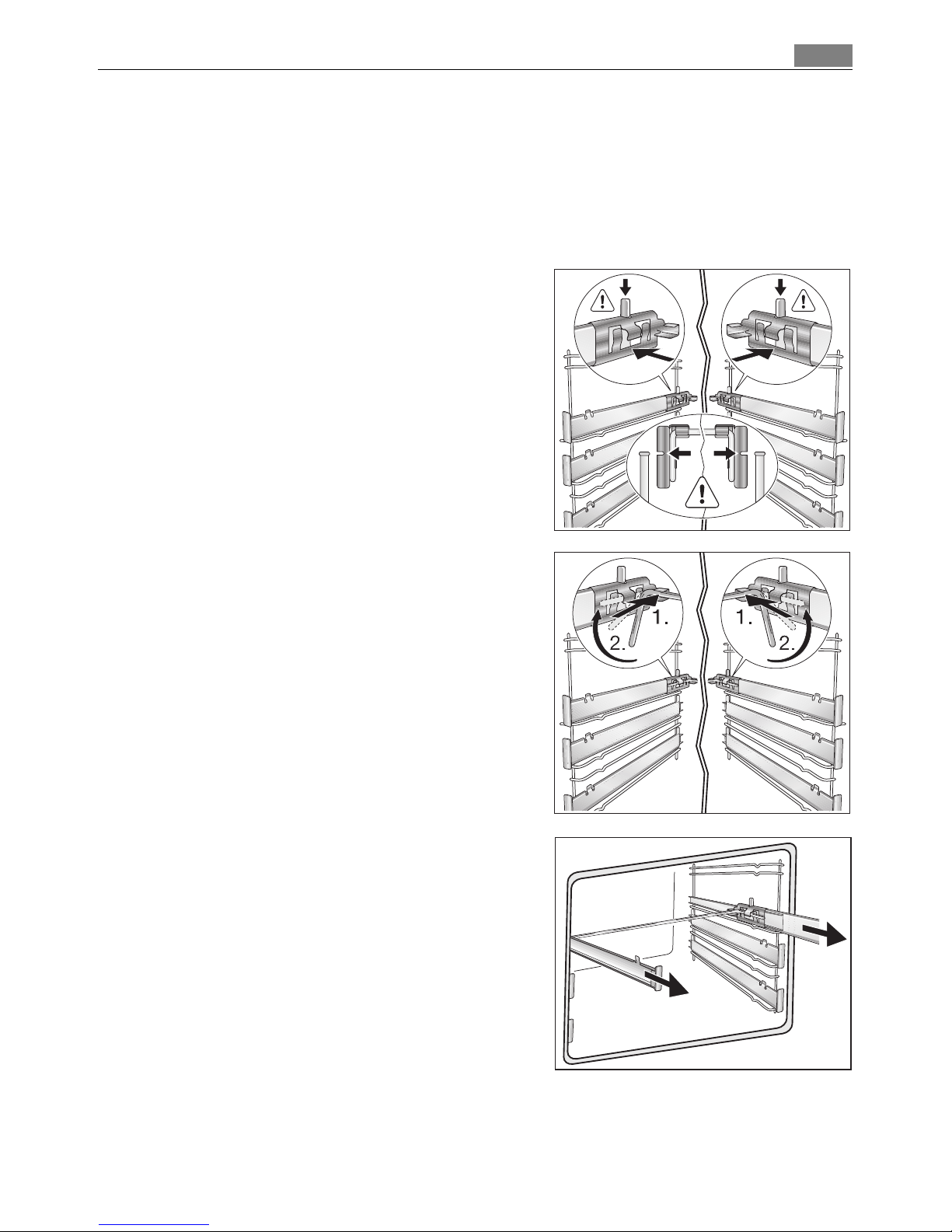

Fitting the synchronised oven shelf runners
1When fitting the retaining clips, ensure
that the support brackets for the connect-
ing clamp point towards the rear!
To fit the left-hand and right-hand retain-
ing clips, affix to the appropriate telescopic
bars to ensure that the upper groove fits
securely into the rear retaining pins.
Push in retaining clips firmly until they en-
gage.
Insert the connecting clamp into the rear
support brackets of the retaining clips on
the left- and right-hand telescopic bars
(1.).
Press the connecting clamp into the locks
of the two retaining clips by turning up-
wards simultaneously(2.).
The telescopic bars can now be pulled out
simultaneously.
Removing the synchronised oven shelf runners
To remove, follow the above steps in reverse.

Using the Oven20

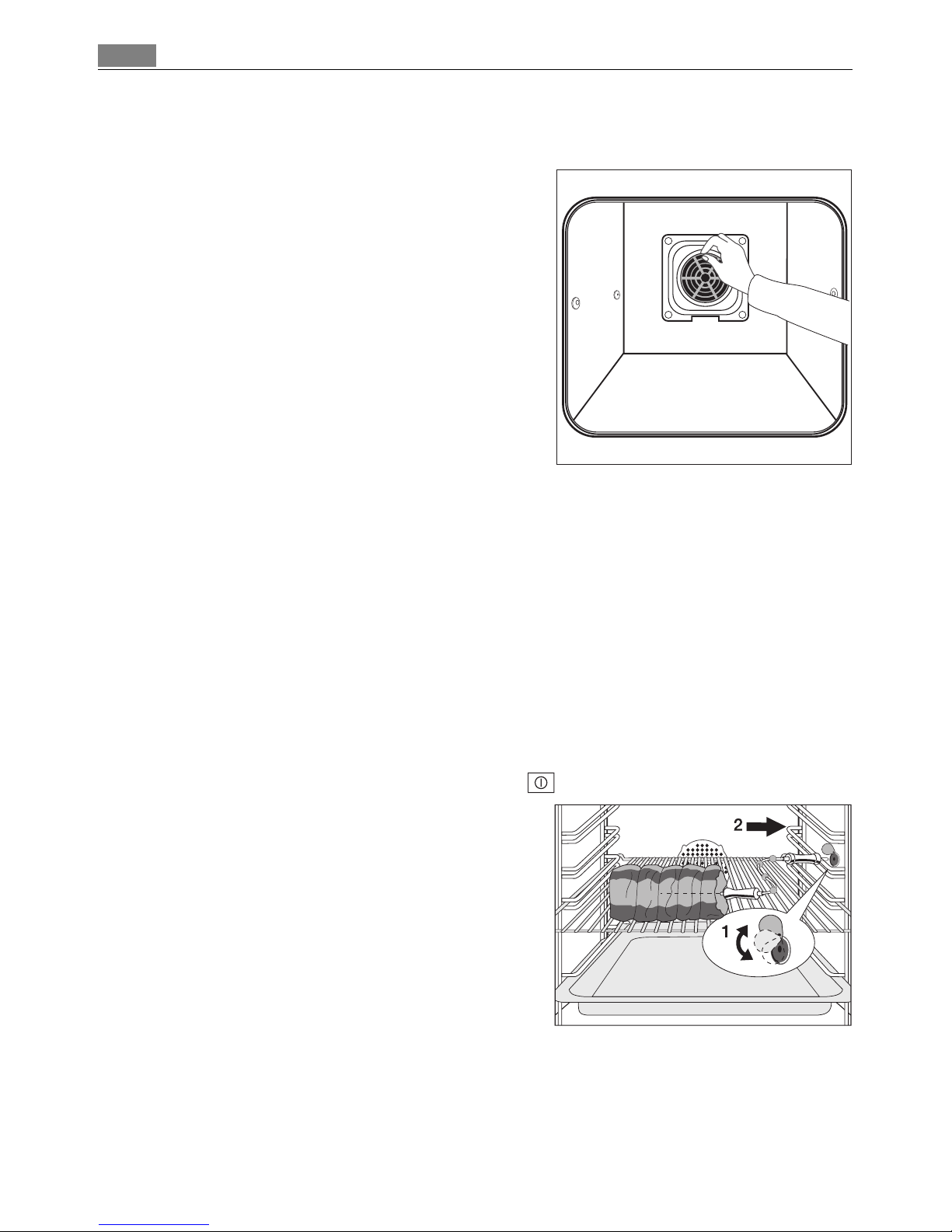

Inserting/Removing the Fat Filter
Only use the fat filter when roasting to
protect the rear heating elements from fat
splashes.
Meat probe
For switching off the oven when the temperature at the centre of a roast reach-
es a set temperature.
There are two temperatures to consider:
–The oven temperature: see Roasting Table
–The core temperature: see Meat probe Table
1Important!: Only the meat probe supplied may be used. If replacing, please use
only genuine spare parts.
1. Switch on the appliance using the On/Off button.
2. Push the tip of the meat probe right into
the meat so that the tip is in the centre of
the meat.
3. Insert the meat probe plug into the socket
on the side wall of the oven as far as it will
go.
Inserting the fat filter
Hold the fat filter by the grip and
insert the two mounts downwards
into the opening on the rear wall of
the oven (fan opening).
Taking out the fat filter
Hold the fat filter by the grip and
unhook it.
