Electrolux EON42100 User manual

user manual
Built-In Electric Oven
EON42100

We were thinking of you
when we made this product

electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You will find some examples on the cov-
er in this manual. Please take a few min-
utes to study this manual so that you
can take advantage of the benefits of
your new machine. We promise that it
will provide a superior User Experience
delivering Ease-of-Mind. Good luck!

4electrolux contents
Contents
Safety instructions 5
Description of the Appliance 7
Before Using for the first time 10
Using the Rings 12
Using the Oven 15
Uses, Tables and Tips 29
Cleaning and Care 44
What to do if … 55
Installation Instructions 57
Disposal 61
Guarantee/Customer Service 62
Service 65
T
he following symbols are used in this user manual:
1
Important information concerning your personal safety and information on
how to avoid damaging the appliance.
3General information and tips
2Environmental information

safety instructions electrolux 5
Safety instructions
5
This appliance conforms with the
following EU Directives:
–73/23/EEC dated 19.02.1973 Low
Voltage Directive
–89/336/EEC dated 03.05.1989 EMC
Directive inclusive of Amending Di-
rective 92/31/EEC
–93/68/EEC dated 22.07.1993 CE
Marking Directive
Electrical safety
•This appliance must be only con-
nected by a registered electrician.
•In the event of a fault or damage to
the appliance: Take the fuses out or
switch off.
•Repairs to the appliance must only
be carried out by qualified service
engineers. Considerable danger
may result from improper repairs. If
repairs become necessary, please
contact our Customer Services or
your dealer.
Child Safety
•Never leave children unsupervised
when the appliance is in use.
Safety whilst Using
•This appliance is intended to be
used for cooking, roasting and bak-
ing food in the home.
•Take care when connecting electric
appliances to sockets nearby. Do
not allow connecting leads to come
into contact with or to catch beneath
the hot oven door.
•Warning: Risk of burns! The interi-
or of the oven becomes hot during
use.
•Using ingredients containing alcohol
in the oven may create an alcohol-air
mixture that is easily ignited. In this
case, open the door carefully. Do not
have embers, sparks or naked
flames in the vicinity when opening
the door.
Information on acrylamides
According to the latest scientific
knowledge, intensive browning of
food, especially in products con-
taining starch, can constitute a
health risk due to acrylamides.
Therefore we recommend cooking
at the lowest possible temperatures
and not browning foods too much.

6electrolux safety instructions
How to avoid damage to the
appliance
•Do not line the oven with aluminium
foil and do not place baking trays,
pots, etc. on the oven floor, as the
heat that builds up will damage the
oven enamel.
•Fruit juices dripping from the baking
tray will leave stains, which you will
not be able to remove. For very moist
cakes, use a deep tray.
•Do not put any strain on the oven
door when open.
•Never pour water directly into the
oven when it is hot. This could cause
damage to or discoloration of the
enamel.
•Rough handling, especially around
the edges of the front panel, can
cause the glass to break.
•Do not store any flammable materi-
als inside the oven. These could ig-
nite when the oven is switched on.
•Do not store any moist foods inside
the oven. This could damage the
oven enamel.
•After switching off the cooling fan, do
not keep uncovered dishes in the ov-
en. Moisture may condense in the
oven interior or on the glass doors
and may get into the units.
Note on enamel coating
Changes in the colour of the oven’s
enamel coating as a result of use do not
affect the appliance’s suitability for nor-
mal and correct use. They therefore do
not constitute a defect in the sense of
the warranty law.

description of the appliance electrolux 7
Description of the Appliance
General Overview
Full glass door
Control panel
Door
handle

8electrolux description of the appliance

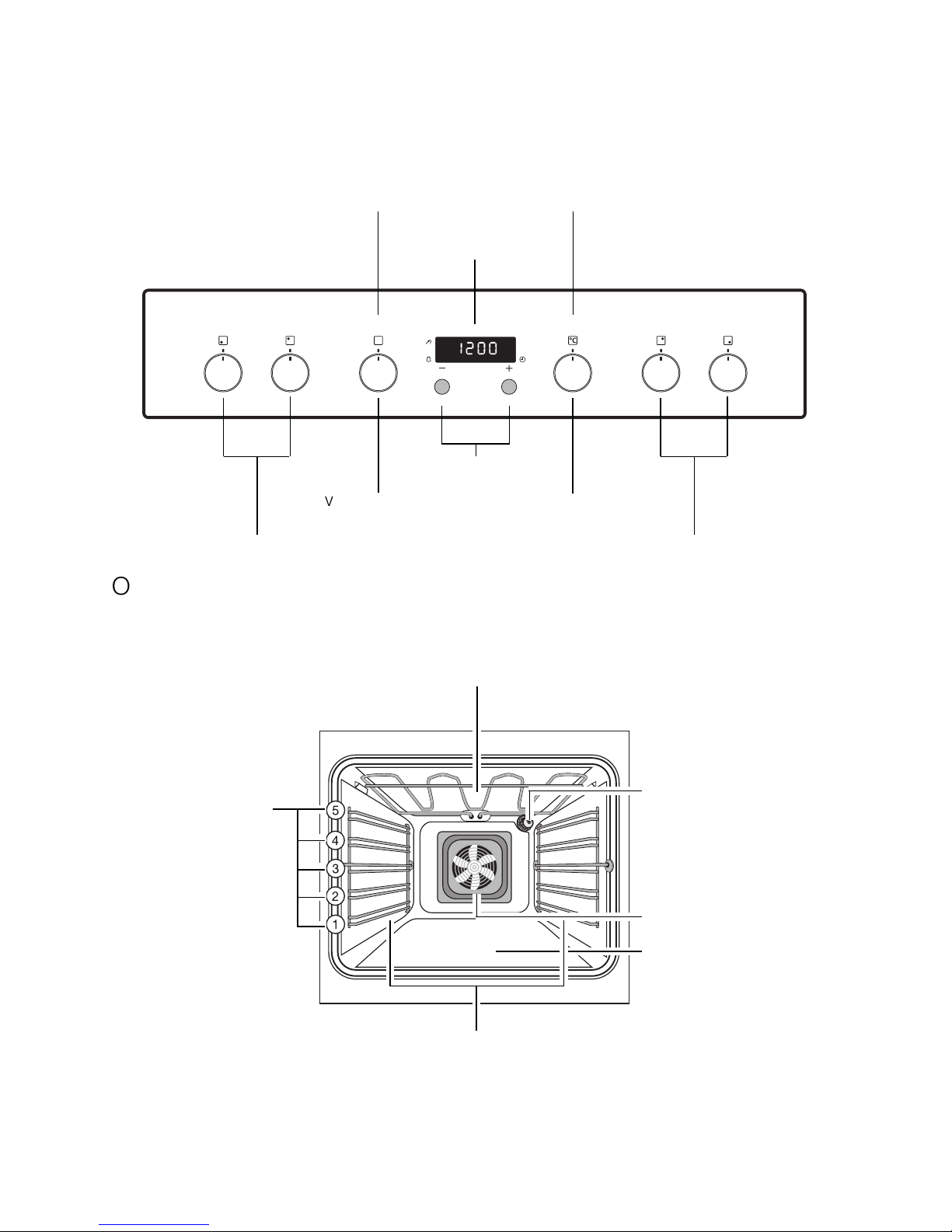

Control Panel
Oven Features
Oven Functions Temperature selector
Hob Cooking Zone Control
Function buttons
Hob Cooking Zone Control Knobs
Oven Power Indicator
Temperature /
Time Display
Temperature Pilot Light
Top heat and heating elements
Oven lighting
Fan
Bottom Heat
Shelf positions
Oven shelf runners,
removable

description of the appliance electrolux 9
Oven accessories
Oven shelf
For cookware, cake tins, roasts and
grilled foods.
Baking tray
For cakes and biscuits.
Roasting Pan
For baking and roasting or as a pan for
collecting fat.

10 electrolux before using for the first time
Before Using for the first time
Setting and changing the time
After the appliance has been connected
to the electrical supply or when there
has been a power cut, the function indi-
cator Time flashes automatically.
1. To change a time that has already
been set, press the button and the
button at the same time, until the
function indicator Time flashes.
2. Using the or button, set the cur-
rent time.
After approx. 5 seconds, the flashing
stops and the clock displays the time of
day set.
The appliance is now ready to use.
The Time can only be changed, if
no Countdown is set.

before using for the first time electrolux 11
Initial Cleaning
Before using the oven for the first time
you should clean it thoroughly.
Caution: Do not use any caustic,
abrasive cleaners! The surface
could be damaged.
To clean metal fronts use commer-
cially available cleaning agents.
1. Turn the oven function switch to
oven lighting .
2. Remove all accessories and the shelf
support rails and wash them with
warm water and washing up liquid.
3. Then wash out the oven with warm
water and washing-up liquid, and
dry.
4. Wipe the front of the appliance with
a damp cloth.

12 electrolux using the rings
Using the Rings
Also refer to the operating instruc-
tions for your built-in hob. It con-
tains important information on
ovenware, operation, cleaning and
care.
The cooker has pop-up ring switch-
es.
Press the ring switch to use it. The
switch will then pop up.
Heat settings
•Heat settings can be set from 1-9.
•Intermediate positions are possible
for settings 2-7.
1 = lowest output
9 = highest output
= double ring switching
Switch the cooking zone off approx.
5-10 minutes before cooking is fin-
ished to make use of the residual
heat. This saves electricity.

using the rings electrolux 13
Setting the heat setting
1. Select the heat setting.
2. To end the cooking process, turn
back to the Off position.
The power indicator light is lit as
long as a ring is on.

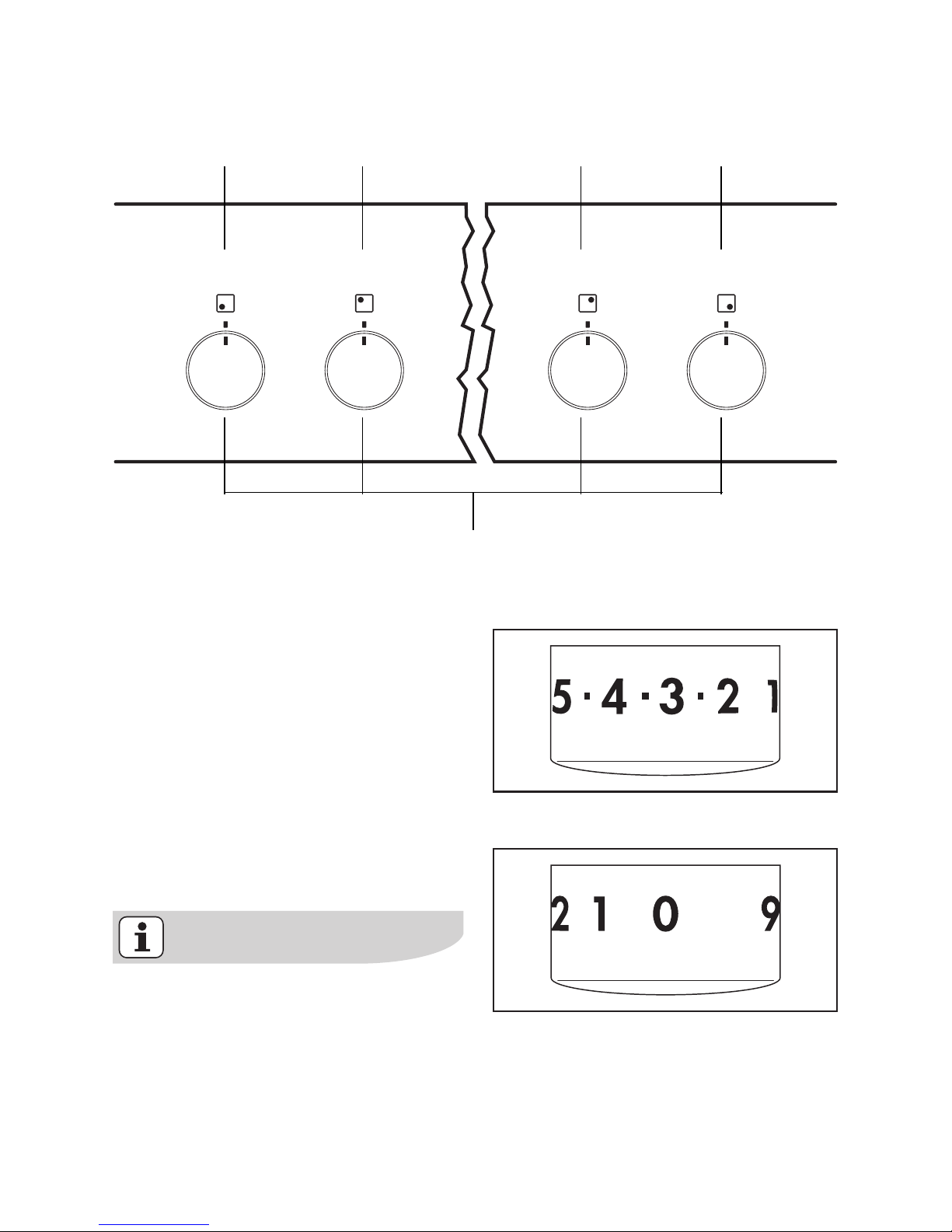

Hob Cooking Zone Control Knobs
front left rear left rear right front right

14 electrolux using the rings
Switching on the dual fry/cook area
The control for the dual fry/cook
area is switched on by turning to the
right, and cannot be turned past the
stop!
1. Turn the dual fry/cook control to the
right. Continue turning to Position 9,
and onto the symbol (you will feel
a slight resistance). The stop position
will then be clearly detectable.
2. Finally, turn back to the desired set-
ting.
3. After cooking, turn back to the OFF
position.
To use the dual fry/cook area again
afterwards, the larger ring must be
switched back on.

using the oven electrolux 15
Using the Oven
The oven is equipped with retractable
buttons for “Oven functions” and “Tem-
perature selection”. To use, press the
relevant button. The button then sticks
out.
Switching the Oven On and Off
1. Turn the oven functions dial to the
desired function.
2. Turn the temperature selector to the
desired temperature.
The power indicator is lit as long as the
oven is in operation.
The temperature pilot light is lit as long
as the oven is heating up.
3. To turn the oven off, turn the oven
functions dial and the temperature
selector to the Off position.
Cooling fan
The fan switches on automatically
in order to keep the appliance’s sur-
faces cool. When the oven is
switched off, the fan continues to
run to cool the appliance down, then
switches itself off automatically.

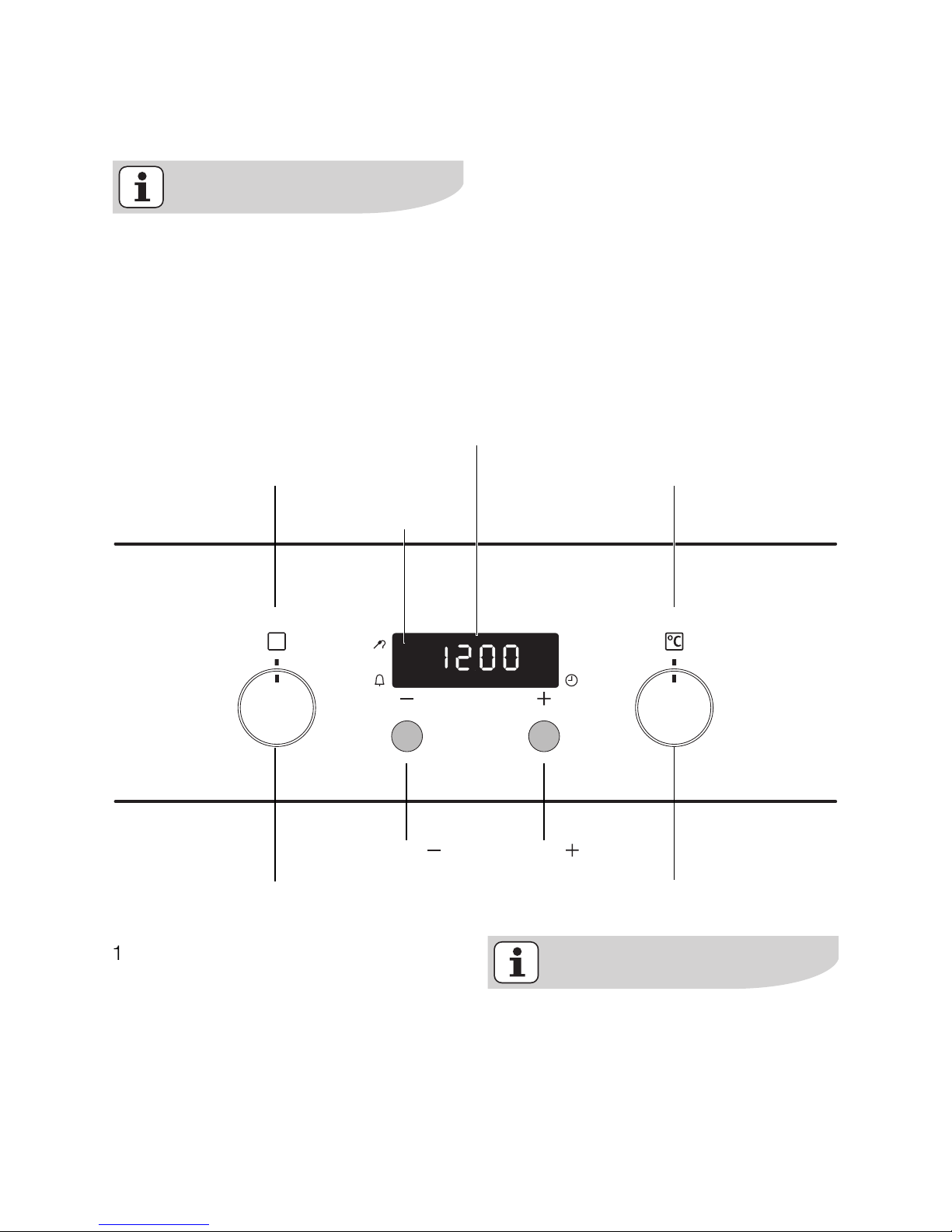

Oven function selection Temperature selector
Temperature / Time Display
Oven Power Indicator
ButtonButton
Temperature Pilot Light
Meat probe indicator

16 electrolux using the oven
Oven Functions
The oven has the following functions:
Oven function Application Heating element/
fan
Light Using this function you can light up
the oven interior, e.g. for cleaning.
---
Convection For baking on up to two oven lev-
els.
Set the oven temperatures 20-40 °C
lower than when using Conventional.
Top heat, bottomheat,
fan
Conventional For baking and roasting on one
oven level
.
Top heat, bottomheat
Bottom heat For baking cakes with crispy or
crusty bases
.
Bottom heat
Defrost For defrosting e. g. flans and ga-
teaux, butter, bread, fruit or other
fro-
zen foods
.
Fan
Grill For grilling flat foodstuffs placed in
the
middle of the grill and for
toasting .
Grill
Dual grill For grilling flat foodstuffs in large
quantities
and for toasting .
Grill, top heat
Convection grill-
ing
For roasting larger joints of meat or
poultry on one level.
The function is also suitable for
grati-
nating
and browning .
Grill, top heat, fan

using the oven electrolux 17
Inserting the Oven Shelf, Baking Tray and Roasting Pan
Shelf runner safety and anti-tip de-
vice
As a shelf runner safety device, all
insertable components have a small
curved indentation at the bottom on
the right and left-hand edge.
Always insert insertable compo-
nents so that this indentation is at
the back of the oven interior. This in-
dentation is also important for pre-
venting the insertable components
from tipping.
Inserting the baking tray or roasting
pan
Push the baking tray or roasting pan be-
tween the guide bars of the selected
oven level.
Inserting the oven shelf:
Insert the oven shelf so that the feet
point downwards.
Push the oven shelf between the guide
bars of the selected oven level.
The high rim around the oven shelf
is an additional device to prevent
cookware from slipping.

18 electrolux using the oven
Inserting the oven shelf and roast-
ing pan together
Lay the oven shelf on the roasting pan.
Push the roasting pan between the
guide bars of the selected oven level.
Additional functions
Either Countdown or Meat
probe can be set.
Switching off the time display
You can save energy by switching off
the time display.
To switch off the time display
Press the button and the button at
the same time until the display goes out.
Countdown
To set a countdown.
Meat probe
To set a core temperature.
Time or temperature display
Selector buttons

using the oven electrolux 19
To switch on the time display
Press any button until the time appears
in the display again.
The display can only be switched off
if no Countdown or core
temperature is entered.
General Hints
•After a function has been selected,
the display flashes for about
5 seconds. While it flashes, the de-
sired time can be set using the
or buttons.
•When the desired time has been set,
the display flashes for another
5 seconds. The set time begins to
run.
•Press any of the buttons to stop the
signal.
•The desired oven function and tem-
perature can be selected before or
after setting the clock functions.
•When cooking is finished, turn the
oven and temperature selectors
back to zero.

20 electrolux using the oven
Countdown
This function has no effect on the
operation of the oven.

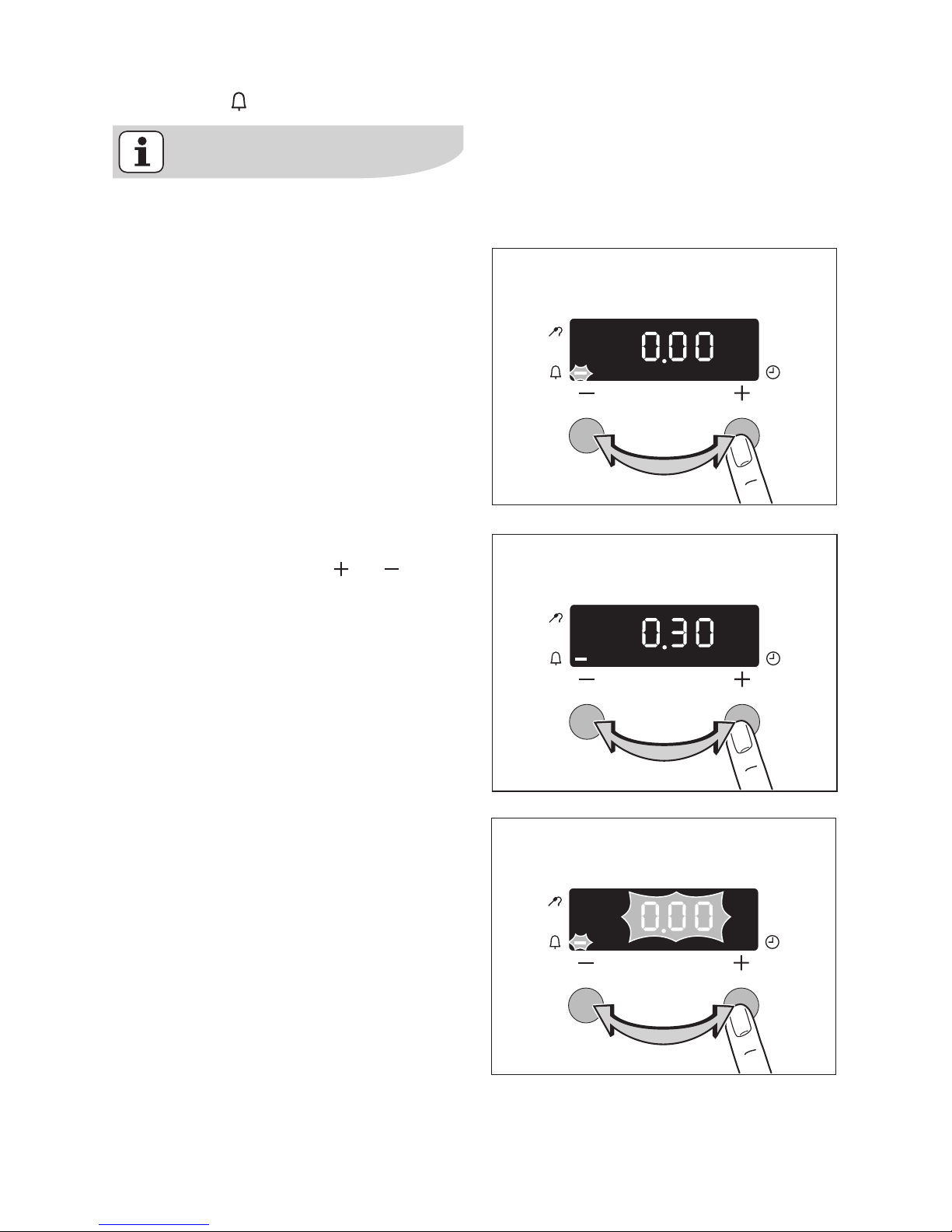

1. Press any button.
“0.00” flashes in the display.
2. Within 5 seconds set the desired
countdown using the or but-
tons (max. 2 hours 30 minutes).
After 5 seconds the display shows
the time remaining.
When the time has elapsed, “0.00” is
displayed and an audible signal sounds
for 2 minutes.
3. The signal can be stopped by press-
ing any button.
