Electrolux KODDP76K User manual

KODDP76K
KODDP76W
EN Oven User Manual 2
FR Four Notice d'utilisation 40
DE Backofen Benutzerinformation 80
IT Forno Istruzioni per l’uso 120
ES Horno Manual de instrucciones 159

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
For more recipes, hints, troubleshooting download My Electrolux Kitchen app.
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data
available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
CONTENTS
1. SAFETY INFORMATION.............................3
1.1 Children and vulnerable people
safety..................................................... 3
1.2 General Safety.................................4
2. SAFETY INSTRUCTIONS........................... 5
2.1 Installation........................................5
2.2 Electrical connection........................6
2.3 Use.................................................. 7
2.4 Care and cleaning............................8
2.5 Pyrolytic cleaning.............................8
2.6 Internal lighting................................ 9
2.7 Service.............................................9
2.8 Disposal...........................................9
3. INSTALLATION........................................... 9

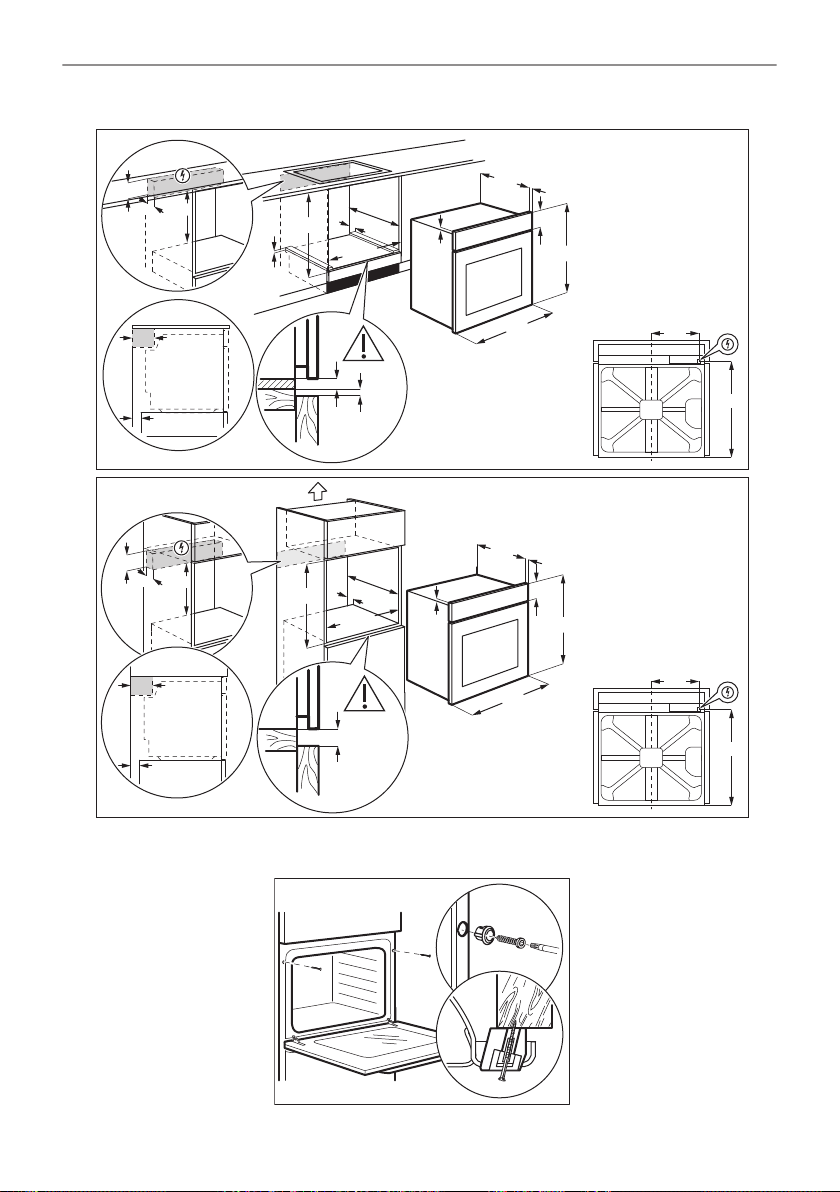

3.1 Building in........................................ 9
3.2 Securing the oven to the cabinet... 10
4. PRODUCT DESCRIPTION........................ 11

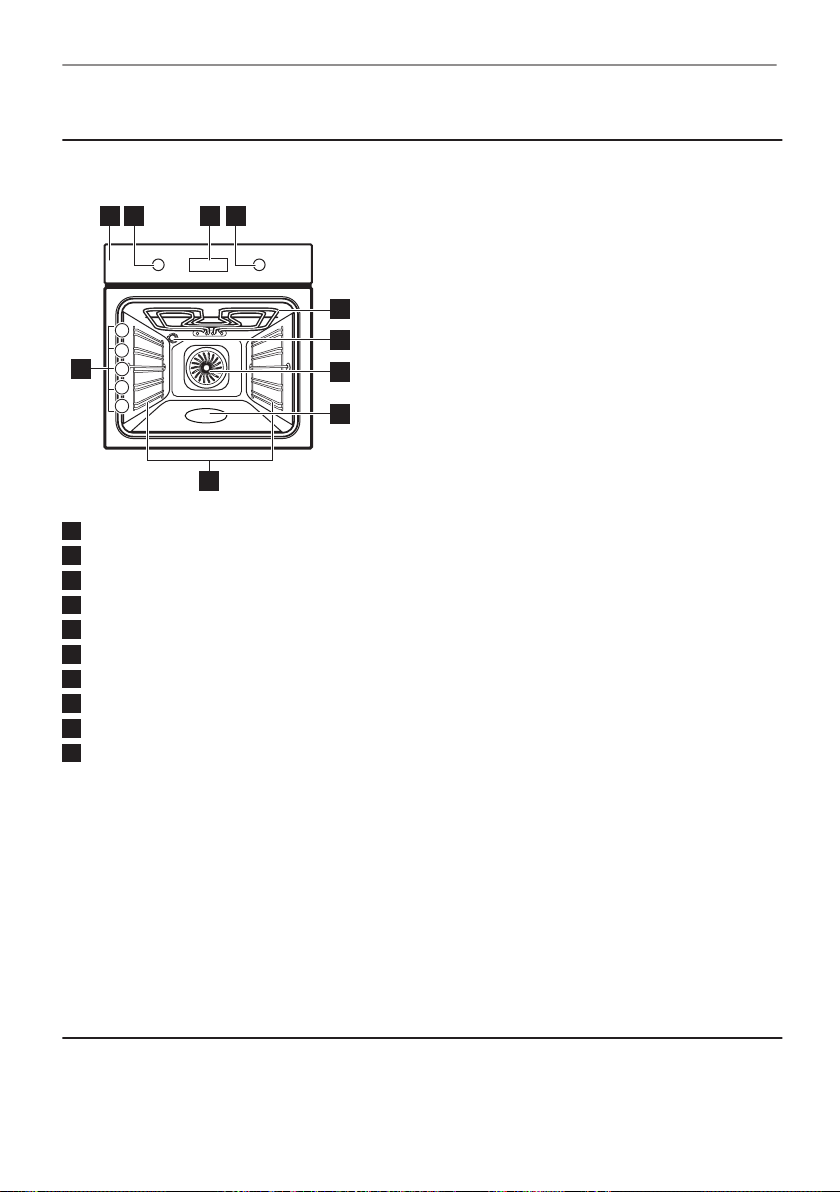

4.1 General overview...........................11
4.2 Accessories................................... 11
5. HOW TO TURN OVEN ON AND OFF....... 11
5.1 Retractable knobs..........................11

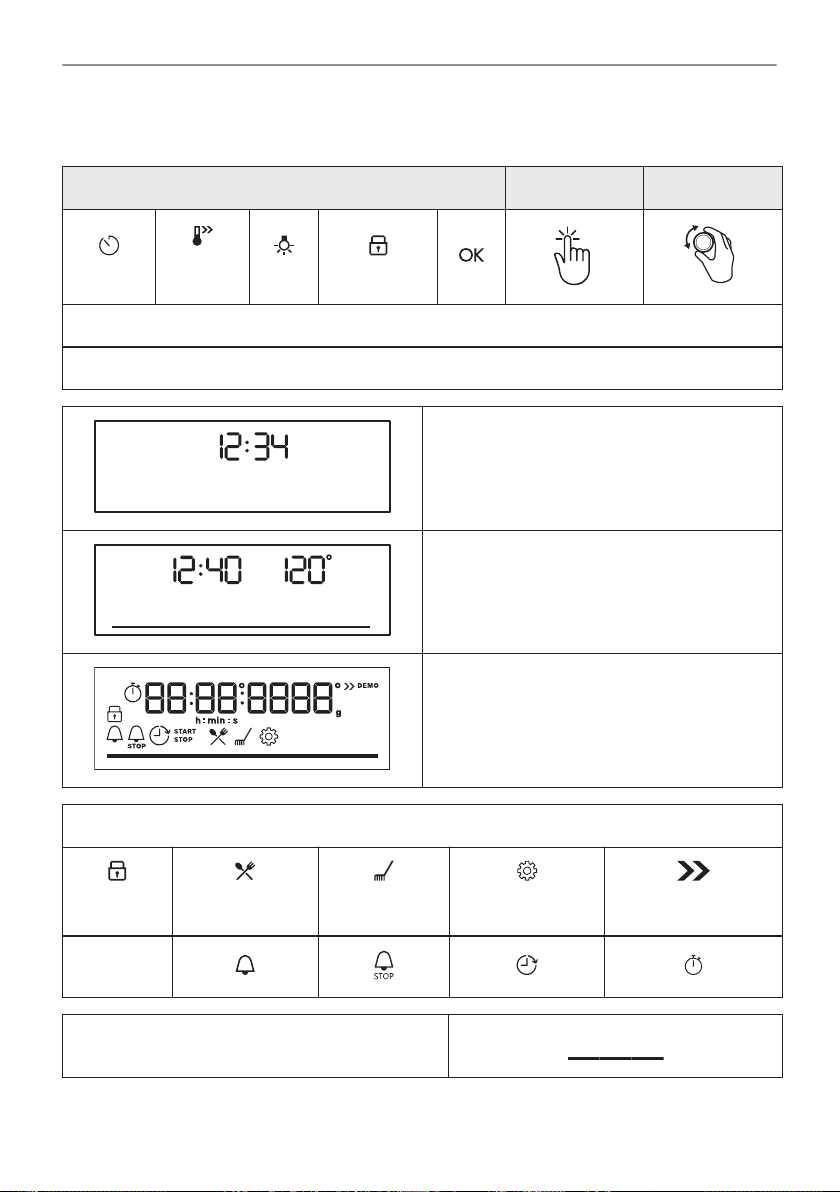

5.2 Control panel................................. 12
6. BEFORE FIRST USE.................................13
6.1 Initial cleaning................................13
6.2 Initial preheating............................ 13
2/200

7. DAILY USE................................................ 13
7.1 How to set: Heating functions........14

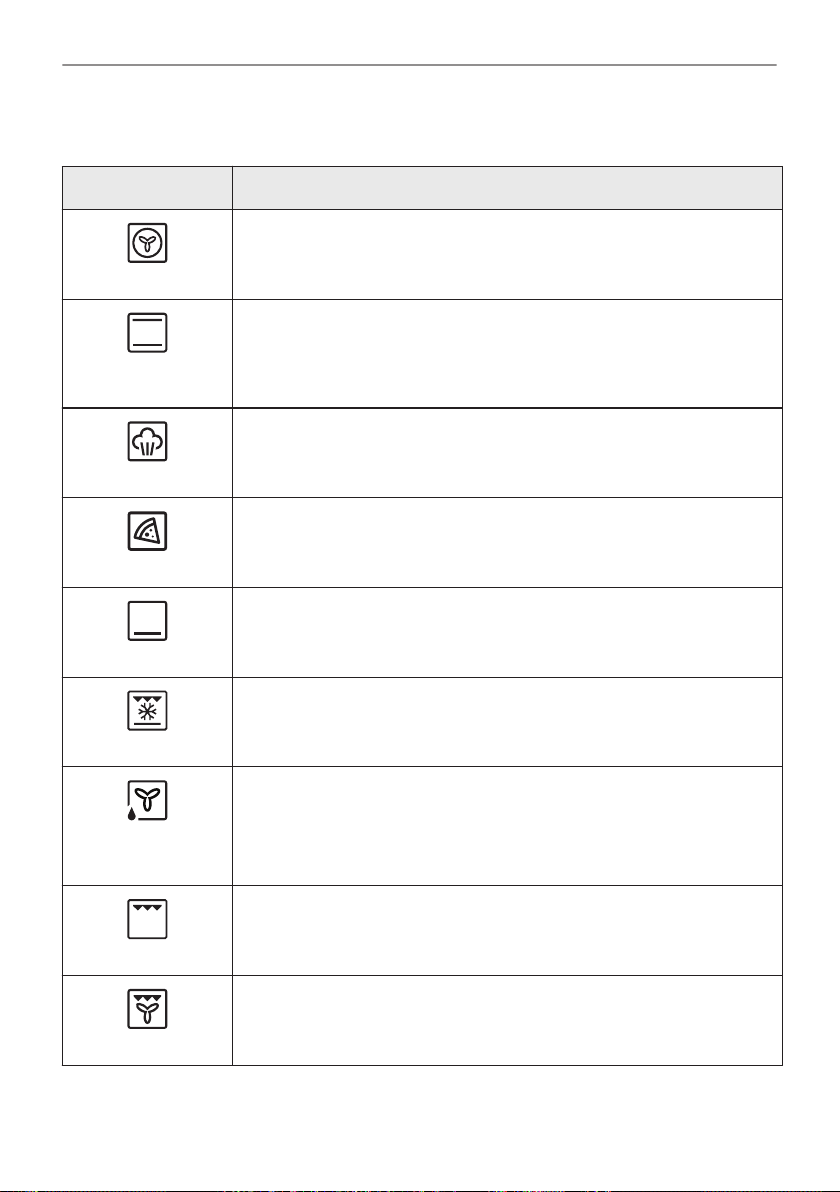

7.2 Heating functions...........................14
7.3 Notes on: Moist Fan Baking...........16
7.4 How to set: Assisted Cooking........16

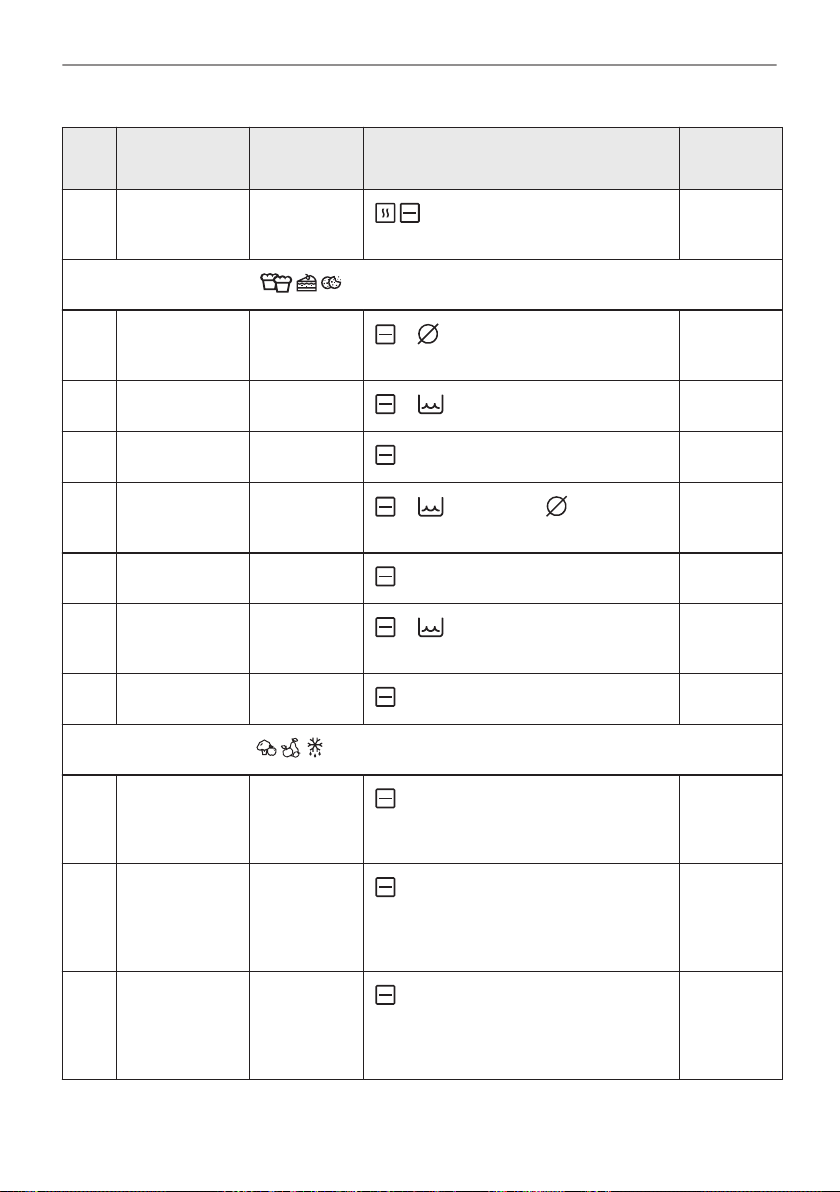

7.5 Assisted Cooking...........................16
8. CLOCK FUNCTIONS.................................22
8.1 Clock functions.............................. 22
8.2 How to set: Clock functions........... 22
9. HOW TO USE: ACCESSORIES................23
9.1 Inserting accessories.....................23
10. ADDITIONAL FUNCTIONS..................... 24
10.1 Lock............................................. 24
10.2 Automatic switch-off.....................25
10.3 Cooling fan...................................25
11. HINTS AND TIPS.....................................25
11.1 Moist Fan Baking.........................25
11.2 Moist Fan Baking -
recommended accessories..................27
11.3 Cooking tables for test institutes..27
12. CARE AND CLEANING...........................29
12.1 Notes on cleaning........................29
12.2 How to clean: Cavity
embossment........................................ 30
12.3 How to remove: Shelf supports ...30
12.4 How to use: Pyrolytic Cleaning....31
12.5 Cleaning Reminder......................32
12.6 How to remove and install: Door..32
12.7 How to replace: Lamp..................34
13. TROUBLESHOOTING.............................35
13.1 What to do if.................................35
13.2 Service data.................................36
14. ENERGY EFFICIENCY............................36
14.1 Product Information and Product
Information Sheet*...............................36
14.2 Energy saving..............................37
15. MENU STRUCTURE................................38
15.1 Menu............................................38
16. ENVIRONMENTAL CONCERNS.............39
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully read
the supplied instructions. The manufacturer is not responsible
for any injuries or damage that are the result of incorrect
installation or usage. Always keep the instructions in a safe
and accessible location for future reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8 years
and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning
the use of the appliance in a safe way and understand the
hazards involved. Children of less than 8 years of age and
persons with very extensive and complex disabilities shall
be kept away from the appliance unless continuously
supervised.
3/200
SAFETY INFORMATION

•Children should be supervised to ensure that they do not
play with the appliance.
•Keep all packaging away from children and dispose of it
appropriately.
•WARNING: The appliance and its accessible parts become
hot during use. Keep children and pets away from the
appliance when in use and when cooling down.
•If the appliance has a child safety device, it should be
activated.
•Children shall not carry out cleaning and user maintenance
of the appliance without supervision.
1.2 General Safety
•This appliance is for cooking purposes only.
•This appliance is designed for single household domestic
use in an indoor environment.
•This appliance may be used in, offices, hotel guest rooms,
bed & breakfast guest rooms, farm guest houses and other
similar accommodation where such use does not exceed
(average) domestic usage levels.
•Only a qualified person must install this appliance and
replace the cable.
•Do not use the appliance before installing it in the built-in
structure.
•Disconnect the appliance from the power supply before
carrying out any maintenance.
•If the mains power supply cable is damaged, it must be
replaced by the manufacturer, its Authorised Service Centre
or similarly qualified persons to avoid an electrical hazard.
•WARNING: Ensure that the appliance is switched off before
replacing the lamp to avoid the possibility of electric shock.
•WARNING: The appliance and its accessible parts become
hot during use. Care should be taken to avoid touching
heating elements.
4/200
SAFETY INFORMATION

•Always use oven gloves to remove or insert accessories or
ovenware.
•To remove the shelf supports first pull the front of the shelf
support and then the rear end away from the side walls.
Install the shelf supports in the opposite sequence.
•Do not use a steam cleaner to clean the appliance.
•Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the glass door since they can scratch the surface,
which may result in shattering of the glass.
•Before pyrolytic cleaning, remove all accessories and
excessive deposits/spills from the oven cavity.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must install this appliance.
• Remove all the packaging.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
• Always take care when moving the appliance as it is heavy. Always use safety gloves and
enclosed footwear.
• Do not pull the appliance by the handle.
• Install the appliance in a safe and suitable place that meets installation requirements.
• Keep the minimum distance from other appliances and units.
• Before mounting the appliance, check if the oven door opens without restraint.
• The appliance is equipped with an electric cooling system. It must be operated with the
electric power supply.
Cabinet minimum height (Cabinet under the work‐
top minimum height)
580 (600) mm
Cabinet width 560 mm
Cabinet depth 550 (550) mm
Height of the front of the appliance 589 mm
Height of the back of the appliance 571 mm
Width of the front of the appliance 595 mm
5/200
SAFETY INSTRUCTIONS

Width of the back of the appliance 559 mm
Depth of the appliance 569 mm
Built in depth of the appliance 548 mm
Depth with open door 1022 mm
Ventilation opening minimum size. Opening placed
on the bottom rear side
560x20 mm
Mains supply cable length. Cable is placed in the
right corner of the back side
1500 mm
Mounting screws 4x25 mm
2.2 Electrical connection
WARNING!
Risk of fire and electric shock.
• All electrical connections should be made by a qualified electrician.
• The appliance must be earthed.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings
of the mains power supply.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.
• Make sure not to cause damage to the mains plug and to the mains cable. Should the mains
cable need to be replaced, this must be carried out by our Authorised Service Centre.
• Do not let mains cables touch or come near the appliance door or the niche below the
appliance, especially when it operates or the door is hot.
• The shock protection of live and insulated parts must be fastened in such a way that it
cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure
that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed
from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the
appliance from the mains at all poles. The isolation device must have a contact opening
width of minimum 3 mm.
• Fully close the appliance door before you connect the mains plug to the mains socket.
• This appliance is supplied with a main plug and a main cable.
6/200
SAFETY INSTRUCTIONS

Cable types applicable for installation or replacement for Europe:
H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F
For the section of the cable refer to the total power on the rating plate. You can also refer to the
table:
Total power (W) Section of the cable (mm²)
maximum 1380 3 x 0.75
maximum 2300 3 x 1
maximum 3680 3 x 1.5
The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue
and brown cables).
2.3 Use
WARNING!
Risk of injury, burns and electric shock or explosion.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful when you open the appliance door while the appliance is in operation. Hot air can
release.
• Do not operate the appliance with wet hands or when it has contact with water.
• Do not apply pressure on the open door.
• Do not use the appliance as a work surface or as a storage surface.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture
of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the
door.
• Do not put flammable products or items that are wet with flammable products in, near or on
the appliance.
WARNING!
Risk of damage to the appliance.
• To prevent damage or discoloration to the enamel:
– do not put ovenware or other objects in the appliance directly on the bottom.
– do not put aluminium foil directly on the bottom of cavity of the appliance.
– do not put water directly into the hot appliance.
– do not keep moist dishes and food in the appliance after you finish the cooking.
– be careful when you remove or install the accessories.
7/200
SAFETY INSTRUCTIONS

• Discoloration of the enamel or stainless steel has no effect on the performance of the
appliance.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.
• Always cook with the appliance door closed.
• If the appliance is installed behind a furniture panel (e.g. a door) make sure the door is never
closed when the appliance operates. Heat and moisture can build up behind a closed
furniture panel and cause subsequent damage to the appliance, the housing unit or the floor.
Do not close the furniture panel until the appliance has cooled down completely after use.
2.4 Care and cleaning
WARNING!
Risk of injury, fire, or damage to the appliance.
• Before maintenance, deactivate the appliance and disconnect the mains plug from the mains
socket.
• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Authorised
Service Centre.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Clean the appliance with a moist soft cloth. Use only neutral detergents. Do not use abrasive
products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, follow the safety instructions on its packaging.
2.5 Pyrolytic cleaning
WARNING!
Risk of Injury / Fires / Chemical Emissions (Fumes) in Pyrolytic Mode.
• Before carrying out a Pyrolitic self-cleaning function or the First Use please remove from the
oven cavity:
– any excess food residues, oil or grease spills / deposits.
– any removable objects (including shelves, side rails etc., provided with the product)
particularly any non-stick pots, pans, trays, utensils etc.
• Read carefully all the instructions for Pyrolytic cleaning.
• Keep children away from the appliance while the Pyrolytic cleaning operates.
The appliance becomes very hot and hot air is released from the front cooling vents.
• Pyrolytic cleaning is a high temperature operation that can release fumes from cooking
residues and construction materials, as such consumers are strongly advised to:
– provide good ventilation during and after each Pyrolytic cleaning.
– provide good ventilation during and after the first use at maximum temperature
operation.
• Unlike all humans, some birds and reptiles can be extremely sensitive to potential fumes
emitted during the cleaning process of all Pyrolytic Ovens.
– Remove any pets (especially birds) from the vicinity of the appliance location during and
after the Pyrolytic cleaning and first use maximum temperature operation to a well
ventilated area.
• Small pets can also be highly sensitive to the localized temperature changes in the vicinity of
all Pyrolytic Ovens when the Pyrolytic self cleaning program is in operation.
8/200
SAFETY INSTRUCTIONS

• Non-stick surfaces on pots, pans, trays, utensils etc., can be damaged by the high
temperature Pyrolytic cleaning operation of all Pyrolytic Ovens and can be also a source for
low level harmful fumes.
• Fumes released from all Pyrolytic Ovens / Cooking Residues as described are not harmful to
humans, including children, or persons with medical conditions.
2.6 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this product and spare part lamps sold separately: These
lamps are intended to withstand extreme physical conditions in household appliances, such
as temperature, vibration, humidity, or are intended to signal information about the
operational status of the appliance. They are not intended to be used in other applications
and are not suitable for household room illumination.
• This product contains a light source of energy efficiency class G.
• Use only lamps with the same specifications.
2.7 Service
• To repair the appliance contact the Authorised Service Centre.
• Use original spare parts only.
2.8 Disposal
WARNING!
Risk of injury or suffocation.
• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.
• Remove the door catch to prevent children or pets from becoming trapped in the appliance.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
3.1 Building in
www.youtube.com/electrolux
www.youtube.com/aeg
How to install your AEG/Electrolux
Oven - Column installation
9/200
INSTALLATION

589
595±1
114
18
min. 550
20
6
600
3
6
min. 560
21548
80
520
60
60
20
198
518
(*mm)
min. 550
20
589
114
18
580
min. 560
9
595±1
21548
70
60 520
60
20
198
518
(*mm)
3.2 Securing the oven to the cabinet
10/200
INSTALLATION
