Electrolux E23CS78GP User manual

E23CS75DSS0.eps N58FMDEEA0.eps N58RMDCHA0.eps N58BECDAA1.eps
N58SDDKEI10.eps N58TBBAAB5.eps N58CACBAA3.eps N58XECAAA0.eps
N58YDAAAC4.eps n58I115T1.eps W241638600.eps S241638600.eps
Product No. E23CS78GPS0
Series counter depth
Color stainless/nkl
Volts 115

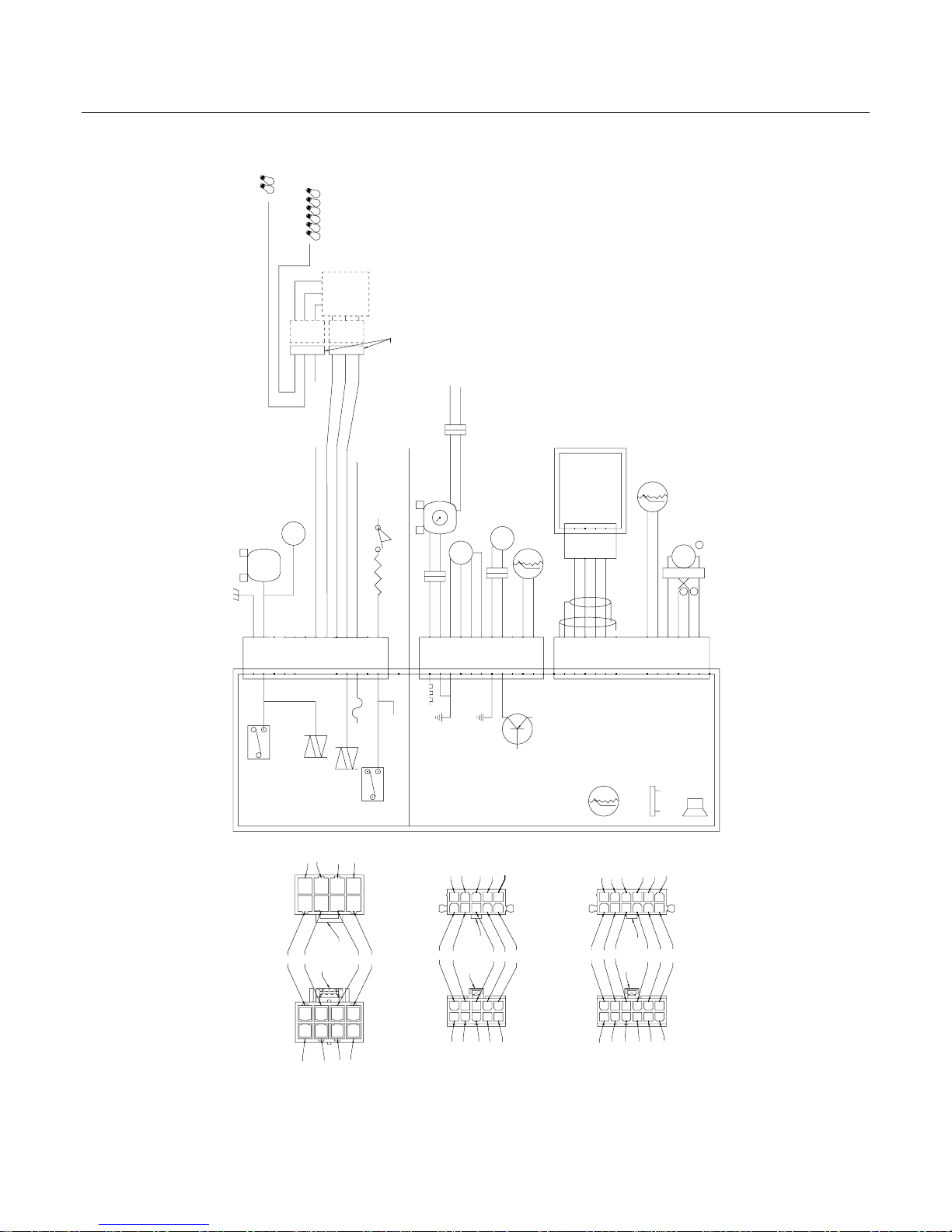

Wiring Diagram 241638600
Owner's Guide 241540105
Market North America
Energy Guide 241768117
Service Data Sheet 241639000
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995483202
07/01/29
(EN/SERVICE/DCS)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
E23CS78GP
Copyright ©2007 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995483202 E23CS78GPS0
01/07 2

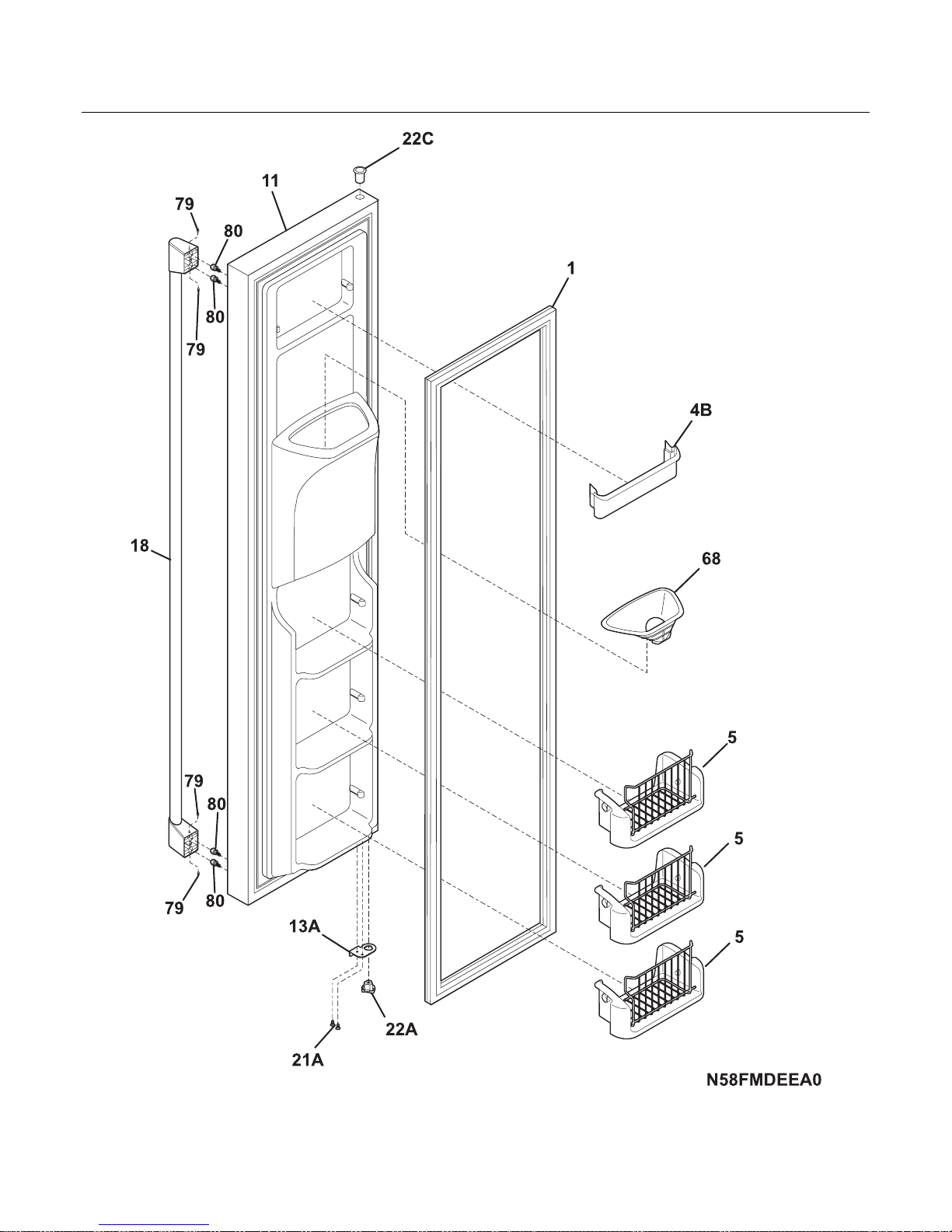

FREEZER DOOR

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 3 01/07
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 241510202 Gasket-frzr door, white, magnetic
4B 241511604 Bin-door
5 241545006 Bin-tilt out, tilt-out
11 241615165 Door-frzr, stainless, complete assy
13A 240581906 Door Stop, black, frzr
18 241637909 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 240598402 Screw, 10-32 x 1/2
22A 240328204 Bearing-hinge(frz), black, closer
22C 240328404 Bearing-hinge, black, upper
68 241525101 Chute-ice
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting
* 240352102 Connector-water, straight
* 240552102 Harness-wiring, door
* 5303918256 Dispenser heater kit

Publication No: 5995483202 E23CS78GPS0
01/07 4
REFRIGERATOR DOOR
80
80
80
80
79
79
79
79
18
N58RMDCHA0
70
50
49A
49
48
27A
22B
22
21A
15
13
7
6
5
2
12

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 5 01/07
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 241510201 Gasket-refr door, white, magnetic
5 241516102 Rack-can
6 241515901 Lug-dairy compartment
7 241515601 Door-dairy
12 241603101 Label-nameplate
13 240581905 Door Stop, black, ref
15 241629338 Door-refr, stainless, complete assy
18 241637909 Handle Assembly, stainless, w/endcaps
18* 241601001 Wrench, allen
21A 240598402 Screw, 10-32 x 1/2
22 240328203 Bearing-hinge, black, closer
22B 240328404 Bearing-hinge, black, upper
27A 240396102 Retainer, tall bottle
48 241511705 Bin-door, ref
49 241505505 Bin-door, gallon
49A 241505305 Bin-door, 2-liter
50 241508401 Cover-magnet
70 241515801 Compartment-dairy, removable
79 218755401 Screw-set, 10-32 x 0.375
80 218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995483202 E23CS78GPS0
01/07 6
CABINET
100
92
92
90
89
83
82
81
81
73
73
72
66
58
58
54
50
47
45
45
45
45
45
45
45
43
42
42
41
40
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BECDAA1
14A

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 7 01/07
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 241509804 Cover-air duct
10A 240475912 Cover-evap coil, lower
11 241529301 Plug-hole, factory test
14A 241547901 Switch-light/lamp, frzr door
21C 218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 240457701 Plate-door closer
23 240402702 Screw-#10-32 x 1/4 flat hd
28 240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 241603703 Bracket-lower hinge, ref
30A 241603704 Bracket-lower hinge
37 240337605 Trim-cabinet corner, silver, (2)
38 240327207 Bracket-upper hinge
40 241551304 Cover-upper hinge, nickeloid
41 241550801 Grommet-shelf mtg, 1.40" long
41* 241550701 Grommet-shelf mtg, .96" long
42 240578902 Screw-hinge mtg, hex head, 1/4-20 x 5/8
43 240335005 Roller Assy, adjustable, front, (2)
45 241500303 Screw, hex washer head, 8-18AB x 0.500
47 241513001 Channel-shelf mtg, side, (2)
50 241511102 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
58 241595402 Screw-#10-32 X 3/4
66 241513602 Damper-meat keeper
72 241554708 Grille/Kickplate
73 241732101 Screw, 10-32 x 1/2
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 241733902 Cover-access, w/label
90 218249808 Seal-coil cover
92 241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 240423701 Support, crisper cover, front, (4)
100* 240350802 Support, crisper cover, rear, (4)
* 241591701 Louver

Publication No: 5995483202 E23CS78GPS0
01/07 8

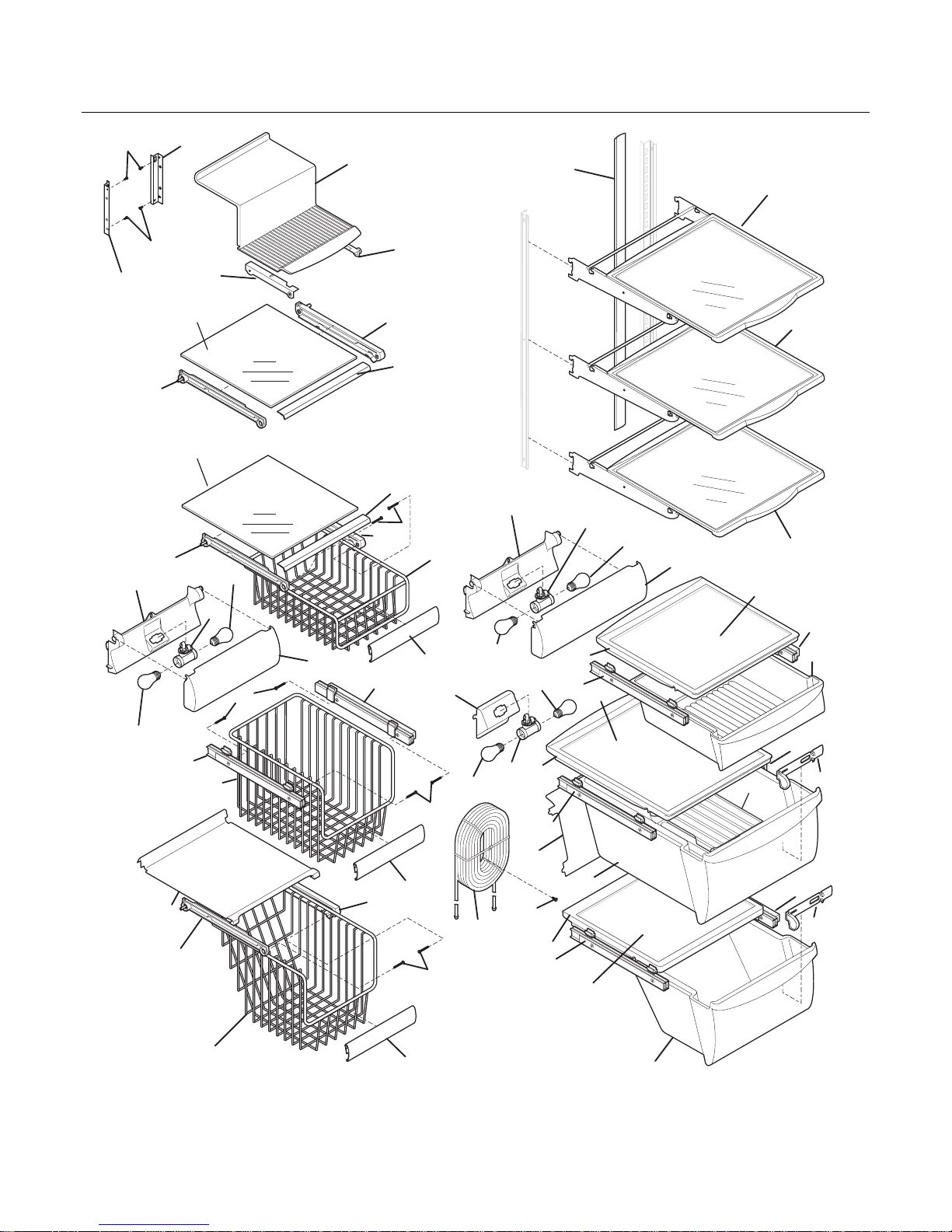

SHELVES
140
126
126
122
39
39
121
120
109
108
108
107A
107
101
101
100
97
81
81
62
60
81
52B
52A
52
52
51B
51A
51
51
49B
49A
49
47B
47A
47
27A
26A
51D
52D
52D
52C
51D
51C
27
26
25B
25A
25
24
24
24
21
16
16
16
15
15
15
15
15
15
2
2A
2
N58SDDKEI10
11A
11
41
143

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 9 01/07
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 241539502 Trim-basket
2A 241539501 Trim-basket
11 240443357 Shelf-freezer, glass, lower
11A 240443358 Shelf-freezer, glass, upper
15 241552801 Light Bulb
16 241622802 Socket-light
16* 241510802 Harness-wiring, control box
16* 241513102 Harness-wiring
21 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
24 241753102 Shelf-"Spill-Safe", cantilever, sliding
25 241565002 Cover-crisper pan, upper
25A 241564301 Cover-crisper pan, lower
25B 241565701 Cover-meat pan
26 240351037 Pan-crisper, upper
26A 241638201 Control-humidity
26A* 241638101 Frame-humidity control
27 240351225 Pan-crisper, lower
27A 240362201 Control-humidity
39 240367604 Trim-shelf, front
41 241637601 Baffle-air
47 240350649 Insert-pan cover, glass
47A 240350603 Insert-pan cover, glass
47B 240443356 Insert-pan cover, glass
49 241541802 Basket-sliding
49A 241541902 Basket-sliding, upper, half
49B 241541702 Basket-sliding, mid
51 241514501 Hanger-basket, RH
51A 241514701 Hanger-shelf glass, RH
51B 240579803 Hanger-basket, RH
51C 240579807 Hanger-basket, RH
51D 240579808 Hanger-basket, RH
52 241514601 Hanger-basket, LH
52A 241514801 Hanger-shelf glass, LH
52B 240579804 Hanger-basket, LH
52C 240579805 Hanger-basket, LH
52D 240579806 Hanger-basket, LH
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 240599706 Pan-meat
81 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 241532002 Water Tank
100 241549901 Cover-water tank
101 218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 241513402 Shield-light, meat pan
107A 241521802 Shield-light, frzr
108 241513301 Cover-wiring, crisper light
109 241513202 Base-crisper light socket
120 241691701 Shelf-ice cream
121 241504701 Rail-ice cream shelf, LH
122 241504702 Rail-ice cream shelf, RH
126 241674401 Channel, auger mtg, LH
126 241674402 Channel, auger mtg, RH
140 240430505 Channel, wtr tube cover
143 240423305 Divider-crisper pan
* 241768117 Energy Guide

Publication No: 5995483202 E23CS78GPS0
01/07 10

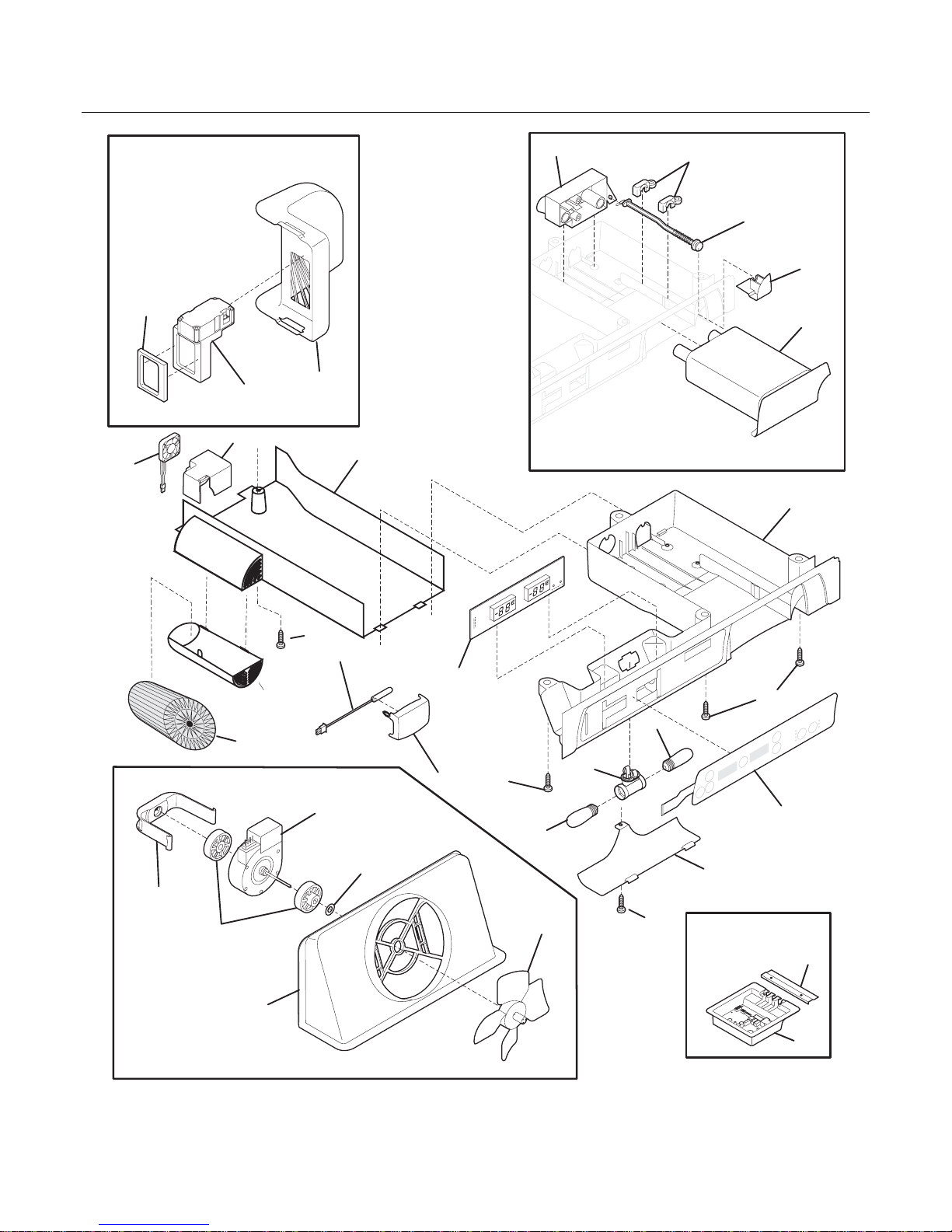

CONTROLS
201
199
198
151
155
154
206
149
139
138
137
116
115
81
81
81
75
60
23
22
205
21
17
16
15
15
14
13
9
8
5
N58TBBAAB5
54
50
75A

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 11 01/07
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 5308000010 Fan Blade, red, evaporator fan
8 215474201 Washer, "slinger", nylon, evap fan shaft
9 241518301 Bushing, motor mounting
13 241509402 Motor, evaporator fan
13* 241510501 Seal-diffuser
14 241517701 Clip, evap fan motor
15 241552801 Light Bulb
16 241622802 Socket-light
17 241516202 Box-control, front
17* 241510801 Harness-wiring
21# 241528201 Control-temperature
22 240597201 Sensor
23 241512901 Cover-sensor
23* 5304455649 Screw-timer mtg, pan hd, 6-20 x 0.438, (2)
50 241511102 Board-main power
50* 241524802 Seal, housing
50* 241532501 Clip-harness
54 241532401 Channel
60 241510301 Diffuser-air
75 241517802 Shield-light
75A 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
81 5304455658 Screw, hx wshr hd sems, 8-15A x 0.625, 21
115 241518501 Damper, motorized
116 241518601 Seal-damper, foam
137# 240396405 Filter, water, carbon cassette, front, with o'rings
137* 240396701 Bypass, water filter, Optional Part
138 240397301 Button-filter release
139 240396002 Base-water filter
139* 240526901 O-ring, wtr filter base
149 241517601 Shroud-evap fan mtg
149* 241528304 Seal, foam, evap fan assy
151 241526001 Filter housing
154 241525801 Duct-air
155 241526102 Motor-air filter
155* 241527202 Harness-wiring, filter fan
198 240397401 Retainer
199 240397501 Rod
199* 240398401 Spring-filter release rod
201 240596910 Switch-membrane
205 241525901 Air Filter Door
206 241504902 Filter-air

Publication No: 5995483202 E23CS78GPS0
01/07 12
SYSTEM
86
85
30
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
45
45
44
41
34
34
29
26
25
25
23
23
22
21
16
15
14
6
4
3
1
N58CACBAA3
50

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 13 01/07
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 240333603 Condenser
3 218679607 Block-evap coil, styrofoam, (2)
4 # 218944001 Drier-filter, R134a System
6 241516901 Cord-service
6* 241510802 Harness-wiring, control box
6* 241510801 Harness-wiring
6* 241520403 Harness-wiring
6* # 241636203 Harness-wiring, machine compt
6* 241527201 Harness-wiring, filter fan
14 # 240316107 Heater-defrost
15 # 5303918284 Evaporator Kit
16 5308000110 Strap-evap/heater, aluminum, (2)
21 5303918214 Thermostat-defrost, kit
22 240330011 Base-compressor mtg
22* 218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 218513300 Grommet-compr mtg, (4)
25 240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 241697501 Pan-defrost drain
29 # 241547601 Compressor, w/electricals
30 241577501 Invertor
34 240405201 Grommet, rubber, black, cond tube/wire
41 240555002 Screw-#8-32 X 3/8
44 215174700 Clamp-service cord, strain relief, galv steel
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 241635501 Housing-control, apollo lighting
50* 241641501 Screw
57 240542601 Clip-wiring harness
58 240433203 Screw, hex washer head, 8-18 x 3/8
59 240315502 Shroud-cond fan
59* 240346701 Tape-foam seal, shroud
59* 240359403 Screw-fan shroud, (2)
59A 240346501 Bracket-support, cond mtr, (3)
59B 240346601 Grommet-bracket, (3)
60 241584301 Motor-condenser fan
61 241639501 Blade-condenser fan
62 240429402 Trough-drain
70 218990801 Bracket-evap/cvr mtg
82 5304418225 Roller, compressor base, rear, (2)
83 5304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 5304421068 Tube-drain, lower
85 241719501 Tube-connector, suction
86 240409302 Spacer-cond tube, black
* 5303918222 Hot Tube Repair Kit, service
* # 5303918327 Heat Exchanger Kit, suction line

Publication No: 5995483202 E23CS78GPS0
01/07 14

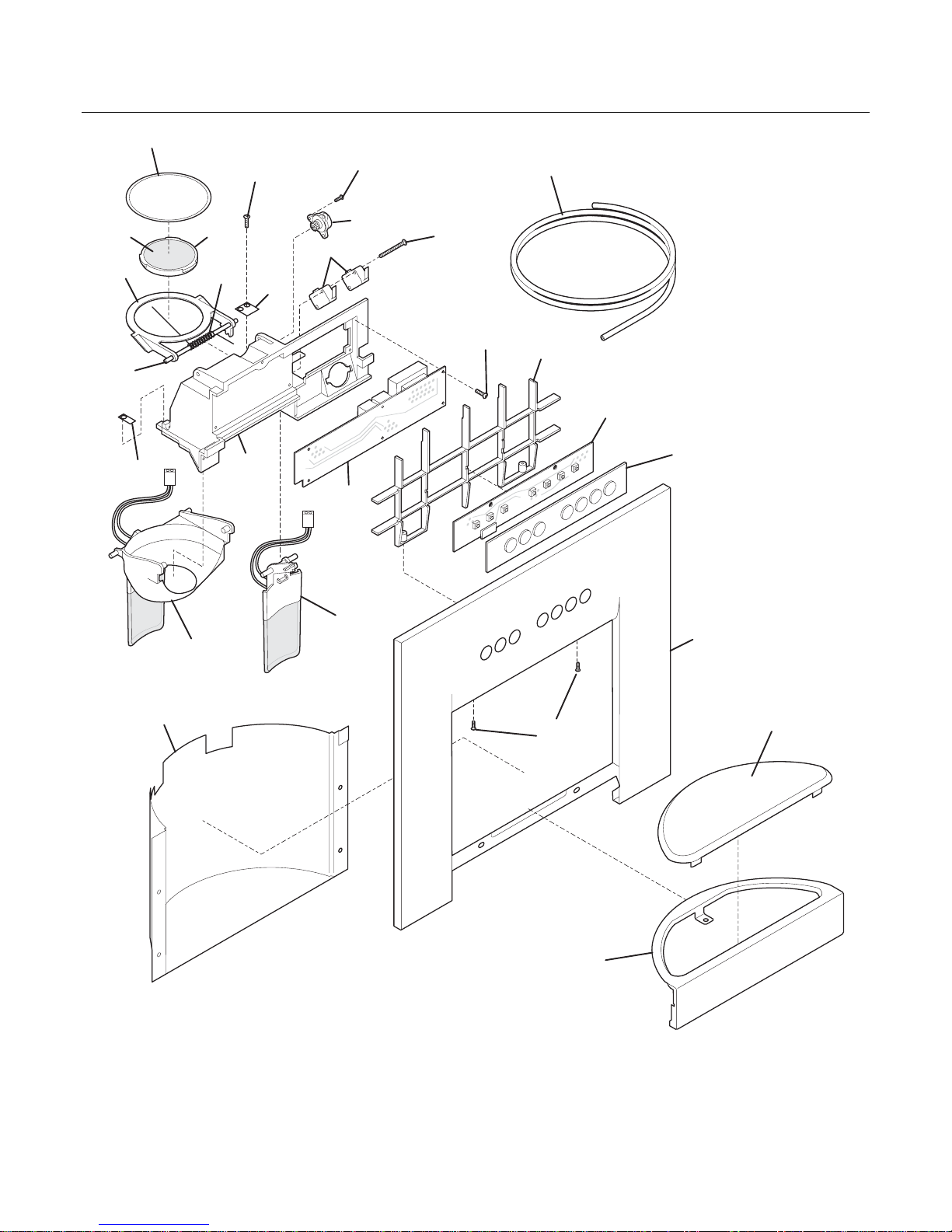

ICE & WATER DISPENSER
94
36
100
23
87A
87
56
43
39
38C
38A
38
35
30C
30A
30B
30
24A
24
23A
74
17
17
10
8
4
1
N58XECAAA0

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 15 01/07
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976901 Tube, water inlet, valve to IM
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976917 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
4 241533207 Cover-module, stainless
4* 241533401 Seal, foam
8 241680504 Module-dispenser
10 241688901 Spring-torsion
17 241679801 Screw
23 241531102 Drip Tray, stainless
23* 240363402 Screw-#8-18 X 1/2, #6 hd plask
23A 241531601 Drip Tray Insert
24 241685704 Actuator, stainless
24A 241682304 Actuator-ice, stainless
30 241688401 Door Assy-ice chute
30A 241688501 Door center
30B 241688601 Insulation-door
30C 241688701 Door seal
35 241689301 Damper-rotary
36 241533501 Button Module, stainless
38 241527601 Board-power
38A# 241689101 Switch-micro, single pole, double throw
38C# 241527501 Board-control
38C* 241680001 Harness-ribbon cable
39 241688801 Pin-hinge
43 215296301 Screw, plask h/l, #6 x 3/8
56 241689201 Screw-micro switch, pan head
74 241720001 Screw, #4 hilo, (2)
87 241688302 Bearing Plate
87A 241688301 Bearing Plate
94 241533301 Support, control board
100 241530402 Liner, dispen housing, stainless
* 218515403 Clip-grille
* 241510902 Harness-dispenser
* 241686201 Insulator-electrical
* 5303918256 Dispenser heater kit

Publication No: 5995483202 E23CS78GPS0
01/07 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
44
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC4
39

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 17 01/07
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 241684701 Auger-ice
3 241685201 Cam-drive
4 241515201 Container-ice, bucket only
6 241685101 Drum-ice disp
7 241515301 Front-ice container
10 241624801 Bar-drive
13 241685301 Gate
15 241555401 Light Bulb
16 241559801 Socket-light
17 241684501 Drive Blade
18 # 241676202 Motor-auger, 115V
18* 241522901 Harness-wiring, icmkr/container
20 241675502 Cover-motor
22 240597203 Sensor
22* 241519401 Clip, sensor
23 241684001 Plate-front
25 241690701 Screw, hex washer head, 8-32T x 0.375
26 215503205 Screw, cr pan hd, 10-16 x 0.500
33 241684801 Spacer
34 241689801 Spacer
35A 241684301 Fixed Blade, round
35B 241684201 Fixed Blade, square
37A 241684101 Blade, crusher #1
37B 241684102 Blade, crusher #2
37C 241684103 Blade, crusher #3
39 241690501 Screw
41 241685601 Housing-crusher
43 215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
44 218359202 Screw, pan head, 8-32 x 0.250
45 # 241675701 Solenoid Assy, 115V
45A 241675901 Spring-solenoid
45B 241676001 E-Ring-solenoid
45C 241676101 Actuator-solenoid
45D# 241675801 Solenoid, 115V
46 241684402 Control Rod
47 241731801 Spring-control rod
48 241684602 Bracket-control rod
49 241676501 Rail Assy
50 241675601 Guide-solenoid
51 241676301 Rotation Stop
52 241684901 Spacer-fixed blades
53 241690402 Pin-spiral, fixed blades
54 241685001 Nut-auger
55 241690306 Washer
56 241690201 E-ring
70 241504601 Plate-mounting
70* 241551601 Screw, hex head, 8-18B x 0.875
70* 241716801 Clip
* 240562101 Insulator
* 241504303 Ice Container Assy, w/moving parts

Publication No: 5995483202 E23CS78GPS0
01/07 18
ICE MAKER
45
51
64
6
6
7
6
16
67
20
21
19
22 66
60
18
17
3
2
23
23
34
34
34
11
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
N58I115T1
15
14
12
13
33
42

E23CS78GPS0 Publication No: 5995483202
# Functional Parts 19 01/07
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 218976409 Tube, water, door
1* 218976901 Tube, water inlet, valve to IM
1* 218976903 Tube-water inlet, inlet valve, to filter
1* 218976917 Tube-water inlet, valve to door
1* 240561701 Seal-water inlet, inlet valve, to ice maker
2 5304436616 Spring, torsion
3 5304436610 Detent
4 3206301 Gear
5 5304436604 Plate-mounting
6 5304455670 Screw, taptite, 8-32 x 1/4
7 # 5304436619 Motor-ice maker
8 3206312 Spacer-hold switch
9 3206313 Cam
11 # 5304436618 Thermal Cutoff, ICE MAKER, complete assy
12 5304436614 Harness-wiring
13 5304436613 Thermostat, ICE MAKER
14 5304455676 Screw, plask, 4-14 x 3/4
15 # 3206324 Switch, (3)
16 5304436609 Housing, control
17 # 5304436617 Mold-ice maker, with heater
18 5304436607 Ejector-ice
18* 5304455843 Harness-wiring
19 5304436606 Cup-water inlet
20 5304455677 Screw, 8-32 x 3/8
21 5304436608 Ice Stripper
22 5304436602 Shut-off Arm
23 5304455678 Screw, 8-32 x 7/8, mold-to-support
27 5304455681 Screw, taptite, 4-40 x 1.000, hold switch mtg, (2)
29 5304455845 Screw, 4-24 x 0.750, (6)
30 5304455682 Screw, type 23, 8-32 x 1.00
31 3206342 Insulator
32 5304455683 Plate-valve switch
33 5304436615 Spring-thermostat
34 5304455684 Screw, plazscrew, 8-10 x 1/2, (3)
35 5304455685 Screw
36 5304436605 Cover-ice maker
37 5304408583 Spring-timing adj
42 218515403 Clip-grille
45 5304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 241523502 Tube-water fill, extension
55 # 240531101 Valve-water, triple solenoid
55* 218709101 Screw, hex head, 10-32 x 0.500
55* 240363602 Screw-shoulder
55* 240542901 Cap-water valve
60 218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
64 5303001549 Clamp, 0.31 ID, steel, copper wtr line
66 5304436611 Bracket-ice maker
67 5304436612 Switch, on/off
* 218888001 Adapter, water line, w/fittings
* 240352102 Connector-water, straight
* 241583301 Deflector-air, ICE MAKER
* # 241696501 Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995483202 E23CS78GPS0
01/07 20
WIRING SCHEMATIC
DC DAMPER MOTOR
NTC-FF
U.I DISPLAY
TDO
RD1 COM
+5
J1-2 J1-1 J1-3
J1-4
RED
GRN
BLK
NATURAL
BARE
J1-7
J1-8
J1-9
J1-10
J1-11
J1-12
GRAY CABLE
RD1 TDO
COM
+5
SHEILD
NTC-AMBIENT
ALARM
DEFROST JUMPER OPEN=ADC SHORT-TIMER
J1
A
M
1
2
3
4
A
A
RED/YEL
BLK/YEL
BRN/YEL
WHT/YEL
GRY
GRY
J1-1
J1-2
J1-3
J1-4
J1-5
J1-6
NTC-FREEZER
AIR FILTER FAN
EVAPORATOR FAN
GRY
GRY
J2-9
J2-8
RED
BLK
WHT/RED
BLK/RED
DK. BLU/WHT
RED/WHT
YEL/WHT
BRN/WHT
RED/BLK
BLK
FG
VCC+12V
VS
COM
RED BLK
VARIBLE SPEED DC CONTROLLEDLO-VOLT DC
VCC COMPRESSOR
(N) WHT
(L) PUR
A/C
LT.BLU
BLK
INPUT
J2-7
J2-6
J2-10 J2-5
J2-4
J2-3
J2-2
J2-1
J2
+5
LO-VOLT DC
HI-VOLT AC
DTT
BRN
DEFROST HEATER J3-7
J3-8 J3-6
J3-3
J3-5
J3-1
J3-4 J3-2
BLK
YEL/GRY
LT. BLU YEL/PNK
ORG/WHT
L1
FF LIGHTS
N
FREEZER LIGHT SENSE
FROM IWD. FAST ICE/FREEZE
CONDENSER FAN
STANDARD COMPRESSOR
M
RED
GRN/YEL
HI-VOLT AC
DEFROST CURRENT SENSE
3A
J3 VCC
COMPRESSOR ONLY
STANDARD COMPRESSOR ONLY
M
M
5
6
7
8
5
6
7
8
5
4
3
2
1
5
4
3 2
1
6
5
4
3
2
1
6
5
4
3
2
1
CATCH
LATCH
CATCH
LATCH
CATCH
LATCH
12 11
10
9
8
7
10
9
8
7
6
1
2
3
4
YEL/BLK
YEL/GRY
OPEN
YEL/PNK
YEL/RED
APOLLO LIGHTING CONTROL
FZ LIGHTS
YEL/RED
YEL/BLK
LT. BLU
J1
J2
J2-3 J2-2 J2-1 J1-3 J1-2 J1-1
2
1
3
3
2
1
WHEN APOLLO NOT PRESENT CONNECT THESE TOGETHER
