Product No. E23CS78HPS2
Series Icon
Color stainless/nkl
Volts 115

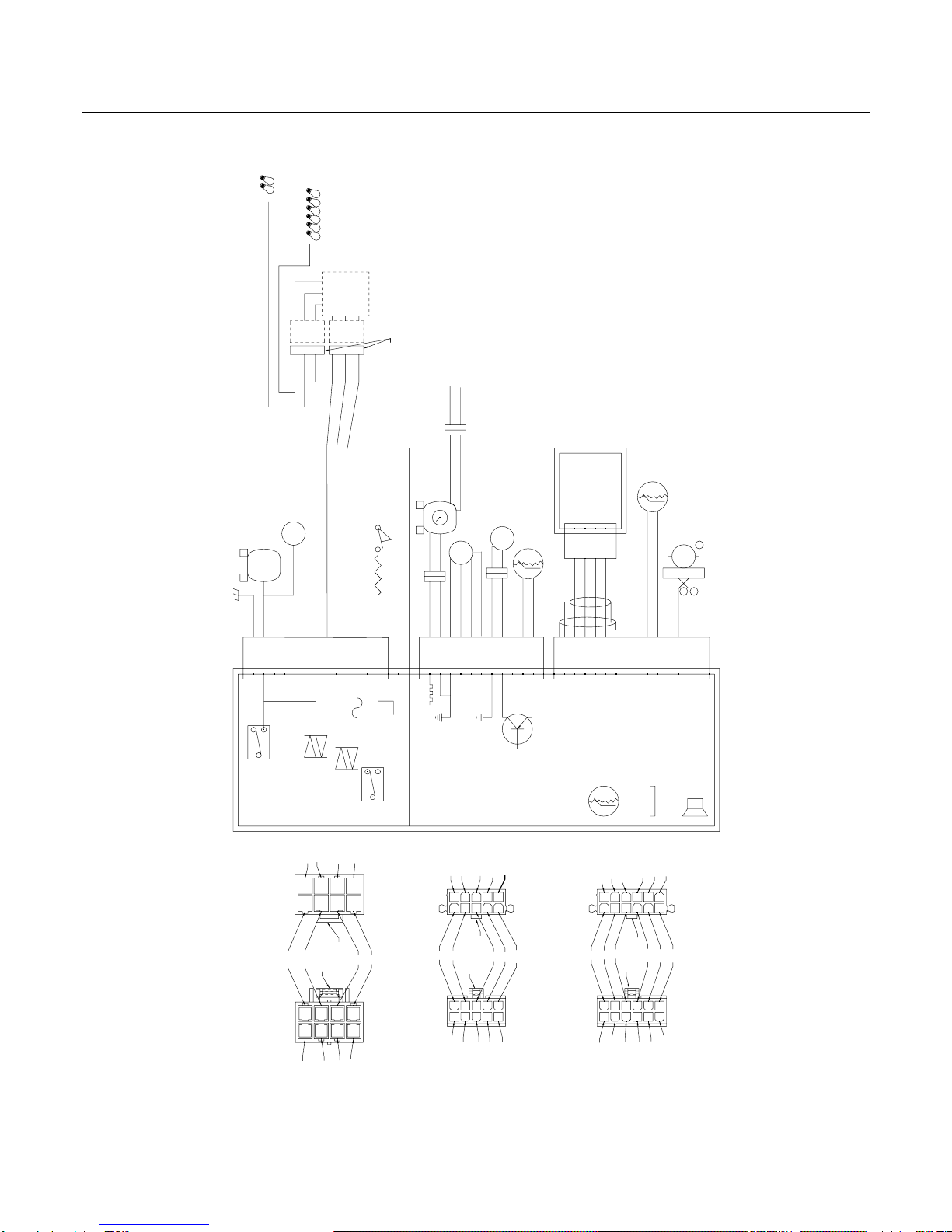

Wiring Diagram 241638600
Owner's Guide 241540105
Market North America
Energy Guide 241868035
Service Data Sheet 241639000
Electrolux Major Appliances
North & Latin America
P.O. BOX 212378
AUGUSTA, GA 30917
Publication No.
5995522264
08/08/22
(EN/SERVICE/KHB)
137
SIDE-BY-SIDE
REFRIGERATOR
Model No.
E23CS78H
Copyright ©2008 Electrolux Home Products, Inc.
All rights reserved.

Publication No: 5995522264 E23CS78HPS2
08/08 2
FREEZER DOOR

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 3 08/08
* Non-Illustrated Parts
FREEZER DOOR
POS. NO PART NO. DESCRIPTION
1 # 7241510202 Gasket-frzr door, white, magnetic
4B 7241808218 Bin-door, frzr-upper
5 7241545006 Bin-tilt out, tilt-out
11 7241837127 Door-frzr, stainless, complete assy
13A 7240581906 Door Stop, black, frzr
18 7241637921 Handle Assembly, stainless, w/endcaps
18* 7241601001 Wrench, allen
21A 7240598402 Screw, 10-32 x 1/2
22A 7240328204 Bearing-hinge(frz), black, closer
22C 7240328404 Bearing-hinge, black, upper
68 7241525101 Chute-ice
79 7218755401 Screw-set, 10-32 x 0.375
80 7218755504 Screw-shoulder, #10 AB, handle mounting
* 7240451503 Screw, ind hex wshr hd, 8-32 x 0.375, trilobe
* 7240552102 Harness-wiring, door
* 7241806601 Connector-water, straight
* 75303918256 Dispenser heater kit

Publication No: 5995522264 E23CS78HPS2
08/08 4

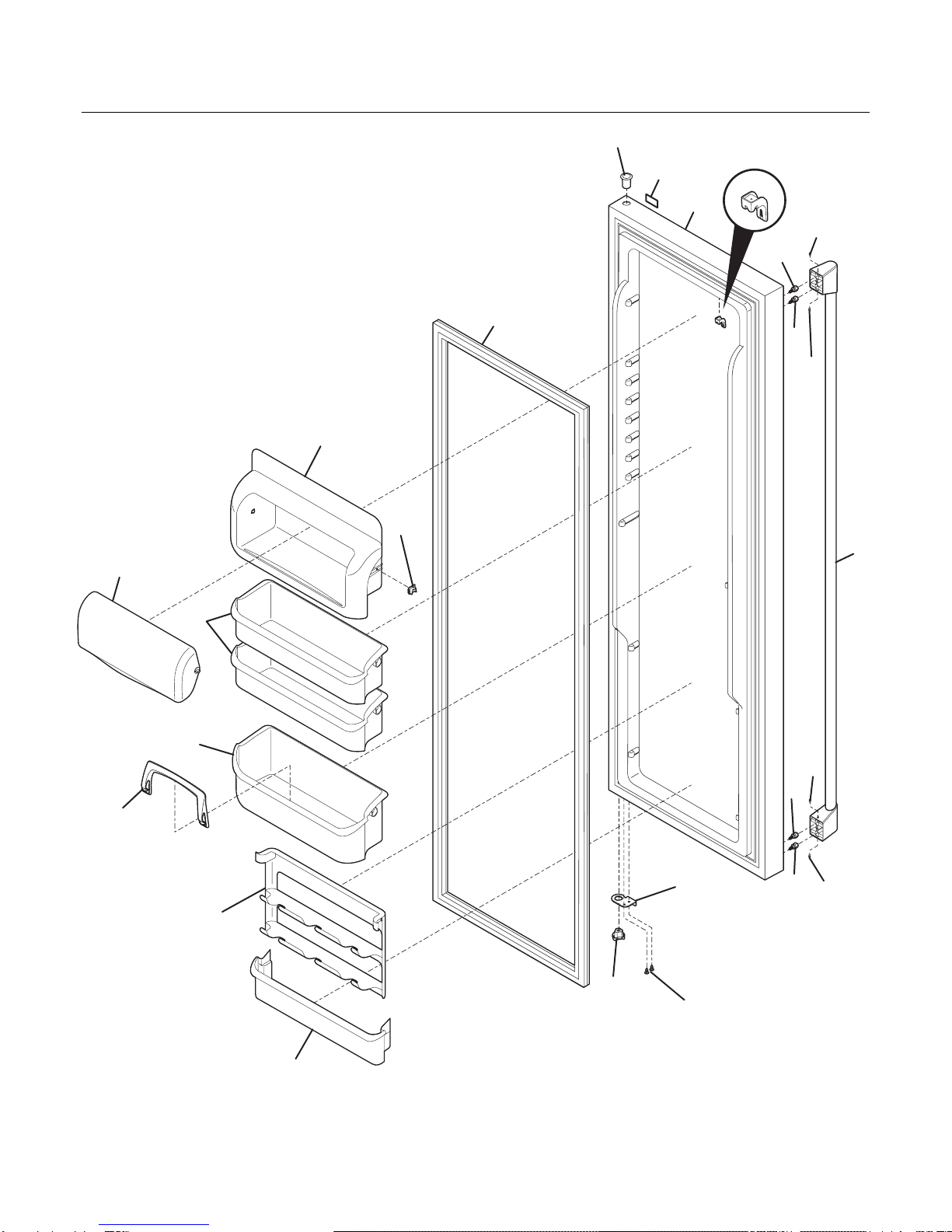

REFRIGERATOR DOOR
80
80
80
80
79
79
79
79
18
N58RMDCHA0
70
50
49A
49
48
27A
22B
22
21A
15
13
7
6
5
2
12

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 5 08/08
* Non-Illustrated Parts
REFRIGERATOR DOOR
POS. NO PART NO. DESCRIPTION
2 # 7241510201 Gasket-refr door, white, magnetic
5 7241516102 Rack-can
6 7241515901 Lug-dairy compartment
7 7241515601 Door-dairy
12 7241603101 Label, nameplate, elux/icon
13 7240581905 Door Stop, black, ref
15 7241837221 Door-refr, stainless, complete assy
18 7241637921 Handle Assembly, stainless, w/endcaps
18* 7241601001 Wrench, allen
21A 7240598402 Screw, 10-32 x 1/2
22 7240328203 Bearing-hinge, black, closer
22B 7240328404 Bearing-hinge, black, upper
27A 7240396102 Retainer, tall bottle
48 7241808209 Bin-door, pseudo, bottom
49 7241808215 Bin-door, 2-liter
49A 7241808212 Bin-door, gallon
50 7241508401 Cover-magnet
50* 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile
70 7241515801 Compartment-dairy, removable
79 7218755401 Screw-set, 10-32 x 0.375
80 7218755504 Screw-shoulder, #10 AB, handle mounting

Publication No: 5995522264 E23CS78HPS2
08/08 6
CABINET
100
92
92
90
89
83
82
81
81
73
73
72
66
58
58
54
50
47
45
45
45
45
45
45
45
43
42
42
41
40
38
38
37
37
28
30A
30
23
23
22
22
21C
21C
11
10A
10
N58BECDAA1
14A

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 7 08/08
* Non-Illustrated Parts
CABINET
POS. NO PART NO. DESCRIPTION
10 7241509804 Cover-air duct
10A 7241719712 Cover-evap coil, lower
11 7241529301 Plug-hole, factory test
14A 7241547901 Switch-light/lamp, frzr door
21C 7218252201 Screw, #8 truss hd, 10-32CA x 0.500
22 7240457701 Plate-door closer
23 7240402702 Screw-#10-32 x 1/4 flat hd
28 7240335502 Bolt-roller adj, hex washer head, 1/4-20 x 4.020, (2), special
30 7241603703 Bracket-lower hinge, ref
30A 7241603704 Bracket-lower hinge
37 7240337612 Trim-cabinet corner, nickeloid, (2)
38 7240327207 Bracket-upper hinge
40 7241551304 Cover-upper hinge, nickeloid
41 7241550801 Grommet-shelf mtg, 1.40" long
41* 7241550701 Grommet-shelf mtg, .96" long
42 7240578902 Screw, hex head, 1/4-20 x 5/8
43 7240335006 Roller Assy, front, (2)
45 7241500303 Screw, hex washer head, 8-18AB x 0.500
47 7241513001 Channel-shelf mtg, side, (2)
50 7241511112 Board-main power
50* 7241524802 Seal, housing
50* 7241532501 Clip-harness
54 7241532401 Channel
58 7241548003 Screw, 10-32 x 3/8
66 7241513602 Damper-meat keeper
72 7241554708 Grille/Kickplate
73 7241926601 Screw, truss head
81 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile
82 75304418225 Roller, compressor base, rear, (2)
83 75304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
89 7241733902 Cover-access, w/label
90 7218249808 Seal-coil cover
92 7241710601 Screw, hex washer hd, 1/4 x 7/8, hinge mtg
100 7240423701 Support, crisper cover, front, (4)
100* 7240350802 Support, crisper cover, rear, (4)
* 7241591701 Louver

Publication No: 5995522264 E23CS78HPS2
08/08 8
SHELVES
140
126
126
122
39
39
121
120
109
108
108
107A
107
101
101
100
97
81
81
62
60
81
52B
52A
52
52
51B
51A
51
51
49B
49A
49
47B
47A
47
27A
26A
51D
52D
52D
52C
51D
51C
27
26
25B
25A
25
24
24
24
21
16
16
16
15
15
15
15
15
15
2
2A
2
N58SDDKEI10
11A
11
41
143

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 9 08/08
* Non-Illustrated Parts
SHELVES
POS. NO PART NO. DESCRIPTION
2 7241539502 Trim-basket
2A 7241539501 Trim-basket
11 7240443357 Shelf-freezer, glass, lower
11A 7240443358 Shelf-freezer, glass, upper
15 7241552801 Light Bulb
16 7241622802 Socket-light
16* 7241510802 Harness-wiring, control box
16* 7241513101 Harness-wiring
21 75304455658 Screw, hx wshr hd sems, 8-15A x 0.625
24 7241753102 Shelf-"Spill-Safe", cantilever, sliding
25 7241565002 Cover-crisper pan, upper
25A 7241564301 Cover-crisper pan, lower
25B 7241565701 Cover-meat pan
26 7240351049 Pan-crisper, upper
26* 7241595202 Clip-slide, pan-crisper
26A 7241638201 Control-humidity
26A* 7241638101 Frame-humidity control
27 7240351225 Pan-crisper, lower
27A 7240362201 Control-humidity
39 7240367604 Trim-shelf, front
41 7241637601 Baffle-air
47 7240350649 Insert-pan cover, glass
47A 7240350603 Insert-pan cover, glass
47B 7240443356 Insert-pan cover, glass
49 7241541802 Basket-sliding
49A 7241541902 Basket-sliding, upper, half
49B 7241541702 Basket-sliding, mid
51 7241514501 Hanger-basket, RH
51A 7241514701 Hanger-shelf glass, RH
51B 7240579803 Hanger-basket, RH
51C 7240579807 Hanger-basket, RH
51D 7240579808 Hanger-basket, RH
52 7241514601 Hanger-basket, LH
52A 7241514801 Hanger-shelf glass, LH
52B 7240579804 Hanger-basket, LH
52C 7240579805 Hanger-basket, LH
52D 7240579806 Hanger-basket, LH
60 7218362501 Screw, hex washer head, 8-18AB x 1.250, spacer, (2)
62 7240599706 Pan-meat
81 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile
97 7241532005 Water Tank
100 7240326304 Cover-water tank
101 7218493101 Screw, hex washer head, 8-18AB x 1-3/4
107 7241513402 Shield-light, meat pan
107A 7241521802 Shield-light, frzr
108 7241513301 Cover-wiring, meat pan light
109 7241513202 Base-crisper light socket
120 7241691701 Shelf-ice cream
121 7241504701 Rail-ice cream shelf, LH
122 7241504702 Rail-ice cream shelf, RH
126 7241674401 Channel, auger mtg, LH
126 7241674402 Channel, auger mtg, RH
140 7240430505 Channel, wtr tube cover
143 7240423305 Divider-crisper pan
* 7241868035 Energy Guide

Publication No: 5995522264 E23CS78HPS2
08/08 10
CONTROLS
201
199
198
151
155
154
206
149
139
138
137
116
115
81
81
81
75
60
23
22
205
21
17
16
15
15
14
13
9
8
5
N58TBBAAB5
54
50
75A

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 11 08/08
* Non-Illustrated Parts
CONTROLS
POS. NO PART NO. DESCRIPTION
5 # 75308000010 Fan Blade, red, evaporator fan
8 7215474201 Washer, "slinger", nylon, evap fan shaft
9 7241518301 Bushing, motor mounting
13 7241509402 Motor, evaporator fan
13* 7241510501 Seal-diffuser
14 7241517701 Clip, evap fan motor
15 7241552801 Light Bulb
16 7241622802 Socket-light
17 7241516201 Box-control, front
17*# 7241510802 Harness-wiring, control box
21# 7241528203 Control-temperature
22 7240597203 Sensor
23 7241512901 Cover-sensor
23* 75304455649 Screw, pan hd, 6-20 x 0.438
50 7241511112 Board-main power
50* 7241524802 Seal, housing
50* 7241532501 Clip-harness
54 7241532401 Channel
60 7241510301 Diffuser-air
75 7241517802 Shield-light
75A 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile
81 75304455658 Screw, hx wshr hd sems, 8-15A x 0.625
115 7241518501 Damper, motorized
116 7241518601 Seal-damper, foam
137# 7240396405 Filter, water, carbon cassette, front, with o'rings
137* 7240396701 Bypass, water filter, Optional Part
138 7240397301 Button-filter release
139 7240396002 Base-water filter
139* 7240526901 O-ring, wtr filter base
149 7241517601 Shroud-evap fan mtg
149* 7241528304 Seal, foam, evap fan assy
151 7241526001 Filter housing
154 7241525801 Duct-air
155 7241526102 Motor-air filter
155* 7241527202 Harness-wiring, filter fan
198 7240397401 Retainer
199 7240397501 Rod
199* 7240398401 Spring-filter release rod
201 7240596910 Switch-membrane
205 7241525901 Air Filter Door
206 7241504902 Filter-air
* 7241537401 Shield
* 73205266 Edge Protector, wiring harness

Publication No: 5995522264 E23CS78HPS2
08/08 12
SYSTEM
86
85
30
84
83
83
82
82
70
62
61
60
59B
59B
59A
59A
59A
59
58
57
45
45
44
41
34
34
29
26
25
25
23
23
22
21
16
15
14
6
4
3
1
N58CACBAA3
50

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 13 08/08
* Non-Illustrated Parts
SYSTEM
POS. NO PART NO. DESCRIPTION
1 7240333603 Condenser
3 7218679607 Block-evap coil, styrofoam, (2)
4 # 7218944001 Drier-filter, R134a System
6 7241516901 Cord-service
6* 7241510801 Harness-wiring
6* 7241520403 Harness-wiring
6* 7241527202 Harness-wiring, filter fan
6* # 7241636203 Harness-wiring, machine compt
14 # 7241940201 Heater-defrost
15 # 75303918284 Evaporator Kit
16 75308000110 Strap-evap/heater, aluminum, (2)
21 75303918214 Thermostat-defrost, kit
22 7240330011 Base-compressor mtg
22* 7218252201 Screw, #8 truss hd, 10-32CA x 0.500
23 7218513300 Grommet-compr mtg, (4)
25 7240491503 Screw-compressor mtg, 1/4-28 x 1.16, (4)
26 7241697501 Pan-defrost drain
29 # 75303918396 Compressor Kit
30 # 7241577505 Invertor
34 7240405201 Grommet, rubber, black, cond tube/wire
41 7240555002 Screw-#8-32 X 3/8
44 7215174700 Clamp-service cord, strain relief, galv steel
45 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile
50 7241635501 Housing-control, apollo lighting
50* 7241641501 Screw
57 7240542601 Clip-wiring harness
58 7240433203 Screw, hex washer head, 8-18 x 3/8
59 7240315502 Shroud-cond fan
59* 7240346701 Tape-foam seal, shroud
59* 7240359403 Screw-fan shroud, (2)
59A 7240346501 Bracket-support, cond mtr, (3)
59B 7240346601 Grommet-bracket, (3)
60 7241584301 Motor-condenser fan
61 7241639501 Blade-condenser fan
62 7240429402 Trough-drain
70 7218990801 Bracket-evap/cvr mtg
82 75304418225 Roller, compressor base, rear, (2)
83 75304455655 Rivet, flat head, 1/4 OD x 1-3/4, roller pin
84 75304421068 Tube-drain, lower
85 7241871501 Tube-connector, suction
86 7240409302 Spacer-cond tube, black
* # 75303918327 Heat Exchanger Kit, suction line
* 75303918222 Hot Tube Repair Kit, service

Publication No: 5995522264 E23CS78HPS2
08/08 14

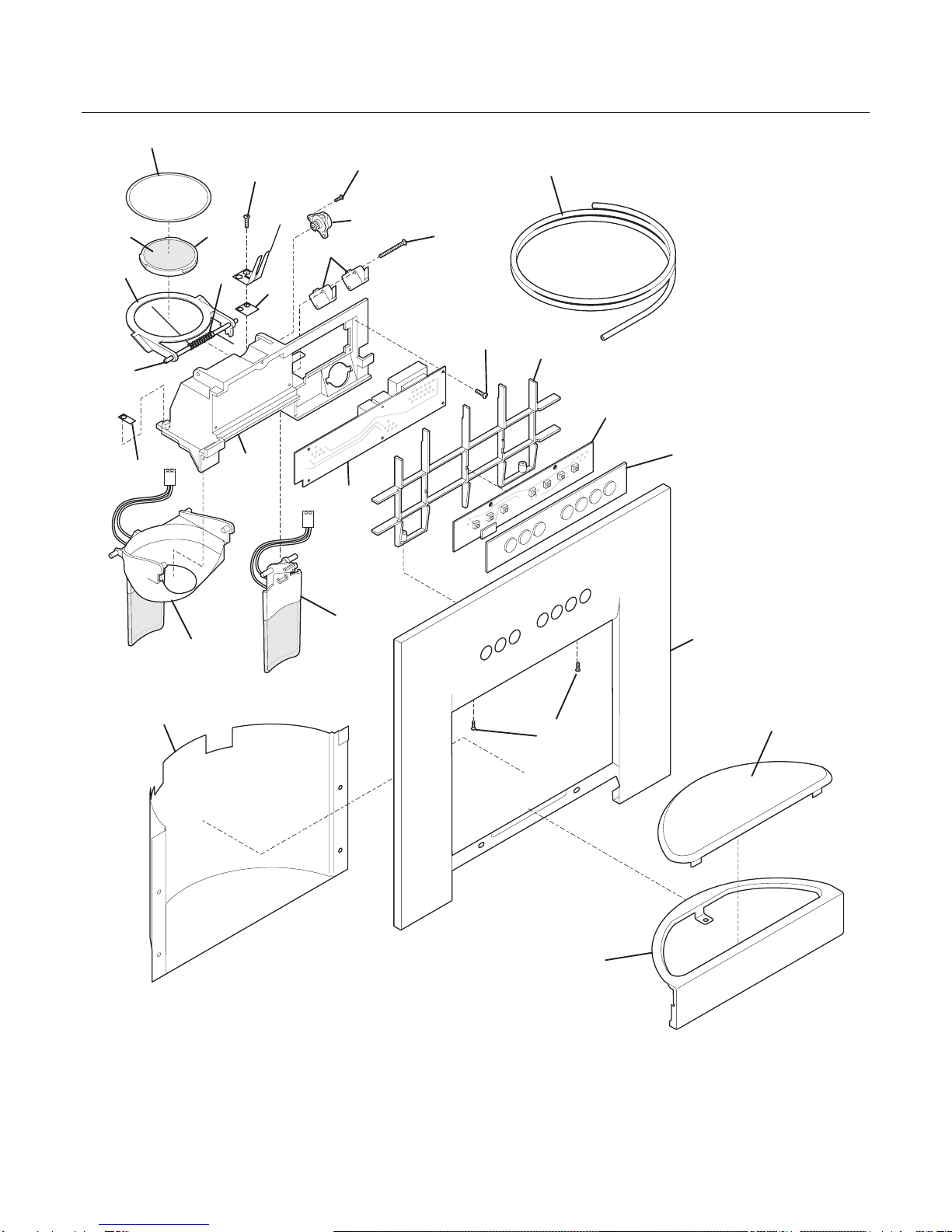

ICE & WATER DISPENSER
94
36
100
23
87A
87
56
43
39
38C
38A
38
35
30C
30A
30B
30
24A
24
23A
74
17
17
10
8
4
1
N58XECAAA1
41

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 15 08/08
* Non-Illustrated Parts
ICE & WATER DISPENSER
POS. NO PART NO. DESCRIPTION
1 7218976409 Tube, water, door
1* 7218976418 Tube-water inlet, inlet valve, to filter
1* 7218976421 Tube-water inlet, valve to door
1* 7218976915 Tube-water inlet, inlet valve, to filter
1* 7240561702 Seal-water inlet, inlet valve, to ice maker
4 7241533207 Cover-module, stainless
4* 7241533401 Seal, foam
8 7241680504 Module-dispenser
10 7241688901 Spring-torsion
17 7241679801 Screw
23 7241531102 Drip Tray, stainless
23* 7240363402 Screw-#8-18 X 1/2, #6 hd plask
23A 7241531601 Drip Tray Insert
24 7241685704 Actuator, stainless
24A 7241682304 Actuator-ice, stainless
30 7241688401 Door Assy-ice chute
30A 7241688501 Door center
30B 7241688601 Insulation-door
30C 7241688701 Door seal
35 7241689301 Damper-rotary
36 7241533501 Button Module, stainless
38 7241527601 Board-power
38A# 7241689101 Switch-micro, single pole, double throw
38C# 7241527501 Board-control
38C* 7241680001 Harness-ribbon cable
39 7241688801 Pin-hinge
41 7241689001 Spring-actuator
43 7215296301 Screw, plask h/l, #6 x 3/8
56 7241689201 Screw-micro switch, pan head
74 7241720001 Screw, #4 hilo, (2)
87 7241688302 Bearing Plate
87A 7241688301 Bearing Plate
94 7241533301 Support, control board
100 7241530402 Liner, dispen housing, stainless
* 7218515403 Clip-grille
* 7241510902 Harness-dispenser
* 7241686201 Insulator-electrical
* 75303918256 Dispenser heater kit

Publication No: 5995522264 E23CS78HPS2
08/08 16
ICE CONTAINER
45
4
45A
48
47
46
45B
45C
45D
50
18 20
15
16
44
44
58
51
26
26
26
26
10
26
43
43
43
49
7
3
2
23
39
70
39
6
17
53
52
37A 34
33
37B
34 33
37C
54
35A
35B
41
56
55
13
25
25
22
N58YDAAAC5
39

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 17 08/08
* Non-Illustrated Parts
ICE CONTAINER
POS. NO PART NO. DESCRIPTION
2 7241684701 Auger-ice
3 7241685201 Cam-drive
4 7241515202 Container-ice, bucket only
6 7241685101 Drum-ice disp
7 7241515301 Front-ice container
10 7241726501 Bar-drive
13 7241685301 Gate
15 7241555401 Light Bulb
16 7241559801 Socket-light
17 7241684501 Drive Blade
18 # 7241676201 Motor-auger
18* 7241522901 Harness-wiring, icmkr/container
20 7241675502 Cover-motor
22 7240597203 Sensor
22* 7241519401 Clip, sensor
23 7241684001 Plate-front
25 7241690701 Screw, hex washer head, 8-32T x 0.375
26 7215503203 Screw, cr pan hd, 10-16 x 0.500
33 7241684801 Spacer
34 7241689801 Spacer
35A 7241684301 Fixed Blade, round
35B 7241684201 Fixed Blade, square
37A 7241684101 Blade, crusher #1
37B 7241684102 Blade, crusher #2
37C 7241684103 Blade, crusher #3
39 7241690501 Screw
41 7241685601 Housing-crusher
43 7215005101 Screw, hanger/rlr mtg, 8-10 x 7/16
44 7241842101 Screw, 8-32 x 1/4
45 # 7241675701 Solenoid Assy, 115V
45A 7241675901 Spring-solenoid
45B 7241676001 E-Ring-solenoid
45C 7241676101 Actuator-solenoid
45D# 7241675801 Solenoid, 115V
46 7241684402 Control Rod
47 7241731801 Spring-control rod
48 7241684602 Bracket-control rod
49 7241676501 Rail Assy
50 7241675601 Guide-solenoid
51 7241676301 Rotation Stop
52 7241684901 Spacer-fixed blades
53 7241690402 Pin-spiral, fixed blades
54 7241685001 Nut-auger
55 7241690306 Washer
56 7241690201 E-ring
58 7218359202 Screw, pan head, 8-32 x 0.250
70 7241504601 Plate-mounting
70* 7241551602 Screw, hex head, 8-18B x 0.875
70* 7241716801 Clip
* 7240562101 Insulator
* 7241914702 Ice Container Assy

Publication No: 5995522264 E23CS78HPS2
08/08 18
ICE MAKER
14 15
2
41
24
25
51
64
6
640
43
7
6
16
67
21
19
22
66
60
18
17
39
23
23
34
34
34
11
38
29
30
27
9
15
15
31
32
36
4
35
5
37
8
1
55 INSTALLATION PARTS
12
33
13
45
42
N58I115TServo

E23CS78HPS2 Publication No: 5995522264
# Functional Parts 19 08/08
* Non-Illustrated Parts
ICE MAKER
POS. NO PART NO. DESCRIPTION
1 7218976409 Tube, water, door
1* 7218976418 Tube-water inlet, inlet valve, to filter
1* 7218976421 Tube-water inlet, valve to door
1* 7218976915 Tube-water inlet, inlet valve, to filter
1* 7240561702 Seal-water inlet, inlet valve, to ice maker
2 75304459922 Spring, shut-off arm
4 75304458380 Gear
5 75304458383 Plate-mounting
6 75304458386 Screw
7 # 75304458382 Motor-ice maker Svo
8 75304458388 Spacer-hold switch
9 75304456662 Cam
11 # 75304458400 Thermal Cutoff, ice maker
12 75304458379 Harness-wiring
13 75304456665 Thermostat, ice maker
14 75304458384 Screw
15 # 75304456667 Switch-micro, (3)
16 75304458395 Housing, control
17 75304456669 Mold-ice maker, w/therm cut off
18 75304458377 Ejector-ice
18*# 7240352601 Wiring Harness, internal, with plug
19 75304458378 Cup-water inlet
21 75304458390 Ice Stripper
22 75304458375 Shut-off Arm
23 75304458394 Screw
24 75304458391 Lever Arm
25 75304456676 Screw, M 4x12.8 #2, lever arm/sprt
27 75304458385 Screw
29 75304458393 Screw
30 75304458387 Screw
31 75304458381 Insulator
32 75304456681 Plate-valve switch
33 75304458403 Retainer-thermostat
34 75304456678 Screw, M 3x12 #3, (2)
35 75304456684 Screw
36 75304458376 Cover-ice maker
37 75304456682 Spring, timing adjust
38 75304458398 Clip
39 75304458399 Conductor-heat
40 75304458401 Clip-retainer
41 75304456689 Washer, nylon
42 7218515403 Clip-grille
43 7241720601 Extension
45 75304455650 Screw, hex washer head, 8-15A x 0.625, low profile
51 7241796402 Tube-water fill, extension
55 # 7241734301 Valve-water, triple solenoid
55* 7218709101 Screw, hex head, 10-32 x 0.500
55* 7240363602 Screw-shoulder
55* 7240542901 Cap-water valve
60 75304455651 Screw, hex washer head, 8-15A x 0.500
64 75304455846 Clamp, .31 ID, steel, water tube
66 75304458374 Bracket-ice maker
67 75304458392 Switch-on/off
* 7241583301 Deflector-air, ice maker
* 7241806601 Connector-water, straight
* 75304456660 Screw, M 4x6 #2
* 75304458389 Screw
* # 7241709801 Ice Maker, radius cube, 115 V, no instl parts

Publication No: 5995522264 E23CS78HPS2
08/08 20
WIRING SCHEMATIC
DC DAMPER MOTOR
NTC-FF
U.I DISPLAY
TDO
RD1 COM
+5
J1-2 J1-1 J1-3
J1-4
RED
GRN
BLK
NATURAL
BARE
J1-7
J1-8
J1-9
J1-10
J1-11
J1-12
GRAY CABLE
RD1 TDO
COM
+5
SHEILD
NTC-AMBIENT
ALARM
DEFROST JUMPER OPEN=ADC SHORT-TIMER
J1
A
M
1
2
3
4
A
A
RED/YEL
BLK/YEL
BRN/YEL
WHT/YEL
GRY
GRY
J1-1
J1-2
J1-3
J1-4
J1-5
J1-6
NTC-FREEZER
AIR FILTER FAN
EVAPORATOR FAN
GRY
GRY
J2-9
J2-8
RED
BLK
WHT/RED
BLK/RED
DK. BLU/WHT
RED/WHT
YEL/WHT
BRN/WHT
RED/BLK
BLK
FG
VCC+12V
VS
COM
RED BLK
VARIBLE SPEED DC CONTROLLEDLO-VOLT DC
VCC COMPRESSOR
(N) WHT
(L) PUR
A/C
LT.BLU
BLK
INPUT
J2-7
J2-6
J2-10 J2-5
J2-4
J2-3
J2-2
J2-1
J2
+5
LO-VOLT DC
HI-VOLT AC
DTT
BRN
DEFROST HEATER J3-7
J3-8 J3-6
J3-3
J3-5
J3-1
J3-4 J3-2
BLK
YEL/GRY
LT. BLU YEL/PNK
ORG/WHT
L1
FF LIGHTS
N
FREEZER LIGHT SENSE
FROM IWD. FAST ICE/FREEZE
CONDENSER FAN
STANDARD COMPRESSOR
M
RED
GRN/YEL
HI-VOLT AC
DEFROST CURRENT SENSE
3A
J3 VCC
COMPRESSOR ONLY
STANDARD COMPRESSOR ONLY
M
M
5
6
7
8
5
6
7
8
5
4
3
2
1
5
4
3 2
1
6
5
4
3
2
1
6
5
4
3
2
1
CATCH
LATCH
CATCH
LATCH
CATCH
LATCH
12 11
10
9
8
7
10
9
8
7
6
1
2
3
4
YEL/BLK
YEL/GRY
OPEN
YEL/PNK
YEL/RED
APOLLO LIGHTING CONTROL
FZ LIGHTS
YEL/RED
YEL/BLK
LT. BLU
J1
J2
J2-3 J2-2 J2-1 J1-3 J1-2 J1-1
2
1
3
3
2
1
WHEN APOLLO NOT PRESENT CONNECT THESE TOGETHER
