Electrolux EAL6240AOU User manual

EAL6240AOU
EAL6140WOU
EAL6141WOX
EAL6142BOX
EAL6143WOX
EAL6140WOW
EN FRIDGE FREEZER USER MANUAL
................................................... ........................................................
1

CONTENTS
3 SAFETY INFORMATION
5 PRODUCT DESCRIPTION
8 CONTROL PANEL
10 BEFORE FIRST USE
11 DAILY USE
13 OPTIONS
15 HELPFUL HINTS AND TIPS
18 WHAT TO DO IF…
ENVIRONMENT CONCERNS
Recycle the materials with the symbol . Put the packaging in applicable containers to
recycle it.
Help protect the environment and human health and to recycle waste of electrical and
electronic appliances. Do not dispose appliances marked with the symbol with the
household waste. Return the product to your loca l recycling facility or contact your
municipal oce.
VISIT OUR WEBSITE FOR:
- Products
- Brochures
- User manuals
- Trouble shooter
- Service information
LEGEND
Warning - Important Safety information.
General information and tips
Environmental information
Subject to change without notice.
1

WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings
with it decades of professional experience and innovation. Ingenious and stylish, it has
been designed with you in mind. So whenever you use it, you can be safe in the
knowledge that you’ll get great results every time.
Welcome to Electrolux.
ACCESSORIES AND CONSUMABLES
In the Electrolux webshop, you’ll nd everything you need to keep all your Electrolux
appliances looking spotless and working perfectly. Along with a wide range of
accessories designed and built to the high quality standards you would expect, from
specialist cookware to cutlery baskets, from bottle holders to delicate laundry bags…
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available. The
information can be found on the rating plate.
Model
PNC
Serial Number
2

SAFETY INFORMATION
Before the installation and use of the appli-
ance, carefully read the supplied instruc-
tions. The manufacturer is not responsible
if an incorrect installation and use causes
injuries and damages. Always keep the in-
structions with the appliance for future ref-
erence.
CHILDREN AND VULNERABLE
PEOPLE SAFETY
WARNING!
Risk of suocation, injury or perma-
nent disability.
tDo not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per-
son who is responsible for their safety.
tDo not let children play with the appli-
ance.
tKeep all packaging away from children.
INSTALLATION
WARNING!
Only a qualied person must install
this appliance.
tRemove all the packaging.
tDo not install or use a damaged appli-
ance.
tObey the installation instruction supplied
with the appliance.
tMake sure that the oor where you install
the appliance is not wet or damp.
tDo not move the appliance unless you
are minimum in 2 persons. Be careful
because the applianc e is heavy. Always
wear safety gloves.
tWhen you move the appliance, lift up the
adjustable feet and attach tightly all the
movable parts in the appliance.
tDo not connect the appliance to the
power supply during the installation.
tWhen the installation is completed, wait
minimum 4 hours before you connect
the appliance to the power supply. This
is to let the oil to ow back in the com-
pressor.
tMake sure that there is access to the
mains plug after the installation.
tMake sure that there is sucient air cir-
culation all around the appliance.
tDo not install the appliance near to radia-
tors, cookers, ovens or hobs.
tOnly for appliances with water con-
nection: connect only to drinking water
supply.
tThe rear of the appliance must stand
against the wall.
tDo not install the appliance where there
is direct sunlight.
Electrical connection
WARNING!
Risk of re and electrical shock.
tThe appliance must be earthed.
tMake sure that the electrical information
on the rating plate agrees with the power
supply. If not, contact an electrician.
tAlways use a correctly installed shock-
proof socket.
tDo not use multi-plug adapters and ex-
tension cables.
tMake sure not to cause damage to the
electrical components (e.g. mains plug,
mains cable, compressor). Contact the
Service or an electrician to change the
electrical components.
tThe mains cable must stay below the
level of the mains plug.
tDo not pull the mains cable to discon-
nect the appliance. Always pull the
mains plug.
tDo not touch the mains cable or the
mains plug with wet hands.
USE
tDo not freeze again food that has been
thawed.
tObey the storage instructions on the
packaging of frozen food.
3

WARNING!
Risk of re, electrical shock or ex-
plosion.
tUse this appliance in a household envi-
ronment.
tDo not change the specication of this
appliance.
tDo not put electrical appliances (e.g. ice
cream makers) in the appliance unless
they are stated applicable by the manu-
facturer.
tBe careful not to cause damage to the
refrigerant circuit. It contains isobutane
(R600a), a natural gas with a high level of
environmental compatibility. This gas is
ammable.
tIf damage occurs to the refrigerant cir-
cuit, prevent ames and sources of igni-
tions and fully ventilate the room.
tDo not let hot items to touch the plastic
parts of the appliance.
tDo not put zzy drinks in the freezer
compartment. This will create pressure
on the drink container.
tDo not store ammable gas and liquid in
the appliance.
tDo not put ammable products or items
that are wet with ammable products in,
near or on the appliance.
WARNING!
Risk of injury or burns
tDo not touch the compressor or the
condenser. They are hot.
tDo not put your ngers or tools in the
dispenser outlet.
tDo not remove or touch items from the
freezer compartment if your hands are
wet or damp.
tWhen you remove an ice lolly from the
appliance, do not eat it immediately.
Wait a few minutes.
INTERNAL LIGHT
WARNING!
Risk of injury.
Visible LED radiation, do not look
directly into the beam.
tThe LED light used for this appliance, is
only for household appliances. Do not
use it for house lighting.
tTo replace the internal light, contact
Service.
CARE AND CLEANING
WARNING!
Before maintenance, disconnect
the mains plug from the mains.
tDo not clean the appliance with metal
objects.
tDo not use water spray and steam to
clean the appliance.
tRegularly examine the drain of the refrig-
erator and if necessary clean it. If the
drain is blocked, defrosted water collects
in the bottom of the appliance.
DISPOSAL
WARNING!
Risk of injury or suocation.
tDisconnect the appliance from the mains
supply.
tCut o the mains cable and discard it.
tRemove the door catch to prevent chil-
dren and pets to be closed in the appli-
ance.
tThe refrigerant circuit and the insulation
materials of this appliance are ozone-
friendly.
tThe insulation foam contains ammable
gas. Contact your municipal authority for
information on how to discard the appli-
ance correctly.
tDo not cause damage to the part of the
cooling unit that is near the heat ex-
changer.
RoHS (Directive 2002/95/EC)
Compliant
This environment-friendly product
does not contain the EU RoHS re-
stricted substances (Pb, Hg, Cd,
Cr6+, PBB, and PBDE).
SERVICE
tContact the Service to repair or to re-
charge the appliance.
tWe recommend only the use of original
spare parts.
4

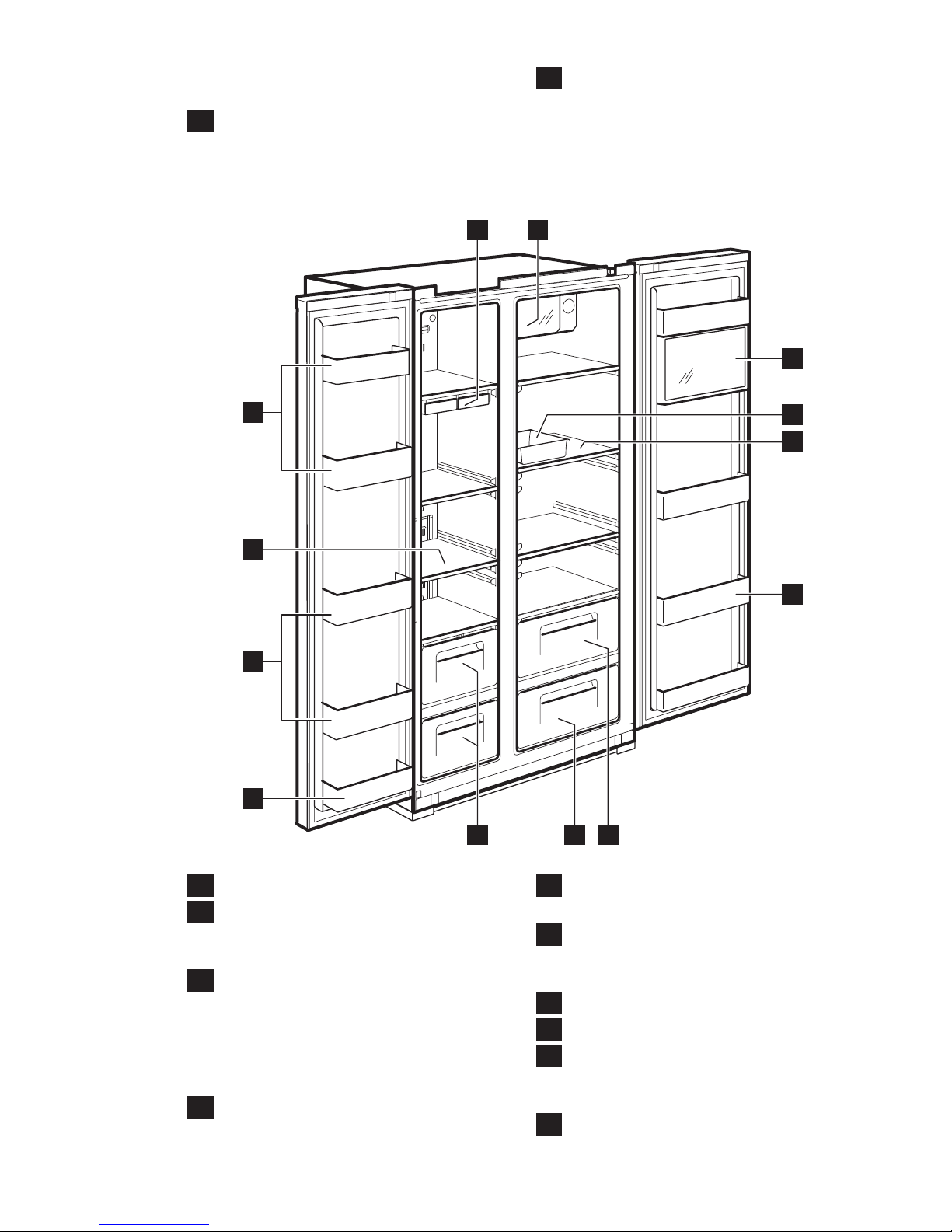

PRODUCT DESCRIPTION
DISPENSER MODEL
1 2
891011
3
4
5
6
7
14
12
13
12
1
Ice Maker and Storage
2
Xpress Can Chiller (quick cooling
compartment)
For storing beverages.
3
Multi Plus Zone
For storing general medicines or cos-
metic products. Safekeeping is not
guaranteed for products such as aca-
demic sampling or medicine which re-
quire a specic temperature range.
4
Egg Case
Do not use this case for storing ice
cubes nor place it in the freezer com-
partment.
5
Refrigerator Shelf (tempered glass)
For storing common foods.
6
Refreshment Compartment (selec-
ted models only)
For frequently used cans, drinking wa-
ter and beverages.
7
Refreshment Pocket
For storing refrigerating foods, milk,
juice, beer bottles etc.
8
Vegetable Case
9
Fruit Case
10
Magic Cool Zone (selected models
only)
11
Freezer Case
For storing dried meat or sh for a lon-
ger period of time.
12
Door Storage Compartment (2–star
compartment)
5

For short-term storage of food and ice-
cream.
13
Door Storage Compartment
For storing frozen food.
14
Freezer Shelf (tempered glass)
For storing frozen foods such as meat,
sh, ice-cream.

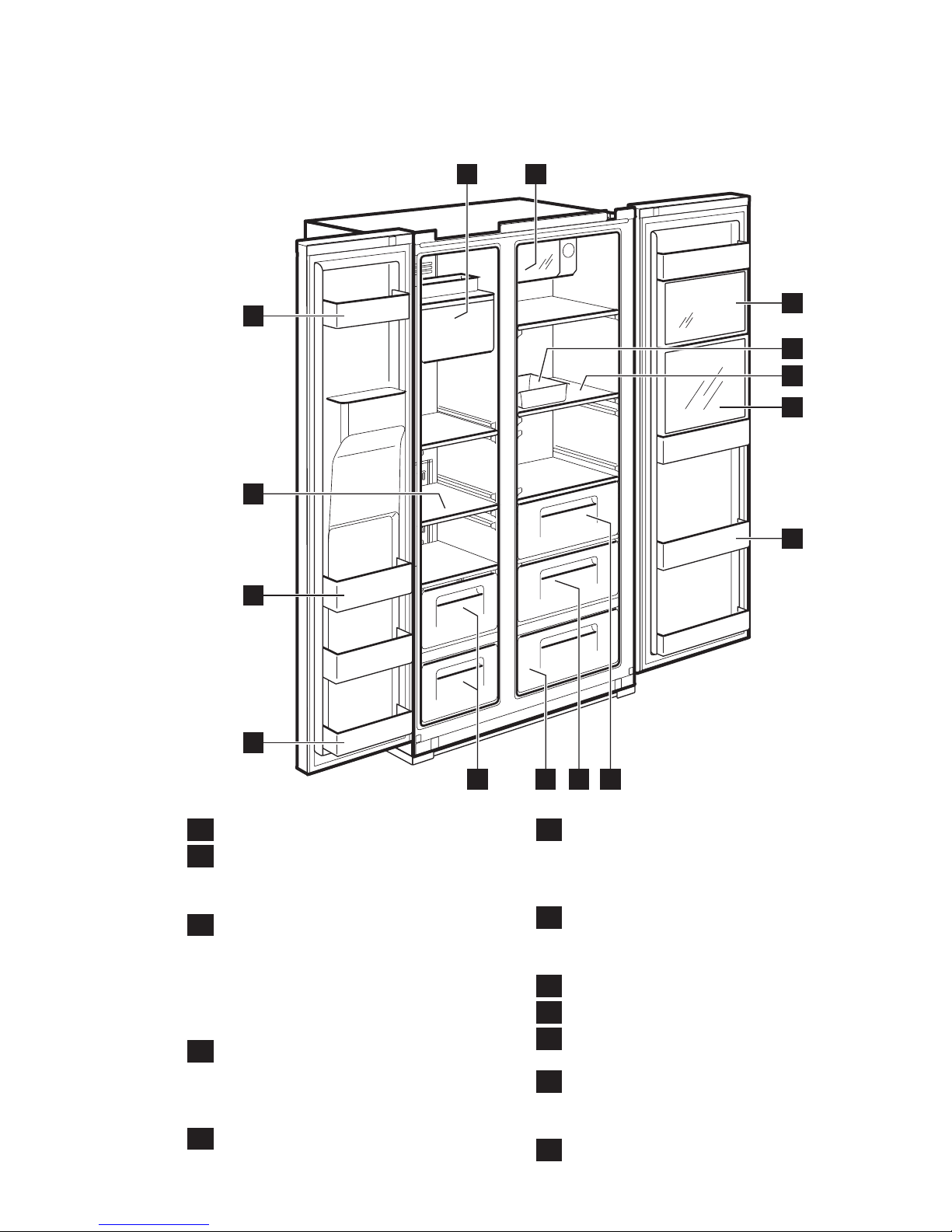

NON DISPENSER MODEL
1 2
789
3
4
5
6
12
10
11
11
1
Ice Cube Tray
2
Xpress Can Chiller (quick cooling
compartment)
For storing beverages.
3
Multi Plus Zone
For storing general medicines or cos-
metic products. Safekeeping is not
guaranteed for products such as aca-
demic sampling or medicine which re-
quire a specic temperature range.
4
Egg Case
Do not use this case for storing ice
cubes nor place it in the freezer com-
partment.
5
Refrigerator Shelf (tempered glass)
For storing common foods.
6
Refreshment Pocket
For storing refrigerating foods, milk,
juice, beer bottles etc.
7
Vegetable Case
8
Fruit Case
9
Freezer Case
For storing dried meat or sh for a lon-
ger period of time.
10
Door Storage Compartment (2–star
compartment)
6

For short-term storage of food and ice-
cream.
11
Door Storage Compartment
For storing frozen food.
12
Freezer Shelf (tempered glass)
For storing frozen foods such as meat,
sh, ice-cream.
7

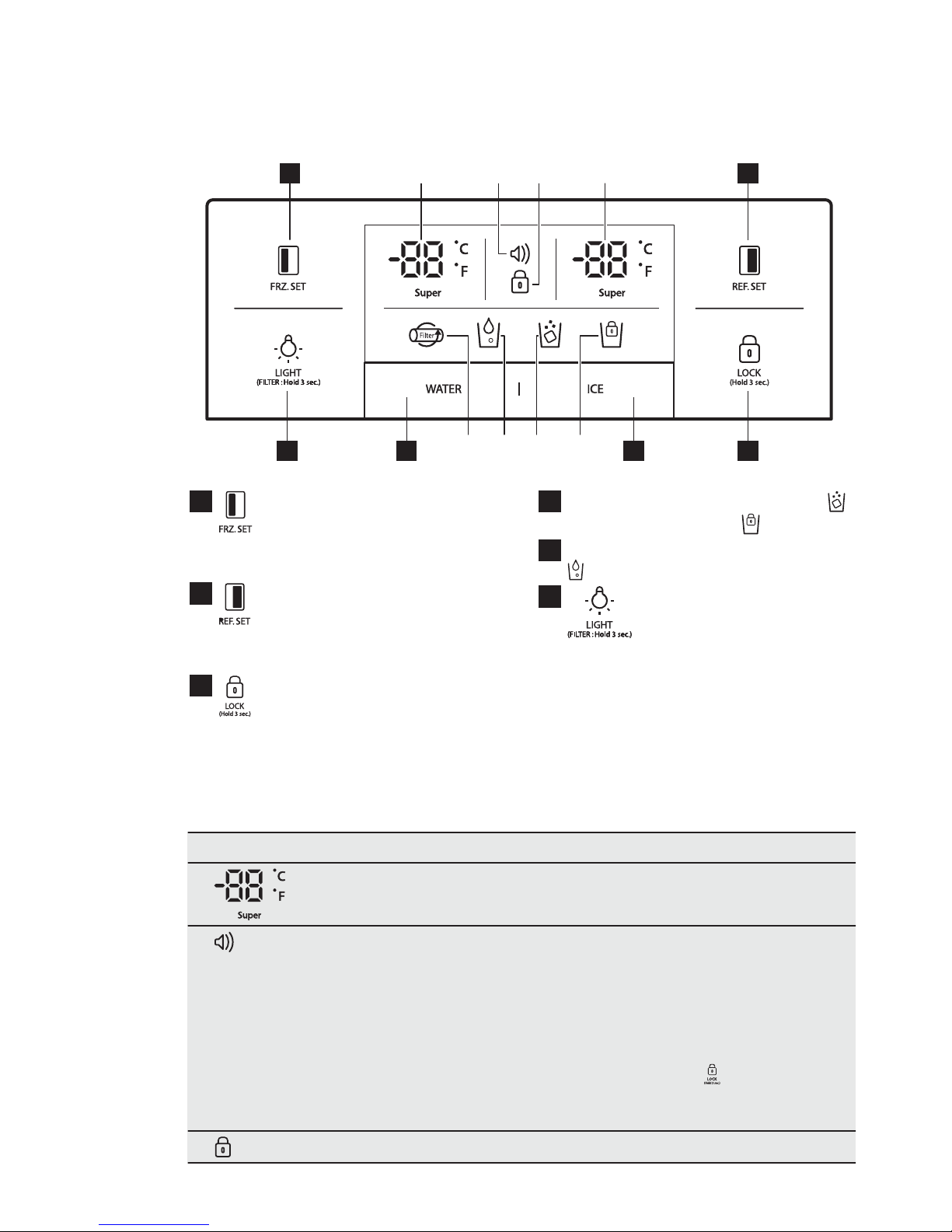

CONTROL PANEL
DISPENSER MODEL
1A DB C 2
3456 EFGH
1
Selection button for freezer compart-
ment temperature
2
Selection button for refrigerator com-
partment temperature.
3
Press this button to prevent settings
from being accidently changed.
To release the button, press it for lon-
ger than 3 seconds. The display
switches o.
4
Selection button for Ice Dispensing
and Lock for Ice Maker
5
Selection button for Water Dispensing
.
6
LIGHT/FILTER button:
1.
Button for switching on a dispens-
er light.
2.
Button for lter exchange or reset.
After exchanging lter or in order
to reset, press this button for 3
seconds.
Indicators (A-H) Description
A.
Freezer temperature indicator
B. Alarm display (no sound)
Customers can be informed of tempera-
ture status when it normally rises due to
accidents (e.g. blackouts)
1. Alarm icon blinks displaying the
highest inner temperature
2. Alarm stops when button is
pressed and display shows temper-
ature control value
C. Lock indicator
8

D.
Refrigerator temperature indicator
E. Lock for Ice Maker indicator
F. Ice Dispensing indicator
G. Water Dispensing indicator
H. Filter Exchange display
After 6 months of the rst power input,
the icon will icker.

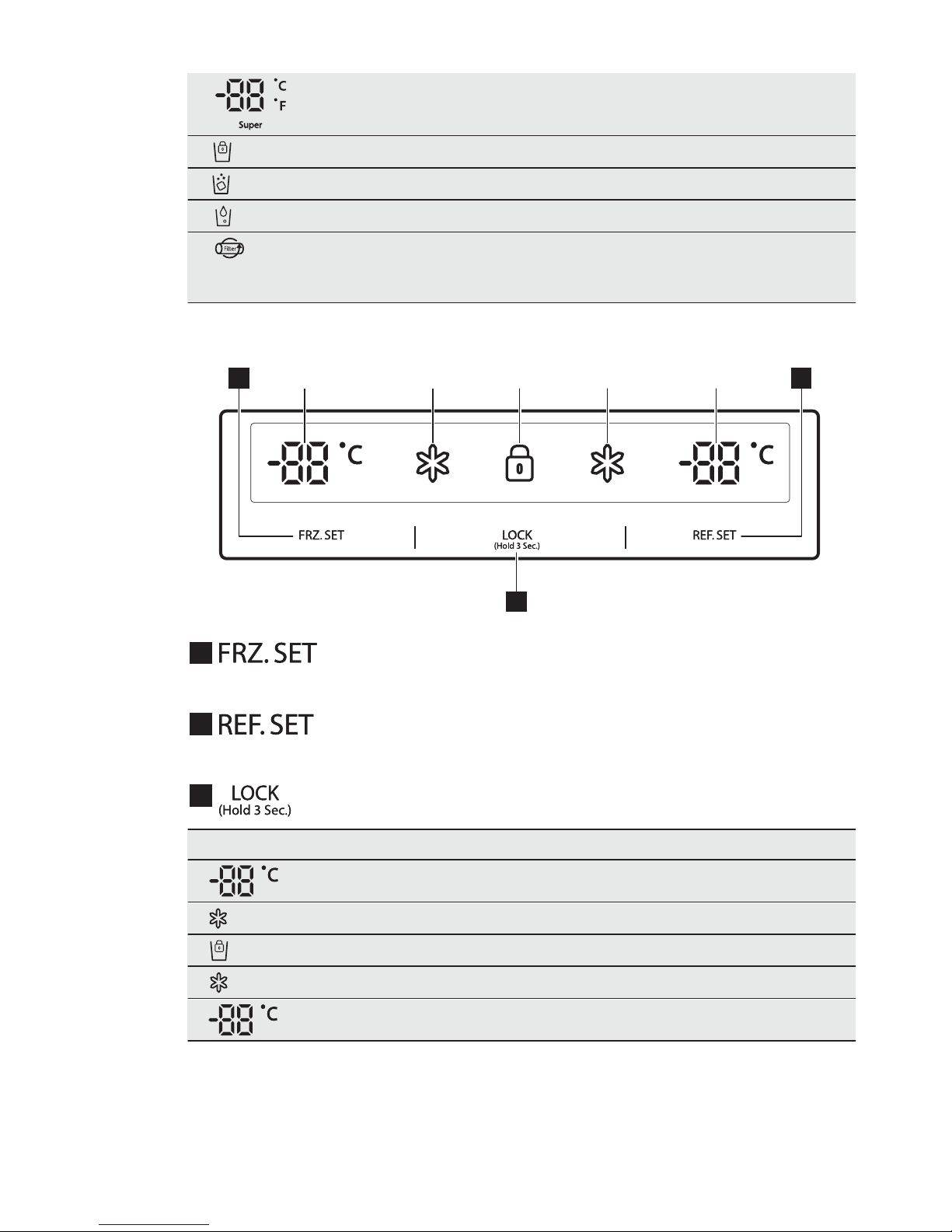

NON DISPENSER MODEL
1 2
A B D EC
3
1
Selection button for freezer compart-
ment temperature
2
Selection button for refrigerator com-
partment temperature
3
Lock button
Press this button to prevent settings
from being accidently changed.
To release the button, press it for lon-
ger than 3 seconds.
Indicators (A-E) Description
AFreezer temperature indicator
B“Super “indicator for freezer
CLock indicator
D“Super” indicator for refrigerator
ERefrigerator temperature indicator
9

BEFORE FIRST USE
INSTALLING WATER LINE
1.
For models with Automatic Ice
Maker
– The water pressure should be
2.0~12.5 kgf/cm2 or more to run the
Automatic Ice Maker.
– Check your tap water pressure. If a
cup of 180 cc is full within 10 sec-
onds, the pressure is appropriate.
– If the water pressure is not high
enough to run the Automatic Ice
Maker, call the local plumber to get
an additional water pressure pump.
2.
When installing the water tubes, en-
sure they are not close to any hot sur-
faces.
3.
The water lter only “lters” water. It
does not eliminate any bacteria or mi-
crobes.
4.
The lter life depends on the amount of
use. We recommend you replace the
lter at least once every 6 months.
When attaching the lter, place it for an
easy access (to remove and replace) .
5.
After installing refrigerator and water
line system, select WATER on your
control panel and press it for 2–3 mi-
nutes to supply water into the water
tank and dispense water.
10

DAILY USE

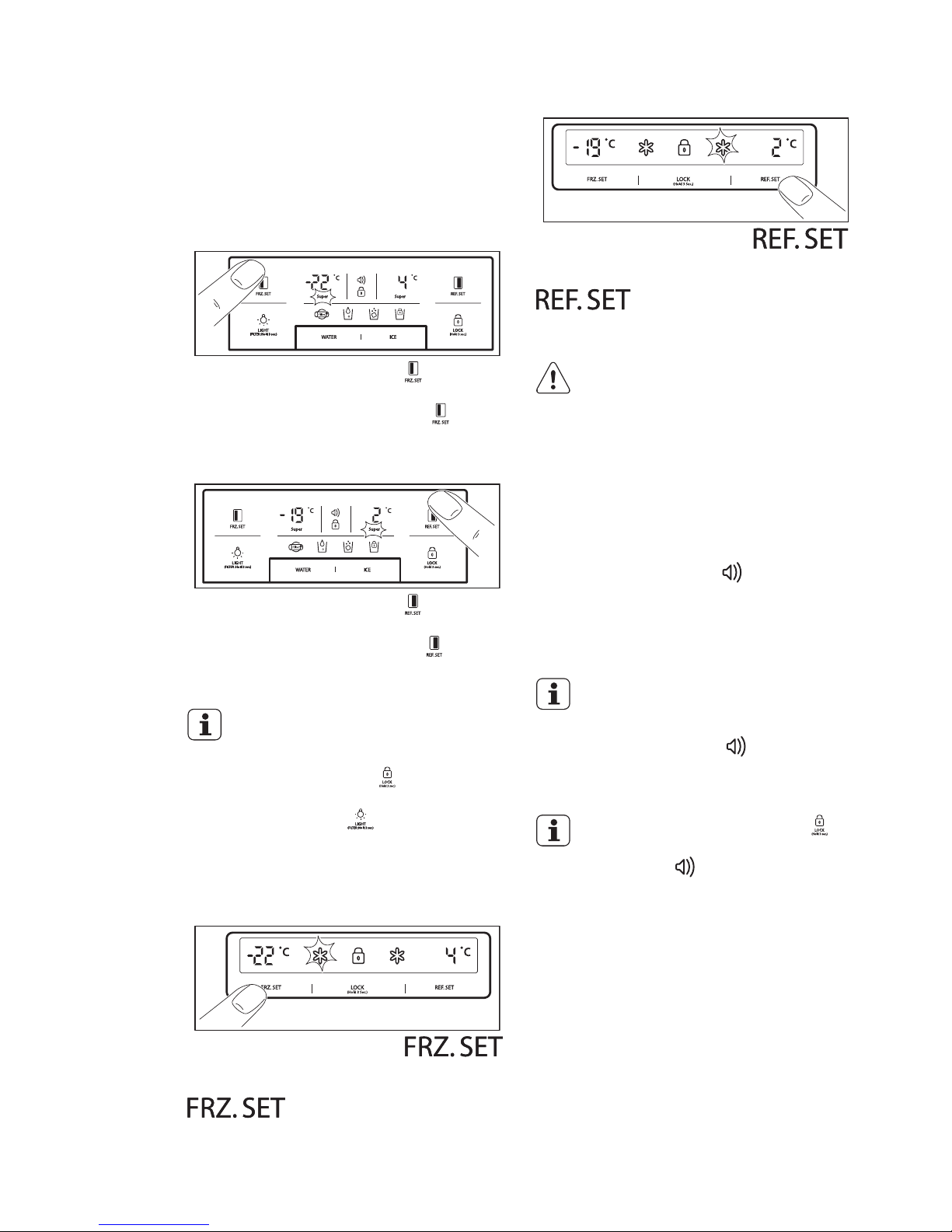

TEMPERATURE CONTROL
When the appliance is plugged in for a rst
time, the temperature mode is set to Mid-
dle.
DISPENSER MODEL
Freezer Compartment
For temperature setting push button,
until desired value displays.
For Faster Freezing function hold button
until super LED turns on. To stop this func-
tion, just push the button again.
Refrigerator Compartment
For temperature setting push button,
until desired value displays.
For Faster Cooling function hold button
until super LED turns on. To stop this func-
tion, just push the button again.
Temperature indicator convert
function (Fahrenheit-Celsius)
Default setting is Celsius.
Press lock button to enter
locked mode. Under the locked
mode , press and WATER but-
ton at the same time for 10 sec-
onds to swap temperature scale.
NON DISPENSER MODEL
Freezer Compartment
For temperature setting push
button until desired temperature displays.
For Faster Freezing function hold
button until super LED turns
on. To stop this function, just push the but-
ton again.
Refrigerator Compartment
For temperature setting push
button until desired temperature displays.
For Faster Cooling function hold
button until super LED turns
on. To stop this function, just push the but-
ton again.
CAUTION!
Food in refrigerator can be frozen if
the ambient temperature of the re-
frigerator is below 5° C.
HIGH TEMPERATURE MODE
DISPENSER MODEL
An increase in temperature in freezer or re-
frigerator compartment is indicated by:
tashing the alarm icon (buzzer does
not sound)
telectronic system shows the maximum
temperature reached inside the compart-
ments
Even though normal operation of
the appliance is restored and inner
temperature reaches a normal
range, alarm icon still blinks and
display indicator shows the highest
temperature reached .
When you press Lock button ,
alarm mode is terminated and
alarm icon goes o. The display
shows adjusted temperature value.
NON DISPENSER MODEL
An increase in temperature in freezer or re-
frigerator compartment is indicated by:
tashing of a display of freezer or / and
refrigerator compartment
telectronic system shows the maximum
temperature reached inside the compart-
ments
11

Even though normal operation of
the appliance is restored and inner
temperature reaches a normal
range, the display still ashes and
the highest temperature reached is
indicated.
When you press Lock button
, high temperature mode is
terminated and the display shows
adjusted temperature value.
"OFF" FUNCTIONS
tInterior lights of the appliance turn o
when the door is open for more than 10
minutes
tDisplay O function:
–5minutes after no button is pressed
or no doors are open, all the display
LED lamps switch o except for WA-
TER, ICE and icon
– After the LED o mode, the appliance
returns to a normal display mode
when you press any button or open
the door.
tSystem O function (Power O func-
tion ):
– you can stop operating the appliance
without unplugging it, especially during
holiday
–pressing and
button at the same time
for 5 seconds result in switching o
the appliance
– during the “OFF” mode freezer and re-
frigerator temperature displays “ — —
“ . Other LED lights go o and the
whole operation of your appliance
stops.
– on the contrary, hold button
and to-
gether for 5seconds to clear the
“OFF” function
DOOR OPEN ALARM
An acoustic alarm will sound if refrigerator
or freezer door is left open for 1minute.
The alarm will stop after 5 minutes. When
normal conditions are restored (door is
closed), the alarm stops.
12

OPTIONS
MAGIC COOL ZONE
When you plug the appliance for a rst time
FRESH LED is ON.
For changing settings step by step use SE-
LECT button.
Step Display Target Temperature
1. FRESH +5°C to +6°C.
2. VEGETABLE +3°C to +4°C.
3. FISH –1°C to +0°C.
4. MEAT –3°C to –2°C.
DISPENSER
Select WATER or ICE button and smoothly
push the lever with you cup, after 2 sec-
onds:
tIf you pressed WATER button, icon
will light up
tIf you pressed ICE button, icon will
light up.
When cleaning the ice cubes case assem-
bly or you do not use it for a longer time,
remove the ice cubes from the Ice Storage
Case and lock the Ice Maker by pushing
ICE button for 3 seconds. will light up.
CAUTION!
Avoid using thin fragile cups or
crystal glasses while collecting ice
cubes.
CAUTION!
If the ice is discoloured, stop using
the dispenser and call a service
agent.
Use only ice from this appliance.
AUTOMATIC ICE MAKER
tAbout 10 ice cubes are made at one
time, 14–15 times a day. If the Ice Stor-
age Case is full, ice making stops.
tIt is normal for Ice Maker to make bang-
ing sounds when ice cubes are falling in-
to Ice Storage Case.
tTo prevent a bad odour or smells, regu-
larly clean the Ice Cube Storage Case.
tIf the amount of ice in the storage case is
not sucient, the ice may not be dis-
pensed. Wait a day or so to make more
ice.
tIf the ice does not dispense easily, en-
sure the dispenser outlet is not blocked.
tIf ice cubes get stuck and do not dis-
pense, pull out the Ice Storage Case and
separate the ice cubes which may have
stuck together.
CAUTION!
If the amount of water which is
supplied to Ice Maker needs ad-
justing, call for a service agent.
13

CAUTION!
In case of power failure ice cubes
may melt and ow down to the
oor. If you expect such situation to
last for long hours, pull out the
case and remove the ice cubes
from it, then replace it back.
14

HELPFUL HINTS AND TIPS
HINTS FOR STORING FOOD
tWash foods before storing.
tDivide and separate foods into smaller
pieces.
tPlace watery foods or foods with much
moisture in front of shelves (close to the
door side). If they are placed close to the
cold air spout, they can be frozen.
tWarm or hot foods should be cooled
down enough before storing to reduce
power consumption and to enhance re-
frigeration performance.
tBe careful in storing tropical fruit such as
bananas, pineapples and tomatoes as
they can easily deteriorate in lower tem-
perature.
tKeep as much space between foods as
possible. If it is too tight or too close,
cold air circulation is hindered, resulting
in poor refrigeration.
tNever forget to cover or wrap foods to
prevent odour of foods.
tDo not store vegetables in the chilled
place as they can become frozen.
tEgg case can be placed on a refrigerator
shelf the way you prefer.
15

CARE AND CLEANING
CLEANING OF THE INTERIOR
PARTS
Use cloth with water and mild (neutral) de-
tergent to clean.
1.
Dispenser Water Shelf
Remove the spill grill and clean the wa-
ter shelf regularly (the spill shelf is not
self-draining).
2.
Ice Cube Storage Case
– Removing: pull up the case assem-
bly forward to remove.
– Replacing: t to the side grooves
and insert to the end. If it is dicult
to fully insert the case, remove it, ro-
tate the swirl coil in the case or drive
mechanism a quarter turn and insert
again.
– Do not store ice cubes for too long.
3.
Freezer and Refrigerator Pockets
Hold both ends and pull up.
4.
Freezer and Refrigerator Shelves
Open the door comp letely, then pull
shelves forward to remove.
5.
Vegetable and Fruit Case
Pull forward and lift up a bit to remove.
CLEANING OF DOOR
PACKAGING
Use cloth with mild (neutral) detergent.
CLEANING OF THE BACK OF
THE APPLIANCE (MACHINE
ROOM)
Remove dust on a grill with a vacuum
cleaner at least once a year.
16

CHANGING THE INTERIOR LED
LIGHT
CAUTION!
LED light should be replaced only
by a service agent or similarly quali-
ed person.
CAUTION!
Be sure to unplug the appliance
rst!
Freezer and refrigerator LED changing
1.
Separate a back side of a LED cover
using a screwdriver.
2.
Separate the LED cover and loosen 2
xing screws for a LED plate.
x2
3.
Disconnect a harness of the LED plate
and change LED.
An assembly method is the oppo-
site of a disassembling sequence.
17

WHAT TO DO IF…
Please check up the following trou-
bleshooting tips before you call for
service!
Problem Checkup Point Solution
It never gets cold inside.
Freezing and refrigerating
is not sucient.
tIs the appliance unplug-
ged?
tIs temperature set to
LOW mode?
tIs the appliance under a
direct sunlight or is any
heat appliance placed
near it ?
tIs the space between
the back of the appli-
ance and the wall too
small?
tPlug in the appliance.
tSet temperature mode
to MIDDLE or HIGH .
tMove to a place where
there is no direct sun-
light, no heat appliances
around.
tKeep sucient space
(more than 10 cm) be-
tween the back of the
appliance and the wall.
Foods in the appliance get
frozen.
tIs temperature set to
STRONG mode ?
tIs surrounding tempera-
ture too low?
tIs the food with much
moisture stored close to
the cold air spout?
tSet temperature to MID-
DLE or LOW mode.
tFoods can be frozen if
ambient temperature is
below 5 °C. Move to a
place where the tem-
perature is over 5 °C.
tPlace foods with mois-
ture on the shelves
close to the doors.
Strange sound from the
appliance.
tIs oor beneath the ap-
pliance uneven?
tIs the space between
the back of the appli-
ance and the wall too
small?
tDo any objects or other
stu touch the appli-
ance?
tMove the appliance to a
level and even oor.
tKeep sucient space.
tRemove any object
away which touches the
appliance.
Strange sounds : crack-
ing, clicking, water ow-
ing, humming or buzzing.
It is normal (if the appli-
ance is not leveled, the
sound can be louder).
18
