This instruction book contains safety precautions, information on use and helpful hints and tips.
To ensure you see this appliance effectively and safely, please read this instruction book carefully
before installing or using this appliance and retain for future reference.

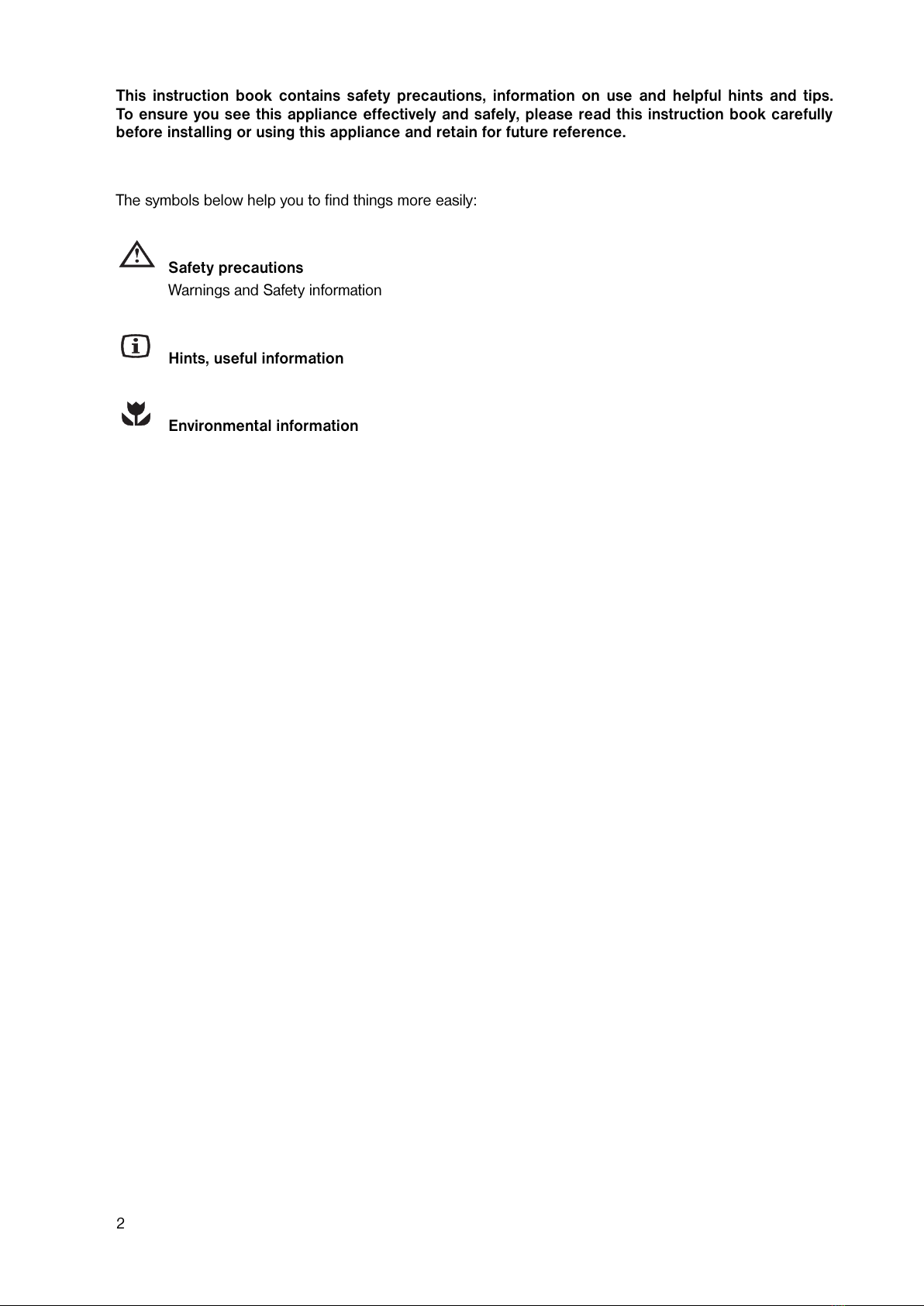

The symbols below help you to find things more easily:
Safety precautions
Warnings and Safety information
Hints, useful information
Environmental information
All manuals and user guides at all-guides.com

Servicing
This product should be serviced by an
authorised engineer and only genuine spare
parts should be used.
Under no circumstances should you attempt to
repair the appliance yourself. Repairs carried out
by inexperienced persons may cause injury or
serious malfunctioning. Contact Expert
Appliance Care.
At the end of the Appliance Life
When disposing of your appliance use an
authorised disposal site.
Remove the plug and ensure that any locks or
catches are removed, to prevent young children
being trapped inside.
The Appliance and the Environment
This appliance does not contain gasses which
could damage the ozone layer.
Avoid damaging the cooling unit.
The packaging used on this appliance marked with
the symbol is recyclable.
Keep this instruction book for future
reference and ensure it is passed on to any
new owner.
3
IMPOR
IMPORT TANT S ANT SAFET AFETY INS Y INSTR TRUCTIONS UCTIONS
These warnings are provided in the interests of your safety. Ensure that you understand them all
before installing or using this appliance. Your safety is of paramount importance. If you are unsure
about any of the meanings or these warnings contact the Customer Care Department.
Prior to installation
Check the appliance for transport damage. Under
no circumstances should a damaged appliance be
installed. In the event of damage please contact
your retailer.
Installation
This appliance is heavy. Care should be taken when
moving it.
It is dangerous to alter the specifications or attempt
to modify this product in any way.
Ensure that the appliance does not stand on the
electrical supply cable. If the supply cable is
damaged, it must be replaced by a cable available
from Expert Appliance Care.
Any electrical work required to install this appliance
should be carried out by a qualified electrician or
competent person.
Parts which heat up should not be exposed.
Whenever possible, the back of the appliance
should be close to a wall, but leaving the required
distance for ventilation, as stated in the installation
instructions.
The appliance should be left for 2 hours after
installation before it is turned on, in order to allow
the refrigerant to settle.
Child Safety
Do not allow children to tamper with the controls or
play with the product.
There is a risk of suffocation! Keep packaging
material away from children!
During Use
This appliance is designed for domestic use only,
specifically for the storage of edible foodstuffs. It is
not intended for commercial or industrial use.
Maintenance and Cleaning
Before cleaning, always switch off the appliance
and disconnect from the electrical supply.
When unplugging always pull the plug from the
mains socket, do not pull on the cable.
All manuals and user guides at all-guides.com

4
CONTENT
CONTENTS S
Instructions for the User
Guide to use the instruction book 2
Important Safety Instructions 3
Instructions for the User 5
Description of the Appliance 5
Using the Appliance 6
Before Use 6
To Start the Appliance 6
Controlling the temperature, setting 6
Hints and storage 7
Storage Shelf 7
The Ice-making Compartment 7
Hints and Tips 7
Food Storage 7
Frozen food storage 7
Energy Saving Advice 8
Storage time chart 9
Maintenance and Cleaning 10
Internal cleaning 10
External cleaning 10
When the appliance is not in use 10
Something Not Working 11
Instructions for the Installer
Technical Data 11
Location 11
Installing the Appliance 11
Transportation, Unpacking 11
Location 11
Electrical connection 12
All manuals and user guides at all-guides.com

5
Ins
Instr tructions f uctions for the User or the User
General information
This appliance is desiged for the refrigeration of food
in a domestic home. It also has an ice-making
compartment.
To ensure correct operation, this appliance should
be located where the ambient temperature is
between 10-38 °C

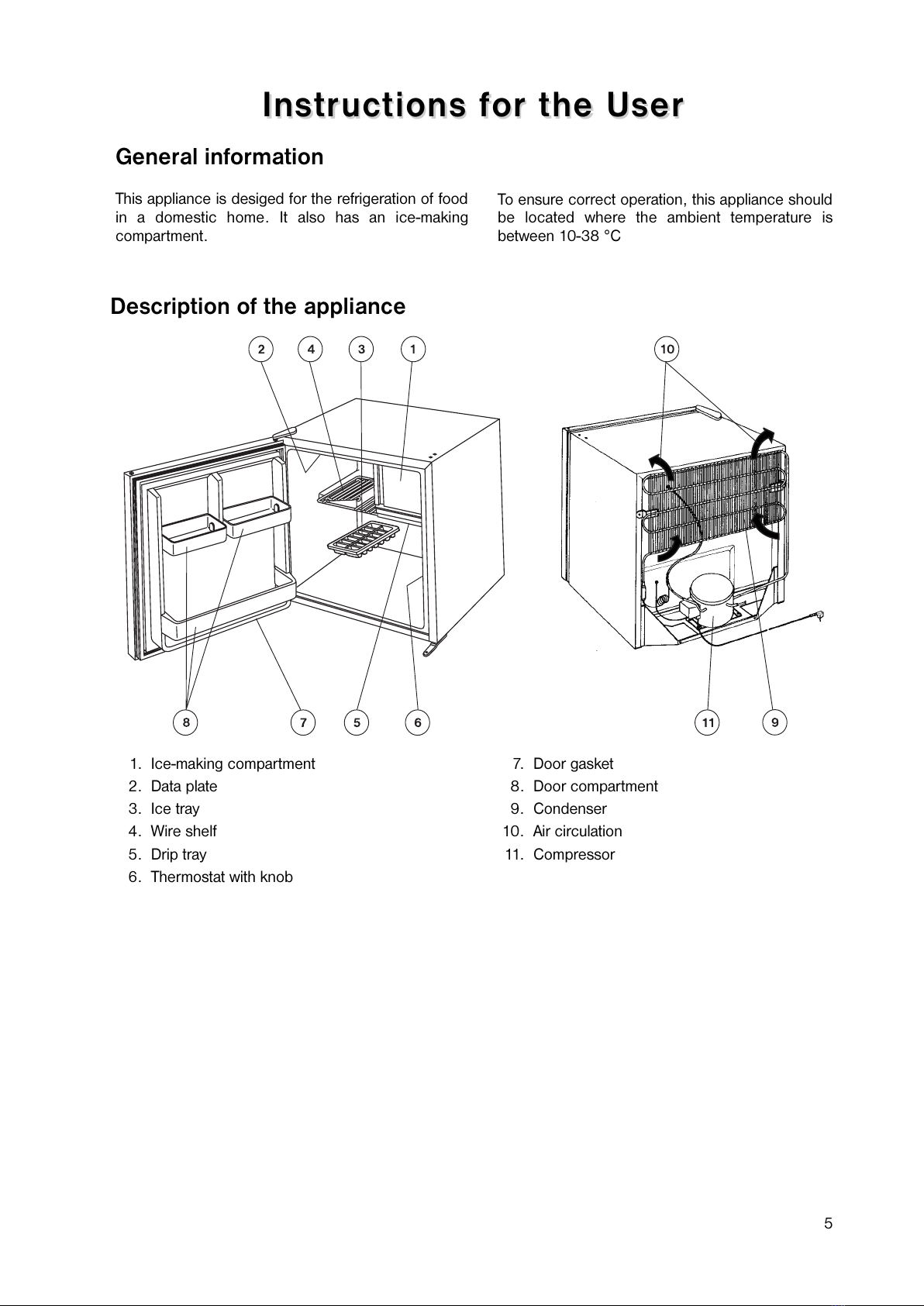

Description of the appliance
1. Ice-making compartment
2. Data plate
3. Ice tray
4. Wire shelf
5. Drip tray
6. Thermostat with knob
7. Door gasket
8. Door compartment
9. Condenser
10. Air circulation
11. Compressor
All manuals and user guides at all-guides.com

6
Using the Appliance
Before Use
Remove all securing tapes.
Wash the inside of the appliance with lukewarm water
with a little bicarbonate of soda added (5 ml to 0,5 litre
of water). Do not use soap or detergent as the smell
may linger. Dry the appliance thoroughly.
Do not use detergents, abrasive powders,
highly perfumed cleaning products, wax
polishes or products containing alcohol.
FFTo Start the Appliance
1. Allow the appliance to stand for 2 hrs after
installation.
2. Plug in the appliance and switch on at the mains
supply.
3. Turn the thermostat control knob to the required
setting. A setting of 4 is usually suitable for normal
operation (see thermostat control).
4. Leave the appliance for approximately 4 hours for
the correct temperature to be reached before
placing food inside.
Controlling the temperature, setting
The thermostatic controller interrupts the operation of
the appliance automatically for more or less time
depending on the setting then restarts it assuring the
required temperature.
Turning the control button towards the bigger numbers
cooling becomes more and more intensive.
In the ice-making compartment can be reached -2 °C
or lower temperature if the knob of the thermostatic
control is set according to following table:
Ambient temperature Thermostat setting
from 10 °C to 16 °C 1
from 16 °C to 25 °C 1-2
from 25 °C to 32 °C 2-3
from 32 °C to 38 °C 3-4
In this case the temperature starting automatically in
the fresh food compartment is about +5 °C or below.
The setting 5., 6. and 7. are suitable for quick chill of
big quantity goods.
The temperature coming about in the refrigerator is
effected by not only the position of the thermostatic
control but the ambient temperature, frequency of
door openings and the quantity of food put into it
newly etc.
In the maximum i.e. 7 position - in case of
increased demand e.g. during heatwaves -
without disconnecting continuous operation can
occur. This does not cause damages to the appliance.
All manuals and user guides at all-guides.com
all-guides.com

7
Storage Shelf
The shelf inside the appliance has a flap on the
left side that makes storing large sized bottles
possible.
The door shelves taken out of appliance can be used
for serving foods (fruit, salads, etc.)
The Ice-making Compartment
This compartment is suitable for the storing of
commercially frozen food and for making and storing
ice cubes.
Hints & Tips
Food Storage
To obtain the best results from your appliance
neither hot foods nor liquids which may evaporate,
should be placed in the refrigerator.
Keep the time between buying chilled food and
placing it in your fridge as short as possible.
Do not push food together too much, try to allow air
to circulate around each item.
Do not store food uncovered.
Remove suspect food from your refrigerator and
clean, refer to Cleaning and Maintenance.
Frozen food storage
Storing ready-frozen foods is quite straightforward.
The packs can be placed beside each other or on top
of each other.
Hints for storage
Suggested storage locations for different types of
food produce:
1. Storing frozen foods, making ice and ice-cream.
2. Confectionery, ready-cooked foods
3. Foods in dishes
4. Opened cans
5. Milk, dairy products
6. Fresh meat, cold cuts, sausages, etc.
7. Fruits, vegetables, salads
8. Cheese, butter
9. Eggs
10. Yoghurt, sour cream
11. Bottles, drinks
All manuals and user guides at all-guides.com

8

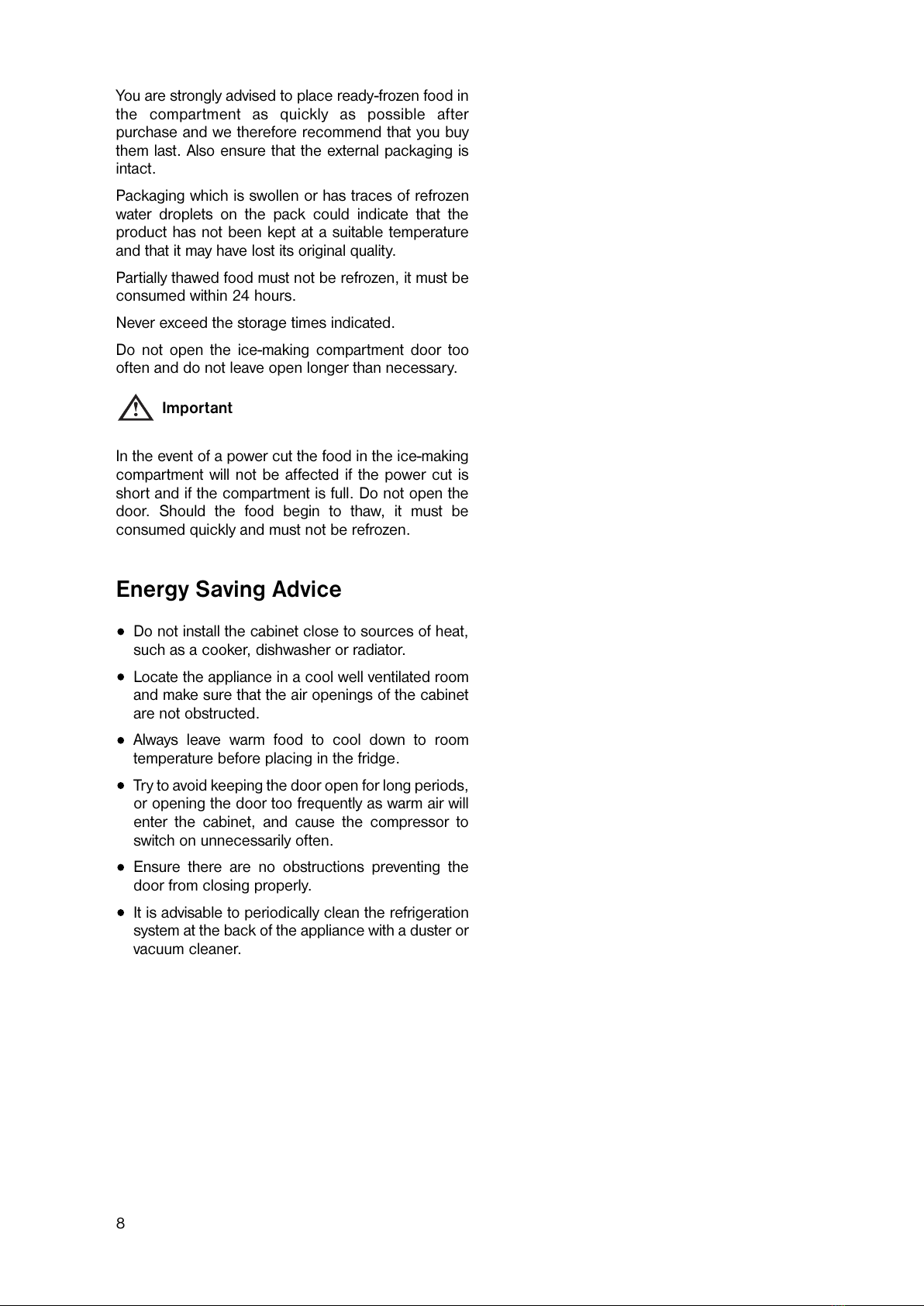

You are strongly advised to place ready-frozen food in
the compartment as quickly as possible after
purchase and we therefore recommend that you buy
them last. Also ensure that the external packaging is
intact.
Packaging which is swollen or has traces of refrozen
water droplets on the pack could indicate that the
product has not been kept at a suitable temperature
and that it may have lost its original quality.
Partially thawed food must not be refrozen, it must be
consumed within 24 hours.
Never exceed the storage times indicated.
Do not open the ice-making compartment door too
often and do not leave open longer than necessary.
Important
In the event of a power cut the food in the ice-making
compartment will not be affected if the power cut is
short and if the compartment is full. Do not open the
door. Should the food begin to thaw, it must be
consumed quickly and must not be refrozen.
Energy Saving Advice
Do not install the cabinet close to sources of heat,
such as a cooker, dishwasher or radiator.
Locate the appliance in a cool well ventilated room
and make sure that the air openings of the cabinet
are not obstructed.
Always leave warm food to cool down to room
temperature before placing in the fridge.
Try to avoid keeping the door open for long periods,
or opening the door too frequently as warm air will
enter the cabinet, and cause the compressor to
switch on unnecessarily often.
Ensure there are no obstructions preventing the
door from closing properly.
It is advisable to periodically clean the refrigeration
system at the back of the appliance with a duster or
vacuum cleaner.
All manuals and user guides at all-guides.com

9
S

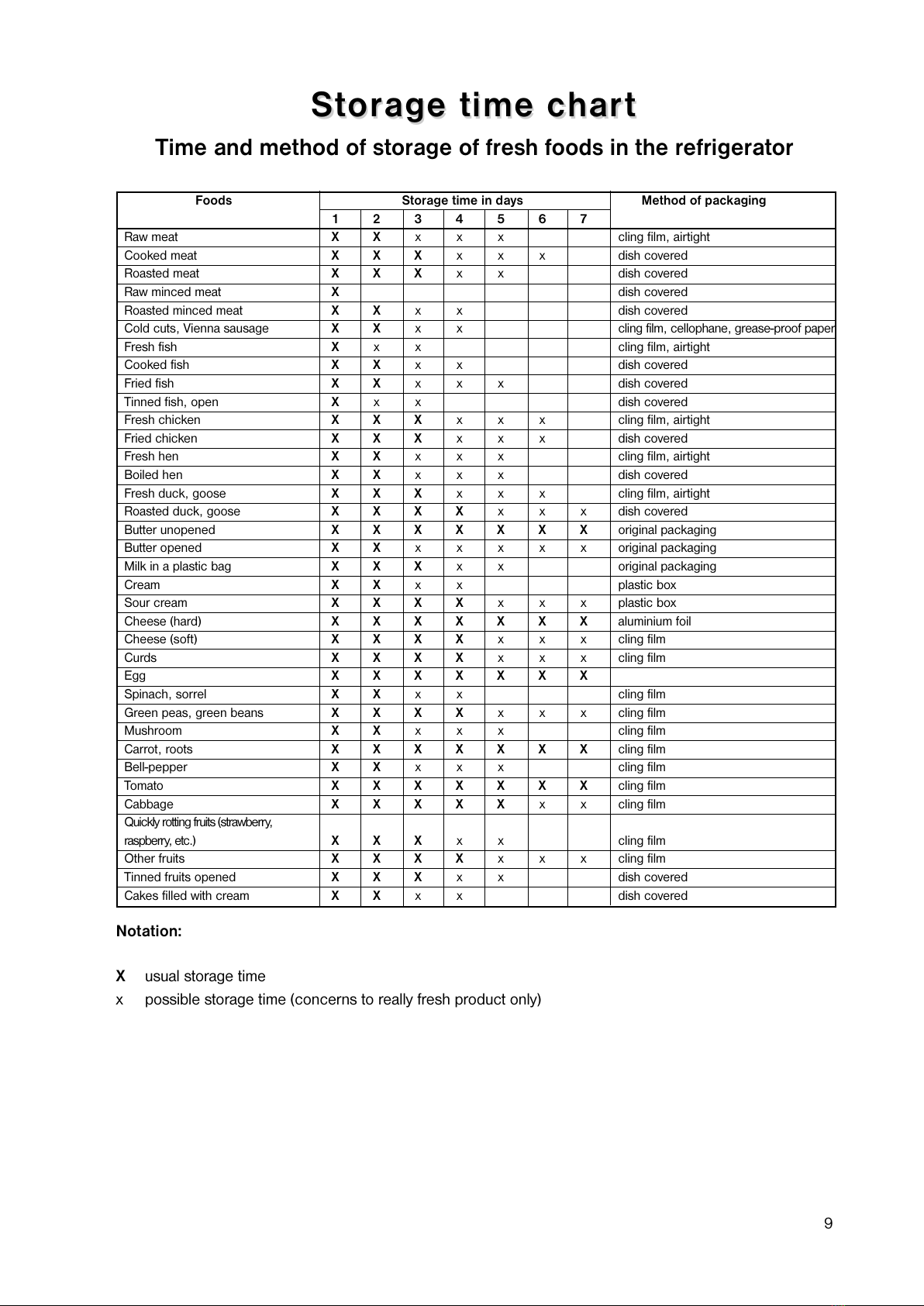

St tor orage time char age time chart t
Time and method of storage of fresh foods in the refrigerator
Notation:
Xusual storage time
x possible storage time (concerns to really fresh product only)
Foods Storage time in days Method of packaging
1234567
Raw meat XXx x x cling film, airtight
Cooked meat XXXx x x dish covered
Roasted meat XXXx x dish covered
Raw minced meat Xdish covered
Roasted minced meat XXx x dish covered
Cold cuts, Vienna sausage XXx x cling film, cellophane, grease-proof paper
Fresh fish Xx x cling film, airtight
Cooked fish XXx x dish covered
Fried fish XXx x x dish covered
Tinned fish, open Xx x dish covered
Fresh chicken XXXx x x cling film, airtight
Fried chicken XXXx x x dish covered
Fresh hen XXx x x cling film, airtight
Boiled hen XXx x x dish covered
Fresh duck, goose XXXx x x cling film, airtight
Roasted duck, goose XXXXx x x dish covered
Butter unopened XXXXXXXoriginal packaging
Butter opened XXxxxxxoriginal packaging
Milk in a plastic bag XXXx x original packaging
Cream XXx x plastic box
Sour cream XXXXx x x plastic box
Cheese (hard) XXXXXXXaluminium foil
Cheese (soft) XXXXx x x cling film
Curds XXXXx x x cling film
Egg XXXXXXX
Spinach, sorrel XXx x cling film
Green peas, green beans XXXXx x x cling film
Mushroom XXx x x cling film
Carrot, roots XXXXXXXcling film
Bell-pepper XXx x x cling film
Tomato XXXXXXXcling film
Cabbage XXXXXx x cling film
Quickly rotting fruits (strawberry,
raspberry, etc.) XXXx x cling film
Other fruits XXXXx x x cling film
Tinned fruits opened XXXx x dish covered
Cakes filled with cream XXx x dish covered
All manuals and user guides at all-guides.com

10
Maint
Maintenance & Cleaning enance & Cleaning
Before any maintenance of cleaning work is
carried out DISCONNECT the appliance from
the ELECTRICITY SUPPLY.
Internal Cleaning
Clean the inside and accessories with warm water and
bicarbonate of soda (5 ml to 0.5 litre of water). Rinse
and dry thoroughly.
NEVER use detergents, abrasive powders,
highly perfumed cleaning products or wax
polishes to clean the interior as these will
damage the surface and leave a strong
odour.
External Cleaning
Wash the outer cabinet with warm soapy water.
When the appliance is not in use
When the appliance is not in use for long periods,
disconnect from the electricity supply, empty all foods
and clean the appliance, leaving the door open to
prevent unpleasant smells.
Defrosting
While the appliance is in operation the ice-making
compartment becomes progressively covered with
frost.
This frost, acts as an insulator and prevents the
cold from reaching the insulator food. The frost
should be removed whenever the thickness of the
frost exceeds 1/4. To carry out complete
defrosting proceed as follows.
Pull out the plug from the wall socket or turn the
thermostat control knob to the '0' position.
Leave the fridge and ice-making compartment
doors open, when defrosting is completed, dry the
appliance thoroughly. Remove any defrost water
collected in the tray.
Replace the plug in the socket or return the
thermostat to the initial position and, after letting
the appliance run for at least an hour, place the
food in the refrigerator.
All manuals and user guides at all-guides.com

11
Problem
No power to the
appliance
The temperature in the
appliance is too high
The temperature in the
appliance is too low
Excessive frost and ice
has built up
The appliance is noisy.
Possible Cause
No power at the socket.
There is a power cut.
The fuse has blown.
Thermostat control is set at 0.
The appliance is located in an unsuitable position.
The thermostat control is set too low.
The thermostat control is set too high.
The door has been left open.
Something is obstructing the door.
The door gasket is dirty.
The appliance is not level.
Solution
Check there is power at the socket.
Check there is not a power cut by checking the
household lights.
Check the fuse has not blown.
Check the thermostat setting.
Check the ambient temperature is within the
appliances operating limits of 12 °C to 32 °C.
Check that the thermostat control knob is turned
to the correct setting relative to ambient
conditions.
Set the thermostat control knob to a lower
position.
Check the door has not been left open.
Check nothing is preventing the door from closing.
Check the door gasket is intact and clean.
Check if the appliance stands stable (all four feet
should be on the floor).
Some
Something N thing No ot W t Wor orking king
If the appliance is not working correctly, please carry out the following checks before contacting
Expert Appliance Care.
If after the above checks your appliance still does not
operate correctly, contact your local Service Force
Center.
Please note that it will be necessary to provide proof
of purchase for any in-guarantee service calls.
In-guarantee customers should ensure that the
above checks have been made, as the
engineer will make a charge if the fault is not a
mechanical or electrical breakdown.
All manuals and user guides at all-guides.com
all-guides.com

12
Ins
Instr tructions f uctions for the Ins or the Inst taller aller
Technical data
EFR 0563C
Ice-making comp.: 5
Fresh food comp.: 65
Ice-making comp.: 5
Fresh food comp.: 62
525
520
587
0,53
193
B
40
24
Model
Gross capacity (l)
Net capacity (l)
Width (mm)
Height (mm)
Depth (mm)
Energy consumption (kWh/24h)
(kWh/year)
Energy class, according to EU standards
Rated power (W)
Weight (kg)
Installing the appliance
Transportation, unpacking
The appliance and the interior fitting are protected for
transport.
Remove all packaging and any adhesive tape.
Any remnants of adhesive can be removed using
white spirit.
After transportation the appliance must not be
switched on for 2 hours. This is to allow the
refrigerant to settle.
Cleaning
Clean the accessories and the inside of the appliance
with warm water and bicarbonate of soda (5 ml to 0.5
litres of water). Rinse and dry thoroughly.
Do not use detergents, abrasive powders, highly
perfumed cleaning products, wax polishes or
cleaning products containing bleach or alcohol.
Location
The appliance should be positioned in a well
ventilated, dry room.
Energy use is affected by the ambient temperature.
The appliance should therefore:
not be installed next to radiators, cookers or
other sources of heat
only be installed at a location where the ambient
temperature corresponds to the climate
classification, for which the appliance is
designed.
The climate classification can be found on the data
plate.
The following table shows which ambient
temperature is correct for each climate
classification:
Climate Classification Ambient Temperature
SN +10 to +32 °C
N +16 to +32 °C
ST +18 to +38 °C
All manuals and user guides at all-guides.com

13
Electrical connection
This refrigerator is designed to operate on a
115 V AC (~) 60 Hz supply.
The plug must be put into a socket with protective
contact. If there is no such, it is recommended to
get an electrician to fit an earthed socket in
compliance with standards near the refrigerator.
This appliance complies with the following
E.E.C. Directives:
73/23 EEC of 19.02.73 (Low Voltage Directive)
and subsequent modifications,
89/336 EEC of 03.05.89 (Electromagnetic
Compatibility Directive) and subsequent
modifications.
All manuals and user guides at all-guides.com
